(继续上一篇的5、结果验证）

5.5、不同网段，不同Leaf下服务器Ping

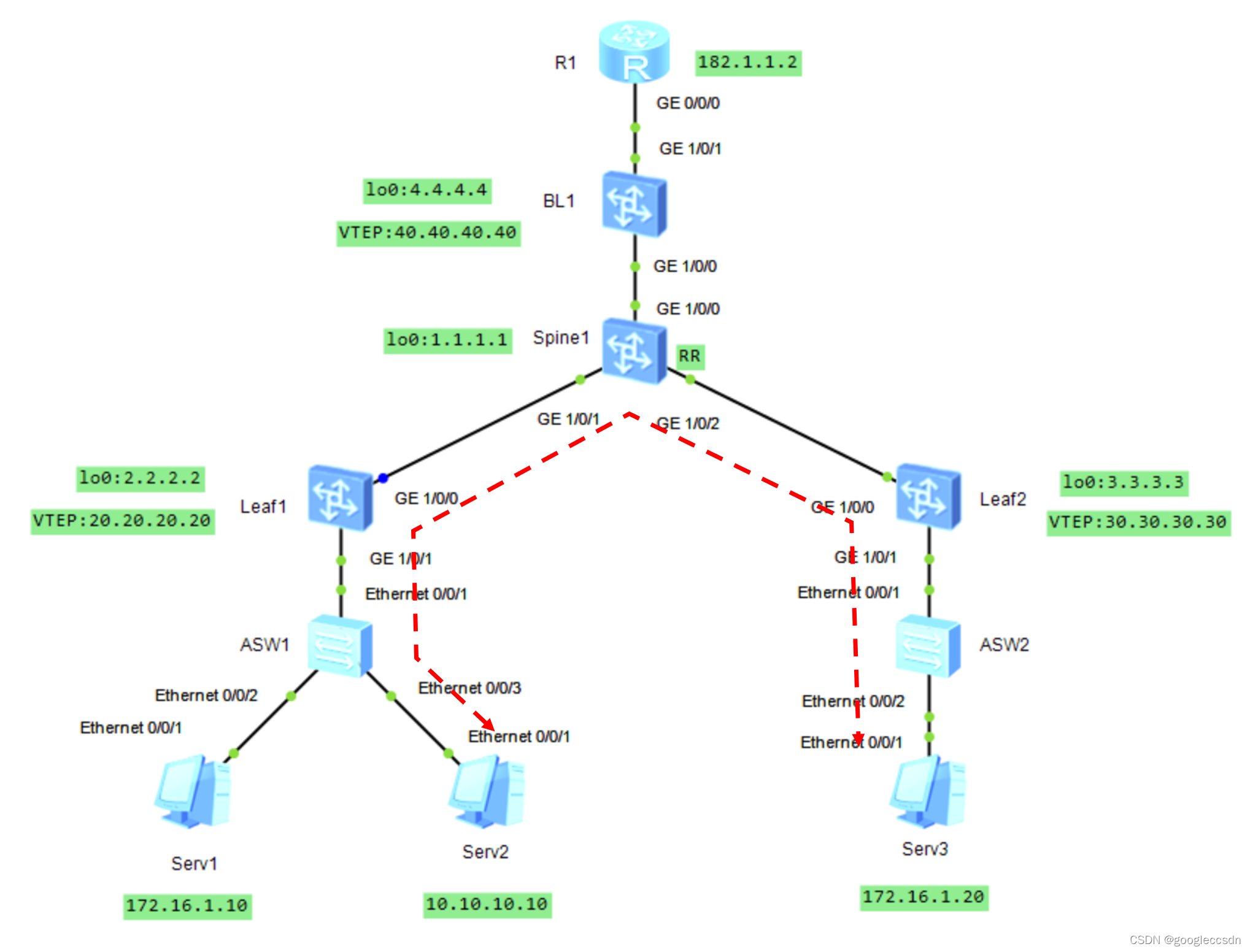

（抓包端口：

  • Leaf1网络侧GE1/0/0和业务侧GE1/0/1
  • Leaf2网络侧GE1/0/0和业务侧GE1/0/1）

1、分析

10.10.10.10和172.16.1.20是不同网段，处于不同Leaf下。

由于ENSP下，服务器都类似静默主机，不首先发起通信，所以存在arp过程。

谁首先发起Ping的场景不同。

假定10.10.10.10 ping 172.16.1.20，有以下操作：

1）arp1和arp1reply

首先，10.10.10.10 ping 172.16.1.20，由于10.10.10.10不知道自己网关10.10.10.1的mac（假定为mac1)地址，10.10.10.10先arp（假设为arp1)，获得10.10.10.1的mac1。

10.10.10.1会记录10.10.10.10arp信息(检查命令：dis arp)。

2）icmp1，timeout

10.10.10.10对自己的网关mac地址解析完成后，发出第一个Ping包（简称icmp1)。第一个Ping包会超时。

3）arp2

Leaf1收到后，查询vpn1的路由表，由于172.16.1.1配置为分布式网关，Leaf1上的172.16.1.1需要负责路由这个Ping包，但此时172.16.1.1并不知道172.16.1.20在哪里，所以172.16.1.1需要发送arp2，请求获得172.16.1.20的mac2。这个arp2会从本地对应bridge-domian端口发出去；也会发往vxlan peer，送到Leaf2，Leaf2继续从本地对应bridge-domain端口（属于vxlan vni对应的bridge-domain的端口）发出arp2，最终172.16.1.20收到arp2。

4）arp2reply

182.16.1.20发送的arp2reply，会单播回复给172.16.1.1，Leaf2的172.16.1.1会处理这个arp2reply，并记录172.16.1.20的arp信息(检查命令：dis arp)。

5）irb route

Leaf2的172.16.1.1收到arp2reply，会把172.16.1.20/mac2这个arp信息形成evpn type2 irb route，通过bgp evpn update，宣告给RR（携带mac2/172.16.1.20/L2VNI/L3VNI/router mac)，RR再宣告给Leaf1。

6）host route

Leaf1收到这个update，会更新自己对应bridge-domain的mac表和对应vpn的路由表（产生172.16.1.20的主机路由）。

7）icmp2

10.10.10.10发出第二个Ping包(icmp2)，Leaf1收到去往172.16.1.20的icmp2后，查看vpn路由表的172.16.1.20的host route，会进行L3VNI vxlan封装，送Leaf2处理。Leaf2 NVE端口接受这个vxlan包，进行vxlan解封装，Leaf2查找本地路由表，决定从172.16.1.1送出icmp2，再依赖arp表，完成封装，最终从172.16.1.1的端口送出，到达172.16.1.20。

172.16.1.20发icmp2 reply，到达Leaf2后，查看vpn路由表10.10.10.0/24，下一跳为vxlan 20.20.20.20（这条路由是通过bgp evpn type 5 prefix route学习到的），进行L3VNI vxlan封装，送到Leaf1处理。Leaf1 NVE端口接受这个vxlan包，进行vxlan解封装，Leaf1查看vpn路由，决定从10.10.10.1送出icmp2 reply，再依赖arp表，完成封装，最终从10.10.10.1的端口送出，到达10.10.10.10。至此，完成了icmp2 request/reply的过程。

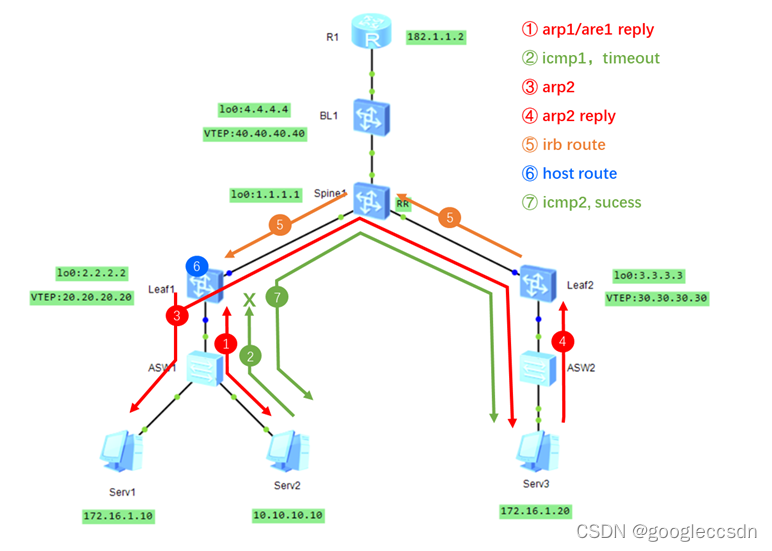

整个过程数据流如下图所示：

2、测试

1）ping前检查

ping之前，检查各表项相关信息都为空

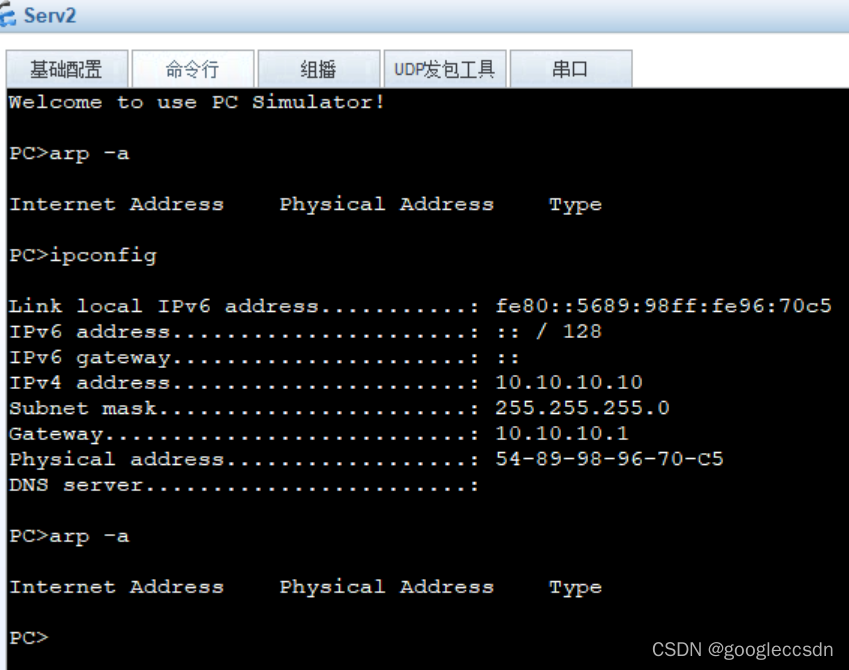

10.10.10.10，arp -a，没有10.10.10.1的arp信息。

 172.16.1.20，类似，没有172.16.1.1的arp信息。

Leaf1 mac/arp没有10.10.10.10/172.16.1.20相关信息：

[Leaf1]dis arp
ARP Entry Types: D - Dynamic, S - Static, I - Interface, O - OpenFlow, RD - Redirect
EXP: Expire-time VLAN:VLAN or Bridge Domain

IP ADDRESS      MAC ADDRESS    EXP(M) TYPE/VLAN       INTERFACE        VPN-INSTANCE
----------------------------------------------------------------------------------------
192.168.12.2    387d-c801-0100        I               GE1/0/0
192.168.12.1    387d-c803-0101   19   D               GE1/0/0
172.16.1.1      0001-0001-0001        I               Vbdif100         vpn1
10.10.10.1      707b-e8da-5876        I               Vbdif200         vpn1
----------------------------------------------------------------------------------------
Total:4         Dynamic:1       Static:0    Interface:3    OpenFlow:0
Redirect:0
[Leaf1]dis mac
Flags: * - Backup
BD   : bridge-domain   Age : dynamic MAC learned time in seconds
-------------------------------------------------------------------------------
MAC Address    VLAN/VSI/BD   Learned-From        Type                Age
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Total items: 0
[Leaf1]dis ip routin
[Leaf1]dis ip routing-table vpn
[Leaf1]dis ip routing-table vpn-instance vp
[Leaf1]dis ip routing-table vpn-instance vpn1
Proto: Protocol        Pre: Preference
Route Flags: R - relay, D - download to fib, T - to vpn-instance, B - black hole route
------------------------------------------------------------------------------
Routing Table : vpn1
         Destinations : 9        Routes : 9

Destination/Mask    Proto   Pre  Cost        Flags NextHop         Interface

     10.10.10.0/24  Direct  0    0             D   10.10.10.1      Vbdif200
     10.10.10.1/32  Direct  0    0             D   127.0.0.1       Vbdif200
   10.10.10.255/32  Direct  0    0             D   127.0.0.1       Vbdif200
     172.16.1.0/24  Direct  0    0             D   172.16.1.1      Vbdif100
     172.16.1.1/32  Direct  0    0             D   127.0.0.1       Vbdif100
   172.16.1.255/32  Direct  0    0             D   127.0.0.1       Vbdif100
      182.1.1.0/24  IBGP    255  0             RD  40.40.40.40     VXLAN
      182.1.1.1/32  IBGP    255  0             RD  40.40.40.40     VXLAN
255.255.255.255/32  Direct  0    0             D   127.0.0.1       InLoopBack0
[Leaf1]

Leaf2也没有10.10.10.10/172.16.1.20相关信息

[Leaf2]dis arp
ARP Entry Types: D - Dynamic, S - Static, I - Interface, O - OpenFlow, RD - Redirect
EXP: Expire-time VLAN:VLAN or Bridge Domain

IP ADDRESS      MAC ADDRESS    EXP(M) TYPE/VLAN       INTERFACE        VPN-INSTANCE
----------------------------------------------------------------------------------------
192.168.13.3    387d-c802-0100        I               GE1/0/0
192.168.13.1    387d-c803-0102    8   D               GE1/0/0
172.16.1.1      0001-0001-0001        I               Vbdif300         vpn1
----------------------------------------------------------------------------------------
Total:3         Dynamic:1       Static:0    Interface:2    OpenFlow:0
Redirect:0
[Leaf2]dis mac
Flags: * - Backup
BD   : bridge-domain   Age : dynamic MAC learned time in seconds
-------------------------------------------------------------------------------
MAC Address    VLAN/VSI/BD   Learned-From        Type                Age
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Total items: 0
[Leaf2]dis ip routi
[Leaf2]dis ip routing-table vp
[Leaf2]dis ip routing-table vpn-instance vp
[Leaf2]dis ip routing-table vpn-instance vpn1
Proto: Protocol        Pre: Preference
Route Flags: R - relay, D - download to fib, T - to vpn-instance, B - black hole route
------------------------------------------------------------------------------
Routing Table : vpn1
         Destinations : 8        Routes : 8

Destination/Mask    Proto   Pre  Cost        Flags NextHop         Interface

     10.10.10.0/24  IBGP    255  0             RD  20.20.20.20     VXLAN
     10.10.10.1/32  IBGP    255  0             RD  20.20.20.20     VXLAN
     172.16.1.0/24  Direct  0    0             D   172.16.1.1      Vbdif300
     172.16.1.1/32  Direct  0    0             D   127.0.0.1       Vbdif300
   172.16.1.255/32  Direct  0    0             D   127.0.0.1       Vbdif300
      182.1.1.0/24  IBGP    255  0             RD  40.40.40.40     VXLAN
      182.1.1.1/32  IBGP    255  0             RD  40.40.40.40     VXLAN
255.255.255.255/32  Direct  0    0             D   127.0.0.1       InLoopBack0
[Leaf2]

2）ping不通的问题排除

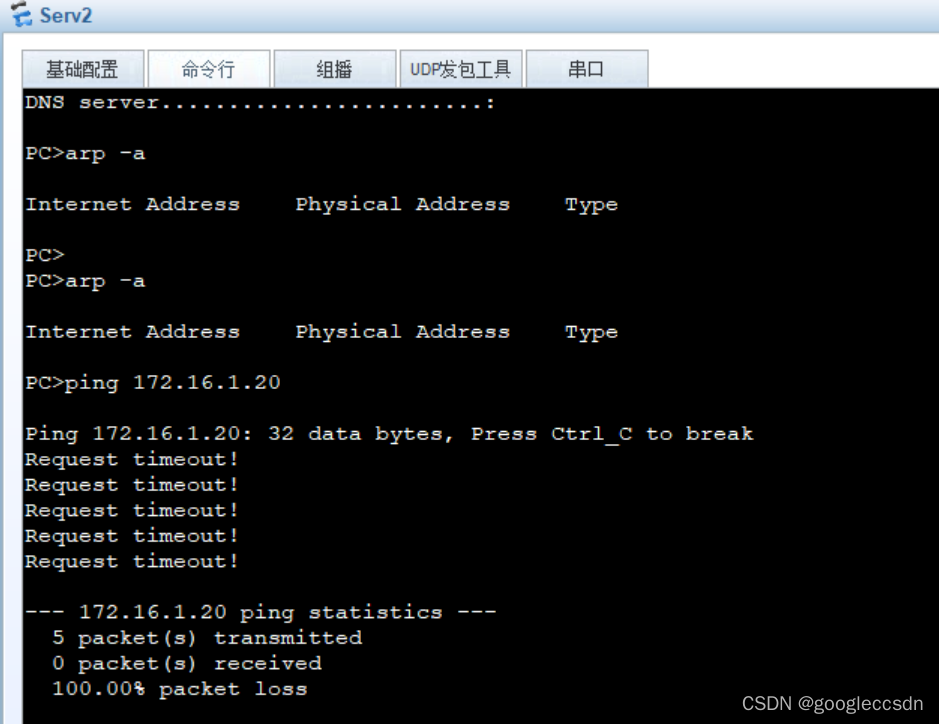

一开始，10.10.10.10 ping不通172.16.1.20：

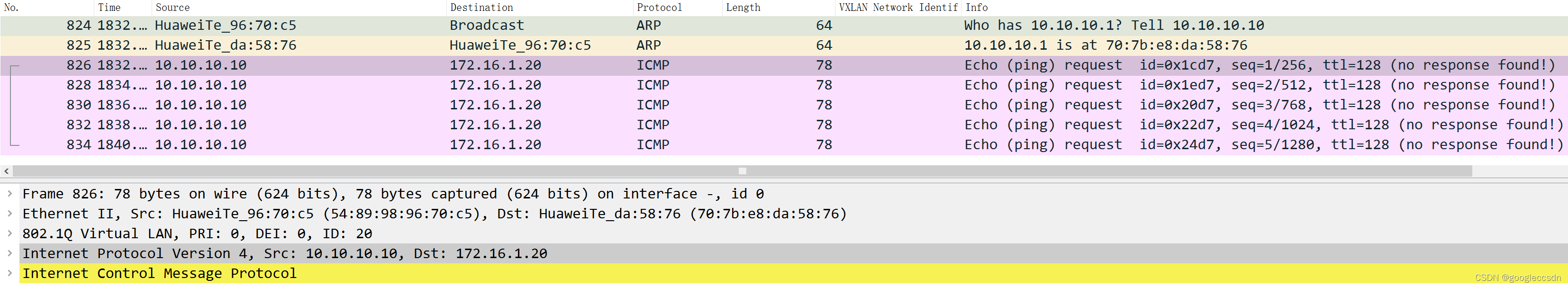

 通告抓包检查，arp1/arp1 reply正常:

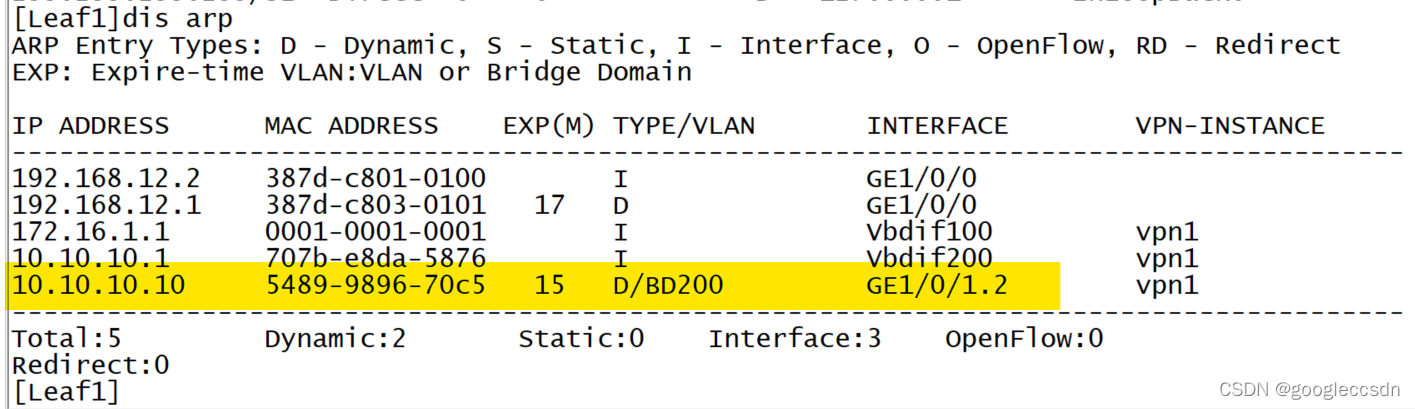

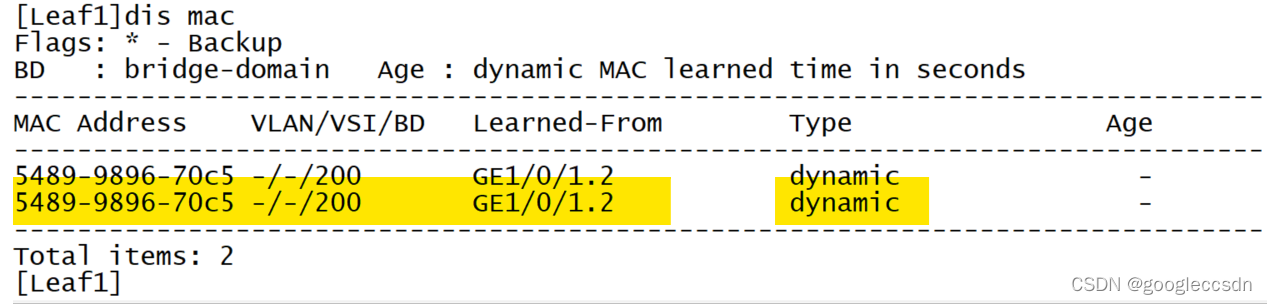

 Leaf1也有10.10.10.10的arp1/mac1信息：



由于10.10.10.1的vbdif没有配置arp collect host，没有触发evpn type2 irb route update。

Leaf1收到icmp1后，触发172.16.1.1发arp2(查询172.16.1.20的mac2）。并通过vxlan发给了Leaf2:

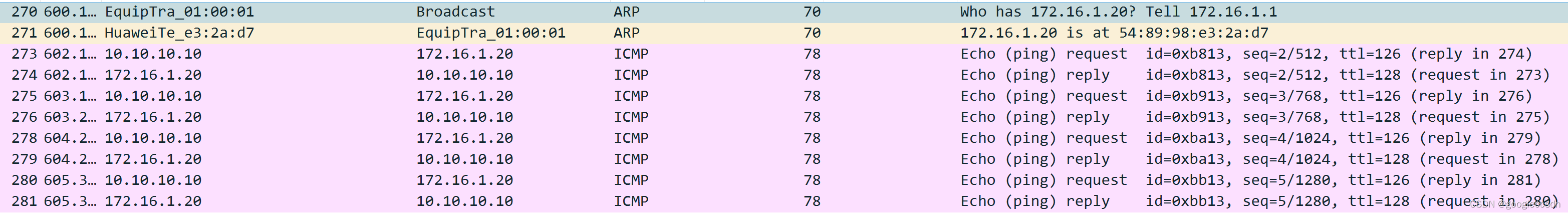

Leaf1 g1/0/0和Leaf2 g1/0/0都抓到arp2包：

Frame 80: 116 bytes on wire (928 bits), 116 bytes captured (928 bits) on interface -, id 0
Ethernet II, Src: 38:7d:c8:01:01:00 (38:7d:c8:01:01:00), Dst: 38:7d:c8:03:01:01 (38:7d:c8:03:01:01)
Internet Protocol Version 4, Src: 20.20.20.20, Dst: 30.30.30.30
User Datagram Protocol, Src Port: 4789, Dst Port: 4789
Virtual eXtensible Local Area Network
    Flags: 0x0800, VXLAN Network ID (VNI)
    Group Policy ID: 0
    VXLAN Network Identifier (VNI): 8000
    Reserved: 0
Ethernet II, Src: EquipTra_01:00:01 (00:01:00:01:00:01), Dst: Broadcast (ff:ff:ff:ff:ff:ff)
Address Resolution Protocol (request)
    Hardware type: Ethernet (1)
    Protocol type: IPv4 (0x0800)
    Hardware size: 6
    Protocol size: 4
    Opcode: request (1)
    Sender MAC address: EquipTra_01:00:01 (00:01:00:01:00:01)
    Sender IP address: 172.16.1.1
    Target MAC address: 00:00:00_00:00:00 (00:00:00:00:00:00)
    Target IP address: 172.16.1.20
Exablaze trailer, Device: 0, Port: 0, Timestamp: 08:00:0.000000000000

但这个arp2没有从Leaf1和Leaf2对应的业务端口发出。。。

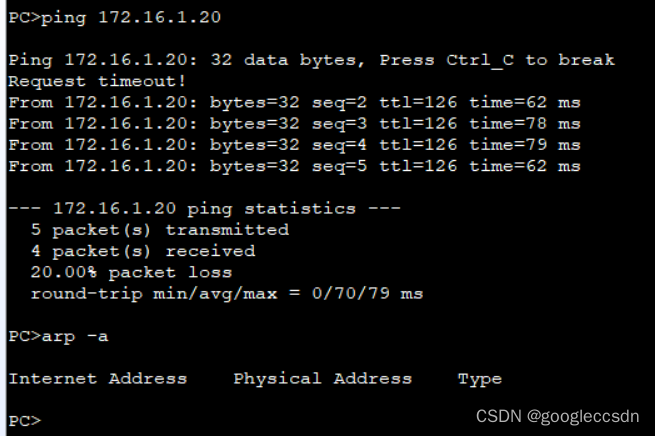

执行undo bridge-domain/bridge-domain后，10.10.10.10 ping通 172.16.1.20

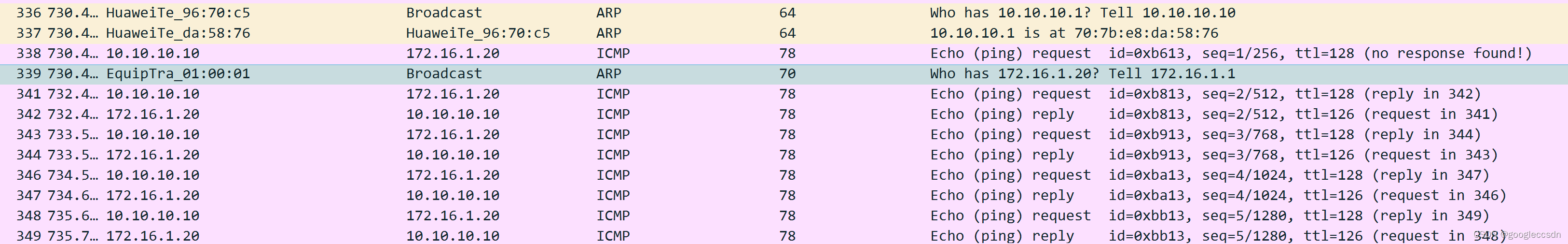

 3）Leaf1业务侧抓包（Leaf1 GE1/0/1）

336，337——arp1/arp1 reply

10.10.10.10发arp1，请求10.10.10.1的mac1，并得到arp1 reply。

338——icmp1

10.10.10.10发出icmp1（0xb613)，icmp1 timeout。

Leaf1收到icmp1，会查vpn1的路由表，需从172.16.1.1发出icmp1，但172.16.1.1没有172.16.1.20的mac2，所以172.16.1.1需要先发arp2，去请求172.16.1.20的mac2。就是339这个包。而本身这个icmp包由于超时，没有reply了。

339——arp2

网关172.16.1.1不知道172.16.1.20的mac，发出arp2。arp2从属于bridge-domain 100的端口g1/0/1.1发出。

341——icmp2

10.10.10.10继续发出第二个ping包(0xb813)，并收到reply。后续ping包能ping通了。

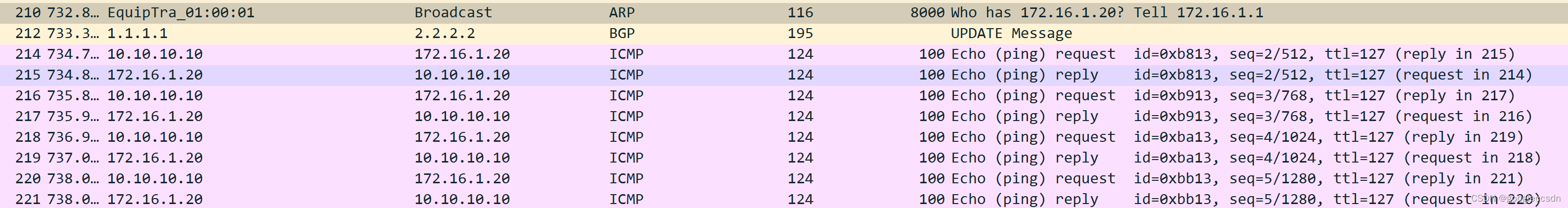

4）Leaf1 网络侧抓包分析（Leaf1 GE1/0/0)

210——arp2

arp2是广播包，所以也从brdige-domain 100对应vni 8000发给vxlan peer（30.30.30.30）。

210具体信息：

Frame 210: 116 bytes on wire (928 bits), 116 bytes captured (928 bits) on interface -, id 0
Ethernet II, Src: 38:7d:c8:01:01:00 (38:7d:c8:01:01:00), Dst: 38:7d:c8:03:01:01 (38:7d:c8:03:01:01)
Internet Protocol Version 4, Src: 20.20.20.20, Dst: 30.30.30.30
User Datagram Protocol, Src Port: 4789, Dst Port: 4789
Virtual eXtensible Local Area Network
    Flags: 0x0800, VXLAN Network ID (VNI)
    Group Policy ID: 0
    VXLAN Network Identifier (VNI): 8000
    Reserved: 0
Ethernet II, Src: EquipTra_01:00:01 (00:01:00:01:00:01), Dst: Broadcast (ff:ff:ff:ff:ff:ff)
Address Resolution Protocol (request)
    Hardware type: Ethernet (1)
    Protocol type: IPv4 (0x0800)
    Hardware size: 6
    Protocol size: 4
    Opcode: request (1)
    Sender MAC address: EquipTra_01:00:01 (00:01:00:01:00:01)
    Sender IP address: 172.16.1.1
    Target MAC address: 00:00:00_00:00:00 (00:00:00:00:00:00)
    Target IP address: 172.16.1.20
Exablaze trailer, Device: 0, Port: 0, Timestamp: 08:00:0.000000000000

 212——irb route

spine1(RR)发给Leaf1的bgp evpn type2 irb route update。

这个信息是Leaf2通过vxlan收到arp2后，leaf2从vni 8000对应bridge-domain 300的端口g1/0/1.3发出arp2，172.16.1.20收到arp2。随后，172.16.1.20发出arp2 reply，leaf2的172.16.1.1收到这个arp2 reply后，触发leaf2（30.30.30.30）产生bgp evpn irb route update，这个update发给RR，RR再发给Leaf1。这个arp2 reply并没有传回Leaf1的172.16.1.1对应端口，这也是分布式网关工作机制，而是由本地网关172.16.1.1来处理。

Leaf1收到这个irb route后，会把172.16.1.20/32主机路由注入L3VPN路由表里。（见后面Leaf1的mac/arp/ip route信息）。

irb route具体信息：

Frame 212: 195 bytes on wire (1560 bits), 195 bytes captured (1560 bits) on interface -, id 0
Ethernet II, Src: 38:7d:c8:03:01:01 (38:7d:c8:03:01:01), Dst: 38:7d:c8:01:01:00 (38:7d:c8:01:01:00)
Internet Protocol Version 4, Src: 1.1.1.1, Dst: 2.2.2.2
Transmission Control Protocol, Src Port: 179, Dst Port: 60785, Seq: 286, Ack: 267, Len: 141
Border Gateway Protocol - UPDATE Message
    Marker: ffffffffffffffffffffffffffffffff
    Length: 141
    Type: UPDATE Message (2)
    Withdrawn Routes Length: 0
    Total Path Attribute Length: 118
    Path attributes
        Path Attribute - ORIGIN: INCOMPLETE
        Path Attribute - AS_PATH: empty
        Path Attribute - LOCAL_PREF: 100
        Path Attribute - ORIGINATOR_ID: 3.3.3.3
        Path Attribute - CLUSTER_LIST: 1.1.1.1
        Path Attribute - EXTENDED_COMMUNITIES
            Flags: 0xc0, Optional, Transitive, Complete
            Type Code: EXTENDED_COMMUNITIES (16)
            Length: 32
            Carried extended communities: (4 communities)
                Route Target: 100:10 [Transitive 2-Octet AS-Specific]
                Route Target: 200:10 [Transitive 2-Octet AS-Specific]
                Encapsulation: VXLAN Encapsulation [Transitive Opaque]
                EVPN Router MAC: Router MAC: 70:7b:e8:2d:5c:d3 [Transitive EVPN]
        Path Attribute - MP_REACH_NLRI
            Flags: 0x90, Optional, Extended-Length, Non-transitive, Complete
            Type Code: MP_REACH_NLRI (14)
            Length: 51
            Address family identifier (AFI): Layer-2 VPN (25)
            Subsequent address family identifier (SAFI): EVPN (70)
            Next hop: 1e1e1e1e
                IPv4 Address: 30.30.30.30
                [Expert Info (Error/Malformed): Unknown Next Hop length (4 bytes)]
            Number of Subnetwork points of attachment (SNPA): 0
            Network Layer Reachability Information (NLRI)
                EVPN NLRI: MAC Advertisement Route
                    Route Type: MAC Advertisement Route (2)
                    Length: 40
                    Route Distinguisher: 0000001e00000001 (30:1)
                    ESI: 00:00:00:00:00:00:00:00:00:00
                    Ethernet Tag ID: 0
                    MAC Address Length: 48
                    MAC Address: HuaweiTe_e3:2a:d7 (54:89:98:e3:2a:d7)
                    IP Address Length: 32
                    IPv4 address: 172.16.1.20
                    VNI: 8000
                    VNI: 100

214——icmp2

第二个icmp ping包（0xb813)到达Leaf1，ping包目的地址为172.16.1.20，依赖前面刚建立的172.16.1.20主机路由信息，下一跳为30.30.30.30，L3VNI为100，Router MAC: 70:7b:e8:2d:5c:d3（Leaf2的NVE端口mac），送往Leaf2.

214具体信息：

Frame 214: 124 bytes on wire (992 bits), 124 bytes captured (992 bits) on interface -, id 0
Ethernet II, Src: 38:7d:c8:01:01:00 (38:7d:c8:01:01:00), Dst: 38:7d:c8:03:01:01 (38:7d:c8:03:01:01)
Internet Protocol Version 4, Src: 20.20.20.20, Dst: 30.30.30.30
User Datagram Protocol, Src Port: 4789, Dst Port: 4789
Virtual eXtensible Local Area Network
    Flags: 0x0800, VXLAN Network ID (VNI)
    Group Policy ID: 0
    VXLAN Network Identifier (VNI): 100
    Reserved: 0
Ethernet II, Src: HuaweiTe_da:58:76 (70:7b:e8:da:58:76), Dst: HuaweiTe_2d:5c:d3 (70:7b:e8:2d:5c:d3)
    Destination: HuaweiTe_2d:5c:d3 (70:7b:e8:2d:5c:d3)
    Source: HuaweiTe_da:58:76 (70:7b:e8:da:58:76)
    Type: IPv4 (0x0800)
Internet Protocol Version 4, Src: 10.10.10.10, Dst: 172.16.1.20
Internet Control Message Protocol

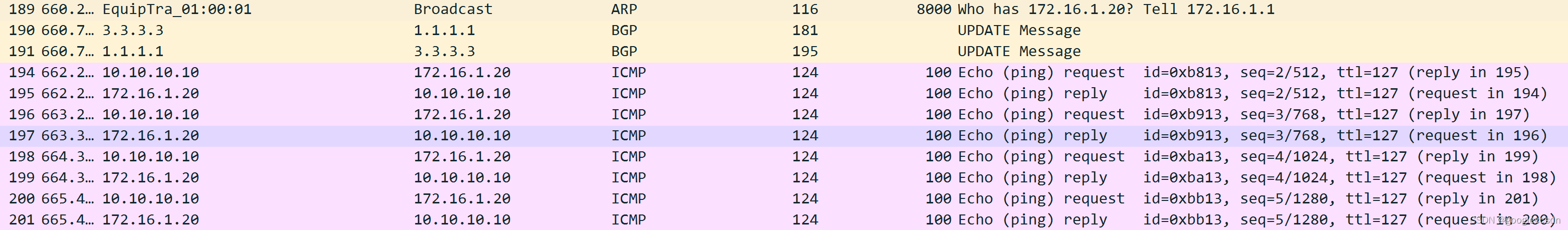

5）Leaf2 网络侧抓包分析(Leaf2 GE1/0/0)

189——arp2

就是同一arp2在leaf2的抓包信息，对应Leaf1 vxlan端口抓包210。

190——irb route

就是Leaf2的172.16.1.1收到172.16.1.20发出的arp2 reply后，触发BGP发出bgp evpn type 2 irb route update，并发送给1.1.1.1（RR）。

190具体信息：

Frame 190: 181 bytes on wire (1448 bits), 181 bytes captured (1448 bits) on interface -, id 0
Ethernet II, Src: 38:7d:c8:02:01:00 (38:7d:c8:02:01:00), Dst: 38:7d:c8:03:01:02 (38:7d:c8:03:01:02)
Internet Protocol Version 4, Src: 3.3.3.3, Dst: 1.1.1.1
Transmission Control Protocol, Src Port: 62694, Dst Port: 179, Seq: 248, Ack: 229, Len: 127
Border Gateway Protocol - UPDATE Message
    Marker: ffffffffffffffffffffffffffffffff
    Length: 127
    Type: UPDATE Message (2)
    Withdrawn Routes Length: 0
    Total Path Attribute Length: 104
    Path attributes
        Path Attribute - ORIGIN: INCOMPLETE
        Path Attribute - AS_PATH: empty
        Path Attribute - LOCAL_PREF: 100
        Path Attribute - EXTENDED_COMMUNITIES
            Flags: 0xc0, Optional, Transitive, Complete
            Type Code: EXTENDED_COMMUNITIES (16)
            Length: 32
            Carried extended communities: (4 communities)
                Route Target: 100:10 [Transitive 2-Octet AS-Specific]
                Route Target: 200:10 [Transitive 2-Octet AS-Specific]
                Encapsulation: VXLAN Encapsulation [Transitive Opaque]
                EVPN Router MAC: Router MAC: 70:7b:e8:2d:5c:d3 [Transitive EVPN]
        Path Attribute - MP_REACH_NLRI
            Flags: 0x90, Optional, Extended-Length, Non-transitive, Complete
            Type Code: MP_REACH_NLRI (14)
            Length: 51
            Address family identifier (AFI): Layer-2 VPN (25)
            Subsequent address family identifier (SAFI): EVPN (70)
            Next hop: 1e1e1e1e
                IPv4 Address: 30.30.30.30
                [Expert Info (Error/Malformed): Unknown Next Hop length (4 bytes)]
            Number of Subnetwork points of attachment (SNPA): 0
            Network Layer Reachability Information (NLRI)
                EVPN NLRI: MAC Advertisement Route
                    Route Type: MAC Advertisement Route (2)
                    Length: 40
                    Route Distinguisher: 0000001e00000001 (30:1)
                    ESI: 00:00:00:00:00:00:00:00:00:00
                    Ethernet Tag ID: 0
                    MAC Address Length: 48
                    MAC Address: HuaweiTe_e3:2a:d7 (54:89:98:e3:2a:d7)
                    IP Address Length: 32
                    IPv4 address: 172.16.1.20
                    VNI: 8000
                    VNI: 100

191——irb route

RR反射的190这个update，其实不应该再传回给自己。

194——icmp2

就是10.10.10.10发出的icmp2（0xb813)，并成功reply。

6）Leaf2 业务侧抓包分析(Leaf2 GE1/0/1)

270——arp2

271——arp2 reply

172.16.1.20收到arp2，发出arp2 reply，并实际由Leaf2的172.16.1.1截获，并进行处理。Leaf1/Leaf2的172.16.1.1配置了相同的mac。可以看到arp2 reply回复的mac为：0001:0001:0001：

Frame 271: 70 bytes on wire (560 bits), 70 bytes captured (560 bits) on interface -, id 0
Ethernet II, Src: HuaweiTe_e3:2a:d7 (54:89:98:e3:2a:d7), Dst: EquipTra_01:00:01 (00:01:00:01:00:01)
802.1Q Virtual LAN, PRI: 0, DEI: 0, ID: 30
Address Resolution Protocol (reply)

正是分布式网关172.16.1.1配置的mac地址：

#
interface Vbdif100
 ip binding vpn-instance vpn1
 ip address 172.16.1.1 255.255.255.0
 mac-address 0001-0001-0001
 vxlan anycast-gateway enable
 arp collect host enable
#

 273——icmp2 request/reply

就是10.10.10.10发出的第二个ping包（0xb813)，并收到icmp2 reply。

7）Leaf1 mac/arp/vpn1 route分析

10.10.10.10成功ping通172.16.1.20地址后，

Leaf1没有172.16.1.20的arp信息，因为Leaf1的172.16.1.1端口没有收到172.16.1.20的arp2 reply(被Leaf2的172.16.1.1截胡了。。。）

Leaf1的bridge-domain 100也没有172.16.1.20的mac信息，因为10.10.10.10和172.16.1.20是三层通信，172.16.1.20的mac地址没有用于数据通信，就是说Leaf1的bridge-domain并没有看到源地址为172.16.1.20的mac，所以这个mac没有放入二层表格（mac vrf）。

Leaf1的bridge-domain 200学习到了10.10.10.10的mac信息。

Leaf1的vpn1（ip vrf)，出现了172.16.1.20的主机路由，原因之前已经说明。

[Leaf1-GE1/0/1.1]dis arp
ARP Entry Types: D - Dynamic, S - Static, I - Interface, O - OpenFlow, RD - Redirect
EXP: Expire-time VLAN:VLAN or Bridge Domain

IP ADDRESS      MAC ADDRESS    EXP(M) TYPE/VLAN       INTERFACE        VPN-INSTANCE
----------------------------------------------------------------------------------------
192.168.12.2    387d-c801-0100        I               GE1/0/0
192.168.12.1    387d-c803-0101   19   D               GE1/0/0
172.16.1.1      0001-0001-0001        I               Vbdif100         vpn1
10.10.10.1      707b-e8da-5876        I               Vbdif200         vpn1
10.10.10.10     5489-9896-70c5   19   D/BD200         GE1/0/1.2        vpn1
----------------------------------------------------------------------------------------
Total:5         Dynamic:2       Static:0    Interface:3    OpenFlow:0
Redirect:0

[Leaf1-GE1/0/1.1]dis mac
Flags: * - Backup
BD   : bridge-domain   Age : dynamic MAC learned time in seconds
-------------------------------------------------------------------------------
MAC Address    VLAN/VSI/BD   Learned-From        Type                Age
-------------------------------------------------------------------------------
5489-9896-70c5 -/-/200       GE1/0/1.2           dynamic               -
5489-9896-70c5 -/-/200       GE1/0/1.2           dynamic               -
-------------------------------------------------------------------------------
Total items: 2

[Leaf1-GE1/0/1.1]dis ip routing-table vpn-instance vpn1
Proto: Protocol        Pre: Preference
Route Flags: R - relay, D - download to fib, T - to vpn-instance, B - black hole route
------------------------------------------------------------------------------
Routing Table : vpn1
         Destinations : 10       Routes : 10

Destination/Mask    Proto   Pre  Cost        Flags NextHop         Interface

     10.10.10.0/24  Direct  0    0             D   10.10.10.1      Vbdif200
     10.10.10.1/32  Direct  0    0             D   127.0.0.1       Vbdif200
   10.10.10.255/32  Direct  0    0             D   127.0.0.1       Vbdif200
     172.16.1.0/24  Direct  0    0             D   172.16.1.1      Vbdif100
     172.16.1.1/32  Direct  0    0             D   127.0.0.1       Vbdif100
    172.16.1.20/32  IBGP    255  0             RD  30.30.30.30     VXLAN
   172.16.1.255/32  Direct  0    0             D   127.0.0.1       Vbdif100
      182.1.1.0/24  IBGP    255  0             RD  40.40.40.40     VXLAN
      182.1.1.1/32  IBGP    255  0             RD  40.40.40.40     VXLAN
255.255.255.255/32  Direct  0    0             D   127.0.0.1       InLoopBack0
[Leaf1-GE1/0/1.1]

8）Leaf2 mac/arp信息分析

[Leaf2-GE1/0/1.3]dis arp
ARP Entry Types: D - Dynamic, S - Static, I - Interface, O - OpenFlow, RD - Redirect
EXP: Expire-time VLAN:VLAN or Bridge Domain

IP ADDRESS      MAC ADDRESS    EXP(M) TYPE/VLAN       INTERFACE        VPN-INSTANCE
----------------------------------------------------------------------------------------
192.168.13.3    387d-c802-0100        I               GE1/0/0
192.168.13.1    387d-c803-0102   19   D               GE1/0/0
172.16.1.1      0001-0001-0001        I               Vbdif300         vpn1
172.16.1.20     5489-98e3-2ad7   18   D/BD300         GE1/0/1.3        vpn1
----------------------------------------------------------------------------------------
Total:4         Dynamic:2       Static:0    Interface:2    OpenFlow:0
Redirect:0

[Leaf2-GE1/0/1.3]dis mac
Flags: * - Backup
BD   : bridge-domain   Age : dynamic MAC learned time in seconds
-------------------------------------------------------------------------------
MAC Address    VLAN/VSI/BD   Learned-From        Type                Age
-------------------------------------------------------------------------------
0001-0001-0001 -/-/300       20.20.20.20         dynamic               -
5489-98e3-2ad7 -/-/300       GE1/0/1.3           dynamic               -
0001-0001-0001 -/-/300       20.20.20.20         dynamic               -
5489-98e3-2ad7 -/-/300       GE1/0/1.3           dynamic               -
-------------------------------------------------------------------------------
Total items: 4
[Leaf2-GE1/0/1.3]

 Leaf2收到arp2 reply，并保存了172.16.1.20的arp信息。

Leaf2的bridge-domain 300也学习到了172.16.1.20的mac信息。

评论 6
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
