Mac nginx ios 推流 rtmp vlc播放 html5播放

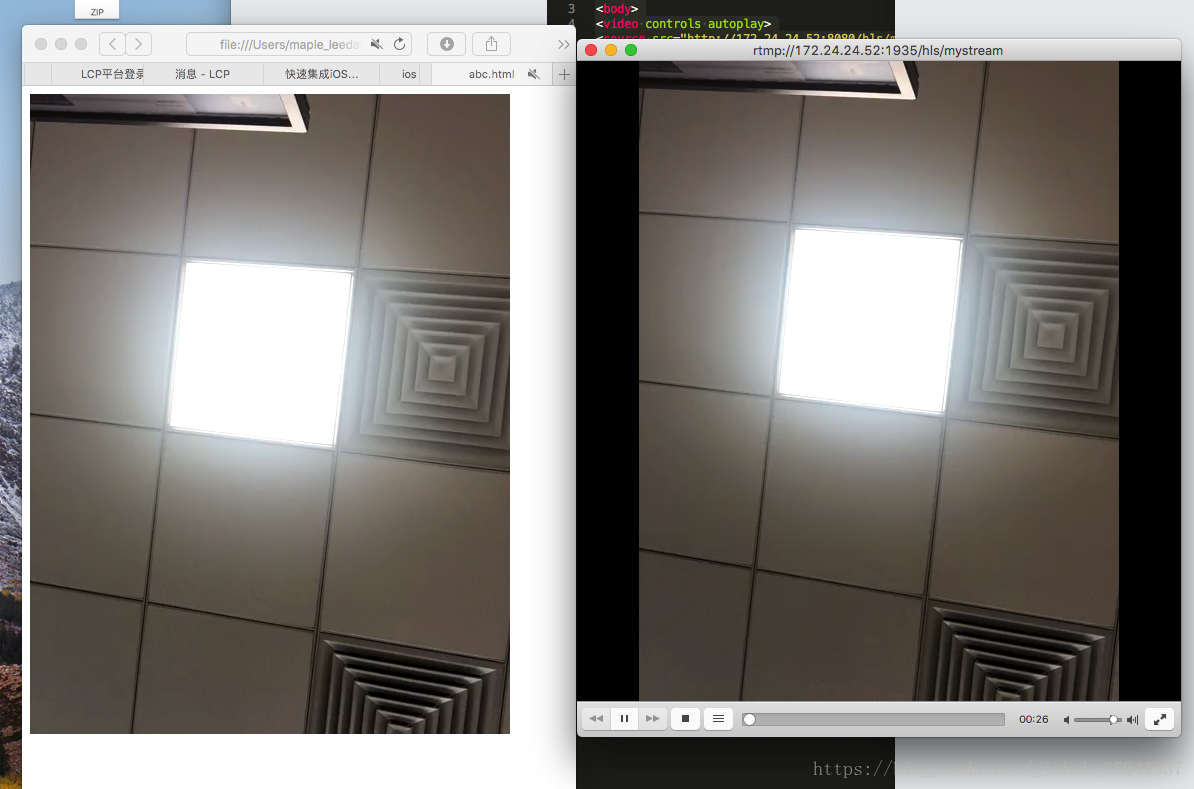

这是手机端的推流 后 左边是苹果自带浏览器的播放，
右边是使用vlc 播放的

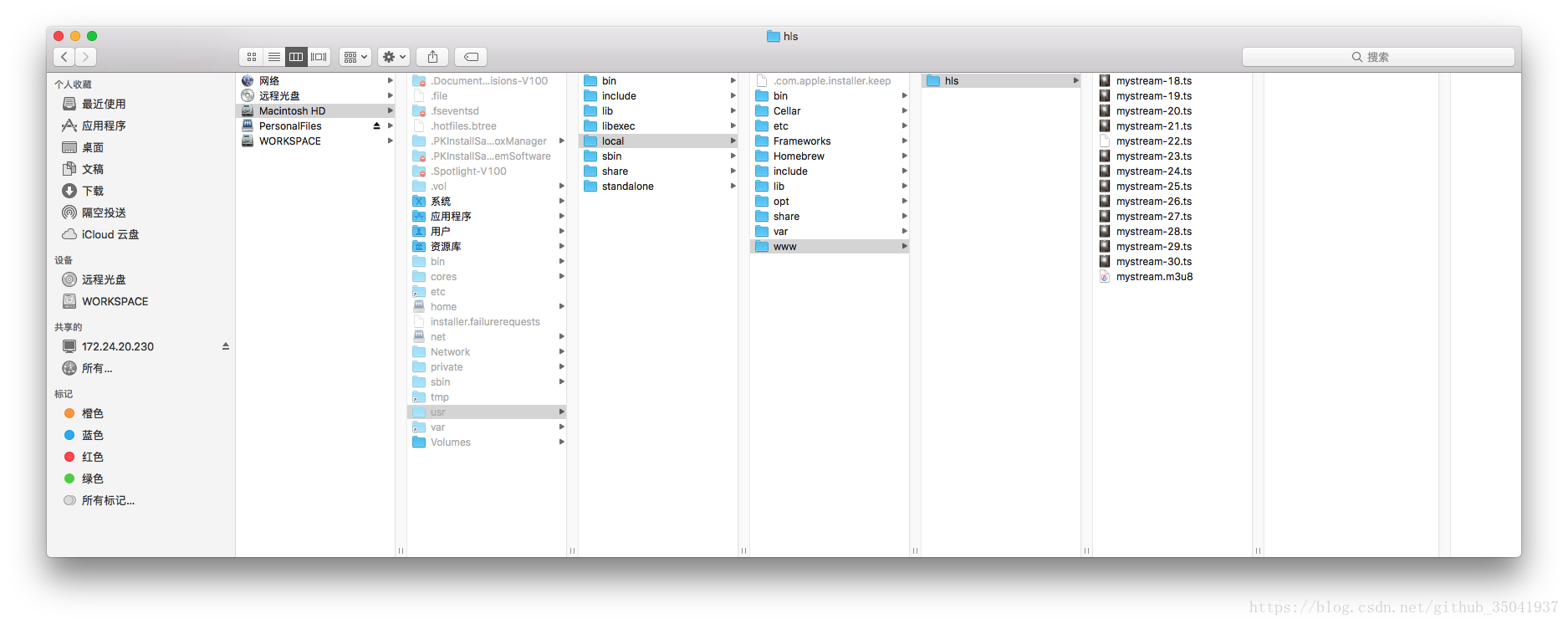

hls 的存储路径

说一下整个的实现

理论联系实际：实现一个简单地基于HTML5的实时视频直播

文章最大的贡献是提供了ios 端的推流代码

可以直接运行 ，

但文章对ngnix 搭建

hls 播放的相关细节并没有讲

所以需要nginx 打搭建相关博客，注意要具有rtmp 功能的

可以搜索 nginx + rtmp +hls 为关键字来搜索，

但一般都提供的是ffmpeg 来推流的，无视ffmpeg部分。

等到推流建立成功以后，在浏览器播放 只要写几行html 的代码就ok 了

Mac直播服务器Nginx配置对HLS的支持

这里我也犯了同样的错误一直不出图像，原来是端口号码没有写8080 的

因为http 端口监听还是8080 不是你rtmp 的推流端口

最后贴一下 nginx.conf 和 html 的代码

要是你配的有问题 可以直接整个替换成我的试试。

conf 的路径

/usr/local/nginx/conf/nginx.conf

重新配置conf 以后需要relod nginx 别忘了

html的

<!DOCTYPE HTML>
<html>
<body>
<video controls autoplay>
<source src="http://172.24.24.52:8080/hls/mystream.m3u8" type="application/vnd.apple.mpegurl" />
</video>

</body>
</html>

nginx.conf

#user  nobody;
worker_processes  1;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;

#pid        logs/nginx.pid;


events {
    worker_connections  1024;
}



http {
    include       mime.types;
    default_type  application/octet-stream;

    #log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
    #                  '$status $body_bytes_sent "$http_referer" '
    #                  '"$http_user_agent" "$http_x_forwarded_for"';

    #access_log  logs/access.log  main;

    sendfile        on;
    #tcp_nopush     on;

    #keepalive_timeout  0;
    keepalive_timeout  65;

    #gzip  on;

    server {
        listen       8080;
        server_name  localhost;

        #charset koi8-r;

        #access_log  logs/host.access.log  main;

        location / {
            root   html;
            index  index.html index.htm;
        }

        location /hls {
              # Serve HLS fragments
              types {
                  application/vnd.apple.mpegurl m3u8;
                  video/mp2t ts;
              }
          alias /usr/local/www/hls;
          expires -1;
        }

        #error_page  404              /404.html;

        # redirect server error pages to the static page /50x.html
        #
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }

        # proxy the PHP scripts to Apache listening on 127.0.0.1:80
        #
        #location ~ \.php$ {
        #    proxy_pass   http://127.0.0.1;
        #}

        # pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
        #
        #location ~ \.php$ {
        #    root           html;
        #    fastcgi_pass   127.0.0.1:9000;
        #    fastcgi_index  index.php;
        #    fastcgi_param  SCRIPT_FILENAME  /scripts$fastcgi_script_name;
        #    include        fastcgi_params;
        #}

        # deny access to .htaccess files, if Apache's document root
        # concurs with nginx's one
        #
        #location ~ /\.ht {
        #    deny  all;
        #}
    }


    # another virtual host using mix of IP-, name-, and port-based configuration
    #
    #server {
    #    listen       8000;
    #    listen       somename:8080;
    #    server_name  somename  alias  another.alias;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}


    # HTTPS server
    #
    #server {
    #    listen       443 ssl;
    #    server_name  localhost;

    #    ssl_certificate      cert.pem;
    #    ssl_certificate_key  cert.key;

    #    ssl_session_cache    shared:SSL:1m;
    #    ssl_session_timeout  5m;

    #    ssl_ciphers  HIGH:!aNULL:!MD5;
    #    ssl_prefer_server_ciphers  on;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}
    include servers/*;
}

rtmp {
    server {
        listen 1935;
        chunk_size 4000;
        application hls {
            live on;
            hls on;
            hls_path /usr/local/www/hls;
            hls_fragment 5s;
        }
    }
}
