opencv读取使用MATLAB双目标定的结果进行双目校正

概述：

opencv内部也有双目标定的函数，但是结果有时候会飘，所以想先用MATLAB标定工具箱试试看。使用MATLAB先队两个相机进行单目标定，然后进行双目标定，将结果保存在xml文件中。xml文件时opencv支持的文件格式，更详细的解释可以去搜索相关资料。

1.工具准备：

MATLAB标定工具箱。

这一步我认为应该单独强调一下。我的MATLAB版本是2014a，应用程序里面自带一个标定工具箱但是只支持单目。后来在http://www.vision.caltech.edu/bouguetj/calib_doc/#examples了解到应该再下载一个双目标定的工具箱。下载链接

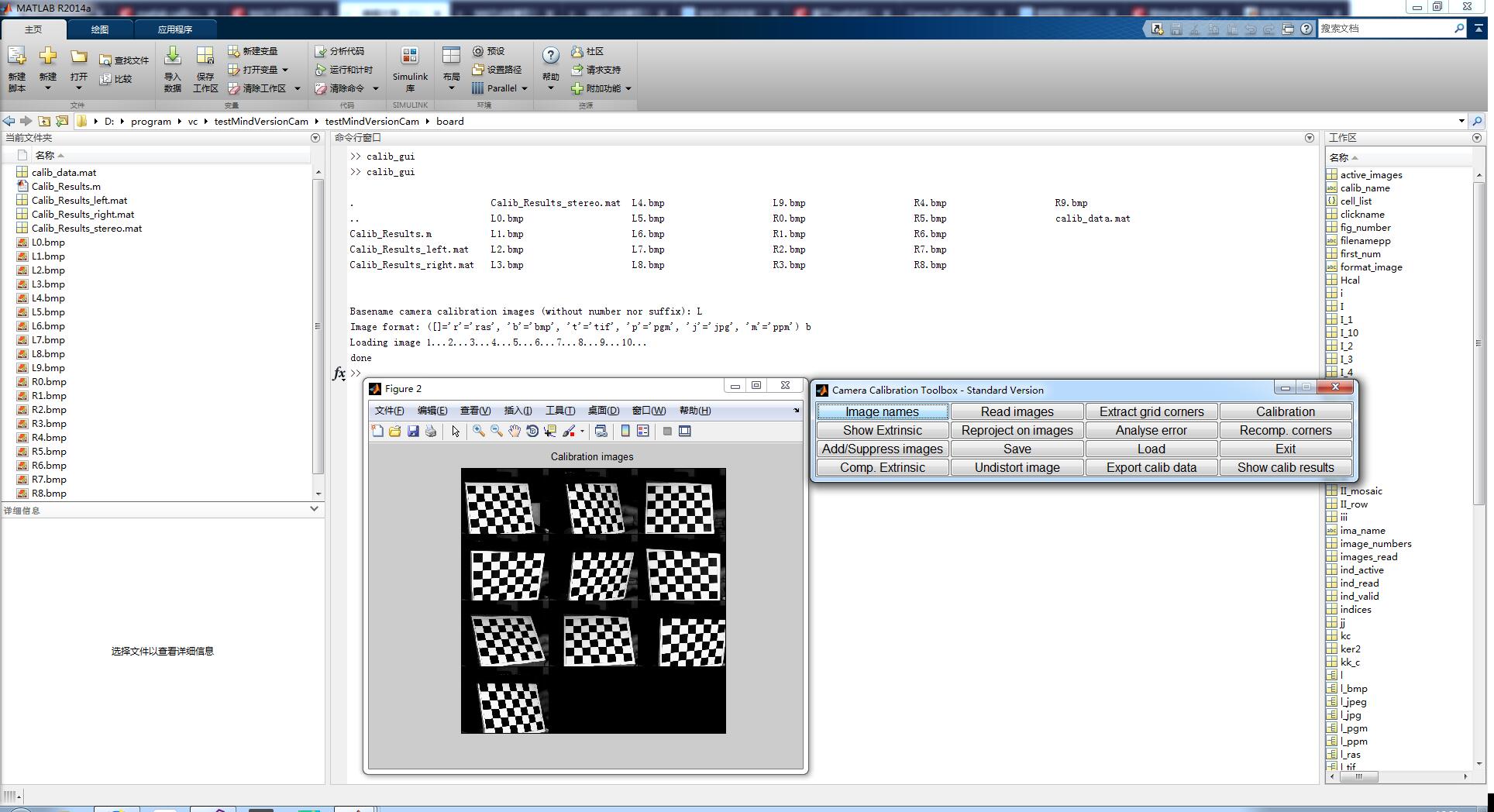

将其解压到Matlab的工作目录下，然后将其包含到matlab的工作路径下。运行calib_gui就可以打开matlab标定工具箱主界面：

2.标定过程

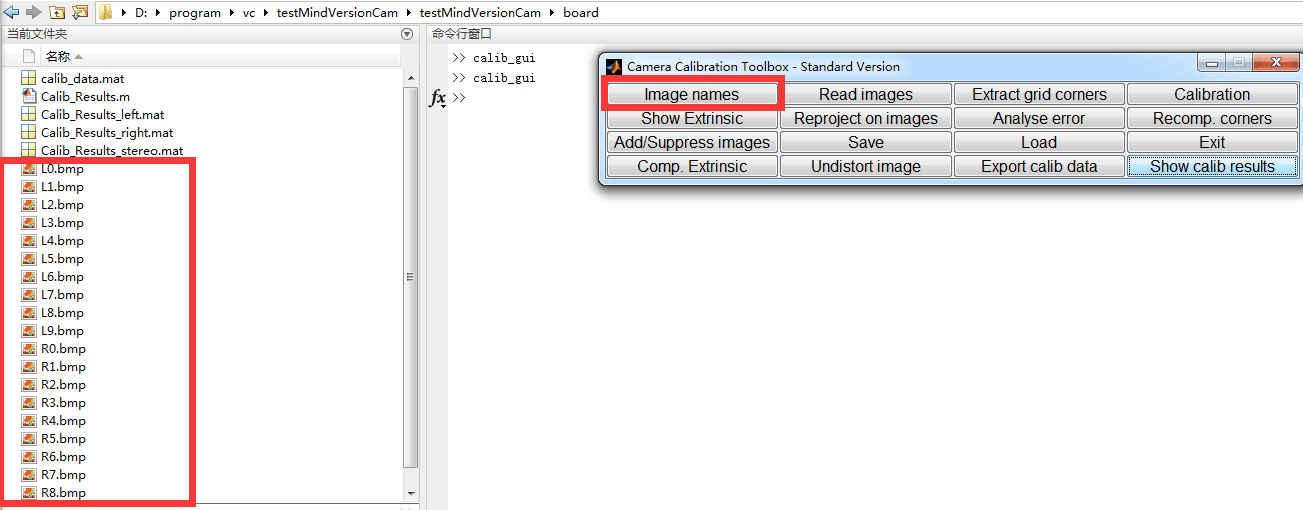

1.点击Image names会出现当前MATLAB路径下的所有文件，如上图，输入L表示对L开头的图片进行标定，然后输入后缀b表示图片格式是bmp格式的。

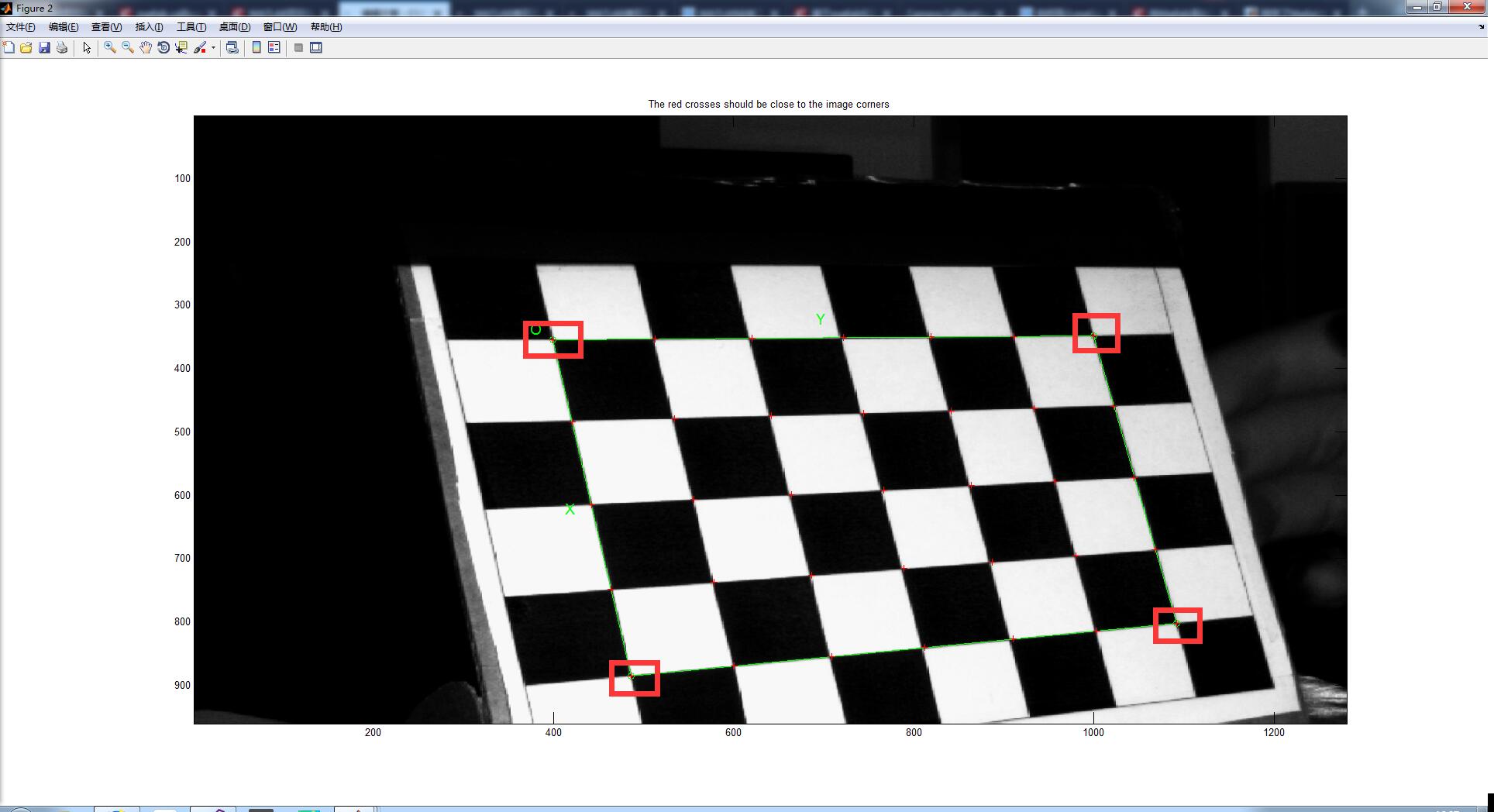

2.点击Extract grid corners，检测角点，这个过程比较麻烦，一路回车下来，会依次弹出各张图片，需要用鼠标顺时针或逆时针选定最外层的角点。选择完第一张的时候会要求输入棋盘格的宽度，我的棋盘格长宽都是15mm。

之后就是对所有L开头的图片选取四个最外层角点，这一步完成后，点击Calibration进行标定，点击Save保存结果Calib_Result.mat，将Calib_Results.mat修改为Calib_Results_left.mat方便进行双目标定。

右相机同理。

3.双目标定

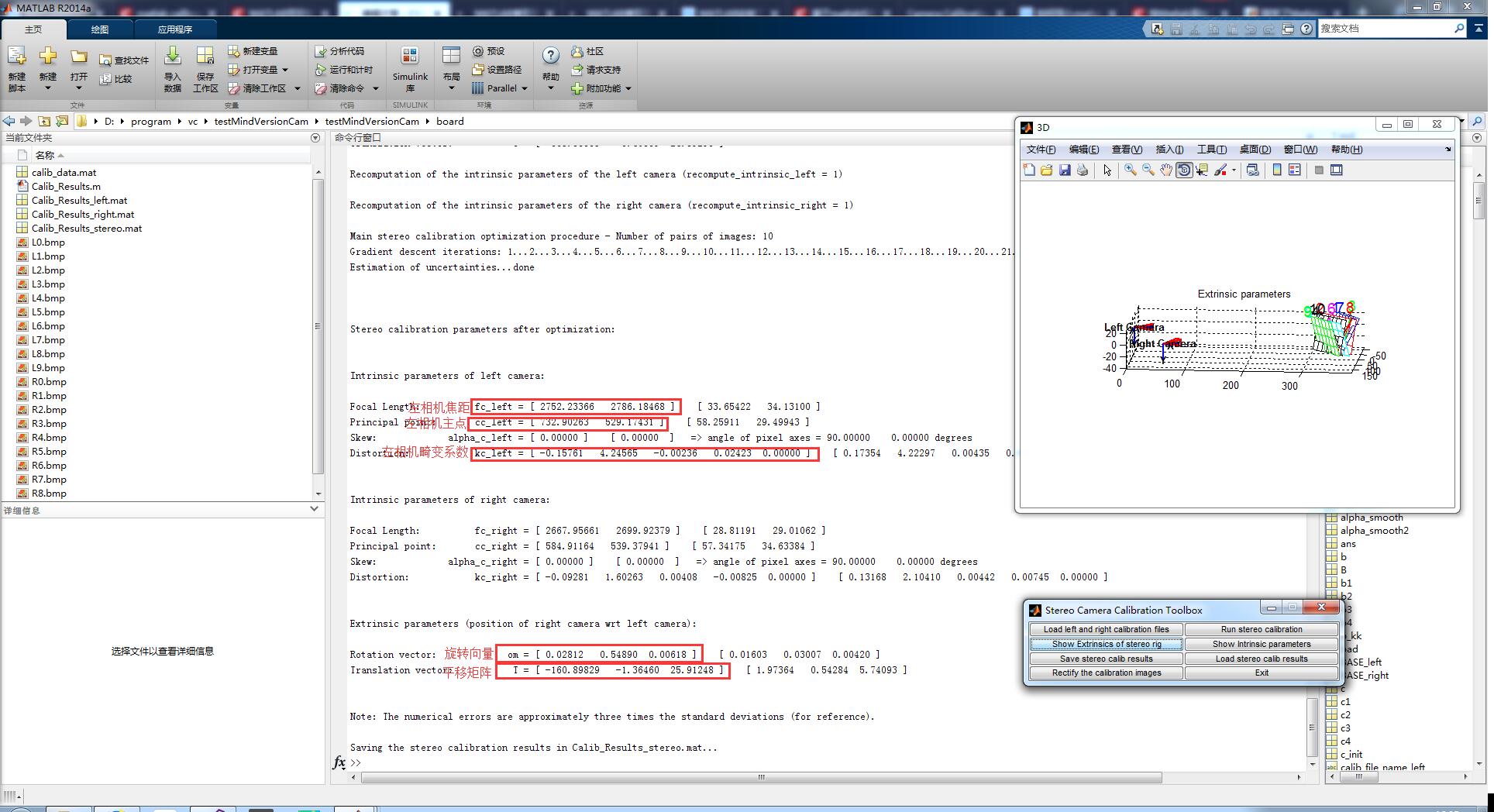

在MATLAB控制台输入stereo_gui，打开双目标定工具箱，点击Load left and right calibration files，再点击stereo calibration进行标定。得到如下结果：



3.保存为xml文件

Distortion_Camera_Left.xml



<?xml version="1.0"?>
<opencv_storage>
<Distortion type_id="opencv-matrix">
  <rows>5</rows>
  <cols>1</cols>
  <dt>d</dt>
  <data>
    -0.15761   4.24565   -0.00236   0.02423  0.00000
</data>
</Distortion>
</opencv_storage>

Distortion_Camera_Right.xml

    <?xml version="1.0"?>
    <opencv_storage>
    <Distortion type_id="opencv-matrix">
      <rows>5</rows>
      <cols>1</cols>
      <dt>d</dt>
      <data>
        -0.09281   1.60263   0.00408   -0.00825  0.00000
    </data>
    </Distortion>
    </opencv_storage>



Intrinsics_Camera_Left.xml



    <?xml version="1.0"?>
    <opencv_storage>
    <Intrinsics_Camera_Left type_id="opencv-matrix">
      <rows>3</rows>
      <cols>3</cols>
      <dt>d</dt>
      <data>
      2752.23366  0.      732.90263
      0.          2786.18468  529.17431
      0.          0.         1.
    </data>
    </Intrinsics_Camera_Left>
    </opencv_storage>



Intrinsics_Camera_Right.xml



    <?xml version="1.0"?>
    <opencv_storage>
    <Intrinsics_Camera_Right type_id="opencv-matrix">
      <rows>3</rows>
      <cols>3</cols>
      <dt>d</dt>
      <data>
      2667.95661   0.          584.91164
      0.          2699.92379   539.37941
      0.          0.          1.
      </data>
    </Intrinsics_Camera_Right>
    </opencv_storage>



RotRodrigues.xml



<?xml version="1.0"?>
<opencv_storage>
<RotRodrigues type_id="opencv-matrix">
  <rows>3</rows>
  <cols>1</cols>
  <dt>d</dt>
  <data>
    0.02812   0.54890  0.00618
</data>
</RotRodrigues>
</opencv_storage>



Translation.xml



    <?xml version="1.0"?>
    <opencv_storage>
    <Translation type_id="opencv-matrix">
      <rows>3</rows>
      <cols>1</cols>
      <dt>d</dt>
      <data>
       -160.89829   -1.36460  25.91248
    </data>
    </Translation>
    </opencv_storage>



4.opencv读取xml文件，并进行双目校正



//读取内部参数
	CvMat *Intrinsics_Camera_Left = (CvMat *)cvLoad("Intrinsics_Camera_Left.xml");
	CvMat *Intrinsics_Camera_Right = (CvMat *)cvLoad("Intrinsics_Camera_Right.xml");
	CvMat *Distortion_Camera_Left = (CvMat *)cvLoad("Distortion_Camera_Left.xml");
	CvMat *Distortion_Camera_Right = (CvMat *)cvLoad("Distortion_Camera_Right.xml");
	CvMat *Translation_matlab = (CvMat *)cvLoad("Translation.xml");
	CvMat *RotRodrigues_matlab = (CvMat *)cvLoad("RotRodrigues.xml");
	CvMat *R_opencv = cvCreateMat(3, 3, CV_64F);
	cvRodrigues2(RotRodrigues_matlab, R_opencv);
	//创建映射矩阵
	IplImage *Left_Mapx = cvCreateImage(cvSize(1280, 960), IPL_DEPTH_32F, 1);
	IplImage *Left_Mapy = cvCreateImage(cvSize(1280, 960), IPL_DEPTH_32F, 1);
	IplImage *Right_Mapx = cvCreateImage(cvSize(1280, 960), IPL_DEPTH_32F, 1);
	IplImage *Right_Mapy = cvCreateImage(cvSize(1280, 960), IPL_DEPTH_32F, 1);
	CvMat *Rl = cvCreateMat(3, 3, CV_64F);
	CvMat *Rr = cvCreateMat(3, 3, CV_64F);
	CvMat *Pl = cvCreateMat(3, 4, CV_64F);
	CvMat *Pr = cvCreateMat(3, 4, CV_64F);
	//双目校正
	cvStereoRectify(Intrinsics_Camera_Left, Intrinsics_Camera_Right,
		Distortion_Camera_Left, Distortion_Camera_Right,
		cvSize(1280, 960), R_opencv, Translation_matlab,
		Rl, Rr, Pl, Pr, 0, 2048, 0);//增加图像缩放，去除死区
	//畸变矫正
	cvInitUndistortRectifyMap(Intrinsics_Camera_Left, Distortion_Camera_Left, Rl, Pl,
		Left_Mapx, Left_Mapy);
	cvInitUndistortRectifyMap(Intrinsics_Camera_Right, Distortion_Camera_Right, Rr, Pr,
		Right_Mapx, Right_Mapy);



cvRemap(IplimgLeft, img_left_Change, Left_Mapx, Left_Mapy);
cvRemap(IplimgRight, img_right_Change, Right_Mapx, Right_Mapy);

cvLine(img_left_Change, cvPoint(0, 96 * 1), cvPoint(1280 - 1, 96), cvScalar(255, 0, 0));

cvLine(img_left_Change, cvPoint(0, 96 * 2), cvPoint(1280 - 1, 96 * 2), cvScalar(255, 0, 0));
cvLine(img_left_Change, cvPoint(0, 96 * 3), cvPoint(1280 - 1, 96 * 3), cvScalar(255, 0, 0));
cvLine(img_left_Change, cvPoint(0, 96 * 4), cvPoint(1280 - 1, 96 * 4), cvScalar(255, 0, 0));
cvLine(img_left_Change, cvPoint(0, 96 * 5), cvPoint(1280 - 1, 96 * 5), cvScalar(255, 0, 0));
cvLine(img_left_Change, cvPoint(0, 96 * 6), cvPoint(1280 - 1, 96 * 6), cvScalar(255, 0, 0));
cvLine(img_left_Change, cvPoint(0, 96 * 7), cvPoint(1280 - 1, 96 * 7), cvScalar(255, 0, 0));
cvLine(img_left_Change, cvPoint(0, 96 * 8), cvPoint(1280 - 1, 96 * 8), cvScalar(255, 0, 0));
cvLine(img_left_Change, cvPoint(0, 96 * 9), cvPoint(1280 - 1, 96 * 9), cvScalar(255, 0, 0));
cvLine(img_right_Change, cvPoint(0, 96 * 1), cvPoint(1280 - 1, 96), cvScalar(255, 0, 0));
cvLine(img_right_Change, cvPoint(0, 96 * 2), cvPoint(1280 - 1, 96 * 2), cvScalar(255, 0, 0));
cvLine(img_right_Change, cvPoint(0, 96 * 3), cvPoint(1280 - 1, 96 * 3), cvScalar(255, 0, 0));
cvLine(img_right_Change, cvPoint(0, 96 * 4), cvPoint(1280 - 1, 96 * 4), cvScalar(255, 0, 0));
cvLine(img_right_Change, cvPoint(0, 96 * 5), cvPoint(1280 - 1, 96 * 5), cvScalar(255, 0, 0));
cvLine(img_right_Change, cvPoint(0, 96 * 6), cvPoint(1280 - 1, 96 * 6), cvScalar(255, 0, 0));
cvLine(img_right_Change, cvPoint(0, 96 * 7), cvPoint(1280 - 1, 96 * 7), cvScalar(255, 0, 0));
cvLine(img_right_Change, cvPoint(0, 96 * 8), cvPoint(1280 - 1, 96 * 8), cvScalar(255, 0, 0));
cvLine(img_right_Change, cvPoint(0, 96 * 9), cvPoint(1280 - 1, 96 * 9), cvScalar(255, 0, 0));

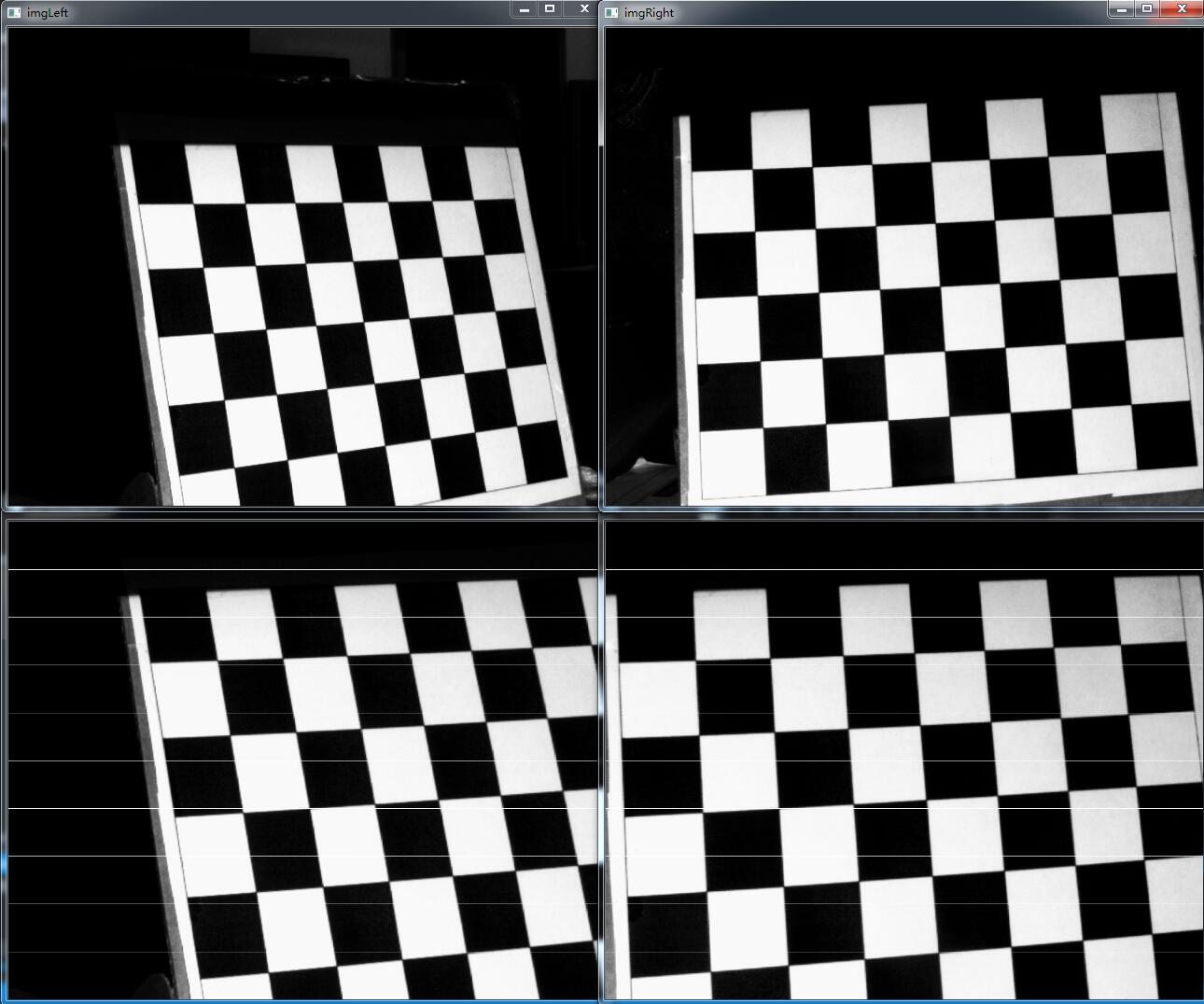

6.效果

如有任何问题，邮件gao2014#nwsuaf.edu.cn

源码：

https://github.com/xunbing/3DScanner
