TensorFlow可变学习率及不同初始学习率对网络影响的比较

TensorFlow中的learning_rate_decay.py文件中查看更多

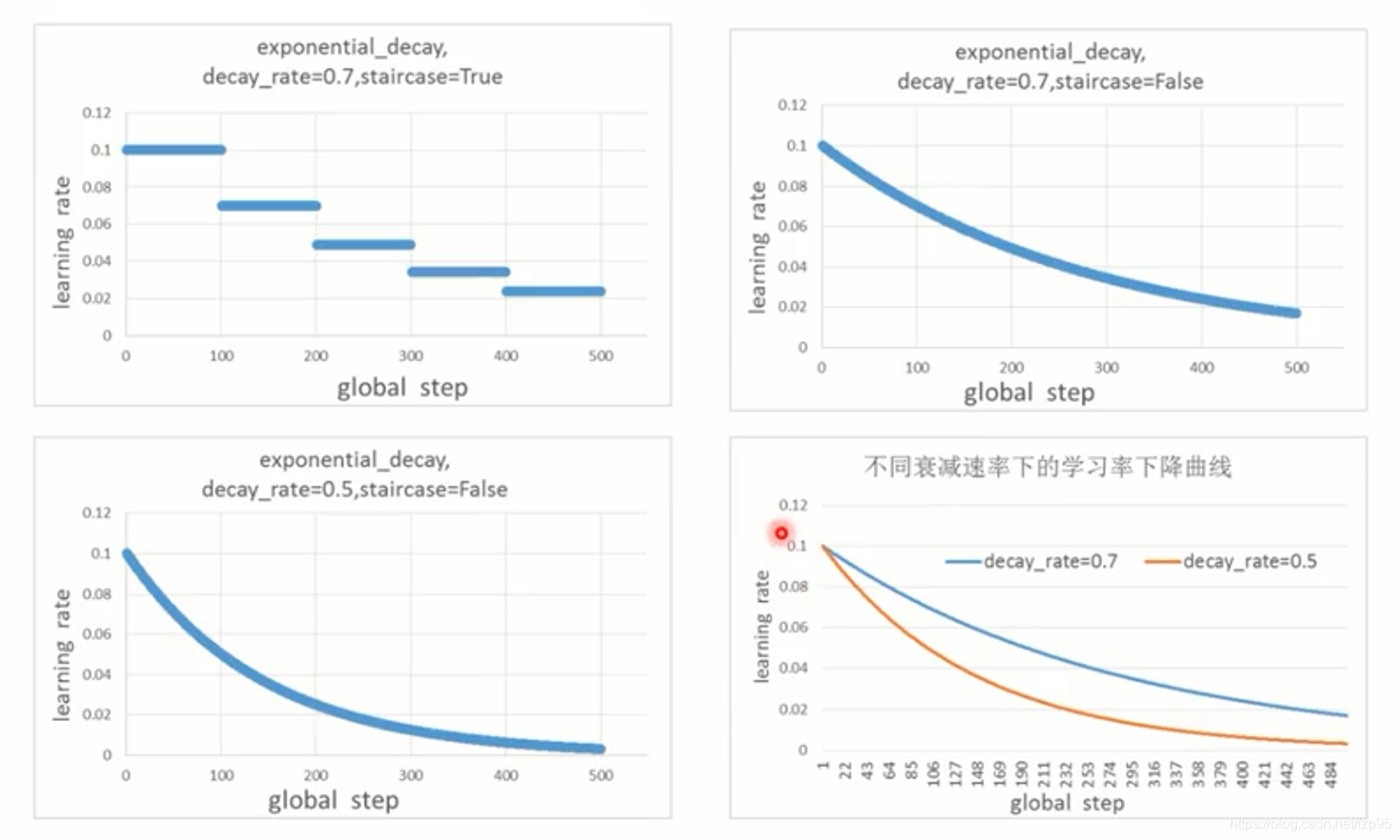

指数衰减

def exponential_decay(learning_rate, global_step, decay_steps, decay_rate,
                      staircase=False, name=None)

global_step是当前的步数，decay_steps是总共需要多少步下降到l_r*d_r的地方
staircase为True时，global_step/decay_steps是整数除法，阶梯状下降
learning_rate每隔decay_step步下降

decay_rate越小，下降越快

global_step = tf.Variable(0, trainable=False)
starter_learning_rate = 0.1
learning_rate = tf.train.exponential_decay(starter_learning_rate, global_step=global_step, decay_steps=10000,
                                           decay_rate=0.96, staircase=True)

learning_step = tf.train.GradientDescentOptimizer(learning_rate).minimize(loss, global_step=global_step)

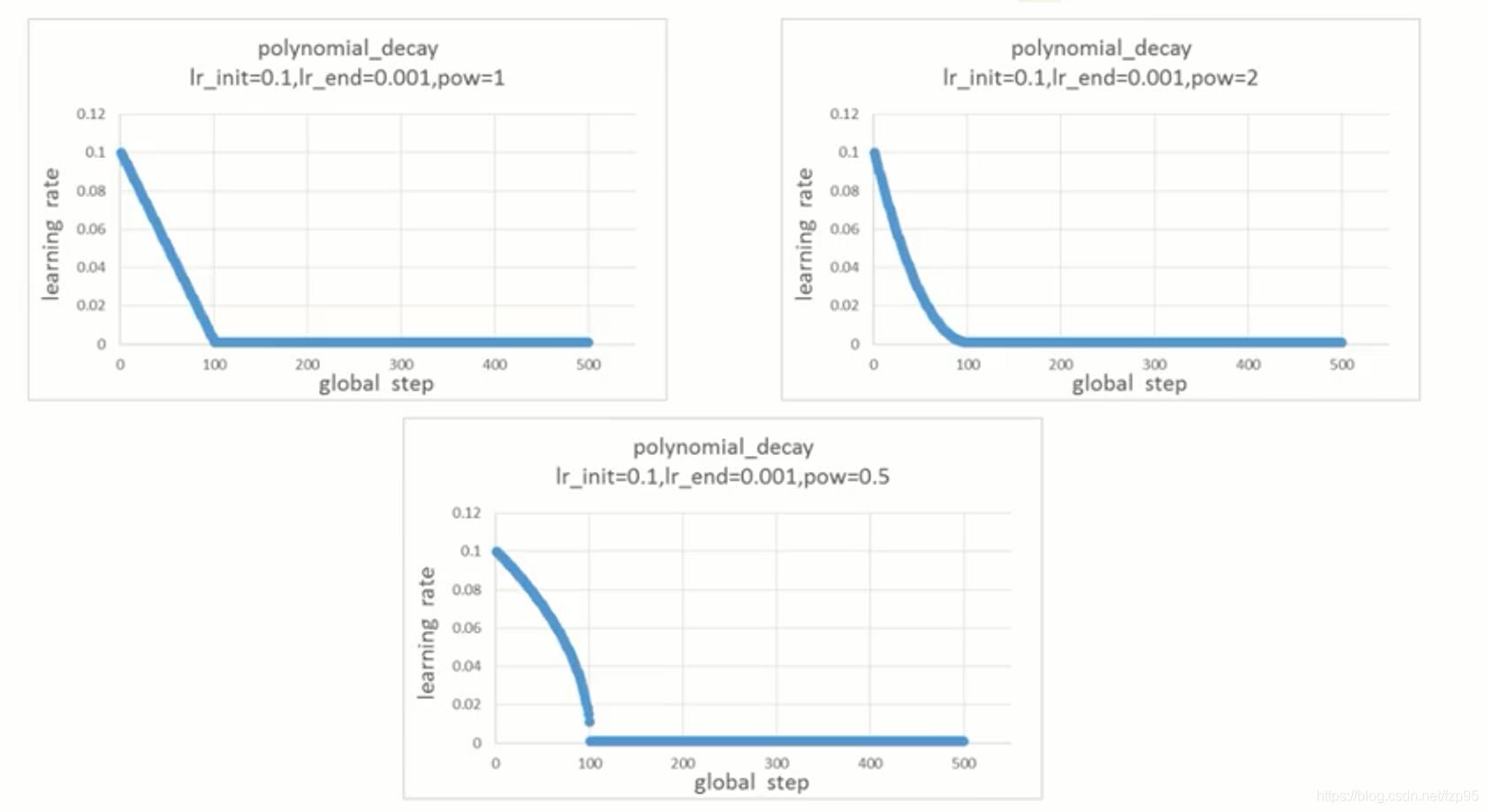

多项式衰减

def polynomial_decay(learning_rate, global_step, decay_steps,
                     end_learning_rate=0.0001, power=1.0, cycle=False, name=None)

cycle为学习率下降后是否重新上升

注意，这里：global_step = min(global_step, decay_steps)
learning_rate在decay_steps步内，到达end_learning_rate

#decay from 0.1 to 0.01 in 10000 steps using sqrt(i.e. power=0.5)
global_step = tf.Variable(0, trainable=False)
starter_learning_rate = 0.1
end_learning_rate = 0.01
learning_rate = tf.train.polynomial_decay(starter_learning_rate, global_step=global_step, decay_steps=10000,
                                          end_learning_rate=end_learning_rate, power=0.5)

learning_step = tf.train.GradientDescentOptimizer(learning_rate).minimize(loss, global_step=global_step)

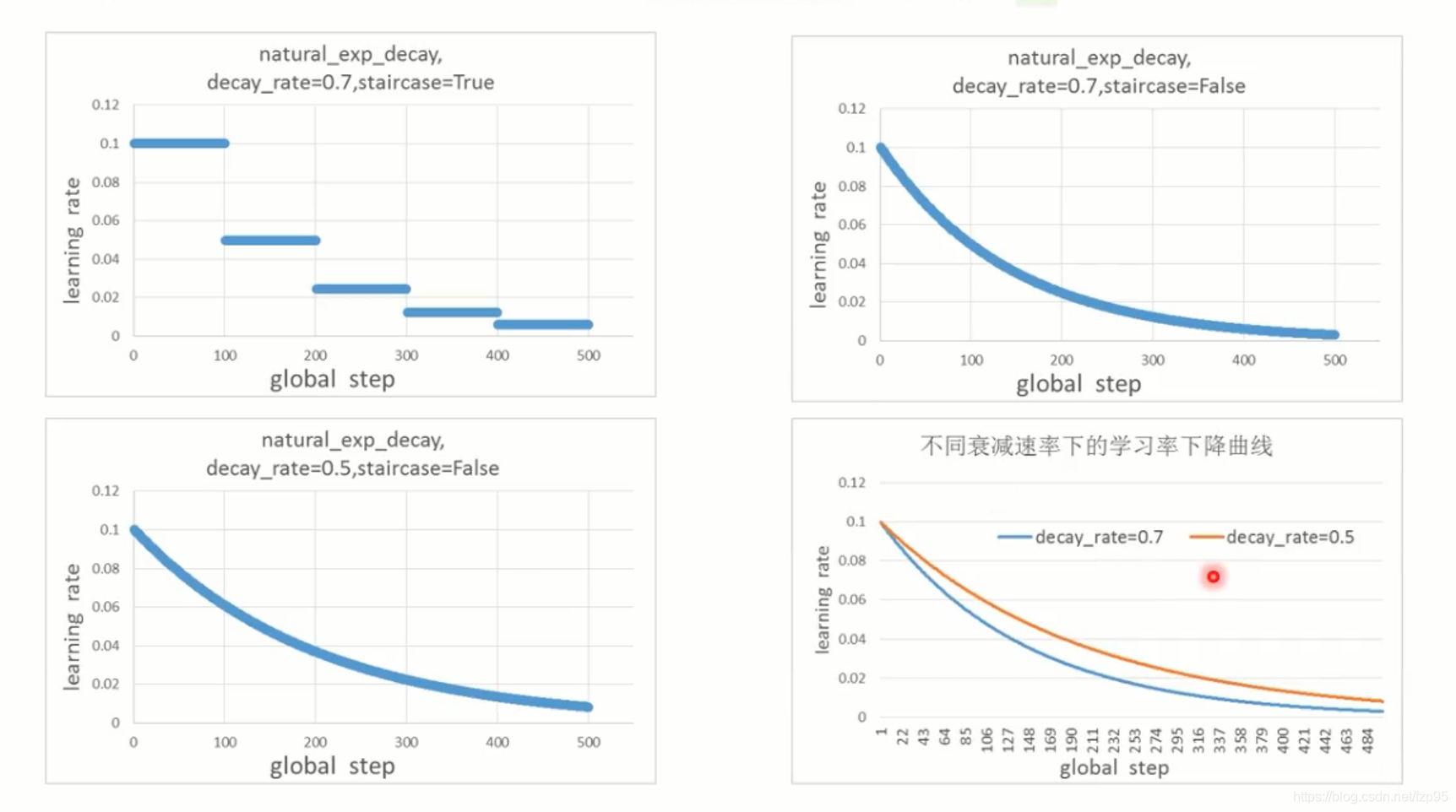

自然指数衰减

def natural_exp_decay(learning_rate, global_step, decay_steps, decay_rate, staircase=False, name=None)

  # decay exponentially with a base of 0.96:
  global_step = tf.Variable(0, trainable=False)
  learning_rate = 0.1
  k = 0.5
  learning_rate = tf.train.exponential_time_decay(learning_rate, global_step, k)

  learning_step = (
      tf.train.GradientDescentOptimizer(learning_rate)
      .minimize(...my loss..., global_step=global_step)
  )

decay_rate越大，下降越快

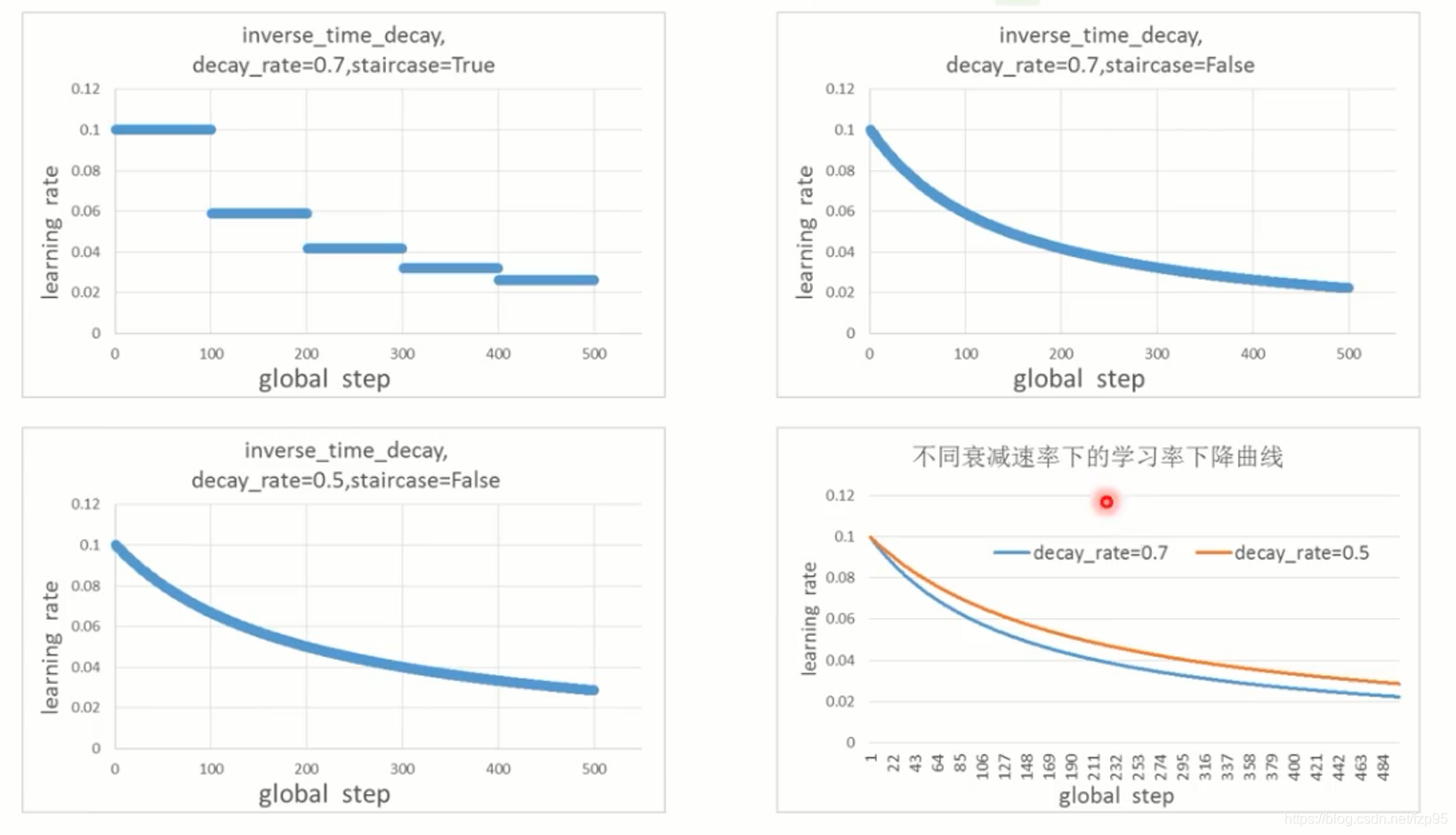

时间翻转衰减

def inverse_time_decay(learning_rate, global_step, decay_steps, decay_rate, staircase=False, name=None)

  # decay 1/t with a rate of 0.5:
  global_step = tf.Variable(0, trainable=False)
  learning_rate = 0.1
  decay_steps = 1.0
  decay_rate = 0.5
  learning_rate = tf.train.inverse_time_decay(learning_rate, global_step,
  decay_steps, decay_rate)

  learning_step = (
      tf.train.GradientDescentOptimizer(learning_rate)
      .minimize(...my loss..., global_step=global_step))

比较：

conv+relu+maxpool+linear_fc

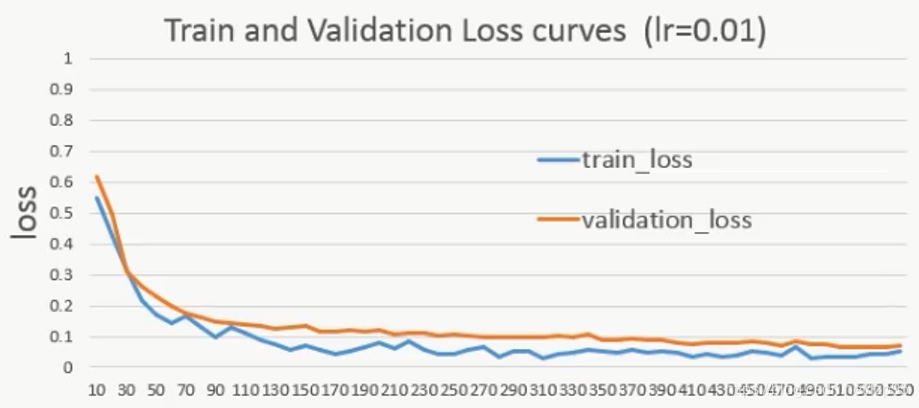

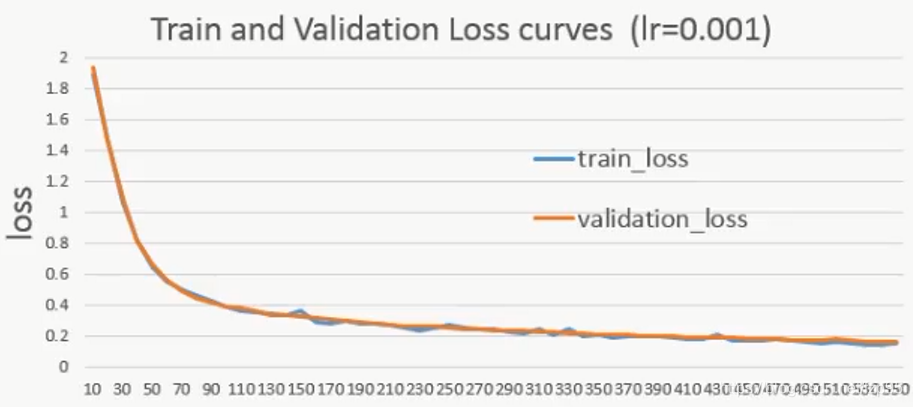

下面是不同的初始学习率对网络影响的比较：

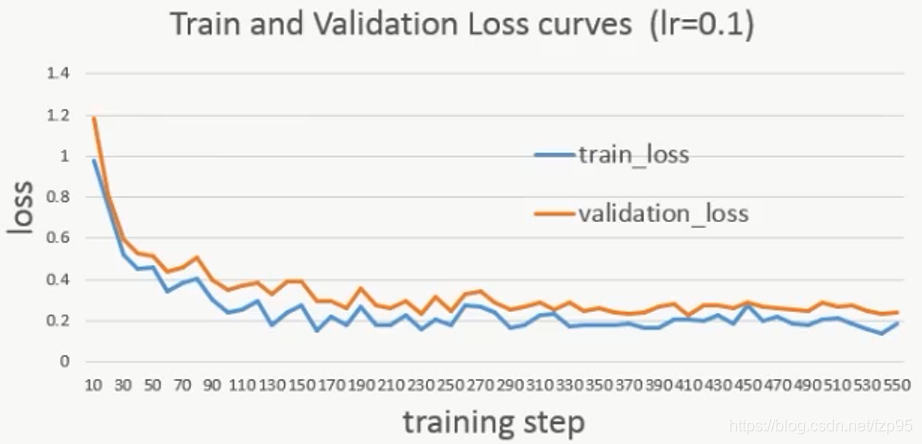

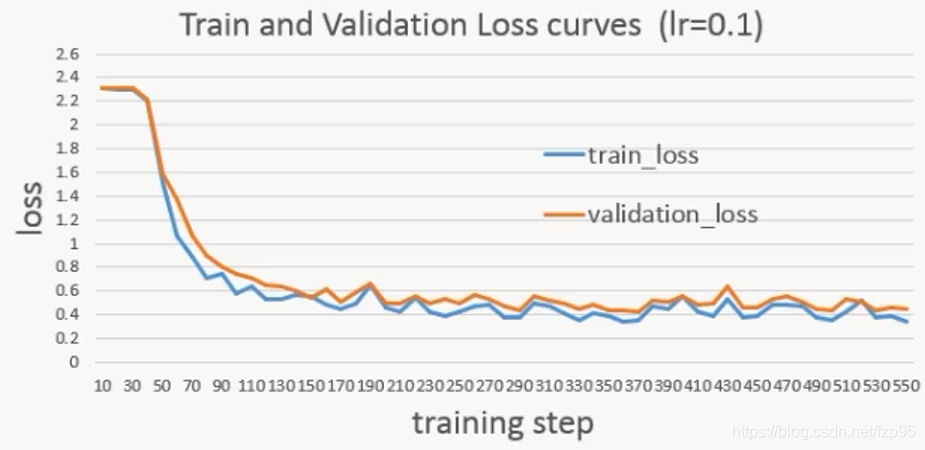

lr=0.1再跑一遍，发现初始损失变化较大：
说明学习率越大，网络的表现越不稳定
