【WSL2笔记3】 win10子系统Ubuntu安装SSH服务

1、安装Openssh-server

sudo apt install openssh-server

Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
The following additional packages will be installed:
  libwrap0 ncurses-term openssh-sftp-server ssh-import-id
Suggested packages:
  molly-guard monkeysphere ssh-askpass
The following NEW packages will be installed:
  libwrap0 ncurses-term openssh-server openssh-sftp-server ssh-import-id
0 upgraded, 5 newly installed, 0 to remove and 53 not upgraded.
Need to get 798 kB of archives.
After this operation, 6157 kB of additional disk space will be used.
Do you want to continue? [Y/n] y
Get:1 http://archive.ubuntu.com/ubuntu jammy-updates/main amd64 openssh-sftp-server amd64 1:8.9p1-3ubuntu0.1 [38.7 kB]
Get:2 http://archive.ubuntu.com/ubuntu jammy/main amd64 libwrap0 amd64 7.6.q-31build2 [47.9 kB]
Get:3 http://archive.ubuntu.com/ubuntu jammy-updates/main amd64 openssh-server amd64 1:8.9p1-3ubuntu0.1 [434 kB]
Get:4 http://archive.ubuntu.com/ubuntu jammy/main amd64 ncurses-term all 6.3-2 [267 kB]
Get:5 http://archive.ubuntu.com/ubuntu jammy/main amd64 ssh-import-id all 5.11-0ubuntu1 [10.1 kB]
Fetched 798 kB in 4s (196 kB/s)
Preconfiguring packages ...
Selecting previously unselected package openssh-sftp-server.
(Reading database ... 37243 files and directories currently installed.)
Preparing to unpack .../openssh-sftp-server_1%3a8.9p1-3ubuntu0.1_amd64.deb ...
Unpacking openssh-sftp-server (1:8.9p1-3ubuntu0.1) ...
Selecting previously unselected package libwrap0:amd64.
Preparing to unpack .../libwrap0_7.6.q-31build2_amd64.deb ...
Unpacking libwrap0:amd64 (7.6.q-31build2) ...
Selecting previously unselected package openssh-server.
Preparing to unpack .../openssh-server_1%3a8.9p1-3ubuntu0.1_amd64.deb ...
Unpacking openssh-server (1:8.9p1-3ubuntu0.1) ...
Selecting previously unselected package ncurses-term.
Preparing to unpack .../ncurses-term_6.3-2_all.deb ...
Unpacking ncurses-term (6.3-2) ...
Selecting previously unselected package ssh-import-id.
Preparing to unpack .../ssh-import-id_5.11-0ubuntu1_all.deb ...
Unpacking ssh-import-id (5.11-0ubuntu1) ...
Setting up openssh-sftp-server (1:8.9p1-3ubuntu0.1) ...
Setting up ssh-import-id (5.11-0ubuntu1) ...
Setting up libwrap0:amd64 (7.6.q-31build2) ...
Setting up ncurses-term (6.3-2) ...
Setting up openssh-server (1:8.9p1-3ubuntu0.1) ...

Creating config file /etc/ssh/sshd_config with new version
Creating SSH2 RSA key; this may take some time ...
3072 SHA256:pcX/FSglFGVS+rvIVXewSjbFWWOA5yujugHRG7zvxu4 root@VP01 (RSA)
Creating SSH2 ECDSA key; this may take some time ...
256 SHA256:OrpdejbESGLhpAJBKo89pcyjFPyGXoHp9iC9CLnkeKc root@VP01 (ECDSA)
Creating SSH2 ED25519 key; this may take some time ...
256 SHA256:kbVG3PPGOmQ/ZxBew0R1W1nsvLOT6yGdvJhATjWu/Tc root@VP01 (ED25519)
invoke-rc.d: could not determine current runlevel
Created symlink /etc/systemd/system/sshd.service → /lib/systemd/system/ssh.service.
Created symlink /etc/systemd/system/multi-user.target.wants/ssh.service → /lib/systemd/system/ssh.service.
Processing triggers for ufw (0.36.1-4build1) ...
Processing triggers for man-db (2.10.2-1) ...
Processing triggers for libc-bin (2.35-0ubuntu3.1) ...
/sbin/ldconfig.real: /usr/lib/wsl/lib/libcuda.so.1 is not a symbolic link

2、修改配置

2.1 查看SSH服务器配置内容

cat /etc/ssh/sshd_config
注意配置文件是sshd_config，不是ssh_config

(base) fb@VP01:~$ cat /etc/ssh/sshd_config

# This is the sshd server system-wide configuration file.  See
# sshd_config(5) for more information.

# This sshd was compiled with PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/games

# The strategy used for options in the default sshd_config shipped with
# OpenSSH is to specify options with their default value where
# possible, but leave them commented.  Uncommented options override the
# default value.

Include /etc/ssh/sshd_config.d/*.conf

#Port 22
#AddressFamily any
#ListenAddress 0.0.0.0
#ListenAddress ::

#HostKey /etc/ssh/ssh_host_rsa_key
#HostKey /etc/ssh/ssh_host_ecdsa_key
#HostKey /etc/ssh/ssh_host_ed25519_key

# Ciphers and keying
#RekeyLimit default none

# Logging
#SyslogFacility AUTH
#LogLevel INFO

# Authentication:

#LoginGraceTime 2m
#PermitRootLogin prohibit-password
#StrictModes yes
#MaxAuthTries 6
#MaxSessions 10

#PubkeyAuthentication yes

# Expect .ssh/authorized_keys2 to be disregarded by default in future.
#AuthorizedKeysFile     .ssh/authorized_keys .ssh/authorized_keys2

#AuthorizedPrincipalsFile none

#AuthorizedKeysCommand none
#AuthorizedKeysCommandUser nobody

# For this to work you will also need host keys in /etc/ssh/ssh_known_hosts
#HostbasedAuthentication no
# Change to yes if you don't trust ~/.ssh/known_hosts for
# HostbasedAuthentication
#IgnoreUserKnownHosts no
# Don't read the user's ~/.rhosts and ~/.shosts files
#IgnoreRhosts yes

# To disable tunneled clear text passwords, change to no here!
#PasswordAuthentication yes
#PermitEmptyPasswords no

# Change to yes to enable challenge-response passwords (beware issues with
# some PAM modules and threads)
KbdInteractiveAuthentication no

# Kerberos options
#KerberosAuthentication no
#KerberosOrLocalPasswd yes
#KerberosTicketCleanup yes
#KerberosGetAFSToken no

# GSSAPI options
#GSSAPIAuthentication no
#GSSAPICleanupCredentials yes
#GSSAPIStrictAcceptorCheck yes
#GSSAPIKeyExchange no

# Set this to 'yes' to enable PAM authentication, account processing,
# and session processing. If this is enabled, PAM authentication will
# be allowed through the KbdInteractiveAuthentication and
# PasswordAuthentication.  Depending on your PAM configuration,
# PAM authentication via KbdInteractiveAuthentication may bypass
# the setting of "PermitRootLogin without-password".
# If you just want the PAM account and session checks to run without
# PAM authentication, then enable this but set PasswordAuthentication
# and KbdInteractiveAuthentication to 'no'.
UsePAM yes

#AllowAgentForwarding yes
#AllowTcpForwarding yes
#GatewayPorts no
X11Forwarding yes
#X11DisplayOffset 10
#X11UseLocalhost yes
#PermitTTY yes
PrintMotd no
#PrintLastLog yes
#TCPKeepAlive yes
#PermitUserEnvironment no
#Compression delayed
#ClientAliveInterval 0
#ClientAliveCountMax 3
#UseDNS no
#PidFile /run/sshd.pid
#MaxStartups 10:30:100
#PermitTunnel no
#ChrootDirectory none
#VersionAddendum none

# no default banner path
#Banner none

# Allow client to pass locale environment variables
AcceptEnv LANG LC_*

# override default of no subsystems
Subsystem       sftp    /usr/lib/openssh/sftp-server

# Example of overriding settings on a per-user basis
#Match User anoncvs
#       X11Forwarding no
#       AllowTcpForwarding no
#       PermitTTY no
#       ForceCommand cvs server

2.2 创建自已的配置文件

看到主配置中包含Include /etc/ssh/sshd_config.d/*.conf ，我们只需要在sshd_config.d目录下创建自定义配置，方便管理。
注意配置文件是sshd_config.d，不是ssh_config.d
sudo vim /etc/ssh/sshd_config.d/xf_sshd.conf

ListenAddress 0.0.0.0  # 监听地址
Port 2222                   # 设置端口
PasswordAuthentication yes  # 需要密码验证
PermitRootLogin yes  # 允许远程Root登录

重启SSH
sudo service ssh --full-restart

2.3 开机自启动

sudo systemctl enable ssh

Synchronizing state of ssh.service with SysV service script with /lib/systemd/systemd-sysv-install.
Executing: /lib/systemd/systemd-sysv-install enable ssh

3. WSL 虚拟机IP和设置SSH防火墙端口映射

3.1 查看WSL虚拟机IP地址

ifconfig

eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 172.19.44.201  netmask 255.255.240.0  broadcast 172.19.47.255
        inet6 fe80::215:5dff:fe73:fd8a  prefixlen 64  scopeid 0x20<link>
        ether 00:15:5d:73:fd:8a  txqueuelen 1000  (Ethernet)
        RX packets 2019609  bytes 2987143671 (2.9 GB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 324630  bytes 21962229 (21.9 MB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

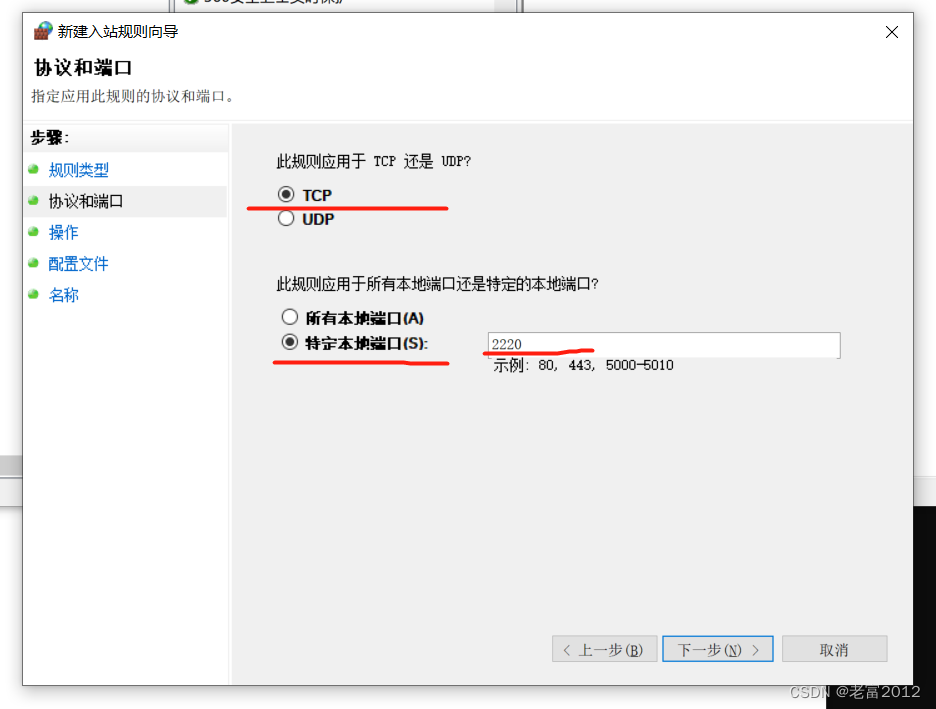

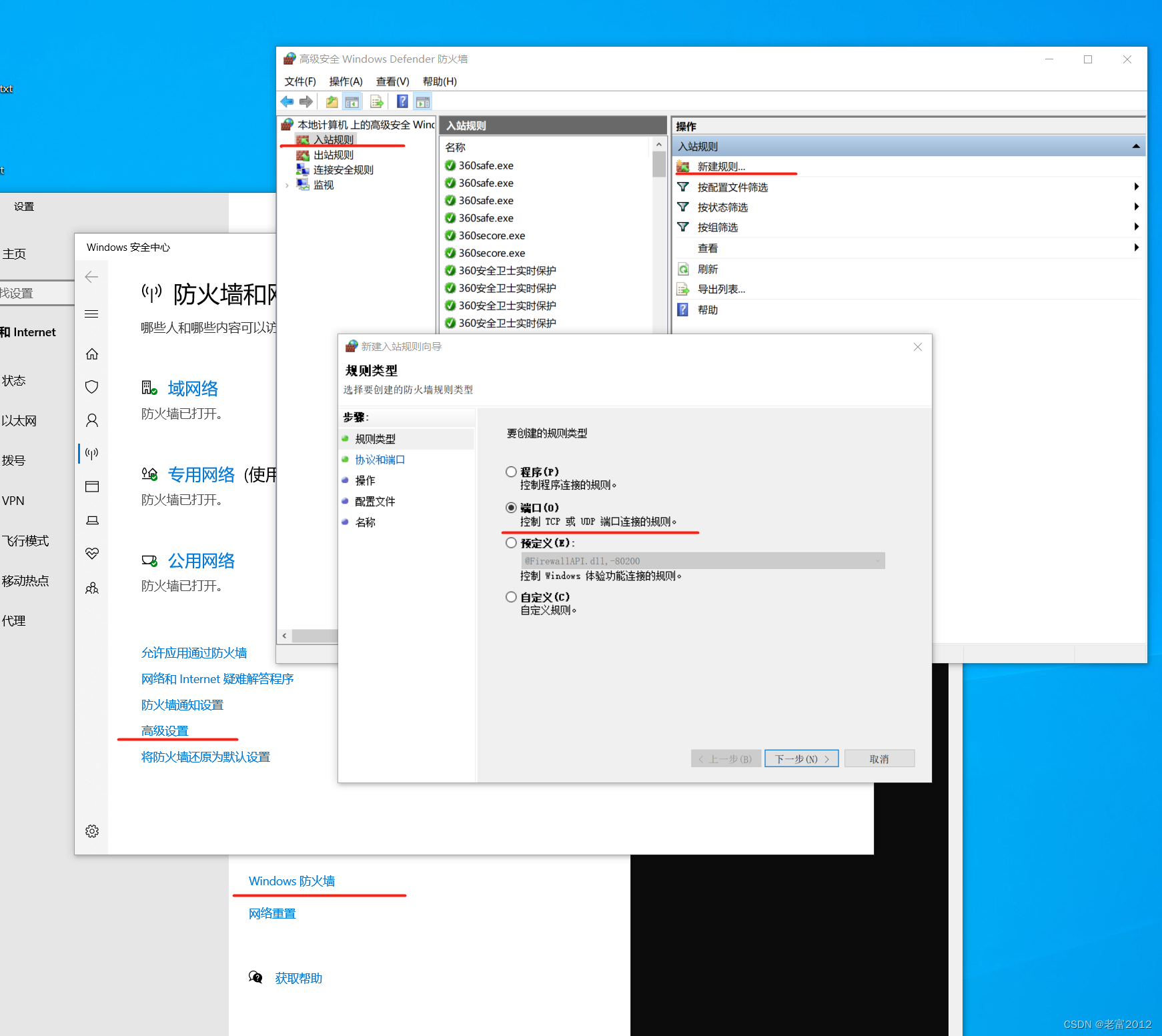

3.2 Windows中设置WSL SSH防火墙端口

端口–>TCP–>特点本地端口–>允许连接

查看SSH运行状态
sudo service ssh status

 * sshd is running

4、win10下连接WSL SSH

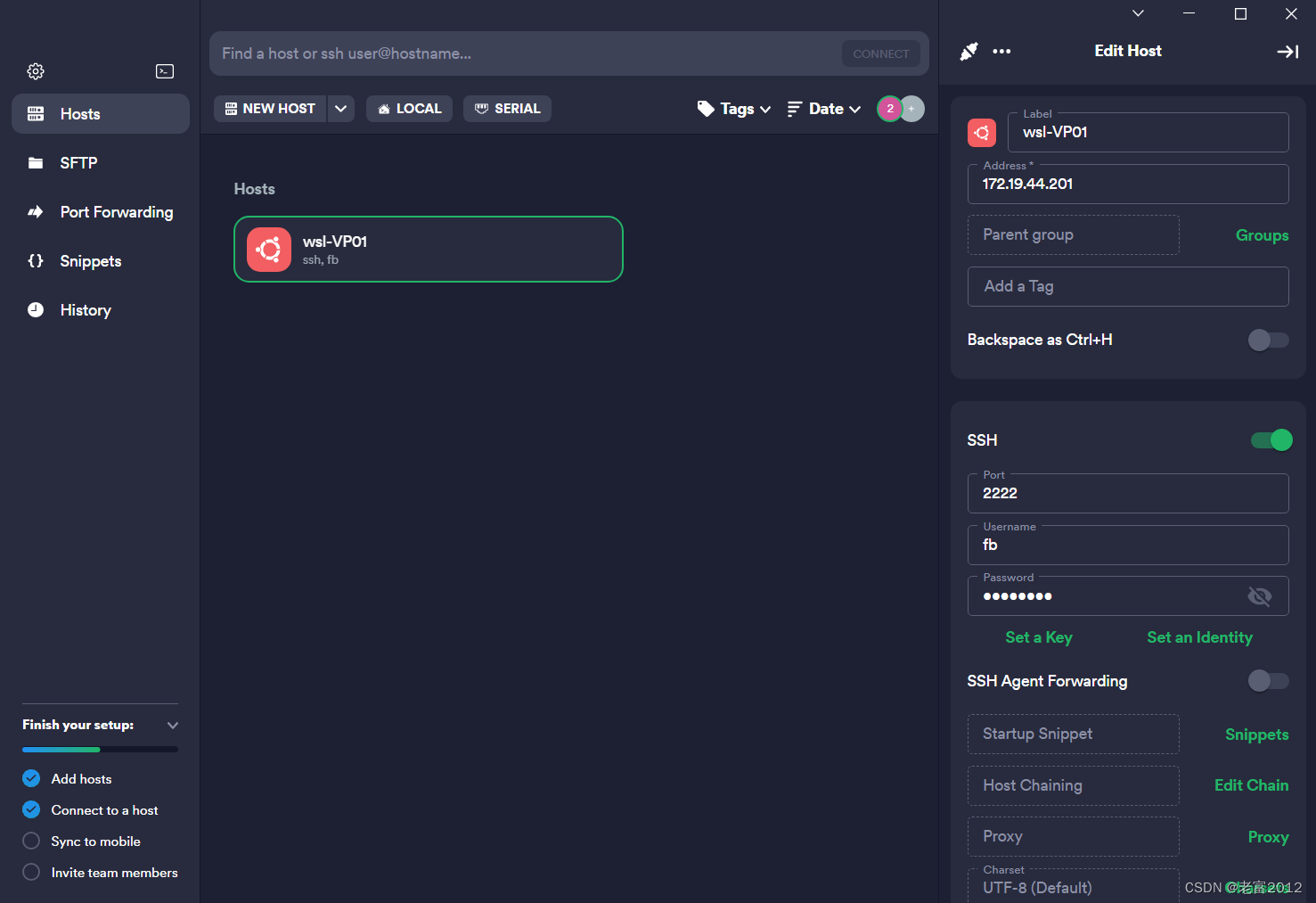

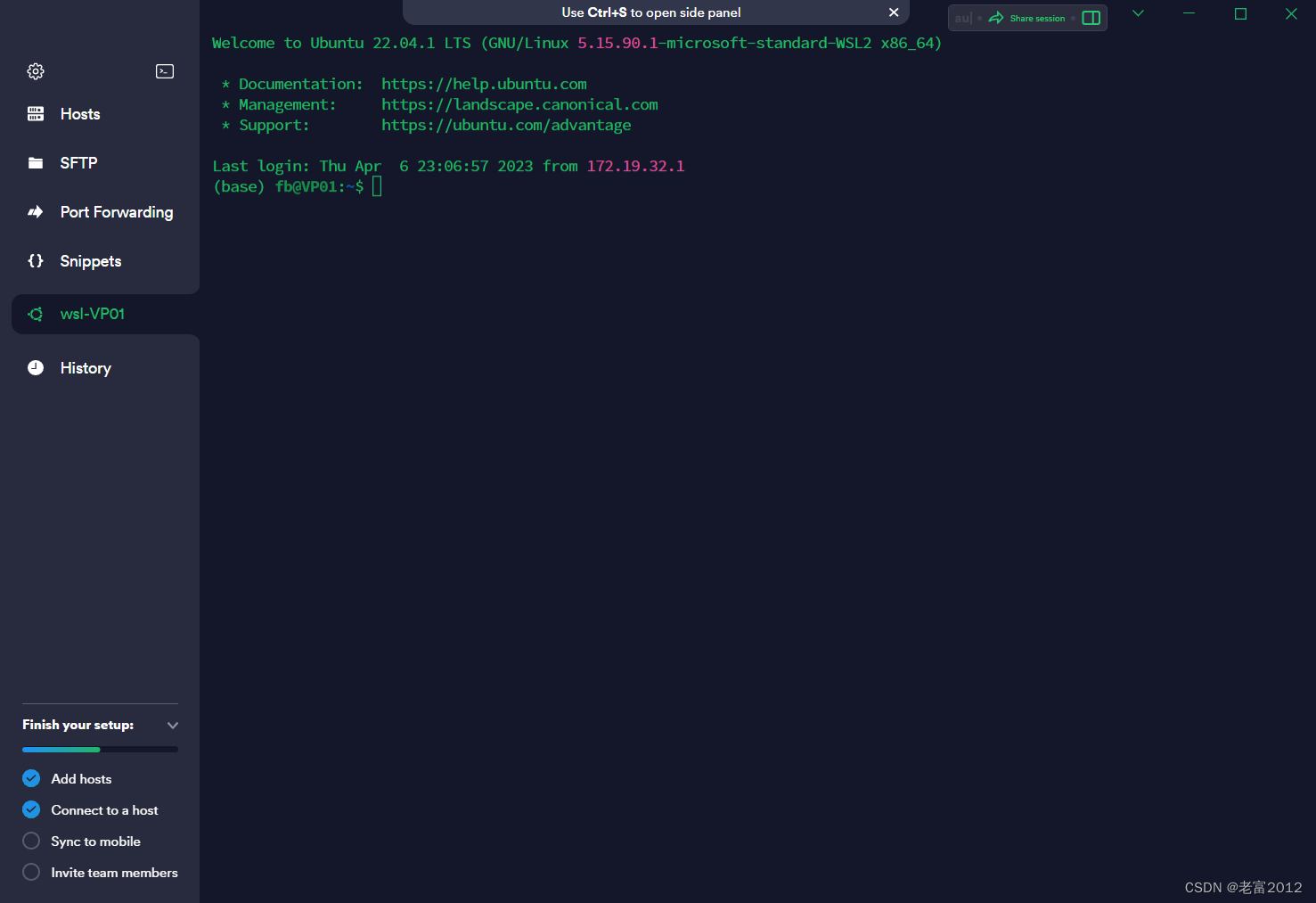

4.1 SSH工具软件Termius

https://www.termius.com/
Termius是一款非常好用而且漂亮的SSH客户端,能快速远程控制服务器,可以定制自己喜欢的主题。Termius不仅涵盖了PC端的Windows、Linux、Mac,还支持手机端的Android和iOS。

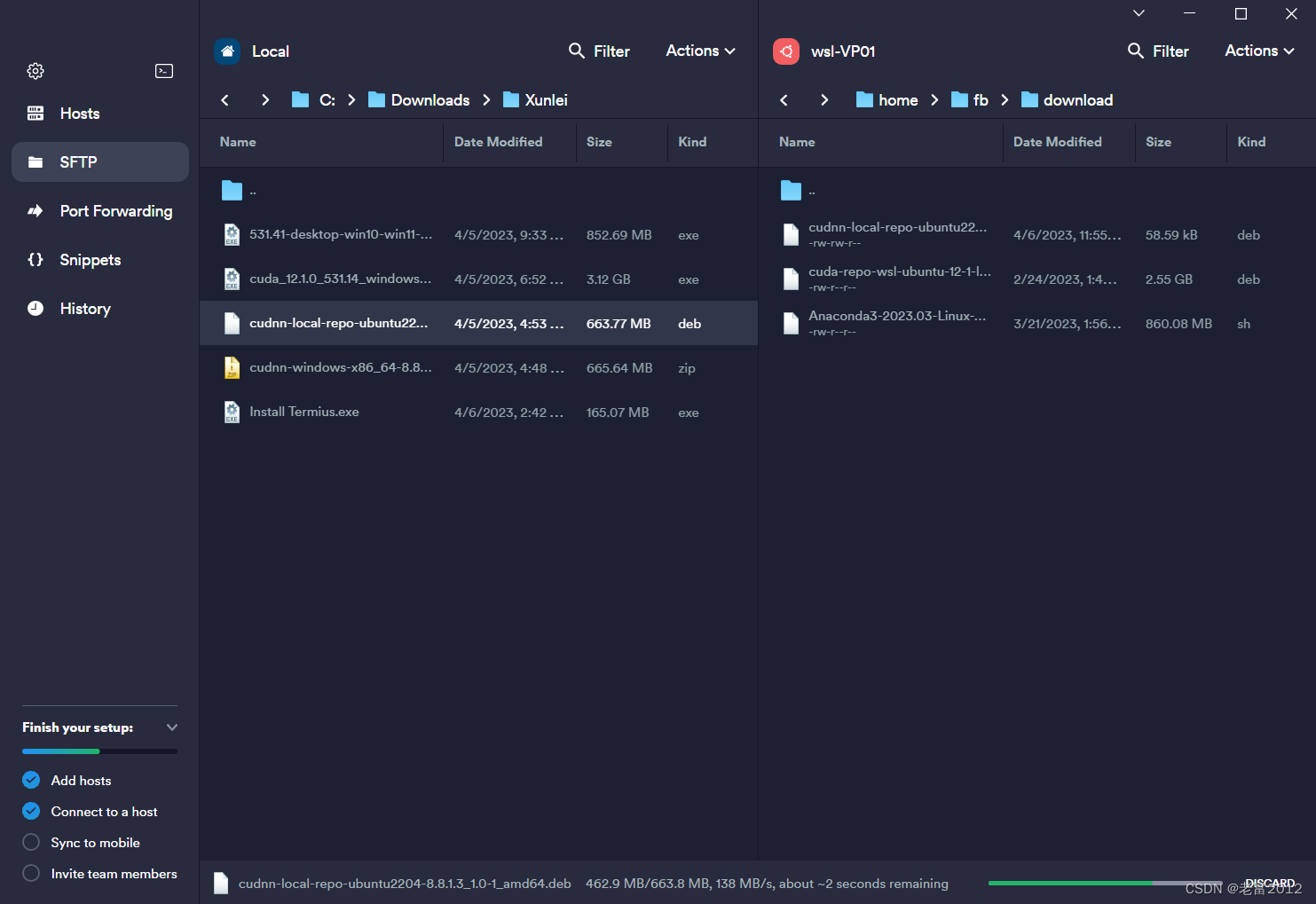

SSH和SFTP，真是方便快捷。

至此，我们完成了WSL 下的SSH安装使用。
