摘要

在微服务开发过程中，后端同学会写各种API，每写一个API，都需要相应的API文档，前端同学需要根据API文档进行开发、联调，其它后端同学也需要通过API文档了解系统设计以及方便排查问题。

关于API文档的工具有很多，比如常用的Swagger、Apifox等等，本文主要介绍Springdoc开源库，它与Spring Boot框架体系的集成更显丝滑。

本着"最新"原则，这篇文章依然采用最新版的Spring Boot 3.3.4，最新版springdoc-openapi-starter 2.6.0，最新版springdoc-openapi 1.8.0，OpenJDK最新LTS版21，IntelliJ IDEA最新社区版2024.2.3。

本地开发环境说明

开发用到的主要框架、工具版本如下

开发依赖	版本
Spring Boot	3.3.4
springdoc-openapi-starter	2.6.0
springdoc-openapi	1.8.0
JDK	21
IntelliJ IDEA	2024.2.3

pom.xml

如果依赖spring-boot-starter-web并且需要访问swagger-ui，则引入springdoc-openapi-starter-webmvc-ui
如果依赖spring-boot-starter-web并且只需要访问OpenAPI endpoints，则引入springdoc-openapi-starter-webmvc-api
如果依赖spring-boot-starter-webflux并且需要访问swagger-ui，则引入springdoc-openapi-starter-webflux-ui
如果依赖spring-boot-starter-webflux并且只需要访问OpenAPI endpoints，则引入springdoc-openapi-starter-webflux-api

pom依赖如下

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.3.4</version>
        <relativePath/>
    </parent>

    <artifactId>wen3-framework-apidoc-springdoc-demo</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springdoc</groupId>
            <artifactId>springdoc-openapi-starter-webmvc-ui</artifactId>
        </dependency>
    </dependencies>
</project>

如果要把actuator加入swagger文档，则增加以下依赖

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-actuator</artifactId>
</dependency>

如果要把Javadoc生成swagger文档，则增加以下依赖

<!-- 从Javadoc注释生成Swagger文档 -->
<dependency>
    <groupId>org.springdoc</groupId>
    <artifactId>springdoc-openapi-javadoc</artifactId>
    <version>${springdoc-openapi-javadoc.version}</version>
    <!--包含依赖 ：therapi-runtime-javadoc-->
</dependency>

Controller演示类

为了演示API分组的效果，在3个不同的包下新建3个不同的Controller类

com.wen3.springdoc.demo.controller.DemoController

package com.wen3.springdoc.demo.controller;

import io.swagger.v3.oas.annotations.Operation;
import jakarta.servlet.http.HttpServletRequest;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author tangheng
 */
@Slf4j
@RestController
public class DemoController {

    @Autowired
    private HttpServletRequest request;

    @Operation(summary = "示例",description = "示例描述")
    @RequestMapping(path = "/demo", method = RequestMethod.GET)
    public String demo(String name) {
        return "Hello," + name;
    }
}

com.wen3.springdoc.demo.controller2.DemoController2

package com.wen3.springdoc.demo.controller2;

import com.wen3.springdoc.demo.dto.UserDemo;
import io.swagger.v3.oas.annotations.Operation;
import jakarta.servlet.http.HttpServletRequest;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author tangheng
 */
@Slf4j
@RestController
public class DemoController2 {

    @Autowired
    private HttpServletRequest request;

    @Operation(summary = "示例",description = "示例描述")
    @RequestMapping(path = "/demo2", method = RequestMethod.POST)
    public String demo2(@RequestBody UserDemo userDemo) {
        return "Hello," + userDemo.getName();
    }
}

com.wen3.springdoc.demo.controller3.DemoController3

package com.wen3.springdoc.demo.controller3;

import com.wen3.springdoc.demo.dto.UserDemo;
import io.swagger.v3.oas.annotations.Operation;
import io.swagger.v3.oas.annotations.security.SecurityRequirement;
import jakarta.servlet.http.HttpServletRequest;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

import java.util.Enumeration;

/**
 * @author tangheng
 */
@Slf4j
@RestController
public class DemoController3 {

    @Autowired
    private HttpServletRequest request;

    /**
     * Javadoc描述
     * @param userDemo 用户对象
     * @return 字符串
     */
    @Operation(summary = "演示说明1", description = "演示说明2", security={@SecurityRequirement(name = "xxx")})
    @RequestMapping(path = "/demo3", method = RequestMethod.POST)
    public String demo3(@RequestBody UserDemo userDemo) {
        Enumeration<String> headerNames = request.getHeaderNames();
        while(headerNames.hasMoreElements()) {
            String headerName = headerNames.nextElement();
            log.info("{}:{}", headerName, request.getHeader(headerName));
        }

        return "Hello," + userDemo.getName();
    }
}

OpenAPI配置类

为了演示在swagger-ui界面上测试API的时候增加鉴权的效果，配置时增加了安全认证

package com.wen3.springdoc.demo.autoconfigure;

import io.swagger.v3.oas.annotations.OpenAPIDefinition;
import io.swagger.v3.oas.annotations.enums.SecuritySchemeIn;
import io.swagger.v3.oas.annotations.enums.SecuritySchemeType;
import io.swagger.v3.oas.annotations.security.SecurityRequirement;
import io.swagger.v3.oas.annotations.security.SecurityScheme;
import io.swagger.v3.oas.models.ExternalDocumentation;
import io.swagger.v3.oas.models.OpenAPI;
import io.swagger.v3.oas.models.info.Contact;
import io.swagger.v3.oas.models.info.Info;
import io.swagger.v3.oas.models.info.License;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpHeaders;

/**
 * @author tangheng
 */
@OpenAPIDefinition(
        security = @SecurityRequirement(name = "Authorization")
)
@SecurityScheme(type = SecuritySchemeType.HTTP, name = HttpHeaders.AUTHORIZATION, scheme = "bearer", bearerFormat="JWT", in = SecuritySchemeIn.HEADER)
@SecurityScheme(type = SecuritySchemeType.HTTP, name = "xxx", scheme = "bearer", bearerFormat="JWT", in = SecuritySchemeIn.HEADER)
@Configuration
public class SpringDocAutoConfiguration {

    @Bean
    public OpenAPI openAPI(){
        return new OpenAPI()
                .info(apiInfo())
                .externalDocs(new ExternalDocumentation()
                        .description("SpringDoc Wiki Documentation")
                        .url("https://springdoc.org/v2"))
                ;
    }

    private Info apiInfo() {
        return new Info()
                .title("Wen3 Demo API Doc")
                .description("springfox swagger 3.0 demo")
                .version("1.0.0")
                .contact(new Contact()
                        .name("demo")
                        .url("www.demo.com")
                        .email("demo@demo.com")
                )
                .license(new License()
                        .name("Apache 2.0")
                        .url("http://www.apache.org/licenses/LICENSE-2.0.txt")
                );
    }
}

程序配置

Springdoc支持Swagger官方配置，可参考: https://swagger.io/docs/open-source-tools/swagger-ui/usage/configuration/

使用前缀: springdoc.swagger-ui
api-docs相关的配置使用前缀springdoc.api-docs
配置文件示例如下

server:
  port: 7001

######## swagger configuration ###############
springdoc:
  #如果不需要分组，就使用packages-to-scan:
  #  packages-to-scan: ##需要扫描的包,可以配置多个
  #    - com.wen3.springdoc.demo.controller
  #    - com.wen3.springdoc.demo.controller2
  #    - com.wen3.springdoc.demo.controller3
  paths-to-exclude:  ##配置不包含在swagger文档中的api
    - /api/test/**
    - /api/mockito/data
  swagger-ui:
    enabled: true  #开启/禁止swagger,prod可以设置为false
    # swagger-ui custom path
    path: /swagger-ui.html
    display-request-duration: true  # 展示请求所耗时间ms
    operations-sorter: method #api排序方式 alpha 字母 method http方法
    groups-order: desc # 排序顺序
    disable-swagger-default-url: true #禁用swagger-ui默认的petstore网址 默认就是swagger-ui.html
  group-configs:
    - group: demo
      paths-to-match: /demo/**
    - group: demo2
      paths-to-match: /demo2/**
    - group: demo3
      packages-to-scan: com.wen3.springdoc.demo.controller3
  api-docs:
    enabled: true #开启/禁止api-docs, prod可以设置为false
    # /api-docs endpoint custom path
    path: /api-docs # 设置为true时, management也需要设置
  model-and-view-allowed: true #运行modelAndView展示（返回页面）
  use-management-port: false
  #  use-management-port: true
  # 是否在swagger-ui中显示actuator接口文档
  show-actuator: false

management:
  server:
    # The actuator management port has to be different from the application port.
    port: 7002
  endpoints:
    web:
      exposure:
        include: '*'

启动工程

启动日志如下
在这里插入图片描述

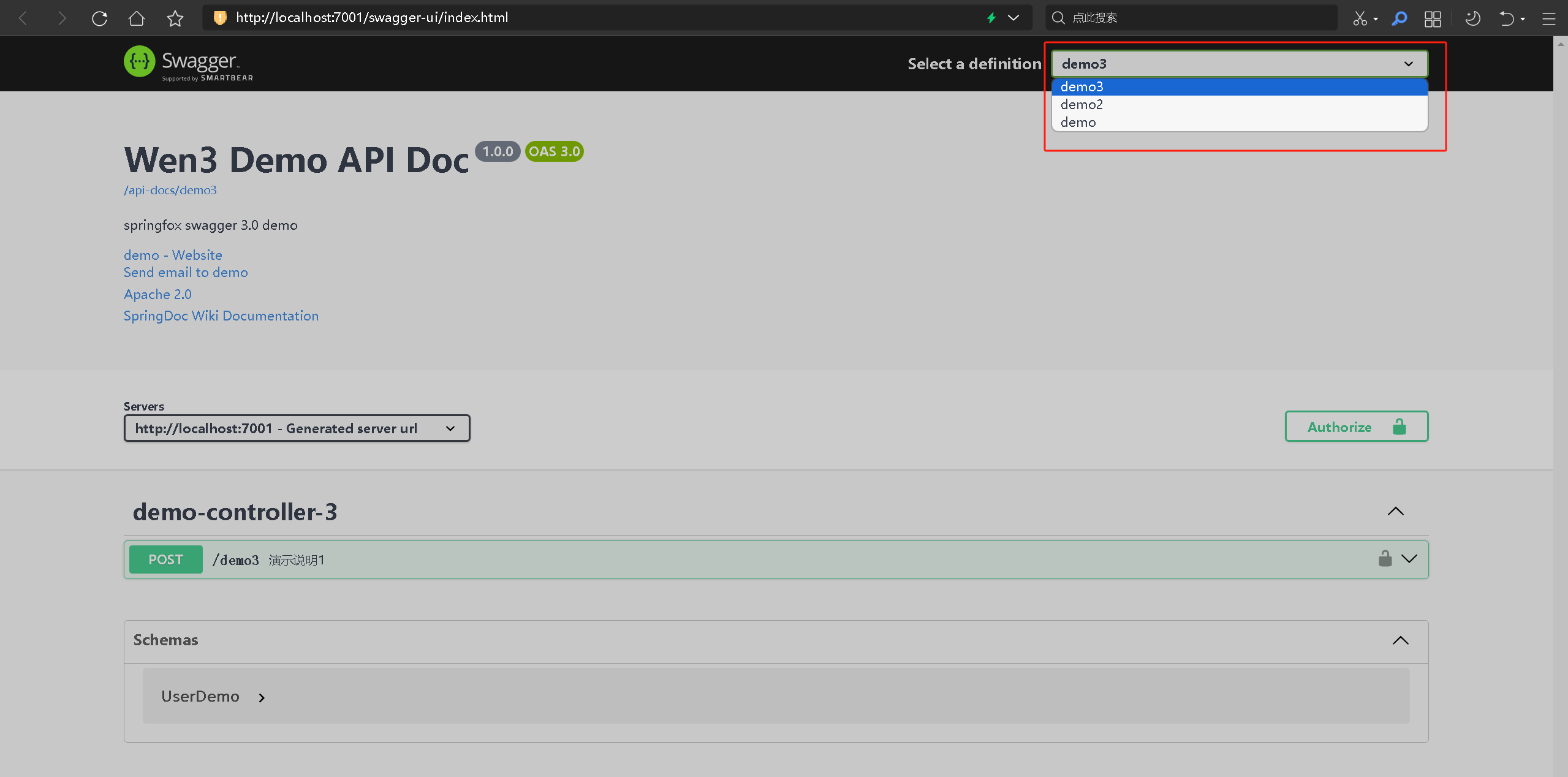

访问swagger-ui

在浏览器输入http://localhost:7001/swagger-ui/index.html
右上角有个分组的下拉列表，分别对于不同分组下的API

结合swagger-ui对配置项进行说明

安全认证

SpringDocAutoConfiguration在这个类上加了安全相关的注释后

@OpenAPIDefinition(
        security = @SecurityRequirement(name = "Authorization")
)
@SecurityScheme(type = SecuritySchemeType.HTTP, name = HttpHeaders.AUTHORIZATION, scheme = "bearer", bearerFormat="JWT", in = SecuritySchemeIn.HEADER)
@SecurityScheme(type = SecuritySchemeType.HTTP, name = "xxx", scheme = "bearer", bearerFormat="JWT", in = SecuritySchemeIn.HEADER)
@Configuration
public class SpringDocAutoConfiguration {
}

对应swagger-ui上的Authorize按钮
通过Try it out测试API的时候，会带上这个请求头

show-actuator

如果修改以下配置

springdoc:
  show-actuator: true

就可以在swagger-ui看到actuator相关API文档

总结

本文演示了在最新版Spring Boot怎么集成API文档工具Springdoc
Springdoc支持Swagger官方配置，使用前缀springdoc.swagger-ui，熟悉Swagger配置的同学也可以方便的丝滑迁移到Springdoc
Springdoc对Spring Boot框架体系的支持比较友好，版本迭代也比较活跃，可以考虑从其它工具迁移过来，从本文的演示来看，配置还是相当简单，能体验到丝滑的程度
Springdoc写API文档，对应的注解也随之不同
Swagger和SpringDoc常用注解的对应关系如下：
- @Api → @Tag
- @ApiIgnore → @Parameter(hidden = true) or @Operation(hidden = true) or @Hidden
- @ApiImplicitParam → @Parameter
- @ApiImplicitParams → @Parameters
- @ApiModel → @Schema
- @ApiModelProperty(hidden = true) → @Schema(accessMode = READ_ONLY)
- @ApiModelProperty → @Schema
- @ApiOperation(value = “foo”, notes = “bar”) → @Operation(summary = “foo”, description = “bar”)
- @ApiParam → @Parameter
- @ApiResponse(code = 404, message = “foo”) → @ApiResponse(responseCode = “404”, description = “foo”)
