为什么研究doDispatch方法？来看下图，Springmvc 的很多组件都是围绕着DispatchServlet工作的。而其doDispatch方法用代码的方式呈现了如下图的完整的流程

前端控制器DispatcherServlet（不需要工程师开发）,由框架提供
作用：接收请求，响应结果，相当于转发器，中央处理器。有了dispatcherServlet减少了其它组件之间的耦合度。
用户请求到达前端控制器，它就相当于mvc模式中的c，dispatcherServlet是整个流程控制的中心，由它调用其它组件处理用户的请求，dispatcherServlet的存在降低了组件之间的耦合性。

spring-webmvc-4.3.14

先来看看

    protected void initStrategies(ApplicationContext context) {
        this.initMultipartResolver(context);
        this.initLocaleResolver(context);
        this.initThemeResolver(context);
        this.initHandlerMappings(context);
        this.initHandlerAdapters(context);
        this.initHandlerExceptionResolvers(context);
        this.initRequestToViewNameTranslator(context);
        this.initViewResolvers(context);
        this.initFlashMapManager(context);
    }

由上可知：容器在启动时就初始化了很多组件（也即，这些组件由容器提供并初始化），以供后续直接使用。

我们以initHandlerMappings为例

 private void initHandlerMappings(ApplicationContext context) {
        this.handlerMappings = null;
        if (this.detectAllHandlerMappings) {
//从容器中查找所有的handlerMapping类，放到一个Map集合中，命名为matchingBeans
            Map<String, HandlerMapping> matchingBeans = BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerMapping.class, true, false);
            if (!matchingBeans.isEmpty()) {
                this.handlerMappings = new ArrayList(matchingBeans.values());
                AnnotationAwareOrderComparator.sort(this.handlerMappings);//还给排个序
            }
        } else {
            try {
                HandlerMapping hm = (HandlerMapping)context.getBean("handlerMapping", HandlerMapping.class);
                this.handlerMappings = Collections.singletonList(hm);
            } catch (NoSuchBeanDefinitionException var3) {
            }
        }

        if (this.handlerMappings == null) {
            this.handlerMappings = this.getDefaultStrategies(context, HandlerMapping.class);
            if (this.logger.isDebugEnabled()) {
                this.logger.debug("No HandlerMappings found in servlet '" + this.getServletName() + "': using default");
            }
        }

    }

DispatcherServlet.java 的doDispatch方法

 protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
        HttpServletRequest processedRequest = request;
        HandlerExecutionChain mappedHandler = null;
        boolean multipartRequestParsed = false;
        WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

        try {
            try {
                ModelAndView mv = null;
                Object dispatchException = null;

                try {
                    //1,processedRequest意思为处理之后的请求，而它是由checkMultipart(request)方法处理的
                    processedRequest = this.checkMultipart(request);
                    multipartRequestParsed = processedRequest != request;
                 //2,获取request的Handler方法，handler被封装为HandlerExecutionChain，
                    mappedHandler = this.getHandler(processedRequest);
                    if (mappedHandler == null || mappedHandler.getHandler() == null) {
                        this.noHandlerFound(processedRequest, response);
                        return;
                    }
                //3，通过Handler获取HandlerAdpater,主要是用来做很多预处理
                    HandlerAdapter ha = this.getHandlerAdapter(mappedHandler.getHandler());
                    String method = request.getMethod();
                    boolean isGet = "GET".equals(method);
                    if (isGet || "HEAD".equals(method)) {
                        long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
                        if (this.logger.isDebugEnabled()) {
                            this.logger.debug("Last-Modified value for [" + getRequestUri(request) + "] is: " + lastModified);
                        }

                        if ((new ServletWebRequest(request, response)).checkNotModified(lastModified) && isGet) {
                            return;
                        }
                    }
//4,Handler的预处理，还记得刚才返回的HandlerExecutionChain封装了Handler和一些拦截器，现在就是调用拦截器的时候。
                    if (!mappedHandler.applyPreHandle(processedRequest, response)) {
                        return;
                    }
//5,HandlerAdpater让Handler处理request与response，获取ModelAndView
                    mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
                    if (asyncManager.isConcurrentHandlingStarted()) {
                        return;
                    }
//6,
                    this.applyDefaultViewName(processedRequest, mv);
//7,这一步与前面的拦截器预处理类似。
                    mappedHandler.applyPostHandle(processedRequest, response, mv);
                } catch (Exception var20) {
                    dispatchException = var20;
                } catch (Throwable var21) {
                    dispatchException = new NestedServletException("Handler dispatch failed", var21);
                }
//8,处理请求分发的结果
                this.processDispatchResult(processedRequest, response, mappedHandler, mv, (Exception)dispatchException);
            } catch (Exception var22) {
                this.triggerAfterCompletion(processedRequest, response, mappedHandler, var22);
            } catch (Throwable var23) {
                this.triggerAfterCompletion(processedRequest, response, mappedHandler, new NestedServletException("Handler processing failed", var23));
            }

        } finally {
            if (asyncManager.isConcurrentHandlingStarted()) {
                if (mappedHandler != null) {
                    mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
                }
            } else if (multipartRequestParsed) {
                this.cleanupMultipart(processedRequest);
            }

        }
    }

以上八条注释，就是每次接受请求以后，DispatchServlet的活动全过程。

processedRequest意思为处理之后的请求，而它是由checkMultipart(request)方法处理的。

判断是不是multipart的请求，默认的判断方式是先判断是不是"POST"请求，然后判断"contentType"是否以multipart开头。
如果不满足multipart条件，直接返回request，也就是request没有做任何处理
如果满足multipart基本条件, 将multipartRequest转换为StandardMultipartHttpServletRequest请求。

以下是部分源码

   protected HttpServletRequest checkMultipart(HttpServletRequest request) throws MultipartException {
        if (this.multipartResolver != null && this.multipartResolver.isMultipart(request)) {
           //如果是Multipart请求，将multipartRequest转换为StandardMultipartHttpServletRequest请求。
try {
                    return this.multipartResolver.resolveMultipart(request);
                } catch (MultipartException var3) {
                    if (request.getAttribute("javax.servlet.error.exception") == null) {
                        throw var3;
                    }
        }
//返回request
        return request;
    }

 public boolean isMultipart(HttpServletRequest request) {
//先判断是不是post请求，如果不是直接返回false
        if (!"post".equalsIgnoreCase(request.getMethod())) {
            return false;
        } else {
//再判断"contentType"是否以multipart开头。
            String contentType = request.getContentType();
            return StringUtils.startsWithIgnoreCase(contentType, "multipart/");
        }
    }

2, 获取request的Handler方法，handler被封装为HandlerExecutionChain，HandlerExecutionChain为handler方法加上拦截器的集合。我们定义的拦截器就在HandlerExecutionChain这个类中生效。

HandlerExecutionChain processedRequest = this.checkMultipart(request);

HandlerExecutionChain为真正的Handler对象与Interceptor的组合类

protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {

//handlerMapping组件是在启动时就初始化过的，可以在此直接使用。
//springmvc提供了不同的映射器实现不同的映射方式，例如：配置文件方式，实现接口方式，注解方式等。
        Iterator var2 = this.handlerMappings.iterator();

        HandlerExecutionChain handler;
        do {
            if (!var2.hasNext()) {
                return null;
            }

            HandlerMapping hm = (HandlerMapping)var2.next();
            if (this.logger.isTraceEnabled()) {
                this.logger.trace("Testing handler map [" + hm + "] in DispatcherServlet with name '" + this.getServletName() + "'");
            }
//由handlerMapping的getHandler方法，以request为参数，获取HandlerExecutionChain
//HandlerMapping 实例根据自己实现类的方式去尝试查找 Handler
            handler = hm.getHandler(request);
        } while(handler == null);

        return handler;
    }

处理器映射器HandlerMapping(不需要工程师开发),由框架提供
作用：根据请求的url查找Handler
HandlerMapping负责根据用户请求找到Handler即处理器，springmvc提供了不同的映射器实现不同的映射方式，例如：配置文件方式，实现接口方式，注解方式等。

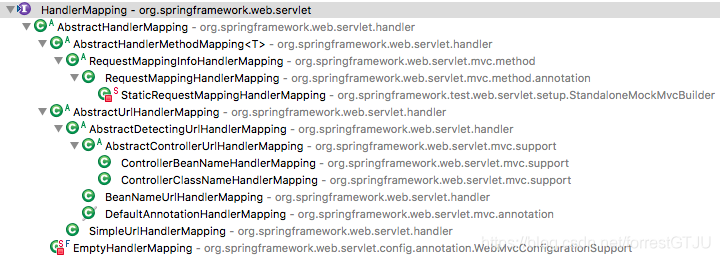

而 HandlerMapping 具体有哪些实现类呢。下图可以一览

先来看一下 AbstractHandlerMapping，它实现了 HandlerMapping 接口中的 getHandler() 方法，源码如下所示

public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
//继续查找Handler
        Object handler = this.getHandlerInternal(request);
        if (handler == null) {
            handler = this.getDefaultHandler();
        }

        if (handler == null) {
            return null;
        } else {
//如果是个字符串如“index.html”,就去找对应的静态资源
            if (handler instanceof String) {
                String handlerName = (String)handler;
                handler = this.getApplicationContext().getBean(handlerName);
            }

            HandlerExecutionChain executionChain = this.getHandlerExecutionChain(handler, request);
            if (CorsUtils.isCorsRequest(request)) {
                CorsConfiguration globalConfig = this.globalCorsConfigSource.getCorsConfiguration(request);
                CorsConfiguration handlerConfig = this.getCorsConfiguration(handler, request);
                CorsConfiguration config = globalConfig != null ? globalConfig.combine(handlerConfig) : handlerConfig;
                executionChain = this.getCorsHandlerExecutionChain(request, executionChain, config);
            }

            return executionChain;
        }
    }

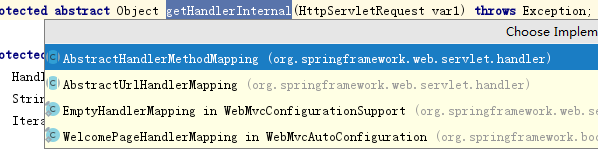

可以看到在这个方法中又调用了 getHandlerInternal() 方法获取到了 Handler 对象，而 Handler 对象具体内容是由它的子类去定义的。

再看

有很多方式，

HandlerExecutionChanin mappedHandler = getHandler(request)，内部细节如下

内部获取handler方法，在DispatcherServlet中大部分的处理都要将request或者response作为参数对象。
内部获取handler的实现，获取request请求的路径，然后从mappingRegistry中拿到路径匹配的HandlerMethod. HandlerMethod封装了我们平时写的@RequestMapping等之类的方法，还有bean。这些可以通过反射获得
获取到HandlerMethod之后，稍作处理封装handler和beanhandlerMethod.createWithResolvedBean()
上面获取的是HandlerMethod，getHandler中再次封装handler和interceptors

这些都是为真正的处理请求做准备

3，根据 Handler 来找到支持它的 HandlerAdapter，通过 HandlerAdapter 执行这个 Handler 得到 ModelAndView 对象

通过Handler获取HandlerAdpater,HandlerAdpater作为适配器，真正做东西的还是Handler，HandelAdpater做了很多的预处理，不过它的接口很简单。

public interface HandlerAdapter {
   // 判断当前的HandlerAdpater是否支持handler的实例，也就是当前的adapter能否使用传过来的Handler
    boolean supports(Object handler);
    // 使用传过来的handler来处理请求
    ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception;

    //和Servlet的getLastModified功能基本一致
    long getLastModified(HttpServletRequest request, Object handler);

}

在DispatcherServlet中getHandlerAdapter的实现，则是遍历HandlerAdpaters，然后返回第一个支持handler的Adpater.

Handler的预处理，还记得刚才返回的HandlerExecutionChain封装了Handler和一些拦截器，现在就是调用拦截器的时候。

然后其内部就是我们写拦截器的时候常见的preHandler方法。如果拦截器preHndle返回false，那么请求终止

boolean applyPreHandle(HttpServletRequest request, HttpServletResponse response) throws Exception {
        HandlerInterceptor[] interceptors = this.getInterceptors();
        if (!ObjectUtils.isEmpty(interceptors)) {
            for(int i = 0; i < interceptors.length; this.interceptorIndex = i++) {
                HandlerInterceptor interceptor = interceptors[i];
//如果有哪个拦截器的preHandler
                if (!interceptor.preHandle(request, response, this.handler)) {
//触发拦截器的afterCompletion方法并返回false
                    this.triggerAfterCompletion(request, response, (Exception)null);
                    return false;
                }
            }
        }

        return true;
    }

如上图，逐个执行拦截器的preHandler，如果有哪个拦截器的preHandler返回false，则直接触发其afterCompletion方法并停止执行后面所有拦截器

5, HandlerAdpater让Handler处理request与response，RequestMappingHandlerAdpater是最复杂的一个实现，也是大部分请求中都用到的一个Adpater.

检查请求,checkRequest,判断请求是否合法
判断是否要对invokeHandlerMethod加锁，不管是否加锁这个方法肯定会执行的。
执行invokeHandlerMethod，记得HandlerMethod封装了请求路径映射的Method对象

最终执行的是public class RequestMappingHandlerAdapter extends AbstractHandlerMethodAdapter implements BeanFactoryAware, InitializingBean下的如下方法：handleInternal（）

 protected ModelAndView handleInternal(HttpServletRequest request, HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
        this.checkRequest(request);
        ModelAndView mav;
        if (this.synchronizeOnSession) {
            HttpSession session = request.getSession(false);
            if (session != null) {
                Object mutex = WebUtils.getSessionMutex(session);
                synchronized(mutex) {
                    mav = this.invokeHandlerMethod(request, response, handlerMethod);
                }
            } else {
                mav = this.invokeHandlerMethod(request, response, handlerMethod);
            }
        } else {
            mav = this.invokeHandlerMethod(request, response, handlerMethod);
        }

        if (!response.containsHeader("Cache-Control")) {
            if (this.getSessionAttributesHandler(handlerMethod).hasSessionAttributes()) {
                this.applyCacheSeconds(response, this.cacheSecondsForSessionAttributeHandlers);
            } else {
                this.prepareResponse(response);
            }
        }

        return mav;
    }

检查请求,checkRequest,判断请求是否合法
判断是否要对invokeHandlerMethod加锁，不管是否加锁这个方法肯定会执行的。
执行invokeHandlerMethod，（如下）记得HandlerMethod封装了请求路径映射的Method对象

 protected ModelAndView invokeHandlerMethod(HttpServletRequest request, HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
        ServletWebRequest webRequest = new ServletWebRequest(request, response);

        ModelAndView var15;
        try {
            WebDataBinderFactory binderFactory = this.getDataBinderFactory(handlerMethod);
            ModelFactory modelFactory = this.getModelFactory(handlerMethod, binderFactory);
            ServletInvocableHandlerMethod invocableMethod = this.createInvocableHandlerMethod(handlerMethod);
            invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
            invocableMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers);
            invocableMethod.setDataBinderFactory(binderFactory);
            invocableMethod.setParameterNameDiscoverer(this.parameterNameDiscoverer);
            ModelAndViewContainer mavContainer = new ModelAndViewContainer();
            mavContainer.addAllAttributes(RequestContextUtils.getInputFlashMap(request));
            modelFactory.initModel(webRequest, mavContainer, invocableMethod);
            mavContainer.setIgnoreDefaultModelOnRedirect(this.ignoreDefaultModelOnRedirect);
            AsyncWebRequest asyncWebRequest = WebAsyncUtils.createAsyncWebRequest(request, response);
            asyncWebRequest.setTimeout(this.asyncRequestTimeout);
            WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
            asyncManager.setTaskExecutor(this.taskExecutor);
            asyncManager.setAsyncWebRequest(asyncWebRequest);
            asyncManager.registerCallableInterceptors(this.callableInterceptors);
            asyncManager.registerDeferredResultInterceptors(this.deferredResultInterceptors);
            Object result;
            if (asyncManager.hasConcurrentResult()) {
                result = asyncManager.getConcurrentResult();
                mavContainer = (ModelAndViewContainer)asyncManager.getConcurrentResultContext()[0];
                asyncManager.clearConcurrentResult();
                if (this.logger.isDebugEnabled()) {
                    this.logger.debug("Found concurrent result value [" + result + "]");
                }

                invocableMethod = invocableMethod.wrapConcurrentResult(result);
            }

            invocableMethod.invokeAndHandle(webRequest, mavContainer, new Object[0]);
            if (asyncManager.isConcurrentHandlingStarted()) {
                result = null;
                return (ModelAndView)result;
            }

            var15 = this.getModelAndView(mavContainer, modelFactory, webRequest);
        } finally {
            webRequest.requestCompleted();
        }

        return var15;
    }

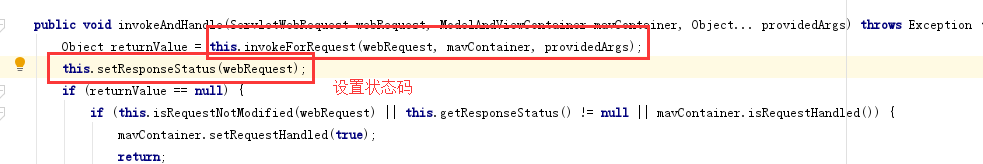

  public Object invokeForRequest(NativeWebRequest request, ModelAndViewContainer mavContainer, Object... providedArgs) throws Exception {
//获取方法的参数
        Object[] args = this.getMethodArgumentValues(request, mavContainer, providedArgs);
        if (this.logger.isTraceEnabled()) {
            this.logger.trace("Invoking '" + ClassUtils.getQualifiedMethodName(this.getMethod(), this.getBeanType()) + "' with arguments " + Arrays.toString(args));
        }
//用这些参数，doInvoke
        Object returnValue = this.doInvoke(args);
        if (this.logger.isTraceEnabled()) {
            this.logger.trace("Method [" + ClassUtils.getQualifiedMethodName(this.getMethod(), this.getBeanType()) + "] returned [" + returnValue + "]");
        }

        return returnValue;
    }

以上就是获取getModelAndView的一些细节

8,处理请求分发的结果processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);看其中的代码也没有多复杂，相对容易理解

检查处理请求的时候是否有异常抛出，前面如果有异常抛出会被捕获，然后传递到这一步，然后根据异常处理错误页面
如果ModelAndView有值，不管是正常显示还是错误页面，进行渲染
做最后的清除工作，并且执行拦截器的完全执行完成操作

 private void processDispatchResult(HttpServletRequest request, HttpServletResponse response, HandlerExecutionChain mappedHandler, ModelAndView mv, Exception exception) throws Exception {
        boolean errorView = false;
        if (exception != null) {
            if (exception instanceof ModelAndViewDefiningException) {
                this.logger.debug("ModelAndViewDefiningException encountered", exception);
                mv = ((ModelAndViewDefiningException)exception).getModelAndView();
            } else {
                Object handler = mappedHandler != null ? mappedHandler.getHandler() : null;
                mv = this.processHandlerException(request, response, handler, exception);
                errorView = mv != null;
            }
        }

        if (mv != null && !mv.wasCleared()) {
            this.render(mv, request, response);
            if (errorView) {
                WebUtils.clearErrorRequestAttributes(request);
            }
        } else if (this.logger.isDebugEnabled()) {
            this.logger.debug("Null ModelAndView returned to DispatcherServlet with name '" + this.getServletName() + "': assuming HandlerAdapter completed request handling");
        }

        if (!WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
            if (mappedHandler != null) {
                mappedHandler.triggerAfterCompletion(request, response, (Exception)null);
            }

        }
    }

 protected void render(ModelAndView mv, HttpServletRequest request, HttpServletResponse response) throws Exception {
        Locale locale = this.localeResolver.resolveLocale(request);
        response.setLocale(locale);
        View view;
        if (mv.isReference()) {
            view = this.resolveViewName(mv.getViewName(), mv.getModelInternal(), locale, request);
            if (view == null) {
                throw new ServletException("Could not resolve view with name '" + mv.getViewName() + "' in servlet with name '" + this.getServletName() + "'");
            }
        } else {
            view = mv.getView();
            if (view == null) {
                throw new ServletException("ModelAndView [" + mv + "] neither contains a view name nor a View object in servlet with name '" + this.getServletName() + "'");
            }
        }

        if (this.logger.isDebugEnabled()) {
            this.logger.debug("Rendering view [" + view + "] in DispatcherServlet with name '" + this.getServletName() + "'");
        }

        try {
            if (mv.getStatus() != null) {
                response.setStatus(mv.getStatus().value());
            }

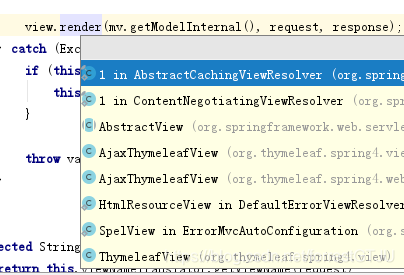

            view.render(mv.getModelInternal(), request, response);
        } catch (Exception var7) {
            if (this.logger.isDebugEnabled()) {
                this.logger.debug("Error rendering view [" + view + "] in DispatcherServlet with name '" + this.getServletName() + "'", var7);
            }

            throw var7;
        }
    }
