🐉0、简介

更新填补上一章的漏洞（😎：咱有始有终。）
雇佣哥俩好：大哥是 Handler 掌舵人，（😃：瞧这名字开真威风！久仰久仰。）二哥是 Thread 线人。（😑：那里来的二五仔？）
联络蓝牙大哥，因为还没有开灯嘛！（蓝牙🦄：叽里咕噜…😅：尽是黑话，跑龙套的初哥那去了？没办法，我来翻译翻译。）

🐰1、更新：密码无人输入的漏洞

有的朋友可能会发现，在发现蓝牙后，新蓝牙机要输入密码。但是无人输入密码的话，30 至 40 秒之间，页面就会自动关闭。这个 App 还会停留在 Bonding 阶段。
BleHc05Observer:

                ACTION_BOND_STATE_CHANGED -> {
                    lgd(tag + "Checking Bonded State...")
                    val device: BluetoothDevice =
                            intent.getParcelableExtra<Parcelable>(
                                    EXTRA_DEVICE
                            ) as BluetoothDevice

                    when (device.bondState) {
                        BOND_BONDED -> {
                            lgd("$tag Bonded to device")
                            devStatus.postValue(BONDED)
                        }
                        BOND_BONDING -> {
                            lgd("$tag Bonding to device")
                            // 什么都没有，卡！
                        }
                        BOND_NONE -> {
                            lge("$tag Nothing has bonded.")
                            devStatus.postValue(FAIL)
                        }
                    }
                }

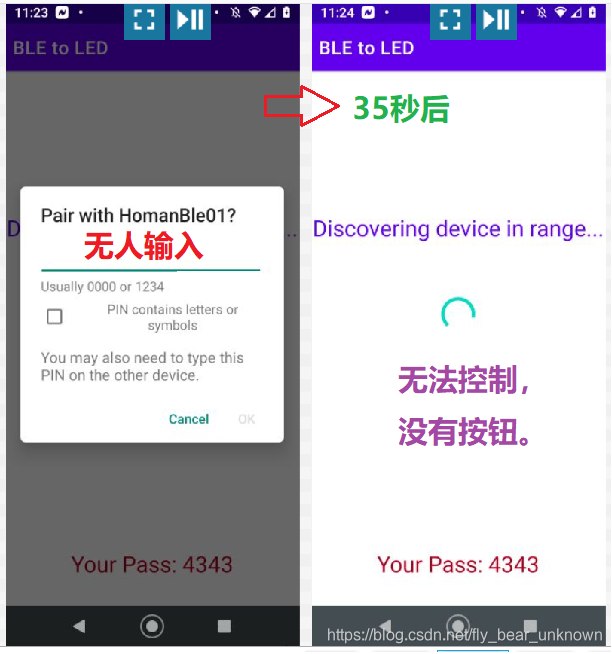

结果：
在这里插入图片描述
🙄：在 bonding 加料。

                        BOND_BONDING -> {
                            lgd("$tag Bonding to device")
                            devStatus.postValue(BONDING)
                        }

设定是新机就加个时限，没人输入密码就跳到 FAIL。我还加了显示倒数功能。

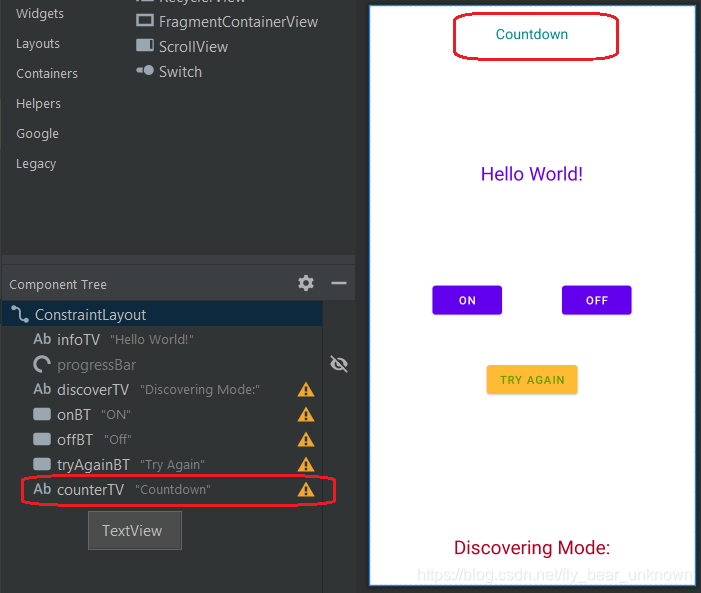

countdown
MainActivity：瞧瞧，咱这个MVVM 好啊！现在指令一目了然，逻辑的事 ViewModel 都帮我干了。😭老子在 MVC 的那里可是乱啊，又当爹又当妈的、、、

    //region vars:
    ...
    private val counterTV: TextView by
        lazy { findViewById(R.id.counterTV) }
    ...

    private var newDevice = false
    private var counter = 0
    private var bonded = false
    //endregion
    ...
》》》在 **onCreate()** 里面：
        mainVM.deviceStatus.observe(
                this,
                { status ->
                    when (status) {
                        ...
                        PAIRING -> {
                            val info = "Searching Bonded List..."
                            infoTV.text = info
                            progressBar.visibility = View.VISIBLE
                            mainVM.checkBondedList()
                        }
                        DISCOVERING -> {
                            val info = "Discovering device in range..."
                            infoTV.text = info
                            progressBar.visibility = View.VISIBLE
                            newDevice = true
                            mainVM.discovering()
                        }
                        BONDING -> {
                            val info = "Device Found in Record!\nBonding..."
                            infoTV.text = info
                            if (newDevice)
                                mainVM.checkNewDevice()
                            else
                                mainVM.bonding()
                        }
                        DISCOVERED -> {
                            val pass = "Your Pass: ${ConfigHelper.getPass()}"
                            discoveryTV.text = pass
                            discoveryTV.visibility = View.VISIBLE
                        }
                        BONDED -> {
                            lgd("MainAct: Bonded successful!")
                            counterTV.visibility = View.GONE
                            counter = 0
                            bonded = true
                            discoveryTV.text = ""
                            discoveryTV.visibility = View.GONE
                            progressBar.visibility = View.GONE

                            val info = "Bonded to $DEVICE_NAME."
                            infoTV.text = info
                            msg(this, info, 1)
                            mainVM.connected()
                        }
                        CONNECTED -> {
                            val info = "Device connected..."
                            infoTV.text = info
                            onBT.visibility = View.VISIBLE
                            progressBar.visibility = View.GONE
                        }
                        FAIL -> {
                            counter = 0
                            counterTV.visibility = View.GONE
                            val info = "FAIL to create connection!" +
                                    "\nOr\nPassword is incorrect!"
                            infoTV.text = info
                            discoveryTV.visibility = View.GONE
                            progressBar.visibility = View.GONE
                            tryAgainBT.visibility = View.VISIBLE
                        }
                        NOT_FOUND -> {
                            lgd("MainAct: Device Not Found.")
                            progressBar.visibility = View.GONE
                            val info = "Device NOT Found!"
                            infoTV.setTextColor(Color.RED)
                            infoTV.text = info
                            msg(this, info, 1)
                        }
                        COUNT_DOWN -> {
                            if (!bonded) {
                                counterTV.visibility = View.VISIBLE
                                val down = 35 - counter
                                counter++
                                val timer = "35s to Enter Password: $down"
                                counterTV.text = timer
                            }
                        }
                        ...

➕ COUNT_DOWN 进 DeviceStatus：

enum class DeviceStatus {
    PAIRING, BONDING, DISCOVERING, SWITCHING,
    DISCOVERED, BONDED, CONNECTED,
    FAIL, DISCONNECT, NOT_FOUND, COUNT_DOWN
}

那个 MainViewModel 当然要改啦：

    fun bonding() {
        val result = bleHelper.checkDeviceBonding()
        lgd("$tag Bonding...$result")

        if (result) {
            deviceStatus.postValue(CONNECTED)
            //bleHelper.discoverService()
        } else {
            deviceStatus.postValue(FAIL)
        }
    }
    ...
    fun checkNewDevice() {
        // new password entry timeout is 40s
        viewModelScope.launch {
            repeat(40) {
                deviceStatus.postValue(COUNT_DOWN)
                delay(SEC)
            }
            if (!bleHelper.checkBondedList()) {
                lgd("Check Bonded List.")
                deviceStatus.postValue(FAIL)
            }
        }
    }

这里 SEC = 1000L；方程用的是 Coroutines，异步程序。我设定 40秒内去 COUNT_DOWN 跳数字；40 秒后，蓝牙没有上榜的话就跳去 FAIL。写完，Ctrl+K，上传。开始测。

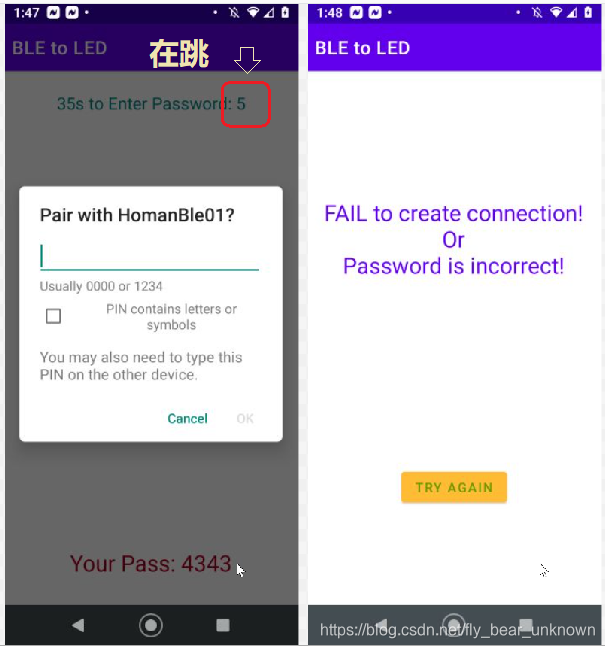

test
不错不错，能够显示 FAIL 部分。
