Jenkins：从SVN拉取Maven项目，部署Tomcat（Deploy to container）

Jenkins相关文章

1.Jenkins安装（Linux版）

2.Jenkins：从SVN拉取Maven项目

1.Jenkins安装相关插件

Deploy to container ## 件将应用发布到tomcat下

2.Tomcat管理用户配置

• 在TOMCAT_HOME/conf/tomcat-users.xml添加manager-script组和相应的用户

<?xml version='1.0' encoding='utf-8'?>
<!--
  Licensed to the Apache Software Foundation (ASF) under one or more
  contributor license agreements.  See the NOTICE file distributed with
  this work for additional information regarding copyright ownership.
  The ASF licenses this file to You under the Apache License, Version 2.0
  (the "License"); you may not use this file except in compliance with
  the License.  You may obtain a copy of the License at

      http://www.apache.org/licenses/LICENSE-2.0

  Unless required by applicable law or agreed to in writing, software
  distributed under the License is distributed on an "AS IS" BASIS,
  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  See the License for the specific language governing permissions and
  limitations under the License.
-->
<tomcat-users xmlns="http://tomcat.apache.org/xml"
              xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
              xsi:schemaLocation="http://tomcat.apache.org/xml tomcat-users.xsd"
              version="1.0">
<!--
  NOTE:  By default, no user is included in the "manager-gui" role required
  to operate the "/manager/html" web application.  If you wish to use this app,
  you must define such a user - the username and password are arbitrary. It is
  strongly recommended that you do NOT use one of the users in the commented out
  section below since they are intended for use with the examples web
  application.
-->
<!--
  NOTE:  The sample user and role entries below are intended for use with the
  examples web application. They are wrapped in a comment and thus are ignored
  when reading this file. If you wish to configure these users for use with the
  examples web application, do not forget to remove the <!.. ..> that surrounds
  them. You will also need to set the passwords to something appropriate.
-->
<!--
  <role rolename="tomcat"/>
  <role rolename="role1"/>
  <user username="tomcat" password="<must-be-changed>" roles="tomcat"/>
  <user username="both" password="<must-be-changed>" roles="tomcat,role1"/>
  <user username="role1" password="<must-be-changed>" roles="role1"/>
-->

<role rolename="manager-gui"/>
<role rolename="manager-script"/>
<role rolename="manager-jmx"/>
<role rolename="manager-status"/>
<user username="tomcat" password="tomcat" roles="manager-gui,manager-script,manager-jmx,manager-status"/>
<user username="deploy" password="deploy123456" roles="manager-script"/>
</tomcat-users>

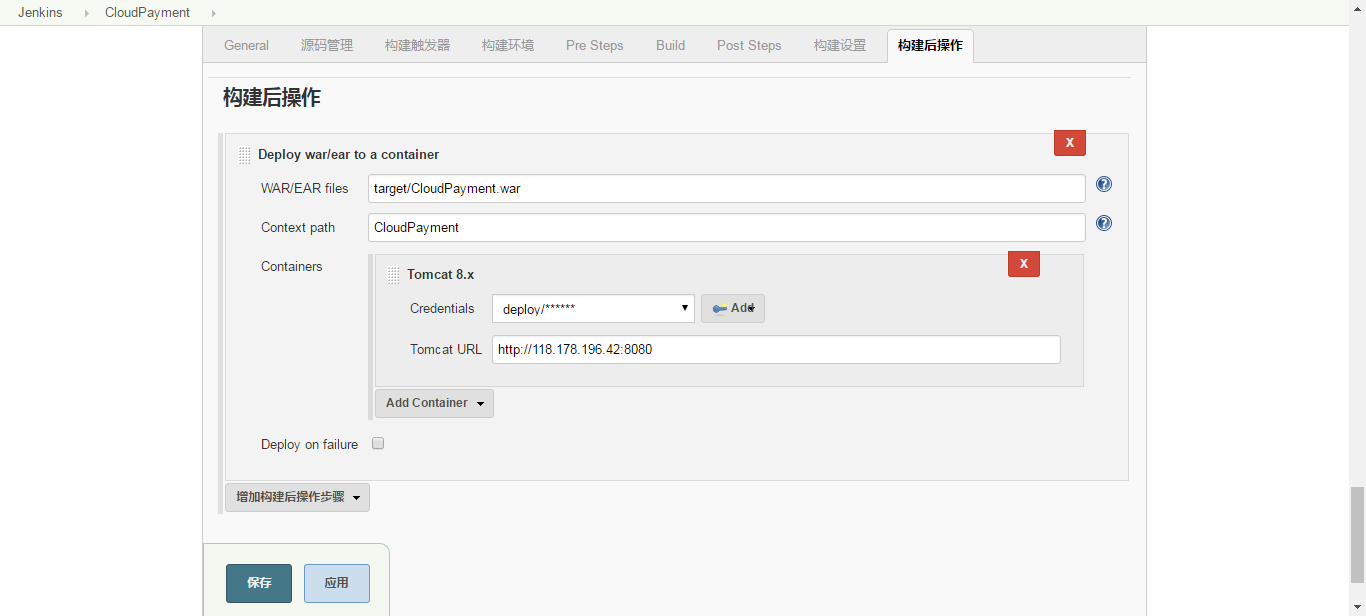

3.Jenkins配置-构建后操作

• 在配置中，选择“构建后操作”
• 在“构建后操作”中选择“Deploy war/ear to container”
• 参数说明

  WAR/EAR files:是war包的相对路径
  Content path:项目名称。tomcat的发布路径,即使用IP:端口号/(Content path设置的名字)来访问项目

• Containers--
  选择Tomcat的版本号,
  Credendials，点击Add,输入tomcat-users.xml中用户名和密码,
  Tomcat URL,填写tomcat所在的IP和端口号

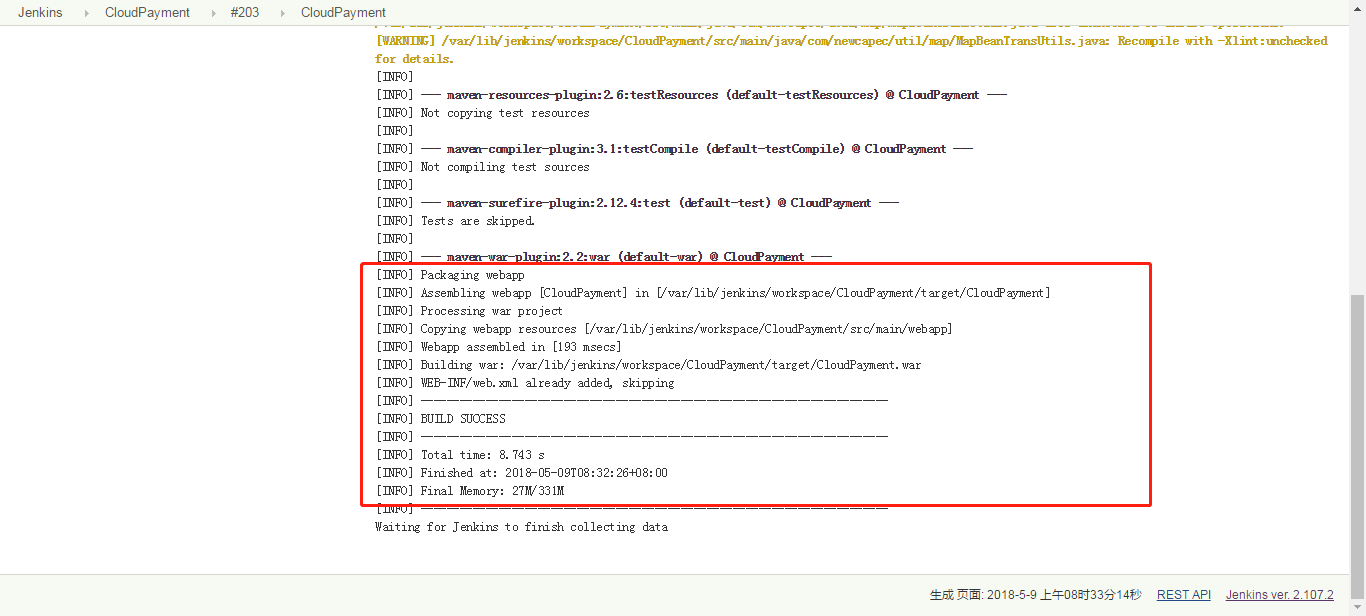

• 点击保存，查看控制台输出

4.Jenkins部署注意

• 部署前要先启动运程机上的WEB容器，插件需要通过容器提供的接口将war包发布到容器下

5.Jenkins部署异常

• 4.Jenkins部署异常： java.io.FileNotFoundException: http://ip:端口/manager/text/list
• 5.Jenkins部署异常：The Tomcat Manager responded FAIL - Deployed application at context path
• 6.Jenkins部署异常：TomcatManagerException: FAIL - Unable to delete
