ubuntu18.04 vscode配置使用

原创已于 2023-07-06 16:25:37 修改 · 1.8k 阅读

6 ·

CC 4.0 BY-SA版权

文章标签：

#vscode #ide #编辑器

于 2023-03-11 14:53:58 首次发布

插件外观配置

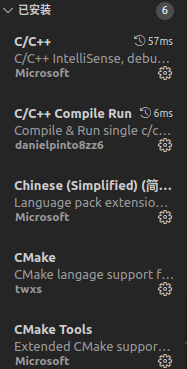

1 安装拓展：

2 修改terminal字体：

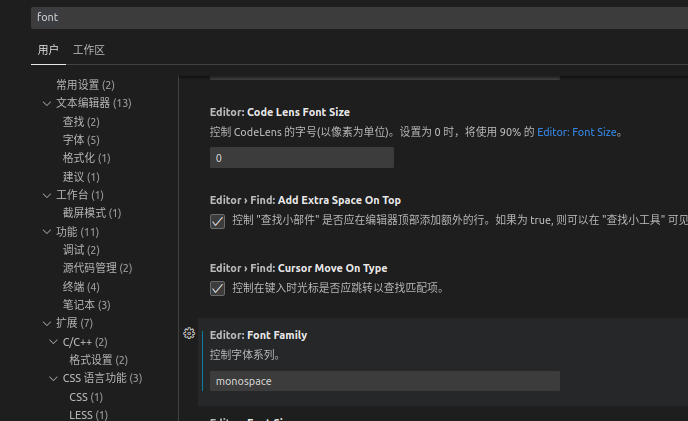

打开设置

输入font,点击功能-终端，找到如下位置，输入monospace即可。

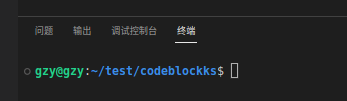

结果：

3修改字体颜色：

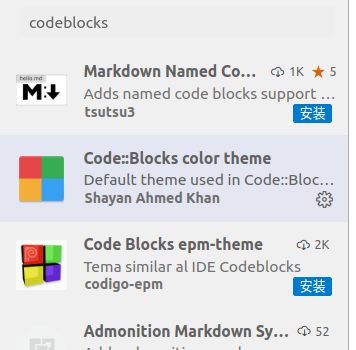

这里直接推荐想要的theme拓展，比如我喜欢codeblocks的theme，我就搜索对应的拓展安装即可

    "editor.tokenColorCustomizations": {
        // "variables": "#000000", //变量
        // "numbers": "#f96ede",   //数字
        // "strings": "#045ceb",   //字符串
        // "comments": {//注释
        //     "fontStyle": "italic",
        //     "foreground": "#9d9b9b93"
        // },
        // "keywords": {             //关键字
        //     // 设置字体样式bold 加粗  italic 斜体  underline 下划线
        //     "fontStyle": "bold",
        //     "foreground": "#146e97"
        // },
        "functions":{               //函数
            "fontStyle": "bold",

        },
        "types":{                  //类型
            "fontStyle": "bold",
            "foreground":"#359935"
        },
    },

或者也可以自定义：

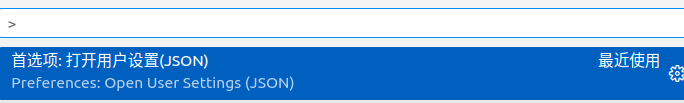

Ctrl + Shift + P

键入settings

打开"settings.json"：

{
    "editor.tokenColorCustomizations": {
        "variables": "#000000", //变量
        "numbers": "#f96ede",   //数字
        "strings": "#045ceb",   //字符串
        "comments": {//注释
            "fontStyle": "italic",
            "foreground": "#9d9b9b93"
        },
        "keywords": {             //关键字
            // 设置字体样式bold 加粗  italic 斜体  underline 下划线
            "fontStyle": "bold",
            "foreground": "#146e97"
        },
        "functions":{               //函数
            "fontStyle": "bold",
            "foreground":"#000000"
        },
        "types":{                  //类型
            "fontStyle": "bold",
            "foreground":"#48c023"
        },

//-------------------------------------------------------------

        "textMateRules": [
            //运算符号，如 +-*/=
            {
                "scope": "keyword.operator", //=等号/赋值号 |= &=
                "settings": {
                    "foreground": "#fb0707",
                }
            },

            //换行符、转义符等如 ：\r \n
            {
                "scope": "constant.character.escape", //"\r\n"
                "settings": {
                    "foreground": "#045ceb",
                    "fontStyle": ""
                }
            },
           //标点符号
            {
                "scope": "punctuation",
                "settings": {
                    "foreground": "#fb0707",
                    "fontStyle": ""
                }
            },
            // 左单双引号
            {
                "scope": "punctuation.definition.string.begin",
                "settings": {
                    "foreground": "#045ceb",
                    "fontStyle": ""
                }
            },
            //右单双引号
            {
                "scope": "punctuation.definition.string.end",
                "settings": {
                    "foreground": "#045ceb",
                    "fontStyle": "" //加粗
                }
            },
        ]

      }
}

.json文件配置

c_cpp_properties.json

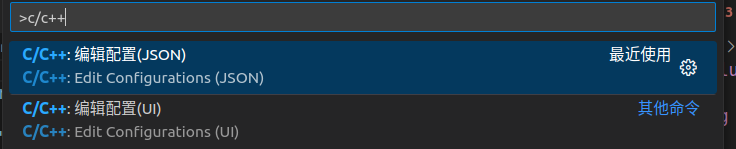

Ctrl + Shift + P

即可出现文件。

命令行输入：gcc -v -E -x c++ -

然后复制最下面的到.json文件中：（注意要添加引号和/**和逗号）

"/usr/include/c++/7/**",
"/usr/include/x86_64-linux-gnu/c++/7/**",
"/usr/include/c++/7/backward/**",
"/usr/lib/gcc/x86_64-linux-gnu/7/include/**",
"/usr/local/include/**",
"/usr/lib/gcc/x86_64-linux-gnu/7/include-fixed/**",
"/usr/include/x86_64-linux-gnu/**",
"/usr/include/**"

再加上"/usr/include/eigen3"即可包含eigen等库（头文件不报错）

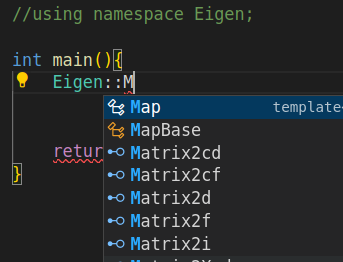

也会有提示了

tasks.json :

编译器构建配置文件 ;tasks用于在launch前执行任务，launch用于读取执行文件。

launch.json文件

负责VScode代码的调试

以下是配置orbslam2的例子：

c_cpp_properties.json

{
    "configurations": [
        {
            "name": "Linux",            //  配置名称可随意更改
            "includePath": [             //运行项目包含.h头文件的目录，在此处添加外部头文件路径
                "${workspaceFolder}/**",
                "/usr/include/eigen3"
            ],
            "defines": [],
            "compilerPath": "/usr/bin/gcc",   //编译器的路径
            "cStandard": "gnu11",
            "cppStandard": "gnu++14",
            "intelliSenseMode": "gcc-x64"
        }
    ],
    "version": 4
}

tasks.json

{
    "version": "2.0.0",
    "tasks": [
        {
            "label": "build",
            "type": "shell",
            "command": "./build.sh"
        }
    ]
}

launch.json

{
    "version": "0.2.0",
    "configurations": [
        {
            "name": "(gdb) 启动",
            "type": "cppdbg",
            "request": "launch",
            "program": "/home/cch/Desktop/data-slam/ORB_SLAM2-master/Examples/Monocular/mono_kitti",
            "args": ["/home/cch/Desktop/data-slam/ORB_SLAM2-master/Vocabulary/ORBvoc.txt",
                "/home/cch/Desktop/data-slam/ORB_SLAM2-master/Examples/Monocular/KITTI00-02.yaml",
                "/home/cch/Desktop/data-slam/data/00"],
            "stopAtEntry": false,
            "preLaunchTask": "build",//这一步的build与tasks.json中的type名字相同
            "cwd": "${workspaceFolder}",
            "environment": [],
            "externalConsole": false,
            "MIMode": "gdb",
            "setupCommands": [
                {
                    "description": "为 gdb 启用整齐打印",
                    "text": "-enable-pretty-printing",
                    "ignoreFailures": true
                }
            ]
        }
    ]
}

参考：

Ubuntu下 VSCODE ORBSLAM2和3 DEBUG调试_vscode怎么编译orbslam2_hcc-118的博客-优快云博客
