关于Winform的无边框窗体实现，网络上有很多大牛文章，这里不赘述。我也是参考网络上的思路，在使用别人的代码基础上，发现和遇到了很多小问题，所以做了改造，以下做个记录，也是给需要的人提供一点思路，如果您发现有不对的地方，还请评论区给予批评和指正！
本类只是一个影子窗体类，实现的基础功能是依附于主窗体（您随便建个Winform窗体），创建这个影子窗体类即可，当然，前提是主窗体要设置无边框模式，效果才好。
本类实现和解决大概以下几个问题：
1、为主窗体实现阴影功能（可设置阴影长度，偏移量、透明度、颜色，圆角等属性）；
2、为主窗体实现拖拽改变大小功能；

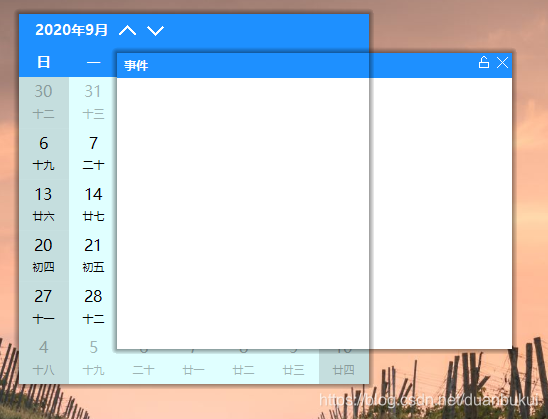

3、解决窗体层级问题，在多个窗口使用影子窗体时，重叠窗体后，会出现影子窗体在上，主窗体在下的情况，类似下图：
4、将拖拽、改变大小功能放入影子窗体，减少主窗体代码量；
5、解决影子长度太小（只设置1px）时，四周显示不全的问题；
6、提供两种阴影偏移量的解决方案（详见代码注释），目前使用第二种方案；
7、其他功能点优化；
下面将代码全文放在下面，以供参考和指正：
using System;
using System.Drawing;
using System.Drawing.Drawing2D;
using System.Drawing.Imaging;
using System.Runtime.InteropServices;
using System.Windows.Forms;
namespace Demo
{
public partial class ShadowForm:Form
{
private Bitmap shadowBitmap;
private int shadowOpacity = 60;
private int shadowSpread = 6;
private int HitSplit = 4; //鼠标拖动窗体大小时判断可操作范围
private Rectangle RecInner = Rectangle.Empty;
private Rectangle RecBorderLeft = Rectangle.Empty;
private Rectangle RecBorderLeftTop = Rectangle.Empty;
private Rectangle RecBorderLeftBottom = Rectangle.Empty;
private Rectangle RecBorderRight = Rectangle.Empty;
private Rectangle RecBorderRightTop = Rectangle.Empty;
private Rectangle RecBorderRightBottom = Rectangle.Empty;
private Rectangle RecBorderTop = Rectangle.Empty;
private Rectangle RecBorderBottom = Rectangle.Empty;
#region 属性
/// <summary>
/// 阴影图片
/// </summary>
public Bitmap ShadowBitmap
{
get { return shadowBitmap; }
set
{
shadowBitmap = value;
SetBitmap(shadowBitmap);
}
}
/// <summary>
/// 阴影颜色
/// </summary>
public Color ShadowColor { get; set; } = Color.Black;
/// <summary>
/// 阴影透明度
/// </summary>
public int ShadowOpacity
{
get { return shadowOpacity; }
set
{
shadowOpacity = Math.Max(Math.Min(value, 255), 0);
SetBitmap(ShadowBitmap);
}
}
/// <summary>
/// 阴影横向偏移值
/// </summary>
public int ShadowH { get; set; } = 0;
/// <summary>
/// 阴影纵向偏移值
/// </summary>
public int ShadowV { get; set; } = 0;
/// <summary>
/// 阴影模糊值
/// </summary>
public int ShadowBlur { get; set; } = 0;
/// <summary>
/// 阴影扩展值
/// </summary>
public int ShadowSpread
{
get { return shadowSpread; }
set
{
shadowSpread = Math.Max(value, 0);
}
}
/// <summary>
/// 窗体圆角度
/// </summary>
public int CornerRound { get; set; } = 0;
/// <summary>
/// 主子窗体X方向偏移量
/// </summary>
public int OffsetX
{
get { return (ShadowH > 0 ? 0 : ShadowH) - ShadowSpread; }
}
/// <summary>
/// 主子窗体Y方向偏移量
/// </summary>
public int OffsetY
{
get { return (ShadowV > 0 ? 0 : ShadowV) - ShadowSpread; }
}
public bool CanResize { get; set; } = true;
#endregion
public ShadowForm(fmBase master)
{
Owner = master; //设置主子窗口
#region 设置影子窗口的属性参数
AutoScaleMode = AutoScaleMode.None;
FormBorderStyle = FormBorderStyle.None;
MaximizeBox = false;
MinimizeBox = false;
this.Name = "ShadowForm";
ShowInTaskbar = false;
#endregion
#region 减少闪烁
this.DoubleBuffered = true;
SetStyle(ControlStyles.UserPaint |
ControlStyles.AllPaintingInWmPaint |
ControlStyles.OptimizedDoubleBuffer |
ControlStyles.ResizeRedraw |
ControlStyles.DoubleBuffer, true);
//强制分配样式重新应用到控件上
UpdateStyles();
#endregion
if (Owner != null)
{
//跟随主子移动位置
Owner.LocationChanged += (sender, e) =>
{
Shadow_LocationChanged(sender, e);
};
//主子关闭时，跟着关闭并且释放
Owner.FormClosed += (sender, e) =>
{
Close();
this.Dispose();
};
//窗体移动
Owner.MouseMove += (sender, e) =>
{
if (e.Button == MouseButtons.Left)
{
ReleaseCapture();
SendMessage(Owner.Handle, WM_SYSCOMMAND, new IntPtr(0xF010 + HTCAPTION), new IntPtr(0));
}
};
//窗体激活时，让主子窗体和影子窗体实现形影不离（多个窗口重叠交叉显示时尤为重要）
Owner.Activated += FormActivated;
this.Activated += FormActivated;
}
}
private void FormActivated(object sender, EventArgs e)
{
if (Owner == null) return;
IntPtr CurWinHandle = GetForegroundWindow();
IntPtr NextWinHandle = GetWindow(CurWinHandle, GW_HWNDNEXT);
if (CurWinHandle == this.Handle)
{
if (NextWinHandle == Owner.Handle) return;
IntPtr other = FindOther(CurWinHandle, Owner.Handle);
if (other != IntPtr.Zero)
{
SetForegroundWindow(Owner.Handle);
}
return;
}
if (CurWinHandle == Owner.Handle)
{
if (NextWinHandle == this.Handle) return;
IntPtr other = FindOther(CurWinHandle, this.Handle);
if (other != IntPtr.Zero)
{
SetForegroundWindow(this.Handle);
}
return;
}
}
private IntPtr FindOther(IntPtr win, IntPtr other)
{
IntPtr ptr = GetWindow(win, GW_HWNDNEXT);
while (ptr != IntPtr.Zero)
{
if (ptr == other)
{
return ptr;
}
ptr = GetWindow(ptr, GW_HWNDNEXT);
}
return IntPtr.Zero;
}
protected override CreateParams CreateParams
{
get
{
CreateParams cp = base.CreateParams;
cp.ExStyle |= WS_EX_LAYERED;
return cp;
}
}
protected override void OnMouseMove(MouseEventArgs e)
{
base.OnMouseMove(e);
}
public void Shadow_LocationChanged(Object sender, EventArgs eventArgs)
{
Point pos = Owner.Location;
pos.Offset(OffsetX, OffsetY);
Location = pos;
}
private void Shadow_SizeChanged(object sender, EventArgs e)
{
Point pos = Location;
pos.Offset(-OffsetX, -OffsetY);
Owner.Location = pos;
Size size = new Size(this.Width - (ShadowSpread + ShadowBlur + CornerRound) * 2, this.Height - (ShadowSpread + ShadowBlur + CornerRound) * 2);
Owner.Size = size;
RefreshShadow(true, true);
}
/// <summary>
/// 重绘阴影
/// </summary>
/// <param name="redraw">是否重绘</param>
/// <param name="reLoaction">是否重定位</param>
public void RefreshShadow(bool redraw = true, bool reLoaction = true)
{
this.SizeChanged -= Shadow_SizeChanged;
this.Size = new Size(Owner.Width + ShadowSpread * 2 + Math.Abs(ShadowH), Owner.Height + ShadowSpread * 2 + Math.Abs(ShadowV));
if (redraw)
{
ShadowBitmap = DrawShadowBitmap();
}
if (reLoaction)
{
Shadow_LocationChanged(null, null);
}
// 设置显示区域
Region r = new Region(this.ClientRectangle); //(1, 1, Width - 1, Height - 1));
if (CornerRound > 0)
{
r = Region.FromHrgn(CreateRoundRectRgn(0, 0, Width, Height, ShadowSpread + CornerRound, ShadowSpread + CornerRound));
}
Region or;
if (Owner.Region == null)
or = new Region(RecInner);
else
or = Owner.Region.Clone();
r.Exclude(or);
Region = r;
Owner.Refresh();
this.SizeChanged += Shadow_SizeChanged;
}
#region 绘制阴影图像
private Bitmap DrawShadowBitmap()
{
var bitmap = new Bitmap(this.Width, this.Height);
Graphics g = Graphics.FromImage(bitmap);
//必要设置，当ShadowSpread设置为1或2时，需要高质量绘制才能显示
g.InterpolationMode = InterpolationMode.HighQualityBicubic;
g.SmoothingMode = SmoothingMode.HighQuality;
g.PixelOffsetMode = PixelOffsetMode.HighQuality;
#region 计算边界
RecInner = new Rectangle(
ShadowSpread - (ShadowH < 0 ? ShadowH : 0),
ShadowSpread - (ShadowV < 0 ? ShadowV : 0),
Owner.Width,
Owner.Height);
RecBorderLeft = new Rectangle(
Math.Max(RecInner.X - 2, 0),
RecInner.Y,
2,
RecInner.Height);
RecBorderLeftTop = new Rectangle(
Math.Max(RecInner.X - 2, 0),
Math.Max(RecInner.Y - 2, 0),
2,
2);
RecBorderLeftBottom = new Rectangle(
Math.Max(RecInner.X - 2, 0),
RecInner.Bottom,
2,
2);
RecBorderTop = new Rectangle(
RecInner.X,
Math.Max(RecInner.Y - 2, 0),
RecInner.Width,
2);
RecBorderRight = new Rectangle(
RecInner.Right,
RecInner.Y,
2,
RecInner.Height);
RecBorderRightTop = new Rectangle(
RecInner.Right,
Math.Max(RecInner.Y - 2, 0),
2,
2);
RecBorderRightBottom = new Rectangle(
RecInner.Right,
RecInner.Bottom,
2,
2);
RecBorderBottom = new Rectangle(
RecInner.X,
RecInner.Bottom,
RecInner.Width,
2);
/* g.FillRectangle(Brushes.Yellow, 0, 0, this.Width, this.Height);
g.FillRectangle(Brushes.Green, RecInner);
Brush br = new SolidBrush(Color.FromArgb(1, Color.Gray));
g.FillRectangle(br, RecBorderLeft);
g.FillRectangle(br, RecBorderTop);
g.FillRectangle(br, RecBorderLeftTop);
g.FillRectangle(br, RecBorderLeftBottom);
g.FillRectangle(br, RecBorderRight);
g.FillRectangle(br, RecBorderRightTop);
g.FillRectangle(br, RecBorderRightBottom);
g.FillRectangle(br, RecBorderBottom);*/
#endregion
if (ShadowSpread > 0)
{
#region 计算四边矩形
Rectangle RecLeft = new Rectangle(0, ShadowSpread, ShadowSpread, Owner.Height);
Rectangle RecTop = new Rectangle(ShadowSpread, 0, Owner.Width, ShadowSpread);
Rectangle RecRight = new Rectangle(Owner.Width + RecLeft.Right, ShadowSpread, ShadowSpread, Owner.Height);
Rectangle RecBottom = new Rectangle(ShadowSpread, Owner.Height + RecTop.Bottom, Owner.Width, ShadowSpread);
#region 方案一：整个阴影部分根据ShadowH、ShadowV平移
/* if (ShadowH > 0)
{
RecLeft.Offset(ShadowH, 0);
RecTop.Offset(ShadowH, 0);
RecBottom.Offset(ShadowH, 0);
RecLeft.Width = ShadowSpread - ShadowH;
RecRight.Width += ShadowH;
RecTop.Width -= ShadowH;
RecBottom.Width -= ShadowH;
}
else if (ShadowH < 0)
{
RecTop.Offset(-ShadowH, 0);
RecRight.Offset(ShadowH, 0);
RecBottom.Offset(-ShadowH, 0);
RecLeft.Width -= ShadowH;
RecTop.Width += ShadowH * 2;
RecRight.Width = ShadowSpread + ShadowH;
RecBottom.Width += ShadowH * 2;
}
if (ShadowV > 0)
{
RecLeft.Offset(0, ShadowV);
RecTop.Offset(0, ShadowV);
RecRight.Offset(0, ShadowV);
RecTop.Height = ShadowSpread - ShadowV;
RecBottom.Height += ShadowV;
RecLeft.Height -= ShadowV;
RecRight.Height -= ShadowV;
}
else if (ShadowV < 0)
{
RecLeft.Offset(0, -ShadowV);
RecRight.Offset(0, -ShadowV);
RecBottom.Offset(0, ShadowV);
RecTop.Height -= ShadowV;
RecLeft.Height += ShadowV * 2;
RecRight.Height += ShadowV * 2;
RecBottom.Height = ShadowSpread + ShadowV;
}*/
#endregion
#region 方案二：四周阴影部分不变，根据ShadowH、ShadowV延伸阴影
if (ShadowH > 0)
{
RecRight.Width += ShadowH;
}
else if (ShadowH < 0)
{
RecTop.Offset(-ShadowH, 0);
RecBottom.Offset(-ShadowH, 0);
RecRight.Offset(-ShadowH, 0);
RecLeft.Width -= ShadowH;
}
if (ShadowV > 0)
{
RecBottom.Height += ShadowV;
}
else if (ShadowV < 0)
{
RecLeft.Offset(0, -ShadowV);
RecRight.Offset(0, -ShadowV);
RecBottom.Offset(0, -ShadowV);
RecTop.Height -= ShadowV;
}
#endregion
/*g.FillRectangle(Brushes.Black, RecLeft);
g.FillRectangle(Brushes.Black, RecTop);
g.FillRectangle(Brushes.Black, RecRight);
g.FillRectangle(Brushes.Black, RecBottom); */
#endregion
#region 绘制四条边
LinearGradientBrush brush;
// left
if (RecLeft.Width > 0)
{
brush = new LinearGradientBrush(new Point(RecLeft.X, RecLeft.Y), new Point(RecLeft.Right, RecLeft.Y), Color.Transparent, ShadowColor);
g.FillRectangle(brush, RecLeft);
}
// top
if (RecTop.Height > 0)
{
// brush = new LinearGradientBrush(new Point(RecTop.X, RecTop.Bottom), new Point(RecTop.X, RecTop.Y), ShadowColor, Color.Transparent);
brush = new LinearGradientBrush(new Point(RecTop.X, RecTop.Y), new Point(RecTop.X, RecTop.Bottom), Color.Transparent, ShadowColor);
g.FillRectangle(brush, RecTop);
// g.FillRectangle(Brushes.Red, RecTop);
}
// right
if (RecRight.Width > 0)
{
brush = new LinearGradientBrush(new Point(RecRight.X, RecRight.Y), new Point(RecRight.Right, RecRight.Y), ShadowColor, Color.Transparent);
g.FillRectangle(brush, RecRight);
}
// down
if (RecBottom.Height > 0)
{
brush = new LinearGradientBrush(new Point(RecBottom.X, RecBottom.Y), new Point(RecBottom.X, RecBottom.Bottom), ShadowColor, Color.Transparent);
g.FillRectangle(brush, RecBottom);
}
#endregion
#region 绘制四个角
// lt
FillPie(g, new Rectangle(RecLeft.Left, RecTop.Top, RecLeft.Width * 2, RecTop.Height * 2), 180, 90);
// rt
FillPie(g, new Rectangle(RecRight.Left - RecRight.Width, RecTop.Top, RecRight.Width * 2, RecTop.Height * 2), 270, 90);
// rb
FillPie(g, new Rectangle(RecRight.Left - RecRight.Width, RecBottom.Top - RecBottom.Height, RecRight.Width * 2, RecBottom.Height * 2), 0, 90);
// lb
FillPie(g, new Rectangle(RecLeft.Left, RecBottom.Top - RecBottom.Height, RecLeft.Width * 2, RecBottom.Height * 2), 90, 90);
#endregion
}
return bitmap;
}
private void FillPie(Graphics g, Rectangle rec, int startAngle, int sweepAngle)
{
if ((rec.Width <= 0) || (rec.Height < 0))return;
GraphicsPath gp = new GraphicsPath();
gp.AddEllipse(rec);
PathGradientBrush pgb = new PathGradientBrush(gp);
pgb.CenterColor = ShadowColor;
pgb.SurroundColors = new[] { Color.Transparent };
pgb.CenterPoint = new PointF(rec.Left + rec.Width / 2, rec.Top + rec.Height / 2);
//g.FillPie(Brushes.Black, rec, 0, 360);
g.FillPie(pgb, rec, startAngle, sweepAngle);
}
#endregion
#region 绘制圆角
public static void DrawRoundRectangle(Graphics g, Pen pen, Rectangle rect, int cornerRadius)
{
using (GraphicsPath path = CreateRoundedRectanglePath(rect, cornerRadius))
{
g.DrawPath(pen, path);
}
}
public static void FillRoundRectangle(Graphics g, Brush brush, Rectangle rect, int cornerRadius)
{
using (GraphicsPath path = CreateRoundedRectanglePath(rect, cornerRadius))
{
g.FillPath(brush, path);
}
}
internal static GraphicsPath CreateRoundedRectanglePath(Rectangle rect, int cornerRadius)
{
GraphicsPath roundedRect = new GraphicsPath();
roundedRect.AddArc(rect.X, rect.Y, cornerRadius * 2, cornerRadius * 2, 180, 90);
roundedRect.AddLine(rect.X + cornerRadius, rect.Y, rect.Right - cornerRadius * 2, rect.Y);
roundedRect.AddArc(rect.X + rect.Width - cornerRadius * 2, rect.Y, cornerRadius * 2, cornerRadius * 2, 270, 90);
roundedRect.AddLine(rect.Right, rect.Y + cornerRadius * 2, rect.Right, rect.Y + rect.Height - cornerRadius * 2);
roundedRect.AddArc(rect.X + rect.Width - cornerRadius * 2, rect.Y + rect.Height - cornerRadius * 2, cornerRadius * 2, cornerRadius * 2, 0, 90);
roundedRect.AddLine(rect.Right - cornerRadius * 2, rect.Bottom, rect.X + cornerRadius * 2, rect.Bottom);
roundedRect.AddArc(rect.X, rect.Bottom - cornerRadius * 2, cornerRadius * 2, cornerRadius * 2, 90, 90);
roundedRect.AddLine(rect.X, rect.Bottom - cornerRadius * 2, rect.X, rect.Y + cornerRadius * 2);
roundedRect.CloseFigure();
return roundedRect;
}
#endregion
#region 设置图片透明度
public void SetBitmap(Bitmap bitmap)
{
if (bitmap == null) return;
if (bitmap.PixelFormat != PixelFormat.Format32bppArgb) return;
IntPtr screenDc = GetDC(IntPtr.Zero);
IntPtr memDc = CreateCompatibleDC(screenDc);
IntPtr hBitmap = IntPtr.Zero;
IntPtr oldBitmap = IntPtr.Zero;
try
{
hBitmap = bitmap.GetHbitmap(Color.FromArgb(0));
oldBitmap = SelectObject(memDc, hBitmap);
var size = new Size(bitmap.Width, bitmap.Height);
var pointSource = new Point(0, 0);
var topPos = new Point(Left, Top);
var blend = new BLENDFUNCTION();
blend.BlendOp = AC_SRC_OVER;
blend.BlendFlags = 0;
blend.SourceConstantAlpha = (byte)ShadowOpacity;
blend.AlphaFormat = AC_SRC_ALPHA;
UpdateLayeredWindow(Handle, screenDc, ref topPos, ref size, memDc, ref pointSource, 0, ref blend, ULW_ALPHA);
}
finally
{
ReleaseDC(IntPtr.Zero, screenDc);
if (hBitmap != IntPtr.Zero)
{
SelectObject(memDc, oldBitmap);
DeleteObject(hBitmap);
}
DeleteDC(memDc);
}
}
#endregion
#region 拖动无边框窗体 改变无边框窗体尺寸
protected override void WndProc(ref Message m)
{
switch (m.Msg)
{
case WM_NCHITTEST:
if ((Owner != null) && (CanResize))
{
Point vPoint = new Point((int)m.LParam & 0xFFFF, (int)m.LParam >> 16 & 0xFFFF);
vPoint = PointToClient(vPoint);
base.WndProc(ref m);
if (RecBorderLeft.Contains(vPoint)) //左
m.Result = (IntPtr)HIT_LEFT;
else if (RecBorderLeftTop.Contains(vPoint)) //左上
m.Result = (IntPtr)HIT_TOPLEFT;
else if (RecBorderLeftBottom.Contains(vPoint)) //左下
m.Result = (IntPtr)HIT_BOTTOMLEFT;
else if (RecBorderTop.Contains(vPoint)) //上
m.Result = (IntPtr)HIT_TOP;
else if (RecBorderRight.Contains(vPoint)) //右
m.Result = (IntPtr)HIT_RIGHT;
else if (RecBorderRightTop.Contains(vPoint)) //右上
m.Result = (IntPtr)HIT_TOPRIGHT;
else if (RecBorderRightBottom.Contains(vPoint)) //右下
m.Result = (IntPtr)HIT_BOTTOMRIGHT;
else if (RecBorderBottom.Contains(vPoint)) //下
m.Result = (IntPtr)HIT_BOTTOM;
return;
}
break;
}
base.WndProc(ref m);
}
#endregion
#region 引用系统函数
const int WS_EX_LAYERED = 0x00080000;
const int WM_NCHITTEST = 0x0084;
const int HIT_LEFT = 10;
const int HIT_RIGHT = 11;
const int HIT_TOP = 12;
const int HIT_TOPLEFT = 13;
const int HIT_TOPRIGHT = 14;
const int HIT_BOTTOM = 15;
const int HIT_BOTTOMLEFT = 16;
const int HIT_BOTTOMRIGHT = 17;
const int AC_SRC_OVER = 0x00;
const int AC_SRC_ALPHA = 0x01;
const int ULW_ALPHA = 0x00000002;
const int GW_HWNDNEXT = 2;
const int WM_SYSCOMMAND = 0x0112;
const int HTCAPTION = 2;
[DllImport("user32.dll", ExactSpelling = true, SetLastError = true)]
static extern IntPtr GetDC(IntPtr hWnd);
[DllImport("user32.dll", ExactSpelling = true, SetLastError = true)]
static extern Bool UpdateLayeredWindow(IntPtr hwnd, IntPtr hdcDst, ref Point pptDst, ref Size psize,
IntPtr hdcSrc, ref Point pprSrc, Int32 crKey, ref BLENDFUNCTION pblend, Int32 dwFlags);
[DllImport("user32.dll", ExactSpelling = true)]
static extern int ReleaseDC(IntPtr hWnd, IntPtr hDC);
[DllImport("gdi32.dll", ExactSpelling = true, SetLastError = true)]
static extern IntPtr CreateCompatibleDC(IntPtr hDC);
[DllImport("gdi32.dll", ExactSpelling = true, SetLastError = true)]
static extern Bool DeleteDC(IntPtr hdc);
[DllImport("gdi32.dll", ExactSpelling = true)]
static extern IntPtr SelectObject(IntPtr hDC, IntPtr hObject);
[DllImport("gdi32.dll", ExactSpelling = true, SetLastError = true)]
static extern Bool DeleteObject(IntPtr hObject);
[DllImport("user32.dll")]
[return: MarshalAs(UnmanagedType.Bool)]
static extern bool SetForegroundWindow(IntPtr hWnd);
[DllImport("user32.dll")]
static extern IntPtr GetForegroundWindow();
[DllImport("user32.dll")]
static extern IntPtr GetWindow(IntPtr hWnd, uint wCmd);
[DllImport("gdi32.dll")]
static extern IntPtr CreateRoundRectRgn(int nLeftRect, int nTopRect, int nRightRect, int nBottomRect, int nWidthEllipse, int nHeightEllipse);
[DllImport("user32.dll")]
static extern bool ReleaseCapture();
[DllImport("USER32.DLL", EntryPoint = "SendMessage")]
static extern int SendMessage(IntPtr hwnd, int msg, IntPtr wParam, IntPtr lParam);
public enum Bool
{
False = 0,
True
};
[StructLayout(LayoutKind.Sequential, Pack = 1)]
public struct BLENDFUNCTION
{
public byte BlendOp;
public byte BlendFlags;
public byte SourceConstantAlpha;
public byte AlphaFormat;
}
#endregion
}
}
最后，讲一下使用方法：
public fmBase()
{
InitializeComponent();
FormBorderStyle = FormBorderStyle.None;
shadow = new ShadowForm(this);
}
private void fmBase_Load(object sender, EventArgs e)
{
if (!DesignMode)
{
//如果需要设置属性，可以用以下方法，不设置也行，类中已有默认值
shadow.ShadowOpacity = 100;
shadow.ShadowBlur = 0;
shadow.ShadowSpread = 6;
shadow.ShadowH = 0;
shadow.ShadowV = 0;
shadow.CornerRound = 4;
shadow.ShadowColor = Color.Black;
}
}
protected override void OnShown(EventArgs e)
{
base.OnShown(e);
if (!DesignMode)
{
RefreshShadow(true, true);
}
}
#region 刷新显示影子窗体
private void RefreshShadow(bool redraw, bool reLoaction)
{
if (!DesignMode)
{
if ((this != null) && (shadow != null))
{
try
{
if (shadow.IsDisposed)
{
shadow = null;
}
shadow.Visible = (this.WindowState == FormWindowState.Normal) && (this.Visible);
}
catch { }
if (shadow.Visible)
{
shadow.RefreshShadow(redraw, reLoaction);
}
}
}
}
#endregion好了，可以看见效果了，试试去吧！
扫一扫
550
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
