0x01.写代码生成一段H264视频

RTP协议可以承载多种类型的音频和视频数据，包括MP4、MP3、AMR、H264、H265等类型的数据，每种类型的音频或者视频数据在经过流媒体服务器与客户端之间进行传输时，都要按照流媒体服务器与客户端的数据传输协议所规定的格式封装音频或者视频的帧数据。

播放每一帧视频数据需对每一帧的各字节、比特按照规范所定义的结构进行解析，开源的播放器有VLC、FFMPEG等。

解析的过程称为解码，反过来则是编码。编码通常是压缩视频数据，解码则是解压缩视频。目前国际比较知名的视频的压缩技术是H264/AVC、HEVC等（中国是AVS），两者都是基于哥伦布编码、视频的数据的预测等技术。

比较成熟的视频编码都有其相应组织发布规范文档，如H264的国际标准ITU-T REC.H.264（下载地址点这里）。

视频标准组织在其官网发布的视频编码标准文档，详细地描述了其所定义的视频压缩所采用的编码算法、压缩算法、帧格式等，另外有些标准还依赖其他标准，这些标准的电子文档我们可以在官方网站进行检索和下载。

研究完这些标准文档后，为了验证自己的理解是否正确，我们可以写代码生成一段视频码流，借助播放器进行验证。当然也可以调用开源的视频编码库API，生成一段视频码流。

本文下面的python代码，是按照规范所定义的编码方法，实现了指数哥伦布编码基类，并派生出了标准所规定的数据类型类，定义了哥伦布编码器类，定义了NALU帧、HRD参数、VUI参数、序列参数集、图像参数集、增强补充信息、宏块数据、Slice片头等类，部分类的功能待完善。在文件中依次写入序列参数集、图像参数集、增强补充信息和若干宏块数据，从而生成了一段可播放的H264视频码流。

0x02. 视频生成原理

根据H264规范文档定义，要生成一段H264码流，只需产生H264的SPS、PPS、SEI、I帧等字节流数据并写入文件即可。

0x03. 代码

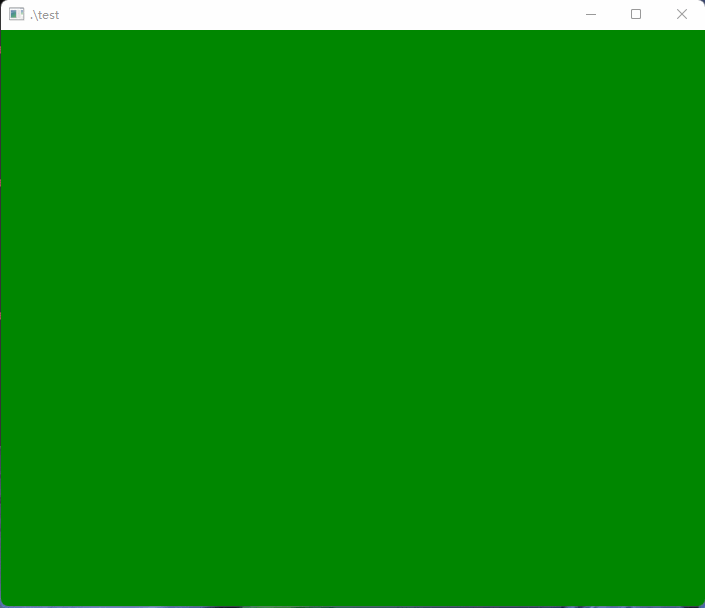

效果展示

代码

包括3个文件golomb.py、avc.py和ghf.py，运行ghf.py即可生成H264视频裸流文件test。

golomb.py源码如下：

# author: yangyiyin
# 2022/2/14 chengdu

class ExpGolombObject(object):
    def __init__(self, value, bit_length=0):
        self._bit_count = value.bit_length()
        self._bit_length = bit_length or self._bit_count
        self._zero_count = self._bit_length - self._bit_count
        self.value = value
        self.value_encoded = 0

        if self._bit_length < self._bit_count:
            raise Exception("bit length of value {} should be {} at least", self.value, self._bit_count)

    def __bool__(self):
        return 0 != self.value

    @property
    def zero_count(self):
        return self._zero_count

    @property
    def bit_count(self):
        return self._bit_count

    def encode(self):
        self._bit_count = self.value.bit_length()
        self._zero_count = self._bit_length - self._bit_count
        self.value_encoded = self.value


class FixedPatternBin(ExpGolombObject):
    def __init__(self, value=0):
        super(FixedPatternBin, self).__init__(value, 1)


class FixedLenUint(ExpGolombObject):
    def __init__(self, bit_length, value=0):
        super(FixedLenUint, self).__init__(value, bit_length)

    def set_data(self, datas, bit_index):
        byte_index = divmod(bit_index, 8)[0]
        bit = bit_index - byte_index * 8

        self.value = (datas[byte_index] << 24) + (datas[byte_index + 1] << 16) + (datas[byte_index + 2] << 8) + (datas[byte_index + 3])

        if bit + self._bit_count <= 32:
            self.value = (self.value << bit) & 0xffffffff
            self.value = (self.value >> (32 - self._bit_count)) & 0xffffffff

        else:
            tmp = self._bit_count + bit - 32

            self.value = (self.value << bit) & 0xffffffff
            self.value = (self.value >> bit)
            self.value = (self.value << tmp) & 0xffffffff

            # the fifth byte
            self.value += (datas[byte_index + 4] >> (8 - tmp))


class ExpGolombNumber(ExpGolombObject):
    def __init__(self, value):
        super(ExpGolombNumber, self).__init__(value)

    def __str__(self):
        return "zero_count: {}, bit_count:{}, value: {}".format(self.zero_count, self.bit_count, self.value)

    def set_data(self, datas, start_bit_index):
        """
        :param datas:
        :param start_bit_index:  比特索引值，0开始计数
        :return:
        """
        self.value = 0
        self._zero_count = 0
        self._bit_count = 0

        byte_index = divmod(start_bit_index, 8)[0]
        byte = datas[byte_index]
        bit_index = start_bit_index - byte_index * 8

        if ((byte << bit_index) & 0xff) <= 0x80:
            bit_index = start_bit_index - byte_index * 8

            while True:
                if ((byte << bit_index) & 0xff) >= 0x80:
                    break

                self._zero_count += 1
                start_bit_index += 1
                bit_index += 1

                if 8 == bit_index:
                    byte_index = divmod(start_bit_index, 8)[0]
                    byte = datas[byte_index]
                    bit_index = 0

        self._bit_count = self._zero_count + 1

        if self._bit_count > 8:
            return False

        if bit_index + self._bit_count <= 8:
            mask = 0xff >> bit_index
            self.value_encoded = (datas[byte_index] & mask) >> (8 - bit_index - self._bit_count)

        else:
            mask = 0xff >> bit_index
            self.value_encoded = datas[byte_index] & mask
            self.value_encoded = (self.value_encoded << (self._bit_count - (8 - bit_index))) & 0xff

            byte_index += 1
            self.value_encoded += (datas[byte_index] >> (16 - bit_index - self._bit_count))

        return True


class ExpGolombUE(ExpGolombNumber):
    def __init__(self, value=0):
        super(ExpGolombUE, self).__init__(value)

    def encode(self):
        self.value_encoded = self.value + 1
        self._bit_count = self.value_encoded.bit_length()
        self._zero_count = self._bit_count - 1

    def set_data(self, datas, start_bit_index):
        if super(ExpGolombUE, self).set_data(datas, start_bit_index):
            self.value = self.value_encoded - 1


class ExpGolombSE(ExpGolombNumber):
    def __init__(self, value=0):
        super(ExpGolombSE, self).__init__(value)

    def encode(self):
        tmp = abs(self.value)

        if 0 == self.value:
            self._bit_count = 1
            self._zero_count = 0
            self.value_encoded = 1
            return

        self._bit_count = tmp.bit_length()
        self._zero_count = self._bit_count

        tmp = tmp << 1
        self._bit_count += 1

        if self.value < 0:
            tmp += 1

        self.value_encoded = tmp

    def set_data(self, datas, start_bit_index):
        if super(ExpGolombSE, self).set_data(datas, start_bit_index):
            sign = self.value_encoded & 0x01
            self.value = self.value_encoded >> 1

            if sign:
                self.value *= -1


class ExpGolombCodec:
    def __init__(self, buffer):
        self.__value = 0
        self.__prefix = 0
        self.__buffer = buffer

    def __str__(self):
        return "prefix={}, value={}, data length={}".format(self.__prefix, bin(self.__value), len(self.__buffer))

    def __add_coded(self, value):
        if len(self.__buffer) > 3 and value <= 0x03:
            if not self.__buffer[-2] and not self.__buffer[-1]:
                self.__buffer.append(0x03)
        self.__buffer.append(value)

    def __add_item(self, glbobj):
        self.__value |= (glbobj.value_encoded << 40 - self.__prefix - glbobj.zero_count - glbobj.bit_count)
        self.__prefix += glbobj.zero_count + glbobj.bit_count

    def __check_prefix(self, glbobj):
        if self.__prefix + glbobj.zero_count + glbobj.bit_count > 40:
            if self.__prefix >= 32:
                tmp = self.__value & 0xffffffff00
                tmp = tmp >> 8

                self.__add_coded(tmp >> 24 & 0xff)
                self.__add_coded(tmp >> 16 & 0xff)
                self.__add_coded(tmp >> 8 & 0xff)
                self.__add_coded(tmp & 0xff)

                self.__value = (self.__value << 32) & 0xff00000000
                self.__prefix -= 32

            elif self.__prefix >= 24:
                tmp = self.__value & 0xffffff0000
                tmp = tmp >> 16

                self.__add_coded(tmp >> 16)
                self.__add_coded(tmp >> 8 & 0xff)
                self.__add_coded(tmp & 0xff)

                self.__value = (self.__value << 24) & 0xff00000000
                self.__prefix -= 24

            elif self.__prefix >= 16:
                tmp = self.__value & 0xffff000000
                tmp = tmp >> 24

                self.__add_coded(tmp >> 8 & 0xff)
                self.__add_coded(tmp & 0xff)

                self.__value = (self.__value << 16) & 0xff00000000
                self.__prefix -= 16

            elif self.__prefix >= 8:
                tmp = self.__value & 0xff00000000
                tmp = tmp >> 32

                self.__add_coded(tmp & 0xff)

                self.__value = (self.__value << 8) & 0xff00000000
                self.__prefix -= 8

            if 8 == self.__prefix:
                self.__add_coded(self.__value >> 32 & 0xff)
                self.__value = 0
                self.__prefix = 0

    def byte_aligned(self):
        return 0 == self.__prefix % 8

    def add_trail(self):
        ret = self.__prefix % 8

        if ret:
            self.__buffer[-1] |= (1 << (8 - ret - 1))
        else:
            self.__add_coded(0x80)

    def reset(self):
        self.__value = 0
        self.__prefix = 0
        self.__buffer.clear()

    def encode_done(self, trail_bit):
        if self.__prefix > 32:
            self.__add_coded(self.__value >> 32 & 0xff)
            self.__add_coded(self.__value >> 24 & 0xff)
            self.__add_coded(self.__value >> 16 & 0xff)
            self.__add_coded(self.__value
