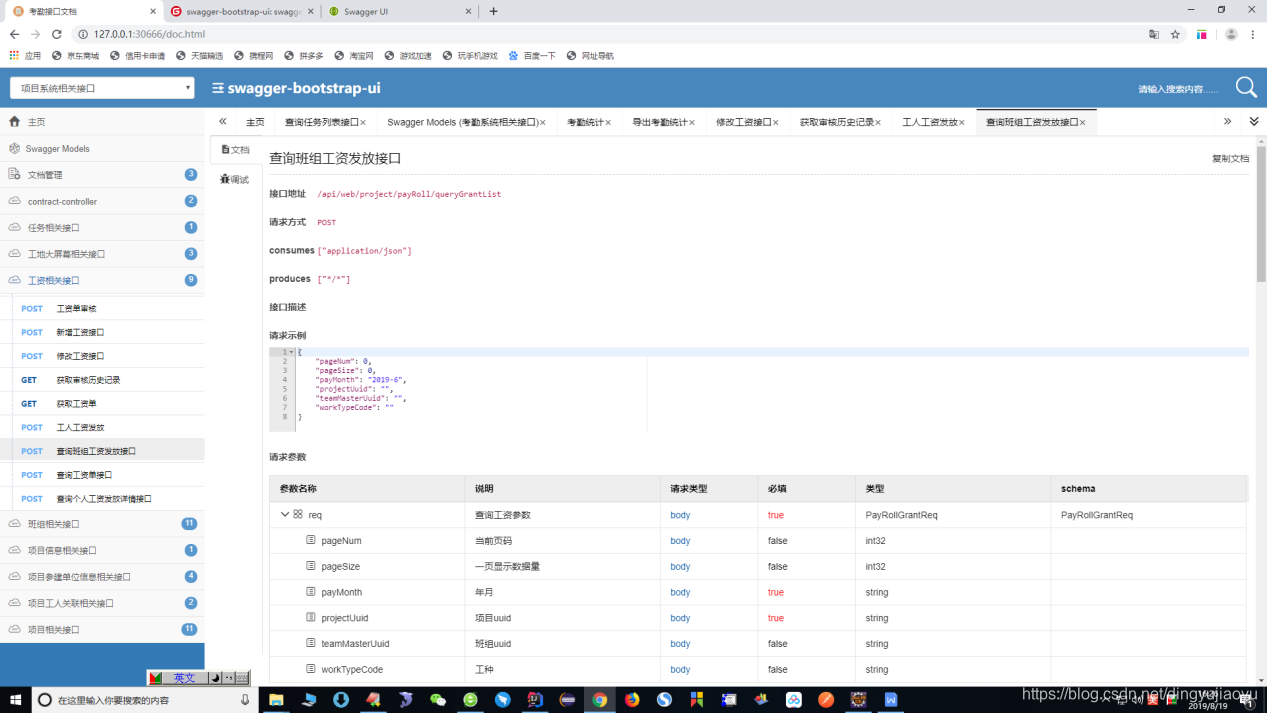

网关的地址：http://127.0.0.1:30666/doc.html

不加该插件，是自己的项目中直接：http://127.0.0.1:7074/swagger-ui.html

github地址 : https://github.com/liukaixiong/Swagger-Bootstrap-UI

<dependency>
         <groupId>com.github.xiaoymin</groupId>
         <artifactId>knife4j-spring-boot-starter</artifactId>
         <version>1.9.6</version>
      </dependency>

权限相关的设置，若有的话，设置一下，如下

设置ShiroConfig

@Bean("shiroFilter")
public ShiroFilterFactoryBean shiroFilter(SecurityManager securityManager) {
    ShiroFilterFactoryBean shiroFilter = new ShiroFilterFactoryBean();
    shiroFilter.setSecurityManager(securityManager);

    //oauth过滤
    Map<String, Filter> filters = new HashMap<>();
    filters.put("oauth2", new OAuth2Filter());
    shiroFilter.setFilters(filters);

    Map<String, String> filterMap = new LinkedHashMap<>();
    filterMap.put("/webjars/**", "anon");
    filterMap.put("/druid/**", "anon");
    filterMap.put("/app/**", "anon");
    filterMap.put("/sys/login", "anon");
    filterMap.put("/swagger/**", "anon");
    filterMap.put("/v2/api-docs", "anon");
    filterMap.put("/swagger-ui.html", "anon");
    filterMap.put("/swagger-resources/**", "anon");
    filterMap.put("/doc.html", "anon");
    filterMap.put("/captcha.jpg", "anon");
    filterMap.put("/aaa.txt", "anon");
    filterMap.put("/**", "oauth2");
    shiroFilter.setFilterChainDefinitionMap(filterMap);

    return shiroFilter;
}

#编写Swagger2Config配置文件

import com.github.xiaoymin.knife4j.spring.annotations.EnableSwaggerBootstrapUi;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Import;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.context.request.async.DeferredResult;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
import springfox.bean.validators.configuration.BeanValidatorPluginsConfiguration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.ApiKey;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.util.List;

import static com.google.common.base.Predicates.or;
import static com.google.common.collect.Lists.newArrayList;
import static springfox.documentation.builders.PathSelectors.regex;

@Configuration
@EnableSwagger2
@EnableSwaggerBootstrapUi
@Import(BeanValidatorPluginsConfiguration.class)
public class SwaggerConfig implements WebMvcConfigurer {

    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2).groupName("所有").apiInfo(apiInfo()).select()
                // 加了ApiOperation注解的类，才生成接口文档
                // .apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
                // 包下的类，才生成接口文档
                // .apis(RequestHandlerSelectors.basePackage("com.ktpis.admin.modules.sys.controller"))
                // .apis(RequestHandlerSelectors.basePackage("com.ktpis.admin.modules.biz.controller"))
                .apis(RequestHandlerSelectors.withClassAnnotation(RestController.class))
                // swagger2 如何匹配多个controller
                // 方法一、两个controller的上一级包
                // 如com.ktpis.admin.modules.biz.controller改成com.ktpis.admin.modules
                // 方法二、所有controller的都实现的一个接口，比如@RestController
                // .apis(RequestHandlerSelectors.withClassAnnotation(RestController.class))
                .paths(PathSelectors.any()).build().securitySchemes(security());
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder().title("开太平管理后台").description("ktp-admin文档").termsOfServiceUrl("www.ktpis.com")
                .version("1.0").build();
    }

    private List<ApiKey> security() {
        return newArrayList(new ApiKey("token", "token", "header"));
    }

    // ------------------------------------------------------------------------
    /**
     * 路径3+路径4
     *
     * @return
     */
    @Bean
    public Docket cApi() {
        return new Docket(DocumentationType.SWAGGER_2).groupName("管理后台").genericModelSubstitutes(DeferredResult.class)
                // .genericModelSubstitutes(ResponseEntity.class)
                .useDefaultResponseMessages(false).forCodeGeneration(false).pathMapping("/").select()
                .paths(or(regex("/combo/.*"), regex("/idx/.*"), regex("/edu/.*"), regex("/pw/.*"), regex("/sys/login")))// 过滤的接口
                .build().securitySchemes(security()).apiInfo(cApiInfo());
    }

    private ApiInfo cApiInfo() {
        return new ApiInfoBuilder().title("管理后台")// 大标题
                .description("管理后台")// 详细描述
                .version("1.0")// 版本
                .termsOfServiceUrl("NO terms of service")
                .contact(new Contact("charles", "www.ktpis.com", "ccing@126.com"))// 作者
                .license("The Apache License, Version 2.0")
                .licenseUrl("http://www.apache.org/licenses/LICENSE-2.0.html").build();
    }
}
