OpenGL管线：C++/OpenGL应用将图形数据发送到顶点着色器，随着管线处理，最终生成显示器上显示的像素点，顶点着色器、曲面细分着色器、几何着色器、片段着色器可以使用GLSL编程，将GLSL程序载入这些着色器也是C++/OpenGL职责：

step1、首先使用C++获取GLSL着色器代码，既可以从文件中读取，也可以硬编码在字符串中；

step2、接下来创建OpenGL着色器对象并将GLSL着色器代码加载到着色器对象；

step3、最后使用OpenGL命令编译并连接着色器对，并将他们安装到GPU;

1.1 创建一个GLFWwindow实例并设置其背景色


#include <GL\glew.h>
#include <GLFW\glfw3.h>
#include <iostream>
using namespace std;

void init(GLFWwindow* window) { }   //do nothing
void display(GLFWwindow* window, double currentTime) {
	glClearColor(1.0, 0.0, 0.0, 1.0);   //glClearColor能够指定颜色缓冲区清除后的值， (1,0,0,1)红色
	glClear(GL_COLOR_BUFFER_BIT);   //GL_COLOR_BUFFER_BIT应用了包含渲染后像素的颜色缓冲区，OPENGL有很多颜色缓冲区
}
int main(void) {
	if (!glfwInit()) { exit(EXIT_FAILURE); }   //GLFW使用glfwinit初始化
	glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 4);
	glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);   //WindowHints指定必须与OpenGL版本4.3兼容
	GLFWwindow* window = glfwCreateWindow(600, 600, "Harry's hobby display21", NULL, NULL);   //创建指定宽高(以像素为单位)及窗口顶部的标题
	glfwMakeContextCurrent(window);   //使创建的窗口与OPENGL上下文关联起来
	if (glewInit() != GLEW_OK) { exit(EXIT_FAILURE); }
	glfwSwapInterval(1);   //使用glfwSwapInterval和glfwSwapBuffers用来开启垂直同步Vsync
	init(window);
	while (!glfwWindowShouldClose(window)) {   //简单的渲染循环
		display(window, glfwGetTime());
		glfwSwapBuffers(window);
		glfwPollEvents();   //处理窗口相关事件，探测到关闭窗口的事件，循环就会终止
	}
	glfwDestroyWindow(window);   //关闭窗口时，程序将退出渲染，此时通过glfwDestroyWindow和glfwTerminate通知GLFW销毁窗口以及终止运行
	glfwTerminate();
	exit(EXIT_SUCCESS);
}

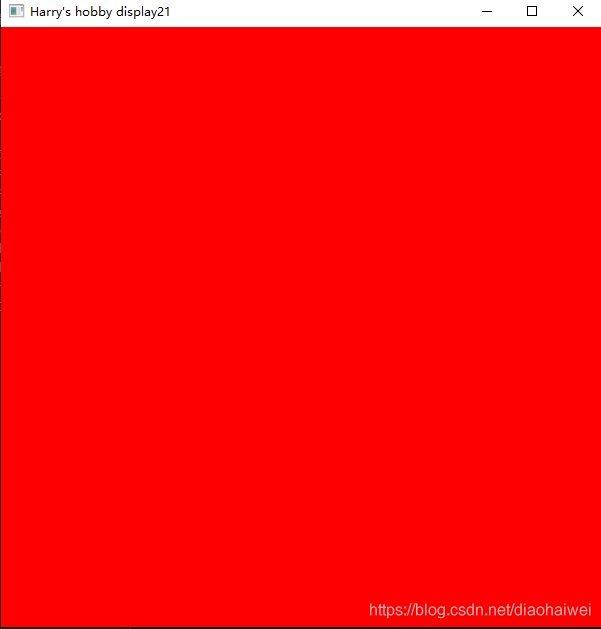

显示结果

1.2 着色器画一个点

#include <GL\glew.h>
#include <GLFW\glfw3.h>
#include <iostream>
using namespace std;

#define numVAOs 1 //即使应用程序完全没有用到任何缓冲区，OpenGL仍然需要在使用着色器的时候至少有一个创建按好的VAO,顶点数组对象
GLuint renderingProgram;
GLuint vao[numVAOs];
GLuint createShaderProgram() {
	const char* vshaderSource =
		"#version 430     \n"
		"void main(void)  \n"
		"{ gl_Position = vec4(0.0, 0.0, 0.0, 1.0);}";   //坐标原点，顶点接下来将沿着管线移动到光栅着色器，会在这里转换成像素位置【片面】
	const char* fshaderSource =
		"#version 430     \n"
		"out vec4 color:  \n"
		"void main(void)  \n"
		"{ color = vec4(0.0, 0.0, 1.0, 1.0); }";   //最终这些像素达到片段着色器
	GLuint vShader = glCreateShader(GL_VERTEX_SHADER);
	GLuint fShader = glCreateShader(GL_FRAGMENT_SHADER);
	GLuint vfprogram = glCreateProgram();

	glShaderSource(vShader, 1, &vshaderSource, NULL);   //将GLSL代码从字符串载入空着色器对象中
	glShaderSource(fShader, 1, &fshaderSource, NULL);   //glShaderSource含有四个参数，1用来存放着色器的着色器对象，2表示着色器源码中的字符串数量
														//3表示包含源代码的字符串指针
	glCompileShader(vShader);   //使用glCompileShader编译着色器对象
	glCompileShader(fShader);

	glAttachShader(vfprogram, vShader);   //将着色器对象加入到程序对象
	glAttachShader(vfprogram, fShader);
	glLinkProgram(vfprogram);   //请求GLSL编译器确保兼容性
	return vfprogram;
}
void init(GLFWwindow* window) {
	renderingProgram = createShaderProgram();
	glGenVertexArrays(numVAOs, vao);
	glBindVertexArray(vao[0]);
}
void display(GLFWwindow* window, double currentTime){
	glUseProgram(renderingProgram);   //将含有两个已完成编译着色器程序载入OpenGL管线阶段，glUseProgram并没有运行着色器，只是将着色器加载进GPU
	glPointSize(30.0f);   //从顶点着色器出来的顶点如何转换成片段着色器中的像素？在顶点处理和像素处理之间存在光栅化阶段，这个阶段图元转换成像素集合，30像素
	glDrawArrays(GL_POINTS, 0, 1);   //启动管线处理
}

int main(void) {
	if (!glfwInit()) { exit(EXIT_FAILURE); }   //GLFW使用glfwinit初始化
	glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 4);
	glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);   //WindowHints指定必须与OpenGL版本4.3兼容
	GLFWwindow* window = glfwCreateWindow(600, 600, "harry's hobby- Rendering 22", NULL, NULL);   //创建指定宽高(以像素为单位)及窗口顶部的标题
	glfwMakeContextCurrent(window);    //使创建的窗口与OPENGL上下文关联起来
	if (glewInit() != GLEW_OK) { exit(EXIT_FAILURE); }
	glfwSwapInterval(1);   //使用glfwSwapInterval和glfwSwapBuffers用来开启垂直同步Vsync

	init(window);

	while (!glfwWindowShouldClose(window)) {    //简单的渲染循环
		display(window, glfwGetTime());
		glfwSwapBuffers(window);
		glfwPollEvents();   //处理窗口相关事件，探测到关闭窗口的事件，循环就会终止
	}

	glfwDestroyWindow(window);    //关闭窗口时，程序将退出渲染，此时通过glfwDestroyWindow和glfwTerminate通知GLFW销毁窗口以及终止运行
	glfwTerminate();
	exit(EXIT_SUCCESS);
}

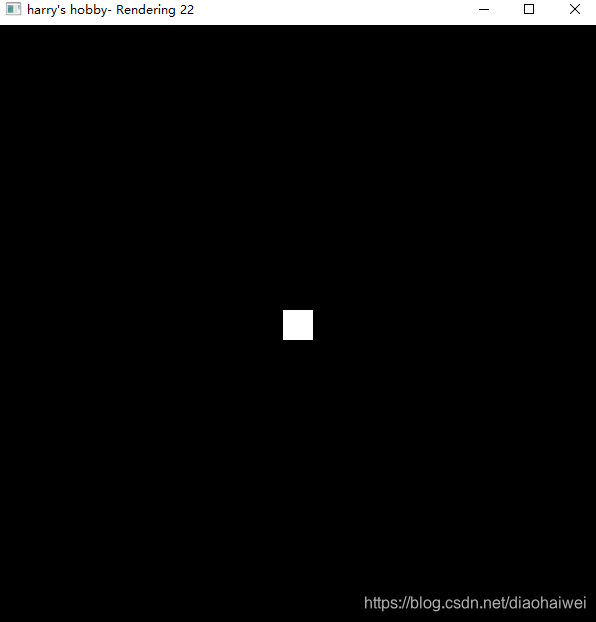

显示结果

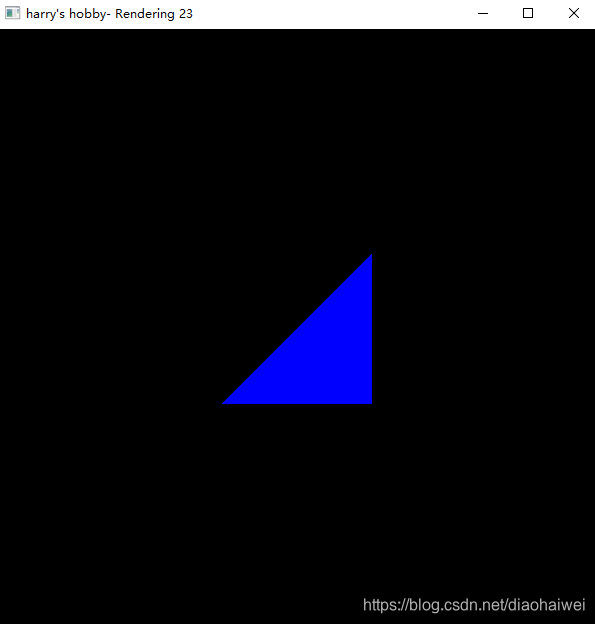

1.3 着色器画一个三角形

/*Utils.h*/
#include <GL\glew.h>
#include <GLFW\glfw3.h>
#include <SOIL2\soil2.h>
#include <string>
#include <iostream>
#include <fstream>
#include <cmath>
#include <vector>
#include <glm\glm.hpp>
#include <glm\gtc\type_ptr.hpp>
#include <glm\gtc\matrix_transform.hpp>

class Utils
{
private:
	static std::string readShaderFile(const char *filePath);
	static void printShaderLog(GLuint shader);
	static void printProgramLog(int prog);
	static GLuint prepareShader(int shaderTYPE, const char *shaderPath);
	static int finalizeShaderProgram(GLuint sprogram);

public:
	Utils();
	static bool checkOpenGLError();
	static GLuint createShaderProgram(const char *vp, const char *fp);
	static GLuint createShaderProgram(const char *vp, const char *gp, const char *fp);
	static GLuint createShaderProgram(const char *vp, const char *tCS, const char* tES, const char *fp);
	static GLuint createShaderProgram(const char *vp, const char *tCS, const char* tES, char *gp, const char *fp);
	static GLuint loadTexture(const char *texImagePath);
	static GLuint loadCubeMap(const char *mapDir);

	static float* goldAmbient();
	static float* goldDiffuse();
	static float* goldSpecular();
	static float goldShininess();

	static float* silverAmbient();
	static float* silverDiffuse();
	static float* silverSpecular();
	static float silverShininess();

	static float* bronzeAmbient();
	static float* bronzeDiffuse();
	static float* bronzeSpecular();
	static float bronzeShininess();
};
//*********************************************************************
/*Utils.cpp*/
#include <GL\glew.h>
#include <GLFW\glfw3.h>
#include <SOIL2\soil2.h>
#include <string>
#include <iostream>
#include <fstream>
#include <cmath>
#include <glm\glm.hpp>
#include <glm\gtc\type_ptr.hpp> // glm::value_ptr
#include <glm\gtc\matrix_transform.hpp> // glm::translate, glm::rotate, glm::scale, glm::perspective
#include "Utils.h"
using namespace std;

Utils::Utils() {}

string Utils::readShaderFile(const char *filePath) {
	string content;
	ifstream fileStream(filePath, ios::in);
	string line = "";
	while (!fileStream.eof()) {
		getline(fileStream, line);
		content.append(line + "\n");
	}
	std::cout << content;
	fileStream.close();
	return content;
}

bool Utils::checkOpenGLError() {
	bool foundError = false;
	int glErr = glGetError();
	while (glErr != GL_NO_ERROR) {
		cout << "glError: " << glErr << endl;
		foundError = true;
		glErr = glGetError();
	}
	return foundError;
}

void Utils::printShaderLog(GLuint shader) {
	int len = 0;
	int chWrittn = 0;
	char *log;
	glGetShaderiv(shader, GL_INFO_LOG_LENGTH, &len);
	if (len > 0) {
		log = (char *)malloc(len);
		glGetShaderInfoLog(shader, len, &chWrittn, log);
		cout << "Shader Info Log: " << log << endl;
		free(log);
	}
}

GLuint Utils::prepareShader(int shaderTYPE, const char *shaderPath)
{
	GLint shaderCompiled;
	string shaderStr = readShaderFile(shaderPath);
	const char *shaderSrc = shaderStr.c_str();
	GLuint shaderRef = glCreateShader(shaderTYPE);
	glShaderSource(shaderRef, 1, &shaderSrc, NULL);
	glCompileShader(shaderRef);
	checkOpenGLError();
	glGetShaderiv(shaderRef, GL_COMPILE_STATUS, &shaderCompiled);
	if (shaderCompiled != 1)
	{
		if (shaderTYPE == 35633) cout << "Vertex ";
		if (shaderTYPE == 36488) cout << "Tess Control ";
		if (shaderTYPE == 36487) cout << "Tess Eval ";
		if (shaderTYPE == 36313) cout << "Geometry ";
		if (shaderTYPE == 35632) cout << "Fragment ";
		cout << "shader compilation error." << endl;
		printShaderLog(shaderRef);
	}
	return shaderRef;
}

void Utils::printProgramLog(int prog) {
	int len = 0;
	int chWrittn = 0;
	char *log;
	glGetProgramiv(prog, GL_INFO_LOG_LENGTH, &len);
	if (len > 0) {
		log = (char *)malloc(len);
		glGetProgramInfoLog(prog, len, &chWrittn, log);
		cout << "Program Info Log: " << log << endl;
		free(log);
	}
}

int Utils::finalizeShaderProgram(GLuint sprogram)
{
	GLint linked;
	glLinkProgram(sprogram);
	checkOpenGLError();
	glGetProgramiv(sprogram, GL_LINK_STATUS, &linked);
	if (linked != 1)
	{
		cout << "linking failed" << endl;
		printProgramLog(sprogram);
	}
	return sprogram;
}

GLuint Utils::createShaderProgram(const char *vp, const char *fp) {
	GLuint vShader = prepareShader(GL_VERTEX_SHADER, vp);
	GLuint fShader = prepareShader(GL_FRAGMENT_SHADER, fp);
	GLuint vfprogram = glCreateProgram();
	glAttachShader(vfprogram, vShader);
	glAttachShader(vfprogram, fShader);
	finalizeShaderProgram(vfprogram);
	return vfprogram;
}

GLuint Utils::createShaderProgram(const char *vp, const char *gp, const char *fp) {
	GLuint vShader = prepareShader(GL_VERTEX_SHADER, vp);
	GLuint gShader = prepareShader(GL_GEOMETRY_SHADER, gp);
	GLuint fShader = prepareShader(GL_FRAGMENT_SHADER, fp);
	GLuint vgfprogram = glCreateProgram();
	glAttachShader(vgfprogram, vShader);
	glAttachShader(vgfprogram, gShader);
	glAttachShader(vgfprogram, fShader);
	finalizeShaderProgram(vgfprogram);
	return vgfprogram;
}

GLuint Utils::createShaderProgram(const char *vp, const char *tCS, const char* tES, const char *fp) {
	GLuint vShader = prepareShader(GL_VERTEX_SHADER, vp);
	GLuint tcShader = prepareShader(GL_TESS_CONTROL_SHADER, tCS);
	GLuint teShader = prepareShader(GL_TESS_EVALUATION_SHADER, tES);
	GLuint fShader = prepareShader(GL_FRAGMENT_SHADER, fp);
	GLuint vtfprogram = glCreateProgram();
	glAttachShader(vtfprogram, vShader);
	glAttachShader(vtfprogram, tcShader);
	glAttachShader(vtfprogram, teShader);
	glAttachShader(vtfprogram, fShader);
	finalizeShaderProgram(vtfprogram);
	return vtfprogram;
}

GLuint Utils::createShaderProgram(const char *vp, const char *tCS, const char* tES, char *gp, const char *fp) {
	GLuint vShader = prepareShader(GL_VERTEX_SHADER, vp);
	GLuint tcShader = prepareShader(GL_TESS_CONTROL_SHADER, tCS);
	GLuint teShader = prepareShader(GL_TESS_EVALUATION_SHADER, tES);
	GLuint gShader = prepareShader(GL_GEOMETRY_SHADER, gp);
	GLuint fShader = prepareShader(GL_FRAGMENT_SHADER, fp);
	GLuint vtgfprogram = glCreateProgram();
	glAttachShader(vtgfprogram, vShader);
	glAttachShader(vtgfprogram, tcShader);
	glAttachShader(vtgfprogram, teShader);
	glAttachShader(vtgfprogram, gShader);
	glAttachShader(vtgfprogram, fShader);
	finalizeShaderProgram(vtgfprogram);
	return vtgfprogram;
}

GLuint Utils::loadCubeMap(const char *mapDir) {
	GLuint textureRef;
	string xp = mapDir; xp = xp + "/xp.jpg";
	string xn = mapDir; xn = xn + "/xn.jpg";
	string yp = mapDir; yp = yp + "/yp.jpg";
	string yn = mapDir; yn = yn + "/yn.jpg";
	string zp = mapDir; zp = zp + "/zp.jpg";
	string zn = mapDir; zn = zn + "/zn.jpg";
	textureRef = SOIL_load_OGL_cubemap(xp.c_str(), xn.c_str(), yp.c_str(), yn.c_str(), zp.c_str(), zn.c_str(),
		SOIL_LOAD_AUTO, SOIL_CREATE_NEW_ID, SOIL_FLAG_MIPMAPS);
	if (textureRef == 0) cout << "didnt find cube map image file" << endl;
	//	glBindTexture(GL_TEXTURE_CUBE_MAP, textureRef);
	// reduce seams
	//	glTexParameteri(GL_TEXTURE_CUBE_MAP, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
	//	glTexParameteri(GL_TEXTURE_CUBE_MAP, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);
	//	glTexParameteri(GL_TEXTURE_CUBE_MAP, GL_TEXTURE_WRAP_R, GL_CLAMP_TO_EDGE);
	return textureRef;
}

GLuint Utils::loadTexture(const char *texImagePath)
{
	GLuint textureRef;
	textureRef = SOIL_load_OGL_texture(texImagePath, SOIL_LOAD_AUTO, SOIL_CREATE_NEW_ID, SOIL_FLAG_INVERT_Y);
	if (textureRef == 0) cout << "didnt find texture file " << texImagePath << endl;
	// ----- mipmap/anisotropic section
	glBindTexture(GL_TEXTURE_2D, textureRef);
	glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR_MIPMAP_LINEAR);
	glGenerateMipmap(GL_TEXTURE_2D);
	if (glewIsSupported("GL_EXT_texture_filter_anisotropic")) {
		GLfloat anisoset = 0.0f;
		glGetFloatv(GL_MAX_TEXTURE_MAX_ANISOTROPY_EXT, &anisoset);
		glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_MAX_ANISOTROPY_EXT, anisoset);
	}
	// ----- end of mipmap/anisotropic section
	return textureRef;
}

// GOLD material - ambient, diffuse, specular, and shininess
float* Utils::goldAmbient() { static float a[4] = { 0.2473f, 0.1995f, 0.0745f, 1 }; return (float*)a; }
float* Utils::goldDiffuse() { static float a[4] = { 0.7516f, 0.6065f, 0.2265f, 1 }; return (float*)a; }
float* Utils::goldSpecular() { static float a[4] = { 0.6283f, 0.5559f, 0.3661f, 1 }; return (float*)a; }
float Utils::goldShininess() { return 51.2f; }

// SILVER material - ambient, diffuse, specular, and shininess
float* Utils::silverAmbient() { static float a[4] = { 0.1923f, 0.1923f, 0.1923f, 1 }; return (float*)a; }
float* Utils::silverDiffuse() { static float a[4] = { 0.5075f, 0.5075f, 0.5075f, 1 }; return (float*)a; }
float* Utils::silverSpecular() { static float a[4] = { 0.5083f, 0.5083f, 0.5083f, 1 }; return (float*)a; }
float Utils::silverShininess() { return 51.2f; }

// BRONZE material - ambient, diffuse, specular, and shininess
float* Utils::bronzeAmbient() { static float a[4] = { 0.2125f, 0.1275f, 0.0540f, 1 }; return (float*)a; }
float* Utils::bronzeDiffuse() { static float a[4] = { 0.7140f, 0.4284f, 0.1814f, 1 }; return (float*)a; }
float* Utils::bronzeSpecular() { static float a[4] = { 0.3936f, 0.2719f, 0.1667f, 1 }; return (float*)a; }
float Utils::bronzeShininess() { return 25.6f; }
//************************************************************************************
/*main.cpp*/
#include <GL\glew.h>
#include <GLFW\glfw3.h>
#include <iostream>
#include <string>
#include <iostream>
#include <fstream>
#include "Utils.h"
using namespace std;

#define numVAOs 1

GLuint renderingProgram;
GLuint vao[numVAOs];

void init(GLFWwindow* window) {
	renderingProgram = Utils::createShaderProgram("vertShader.glsl", "fragShader.glsl");
	glGenVertexArrays(numVAOs, vao);
	glBindVertexArray(vao[0]);
}

void display(GLFWwindow* window, double currentTime) {
	glUseProgram(renderingProgram);
	glDrawArrays(GL_TRIANGLES, 0, 3);   //制定管线中含有3个顶点，顶点着色器会在每个迭代运行3遍，内置变脸gl_VertexID会自增
}

int main(void) {
	if (!glfwInit()) { exit(EXIT_FAILURE); }
	glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 4);
	glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);
	GLFWwindow* window = glfwCreateWindow(600, 600, "harry's hobby- Rendering 23", NULL, NULL);
	glfwMakeContextCurrent(window);
	if (glewInit() != GLEW_OK) { exit(EXIT_FAILURE); }
	glfwSwapInterval(1);

	init(window);

	while (!glfwWindowShouldClose(window)) {
		display(window, glfwGetTime());
		glfwSwapBuffers(window);
		glfwPollEvents();
	}

	glfwDestroyWindow(window);
	glfwTerminate();
	exit(EXIT_SUCCESS);
}

显示结果：

1.4 重复渲染移动三角形

#include <GL\glew.h>
#include <GLFW\glfw3.h>
#include <iostream>
#include <string>
#include <iostream>
#include <fstream>
#include "Utils.h"
using namespace std;

#define numVAOs 1

GLuint renderingProgram;
GLuint vao[numVAOs];
GLuint offsetLoc;
float x = 0.0f;   //三角形在x轴的位置
float inc = 0.01f;   //移动三角形的偏移量

void init(GLFWwindow* window) {
	renderingProgram = Utils::createShaderProgram("vertShader.glsl", "fragShader.glsl");
	glGenVertexArrays(numVAOs, vao);
	glBindVertexArray(vao[0]);
}

void display(GLFWwindow* window, double currentTime) {
	glClear(GL_DEPTH_BUFFER_BIT);
	glClearColor(0.0, 0.0, 0.0, 1.0);
	glClear(GL_COLOR_BUFFER_BIT);

	glUseProgram(renderingProgram);

	x += inc;
	if (x > 1.0f) inc = -0.01f;
	if (x < -1.0f) inc = 0.01f;
	offsetLoc = glGetUniformLocation(renderingProgram, "offset");  //获取offset指针
	glProgramUniform1f(renderingProgram, offsetLoc, x);   //将x值传给offset
	glDrawArrays(GL_TRIANGLES, 0, 3);
}

int main(void) {
	if (!glfwInit()) { exit(EXIT_FAILURE); }
	glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 4);
	glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);
	GLFWwindow* window = glfwCreateWindow(600, 600, "Chapter 2 - program 5", NULL, NULL);
	glfwMakeContextCurrent(window);
	if (glewInit() != GLEW_OK) { exit(EXIT_FAILURE); }
	glfwSwapInterval(1);

	init(window);

	while (!glfwWindowShouldClose(window)) {
		display(window, glfwGetTime());
		glfwSwapBuffers(window);
		glfwPollEvents();
	}

	glfwDestroyWindow(window);
	glfwTerminate();
	exit(EXIT_SUCCESS);
}

显示结果
