springboot集成springcloud netflix之eureka openfeign hystrix

项目简介：

---

• SpringBoot 2.1.6
• spring-cloud Greenwich.SR5
• …

前言

ssm项目重构springboot项目后,在我们项目中各个模块之前充斥着如下使用http相互调用的应用,写一个两个还行,写多了麻烦而且不爽,由此产生使用springcloud的想法

        /**
     * 查询用户id和用户名的映射
     * @param userIds
     * @return
     * @throws Exception
     */
    public Map<Long, String> selectUserIdAndNameMap(List<Long> userIds) throws Exception{
        Map<String, String> queryParam = new HashMap<>();
        String userIdsJonsStr = JSONArray.toJSONString(userIds);
        queryParam.put("userIds", userIdsJonsStr);
        String baseHost = selectHostAddress(baseIp,basePort,basePath);
        String responseStr = SimpleHttpClient.doPost(baseHost, "/sysYh/selectUserNameList", queryParam);
        Response response = JSONObject.parseObject(responseStr, Response.class);
        if(response != null && Objects.equals(response.getServerResult().getResultCode(), TkResponseCode.SUCCESS)){
            Map<String,String> tempMap = (Map)response.getResponseEntity();
            Map<Long, String> userIdAndNameMap = new HashMap<>();
            for (Map.Entry<String, String> entry : tempMap.entrySet()) {
                String key = entry.getKey();
                String value = entry.getValue();
                userIdAndNameMap.put(Long.valueOf(key), value);
            }
            return userIdAndNameMap;
        }else{
            return new HashMap<>();
        }
    }

Begin开始

Springcloud官网(https://spring.io/projects/spring-cloud)

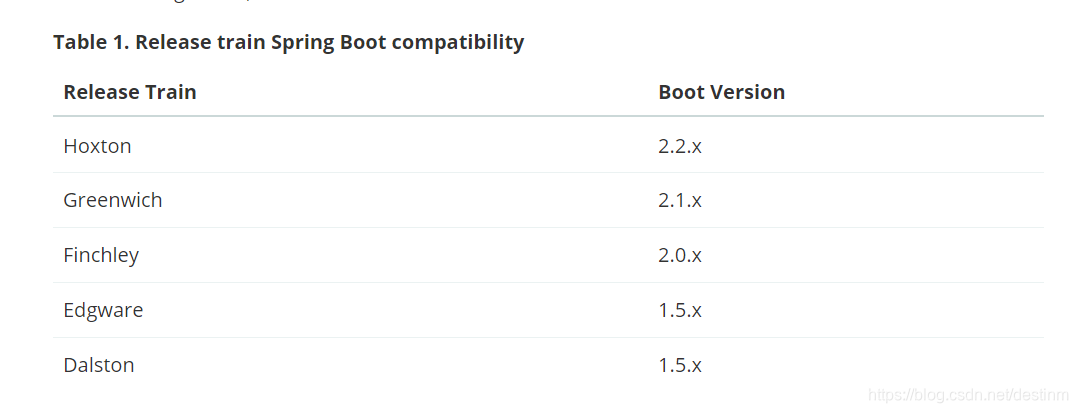

springboot与不同版本cloud存在兼容性问题必须严格匹配避免不需要的麻烦,官网上有详细兼容介绍,项目中springboot版本为2.1.6,由此springcloud选择兼容的最新正式版本Greenwich.SR5

1.1  引入Maven依赖

使用兼容正式发布版本Greenwich.SR5,相关组件版本无需自己配置会自动选择,现阶段选择eureka feign 和hystrix组件,预留gateway服务,有必要时再研究研究

<!-- cloud 版本 -->
<spring-cloud.version>Greenwich.SR5</spring-cloud.version>

<dependencyManagement>
   <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-dependencies</artifactId>
            <version>${spring-cloud.version}</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
    </dependencies>
</dependencyManagement>

<!-- cloud 相关组件依赖 -->
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
</dependency>

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-ribbon</artifactId>
</dependency>

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-hystrix</artifactId>
</dependency>

<!-- <dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-zuul</artifactId>
</dependency>
-->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-actuator</artifactId>
</dependency>

<!--     <dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-gateway</artifactId>
    <version>2.1.4.RELEASE</version>
    <type>pom</type>
    <optional>true</optional>
</dependency>-->
<!--  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-undertow</artifactId>
</dependency>-->

1.2  配置eureka服务端客户端

没有新建项目单独作为服务端,选择base服务作为服务端,添加配置和相关注解就可以注册

1.2.1  服务端启动类添加@EnableEurekaServer

@EnableEurekaServer
public class BaseApp extends SpringBootServletInitializer {
	...
}

1.2.2  服务端配置

# 服务端
eureka:
  instance:
    prefer-ip-address: true
    # 消费端访问服务的ip,默认为部署服务端的ip
    ip-address: ${EUREKA_IP_ADDRESS}
    # 服务实例名称:端口
    instance-id: ${spring.application.name}:${server.port}
    # 每隔30s发送一次心跳
    lease-renewal-interval-in-seconds: 30
    # 告知服务端60秒还未收到心跳的话，就将该服务移除列表
    lease-expiration-duration-in-seconds: 60
  client:
    registerWithEureka: true
    fetchRegistry: false
    # 注册中心地址
    serviceUrl:
      defaultZone: ${base.defaultZone}
  server:
  	# 自我保护模式
    enable-self-preservation: false
    # 清理无效节点的时间间隔, 默认60s
    eviction-interval-timer-in-ms: 60000
# eureka服务信息可有可无
info:
  app.name: bigdata-base
  build.artifactId: @project.artifactId@
  build.version: @project.version@
ribbon:
  eager-load:
  	# 饥饿加载模式
    enabled: true
    # 需要饥饿加载的服务名
    clients: bigdata-base,.......
    eureka:
      enabled: true

1.2.3  客户端启动类添加@EnableDiscoveryClient

@EnableEurekaClient
@EnableDiscoveryClient
@EnableFeignClients
@EnableHystrix
public class ModelApp extends SpringBootServletInitializer {
	......
}

1.2.4  客户端配置eureka feign hystrix

eureka:
  instance:
    prefer-ip-address:  true
    ip-address: ${EUREKA_IP_ADDRESS}
    instance-id: ${spring.application.name:bigdata-model}:${server.port}
    lease-renewal-interval-in-seconds: 30
    lease-expiration-duration-in-seconds: 60
  client:
    registerWithEureka: true
    fetchRegistry: true
    serviceUrl:
      defaultZone: ${model.defaultZone}
ribbon:
  eager-load:
    enabled: true
    clients: bigdata-base...........
  eureka:
    enabled: true

feign 和 hystrix 配置

feign:
  hystrix:
    enabled: true

hystrix:
  command:
    default:
      execution:
        isolation:
          thread:
            timeoutInMilliseconds: 2000

1.3  feign调用和熔断设置



1.3.1  注册类排除eureka静态资源

@Configuration
public class WebMvcConfig implements WebMvcConfigurer {

    @Bean
    public AuthenticateInterceptor authenticateInterceptor(){
        return new AuthenticateInterceptor();
    }

    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        InterceptorRegistration registration = registry.addInterceptor(authenticateInterceptor());
        registration.addPathPatterns("/**");
        registration.excludePathPatterns("/login","/logout","/session","/");
        registration.excludePathPatterns("/swagger-ui.html","/doc.html","/swagger-resources/**", "/webjars/**", "/v2/**", "/swagger-ui.html/**","/eureka/**");
    }

    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("swagger-ui.html","doc.html")
                .addResourceLocations("classpath:/META-INF/resources/");
        registry.addResourceHandler("/webjars/**")
                .addResourceLocations("classpath:/META-INF/resources/webjars/");
    }

}

1.3.2  配置feign拦截器

登录沿用老的Springsession,请求头中添加Cookie信息

/**
* @Description: feigh拦截器
* @Date: 2020/4/30
*/
@Configuration
public class FeignClientInterceptor implements RequestInterceptor {

    @Override
    public void apply(RequestTemplate requestTemplate) {
        ServletRequestAttributes requestAttributes = (ServletRequestAttributes) RequestContextHolder.getRequestAttributes();
        if(requestAttributes!=null){
            HttpServletRequest request = requestAttributes.getRequest();
            Cookie[] cookies = request.getCookies();
            if (cookies != null) {
                for (int i = 0; i < cookies.length; i++) {
                    Cookie cookie = cookies[i];
                    if(cookie.getName().equals("SESSION")){
                        StringBuffer cookieSbf = new StringBuffer();
                        cookieSbf.append(cookie.getName())
                                .append("=")
                                .append(cookie.getValue());
                        requestTemplate.header("Cookie", cookieSbf.toString());
                        break;
                    }
                }
            }
        }
    }
}

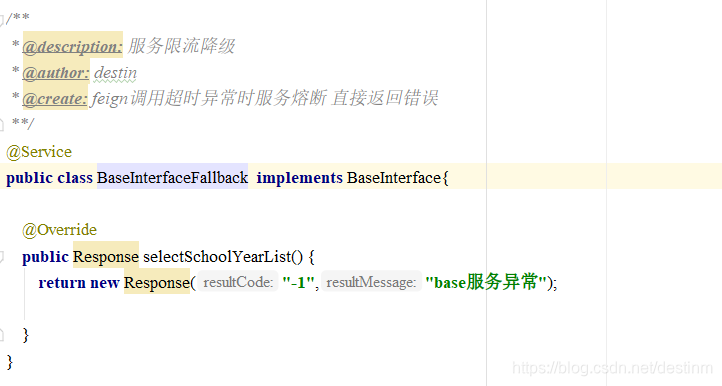

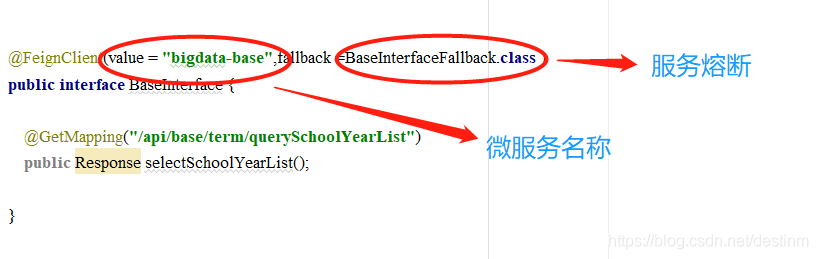

1.3.3  模块之前的feign调用

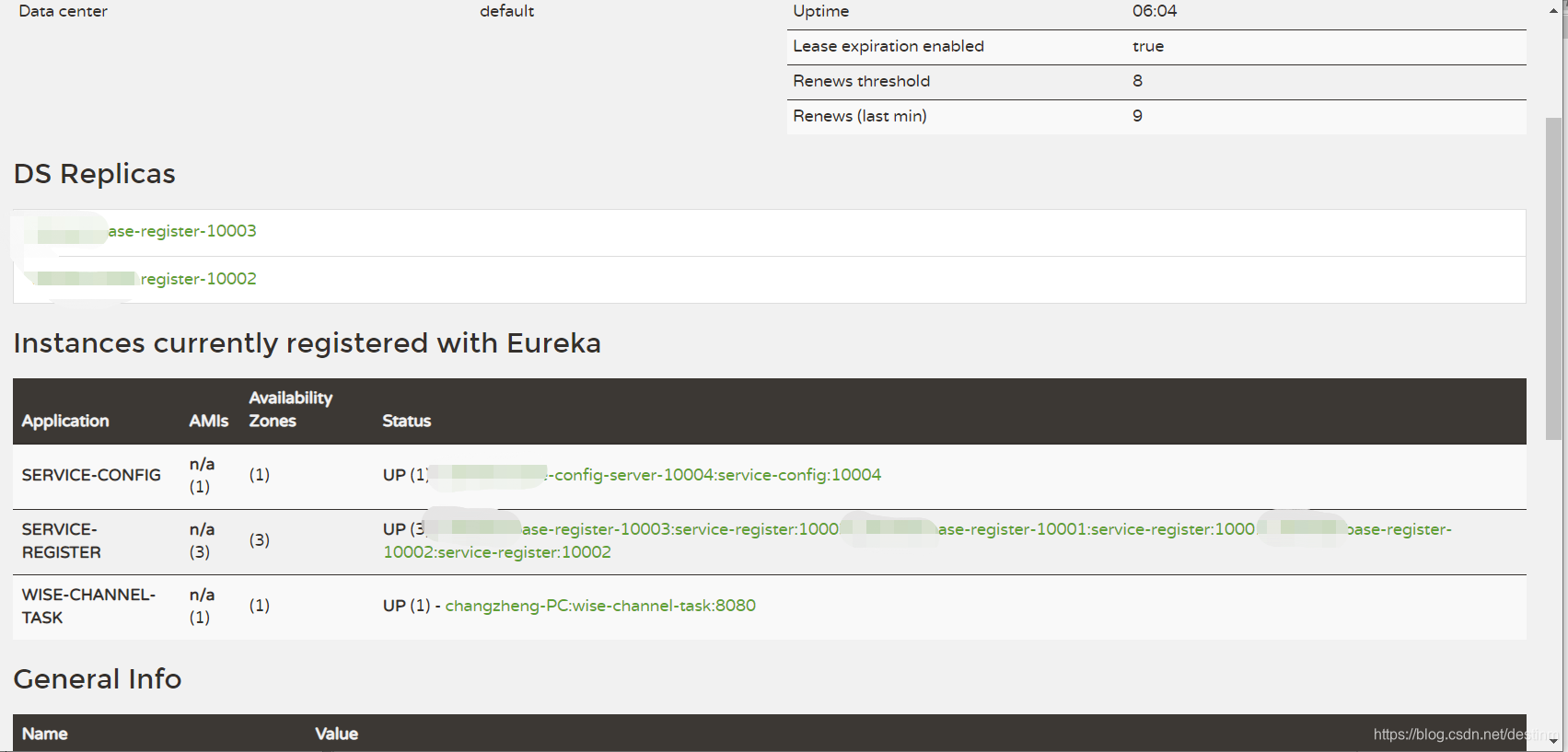

1.4  注册页面及测试



注册中心如图类似,测试feign正常调用及超时错误调用,流程正常,不用再一个个http调用了,就是很舒服~

1.5  End
