基于https://blog.youkuaiyun.com/qq_37735986/article/details/116272226
但是已经完全重构了,修复了原文竖向表头的错误。
因为不知道Qt内部机理,花了大约3天时间,终于成功。基于共享精神发布。

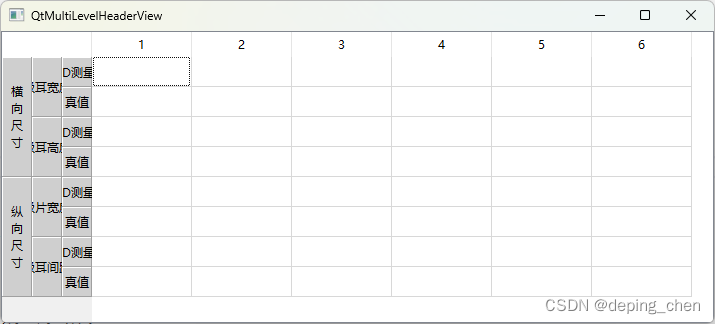

在这里插入图片描述
MultiLevelHeaderView.h

#pragma once

#include <QHeaderView>
#include <QModelIndex>

enum MyItemDataRole
{
	COLUMN_SPAN_ROLE = Qt::UserRole + 1,
	ROW_SPAN_ROLE,
};

class MultiLevelHeaderView : public QHeaderView
{
	Q_OBJECT
public:
	MultiLevelHeaderView(Qt::Orientation orientation, int rows, int columns, QWidget* parent = 0);
	virtual ~MultiLevelHeaderView();

	void setRowHeight(int row, int rowHeight);
	void setColumnWidth(int col, int colWidth);
	void setCellData(int row, int column, int role, const QVariant& value);
	// the below methods is just shortcut for setCellData
	void setCellSpan(int row, int column, int rowSpanCount, int columnSpanCount);
	void setCellBackgroundColor(int row, int column, const QColor&);
	void setCellForegroundColor(int row, int column, const QColor&);
	void setCellText(int row, int column, const QString& text);

	QModelIndex columnSpanIndex(const QModelIndex& currentIndex) const;
	QModelIndex rowSpanIndex(const QModelIndex& currentIndex) const;
protected:
	// override
	virtual void mousePressEvent(QMouseEvent* event) override;
	virtual QModelIndex indexAt(const QPoint&);
	virtual void paintSection(QPainter* painter, const QRect& rect, int logicalIndex) const override;
	virtual QSize sectionSizeFromContents(int logicalIndex) const override;

	// inherent features
	int columnSpanSize(int row, int from, int spanCount) const;
	int rowSpanSize(int column, int from, int spanCount) const;
	bool getRootCell(int row, int column, int& rootCellRow, int& rootCellColumn) const;
	// (row, column) must be root cell of merged cells
	QRect getCellRect(int row, int column) const;
	int getSectionRange(QModelIndex& index, int* beginSection, int* endSection) const;

protected slots:
	void onSectionResized(int logicalIdx, int oldSize, int newSize);

signals:
	void sectionPressed(int from, int to);
};

MultiLevelHeaderView.cpp

#include <set>

#include <QAbstractTableModel>
#include <QMap>
#include <QPainter>
#include <QMouseEvent>
#include <QVariant>
#include <QBrush>
#include <qdrawutil.h>

#include "MultiLevelHeaderView.h"

struct Cell
{
	int row = 0;
	int column = 0;
	bool operator<(const Cell& oth) const
	{
		if (row < oth.row)
			return true;
		if (row == oth.row)
			return column < oth.column;
		return false;
	}
};

class MultiLevelHeaderModel : public QAbstractTableModel
{
public:
	MultiLevelHeaderModel(Qt::Orientation orientation, int rows, int cols, QObject* parent = 0);
	virtual ~MultiLevelHeaderModel();

public:
	// override
	virtual QModelIndex index(int row, int column, const QModelIndex & parent = QModelIndex()) const override;
	virtual int rowCount(const QModelIndex &parent = QModelIndex()) const override;
	virtual int columnCount(const QModelIndex &parent = QModelIndex()) const override;
	virtual QVariant data(const QModelIndex &index, int role) const override;
	virtual bool setData(const QModelIndex & index, const QVariant & value, int role = Qt::EditRole) override;
	virtual Qt::ItemFlags flags(const QModelIndex &index) const override;
	void setRowHeight(int row, int size);
	int getRowHeight(int row) const;
	void setColumnWidth(int col, int size);
	int getColumnWidth(int col) const;
	void setRootCell(int row, int column, int rootRow, int rootColumn);
	bool getRootCell(int row, int column, int & rootCellRow, int & rootCellColumn) const;
private:
	Qt::Orientation m_orientation;
	int m_rowCount;
	int m_columnCount;
	std::vector<int> m_rowSizes;
	std::vector<int> m_columnSizes;
	QMap<Cell, QMap<int, QVariant>> m_data;
	QMap<Cell, Cell> m_rootCellMap;
};

MultiLevelHeaderModel::MultiLevelHeaderModel(Qt::Orientation orientation, int rows, int cols, QObject* parent) :
	QAbstractTableModel(parent), m_orientation(orientation), m_rowCount(rows), m_columnCount(cols)
{
	m_rowSizes.resize(rows, 0);
	m_columnSizes.resize(cols, 0);
}

MultiLevelHeaderModel::~MultiLevelHeaderModel()
{
}

QModelIndex MultiLevelHeaderModel::index(int row, int column, const QModelIndex & parent) const
{
	if (!hasIndex(row, column, parent))
		return QModelIndex();

	return createIndex(row, column, nullptr);
}

int MultiLevelHeaderModel::rowCount(const QModelIndex &parent) const
{
	return m_rowCount;
}
int MultiLevelHeaderModel::columnCount(const QModelIndex &parent) const
{
	return m_columnCount;
}

QVariant MultiLevelHeaderModel::data(const QModelIndex& index, int role) const
{
	if (!index.isValid())
		return QVariant();

	if (index.row() >= m_rowCount || index.row() < 0 || index.column() >= m_columnCount || index.column() < 0)
		return QVariant();

	auto it = m_data.find({ index.row(), index.column() });
	if (it != m_data.end())
	{
		auto it2 = it.value().find(role);
		if (it2 != it.value().end())
			return it2.value();
	}

	// default value
	if (role == Qt::BackgroundRole)
		return QColor(0xcfcfcf);

	if (role == Qt::SizeHintRole)
	{
		return QSize(m_columnSizes[index.column()], m_rowSizes[index.row()]);
	}
	return QVariant();
}

bool MultiLevelHeaderModel::setData(const QModelIndex & index, const QVariant & value, int role)
{
	if (index.isValid())
	{
		QVariant value2;
		if (role == COLUMN_SPAN_ROLE)
		{
			int col = index.column();
			int span = value.toInt();
			if (span > 0) // span size should be more than 1, else nothing to do
			{
				if (col + span - 1 >= m_columnCount) // span size should be less than whole columns,
					span = m_columnCount - col;
				value2 = span;
			}
		}
		else if (role == ROW_SPAN_ROLE)
		{
			int row = index.row();
			int span = value.toInt();
			if (span > 0) // span size should be more than 1, else nothing to do
			{
				if (row + span - 1 >= m_rowCount)
					span = m_rowCount - row;
				value2 = span;
			}
		}
		else
		{
			value2 = value;
		}
		if (value.isValid())
		{
			if (role == Qt::SizeHintRole)
			{
				m_columnSizes[index.column()] = value.toSize().width();
				m_rowSizes[index.row()] = value.toSize().height();
			}
			else
			{
				auto& map = m_data[{index.row(), index.column()}];
				map.insert(role, value2);
			}
		}

		return true;
	}
	return false;
}

Qt::ItemFlags MultiLevelHeaderModel::flags(const QModelIndex &index) const
{
	return  Qt::NoItemFlags | QAbstractTableModel::flags(index);
}

void MultiLevelHeaderModel::setRowHeight(int row, int size)
{
	if (row >= 0 && row < m_rowCount)
	{
		m_rowSizes[row] = size;
		emit dataChanged(index(row, 0), index(row, m_columnCount - 1), QVector<int>() << Qt::SizeHintRole);
	}
}

int MultiLevelHeaderModel::getRowHeight(int row) const
{
	if (row >= 0 && row < m_rowCount)
		return m_rowSizes[row];
	return 0;
}

void MultiLevelHeaderModel::setColumnWidth(int col, int size)
{
	if (col >= 0 && col < m_columnCount)
	{
		m_columnSizes[col] = size;
		emit dataChanged(index(0, col), index(m_rowCount - 1, col),  QVector<int>() << Qt::SizeHintRole);
	}
}

int MultiLevelHeaderModel::getColumnWidth(int col) const
{
	if (col >= 0 && col < m_columnCount)
		return m_columnSizes[col];
	return 0;
}

void MultiLevelHeaderModel::setRootCell(int row, int column, int rootRow, int rootColumn)
{
	Cell c{ row, column };
	auto it = m_rootCellMap.find(c);
	assert(it == m_rootCellMap.end());
	Cell rc{ rootRow, rootColumn };
	m_rootCellMap.insert(c, rc);
}

bool MultiLevelHeaderModel::getRootCell(int row, int column, int & rootCellRow, int & rootCellColumn) const
{
	Cell c{ row, column };
	auto it = m_rootCellMap.find(c);
	if(it == m_rootCellMap.end())
		return false;
	rootCellRow = it.value().row;
	rootCellColumn = it.value().column;
	return true;
}


MultiLevelHeaderView::MultiLevelHeaderView(Qt::Orientation orientation, int rows, int columns, QWidget* parent) :
	QHeaderView(orientation, parent)
{
	// create header model
	MultiLevelHeaderModel* m = new MultiLevelHeaderModel(orientation, rows, columns);

	// set default size of item
	if (orientation == Qt::Horizontal)
	{
		for (int row = 0; row < rows; ++row)
			m->setRowHeight(row, 20);
		for (int col = 0; col < columns; ++col)
			m->setColumnWidth(col, defaultSectionSize());
	}
	else
	{
		for (int row = 0; row < rows; ++row)
			m->setRowHeight(row, defaultSectionSize());
		for (int col = 0; col < columns; ++col)
			m->setColumnWidth(col, defaultSectionSize());
	}

	setModel(m);

	connect(this, SIGNAL(sectionResized(int, int, int)), this, SLOT(onSectionResized(int, int, int)));
}

MultiLevelHeaderView::~MultiLevelHeaderView()
{
	MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(model());
	if (m)
		delete m;
	setModel(nullptr);
}

void MultiLevelHeaderView::setRowHeight(int row, int rowHeight)
{
	MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(model());

	m->setRowHeight(row, rowHeight);
	if (orientation() == Qt::Vertical)
		resizeSection(row, rowHeight);
}

void MultiLevelHeaderView::setColumnWidth(int col, int colWidth)
{
	MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(model());
	m->setColumnWidth(col, colWidth);
	if (orientation() == Qt::Horizontal)
		resizeSection(col, colWidth);
}

void MultiLevelHeaderView::setCellData(int row, int column, int role, const QVariant & value)
{
	MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(model());
	m->setData(m->index(row, column), value, role);
}

void MultiLevelHeaderView::setCellSpan(int row, int column, int rowSpanCount, int columnSpanCount)
{
	assert(rowSpanCount > 0);
	assert(columnSpanCount > 0);
	MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(model());
	QModelIndex idx = m->index(row, column);
	m->setData(idx, rowSpanCount, ROW_SPAN_ROLE);
	m->setData(idx, columnSpanCount, COLUMN_SPAN_ROLE);
	int lastRow = row + rowSpanCount;
	int lastCol = column + columnSpanCount;
	for (int i = row; i < lastRow; ++i)
	{
		for (int j = column; j < lastCol; ++j)
		{
			m->setRootCell(i, j, row, column);
		}
	}
}

void MultiLevelHeaderView::setCellBackgroundColor(int row, int column, const QColor& color)
{
	MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(model());
	m->setData(m->index(row, column), color, Qt::BackgroundRole);
}

void MultiLevelHeaderView::setCellForegroundColor(int row, int column, const QColor& color)
{
	MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(model());
	m->setData(m->index(row, column), color, Qt::ForegroundRole);
}

void MultiLevelHeaderView::setCellText(int row, int column, const QString & text)
{
	MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(model());
	m->setData(m->index(row, column), text, Qt::DisplayRole);
}


void MultiLevelHeaderView::mousePressEvent(QMouseEvent* event)
{
	QHeaderView::mousePressEvent(event);
	QPoint pos = event->pos();
	QModelIndex index = indexAt(pos);
	const int orient = orientation();
	if (index.isValid())
	{
		int beginSection = -1;
		int endSection = -1;
		int numbers = 0;
		numbers = getSectionRange(index, &beginSection, &endSection);
		if (numbers > 0)
		{
			emit sectionPressed(beginSection, endSection);
			return;
		}
		else
		{
			const MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(this->model());
			const int levelCount = (orient == Qt::Horizontal) ? m->rowCount() : m->columnCount();
			int logicalIdx = (orient == Qt::Horizontal) ? index.column() : index.row();
			int curLevel = (orient == Qt::Horizontal) ? index.row() : index.column();
			for (int i = 0; i < levelCount; ++i)
			{
				QModelIndex cellIndex = (orient == Qt::Horizontal) ? m->index(i, logicalIdx) : m->index(logicalIdx, i);
				numbers = getSectionRange(cellIndex, &beginSection, &endSection);
				if (numbers > 0)
				{
					if (beginSection <= logicalIdx && logicalIdx <= endSection)
					{
						int beginLevel = (orient == Qt::Horizontal) ? cellIndex.row() : cellIndex.column();
						QVariant levelSpanCnt = cellIndex.data((orient == Qt::Horizontal) ? ROW_SPAN_ROLE : COLUMN_SPAN_ROLE);
						if (!levelSpanCnt.isValid())
							continue;
						int endLevel = beginLevel + levelSpanCnt.toInt() - 1;
						if (beginLevel <= curLevel && curLevel <= endLevel)
						{
							emit sectionPressed(beginSection, endSection);
							break;
						}
					}
				}
			}
		}
	}
}

QModelIndex MultiLevelHeaderView::indexAt(const QPoint& pos)
{
	const MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(this->model());
	const int orient = orientation();
	const int ROWS = m->rowCount();
	const int COLS = m->columnCount();
	int logicalIdx = logicalIndexAt(pos);

	if (orient == Qt::Horizontal)
	{
		int dY = 0;
		for (int row = 0; row < ROWS; ++row)
		{
			dY += m->getRowHeight(row);
			if (pos.y() <= dY)
			{
				QModelIndex cellIndex = m->index(row, logicalIdx);
				return cellIndex;
			}
		}
	}
	else
	{
		int dX = 0;
		for (int col = 0; col < COLS; ++col)
		{
			dX += m->getColumnWidth(col);
			if (pos.x() <= dX)
			{
				QModelIndex cellIndex = m->index(logicalIdx, col);
				return cellIndex;
			}
		}
	}

	return QModelIndex();
}

std::set<Cell> getCellsToBeDrawn(const MultiLevelHeaderView* view, const MultiLevelHeaderModel* m, int orient, int levelCount, int logicalIdx)
{
	std::set<Cell> cellsToBeDrawn;
	for (int i = 0; i < levelCount; ++i)
	{
		int row = i, column = logicalIdx;
		if (orient == Qt::Vertical)
			std::swap(row, column);
		int rootRow, rootCol;
		if (m->getRootCell(row, column, rootRow, rootCol))
			cellsToBeDrawn.insert({ rootRow, rootCol });
	}
	return cellsToBeDrawn;
}

void MultiLevelHeaderView::paintSection(QPainter* painter, const QRect& rect, int logicalIdx) const
{
	const MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(this->model());
	const int orient = orientation();
	const int levelCount = (orient == Qt::Horizontal) ? m->rowCount() : m->columnCount();
	std::set<Cell> cellsToBeDrawn = getCellsToBeDrawn(this, m, orient, levelCount, logicalIdx);

	for (const auto& cell: cellsToBeDrawn)
	{
		QRect sectionRect = getCellRect(cell.row, cell.column);

		// draw section with style
		QStyleOptionHeader sectionStyle;
		initStyleOption(&sectionStyle);
		sectionStyle.textAlignment = Qt::AlignCenter;
		sectionStyle.iconAlignment = Qt::AlignVCenter;
		//sectionStyle.section = logicalIdx;
		QModelIndex cellIndex = m->index(cell.row, cell.column);
		sectionStyle.text = cellIndex.data(Qt::DisplayRole).toString();
		sectionStyle.rect = sectionRect;

		// file background or foreground color of the cell
		QVariant bg = cellIndex.data(Qt::BackgroundRole);
		QVariant fg = cellIndex.data(Qt::ForegroundRole);

		if (bg.canConvert(QVariant::Brush))
		{
			sectionStyle.palette.setBrush(QPalette::Button, qvariant_cast<QBrush>(bg));
			sectionStyle.palette.setBrush(QPalette::Window, qvariant_cast<QBrush>(bg));
		}
		if (fg.canConvert(QVariant::Brush))
		{
			sectionStyle.palette.setBrush(QPalette::ButtonText, qvariant_cast<QBrush>(fg));
		}

		painter->save();
		qDrawShadePanel(painter, sectionStyle.rect, sectionStyle.palette, false, 1, &sectionStyle.palette.brush(QPalette::Button));
		style()->drawControl(QStyle::CE_HeaderLabel, &sectionStyle, painter);
		painter->restore();
	}
}

QSize MultiLevelHeaderView::sectionSizeFromContents(int logicalIdx) const
{
	const MultiLevelHeaderModel* m = static_cast<const MultiLevelHeaderModel*>(this->model());
	const int orient = orientation();
	const int levelCount = (orient == Qt::Horizontal) ? m->rowCount() : m->columnCount();

	int w = 0, h = 0;
	if (orient == Qt::Horizontal)
	{
		w = m->getColumnWidth(logicalIdx);
		for (int i = 0; i < levelCount; ++i)
		{
			h += m->getRowHeight(i);
		}
	}
	else
	{
		for (int i = 0; i < levelCount; ++i)
		{
			w += m->getColumnWidth(i);
		}
		h = m->getRowHeight(logicalIdx);
	}
	return QSize(w, h);
}

QModelIndex MultiLevelHeaderView::columnSpanIndex(const QModelIndex& currentIdx) const
{
	const MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(model());
	const int curRow = currentIdx.row();
	const int curCol = currentIdx.column();
	int i = curCol;
	while (i >= 0)
	{
		QModelIndex spanIndex = m->index(curRow, i);
		QVariant span = spanIndex.data(COLUMN_SPAN_ROLE);
		if (span.isValid() && spanIndex.column() + span.toInt() - 1 >= curCol)
			return spanIndex;
		i--;
	}
	return QModelIndex();
}

QModelIndex MultiLevelHeaderView::rowSpanIndex(const QModelIndex& currentIdx) const
{
	const MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(model());
	const int curRow = currentIdx.row();
	const int curCol = currentIdx.column();
	int i = curRow;
	while (i >= 0)
	{
		QModelIndex spanIndex = m->index(i, curCol);
		QVariant span = spanIndex.data(ROW_SPAN_ROLE);
		if (span.isValid() && spanIndex.row() + span.toInt() - 1 >= curRow)
			return spanIndex;
		i--;
	}
	return QModelIndex();
}

int MultiLevelHeaderView::columnSpanSize(int row, int from, int spanCount) const
{
	const MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(model());
	int span = 0;
	for (int i = from; i < from + spanCount; ++i)
	{
		int colWidth = m->getColumnWidth(i);
		span += colWidth;
	}
	return span;
}


int MultiLevelHeaderView::rowSpanSize(int column, int from, int spanCount) const
{
	const MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(model());
	int span = 0;
	for (int i = from; i < from + spanCount; ++i)
	{
		int rowHeight = m->getRowHeight(i);
		span += rowHeight;
	}
	return span;
}

bool MultiLevelHeaderView::getRootCell(int row, int column, int & rootCellRow, int & rootCellColumn) const
{
	const MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(this->model());
	return m->getRootCell(row, column, rootCellRow, rootCellColumn);
}

QRect MultiLevelHeaderView::getCellRect(int row, int column) const
{
	const MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(this->model());
	const int orient = orientation();
	QModelIndex cellIndex = m->index(row, column);
	auto colSpanVar = cellIndex.data(COLUMN_SPAN_ROLE);
	auto rowSpanVar = cellIndex.data(ROW_SPAN_ROLE);
	assert(colSpanVar.isValid() && rowSpanVar.isValid());
	int colSpan = colSpanVar.toInt();
	int rowSpan = rowSpanVar.toInt();
	int w = 0, h = 0, l = 0, t = 0;
	w = columnSpanSize(row, column, colSpan);
	h = rowSpanSize(column, row, rowSpan);
	if (orient == Qt::Horizontal)
	{
		l = sectionViewportPosition(column);
		for (int i = 0; i < row; ++i)
			t += m->getRowHeight(i);
	}
	else
	{
		for (int i = 0; i < column; ++i)
			l += m->getColumnWidth(i);
		t = sectionViewportPosition(row);
	}

	QRect rect(l, t, w, h);
	return rect;
}

/**
 * @return section numbers
 */
int MultiLevelHeaderView::getSectionRange(QModelIndex& index, int* beginSection, int* endSection) const
{
	int row = index.row(), column = index.column();
	int rootRow, rootCol;
	bool success = getRootCell(row, column, rootRow, rootCol);
	if (!success)
		return 0;
	const MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(model());
	QModelIndex rootIndex = m->index(rootRow, rootCol);
	if (orientation() == Qt::Horizontal)
	{
		int colSpanCnt = rootIndex.data(COLUMN_SPAN_ROLE).toInt();
		*beginSection = rootIndex.column();;
		*endSection = *beginSection + colSpanCnt - 1;
		index = rootIndex;
		return colSpanCnt;
	}
	else
	{
		int rowSpanCnt = rootIndex.data(ROW_SPAN_ROLE).toInt();
		*beginSection = rootIndex.row();;
		*endSection = *beginSection + rowSpanCnt - 1;
		index = rootIndex;
		return rowSpanCnt;
	}
}

void MultiLevelHeaderView::onSectionResized(int logicalIndex, int oldSize, int newSize)
{
	MultiLevelHeaderModel* m = static_cast<MultiLevelHeaderModel*>(this->model());
	const int orient = orientation();
	const int levelCount = (orient == Qt::Horizontal) ? m->rowCount() : m->columnCount();
	if (orient == Qt::Horizontal)
	{
		m->setColumnWidth(logicalIndex, newSize);
	}
	else
	{
		m->setRowHeight(logicalIndex, newSize);
	}

	std::set<Cell> cellsToBeDrawn = getCellsToBeDrawn(this, m, orient, levelCount, logicalIndex);
	for (const auto& cell : cellsToBeDrawn)
	{
		QRect sectionRect = getCellRect(cell.row, cell.column);
		if (orient == Qt::Horizontal)
		{
			sectionRect.setWidth(viewport()->width() - sectionRect.left());
		}
		else
		{
			sectionRect.setHeight(viewport()->height() - sectionRect.top());
		}
		viewport()->update(sectionRect);
	}
}

main.cpp

#include <QApplication>
#include <QStandardItemModel>
#include <QTableView>
#include "MultiLevelHeaderView.h"

int main(int argc, char *argv[])
{
	QApplication a(argc, argv);
	QTableView tableView;
	auto pView = &tableView;
	pView->setContextMenuPolicy(Qt::CustomContextMenu);
	bool horizontal = false;
	if (horizontal)
	{
		auto pHeader = new MultiLevelHeaderView(Qt::Horizontal, 3, 8, pView);
		pHeader->setCellSpan(0, 0, 1, 4);
		pHeader->setCellSpan(0, 4, 1, 4);
		pHeader->setCellSpan(1, 0, 1, 2);
		pHeader->setCellSpan(1, 2, 1, 2);
		pHeader->setCellSpan(1, 4, 1, 2);
		pHeader->setCellSpan(1, 6, 1, 2);
		for (int i = 0; i < 8; i++)
		{
			pHeader->setCellSpan(2, i, 1, 1);
		}

		//一级
		pHeader->setCellText(0, 0, QString(u8"横向尺寸"));
		pHeader->setCellText(0, 4, QString(u8"纵向尺寸"));
		//二级
		pHeader->setCellText(1, 0, QStringLiteral("极耳宽度"));
		pHeader->setCellText(1, 2, QStringLiteral("极耳高度"));
		pHeader->setCellText(1, 4, QStringLiteral("极片宽度"));
		pHeader->setCellText(1, 6, QStringLiteral("极耳间距"));
		//三级
		pHeader->setCellText(2, 0, QStringLiteral("CCD测量值"));
		pHeader->setCellText(2, 1, QStringLiteral("真值"));
		pHeader->setCellText(2, 2, QStringLiteral("CCD测量值"));
		pHeader->setCellText(2, 3, QStringLiteral("真值"));
		pHeader->setCellText(2, 4, QStringLiteral("CCD测量值"));
		pHeader->setCellText(2, 5, QStringLiteral("真值"));
		pHeader->setCellText(2, 6, QStringLiteral("CCD测量值"));
		pHeader->setCellText(2, 7, QStringLiteral("真值"));


		pHeader->setMinimumHeight(90);
		for (int i = 0; i < 3; ++i)
			pHeader->setRowHeight(i, 30);
		//m_pHeader->setMinimumHeight(60);
		pHeader->setSectionsClickable(false);
		pHeader->setCellBackgroundColor(0, 0, 0xffcfcf);
		pHeader->setCellBackgroundColor(0, 4, 0xcfcfcf);
		pHeader->setCellBackgroundColor(1, 0, 0xcfcfcf);
		pHeader->setCellBackgroundColor(1, 2, 0xcfcfcf);
		pHeader->setCellBackgroundColor(1, 4, 0xcfcfcf);
		pHeader->setCellBackgroundColor(1, 6, 0xcfcfcf);
		for (int i = 0; i < 8; i++)
		{
			pHeader->setCellBackgroundColor(2, i, 0xcfcfcf);
		}

		int rowCount = 10;
		auto m_pDataModel = new QStandardItemModel;
		for (int i = 0; i < rowCount; i++)
		{
			QList<QStandardItem*> items;
			for (int j = 0; j < 8; j++)
			{
				items.append(new QStandardItem);
			}

			m_pDataModel->appendRow(items);
		}

		pView->setModel(m_pDataModel);
		pView->setHorizontalHeader(pHeader);
	}
	else
	{
		auto pHeader = new MultiLevelHeaderView(Qt::Vertical, 8, 3, pView);
		pHeader->setCellSpan(0, 0, 4, 1);
		pHeader->setCellSpan(4, 0, 4, 1);
		pHeader->setCellSpan(0, 1, 2, 1);
		pHeader->setCellSpan(2, 1, 2, 1);
		pHeader->setCellSpan(4, 1, 2, 1);
		pHeader->setCellSpan(6, 1, 2, 1);
		for (int i = 0; i < 8; i++)
		{
			pHeader->setCellSpan(i, 2, 1, 1);
		}

		//一级
		pHeader->setCellText(0, 0, QString(u8"横\n向\n尺\n寸"));
		pHeader->setCellText(4, 0, QString(u8"纵\n向\n尺\n寸"));
		//二级
		pHeader->setCellText(0, 1, QStringLiteral("极耳宽度"));
		pHeader->setCellText(2, 1, QStringLiteral("极耳高度"));
		pHeader->setCellText(4, 1, QStringLiteral("极片宽度"));
		pHeader->setCellText(6, 1, QStringLiteral("极耳间距"));
		//三级
		pHeader->setCellText(0, 2, QStringLiteral("CCD测量值"));
		pHeader->setCellText(1, 2, QStringLiteral("真值"));
		pHeader->setCellText(2, 2, QStringLiteral("CCD测量值"));
		pHeader->setCellText(3, 2, QStringLiteral("真值"));
		pHeader->setCellText(4, 2, QStringLiteral("CCD测量值"));
		pHeader->setCellText(5, 2, QStringLiteral("真值"));
		pHeader->setCellText(6, 2, QStringLiteral("CCD测量值"));
		pHeader->setCellText(7, 2, QStringLiteral("真值"));


		pHeader->setMinimumHeight(90);
		pHeader->setMinimumWidth(30);
		for (int i = 0; i < 3; ++i)
			pHeader->setColumnWidth(i, 30);
		for (int i = 0; i < 8; ++i)
			pHeader->setRowHeight(i, 30);
		//m_pHeader->setMinimumHeight(60);
		pHeader->setSectionsClickable(false);

		int rowCount = 8;
		auto m_pDataModel = new QStandardItemModel;
		for (int i = 0; i < rowCount; i++)
		{
			QList<QStandardItem*> items;
			for (int j = 0; j < 6; j++)
			{
				items.append(new QStandardItem);
			}

			m_pDataModel->appendRow(items);
		}

		pView->setModel(m_pDataModel);
		pView->setVerticalHeader(pHeader);
	}
	pView->show();
	return a.exec();
}

评论 9
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
