Android使用OpenCV合成双目裸眼3D图片（推荐Native方法）

本文链接：https://blog.youkuaiyun.com/danjuan123/article/details/78437539

Native中使用OpenCV

使用Native的好处：

不需要安装OpenCV Manager
不需要去熟悉java层的OpenCV方法
使用C/C++移植方便

使用CMake

配置CMakeLists.txt

cmake_minimum_required(VERSION 3.6)

############################################
# 先设置本地opencv-sdk路径，配置库路径和include的路径
############################################
#OpenCV
set(CMAKE_VERBOSE_MAKEFILE on)

#Path
set(OpenCVNative_DIR E:/MyDocuments/Android/AndroidWorkSpace/OpenCV-android-sdk/sdk/native)

#libs
set(libs ${OpenCVNative_DIR}/libs)

#include
include_directories(${OpenCVNative_DIR}/jni/include)

#添加导入opencv .so库
add_library(libopencv_java3
            SHARED
            IMPORTED)

set_target_properties(libopencv_java3 PROPERTIES
    IMPORTED_LOCATION "${libs}/${ANDROID_ABI}/libopencv_java3.so")

#设置c特性
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -std=gnu++11 -fexceptions -frtti")

# 添加nativelib
add_library( native-lib
             SHARED
             src/main/cpp/native-lib.cpp)

#查找额外的库
find_library( log-lib
              log )

#链接native中要用的库
target_link_libraries( native-lib android log
                       libopencv_java3
                       ${log-lib} )

配置app build.gradle

下面是完整的build.gradle,
注意3点，

externalNativeBuild中配置cmake的编译属性，比如用到的cppflag，编译处理器平台
sourceSets中添加opencv的native库的路径
CMakeLists.txt的路径

android {
    compileSdkVersion 26
    buildToolsVersion "26.0.2"
    defaultConfig {
        applicationId "com.righere.test"
        minSdkVersion 21
        targetSdkVersion 26
        versionCode 1
        versionName "1.0"
        testInstrumentationRunner "android.support.test.runner.AndroidJUnitRunner"
        externalNativeBuild {
            cmake {
                cppFlags "-frtti -fexceptions -std=c++11"
                abiFilters "armeabi", "armeabi-v7a", "arm64-v8a", "x86", "x86_64"
            }
        }
    }
    sourceSets{
        main{
            jniLibs.srcDirs = ['E:\\MyDocuments\\Android\\AndroidWorkSpace\\OpenCV-android-sdk\\sdk\\native\\libs']
        }
    }
    externalNativeBuild {
        cmake {
            path "CMakeLists.txt"
        }
    }

    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
        }
    }
}

OpenCV的例子

下面通过一个例子简单了解Opencv4Android Native的使用，Demo的功能是将左右格式的双目图片转换成一张裸眼3D的图片，在android裸眼显示设备上显示出来。

native-lib

实现将手机中的双目图像分割，然后合成为一张裸眼图片RGB像素，RGB数据再转换为Bitemap的color数据，最后传给java上层的Bitmap显示出来。

分割图像

    IplImage* srcImg = cvLoadImage("/sdcard/convexd.jpg", CV_LOAD_IMAGE_COLOR);
    int width = w;
    int height = h;
    int IMAGE_SIZE = srcImg->height * srcImg->widthStep;
    IplImage* dstImg[2];
    IplImage* viewImg[2];

    dstImg[0] = cvCreateImage(cvSize(srcImg->width/2, srcImg->height), srcImg->depth, srcImg->nChannels);
    dstImg[1] = cvCreateImage(cvSize(srcImg->width/2, srcImg->height), srcImg->depth, srcImg->nChannels);
    viewImg[0] = cvCreateImage(cvSize(width, height), srcImg->depth, srcImg->nChannels);
    viewImg[1] = cvCreateImage(cvSize(width, height), srcImg->depth, srcImg->nChannels);

    for(int i = 0; i < srcImg->height; i++)
    {
        memcpy(dstImg[0]->imageData + (i * dstImg[0]->widthStep), srcImg->imageData + i * srcImg->widthStep,
               dstImg[0]->widthStep);
    }
    for(int i = 0; i < srcImg->height; i++)
    {
        memcpy(dstImg[1]->imageData + (i * dstImg[1]->widthStep), srcImg->imageData + (int)(srcImg->widthStep) * 1 / 2  + i * srcImg->widthStep,
               dstImg[1]->widthStep);
    }

上面使用的是拷贝内存的方式分割图像，也可以使用opencv内置的cvSetImageROI函数来切割图像

cvSetImageROI(srcImg, cvRect(0, 0, srcImg->width*0.5, srcImg->height));
cvCopy(srcImg, dstImg[0]);
cvSetImageROI(srcImg, cvRect(srcImg->width*0.5, 0, srcImg->width*0.5, srcImg->height));
cvCopy(srcImg, dstImg[1]);
cvResetImageROI(srcImg);

缩放图像

    cvResize(dstImg[0], viewImg[0], CV_INTER_LINEAR);
    cvResize(dstImg[1], viewImg[1], CV_INTER_LINEAR);

合成图像，并将rgb子像素数据转换成Color数据

可以先看看我的前面的一篇，
http://blog.youkuaiyun.com/danjuan123/article/details/78437110

Bitmap是使用sRGB数组来填充的，所以先要将RGB子像素数组转换成

    int size = width * height;
    int* outImgrgb = new int[size];
    for(int i = 0; i <  height * width / 2; i ++)
    {
        outImgrgb[2*i] = 0xff;
        outImgrgb[2*i] = (outImgrgb[2*i] << 8) + viewImg[0]->imageData[2*i * 3 + 2];
        outImgrgb[2*i] = (outImgrgb[2*i] << 8) + viewImg[0]->imageData[2*i * 3 + 1];
        outImgrgb[2*i] = (outImgrgb[2*i] << 8) + viewImg[0]->imageData[2*i * 3];

        outImgrgb[2*i + 1] = 0xff;
        outImgrgb[2*i + 1] = (outImgrgb[2*i + 1] << 8) + viewImg[1]->imageData[(2*i + 1) * 3 + 2];
        outImgrgb[2*i + 1] = (outImgrgb[2*i + 1] << 8) + viewImg[1]->imageData[(2*i + 1) * 3 + 1];
        outImgrgb[2*i + 1] = (outImgrgb[2*i + 1] << 8) + viewImg[1]->imageData[(2*i + 1) * 3];
    }

返回color数据

    jintArray result = env->NewIntArray(size);
    env->SetIntArrayRegion(result, 0, size, outImgrgb);

java中配置

// Used to load the 'native-lib' library on application startup.
    static {
        System.loadLibrary("native-lib");
        System.loadLibrary("opencv_java3");
    }

/**
     * A native method that is implemented by the 'native-lib' native library,
     * which is packaged with this application.
     */
    public native int[] splitter(int w, int h);

    private void splitPic(){
        if(splitStatus){
            int[] resultInt = splitter(w, h);
            Bitmap resultImg = Bitmap.createBitmap(resultInt, w, h, Bitmap.Config.ARGB_8888);
            imageView.setImageBitmap(resultImg);
            mButton_split.setText("Unsplit");
            splitStatus = false;
            Toast.makeText(this,"OpenCV_native_split_picture_success",Toast.LENGTH_SHORT).show();
        }
        else{
            imageView.setImageResource(R.drawable.convexd);
            mButton_split.setText("Split");
            splitStatus = true;
            Toast.makeText(this,"Original",Toast.LENGTH_SHORT).show();
        }
    }

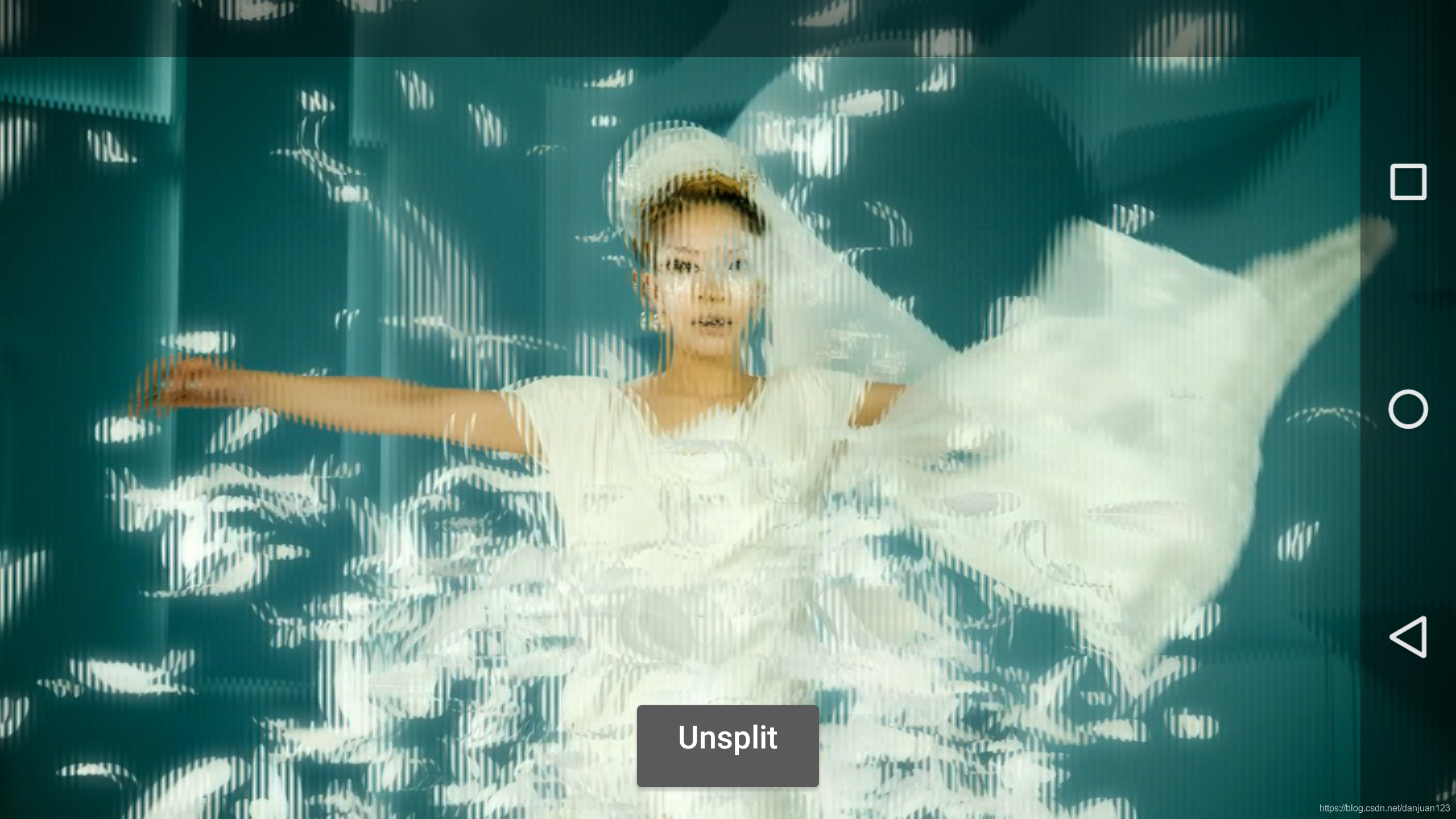

最后效果：

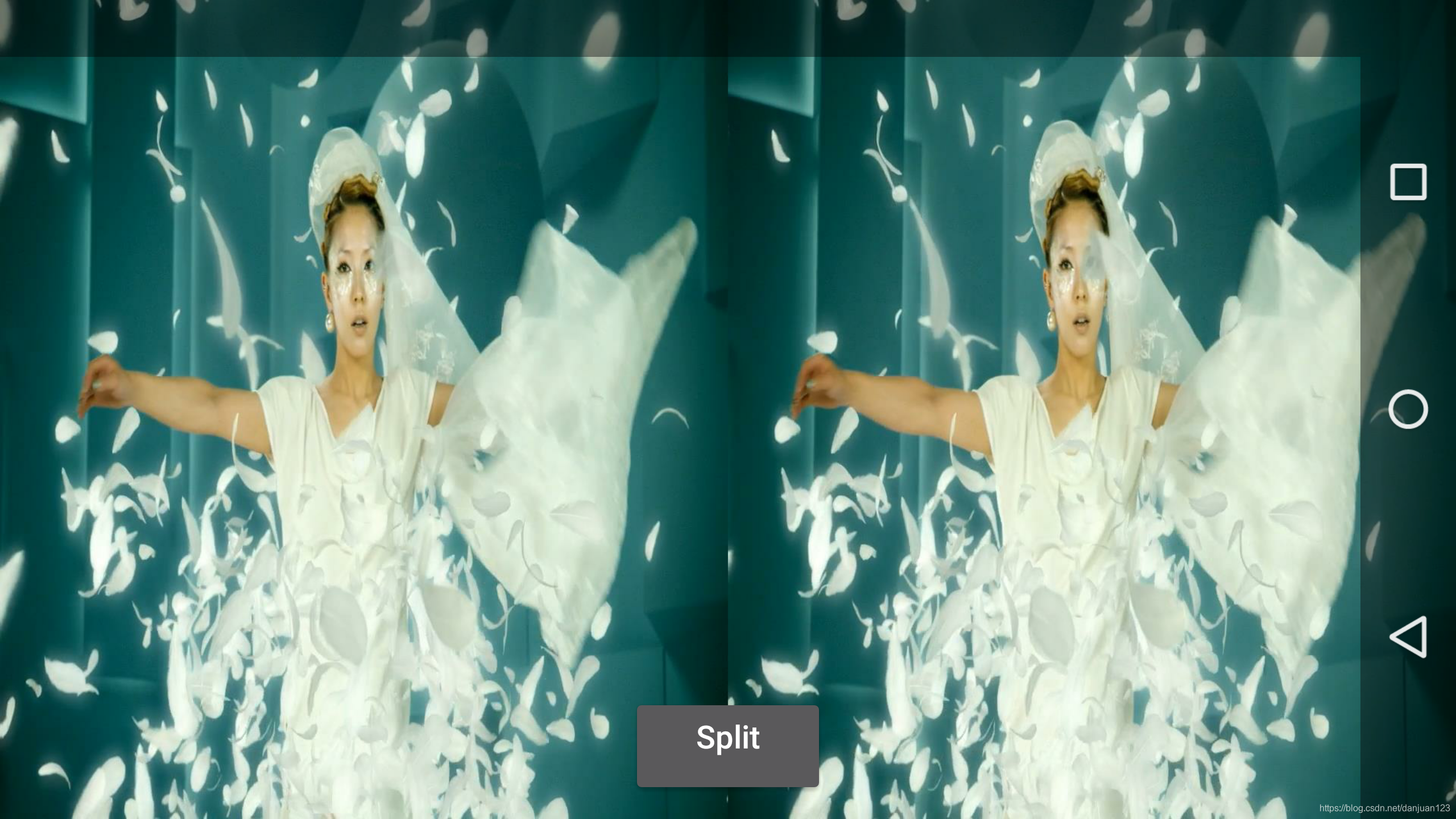

双目图片
