根据坐标点绘制热力图（heatmap）

---

一、heatmappy

安装：pip install heatmappy

二、示例

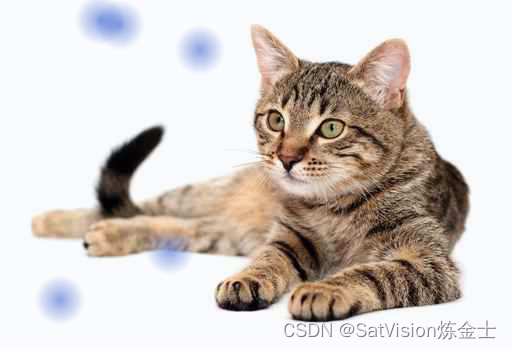

1.RGB图像绘制热力图

代码如下（示例）：

from heatmappy import Heatmapper

from PIL import Image

example_points = [(100, 20), (120, 25), (200, 50), (60, 300), (170, 250)]
example_img_path = 'cat.jpg'
example_img = Image.open(example_img_path)
heatmapper = Heatmapper()
heatmap = heatmapper.heatmap_on_img(example_points, example_img)
heatmap.save('heatmap.png')

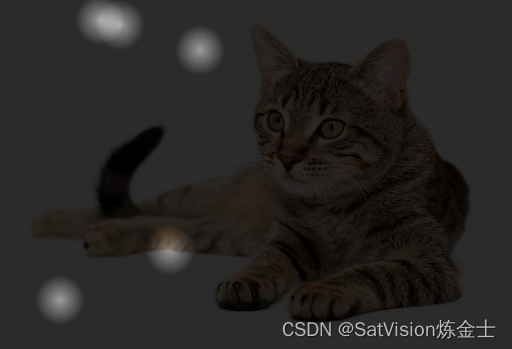

绘制透视热力图

heatmapper = Heatmapper(opacity=0.9, colours='reveal')
heatmap = heatmapper.heatmap_on_img_path(example_points, example_img_path)
heatmap.save('heatmap.png')

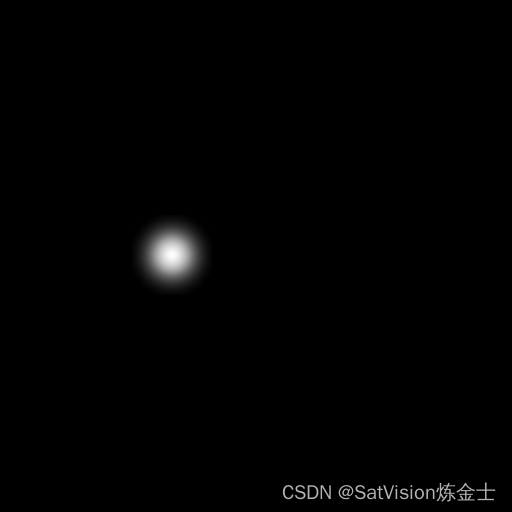

2.单波段图像绘制热力图代码如下（示例）：

from heatmappy import Heatmapper
from heatmappy import PILGreyHeatmapper
from PIL import Image
# 根据图像坐标点绘制热力图
# pip install heatmappy
example_points = [(100, 20),]
heatmapper = PILGreyHeatmapper(point_diameter=120, point_strength=1)
heatmap = heatmapper.heatmap(512,512, example_points)
# heatmap.convert('L')
heatmap.save('heatmap.png')

---

总结

该插件基于PIL开发，还可以支持视频热力图的绘制。
