华为ensp下配置AC全局双链路冷备份实例

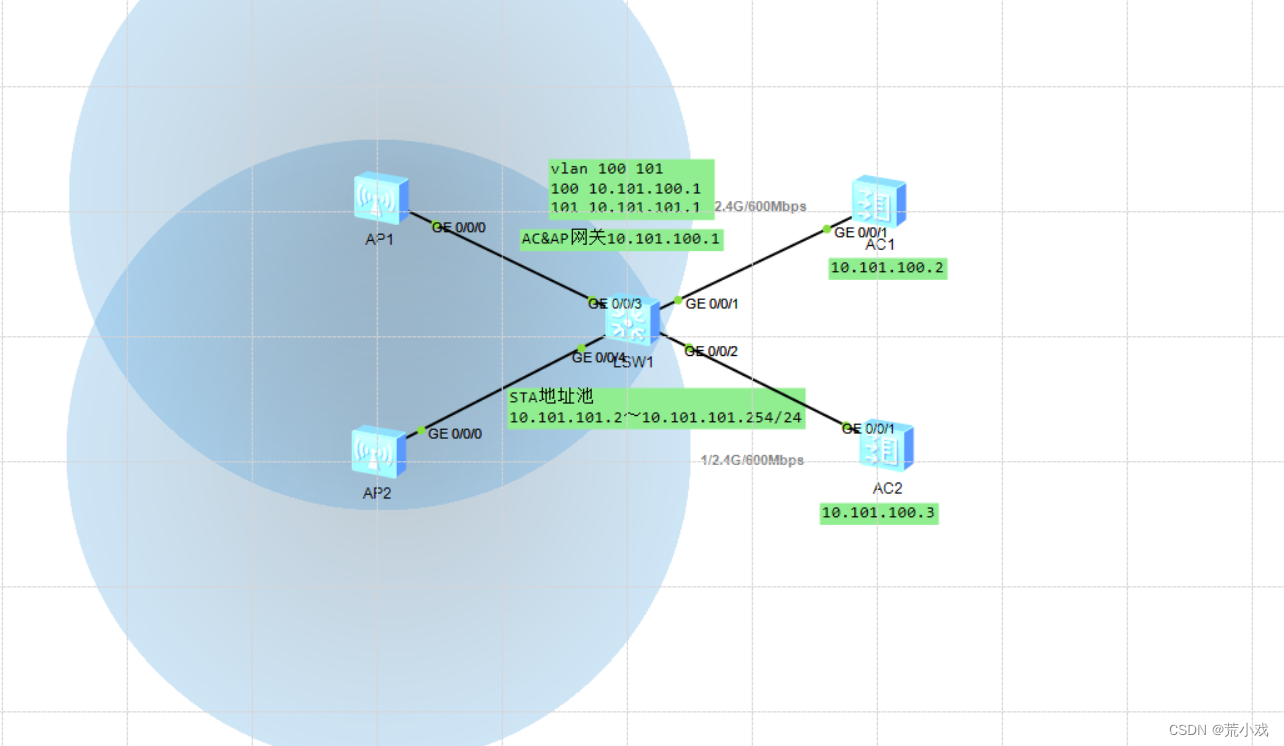

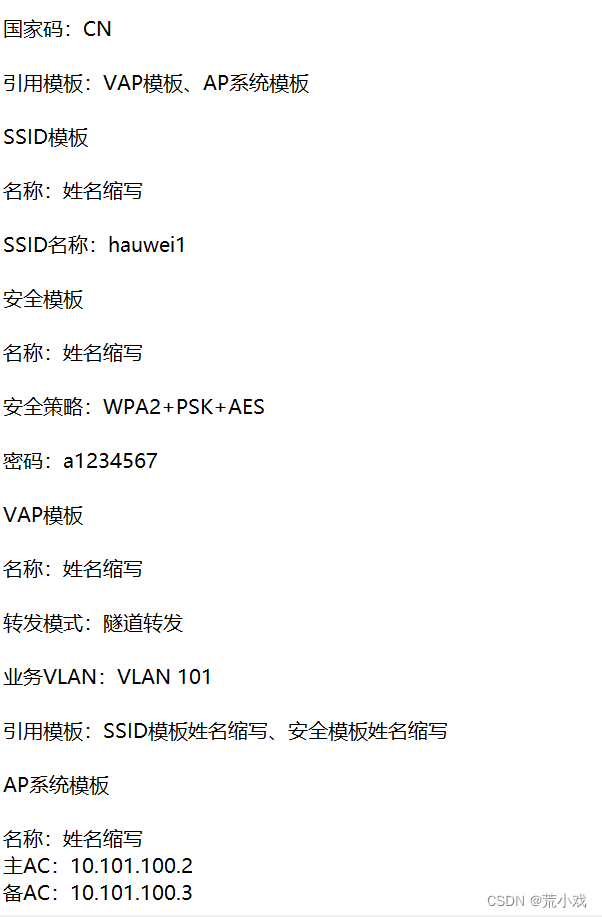

要求

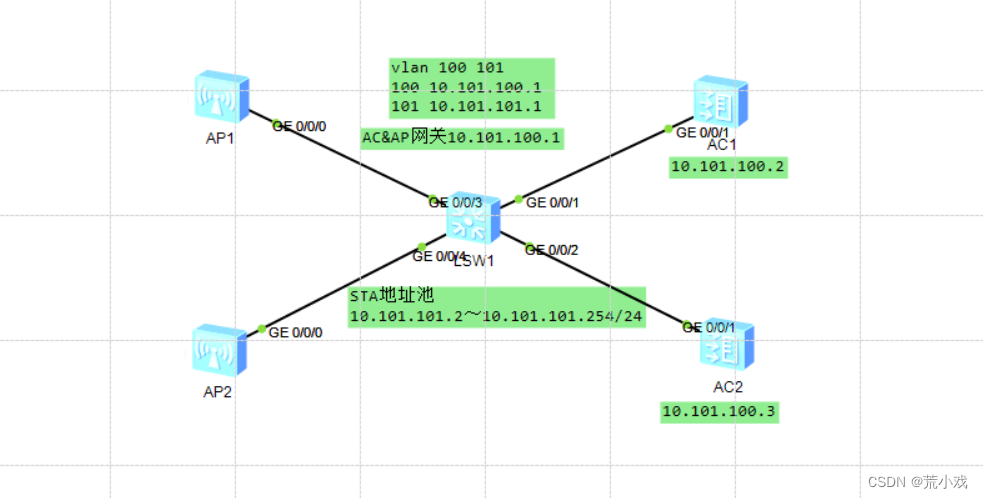

开整

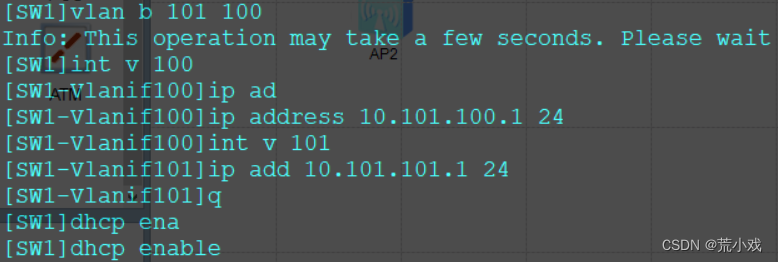

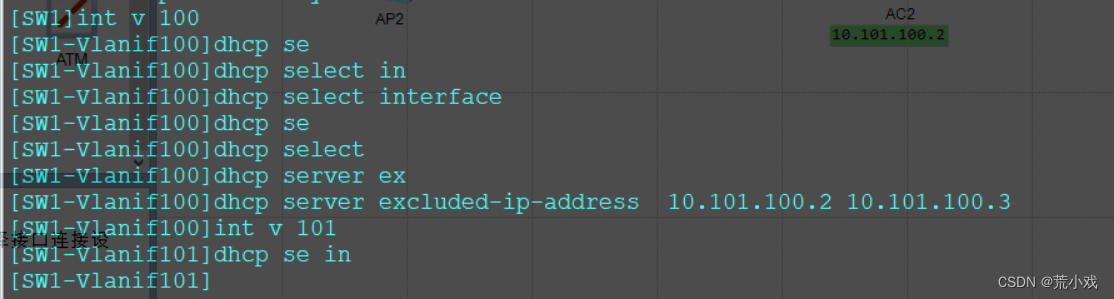

SW1部分

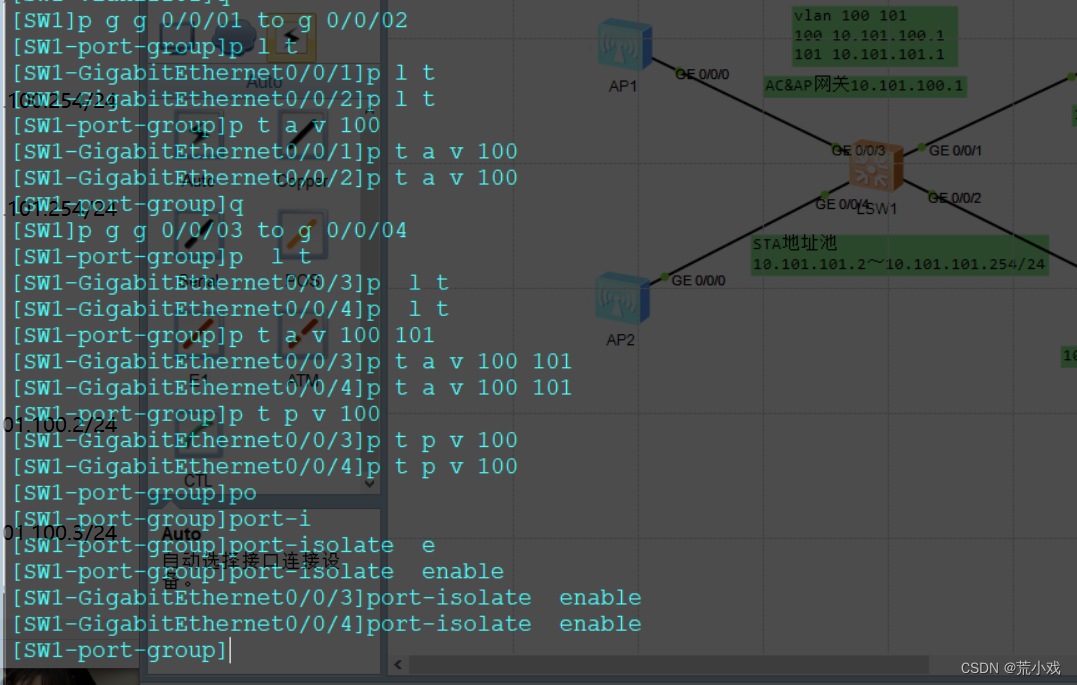

配置一下接口trunk

AC1配置

vlan batch 100

interface Vlanif100
 ip address 10.101.100.2 255.255.255.0

interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 100

q

capwap source interface vlanif100

wlan

 regulatory-domain-profile name czp

q

ssid-profile name czp
  ssid huawei1

q

 security-profile name czp
  security wpa2 psk pass-phrase a1234567 aes

q

 vap-profile name czp
  forward-mode tunnel
  service-vlan vlan-id 101
  ssid-profile czp
  security-profile czp

q

 ap-group name czp

q

以下是核心

 ap-system-profile name czp
  primary-access ip-address 10.101.100.2
  backup-access ip-address 10.101.100.3

q

ap-id 1 ap-mac 00e0-fc08-0e70
  ap-name AP1
  ap-group czp
 vap-profile czp wlan 1 r 0

q
 ap-id 2  ap-mac 00e0-fc67-5a60
  ap-name AP2

ap-group czp

q

 ap-group name czp
  ap-system-profile czp
  regulatory-domain-profile czp

vap-profile czp wlan 1  radio 0

AC2配置

AC2除了IP地址不一样以外,其他一样,不过多赘述

AC2: vlan 100

int vlan 100

ip add 10.101.100.3 24

启动备份

AC1: wlan

ac protect enable

ap-rest all

AC2: wlan

ac protect enable

ap-rest all

例 子(不用写进ensp)

[AC1-wlan-view] ap-system-profile name wlan-net
[AC1-wlan-ap-system-prof-wlan-net] primary-access ip-address 10.23.100.2
[AC1-wlan-ap-system-prof-wlan-net] backup-access ip-address 10.23.100.3
[AC1-wlan-ap-system-prof-wlan-net] quit
[AC1-wlan-view] ap-group name ap-group1
[AC1-wlan-ap-group-ap-group1] ap-system-profile wlan-net
[AC1-wlan-ap-group-ap-group1] quit
[AC1-wlan-view] ac protect enable

补充一下,由于使用的隧道转发STA数据需要经过AC所以AC和交换机之间必须放行业务vlan101

否则STA无法获取地址

SW1: int g 0/0/01    / int g0/00/2

p l t

p t a v 101

AC1/2   :   int g 0/0/01

p l t

p t a v 101

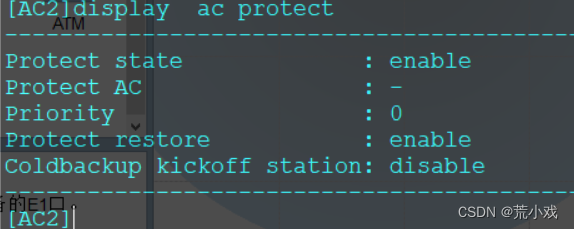

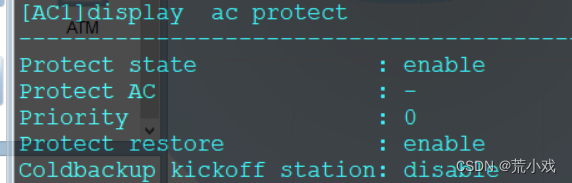

效果

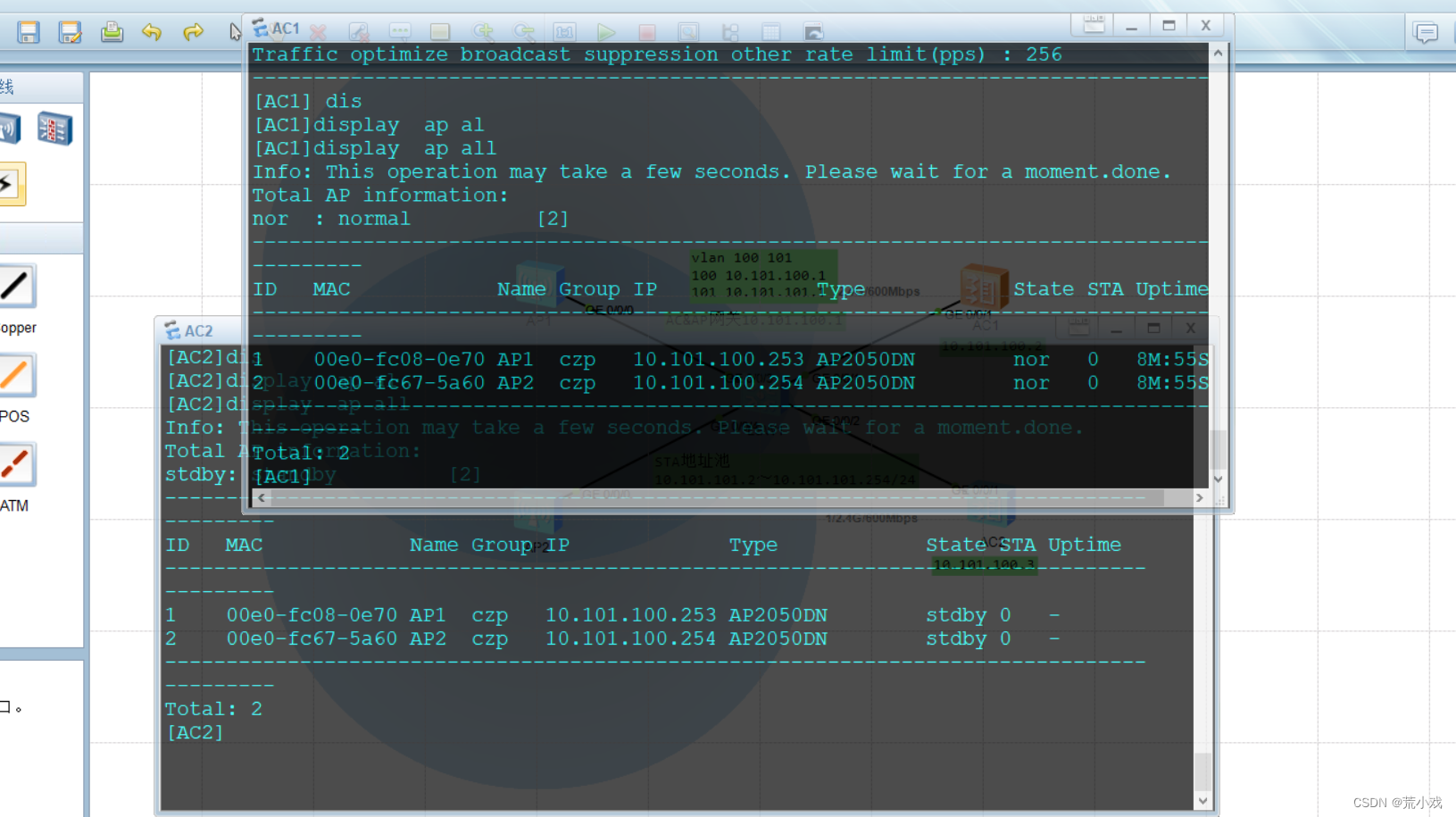

可以看出AC主是AC1

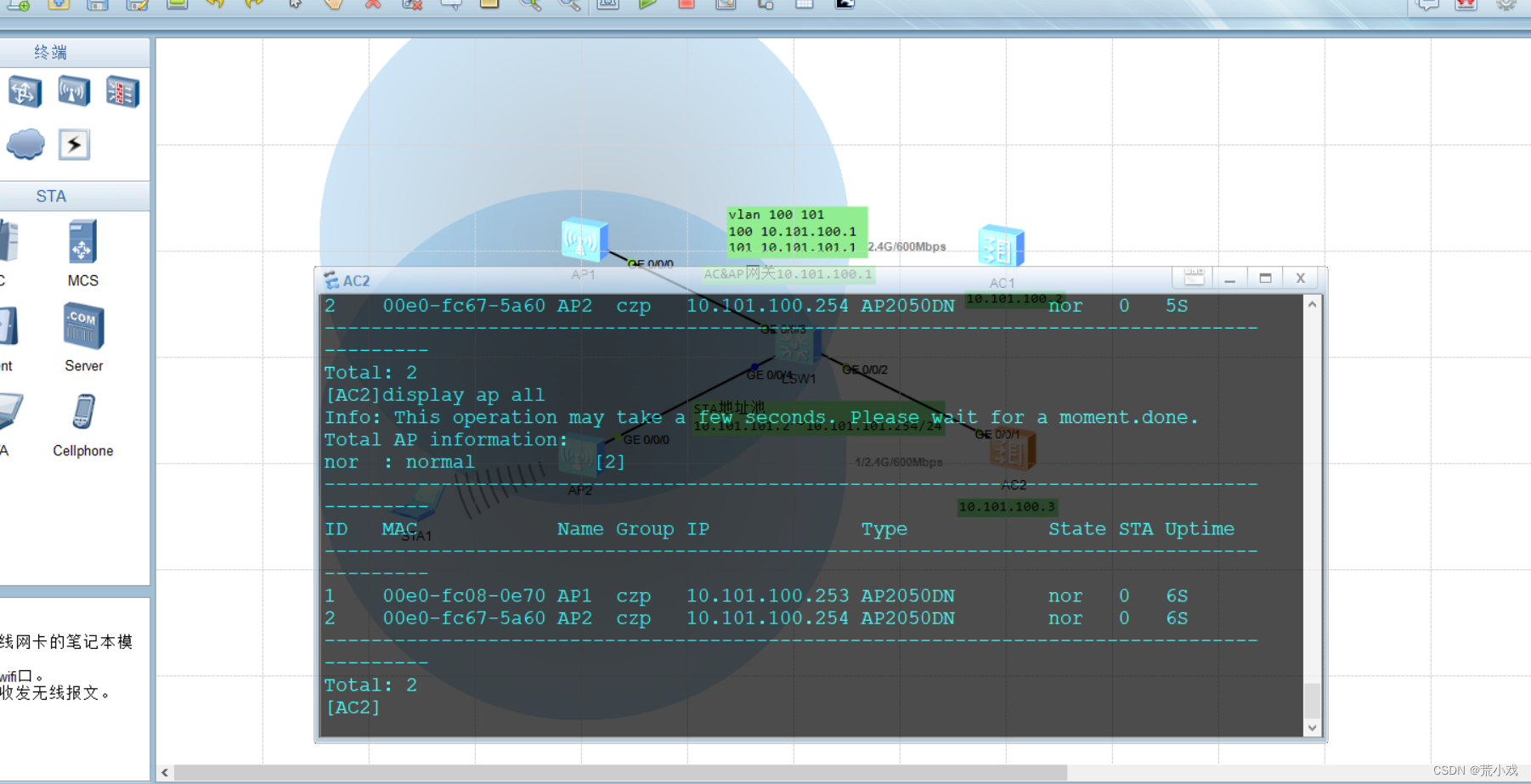

断开ac1试试

稍等一会切换好了
