华为eNSP实验-QinQ基本实验

高精度小数

已于 2024-11-11 13:18:13 修改

阅读量987

点赞数 1

文章标签：华为

于 2023-11-10 23:35:09 首次发布

本文链接：https://blog.youkuaiyun.com/weixin_42536940/article/details/134319827

版权

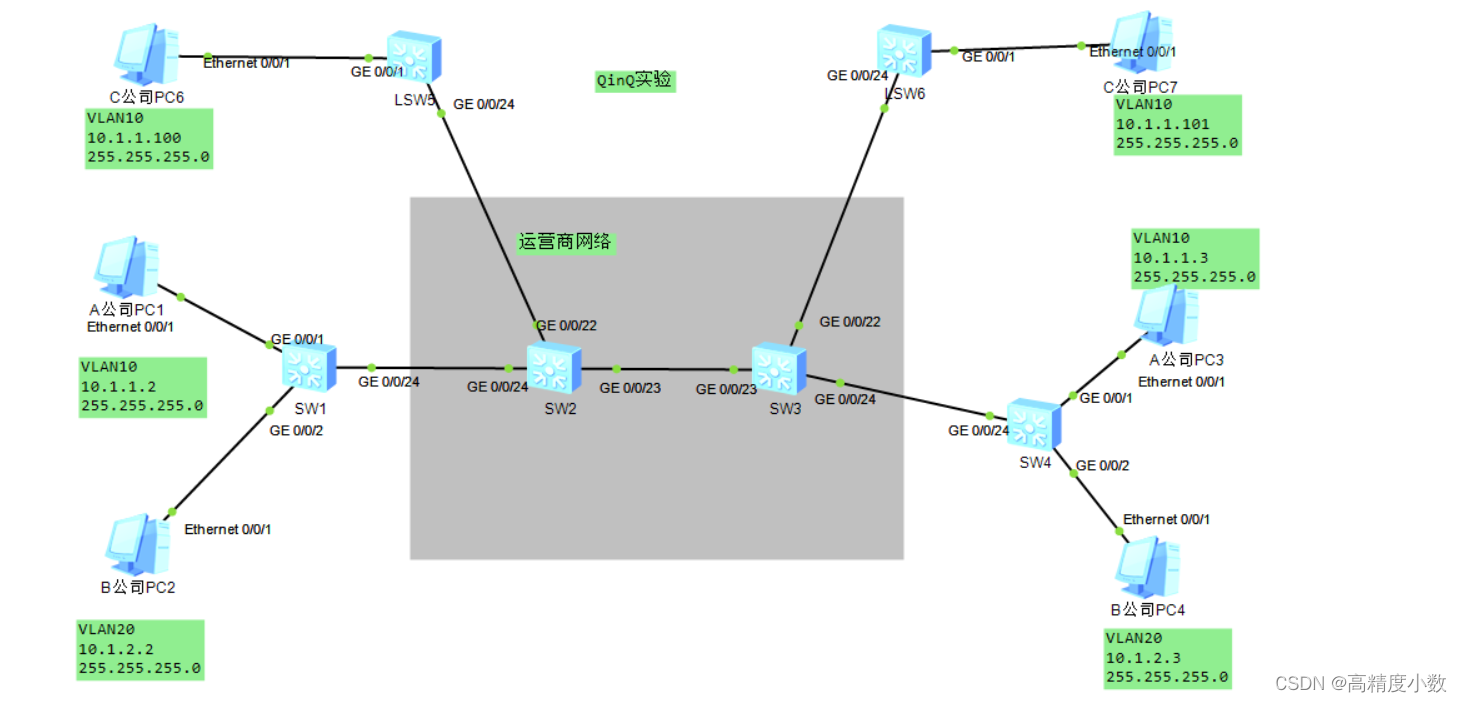

1.拓扑图如下

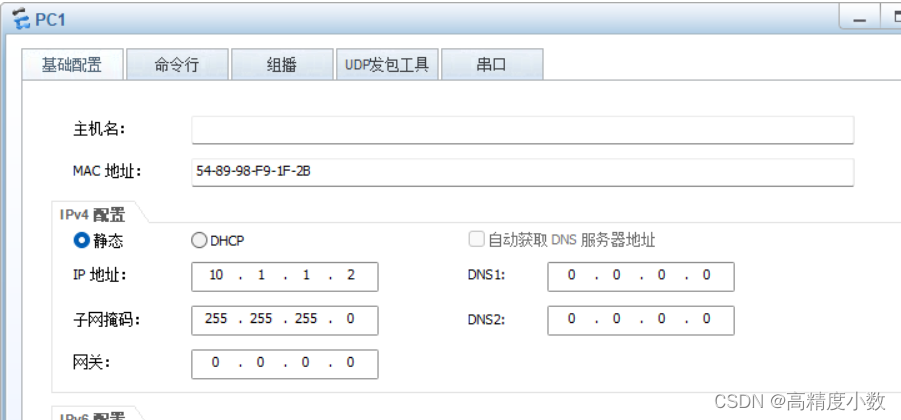

PC1的设置如下：

在未配置VLAN之前，PC1可以ping通PC3、PC6和PC7，PC2可以ping通PC4（因为同一网段）

2.SW1，SW4，SW5，SW6配置VLAN

<Huawei>system-view
[Huawei]undo info-center enable  //关闭提示信息
[Huawei]sysname SW1
[SW1]vlan batch 10 20
[SW1]interface GigabitEthernet 0/0/1
[SW1-GigabitEthernet0/0/1]port link-type access
[SW1-GigabitEthernet0/0/1]port default vlan 10
[SW1-GigabitEthernet0/0/1]int g0/0/2
[SW1-GigabitEthernet0/0/2]port link-type access
[SW1-GigabitEthernet0/0/2]port default vlan 20
[SW1-GigabitEthernet0/0/2]int g0/0/24
[SW1-GigabitEthernet0/0/24]port link-type trunk
[SW1-GigabitEthernet0/0/24]port trunk allow-pass vlan 10 20

<Huawei>system-view
[Huawei]sysname SW4
[SW4]undo info-center enable
[SW4]vlan batch 10 20
[SW4]interface g0/0/1
[SW4-GigabitEthernet0/0/1]port link-type access
[SW4-GigabitEthernet0/0/1]port default vlan 10
[SW4-GigabitEthernet0/0/1]int g0/0/2
[SW4-GigabitEthernet0/0/2]port link-type access
[SW4-GigabitEthernet0/0/2]port default vlan 20
[SW4-GigabitEthernet0/0/2]int g0/0/24
[SW4-GigabitEthernet0/0/24]port link-type trunk
[SW4-GigabitEthernet0/0/24]port trunk allow-pass vlan 10 20

<Huawei>system-view
[Huawei]sysname SW5
[SW5]un in en
[SW5]vlan 10
[SW5-vlan10]int g0/0/1
[SW5-GigabitEthernet0/0/1]port link-type access
[SW5-GigabitEthernet0/0/1]port default vlan 10
[SW5-GigabitEthernet0/0/1]int g0/0/24
[SW5-GigabitEthernet0/0/24]port link-type trunk
[SW5-GigabitEthernet0/0/24]port trunk allow-pass vlan 10

<Huawei>system-view
[Huawei]un in en
[Huawei]sysname SW6
[SW6]vlan 10
[SW6]int g0/0/1
[SW6-GigabitEthernet0/0/1]port link-type access
[SW6-GigabitEthernet0/0/1]port default vlan 10
[SW6-GigabitEthernet0/0/1]quit
[SW6]int g0/0/24
[SW6-GigabitEthernet0/0/24]port link-type trunk
[SW6-GigabitEthernet0/0/24]port trunk allow-pass vlan 10

配完后，PC1和PC2，PC3，PC4都不通（原因，SW2和SW3未配VLAN）

3.配置SW2交换机

<Huawei>system-view
[Huawei]undo info-center enable
[Huawei]sysname SW2
[SW2]vlan batch 100 200
[SW2]interface GigabitEthernet 0/0/24
[SW2-GigabitEthernet0/0/24]port link-type dot1q-tunnel
[SW2-GigabitEthernet0/0/24]port default vlan 100
[SW2-GigabitEthernet0/0/24]quit
[SW2]interface GigabitEthernet 0/0/22
[SW2-GigabitEthernet0/0/22]port link-type dot1q-tunnel
[SW2-GigabitEthernet0/0/22]port default vlan 200

[SW2-GigabitEthernet0/0/22]int g0/0/23
[SW2-GigabitEthernet0/0/23]port link-type trunk
[SW2-GigabitEthernet0/0/23]port trunk allow-pass vlan 100 200

4.配置SW3交换机

<Huawei>system-view
[Huawei]un in en
[Huawei]sysname SW3
[SW3]vlan 100 200
[SW3]interface GigabitEthernet 0/0/23
[SW3-GigabitEthernet0/0/23]port link-type trunk
[SW3-GigabitEthernet0/0/23]port trunk allow-pass vlan 100 200
[SW3-GigabitEthernet0/0/23]int g0/0/24
[SW3-GigabitEthernet0/0/24]port link-type dot1q-tunnel
[SW3-GigabitEthernet0/0/24]port default vlan 100
[SW3-GigabitEthernet0/0/24]int g0/0/22
[SW3-GigabitEthernet0/0/22]port link-type dot1q-tunnel
[SW3-GigabitEthernet0/0/22]port default vlan 200

验证：PC1可以ping通PC3，PC2可以ping通PC4,PC6可以ping通PC7.

PC1不能ping通PC6和PC7，因为尽管属于同一VLAN，在同一链路上传输，但是做了QinQ，这就是QinQ的作用，相同的VLAN，在运营商网络中再次打上标签，使得隔离开来。

5. PC1不间断pingPC3，PC2不间断pingPC4，在SW2端口0/0/23上抓包，可以发现对应的VLAN

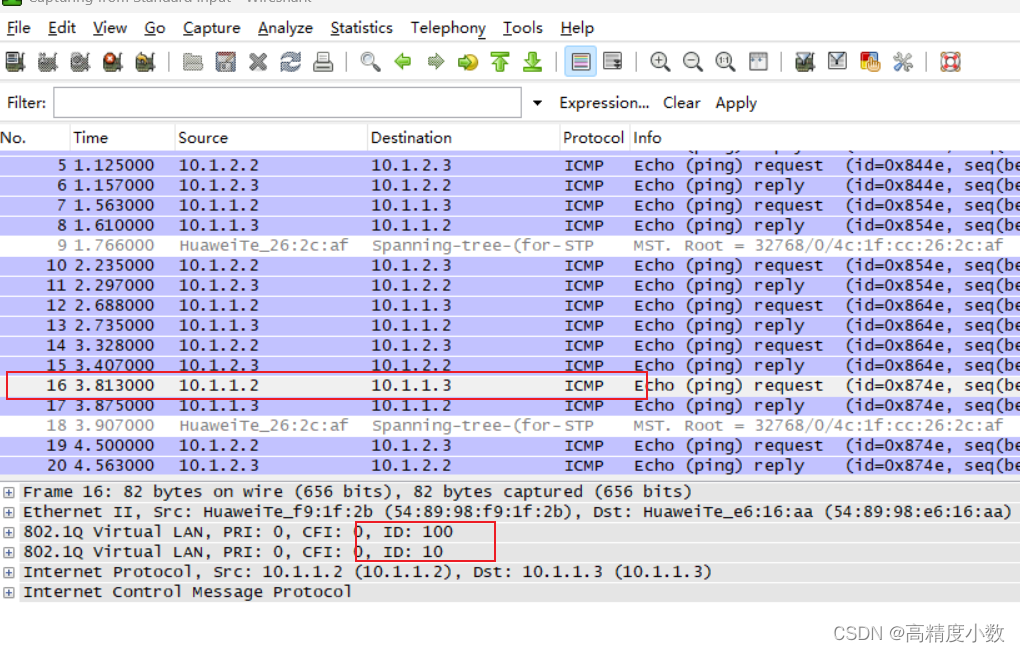

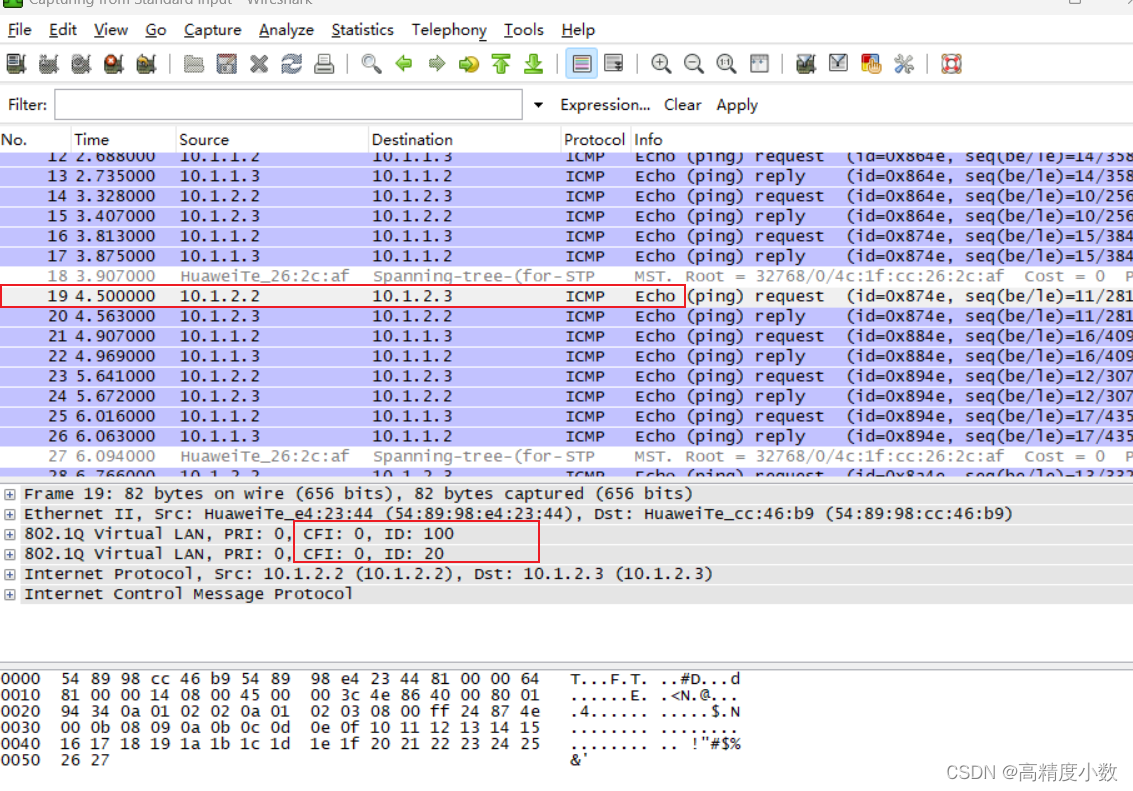

5.1 如下图，10.1.1.2发向10.1.1.3的数据包中，内层VLAN为10，外层VLAN为100.
