JAVA  Projects:

Project 1:

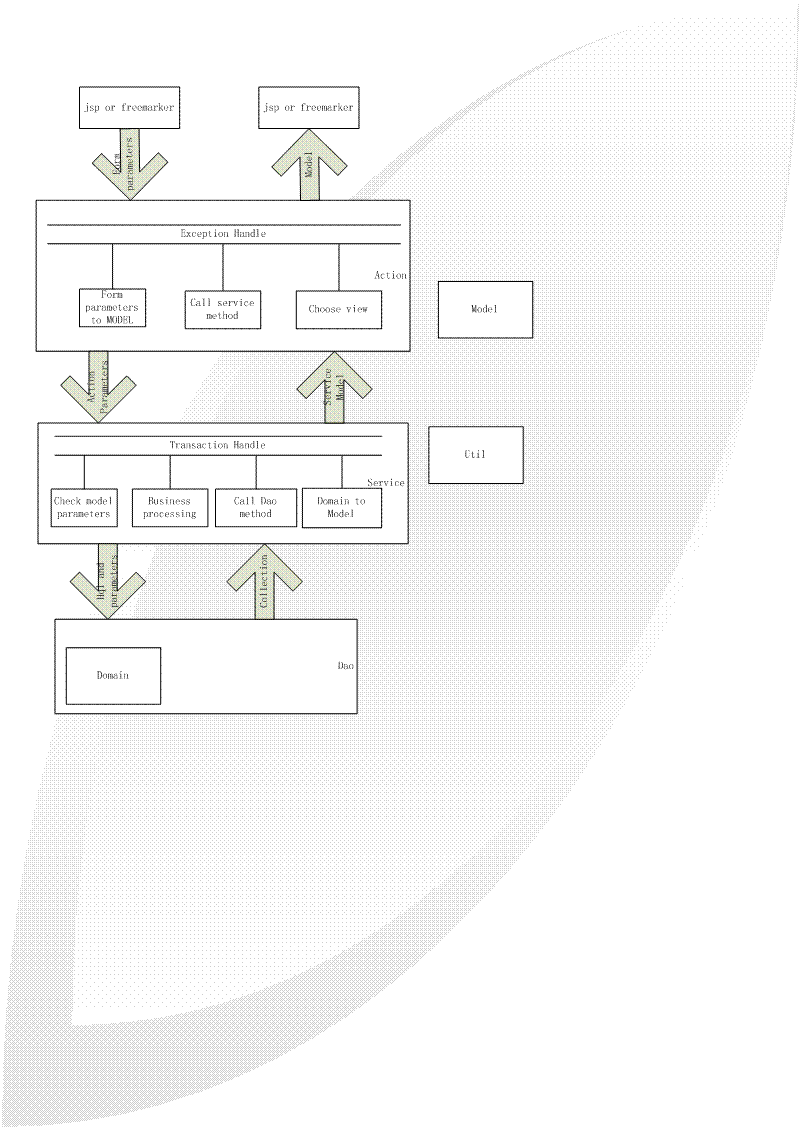

    Project Summary:system.It is designed by me.This system have three layer structure. As follow.



   Action Layer:

l       This layer of the mian work is to accept request and forward.Do not do the business processing.

l       Packaging request parameters and send to Servicce Layer. Service Layer give back parameters for the Action Layer to mix View and Model send to customer.

l       This layer use Model POJO OBJECT



Service Layer:

l       This layer of the work is to do business processing.

l       Check messages of parameters

l       Transaction Processing

l       Packaging service parameters then send to Dao Layer

l       Trsanform Domain Pojo Object To Model Pojo Object



Dao Layer:

l       This layer supply the Service Layer with database operation method.So this layer always has very short method.

l       This layer use Domain POJO OBJECT

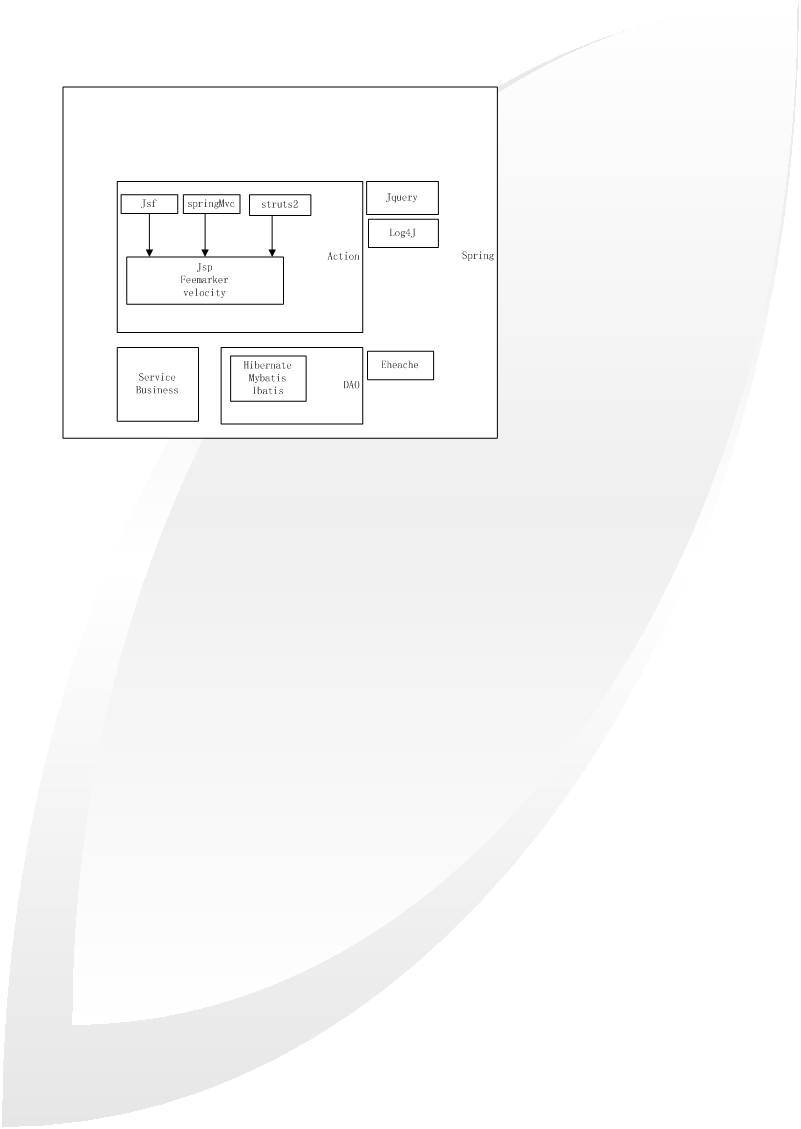

     Project framework:

            As Follow.

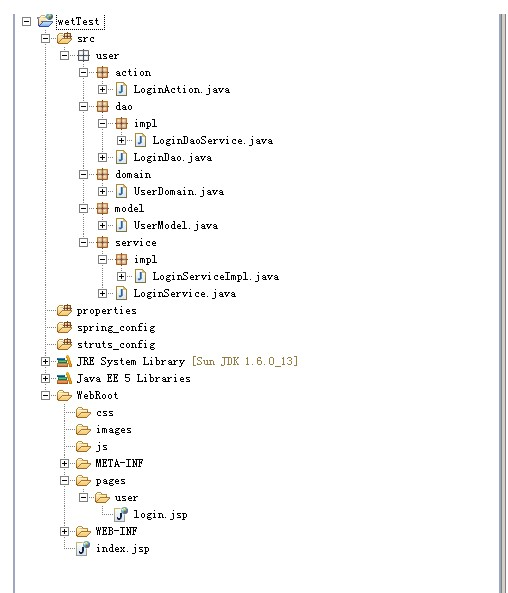

      Project Moduledivision:
