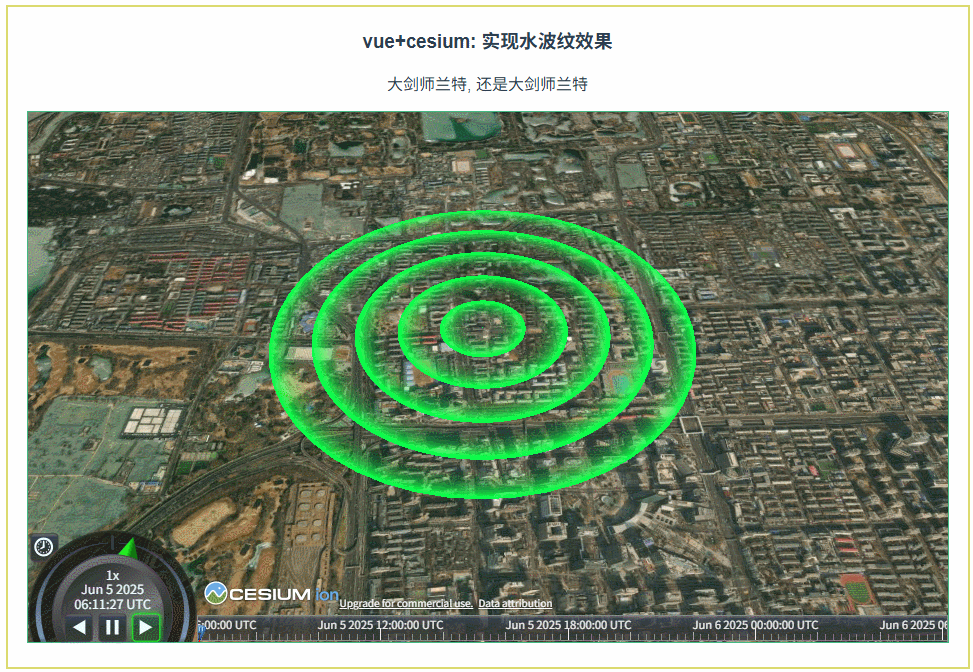

* @Description
: 波纹圆
效果（和
水波纹扩散类似，参考开源代码）
* @Version
: 1.0
*/
class CircleRippleMaterialProperty {
constructor(options) {
this._definitionChanged = new
Cesium.Event();
this._color = undefined;
this._speed = undefined;
this.color = options.color;
this.speed = options.speed;
this.count = options.count;
this.gradient = options.gradient;
};
get isConstant() {
return false;
}
get definitionChanged() {
return this._definitionChanged;
}
getType(time) {
return
Cesium.Material.CircleRippleMaterialType;
}
getValue(time, result) {
if (!
Cesium.defined(result)) {
result = {};
}
result.color =
Cesium.Property.getValueOrDefault(this._color, time,
Cesium.Color.RED, result.color);
result.speed =
Cesium.Property.getValueOrDefault(this._speed, time, 10, result.speed);
result.count = this.count;
result.gradient = this.gradient;
return result
}
equals(other) {
return (this === other ||
(other instanceof CircleRippleMaterialProperty &&
Cesium.Property.equals(this._color, other._color) &&
Cesium.Property.equals(this._speed, other._speed) &&
Cesium.Property.equals(this.count, other.count) &&
Cesium.Property.equals(this.gradient, other.gradient))
)
}
}
Object.defineProperties(CircleRippleMaterialProperty.prototype, {
color
: Cesium.createPropertyDescriptor('color'),
speed
: Cesium.createPropertyDescriptor('speed'),
count
: Cesium.createPropertyDescriptor('count'),
gradient
: Cesium.createPropertyDescriptor('gradient')
})
Cesium.CircleRippleMaterialProperty = CircleRippleMaterialProperty;
Cesium.Material.CircleRippleMaterialProperty = 'CircleRippleMaterialProperty';
Cesium.Material.CircleRippleMaterialType = 'CircleRippleMaterialType';
Cesium.Material.CircleRippleMaterialSource = `
uniform vec4 color;
uniform float speed;
uniform float count;
uniform float gradient;
czm_material czm_getMaterial(czm_materialInput materialInput)
{
czm_material material = czm_getDefaultMaterial(materialInput);
material.diffuse = 1.5 * color.rgb;
vec2 st = materialInput.st;
float dis = distance(st, vec2(0.5, 0.5));
float per = fract(czm_frameNumber * speed / 1000.0);
if(count == 1.0){
if(dis > per * 0.5){
discard;
}else {
material.alpha = color.a * dis / per / 2.0;
}
} else {
vec3 str = materialInput.str;
if(abs(str.z) > 0.001){
discard;
}
if(dis > 0.5){
discard;
} else {
float perDis = 0.5 / count;
float disNum;
float bl = 0.0;
for(int i = 0; i <= 999; i
++){
if(float(i) <= count){
disNum = perDis * float(i) - dis
+ per / count;
if(disNum > 0.0){
if(disNum < perDis){
bl = 1.0 - disNum / perDis;
}
else if(disNum - perDis < perDis){
bl = 1.0 - abs(1.0 - disNum / perDis);
}
material.alpha = pow(bl,(1.0
+ 10.0 * (1.0 - gradient)));
}
}
}
}
}
return material;
}
`
Cesium.Material._materialCache.addMaterial(
Cesium.Material.CircleRippleMaterialType, {
fabric
: {
type
: Cesium.Material.CircleRippleMaterialType,
uniforms
: {
color
: new
Cesium.Color(1.0, 0.0, 0.0, 1.0),
speed
: 3.0,
count
: 4,
gradient
: 0.2
},
source
: Cesium.Material.CircleRippleMaterialSource
},
translucent
: function(material) {
return true;
}
}) 这是circleRippleMaterialProperty.js文件，结合这个我想在
vue文件
实现在指定坐标创建波纹圆的
效果，以下为
vue文件：<template>
<div id="
cesiumContainer" class="
cesium-container"></div>
</template>
<script>
import '
cesium/Build/
Cesium/Widgets/widgets.css';
import * as
Cesium from '
cesium';
let viewer = new
Cesium.Viewer('
cesiumContainer');
let entity = viewer.entities.add({
name
:'圆形波纹',
position
: Cesium.Cartesian3.fromDegrees(116.397289 , 39.968679, 0 ),
ellipse
: {
height
: 200,
// 短半轴、长半轴设置
semiMinorAxis
: 300,
semiMajorAxis
: 300,
material
: new
Cesium.CircleRippleMaterialProperty({
color
: Cesium.Color.fromCssColorString("#00FFFF"),
speed
: 5,
count
: 4,
gradient
: 0
})
}
});
viewer.flyTo(entity) 基于上述代码你修改一下然后告诉我完整的两个正确的代码
