机器学习算法那些事 | 有位大佬逐模块解析了detr结构

本文来源公众号“机器学习算法那些事”,仅用于学术分享,侵权删,干货满满。

原文链接:有位大佬逐模块解析了detr结构

Transformer在计算机视觉领域大方异彩,Detection Transformer(DETR)是Transformer在目标检测领域的成功应用。利用Transformer中attention机制能够有效建模图像中的长程关系(long range dependency),简化目标检测的pipeline,构建端到端的目标检测器。

objection detection可以理解为一个集合预测任务(预测一个边界框和分类标签的集合),现有的目标检测算法的流程需要在大量proposals/anchors上定义回归和分类任务,DETR则通过预测集合实现目标检测。

优点:

  • 不需要预定义的先验anchor

  • 不需要NMS的后处理策略

  • 增加transformer的编码结构

  • 通过前馈神经网络直接预测框的位置和类别

缺点:

  • DETR在大目标检测上性能是最好的,而小目标上稍差

  • 基于match的loss导致学习很难收敛,难以学到最优的情况

本文结合论文和代码,逐一分析DETR的模块,DETR的模块主要有:

  • backbone模块

  • 位置编码模块

  • transformer编码模块

  • transformer解码模块

  • 前馈神经网络模块(FNNs)

  • 匈牙利算法匹配模块

  • 损失函数模块

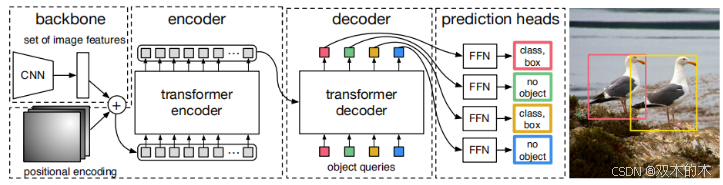

论文的模块图:

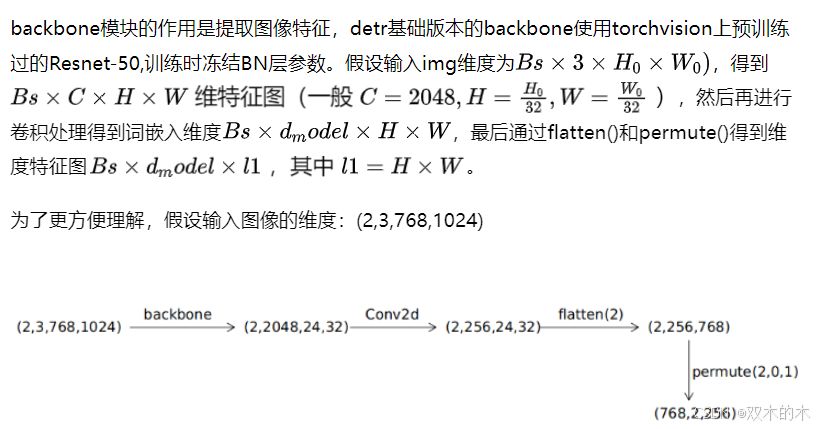

1. bakbone模块

2. 位置编码模块

位置编码模块对对象每个像素点用对应的嵌入向量表示,嵌入向量的维度是d_model,图像每个像素点的嵌入向量包括y方向和x方向的嵌入向量,每个方向的维度是d_model//2,最后拼接y方向和x方向的维度,得到嵌入向量维度d_model。

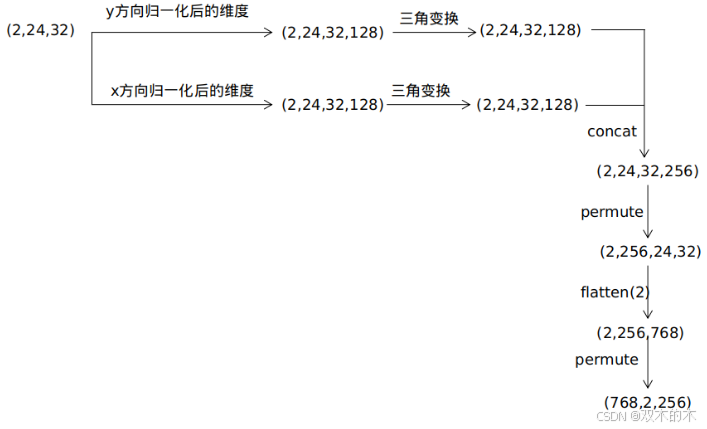

为了更方便理解,假设输入图像经过backbone后的mask维度:(2,24,32)

由上节可知,backbone模块和位置编码的模块维度相同,因此对两者的输出相加得到transformer编码模块的Q和K向量。

3. transformer编码模块

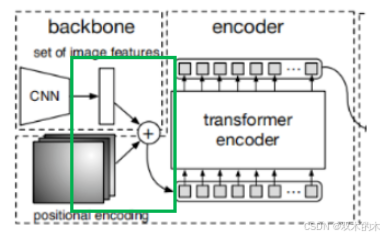

如上节介绍transformer编码模块的Q和K向量来自backbone模块和图像像素的位置编码模块之和。如下图的绿色框表示:

V向量来自backbone模块的输出。

然后经过多头注意力机制得到输出向量

最后经过残差模块和层归一化模块得到编码输出的向量。

维度表示:

向量Q:tensor(768,2,256)

向量K:tensor(768,2,256)

向量V:tensor(768,2,256)

经过多头注意力机制得到的向量维度:tensor(768,2,256)

4. Transformer解码模块

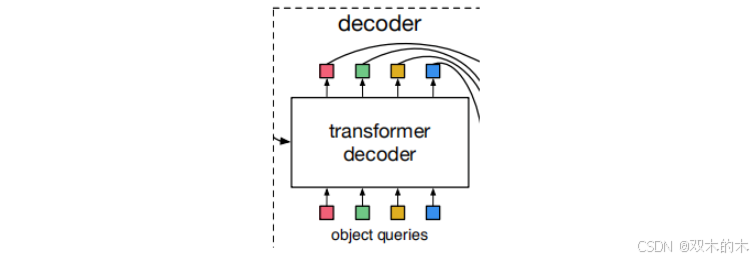

如上图object quries本质上是N个可学习的嵌入维度参数,训练开始时初始化为0,且对应的位置编码模块随机初始化,object queries是预定义的目标查询的个数,代码中默认为100。它的意义是:根据Encoder编码的特征,Decoder将100个查询转化成100个目标,即最终预测这100个目标的类别和bbox位置。最终预测得到的shape应该为[N, 100, C],N为Batch Num,100个目标,C为预测的100个目标的类别数+1(背景类)以及bbox位置(4个值)。

解码模块共有两个自注意机制模块。

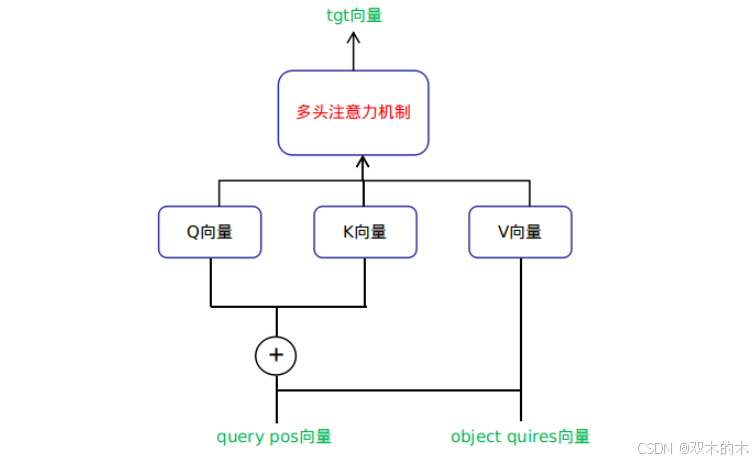

第一个自注意机制的Q向量和K向量是object quires向量与对应位置编码模块query_pos向量相加,V向量则是object quires向量。流程如下图:

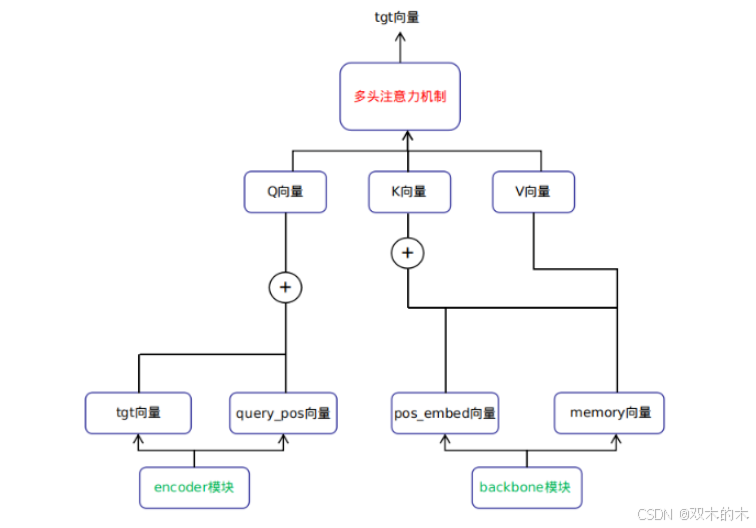

第二个自注意机制模块的Q向量来自上一个自注意机制模块的输出向量tgt相应位置编码模块query_pos向量相加,K向量来自backbone模块的输出memory向量与相应位置编码模块pos_embed向量相加,V向量来自backbone模块的输出memory向量。

5. 前馈神经网络模块(FFNs)

前馈神经网络模块对transformer结构输出后的数据完成分类+bbox预测任务,两个FFN共享transformer的输出。

  • 分类的class FNN使用简单的一层线性层,接受(100,C+1)维度的向量,C+1为数据集类别数+背景的个数

  • bbox预测的FFN使用三层MLP,接受(100,256)维度输入,维度变化为(100,256)->(100,512)->(100,4)。前两层计算后都接ReLU激活函数,最后一层接sigmoid函数。最终输出维度(100,4),代表目标的4个bbox坐标(x,y,w,h)

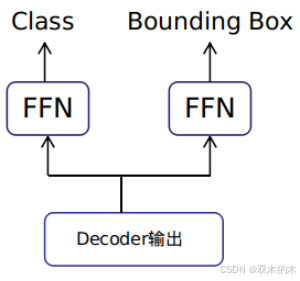

如下图:

Decoder输出向量:tensor(6,bs,100,256)

Class输出向量:tensor(6,bs,100,C+1),其中C为类别数

Bounding Box向量:tensor(6,Bs,100,4)

6. 匈牙利算法匹配模块

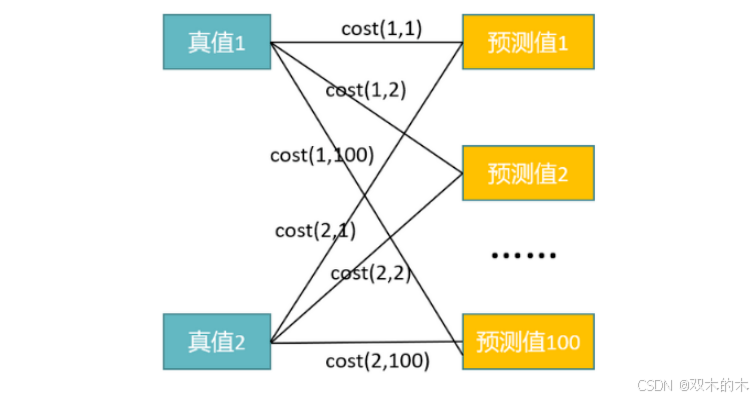

前馈神经网络模块得到预测类和预测框后,通过匈牙利算法进行二分匹配,假如有K个真实目标,那么100个预测框中就会有K个能够匹配到这K个真实目标,其他都会和“no object”匹配成功,使其在理论上每个object query都会有唯一匹配的目标,不会存在重叠,所有DETR不需要nms后处理。

匈牙利算法匹配的输入向量是损失矩阵,如预测框个数是N,真实框个数是M,那么损失矩阵的形状是(N,M),表示每个预测框与所有真实框的损失值。如下图:

匈牙利算法依据匹配的总损失值最小的原理,得到预测框和真实框的匹配项。

7. 损失函数模块

损失函数模块计算类损失和预测框损失。

  • 类损失模块计算所有预测框。

  • 预测框损失计算匹配预测框的L1损失和GIoU损失

DETR论文链接:https://arxiv.org/abs/2005.12872

官方代码:https://github.com/facebookresearch/detr

由于官方代码没有推理模块,本文附上推理代码inference.py

内容到这就结束了,感兴趣的可以扫码关注一下,谢谢:

以下是正确缩进后的代码:

```python
import argparse
import random
import time
from pathlib import Path
import numpy as np
import torch
from models import build_model
from PIL import Image
import os
import torchvision
from torchvision.ops.boxes import batched_nms
import cv2

def get_args_parser():
    parser = argparse.ArgumentParser('Set transformer detector', add_help=False)
    parser.add_argument('--lr', default=1e-4, type=float)
    parser.add_argument('--lr_backbone', default=1e-5, type=float)
    parser.add_argument('--batch_size', default=2, type=int)
    parser.add_argument('--weight_decay', default=1e-4, type=float)
    parser.add_argument('--epochs', default=300, type=int)
    parser.add_argument('--lr_drop', default=200, type=int)
    parser.add_argument('--clip_max_norm', default=0.1, type=float, help='gradient clipping max norm')

    # Model parameters
    parser.add_argument('--frozen_weights', type=str, default=None, help="Path to the pretrained model. If set, only the mask head will be trained")
    # * Backbone
    parser.add_argument('--backbone', default='resnet50', type=str, help="Name of the convolutional backbone to use")
    parser.add_argument('--dilation', action='store_true', help="If true, we replace stride with dilation in the last convolutional block (DC5)")
    parser.add_argument('--position_embedding', default='sine', type=str, choices=('sine', 'learned'), help="Type of positional embedding to use on top of the image features")

    # * Transformer
    parser.add_argument('--enc_layers', default=6, type=int, help="Number of encoding layers in the transformer")
    parser.add_argument('--dec_layers', default=6, type=int, help="Number of decoding layers in the transformer")
    parser.add_argument('--dim_feedforward', default=2048, type=int, help="Intermediate size of the feedforward layers in the transformer blocks")
    parser.add_argument('--hidden_dim', default=256, type=int, help="Size of the embeddings (dimension of the transformer)")
    parser.add_argument('--dropout', default=0.1, type=float, help="Dropout applied in the transformer")
    parser.add_argument('--nheads', default=8, type=int, help="Number of attention heads inside the transformer's attentions")
    parser.add_argument('--num_queries', default=100, type=int, help="Number of query slots")
    parser.add_argument('--pre_norm', action='store_true')

    # * Segmentation
    parser.add_argument('--masks', action='store_true', help="Train segmentation head if the flag is provided")

    # Loss
    parser.add_argument('--no_aux_loss', dest='aux_loss', action='store_false', help="Disables auxiliary decoding losses (loss at each layer)")
    # * Matcher
    parser.add_argument('--set_cost_class', default=1, type=float, help="Class coefficient in the matching cost")
    parser.add_argument('--set_cost_bbox', default=5, type=float, help="L1 box coefficient in the matching cost")
    parser.add_argument('--set_cost_giou', default=2, type=float, help="giou box coefficient in the matching cost")
    # * Loss coefficients
    parser.add_argument('--mask_loss_coef', default=1, type=float)
    parser.add_argument('--dice_loss_coef', default=1, type=float)
    parser.add_argument('--bbox_loss_coef', default=5, type=float)
    parser.add_argument('--giou_loss_coef', default=2, type=float)
    parser.add_argument('--eos_coef', default=0.1, type=float, help="Relative classification weight of the no-object class")

    # dataset parameters
    parser.add_argument('--dataset_file', default='coco')
    parser.add_argument('--coco_path', type=str, default="coco")
    parser.add_argument('--coco_panoptic_path', type=str)
    parser.add_argument('--remove_difficult', action='store_true')

    # 检测的图像路径
    parser.add_argument('--source_dir', default='demo/images', help='path where to save, empty for no saving')
    # 检测结果保存路径
    parser.add_argument('--output_dir', default='demo/outputs', help='path where to save, empty for no saving')
    parser.add_argument('--device', default='cuda:0', help='device to use for training / testing')
    parser.add_argument('--seed', default=42, type=int)
    # resnet50对应的权重文件
    parser.add_argument('--resume', default='demo/weights/detr-r50-e632da11.pth', help='resume from checkpoint')
    parser.add_argument('--start_epoch', default=0, type=int, metavar='N', help='start epoch')
    parser.add_argument('--eval', default="True")
    parser.add_argument('--num_workers', default=2, type=int)

    # distributed training parameters
    parser.add_argument('--world_size', default=1, type=int, help='number of distributed processes')
    parser.add_argument('--dist_url', default='env://', help='url used to set up distributed training')
    return parser

def box_cxcywh_to_xyxy(x):
    x_c, y_c, w, h = x.unbind(1)
    b = [(x_c - 0.5 * w), (y_c - 0.5 * h), (x_c + 0.5 * w), (y_c + 0.5 * h)]
    return torch.stack(b, dim=1)

def rescale_bboxes(out_bbox, size):
    img_w, img_h = size
    b = box_cxcywh_to_xyxy(out_bbox)  # out_bbox(100,4),cx,cy,w,h,b(100,4),x1,y1,x2,y2
    b = b * torch.tensor([img_w, img_h, img_w, img_h], dtype=torch.float32)
    return b

def filter_boxes(scores, boxes, confidence=0.7, apply_nms=True, iou=0.5):
    keep = scores.max(-1).values > confidence  # tensor(100)
    scores, boxes = scores[keep], boxes[keep]  # (27,91),(27,4)
    if apply_nms:
        top_scores, labels = scores.max(-1)
        keep = batched_nms(boxes, top_scores, labels, iou)
        scores, boxes = scores[keep], boxes[keep]
    return scores, boxes

# COCO classes
CLASSES = [
    'N/A', 'person', 'bicycle', 'car', 'motorcycle', 'airplane', 'bus',
    'train', 'truck', 'boat', 'traffic light', 'fire hydrant', 'N/A',
    'stop sign', 'parking meter', 'bench', 'bird', 'cat', 'dog', 'horse',
    'sheep', 'cow', 'elephant', 'bear', 'zebra', 'giraffe', 'N/A', 'backpack',
    'umbrella', 'N/A', 'N/A', 'handbag', 'tie', 'suitcase', 'frisbee', 'skis',
    'snowboard', 'sports ball', 'kite', 'baseball bat', 'baseball glove',
    'skateboard', 'surfboard', 'tennis racket', 'bottle', 'N/A', 'wine glass',
    'cup', 'fork', 'knife', 'spoon', 'bowl', 'banana', 'apple', 'sandwich',
    'orange', 'broccoli', 'carrot', 'hot dog', 'pizza', 'donut', 'cake',
    'chair', 'couch', 'potted plant', 'bed', 'N/A', 'dining table', 'N/A',
    'N/A', 'toilet', 'N/A', 'tv', 'laptop', 'mouse', 'remote', 'keyboard',
    'cell phone', 'microwave', 'oven', 'toaster', 'sink', 'refrigerator', 'N/A',
    'book', 'clock', 'vase', 'scissors', 'teddy bear', 'hair drier', 'toothbrush'
]

def plot_one_box(x, img, color=None, label=None, line_thickness=1):
    tl = line_thickness or round(0.002 * (img.shape[0] + img.shape[1]) / 2) + 1  # line/font thickness
    color = color or [random.randint(0, 255) for _ in range(3)]
    c1, c2 = (int(x[0]), int(x[1])), (int(x[2]), int(x[3]))
    cv2.rectangle(img, c1, c2, color, thickness=tl, lineType=cv2.LINE_AA)
    if label:
        tf = max(tl - 1, 1)  # font thickness
        t_size = cv2.getTextSize(label, 0, fontScale=tl / 3, thickness=tf)[0]
        c2 = c1[0] + t_size[0], c1[1] - t_size[1] - 3
        cv2.rectangle(img, c1, c2, color, -1, cv2.LINE_AA)  # filled
        cv2.putText(img, label, (c1[0], c1[1] - 2), 0, tl / 3, [225, 255, 255], thickness=tf, lineType=cv2.LINE_AA)

def main(args):
    print(args)
    device = torch.device(args.device)
    model, criterion, postprocessors = build_model(args)
    checkpoint = torch.load(args.resume, map_location='cpu')
    model.load_state_dict(checkpoint['model'], False)
    model.to(device)
    n_parameters = sum(p.numel() for p in model.parameters() if p.requires_grad)
    print("parameters:", n_parameters)
    image_Totensor = torchvision.transforms.ToTensor()
    image_file_path = os.listdir(args.source_dir)
    for image_item in image_file_path:
        print("inference_image:", image_item)
        image_path = os.path.join(args.source_dir, image_item)
        image = Image.open(image_path)
        image_tensor = image_Totensor(image)  # tensor(c,h,w)
        image_tensor = torch.reshape(image_tensor, [-1, image_tensor.shape[0], image_tensor.shape[1], image_tensor.shape[2]])
        image_tensor = image_tensor.to(device)
        time1 = time.time()
        inference_result = model(image_tensor)  # 'pred_logits':(1,100,92),'pred_boxes':(1,100,4),list(5)
        time2 = time.time()
        print("inference_time:", time2 - time1)
        probas = inference_result['pred_logits'].softmax(-1)[0, :, :-1].cpu()  # 得到除了背景类的前景,(100,91)
        bboxes_scaled = rescale_bboxes(inference_result['pred_boxes'][0,].cpu(), (image_tensor.shape[3], image_tensor.shape[2]))  # (100,4)
        scores, boxes = filter_boxes(probas, bboxes_scaled)  # (100,91),(100,4)
        scores = scores.data.numpy()
        boxes = boxes.data.numpy()
        for i in range(boxes.shape[0]):
            class_id = scores[i].argmax()
            label = CLASSES[class_id]
            confidence = scores[i].max()
            text = f"{label} {confidence:.3f}"
            print(text)
            image = np.array(image)
            plot_one_box(boxes[i], image, label=text)
        cv2.imshow("images", cv2.cvtColor(image, cv2.COLOR_BGR2RGB))
        cv2.waitKey()
        image = Image.fromarray(image)
        image.save(os.path.join(args.output_dir, image_item))

if __name__ == '__main__':
    parser = argparse.ArgumentParser('DETR training and evaluation script', parents=[get_args_parser()])
    args = parser.parse_args()
    if args.output_dir:
        Path(args.output_dir).mkdir(parents=True, exist_ok=True)
    main(args)

THE END !

文章结束,感谢阅读。您的点赞,收藏,评论是我继续更新的动力。大家有推荐的公众号可以评论区留言,共同学习,一起进步。
