python tkinter 实现仪表盘

通过python tkinter 实现仪表盘，实时刷新数据，指针等
https://download.youkuaiyun.com/download/csdn_wql_/89712114
https://download.youkuaiyun.com/download/csdn_wql_/89712083

import tkinter as tk
import math


# 圆形仪表类
class Gauge(tk.Canvas):
    def __init__(self, master, title, max_value, label, data_y_position=130):
        super().__init__(master, width=200, height=200)
        self.title = title
        self.max_value = max_value
        self.label = label
        self.current_value = 0
        self.data_y_position = data_y_position

        # 绘制圆形仪表
        self.draw_gauge()
        self.draw_pointer()
        self.draw_title()
        self.draw_value_label()

        self.pack(side=tk.LEFT, padx=10, pady=10)

    def draw_gauge(self):
        # 绘制圆形外框
        self.create_oval(10, 30, 140, 160, width=2, outline='gray')

        # 根据角度计算刻度间隔，避免数字重叠
        num_ticks = 12  # 总共显示12个刻度
        tick_angle_interval = 360 / num_ticks
        tick_value_interval = self.max_value / num_ticks

        # 绘制刻度
        for i in range(num_ticks):
            angle = math.radians(i * tick_angle_interval)
            x_offset = 60 if i % (num_ticks // 4) == 0 else 55  # 每1/4处为整刻度，数字离圆心更远
            x = 75 + x_offset * math.sin(angle)
            y = 95 - x_offset * math.cos(angle)
            if i % (num_ticks // 4) == 0:  # 每1/4处显示一个数字
                # if (0 <= angle <= math.pi / 2) or (3 * math.pi / 2 <= angle <= 2 * math.pi):
                #     x += 5 * math.sin(angle)  # 调整数字位置，尽量放在圆外合适位置
                # else:
                #     x -= 5 * math.sin(angle)
                # if math.pi / 2 <= angle <= 3 * math.pi / 2:
                #     y += 5 * math.cos(angle)
                # else:
                #     y -= 5 * math.cos(angle)
                self.create_text(x, y, text=str(int(i * tick_value_interval)), font=("Helvetica", 10))
            else:
                # 创建虚线刻度线
                dash = (2, 2)  # 虚线样式，2个像素实线，2个像素空白
                self.create_line(75 + 50 * math.sin(angle), 95 - 50 * math.cos(angle),
                                 75 + 53 * math.sin(angle), 95 - 53 * math.cos(angle), width=1, fill='gray', dash=dash)

    def draw_pointer(self):
        angle = math.radians(self.current_value * (360 / self.max_value))
        x1 = 75
        y1 = 95
        x2 = 75 + 50 * math.sin(angle)
        y2 = 95 - 50 * math.cos(angle)
        self.pointer = self.create_line(x1, y1, x2, y2, width=3, arrow=tk.LAST, fill='blue')

    def draw_title(self):
        self.create_text(75, 10, text=self.title, font=("Helvetica", 12, "bold"))

    def draw_value_label(self):
        self.value_label = self.create_text(75, self.data_y_position, text=self.label + ": " + str(self.current_value),
                                             font=("Helvetica", 10))

    def update_value(self, new_value):
        self.current_value = new_value
        angle = math.radians(self.current_value * (360 / self.max_value))
        x1 = 75
        y1 = 95
        x2 = 75 + 50 * math.sin(angle)
        y2 = 95 - 50 * math.cos(angle)
        self.coords(self.pointer, x1, y1, x2, y2)
        self.itemconfig(self.value_label, text=self.label + ": " + str(self.current_value))


# 主窗口

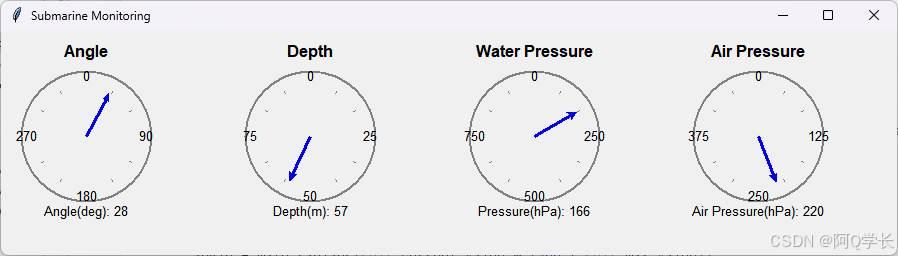

root = tk.Tk()
root.title("Submarine Monitoring")

# 创建角度仪表，数据显示位置下移到140
angle_gauge = Gauge(root, "Angle", 360, "Angle(deg)", data_y_position=170)
# 创建深度仪表，数据显示位置下移到140
depth_gauge = Gauge(root, "Depth", 100, "Depth(m)", data_y_position=170)
# 创建水压仪表，数据显示位置下移到140
water_pressure_gauge = Gauge(root, "Water Pressure", 1000, "Pressure(hPa)", data_y_position=170)
# 创建气压仪表，数据显示位置下移到140
air_pressure_gauge = Gauge(root, "Air Pressure", 500, "Air Pressure(hPa)", data_y_position=170)


# 模拟更新值的函数（这里只是简单示例，可替换为真实数据获取和更新逻辑）
def update_gauge_values():
    import random
    angle_gauge.update_value(random.randint(0, 360))
    depth_gauge.update_value(random.randint(0, 100))
    water_pressure_gauge.update_value(random.randint(0, 1000))
    air_pressure_gauge.update_value(random.randint(0, 500))
    root.after(1000, update_gauge_values)


root.after(1000, update_gauge_values)
root.mainloop()
