本文详细解读了GoogleNet的网络结构，包括基本卷积模块、Inception模块和分类器的设计。Inception模块由多个分支构成，特征通过并联关系处理，最后合并。此外，还介绍了辅助分类器在训练过程中的作用。完整代码可在提供的GitHub链接中查看。

GoogleNet网络结构：

1.首先定义一个基本卷积模块包含一个卷积层和一个Relu激活层和一个正向传播函数。

class BasicConv2d(nn.Module):
    def __init__(self, in_channels, out_channels, **kwargs):
        super(BasicConv2d, self).__init__()
        self.conv = nn.Conv2d(in_channels, out_channels, **kwargs)
        self.relu = nn.ReLU(inplace=True)

    def forward(self, x):
        x = self.conv(x)
        x = self.relu(x)
        return x

in_channels-》输入特征矩阵的深度

out_channels-》输出特征矩阵的深度。其中 self.conv = nn.Conv2d()中的out_channels也代表卷积核个数。

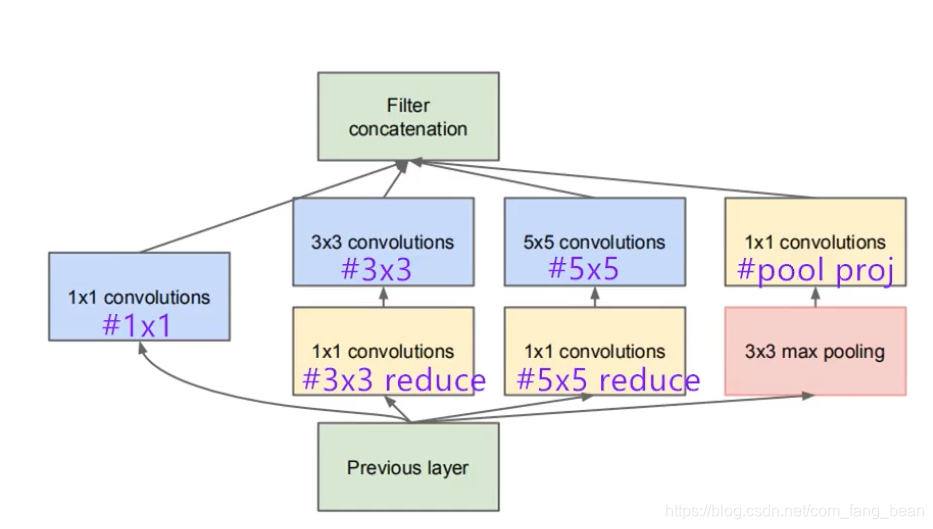

2.定义Inception模块：

class Inception(nn.Module):
    def __init__(self, in_channels, ch1x1, ch3x3red, ch3x3, ch5x5red, ch5x5, pool_proj):
        super(Inception, self).__init__()

        self.branch1 = BasicConv2d(in_channels, ch1x1, kernel_size=1)

        self.branch2 = nn.Sequential(
            BasicConv2d(in_channels, ch3x3red, kernel_size=1),
            BasicConv2d(ch3x3red, ch3x3, kernel_size=3, padding=1)   # 保证输出大小等于输入大小
        )

        self.branch3 = nn.Sequential(
            BasicConv2d(in_channels, ch5x5red, kernel_size=1),
            BasicConv2d(ch5x5red, ch5x5, kernel_size=5, padding=2)   # 保证输出大小等于输入大小
        )

        self.branch4 = nn.Sequential(
            nn.MaxPool2d(kernel_size=3, stride=1, padding=1),
            BasicConv2d(in_channels, pool_proj, kernel_size=1)
        )

    def forward(self, x):
        branch1 = self.branch1(x)
        branch2 = self.branch2(x)
        branch3 = self.branch3(x)
        branch4 = self.branch4(x)

        outputs = [branch1, branch2, branch3, branch4]
        return torch.cat(outputs, 1)

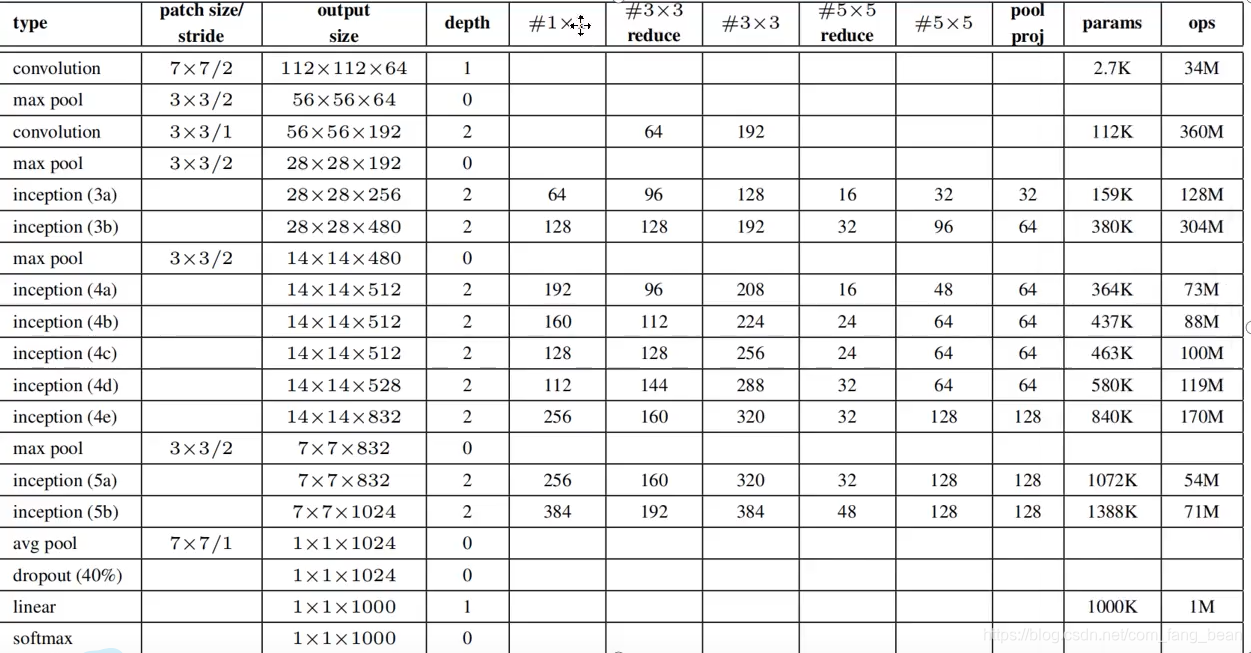

ch1x1、ch3x3red、ch5x5red, ch5x5、pool_proj均代表输出深度或者卷积核数量。

self.branch1为第一个分支

self.branch2为第二个分支

self.branch3为第三个分支

self.branch4为第四个分支

注意：Inception模块的正向传播函数forward中的branch1、branch2、branch3、branch4是并联关系而不是串联关系。x是分别传入进去计算的，所得结果分别赋值给变量branch1、branch2、branch3、branch4。最后通过torch.cat()函数合并成一个矩阵。1代表从深度上进行拼接。

3.定义分类器模块

class InceptionAux(nn.Module):
    def __init__(self, in_channels, num_classes):
        super(InceptionAux, self).__init__()
        self.averagePool = nn.AvgPool2d(kernel_size=5, stride=3)
        self.conv = BasicConv2d(in_channels, 128, kernel_size=1)  # output[batch, 128, 4, 4]

        self.fc1 = nn.Linear(2048, 1024)
        self.fc2 = nn.Linear(1024, num_classes)

    def forward(self, x):
        # aux1: N x 512 x 14 x 14, aux2: N x 528 x 14 x 14
        x = self.averagePool(x)
        # aux1: N x 512 x 4 x 4, aux2: N x 528 x 4 x 4
        x = self.conv(x)
        # N x 128 x 4 x 4
        x = torch.flatten(x, 1)
        x = F.dropout(x, 0.5,
