循环神经网络PyTorch版

循环神经网络(RNN)

申明：本书的理论和代码来自于开源书籍，TensorFlow深度学习

地址：https://github.com/jiajunhua/dragen1860-Deep-Learning-with-TensorFlow-book

1. Pytorch的RNN简单实现

2.1. 单层RNNCell

[s,b,n], s为句子长度，b为句子数量，n为词向量长度，h为状态长度

import  torch
from    torch import nn
from    torch import optim
from    torch.nn import functional as F
# [s,b,n] s:句长，b：句子数，n：词向量长度
x = torch.randn(80, 4, 100)
# param1：input_size  | param2：hidden_size
cell1 = nn.RNNCell(100, 64)
# [batch, hidden_size]
h1 = torch.zeros(4, 64)
# xt [batch, input_size]
for xt in x:
    h1 = cell1(xt, h1)
print(h1.shape) # [4, 64]

2.2. 多层 RNNCell

x = torch.randn(80, 4, 100)
cell1 = nn.RNNCell(100, 64)
cell2 = nn.RNNCell(64, 20)
h1 = torch.zeros(4, 64)
h2 = torch.zeros(4, 20)
for xt in x:
    h1 = cell1(xt, h1)
    h2 = cell2(h1, h2)
print(h2.shape) # [4, 20]

2.3 RNN

# 单层
rnn = nn.RNN(input_size=100, hidden_size=64, num_layers=1)
x = torch.randn(80, 4, 100)
out, h = rnn(x, torch.zeros(1, 4, 64))
print(out.shape, h.shape) # torch.Size([80, 4, 64]) torch.Size([1, 4, 64])

# 多层
rnn = nn.RNN(input_size=100, hidden_size=64, num_layers=3)
x = torch.randn(80, 4, 100)
out, h = rnn(x, torch.zeros(3, 4, 64))
print(out.shape, h.shape)
# print(vars(rnn)) # torch.Size([80, 4, 64]) torch.Size([3, 4, 64])

2.RNN 时间序列预测

import numpy as np
import torch
import torch.nn as nn
import torch.optim as optim
from matplotlib import pyplot as plt

num_time_steps = 50
input_size = 1
hidden_size = 16
output_size = 1
lr = 0.01

class Net(nn.Module):
    def __init__(self, ):
        super(Net, self).__init__()
        #  batch_first=True,则输入输出(batch, seq, feature)
        self.rnn = nn.RNN(
            input_size=input_size,
            hidden_size=hidden_size,
            num_layers=1,
            batch_first=True,
        )
        for p in self.rnn.parameters():
            nn.init.normal_(p, mean=0.0, std=0.001)

        self.linear = nn.Linear(hidden_size, output_size)

    def forward(self, x, hidden_prev):
        out, hidden_prev = self.rnn(x, hidden_prev)
        # [b, seq, h]
        out = out.view(-1, hidden_size)
        out = self.linear(out)
        out = out.unsqueeze(dim=0)
        return out, hidden_prev


model = Net()
criterion = nn.MSELoss()
optimizer = optim.Adam(model.parameters(), lr)
# [num_layer,batch,hidden]
hidden_prev = torch.zeros(1, 1, hidden_size)

for iter in range(6000):
    start = np.random.randint(3, size=1)[0]
    time_steps = np.linspace(start, start + 10, num_time_steps)
    data = np.sin(time_steps)
    data = data.reshape(num_time_steps, 1)
    x = torch.tensor(data[:-1]).float().view(1, num_time_steps - 1, 1)
    y = torch.tensor(data[1:]).float().view(1, num_time_steps - 1, 1)

    output, hidden_prev = model(x, hidden_prev)
    hidden_prev = hidden_prev.detach()

    loss = criterion(output, y)
    model.zero_grad()
    loss.backward()
    # for p in model.parameters():
    #     print(p.grad.norm())
    # torch.nn.utils.clip_grad_norm_(p, 10)
    optimizer.step()

    if iter % 100 == 0:
        print("Iteration: {} loss {}".format(iter, loss.item()))

start = np.random.randint(3, size=1)[0]
time_steps = np.linspace(start, start + 10, num_time_steps)
data = np.sin(time_steps)
data = data.reshape(num_time_steps, 1)
x = torch.tensor(data[:-1]).float().view(1, num_time_steps - 1, 1)
y = torch.tensor(data[1:]).float().view(1, num_time_steps - 1, 1)

predictions = []
input = x[:, 0, :]
for _ in range(x.shape[1]):
    input = input.view(1, 1, 1)
    (pred, hidden_prev) = model(input, hidden_prev)
    input = pred
    #  ravel拉平，变为一维数组
    predictions.append(pred.detach().numpy().ravel()[0])

x = x.data.numpy().ravel()
y = y.data.numpy()

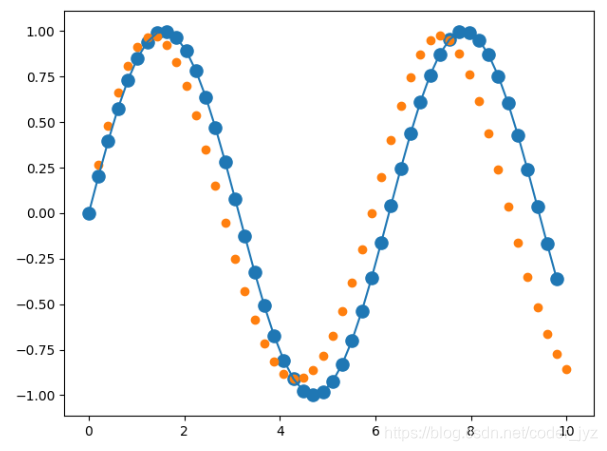

plt.scatter(time_steps[:-1], x.ravel(), s=90)
plt.plot(time_steps[:-1], x.ravel())

plt.scatter(time_steps[1:], predictions)
plt.show()

这段代码我自己看的有点晕，勉勉轻轻看懂了点。

3.LSTM

3.1 LSTMCell

print('one layer lstm')
x = torch.randn(80, 4, 100)
cell = nn.LSTMCell(input_size=100, hidden_size=64)
h = torch.zeros(4, 64)
c = torch.zeros(4, 64)
for xt in x:
    h, c = cell(xt, [h, c])
print(h.shape, c.shape) # torch.Size([4, 64]) torch.Size([4, 64])

print('two layer lstm')
x = torch.randn(80, 4, 100)
cell1 = nn.LSTMCell(input_size=100, hidden_size=64)
cell2 = nn.LSTMCell(input_size=64, hidden_size=20)
h1 = torch.zeros(4, 64)
c1 = torch.zeros(4, 64)
h2 = torch.zeros(4, 20)
c2 = torch.zeros(4, 20)
for xt in x:
    h1, c1 = cell1(xt, [h1, c1])
    h2, c2 = cell2(h1, [h2, c2])
print(h2.shape, c2.shape) # torch.Size([4, 20]) torch.Size([4, 20])

3.2LSTM

print('Lstm')
x = torch.randn(80, 4, 100)
lstm = nn.LSTM(input_size=100, hidden_size=64, num_layers=3)
print(lstm)
out, (h, c) = lstm(x)
print(out.shape, h.shape, c.shape)  # torch.Size([80, 4, 64]) torch.Size([3, 4, 64]) torch.Size([3, 4, 64])

4.GRU

4.1 GRUCell

单层

rnn = nn.GRUCell(100, 64)
x = torch.randn(80, 4, 100)
hx = torch.randn(4, 64)
out = []
for xt in x:
    hx = rnn(xt, hx)
    out.append(hx)
print(hx.shape)   # torch.Size([4, 64])

多层

x = torch.randn(80, 4, 100)
cell1 = nn.GRUCell(100, 64)
cell2 = nn.GRUCell(64, 20)
h1 = torch.zeros(4, 64)
h2 = torch.zeros(4, 20)

for xt in x:
    h1 = cell1(x[i],h1)
    h2 = cell2(h1,h2)
print(h1.shape, h2.shape)  # torch.Size([4, 64]) torch.Size([4, 20])

4.2 GRU

多层

# 参数：input_size ，hidden_size ，num_layers
rnn = nn.GRU(100, 64, 3)
# [sequence_length,batch_size,input_size]
input = torch.randn(80, 4, 100)
# [layer,batch_size,hidden]
h0 = torch.randn(3, 4, 64)
out, hn = rnn(input, h0)
print(out.shape,hn.shape) # torch.Size([80, 4, 64]) torch.Size([3, 4, 64])

感觉网上的PyTorch的例子要比TensorFlow2的例子少，等以后有机会再补充。
