android14 修改替换关机充电动画

参考https://blog.youkuaiyun.com/qq_48709036/article/details/124406521

参考Android 8.1 关机充电动画（一）模式选择_charge-animation-优快云博客

关机充电是在u-boot驱动中处理，关机充电动画显示的处理方式有两种，本文讨论在android系统的charger中处理，这种方式启动了内核，调用了init，但没有启动android系统而是进入充电程序，另一种是Uboot中处理，两种方法切换方法参考官方文档Rockchip_Androidxx_SDK_Developer_Guide_CN.pdf

按照以下步骤处理

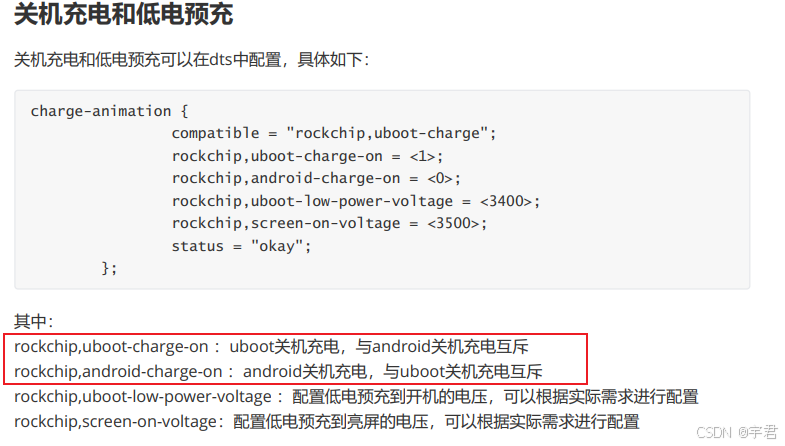

1，切换到android系统的charger中处理关机充电动画显示

修改点 SDK/kernel-xxx

diff --git a/arch/arm64/boot/dts/rockchip/rk3576s-xxxx.dts b/arch/arm64/boot/dts/rockchip/rk3576s-xxxx.dts
index cedd7071a0cb..fd576e3928fc 100644
--- a/arch/arm64/boot/dts/rockchip/rk3576s-xxxx.dts
+++ b/arch/arm64/boot/dts/rockchip/rk3576s-xxxx.dts
@@ -32,8 +32,8 @@ bat: battery {

        charge-animation {
                compatible = "rockchip,uboot-charge";
-               rockchip,uboot-charge-on = <1>;
-               rockchip,android-charge-on = <0>;
+               rockchip,uboot-charge-on = <0>;
+               rockchip,android-charge-on = <1>;
                rockchip,uboot-low-power-voltage = <3450>;
                rockchip,screen-on-voltage = <3500>;
                rockchip,uboot-exit-charge-level = <2>;

动画显示处理的代码在SDK目录system/core/healthd下，

2，增加新增的充电动画

2.1 拷贝动画文件到 healthd/images/ ，还有device/rockchip/common/charger/res/

原先目录下有battery_fail.png ，battery_scale.png 文件

system/core$ ls healthd/images/
battery_fail.png  battery_scale.png   battery_green.png  battery_red.png ，battery_yellow.png

增加了3个动画图片battery_green.png  ，battery_red.png  ，battery_yellow.png

2.2 增加新增的动画处理代码

修改点system/core/

diff --git a/healthd/animation.h b/healthd/animation.h
index c2d5f1c04..b61209a2c 100644
--- a/healthd/animation.h
+++ b/healthd/animation.h
@@ -59,6 +59,9 @@ struct animation {
     // |backup_root| st
