SpringMVC 源码分析（四）

从SpringMVC 源码分析（一）中我们知道当请求第一次过来的时候，Servlet容器（如：Tomcat，本文使用Tomcat来作为Servlet容器）会依次调用Servlet的无参构造器、init、service方法，无参构造器是tomcat将项目中的Servlet加载到Tomcat容器中所调用的。也可以在web.xml中设置Servlet的参数load-on-startup大于0，Tomcat就会在启动的时候便调用无参构造器。使用无参主要为了能顺利启动，因为调用有参构造器可能会因为业务原因而报错导致无法启动，所以也是一种规范，不用多说。

当我们的Spring boot项目启动之后，从SpringMVC 源码分析（二）中可以知道我们的Controller的url映射关系也都已初始化好了，这个时候用户就可以向服务发送请求了，

当我们项目引入Spring MVC后，就不需要那么多Servlet了，所有请求全部由DispatcherServlet来代理并分发给Controller中的方法。

那么本片文章我们先一起看下DispatcherServlet的初始化方法init。

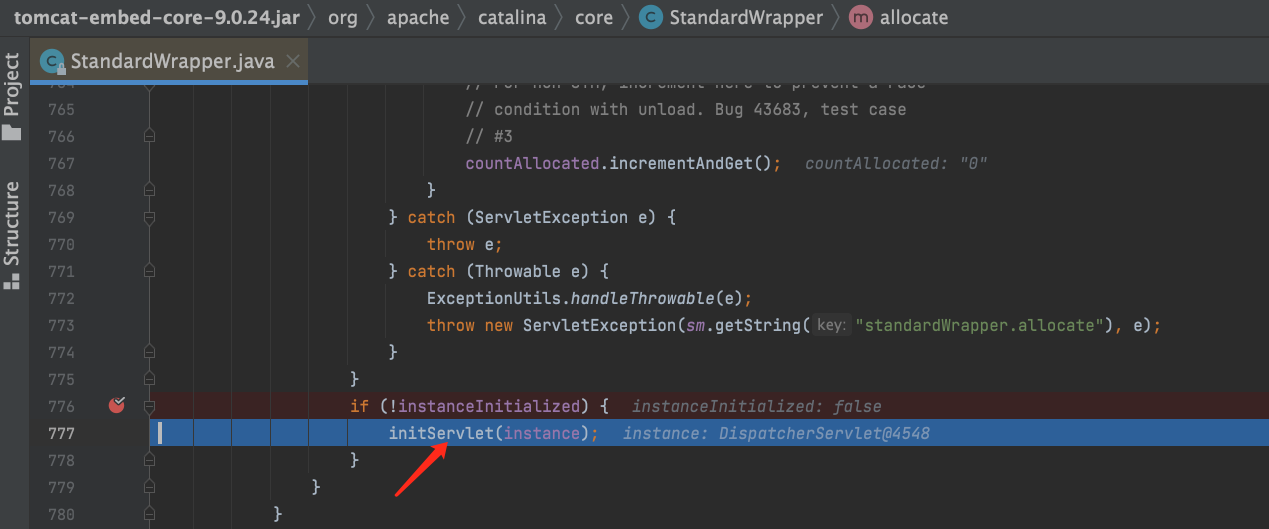

当我们的第一次请求过来的时候，首先由Tomcat中的StandardWrapper#allocate来选择最终干活的Servlet类，并且判断这个Servlet类有没有调用init方法初始化过，没有的话就会去调用该方法，可以看到此时我们的Servlet类（instance）就是DispatcherServlet。

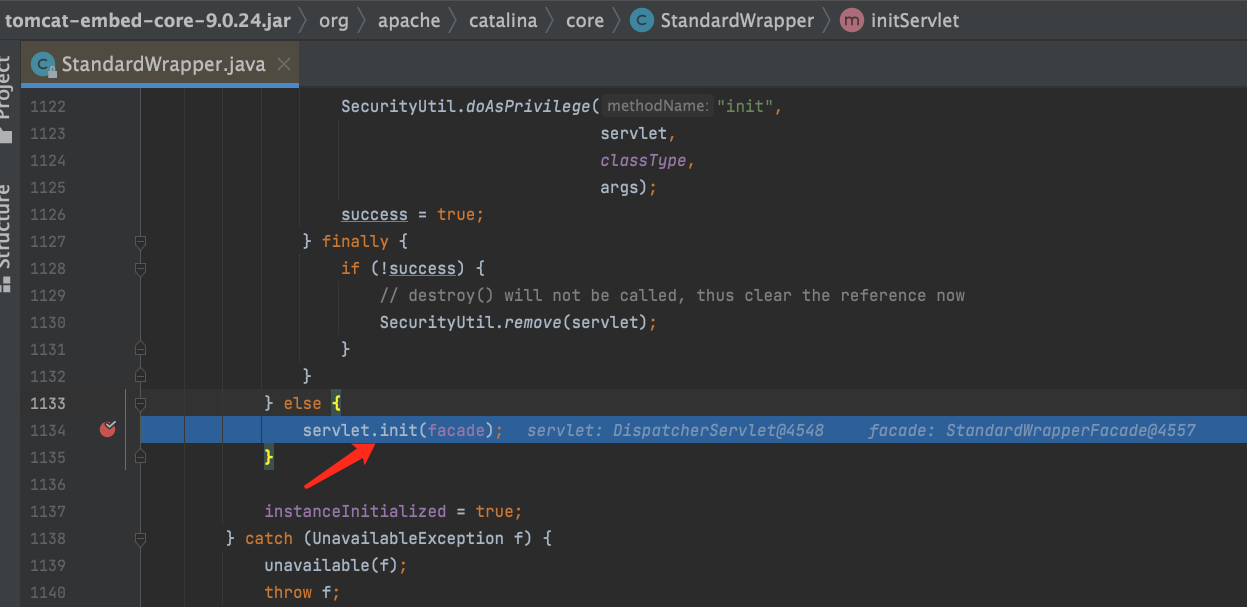

继续进入StandardWrapper#initServlet方法中，可以看到最终调用了Servlet的init方法，那么我们的DispatcherServlet初始化就从这里开始了

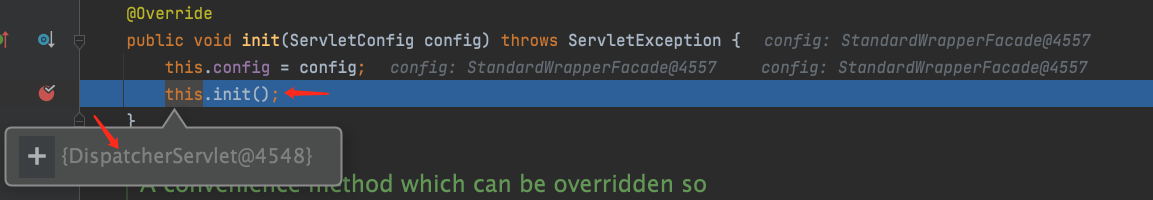

因为有参init方法DispatcherServlet没有实现，最终调用的是父类GenericServlet的init方法，GenericServlet#init(javax.servlet.ServletConfig)，此时的this为DispatcherServlet，接下来调用无参的init方法。

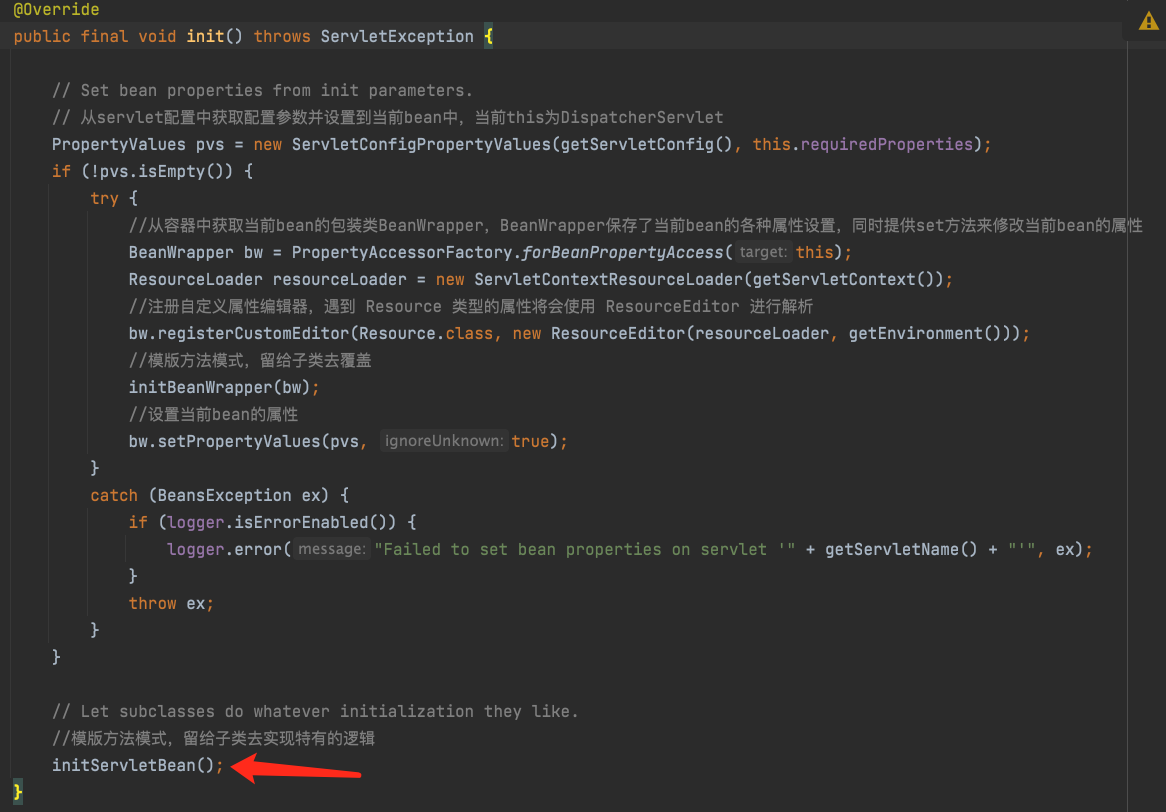

调用DispatcherServlet的init方法，该方法由父类(FrameworkServlet)的父类HttpServletBean实现，init方法使用了模版方法设计模式，可以看到该方法最后调用了initServletBean方法，initServletBean方法由子类去实现。

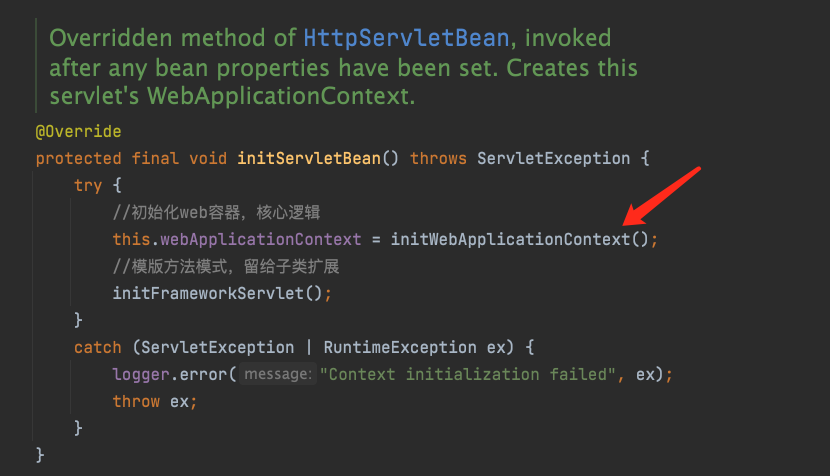

进入initServletBean方法继续深入探索，该方法是由DispatcherServlet的父类FrameworkServlet实现的，我们去掉其他打印日志的逻辑代码，最终initServletBean只有这几行代码，也是使用了模版方法设计模式，其中initFrameworkServlet方法是一个空方法，留给子类扩展，目前我们的DispatcherServlet类并没有去实现它，所以不用看。我们主要看的核心逻辑就在initWebApplicationContext方法中。

我们继续进入initWebApplicationContext方法中

protected WebApplicationContext initWebApplicationContext() {
        // 先获取父类容器，用来设置当前容器的父容器。
        // 因为我的是SpringBoot项目，所以容器是AnnotationConfigServletWebServerApplicationContext
        WebApplicationContext rootContext =
                WebApplicationContextUtils.getWebApplicationContext(getServletContext());
        WebApplicationContext wac = null;

        if (this.webApplicationContext != null) {
            // 如果当前容器已经存在，就使用该容器
            // 我debug过来，容器仍是AnnotationConfigServletWebServerApplicationContext，同rootContext，是同一个对象
            wac = this.webApplicationContext;
            if (wac instanceof ConfigurableWebApplicationContext) {
                ConfigurableWebApplicationContext cwac = (ConfigurableWebApplicationContext) wac;
                // 判断该容器是否刷新过，是AbstractApplicationContext的一个变量，调用refresh时设置为true
                // 即是否调用过refresh方法,这里直接跳出if判断，走下一个逻辑，因为springboot在启动的时候会调用
                if (!cwac.isActive()) {
                    // 如果父容器为空，设置父容器，该逻辑在这里不会走
                    if (cwac.getParent() == null) {
                        cwac.setParent(rootContext);
                    }
                    // 配置并刷新容器，该逻辑在这里不会走
                    configureAndRefreshWebApplicationContext(cwac);
                }
            }
        }
        if (wac == null) {
            //容器不存在，就通过FrameworkServlet的属性contextAttribute找容器
            wac = findWebApplicationContext();
        }
        if (wac == null) {
            // 容器仍不存在的话，创建一个容器
            wac = createWebApplicationContext(rootContext);
        }

        // refreshEventReceived默认为false
        // refreshEventReceived在FrameworkServlet的内部类ContextRefreshListener监听ContextRefreshedEvent事件设置为true的
        // 但在Springboot项目启动的时候并没有将该监听器添加进去，所以ContextRefreshListener的onApplicationEvent方法最终没有被调用
        // 该监听器可能是在哪里配置的，所以没有被加载进ContextRefreshedEvent监听器集合中，这里我们不深究，
        if (!this.refreshEventReceived) {
            synchronized (this.onRefreshMonitor) {
                // 模版方法，空实现，留给子类去覆写扩展
                onRefresh(wac);
            }
        }

        if (this.publishContext) {
            // Publish the context as a servlet context attribute.
            String attrName = getServletContextAttributeName();
            getServletContext().setAttribute(attrName, wac);
        }

        return wac;
    }

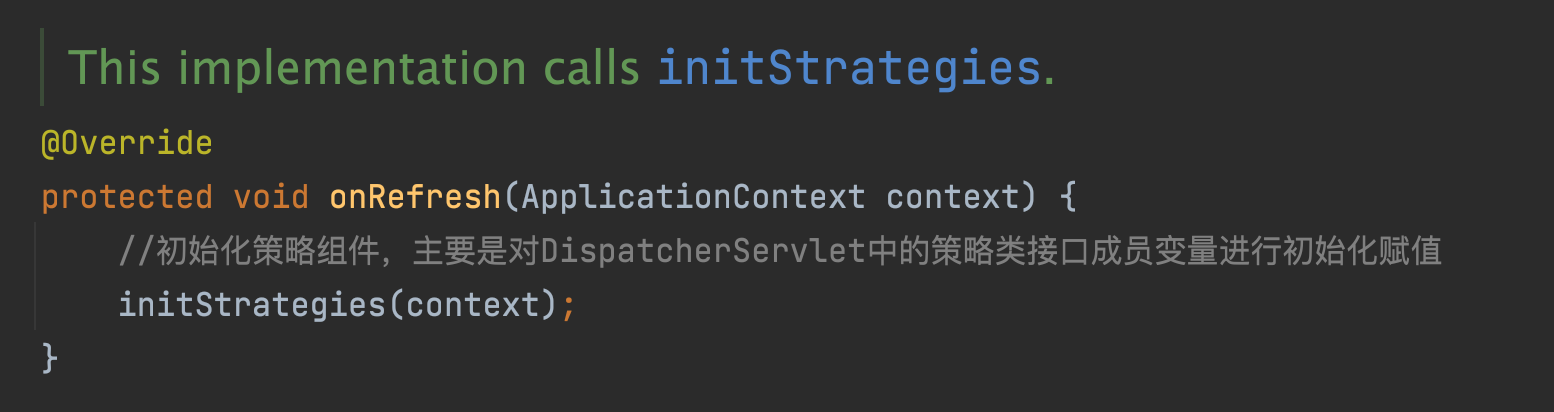

我们重点关注最后的onRefresh方法，该方法被子类DispatcherServlet覆写，用于初始化DispatcherServlet的功能组件，在DispatcherServlet的onRefresh方法中又调用了initStrategies方法，也是Spring代码的功能模块化体现，onRefresh是顶层逻辑，而同一个功能直接封装到单个方法中处理，增加可读性，后面onRefresh有其他功能逻辑处理就可以再写一个封装的方法，接下来我们在initStrategies方法就可以直观明了的看出也是这种写法。

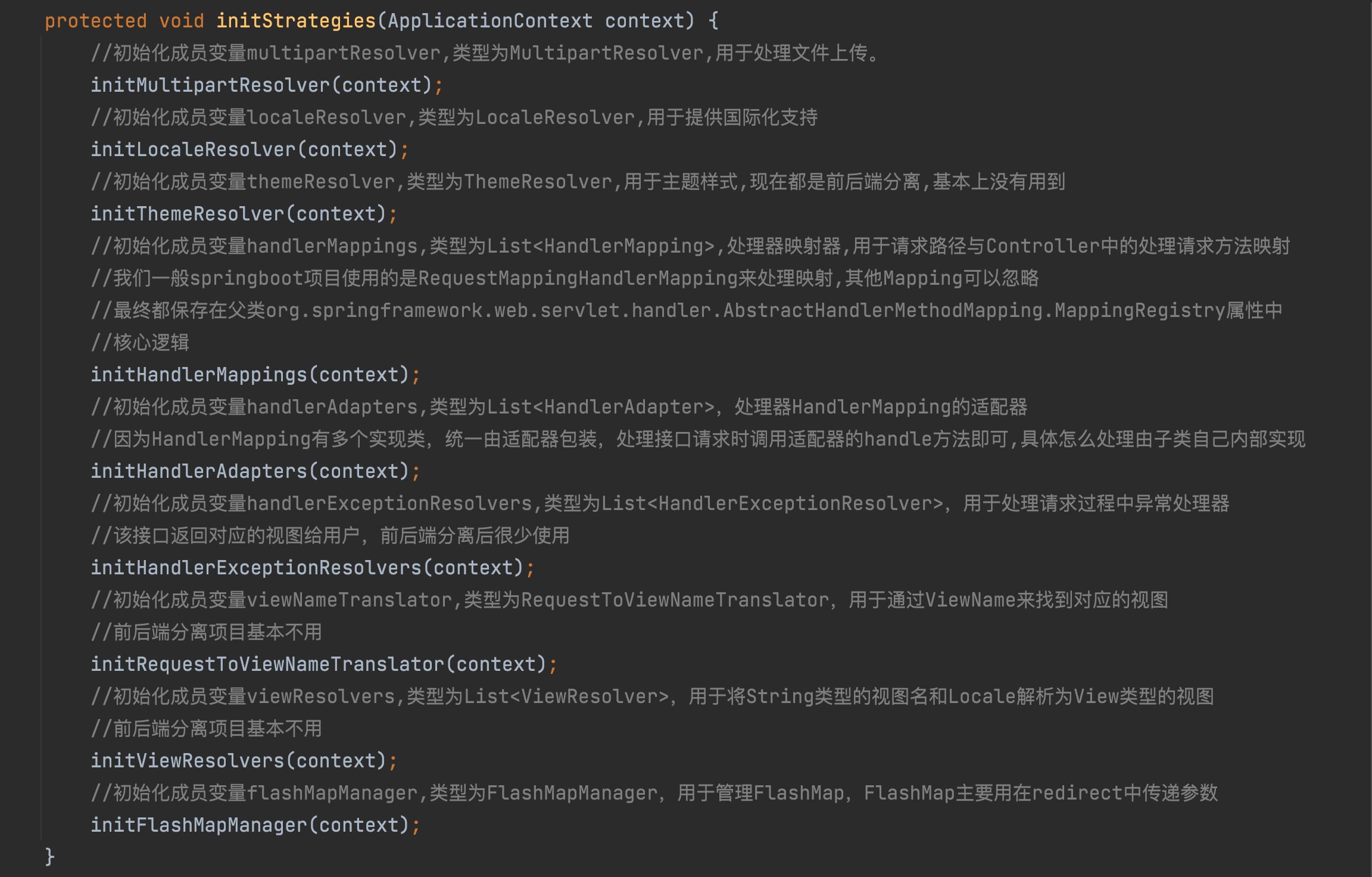

在initStrategies方法中看到，每一个功能组件的初始化都封装了一个方法，代码结构一目了然，可读性大大增加，其实这个方法就是对DispatcherServlet中的成员变量组件进行初始化，在DispatcherServlet处理请求的过程中扮演着不同的角色，下面把初始化的代码贴上，都是一个套路，从容器中获取注册的bean,如果没有就设置一个默认的组件类

private void initMultipartResolver(ApplicationContext context) {
        try {
            // 从容器中直接获取该类，MULTIPART_RESOLVER_BEAN_NAME = "multipartResolver"
            // multipartResolver 为 org.springframework.web.multipart.support.StandardServletMultipartResolver
            this.multipartResolver = context.getBean(MULTIPART_RESOLVER_BEAN_NAME, MultipartResolver.class);
            if (logger.isTraceEnabled()) {
                logger.trace("Detected " + this.multipartResolver);
            }
            else if (logger.isDebugEnabled()) {
                logger.debug("Detected " + this.multipartResolver.getClass().getSimpleName());
            }
        }
        catch (NoSuchBeanDefinitionException ex) {
            // Default is no multipart resolver.
            this.multipartResolver = null;
            if (logger.isTraceEnabled()) {
                logger.trace("No MultipartResolver '" + MULTIPART_RESOLVER_BEAN_NAME + "' declared");
            }
        }

private void initLocaleResolver(ApplicationContext context) {
        try {
            // 从容器中直接获取该类，LOCALE_RESOLVER_BEAN_NAME = "localeResolver"
            // 在容器中没有获取到，进入catch中获取默认的组件
            // localeResolver 为 org.springframework.web.servlet.i18n.AcceptHeaderLocaleResolver
            this.localeResolver = context.getBean(LOCALE_RESOLVER_BEAN_NAME, LocaleResolver.class);
            if (logger.isTraceEnabled()) {
                logger.trace("Detected " + this.localeResolver);
            }
            else if (logger.isDebugEnabled()) {
                logger.debug("Detected " + this.localeResolver.getClass().getSimpleName());
            }
        }
        catch (NoSuchBeanDefinitionException ex) {
            // We need to use the default.
            this.localeResolver = getDefaultStrategy(context, LocaleResolver.class);
            if (logger.isTraceEnabled()) {
                logger.trace("No LocaleResolver '" + LOCALE_RESOLVER_BEAN_NAME +
                        "': using default [" + this.localeResolver.getClass().getSimpleName() + "]");
            }
        }
    }

private void initThemeResolver(ApplicationContext context) {
        try {
            // 从容器中直接获取该类，THEME_RESOLVER_BEAN_NAME = "themeResolver"
            // 在容器中没有获取到，进入catch中获取默认的组件
            // themeResolver 为 org.springframework.web.servlet.theme.FixedThemeResolver
            this.themeResolver = context.getBean(THEME_RESOLVER_BEAN_NAME, ThemeResolver.class);
            if (logger.isTraceEnabled()) {
                logger.trace("Detected " + this.themeResolver);
            }
            else if (logger.isDebugEnabled()) {
                logger.debug("Detected " + this.themeResolver.getClass().getSimpleName());
            }
        }
        catch (NoSuchBeanDefinitionException ex) {
            // We need to use the default.
            this.themeResolver = getDefaultStrategy(context, ThemeResolver.class);
            if (logger.isTraceEnabled()) {
                logger.trace("No ThemeResolver '" + THEME_RESOLVER_BEAN_NAME +
                        "': using default [" + this.themeResolver.getClass().getSimpleName() + "]");
            }
        }
    }

private void initHandlerMappings(ApplicationContext context) {
        this.handlerMappings = null;

        //从容器中获取所有实现HandlerMapping接口的实现类
        //容器中没有的话就设置为默认处理器
        if (this.detectAllHandlerMappings) {
            // Find all HandlerMappings in the ApplicationContext, including ancestor contexts.
            Map<String, HandlerMapping> matchingBeans =
                    BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerMapping.class, true, false);
            if (!matchingBeans.isEmpty()) {
                this.handlerMappings = new ArrayList<>(matchingBeans.values());
                // We keep HandlerMappings in sorted order.
                AnnotationAwareOrderComparator.sort(this.handlerMappings);
            }
        }
        else {
            try {
                HandlerMapping hm = context.getBean(HANDLER_MAPPING_BEAN_NAME, HandlerMapping.class);
                this.handlerMappings = Collections.singletonList(hm);
            }
            catch (NoSuchBeanDefinitionException ex) {
                // Ignore, we'll add a default HandlerMapping later.
            }
        }

        // Ensure we have at least one HandlerMapping, by registering
        // a default HandlerMapping if no other mappings are found.
        if (this.handlerMappings == null) {
            this.handlerMappings = getDefaultStrategies(context, HandlerMapping.class);
            if (logger.isTraceEnabled()) {
                logger.trace("No HandlerMappings declared for servlet '" + getServletName() +
                        "': using default strategies from DispatcherServlet.properties");
            }
        }
    }

private void initHandlerAdapters(ApplicationContext context) {
        this.handlerAdapters = null;

        if (this.detectAllHandlerAdapters) {
            // Find all HandlerAdapters in the ApplicationContext, including ancestor contexts.
            Map<String, HandlerAdapter> matchingBeans =
                    BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerAdapter.class, true, false);
            if (!matchingBeans.isEmpty()) {
                this.handlerAdapters = new ArrayList<>(matchingBeans.values());
                // We keep HandlerAdapters in sorted order.
                AnnotationAwareOrderComparator.sort(this.handlerAdapters);
            }
        }
        else {
            try {
                HandlerAdapter ha = context.getBean(HANDLER_ADAPTER_BEAN_NAME, HandlerAdapter.class);
                this.handlerAdapters = Collections.singletonList(ha);
            }
            catch (NoSuchBeanDefinitionException ex) {
                // Ignore, we'll add a default HandlerAdapter later.
            }
        }

        // Ensure we have at least some HandlerAdapters, by registering
        // default HandlerAdapters if no other adapters are found.
        if (this.handlerAdapters == null) {
            this.handlerAdapters = getDefaultStrategies(context, HandlerAdapter.class);
            if (logger.isTraceEnabled()) {
                logger.trace("No HandlerAdapters declared for servlet '" + getServletName() +
                        "': using default strategies from DispatcherServlet.properties");
            }
        }
    }

private void initHandlerExceptionResolvers(ApplicationContext context) {
        //从容器中获取所有实现HandlerExceptionResolver接口的实现类
        //容器中没有的话就设置为默认的异常处理器
        this.handlerExceptionResolvers = null;

        if (this.detectAllHandlerExceptionResolvers) {
            // Find all HandlerExceptionResolvers in the ApplicationContext, including ancestor contexts.
            Map<String, HandlerExceptionResolver> matchingBeans = BeanFactoryUtils
                    .beansOfTypeIncludingAncestors(context, HandlerExceptionResolver.class, true, false);
            if (!matchingBeans.isEmpty()) {
                this.handlerExceptionResolvers = new ArrayList<>(matchingBeans.values());
                // We keep HandlerExceptionResolvers in sorted order.
                AnnotationAwareOrderComparator.sort(this.handlerExceptionResolvers);
            }
        }
        else {
            try {
                HandlerExceptionResolver her =
                        context.getBean(HANDLER_EXCEPTION_RESOLVER_BEAN_NAME, HandlerExceptionResolver.class);
                this.handlerExceptionResolvers = Collections.singletonList(her);
            }
            catch (NoSuchBeanDefinitionException ex) {
                // Ignore, no HandlerExceptionResolver is fine too.
            }
        }

        // Ensure we have at least some HandlerExceptionResolvers, by registering
        // default HandlerExceptionResolvers if no other resolvers are found.
        if (this.handlerExceptionResolvers == null) {
            this.handlerExceptionResolvers = getDefaultStrategies(context, HandlerExceptionResolver.class);
            if (logger.isTraceEnabled()) {
                logger.trace("No HandlerExceptionResolvers declared in servlet '" + getServletName() +
                        "': using default strategies from DispatcherServlet.properties");
            }
        }
    }

private void initRequestToViewNameTranslator(ApplicationContext context) {
        try {
            this.viewNameTranslator =
                    context.getBean(REQUEST_TO_VIEW_NAME_TRANSLATOR_BEAN_NAME, RequestToViewNameTranslator.class);
            if (logger.isTraceEnabled()) {
                logger.trace("Detected " + this.viewNameTranslator.getClass().getSimpleName());
            }
            else if (logger.isDebugEnabled()) {
                logger.debug("Detected " + this.viewNameTranslator);
            }
        }
        catch (NoSuchBeanDefinitionException ex) {
            // We need to use the default.
            this.viewNameTranslator = getDefaultStrategy(context, RequestToViewNameTranslator.class);
            if (logger.isTraceEnabled()) {
                logger.trace("No RequestToViewNameTranslator '" + REQUEST_TO_VIEW_NAME_TRANSLATOR_BEAN_NAME +
                        "': using default [" + this.viewNameTranslator.getClass().getSimpleName() + "]");
            }
        }
    }

private void initViewResolvers(ApplicationContext context) {
        this.viewResolvers = null;

        if (this.detectAllViewResolvers) {
            // Find all ViewResolvers in the ApplicationContext, including ancestor contexts.
            Map<String, ViewResolver> matchingBeans =
                    BeanFactoryUtils.beansOfTypeIncludingAncestors(context, ViewResolver.class, true, false);
            if (!matchingBeans.isEmpty()) {
                this.viewResolvers = new ArrayList<>(matchingBeans.values());
                // We keep ViewResolvers in sorted order.
                AnnotationAwareOrderComparator.sort(this.viewResolvers);
            }
        }
        else {
            try {
                ViewResolver vr = context.getBean(VIEW_RESOLVER_BEAN_NAME, ViewResolver.class);
                this.viewResolvers = Collections.singletonList(vr);
            }
            catch (NoSuchBeanDefinitionException ex) {
                // Ignore, we'll add a default ViewResolver later.
            }
        }

        // Ensure we have at least one ViewResolver, by registering
        // a default ViewResolver if no other resolvers are found.
        if (this.viewResolvers == null) {
            this.viewResolvers = getDefaultStrategies(context, ViewResolver.class);
            if (logger.isTraceEnabled()) {
                logger.trace("No ViewResolvers declared for servlet '" + getServletName() +
                        "': using default strategies from DispatcherServlet.properties");
            }
        }
    }

private void initFlashMapManager(ApplicationContext context) {
        try {
            this.flashMapManager = context.getBean(FLASH_MAP_MANAGER_BEAN_NAME, FlashMapManager.class);
            if (logger.isTraceEnabled()) {
                logger.trace("Detected " + this.flashMapManager.getClass().getSimpleName());
            }
            else if (logger.isDebugEnabled()) {
                logger.debug("Detected " + this.flashMapManager);
            }
        }
        catch (NoSuchBeanDefinitionException ex) {
            // We need to use the default.
            this.flashMapManager = getDefaultStrategy(context, FlashMapManager.class);
            if (logger.isTraceEnabled()) {
                logger.trace("No FlashMapManager '" + FLASH_MAP_MANAGER_BEAN_NAME +
                        "': using default [" + this.flashMapManager.getClass().getSimpleName() + "]");
            }
        }
    }
