大纲

软件升级是一件非常常见的事，本节我们将尝试使用Deployment进行软件升级。

更新simple_http版本

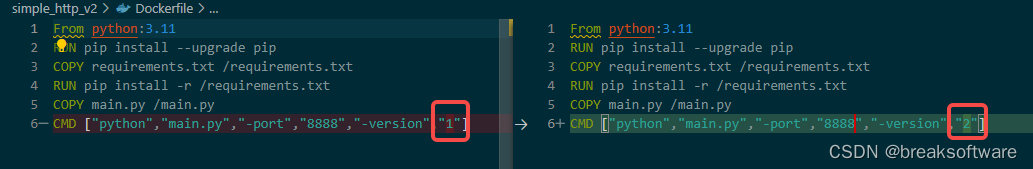

我们还是借助《研发工程师玩转Kubernetes——构建、推送自定义镜像》中的代码库，只是稍微修改一下Dockerfile——将版本变成2。

# Dockerfile
From python:3.11
RUN pip install --upgrade pip
COPY requirements.txt /requirements.txt
RUN pip install -r /requirements.txt
COPY main.py /main.py
CMD ["python","main.py","-port","8888","-version","2"]

在这里插入图片描述

构建镜像

docker build -t simple_http:v2 .

Sending build context to Docker daemon  16.25MB
Step 1/6 : From python:3.11
 ---> 815c8c75dfc0
Step 2/6 : RUN pip install --upgrade pip
 ---> Using cache
 ---> e26af84d8b3e
Step 3/6 : COPY requirements.txt /requirements.txt
 ---> Using cache
 ---> 9e14379efd70
Step 4/6 : RUN pip install -r /requirements.txt
 ---> Using cache
 ---> 964f97edf3b5
Step 5/6 : COPY main.py /main.py
 ---> Using cache
 ---> 183ac054cd4d
Step 6/6 : CMD ["python","main.py","-port","8888","-version","2"]
 ---> Running in 1fc7e3afb2c9
Removing intermediate container 1fc7e3afb2c9
 ---> 57ab1ae7f5de
Successfully built 57ab1ae7f5de
Successfully tagged simple_http:v2

推送镜像

docker tag simple_http:v2 localhost:32000/simple_http:v2

docker push localhost:32000/simple_http:v2

上线老版本

直接借用《研发工程师玩转Kubernetes——使用Deployment进行多副本维护》的案例。具体请转到这篇文章。只要部署了2个Pod即可。
使用下面指令查看Pod

kubectl describe pod

Name:             simple-http-deployment-5995f574dc-lzs8v
Namespace:        default
Priority:         0
Service Account:  default
Node:             fangliang-virtual-machine/172.30.45.36
Start Time:       Mon, 22 May 2023 21:27:01 +0800
Labels:           app=simple_http
                  pod-template-hash=5995f574dc
Annotations:      cni.projectcalico.org/containerID: 311e41d76878cb77546a754ad1123556a58c3b3b3ea087634d80dcf6f12240e8
                  cni.projectcalico.org/podIP: 10.1.62.150/32
                  cni.projectcalico.org/podIPs: 10.1.62.150/32
Status:           Running
IP:               10.1.62.150
IPs:
  IP:           10.1.62.150
Controlled By:  ReplicaSet/simple-http-deployment-5995f574dc
Containers:
  simple-http-container:
    Container ID:   containerd://5f722b33ba614ae1c4351567e0fb07946cb26b8529d55ab1ca9168f1af4563b8
    Image:          localhost:32000/simple_http:v1
    Image ID:       localhost:32000/simple_http@sha256:cbee584f83426593efb95a9e2213bb40143a1c86c3d217e65d30430033f846d4
    Port:           8888/TCP
    Host Port:      0/TCP
    State:          Running
      Started:      Mon, 22 May 2023 21:27:03 +0800
    Ready:          True
    Restart Count:  0
    Environment:    <none>
    Mounts:
      /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-62cr6 (ro)
Conditions:
  Type              Status
  Initialized       True
  Ready             True
  ContainersReady   True
  PodScheduled      True
Volumes:
  kube-api-access-62cr6:
    Type:                    Projected (a volume that contains injected data from multiple sources)
    TokenExpirationSeconds:  3607
    ConfigMapName:           kube-root-ca.crt
    ConfigMapOptional:       <nil>
    DownwardAPI:             true
QoS Class:                   BestEffort
Node-Selectors:              <none>
Tolerations:                 node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
                             node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:
  Type    Reason     Age   From               Message
  ----    ------     ----  ----               -------
  Normal  Scheduled  22s   default-scheduler  Successfully assigned default/simple-http-deployment-5995f574dc-lzs8v to fangliang-virtual-machine
  Normal  Pulled     22s   kubelet            Container image "localhost:32000/simple_http:v1" already present on machine
  Normal  Created    22s   kubelet            Created container simple-http-container
  Normal  Started    21s   kubelet            Started container simple-http-container


Name:             simple-http-deployment-5995f574dc-l7zwv
Namespace:        default
Priority:         0
Service Account:  default
Node:             fangliang-virtual-machine/172.30.45.36
Start Time:       Mon, 22 May 2023 21:27:01 +0800
Labels:           app=simple_http
                  pod-template-hash=5995f574dc
Annotations:      cni.projectcalico.org/containerID: 613a62e30933c3715b43de4e83ccf1baa93e53ac1434cf63dd93178a5214c992
                  cni.projectcalico.org/podIP: 10.1.62.149/32
                  cni.projectcalico.org/podIPs: 10.1.62.149/32
Status:           Running
IP:               10.1.62.149
IPs:
  IP:           10.1.62.149
Controlled By:  ReplicaSet/simple-http-deployment-5995f574dc
Containers:
  simple-http-container:
    Container ID:   containerd://e52726f94486008b8bd375e0dac3243ad534186ea63d7ca5ae522c68fb05d89a
    Image:          localhost:32000/simple_http:v1
    Image ID:       localhost:32000/simple_http@sha256:cbee584f83426593efb95a9e2213bb40143a1c86c3d217e65d30430033f846d4
    Port:           8888/TCP
    Host Port:      0/TCP
    State:          Running
      Started:      Mon, 22 May 2023 21:27:03 +0800
    Ready:          True
    Restart Count:  0
    Environment:    <none>
    Mounts:
      /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-5hpdv (ro)
Conditions:
  Type              Status
  Initialized       True
  Ready             True
  ContainersReady   True
  PodScheduled      True
Volumes:
  kube-api-access-5hpdv:
    Type:                    Projected (a volume that contains injected data from multiple sources)
    TokenExpirationSeconds:  3607
    ConfigMapName:           kube-root-ca.crt
    ConfigMapOptional:       <nil>
    DownwardAPI:             true
QoS Class:                   BestEffort
Node-Selectors:              <none>
Tolerations:                 node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
                             node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:
  Type    Reason     Age   From               Message
  ----    ------     ----  ----               -------
  Normal  Scheduled  22s   default-scheduler  Successfully assigned default/simple-http-deployment-5995f574dc-l7zwv to fangliang-virtual-machine
  Normal  Pulled     22s   kubelet            Container image "localhost:32000/simple_http:v1" already present on machine
  Normal  Created    22s   kubelet            Created container simple-http-container
  Normal  Started    21s   kubelet            Started container simple-http-container

可以看到两个Pod（simple-http-deployment-5995f574dc-lzs8v和simple-http-deployment-5995f574dc-l7zwv）对应的Image都是localhost:32000/simple_http:v1。

查看Deployment

kubectl describe deployments.apps simple-http-deployment

Name:                   simple-http-deployment
Namespace:              default
CreationTimestamp:      Mon, 22 May 2023 21:27:01 +0800
Labels:                 <none>
Annotations:            deployment.kubernetes.io/revision: 1
Selector:               app=simple_http
Replicas:               2 desired | 2 updated | 2 total | 2 available | 0 unavailable
StrategyType:           RollingUpdate
MinReadySeconds:        0
RollingUpdateStrategy:  25% max unavailable, 25% max surge
Pod Template:
  Labels:  app=simple_http
  Containers:
   simple-http-container:
    Image:        localhost:32000/simple_http:v1
    Port:         8888/TCP
    Host Port:    0/TCP
    Environment:  <none>
    Mounts:       <none>
  Volumes:        <none>
Conditions:
  Type           Status  Reason
  ----           ------  ------
  Available      True    MinimumReplicasAvailable
  Progressing    True    NewReplicaSetAvailable
OldReplicaSets:  <none>
NewReplicaSet:   simple-http-deployment-5995f574dc (2/2 replicas created)
Events:
  Type    Reason             Age    From                   Message
  ----    ------             ----   ----                   -------
  Normal  ScalingReplicaSet  3m16s  deployment-controller  Scaled up replica set simple-http-deployment-5995f574dc to 2

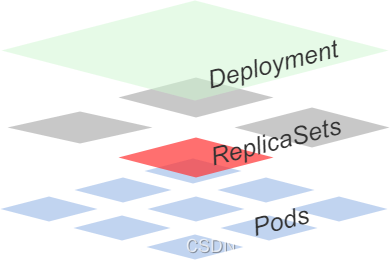

此时我们看到该Deployment管理的ReplicaSet是simple-http-deployment-5995f574dc。

更新

kubectl set image deployments/simple-http-deployment simple-http-container=localhost:32000/simple_http:v2

deployment.apps/simple-http-deployment image updated

我们查看下Pod

Name:             simple-http-deployment-576c865db-k48mn
Namespace:        default
Priority:         0
Service Account:  default
Node:             fangliang-virtual-machine/172.30.45.36
Start Time:       Mon, 22 May 2023 21:32:16 +0800
Labels:           app=simple_http
                  pod-template-hash=576c865db
Annotations:      cni.projectcalico.org/containerID: e35c8331fb45eeef955671d86bcd5156082246875362f2a87b87ac8be05fdfe6
                  cni.projectcalico.org/podIP: 10.1.62.147/32
                  cni.projectcalico.org/podIPs: 10.1.62.147/32
Status:           Running
IP:               10.1.62.147
IPs:
  IP:           10.1.62.147
Controlled By:  ReplicaSet/simple-http-deployment-576c865db
Containers:
  simple-http-container:
    Container ID:   containerd://ffe70fe17696d901bb2a460469ae318bccfac95e0fe6f0ca0e157308641615d1
    Image:          localhost:32000/simple_http:v2
    Image ID:       localhost:32000/simple_http@sha256:213ba4174b3afac02b48af19258c03b32a426d31ca27742e05aacea7a7a6edc1
    Port:           8888/TCP
    Host Port:      0/TCP
    State:          Running
      Started:      Mon, 22 May 2023 21:32:18 +0800
    Ready:          True
    Restart Count:  0
    Environment:    <none>
    Mounts:
      /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-5z9dp (ro)
Conditions:
  Type              Status
  Initialized       True
  Ready             True
  ContainersReady   True
  PodScheduled      True
Volumes:
  kube-api-access-5z9dp:
    Type:                    Projected (a volume that contains injected data from multiple sources)
    TokenExpirationSeconds:  3607
    ConfigMapName:           kube-root-ca.crt
    ConfigMapOptional:       <nil>
    DownwardAPI:             true
QoS Class:                   BestEffort
Node-Selectors:              <none>
Tolerations:                 node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
                             node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:
  Type    Reason     Age   From               Message
  ----    ------     ----  ----               -------
  Normal  Scheduled  38s   default-scheduler  Successfully assigned default/simple-http-deployment-576c865db-k48mn to fangliang-virtual-machine
  Normal  Pulling    38s   kubelet            Pulling image "localhost:32000/simple_http:v2"
  Normal  Pulled     38s   kubelet            Successfully pulled image "localhost:32000/simple_http:v2" in 119.472724ms (119.476524ms including waiting)
  Normal  Created    38s   kubelet            Created container simple-http-container
  Normal  Started    37s   kubelet            Started container simple-http-container


Name:             simple-http-deployment-576c865db-bjwns
Namespace:        default
Priority:         0
Service Account:  default
Node:             fangliang-virtual-machine/172.30.45.36
Start Time:       Mon, 22 May 2023 21:32:18 +0800
Labels:           app=simple_http
                  pod-template-hash=576c865db
Annotations:      cni.projectcalico.org/containerID: 11f76fe799f1b5a3d4899305e9443d2bcedc5f815c28c8c44f8664f93cc150e4
                  cni.projectcalico.org/podIP: 10.1.62.156/32
                  cni.projectcalico.org/podIPs: 10.1.62.156/32
Status:           Running
IP:               10.1.62.156
IPs:
  IP:           10.1.62.156
Controlled By:  ReplicaSet/simple-http-deployment-576c865db
Containers:
  simple-http-container:
    Container ID:   containerd://2459b017ee5fb29ac61f488ffc0eabb0016f5a18bf6b031345480d9d2fb3c84a
    Image:          localhost:32000/simple_http:v2
    Image ID:       localhost:32000/simple_http@sha256:213ba4174b3afac02b48af19258c03b32a426d31ca27742e05aacea7a7a6edc1
    Port:           8888/TCP
    Host Port:      0/TCP
    State:          Running
      Started:      Mon, 22 May 2023 21:32:19 +0800
    Ready:          True
    Restart Count:  0
    Environment:    <none>
    Mounts:
      /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-4lp5j (ro)
Conditions:
  Type              Status
  Initialized       True
  Ready             True
  ContainersReady   True
  PodScheduled      True
Volumes:
  kube-api-access-4lp5j:
    Type:                    Projected (a volume that contains injected data from multiple sources)
    TokenExpirationSeconds:  3607
    ConfigMapName:           kube-root-ca.crt
    ConfigMapOptional:       <nil>
    DownwardAPI:             true
QoS Class:                   BestEffort
Node-Selectors:              <none>
Tolerations:                 node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
                             node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:
  Type    Reason     Age   From               Message
  ----    ------     ----  ----               -------
  Normal  Scheduled  37s   default-scheduler  Successfully assigned default/simple-http-deployment-576c865db-bjwns to fangliang-virtual-machine
  Normal  Pulled     36s   kubelet            Container image "localhost:32000/simple_http:v2" already present on machine
  Normal  Created    36s   kubelet            Created container simple-http-container
  Normal  Started    36s   kubelet            Started container simple-http-container

老的Pod（simple-http-deployment-5995f574dc-lzs8v和simple-http-deployment-5995f574dc-l7zwv）被删除了，新的Pod（ simple-http-deployment-576c865db-k48mn和simple-http-deployment-576c865db-bjwns）被创建出来。

查看ReplicaSet

kubectl describe replicasets.apps

Name:           simple-http-deployment-576c865db
Namespace:      default
Selector:       app=simple_http,pod-template-hash=576c865db
Labels:         app=simple_http
                pod-template-hash=576c865db
Annotations:    deployment.kubernetes.io/desired-replicas: 2
                deployment.kubernetes.io/max-replicas: 3
                deployment.kubernetes.io/revision: 2
Controlled By:  Deployment/simple-http-deployment
Replicas:       2 current / 2 desired
Pods Status:    2 Running / 0 Waiting / 0 Succeeded / 0 Failed
Pod Template:
  Labels:  app=simple_http
           pod-template-hash=576c865db
  Containers:
   simple-http-container:
    Image:        localhost:32000/simple_http:v2
    Port:         8888/TCP
    Host Port:    0/TCP
    Environment:  <none>
    Mounts:       <none>
  Volumes:        <none>
Events:
  Type    Reason            Age   From                   Message
  ----    ------            ----  ----                   -------
  Normal  SuccessfulCreate  97s   replicaset-controller  Created pod: simple-http-deployment-576c865db-k48mn
  Normal  SuccessfulCreate  95s   replicaset-controller  Created pod: simple-http-deployment-576c865db-bjwns


Name:           simple-http-deployment-5995f574dc
Namespace:      default
Selector:       app=simple_http,pod-template-hash=5995f574dc
Labels:         app=simple_http
                pod-template-hash=5995f574dc
Annotations:    deployment.kubernetes.io/desired-replicas: 2
                deployment.kubernetes.io/max-replicas: 3
                deployment.kubernetes.io/revision: 1
Controlled By:  Deployment/simple-http-deployment
Replicas:       0 current / 0 desired
Pods Status:    0 Running / 0 Waiting / 0 Succeeded / 0 Failed
Pod Template:
  Labels:  app=simple_http
           pod-template-hash=5995f574dc
  Containers:
   simple-http-container:
    Image:        localhost:32000/simple_http:v1
    Port:         8888/TCP
    Host Port:    0/TCP
    Environment:  <none>
    Mounts:       <none>
  Volumes:        <none>
Events:
  Type    Reason            Age   From                   Message
  ----    ------            ----  ----                   -------
  Normal  SuccessfulDelete  95s   replicaset-controller  Deleted pod: simple-http-deployment-5995f574dc-l7zwv
  Normal  SuccessfulDelete  93s   replicaset-controller  Deleted pod: simple-http-deployment-5995f574dc-lzs8v

可以看到老的ReplicaSet在删除老Pod，新的则创建了新的Pod。
再过段时间执行上述命令，可以看到老的ReplicaSet并没有被删除。

Name:           simple-http-deployment-576c865db
Namespace:      default
Selector:       app=simple_http,pod-template-hash=576c865db
Labels:         app=simple_http
                pod-template-hash=576c865db
Annotations:    deployment.kubernetes.io/desired-replicas: 2
                deployment.kubernetes.io/max-replicas: 3
                deployment.kubernetes.io/revision: 2
Controlled By:  Deployment/simple-http-deployment
Replicas:       2 current / 2 desired
Pods Status:    2 Running / 0 Waiting / 0 Succeeded / 0 Failed
Pod Template:
  Labels:  app=simple_http
           pod-template-hash=576c865db
  Containers:
   simple-http-container:
    Image:        localhost:32000/simple_http:v2
    Port:         8888/TCP
    Host Port:    0/TCP
    Environment:  <none>
    Mounts:       <none>
  Volumes:        <none>
Events:           <none>


Name:           simple-http-deployment-5995f574dc
Namespace:      default
Selector:       app=simple_http,pod-template-hash=5995f574dc
Labels:         app=simple_http
                pod-template-hash=5995f574dc
Annotations:    deployment.kubernetes.io/desired-replicas: 2
                deployment.kubernetes.io/max-replicas: 3
                deployment.kubernetes.io/revision: 1
Controlled By:  Deployment/simple-http-deployment
Replicas:       0 current / 0 desired
Pods Status:    0 Running / 0 Waiting / 0 Succeeded / 0 Failed
Pod Template:
  Labels:  app=simple_http
           pod-template-hash=5995f574dc
  Containers:
   simple-http-container:
    Image:        localhost:32000/simple_http:v1
    Port:         8888/TCP
    Host Port:    0/TCP
    Environment:  <none>
    Mounts:       <none>
  Volumes:        <none>
Events:           <none>

查看Deployment更新后信息

kubectl describe deployments.apps

Name:                   simple-http-deployment
Namespace:              default
CreationTimestamp:      Mon, 22 May 2023 21:27:01 +0800
Labels:                 <none>
Annotations:            deployment.kubernetes.io/revision: 2
Selector:               app=simple_http
Replicas:               2 desired | 2 updated | 2 total | 2 available | 0 unavailable
StrategyType:           RollingUpdate
MinReadySeconds:        0
RollingUpdateStrategy:  25% max unavailable, 25% max surge
Pod Template:
  Labels:  app=simple_http
  Containers:
   simple-http-container:
    Image:        localhost:32000/simple_http:v2
    Port:         8888/TCP
    Host Port:    0/TCP
    Environment:  <none>
    Mounts:       <none>
  Volumes:        <none>
Conditions:
  Type           Status  Reason
  ----           ------  ------
  Available      True    MinimumReplicasAvailable
  Progressing    True    NewReplicaSetAvailable
OldReplicaSets:  <none>
NewReplicaSet:   simple-http-deployment-576c865db (2/2 replicas created)
Events:          <none>

可以看到NewReplicaSet被更新为新的ReplicaSet simple-http-deployment-576c865db 。老的ReplicaSet simple-http-deployment-5995f574dcz在这儿没有体现。

回滚

 kubectl rollout undo deployment simple-http-deployment

deployment.apps/simple-http-deployment rolled back

查看Deployment

kubectl describe deployments.apps

Name:                   simple-http-deployment
Namespace:              default
CreationTimestamp:      Mon, 22 May 2023 21:27:01 +0800
Labels:                 <none>
Annotations:            deployment.kubernetes.io/revision: 3
Selector:               app=simple_http
Replicas:               2 desired | 2 updated | 2 total | 2 available | 0 unavailable
StrategyType:           RollingUpdate
MinReadySeconds:        0
RollingUpdateStrategy:  25% max unavailable, 25% max surge
Pod Template:
  Labels:  app=simple_http
  Containers:
   simple-http-container:
    Image:        localhost:32000/simple_http:v1
    Port:         8888/TCP
    Host Port:    0/TCP
    Environment:  <none>
    Mounts:       <none>
  Volumes:        <none>
Conditions:
  Type           Status  Reason
  ----           ------  ------
  Available      True    MinimumReplicasAvailable
  Progressing    True    NewReplicaSetAvailable
OldReplicaSets:  <none>
NewReplicaSet:   simple-http-deployment-5995f574dc (2/2 replicas created)
Events:
  Type    Reason             Age   From                   Message
  ----    ------             ----  ----                   -------
  Normal  ScalingReplicaSet  4s    deployment-controller  Scaled up replica set simple-http-deployment-5995f574dc to 1 from 0
  Normal  ScalingReplicaSet  3s    deployment-controller  Scaled down replica set simple-http-deployment-576c865db to 1 from 2
  Normal  ScalingReplicaSet  3s    deployment-controller  Scaled up replica set simple-http-deployment-5995f574dc to 2 from 1
  Normal  ScalingReplicaSet  1s    deployment-controller  Scaled down replica set simple-http-deployment-576c865db to 0 from 1

可以看到最开始V1版本对应的ReplicaSet simple-http-deployment-5995f574dc又被启用，镜像也变成了三个版本localhost:32000/simple_http:v1。

查看ReplicaSet

kubectl describe replicasets.apps

Name:           simple-http-deployment-5995f574dc
Namespace:      default
Selector:       app=simple_http,pod-template-hash=5995f574dc
Labels:         app=simple_http
                pod-template-hash=5995f574dc
Annotations:    deployment.kubernetes.io/desired-replicas: 2
                deployment.kubernetes.io/max-replicas: 3
                deployment.kubernetes.io/revision: 3
                deployment.kubernetes.io/revision-history: 1
Controlled By:  Deployment/simple-http-deployment
Replicas:       2 current / 2 desired
Pods Status:    2 Running / 0 Waiting / 0 Succeeded / 0 Failed
Pod Template:
  Labels:  app=simple_http
           pod-template-hash=5995f574dc
  Containers:
   simple-http-container:
    Image:        localhost:32000/simple_http:v1
    Port:         8888/TCP
    Host Port:    0/TCP
    Environment:  <none>
    Mounts:       <none>
  Volumes:        <none>
Events:
  Type    Reason            Age   From                   Message
  ----    ------            ----  ----                   -------
  Normal  SuccessfulCreate  24s   replicaset-controller  Created pod: simple-http-deployment-5995f574dc-6dmtt
  Normal  SuccessfulCreate  23s   replicaset-controller  Created pod: simple-http-deployment-5995f574dc-547sp


Name:           simple-http-deployment-576c865db
Namespace:      default
Selector:       app=simple_http,pod-template-hash=576c865db
Labels:         app=simple_http
                pod-template-hash=576c865db
Annotations:    deployment.kubernetes.io/desired-replicas: 2
                deployment.kubernetes.io/max-replicas: 3
                deployment.kubernetes.io/revision: 2
Controlled By:  Deployment/simple-http-deployment
Replicas:       0 current / 0 desired
Pods Status:    2 Running / 0 Waiting / 0 Succeeded / 0 Failed
Pod Template:
  Labels:  app=simple_http
           pod-template-hash=576c865db
  Containers:
   simple-http-container:
    Image:        localhost:32000/simple_http:v2
    Port:         8888/TCP
    Host Port:    0/TCP
    Environment:  <none>
    Mounts:       <none>
  Volumes:        <none>
Events:
  Type    Reason            Age   From                   Message
  ----    ------            ----  ----                   -------
  Normal  SuccessfulDelete  23s   replicaset-controller  Deleted pod: simple-http-deployment-576c865db-bjwns
  Normal  SuccessfulDelete  21s   replicaset-controller  Deleted pod: simple-http-deployment-576c865db-k48mn

可以看到V2版本对应的ReplicaSet还存在。
这是否意味着再次回滚又会回滚到V2呢？是的。

再回滚

再将kubectl rollout undo deployment simple-http-deployment执行一遍，可以发现Deployment又启用了V2版本对应的simple-http-deployment-576c865db，弃用了V1版本对应的simple-http-deployment-5995f574dc。

kubectl describe replicasets.apps

Name:           simple-http-deployment-576c865db
Namespace:      default
Selector:       app=simple_http,pod-template-hash=576c865db
Labels:         app=simple_http
                pod-template-hash=576c865db
Annotations:    deployment.kubernetes.io/desired-replicas: 2
                deployment.kubernetes.io/max-replicas: 3
                deployment.kubernetes.io/revision: 4
                deployment.kubernetes.io/revision-history: 2
Controlled By:  Deployment/simple-http-deployment
Replicas:       2 current / 2 desired
Pods Status:    2 Running / 0 Waiting / 0 Succeeded / 0 Failed
Pod Template:
  Labels:  app=simple_http
           pod-template-hash=576c865db
  Containers:
   simple-http-container:
    Image:        localhost:32000/simple_http:v2
    Port:         8888/TCP
    Host Port:    0/TCP
    Environment:  <none>
    Mounts:       <none>
  Volumes:        <none>
Events:
  Type    Reason            Age   From                   Message
  ----    ------            ----  ----                   -------
  Normal  SuccessfulCreate  8s    replicaset-controller  Created pod: simple-http-deployment-576c865db-qm5gp
  Normal  SuccessfulCreate  7s    replicaset-controller  Created pod: simple-http-deployment-576c865db-bzbbw


Name:           simple-http-deployment-5995f574dc
Namespace:      default
Selector:       app=simple_http,pod-template-hash=5995f574dc
Labels:         app=simple_http
                pod-template-hash=5995f574dc
Annotations:    deployment.kubernetes.io/desired-replicas: 2
                deployment.kubernetes.io/max-replicas: 3
                deployment.kubernetes.io/revision: 3
                deployment.kubernetes.io/revision-history: 1
Controlled By:  Deployment/simple-http-deployment
Replicas:       0 current / 0 desired
Pods Status:    2 Running / 0 Waiting / 0 Succeeded / 0 Failed
Pod Template:
  Labels:  app=simple_http
           pod-template-hash=5995f574dc
  Containers:
   simple-http-container:
    Image:        localhost:32000/simple_http:v1
    Port:         8888/TCP
    Host Port:    0/TCP
    Environment:  <none>
    Mounts:       <none>
  Volumes:        <none>
Events:
  Type    Reason            Age   From                   Message
  ----    ------            ----  ----                   -------
  Normal  SuccessfulDelete  7s    replicaset-controller  Deleted pod: simple-http-deployment-5995f574dc-6dmtt
  Normal  SuccessfulDelete  5s    replicaset-controller  Deleted pod: simple-http-deployment-5995f574dc-547sp

通过这次实验，我们就更好理解Deployment是如何使用ReplicaSet来做版本管理的了。
在这里插入图片描述

K8S系列：Deployment更新、锁定、解锁、回滚版本
NIO4444
05-21 695
目录 暂停deployment更新（锁定，防止别人同时更新） 编辑deployment配置文件 查看Deployment更新历史版本 恢复deployment更新（解锁）​编辑 连续执行Deployment的更新 Deployment回滚到上一个版本 Deployment回滚到指定版本​编辑 暂停deployment更新（锁定，防止别人同时更新） 编辑deployment配置文件 查看Deployment更新历史版本 恢复deployment更新（解锁） ..
半导体研发AI智能体的“维护指南”：架构师的10个技巧
AI智能探索者的博客
08-20 761
想象你在搭一座100层的乐高塔，每一层都比上一层小10倍，最小的积木只有纳米大小——这就是半导体研发的日常：在指甲盖大小的晶圆上，刻下数十亿个晶体管，精度要求达到头发丝直径的万分之一。传统研发模式下，一个芯片从设计到量产需要3-5年，成本超10亿美元。而AI智能体就像“超级乐高助手”，能帮你自动规划搭建步骤、检测哪里搭歪了、预测哪层可能倒塌，让研发周期缩短30%以上。但这个“超级助手”有个脾气：如果你不管它，它会慢慢“失忆”（数据过时）、“变笨”（模型不适应新工艺）、“罢工”（系统兼容性问题）。
kubernetes-pod的升级与回滚
u_my_heart的博客
08-29 943
当集群中的某个服务需要升级时，我们需要停止目前与该服务相关的所有Pod，然后下载新版本镜像并创建新的Pod。如果集群规模比较大，则这个工作变成了一个挑战，而且先全部停止然后逐步升级的方式会导致较长时间的服务不可用。Kubernetes提供了滚动升级功能来解决上述问题。如果Pod是通过Deployment创建的，则用户可以在运行时修改Deployment的Pod定义（spec.template）或镜像名称，并应用到Deployment对象上，系统即可完成Deployment的自动更新操作。如果在更新过程中发生
Kubernetes版本升级方法
听海归雪的博客
02-28 2467
主要是介绍kubernetes的版本升级方法，从v1.22.3升级到v1.22.17版本
云原生之Kubernetes：7、Deployment控制器的更新机制
LQ的博客
08-23 1450
Kubernetes中Deployment控制器更新机制
[置顶] kubernetes资源类型--deployment
ddk4044的博客
08-01 717
Deployment（中文意思为部署、调度）提供了一种更加简单的更新RC和Pod的机制，K8S版本1.2实现的。通过在Deployment中描述所期望的集群状态，Deployment Controller会将现在的集群状态在一个可控的速度下逐步更新成所期望的集群状态。Deployment主要职责同样是为了保证pod的数量和健康，90%的功能与RC完全一样，可以看做新一代的RC。 功能...
Kubernetes从小白到CKA系列
许少年的读书笔记
04-03 696
本文大部分是原理，后期打算开个专栏，咱也玩玩知识付费~ 一、发展史 在云计算领域有几个很常见的词汇：IaaS、PaaS、SaaS。IaaS就是基础平台即服务，国内有阿里云等；PaaS是平台即服务，在早些时候新浪云SAE较为有名；SaaS就是软件即服务，最大的Office厂商MS的Office365就是一个很好的代表。在最开始的时候PaaS基本就是人肉运维，慢慢的又出现了一系列的自动化工具，再后来专...
干货|如何步入Service Mesh微服务架构时代
无敌码农
03-19 466
大家好！我是"无敌码农"，今天要和大家分享的是关于新一代微服务架构——Service Mesh的具体玩法！在微服务架构盛行的今天，作为一名互联网技术从业人员，对于微服务的概...
解析Kubernetes部署及更新Deployment
weixin_44519337的博客
11-07 2887
例如，假定你在创建一个 Deployment 以生成 nginx:1.14.2 的 5 个副本，但接下来 更新 Deployment 以创建 5 个 nginx:1.16.1 的副本，而此时只有 3 个 nginx:1.14.2 副本已创建。例如，如果仔细查看上述 Deployment ，将看到它首先创建了一个新的 Pod，然后删除旧的 Pod， 并创建了新的 Pod。Deployment 控制器每次注意到新的 Deployment 时，都会创建一个 ReplicaSet 以启动所需的 Pod。
安装/更新 kubectl命令版本
云原生，DevOps，Kubernetes
12-15 2539
kubectl 命令与kube-api版本不宜差异过大。最好保持一直。所以当kubernetes版本升级后，最好同步升级kubectl命令。 命令如下： curl -LO https://storage.googleapis.com/kubernetes-release/release/v1.20.7/bin/linux/amd64/kubectl mv kubectl /usr/local/bin/ chmod -x /usr/local/bin/ ...
Docker Containers_Build and Deploy with Kubernetes
01-04
Docker Containers_Build and Deploy with Kubernetes, Flannel, Cockpit, and Atomic-Prentice Hall(2015).pdf
Kubernetes之版本升级
qq_33906471的博客
05-13 614
当我们要用到新版本的一些功能和特性的时候或者当前版本太旧无法满足需要的时候我们势必要对Kubernetes集群进行升级。
Kubernetes详解（二十四）——Deployment控制器更新实战与查看
永远是少年
04-28 2121
今天继续给大家介绍Linux运维相关知识，本文主要内容是Deployment控制器更新实战与过程分析。 一、Deployment控制器更新准备 二、Deployment控制器更新 三、Deployment控制更新查看 四、Deployment控制更新过程分析
k8s--(8)Deployment：应用升级
weston666的博客
05-13 1096
容器有个属性imagePullPolicy，默认是IfNotPresent，也就是说，当本节点有这个tag的镜像时，不会拉新的镜像，所以只改镜像内容并推送到镜像仓库是没用的，当然，将imagePullPolicy改为Always即可。（2）所有的请求都是由kubectl客户端发送给API服务器的，也就是说伸缩请求是由kubectl客户端执行的，不是k8s master，这带来的问题就是升级中间出现问题，升级进程就会中断，pod和RC的状态处于中间状态。
Kubernetes应用编排与管理 —— Deployment升级策略
2301_78834737的博客
07-10 1324
Deployment升级策略是在Kubernetes中用于管理应用程序更新的重要机制。它允许在保证服务的可用性的同时，逐步将旧版本的Pod替换为新版本的Pod。Deployment提供了两种主要的升级策略：Recreate（重建）和RollingUpdate（滚动更新）。适用情况：适用于无状态应用或不需要保持持久连接的有状态应用；测试环境或者说资源比较缺乏的一些环境，使用Recreate策略升级应用可以临时节约集群资源。工作原理：在升级过程中，会先删除所有旧的Pod，然后创建新的Pod来替换它们。
K8S Deployment 使用 & 更新 & 回滚 & 扩容
u013433591的博客
01-10 3913
K8S Deployment Example；Deployment 更新；Deployment更新策略；Deployment回滚；Deployment扩容
Kubernets集群管理-升级 kubernetes 集群版本到v1.21.14
云计算新生代农民工
09-09 984
kubernetes集群及其组件升级，使用kubeadm升级，kubelet、kubectl组件升级到 v1.21.14版本
kubernetes 版本从 1.26.6 升级到 1.27.9
为梦想奋斗
11-05 2854
kubernetes版本的升级主要是升级kubeadm、kubectl和kubelet，升级应遵循以下原则： 1、apiserver保护版本最大，其它功能最多比apiserver小一个小版本号。 2、不能跨小版本升级。 使用下列命令列出可用版本 yum list --showduplicates kubeadm --disableexcludes=kubernetes 我的环境包括一个...
k8s中使用Deployment控制器实现升级、回滚、弹性伸缩
jack__love的博客
01-27 775
k8s中使用Deployment控制器实现升级、回滚、弹性伸缩
使用 Kubernetes API 重启 Deployment go语音
最新发布
11-22
<think> 我们参考用户提供的引用[1][2][3]，特别是引用[3]中关于Deployment操作的Go语言实现，来编写重启Deployment的代码。 重启Deployment的常见方法有两种： 1. 修改Deployment的spec.template.metadata.annotations，添加一个重启标记（如时间戳），从而触发滚动更新。 2. 通过缩放副本数：先缩容到0，然后再恢复到原来的副本数（这种方法会导致服务中断，不推荐在生产环境使用）。 根据引用[3]中的内容，我们可以使用client-go库来操作Deployment。这里我们采用第一种方法（添加annotation）来实现重启。 步骤： 1. 获取当前Deployment对象。 2. 修改Deployment的Pod模板的annotations，添加一个重启标记（例如：kubectl.kubernetes.io/restartedAt，值为当前时间）。 3. 使用Update方法更新Deployment。 注意：在引用[3]中，我们看到了Deployment的结构体定义，以及如何通过client-go进行更新操作。 代码示例： </think> ### 使用 Go 语言通过 Kubernetes API 重启 Deployment 在 Kubernetes 中重启 Deployment 的核心原理是**修改 Deployment 配置触发滚动更新**。以下是基于 client-go 库的实现方法，结合引用[1][2][3]的 Go 语言操作指南： #### 推荐方法：添加重启注解（声明式） 这是 `kubectl rollout restart` 的底层实现原理，通过修改 Pod 模板注解触发滚动更新： ```go package main import ( "context" "fmt" "time" appsv1 "k8s.io/api/apps/v1" metav1 "k8s.io/apimachinery/pkg/apis/meta/v1" "k8s.io/client-go/kubernetes" "k8s.io/client-go/tools/clientcmd" ) func main() { // 1. 加载 kubeconfig config, err := clientcmd.BuildConfigFromFlags("", "/path/to/kubeconfig") if err != nil { panic(err.Error()) } // 2. 创建 clientset clientset, err := kubernetes.NewForConfig(config) if err != nil { panic(err.Error()) } // 3. 构造 Patch 数据（引用[2]的 API 操作） patch := `{ "spec": { "template": { "metadata": { "annotations": { "kubectl.kubernetes.io/restartedAt": "%s" } } } } }` restartTime := time.Now().UTC().Format(time.RFC3339) patchData := fmt.Sprintf(patch, restartTime) // 4. 执行 Patch 操作（引用[3]的 Deployment 操作） deployments := clientset.AppsV1().Deployments("default") _, err = deployments.Patch( context.TODO(), "your-deployment", // 替换为 Deployment 名称 types.StrategicMergePatchType, []byte(patchData), metav1.PatchOptions{}, ) if err != nil { panic(err.Error()) } fmt.Println("Deployment 重启指令已发送") } ``` **实现原理**： 1. 添加 `kubectl.kubernetes.io/restartedAt` 时间戳注解 2. Kubernetes 检测到 Pod 模板变更（引用[1]的声明式管理） 3. 自动触发滚动更新（引用[3]的 Deployment 状态管理） #### 备选方法：副本数缩放（命令式） ```go // 缩放副本数重启（不推荐生产环境使用） func restartByScaling(clientset *kubernetes.Clientset) { deployments := clientset.AppsV1().Deployments("default") // 获取当前副本数（引用[3]的 DeploymentSpec） deploy, _ := deployments.Get(context.TODO(), "your-deployment", metav1.GetOptions{}) originalReplicas := *deploy.Spec.Replicas // 缩容到0 zero := int32(0) deploy.Spec.Replicas = &zero deployments.Update(context.TODO(), deploy, metav1.UpdateOptions{}) // 等待10秒 time.Sleep(10 * time.Second) // 恢复原始副本数 deploy.Spec.Replicas = &originalReplicas deployments.Update(context.TODO(), deploy, metav1.UpdateOptions{}) } ``` #### 关键配置说明 1. **RBAC 权限**（引用[1]的安全管理） ```yaml apiVersion: rbac.authorization.k8s.io/v1 kind: Role rules: - apiGroups: ["apps"] resources: ["deployments"] verbs: ["get", "patch", "update"] # 必要权限 ``` 2. **client-go 导入**（引用[2]的库引用） ```go import ( appsv1 "k8s.io/api/apps/v1" metav1 "k8s.io/apimachinery/pkg/apis/meta/v1" "k8s.io/client-go/kubernetes" "k8s.io/client-go/tools/clientcmd" ) ``` 3. **错误处理建议** ```go if errors.IsNotFound(err) { fmt.Println("Deployment 不存在") } else if statusError, isStatus := err.(*errors.StatusError); isStatus { fmt.Printf("API 错误: %v\n", statusError.ErrStatus.Message) } else { panic(err.Error()) } ``` #### 最佳实践 1. **状态验证**（引用[3]的 DeploymentStatus） ```go // 检查滚动更新状态 for { deploy, _ := deployments.Get(context.TODO(), "your-deployment", metav1.GetOptions{}) if deploy.Status.UpdatedReplicas == *deploy.Spec.Replicas { fmt.Println("重启完成") break } time.Sleep(2 * time.Second) } ``` 2. **连接集群方式** | 环境 | 配置方法 | |------------|----------------------------| | 本地开发 | `clientcmd.BuildConfigFromFlags("", kubeconfig)` | | Pod内运行 | `rest.InClusterConfig()` | 此实现完全遵循 Kubernetes 的声明式管理原则[^1]，通过 Go 语言原生客户端提供高效可靠的操作方案[^2][^3]。 ---
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

breaksoftware

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
