【点燃大数据】最新Hadoop3.x及其常用组件集群安装

如果你对大数据感兴趣，这篇文章将带你进入大数据环境的准备和安装。万事开头难，请耐心读完工具和环境部分，这部分给大家介绍了本文将要使用到的工具组件，在最后会提供一个完整的安装包资源和代码资源供大家学习之用。

大数据为什么这么难

拦路三件套

大数据为什么高不可攀，笔者总结了几条：

• 环境搭建复杂性：要准备的组件很多，搭建一套环境费时费力
• 生态组件丰富性：不知道怎么取舍，具体项目该怎么用不清楚
• 缺乏实战分析：搜遍很多代码平台大多来不来就上代码，缺少场景分析

 入门即放弃

很多时候大家通过官网去了解的都是一些原理特性之类的，良心一点的就是附带一些简单示例，但是如何把这些知识紧密结合起来就很困难。所以，入门即放弃，这也是大多数高深技术之所以门槛很高的原因之一。

 放弃很容易，但坚持一定很酷！

书看得少

看大数据相关的书可以很好弥补官方介绍不全的问题，只有真正实践过的才能将这些总结为经验。在大数据领域有很多大佬，但是我们仅从官网去看是不够的。一方面它的更新迭代太快，我们反而不能静下心来研究一个沉淀版本；另一方面官方推销味儿太浓，一味地介绍特性原理怎么香却没有讲怎么深入实战。所以我们总是觉得资料很匮乏，只是我们的目光一直盯着官网崇尚权威。对于大数据方面的书籍，多翻一翻总会有一些收获，至少比每次打开官网看到那种销售话语的字样要强得多。

读书可以刷新认知，读书少是一切困难的开始！

基础环境准备

vmware workstation pro 17

下载相关的注意事项

VMware workstation pro 17 : 有些注意事项可以从下面这边文章获得

VMware Workstation Pro 17 提供个人版使用-优快云博客

安装个人版虚拟机

安装时选择个人使用即可，不需要激活码：

分享个人版虚拟机云盘下载

这个工具会提供分享给不方便下载的同学，可以微信关注订阅号：软件服务技术推进官   输入关键字：WMware 获得虚拟机工具。

注意：在分享目录有WmWare Workstation 10的版本，不建议再使用（有性能问题）。

centos-stream-9

官方下载地址：

Downloadhttps://www.centos.org/download/

本次安装推荐采用centos9，官方说的centsos linx7  和centos stream 8生命周期已终结：

 iso镜像下载链接，由于该镜像10个G左右所以不在提供下载之列，自行下载即可： https://mirrors.tuna.tsinghua.edu.cn/centos-stream/9-stream/BaseOS/x86_64/iso/CentOS-Stream-9-latest-x86_64-dvd1.iso

 安装一个centos-stream-9作为基础虚拟机实例：



开启ssh远程客户端登录

开启系统远程登录许可

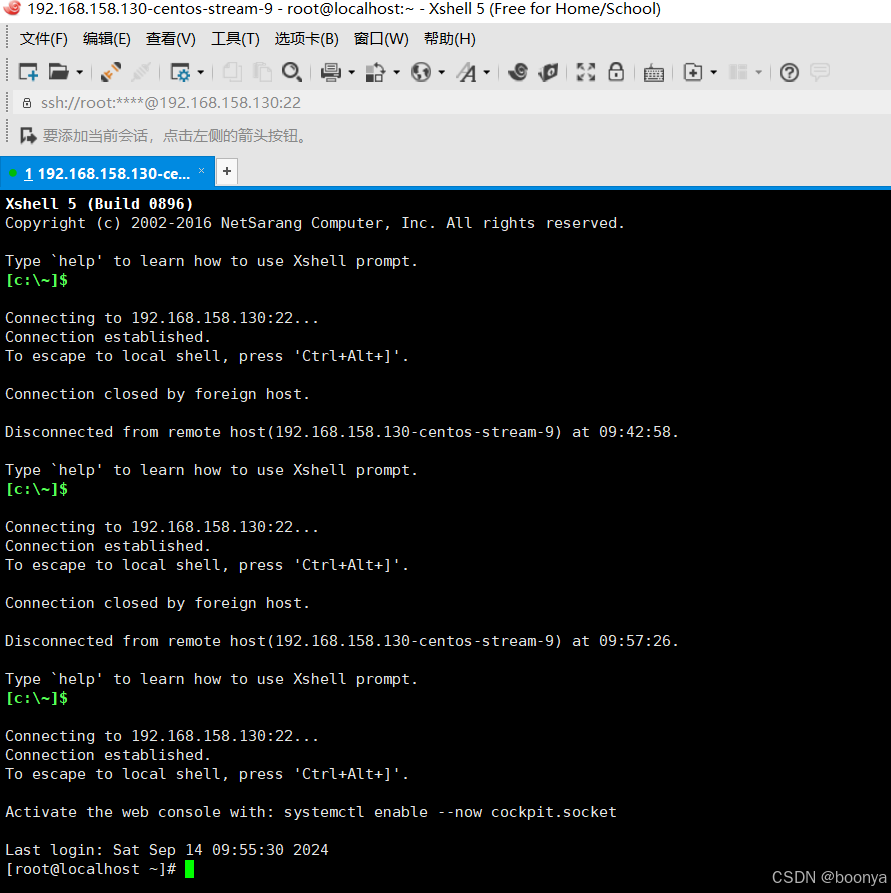

验证xshell ssh客户端登录

 关闭和禁用防火墙

实例中并未执行以下命令的操作，大家可以根据需要决定要不要禁用防火墙

# 关闭防火墙
systemctl stop firewalld.service


# 启动禁用防火墙

systemctl disable firewalld.service

注意：在生产环境不能关闭防火墙只能配置防火墙规则。

启用或关闭SELinux

SELinux是Linux内核的安全子系统，通过严格的访问控制机制增强系统安全性。一般情况下，建议开启SELinux来限制进程的权限，防止恶意程序通过提权等方式对系统进行攻击；然而，由于SELinux的严格访问控制机制，可能会导致一些应用程序或服务无法启动，因此在特定情况下（如开发、调试等），需暂时关闭SELinux。

查看SELinux配置：

[root@localhost ~]# cat /etc/selinux/config

# This file controls the state of SELinux on the system.
# SELINUX= can take one of these three values:
#     enforcing - SELinux security policy is enforced.
#     permissive - SELinux prints warnings instead of enforcing.
#     disabled - No SELinux policy is loaded.
# See also:
# https://access.redhat.com/documentation/en-us/red_hat_enterprise_linux/9/html/using_selinux/changing-selinux-states-and-modes_using-selinux#changing-selinux-modes-at-boot-time_changing-selinux-states-and-modes
#
# NOTE: Up to RHEL 8 release included, SELINUX=disabled would also
# fully disable SELinux during boot. If you need a system with SELinux
# fully disabled instead of SELinux running with no policy loaded, you
# need to pass selinux=0 to the kernel command line. You can use grubby
# to persistently set the bootloader to boot with selinux=0:
#
#    grubby --update-kernel ALL --args selinux=0
#
# To revert back to SELinux enabled:
#
#    grubby --update-kernel ALL --remove-args selinux
#
SELINUX=enforcing
# SELINUXTYPE= can take one of these three values:
#     targeted - Targeted processes are protected,
#     minimum - Modification of targeted policy. Only selected processes are protected.
#     mls - Multi Level Security protection.
SELINUXTYPE=targeted

SELinux共有3个状态：

• enforcing （执行中）
• permissive （不执行但产生警告）
• disabled（关闭）

 如果要禁用需要将SELINUX=enforcing 改为SELINUX=disabled，这里建议先禁用。

虚拟机实例基础版本下载

这个虚拟机实例非常简单，如果需要也可以微信关注订阅号：软件服务技术推进官  输入centos-stream-9 获得虚拟机实例（虚拟机实例包括账号密码请参考内部文件readme.txt）。

注：这款虚拟机实例相对纯净，可以基于此做自己需要的环境。

机器间拷贝文件命令

使用scp命令即可实现。

复制文件

scp local_file remote_username@remote_ip:remote_folder
或者
scp local_file remote_username@remote_ip:remote_file
或者
scp local_file remote_ip:remote_folder
或者
scp local_file remote_ip:remote_file

复制目录

scp -r local_folder remote_username@remote_ip:remote_folder
或者
scp -r local_folder remote_ip:remote_folder

 RHEL订阅注册

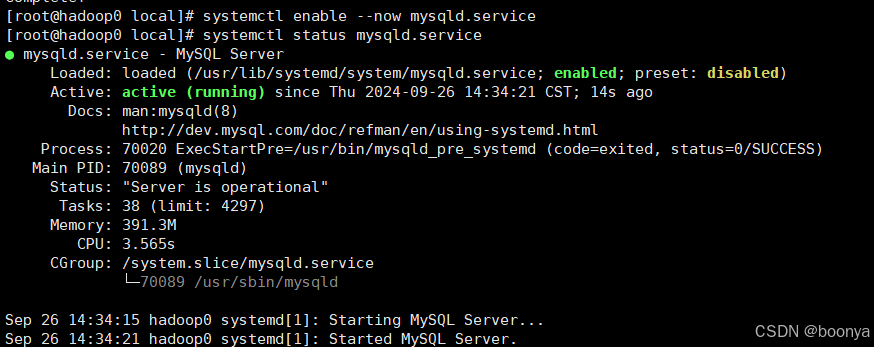

无法执行yum安装rpm问题(后面安装Mysql会遇到)：

This system is not registered with an entitlement server. You can use "rhc" or "subscription-manager" to register.

使用subscription-manager register --help 查看注册命令

必须在 Hybrid Cloud Console 激活订阅

点击Subscriptions active进行激活:

[root@hadoop0 yum.repos.d]# subscription-manager register --username xxxxxxx@163.com --password xxxxxxxxxxxxx --auto-attach
Registering to: subscription.rhsm.redhat.com:443/subscription
The system has been registered with ID: 1b792ee7-71ba-489a-9862-2ab9a90ab235
The registered system name is: hadoop0
Ignoring the request to auto-attach. Attaching subscriptions is disabled for organization "18489547" because Simple Content Access (SCA) is enabled.
[root@hadoop0 yum.repos.d]#

 注：必须要注册redhat账号，上面使用的就是注册账号和密码进行激活。

Hadoop组件安装

Hadoop集群实例规划

一主两从三个实例

按照一主两从规划三个虚拟机实例服务器节点。

通过虚拟机管理的克隆功能就可以实现。

注：实例是关闭的防火墙和开机启动防火墙的，如何关闭和禁用防火墙上面部分有讲述。

设置实例IP地址

三个节点的IP地址如下：

• hadoop0: 192.168.158.100
• hadoop1: 192.168.158.101
• hadoop2: 192.168.158.102

这里以设置 hadoop0: 192.168.158.100 为例进行讲解，hadoop0作为master节点。

找到实例的Activities > Settings：

点开Settings,找到Network wired进行设置：

切换到IPv4使用Manual方式配置Address、NetMask、Gateway：

注意：这里的Netmask和Gateway都能通过ifconfig命令查到对应的网络名称ens33参考设置，改完之后可以reboot重启一下虚拟机，重启之后就可以验证是否修改成功。

通过查询验证IP地址设置是否成功：

通过SSH 验证IP地址是否成功：

其他两个节点如法炮制即可。

  设置静态IP开启外网访问

为三个节点开启外网访问，参考我的另一篇文章进行配置：

CentOs-Stream-9 设置静态IP外网访问-优快云博客

验证是否能ssh正常访问

192.168.158.100

192.168.158.101

192.168.158.102

设置实例hostname名称

使用如下命令进行修改三个节点的域名

hostnamectl set-hostname ${realname}

 分别在各个服务ssh连接端执行命令：

# 192.168.158.100
hostnamectl set-hostname hadoop0

# 192.168.158.101
hostnamectl set-hostname hadoop1


# 192.168.158.102
hostnamectl set-hostname hadoop2

对主机域名进行验证：

192.168.158.100

192.168.158.101

192.168.158.102

实例共享主机名访问

在hadoop0上vi 命令编辑/etc/hosts，在文件末尾添加如下内容：

192.168.158.100 hadoop0
192.168.158.101 hadoop1
192.168.158.102 hadoop2

通过scp命令将该配置发送到hadoop1和hadoop2节点：

scp /etc/hosts  hadoop1://etc/
scp /etc/hosts  hadoop2://etc/

 至此，三台服务器实例都已准备完毕。

开启ssh免密访问

Hadoop各组件之间使用SSH协议登录，为了免输入密码，可以设计SSH免密登录。实例上需要分别设置SSH协议免密登录，需要分别在三个虚拟机实例执行以下命令：

# 进入秘钥存放目录
cd /root/.ssh

# 删除旧秘钥
rm -rf *

# 生成密码 需要多次回车
ssh-keygen -t rsa

# 将生成密钥文件id_rsa.pub复制到authorized_keys中
cat id_rsa.pub >>authorized_keys

将hadoop1的SSH秘钥复制到hadoop0,在hadoop1上执行以下命令：

ssh-copy-id -i /root/.ssh/id_rsa.pub hadoop0

将hadoop2的SSH秘钥复制到hadoop0,在hadoop2上执行以下命令：

ssh-copy-id -i /root/.ssh/id_rsa.pub hadoop0

检查hadoop0上的秘钥可以用如下命令：

cat /root/.ssh/authorized_keys

hadoop0上会看到3个SSH秘钥字符串：

 注意：此时我们hadoop0上的秘钥是最全的，需要复制到hadoop1和hadoop2上去。

我们在hadoop2上用scp命令来分别复制到hadoop0和hadoop1上去：

scp /root/.ssh/authorized_keys hadoop1:/root/.ssh

scp /root/.ssh/authorized_keys hadoop2:/root/.ssh

注意：执行到此处三台机器都支持ssh免密互相访问了（仍需输入密码，就输入一次即可，后续不需要二次输入）。

参考相关SSH免密登录资料：

centos7：ssh免密登陆设置及常见错误 - 平复心态 - 博客园

知识扫盲：id rsa、 id rsa.pub 和authorized keys_idrsa 单行-优快云博客

注意：上述SSH免密直接只对hadoop0起作用，hadoop1和hadoop2首次访问还是需要输入密码，之后就不需要密码验证了。可以在hadoop1和hadoop2上分别执行一次如下命令。

ssh ${host}

开启本机ssh免密

本机域名访问用localhost，ssh访问本机域名即可

ssh localhost

Jdk安装

需要在三个实例上都安装jdk环境，可以安装一个然后分别拷贝到另外两个去。

 下载并解压jdk8

 直接官网下载： Java Downloads | Oracle

通过ftp工具将jdk包放入/usr/local目录下

cd /usr/local

tar -zxvf jdk-8u421-linux-x64.tar.gz

mv jdk1.8.0_421 jdk

关于JDK目前暂时采用jk8。 获得更多JDK版本可以关注微信订阅号：软件服务技术推进官 输入关键词 jdk 进行获取。

设置环境变量

编辑/etc/profile

##Java home
export JAVA_HOME=/usr/local/jdk
export JRE_HOME=$JAVA_HOME/jre
export CLASSPATH=$JAVA_HOME/lib:$JRE_HOME/lib:$CLASSPATH
export PATH=$JAVA_HOME/bin:$JRE_HOME/bin:$PATH

更新环境配置

source /etc/profile

执行以上命令会立即生效。

验证Java环境

查看Java环境是否生效

Hadoop集群安装

按照规划，三个实例机器上分别安装Hadoop，可以通过scp方式复制分发到副本机器。可以以hadoop0为原型，做环境配置。

下载并解压Hadoop

手动下载安装包：

下载地址https://dlcdn.apache.org/hadoop/common/hadoop-3.4.0/hadoop-3.4.0.tar.gz

 也可以wget获取下载到指定目录：

cd /usr/local

wget https://dlcdn.apache.org/hadoop/common/hadoop-3.4.0/hadoop-3.4.0.tar.gz

mv hadoop-3.4.0 hadoop

最终我们需要得到/usr/local/hadoop的目录。

设置环境变量

在jdk环境变量的基础上进行添加，修改/etc/profile文件，将Hadoop各进程的用户设置为root

# Hadoop home
export HADOOP_HOME=/usr/local/hadoop
export HDFS_NAMENODE_USER=root
export HDFS_DATANODE_USER=root
export HDFS_SECONDARYNAMENODE_USER=root
export YARN_RESOURCEMANAGER_USER=root
export YARN_NODEMANAGER_USER=root

export PATH=$JAVA_HOME/bin:$JRE_HOME/bin:$HADOOP_HOME/bin:$PATH

更新环境配置

source /etc/profile

执行以上命令会立即生效。

验证环境设置生效

使用hdfs命令测试

Hadoop的5个核心文件

配置hadoop-env.sh

该文件修改hadoop使用的jdk路径，hadoop-env.sh位于/usr/local/hadoop/etc/hadoop目录下

#找到 JAVA_HOME=/usr/java/testing hdfs dfs -ls

JAVA_HOME=/usr/local/jdk

注意：需要将#注释行改为启用。

配置core-site.xml

配置hdfs的默认节点和hadoop的临时存储路径，core-site.xml位于/usr/local/hadoop/etc/hadoop：

        <!-- 指定HDFS的老大（NameNode）的地址 -->
        <property>
            <name>fs.defaultFS</name>
            <value>hdfs://hadoop0:9000</value>
        </property>
        <!-- 指定hadoop运行时产生文件的存储目录 -->
        <property>
            <name>hadoop.tmp.dir</name>
            <value>/usr/local/hadoop/tmp</value>
        </property>
         <!-- 下面两个配置解决hive无法连接问题 -->
        <property>
           <name>hadoop.proxyuser.root.hosts</name>
           <value>*</value>
       </property>
       <property>
          <name>hadoop.proxyuser.root.groups</name>
          <value>*</value>
        </property>

配置yarn-site.xml

yarn-site.xml位于/usr/local/hadoop/etc/hadoop：

     <!-- 集群master -->
        <property>
            <name>yarn.resourcemanager.hostname</name>
            <value>hadoop0</value>
        </property>

        <!-- NodeManger上运行的附属服务 -->
        <property>
            <name>yarn.nodemanager.aux-services</name>
            <value>mapreduce_shuffle</value>
        </property>

容器可能会覆盖的环境变量，可以关闭内存检测。

  <!-- 集群master -->
        <property>
            <name>yarn.resourcemanager.hostname</name>
            <value>hadoop0</value>
        </property>

        <!-- NodeManger上运行的附属服务 -->
        <property>
            <name>yarn.nodemanager.aux-services</name>
            <value>mapreduce_shuffle</value>
        </property>
         <!--环境变量的继承 -->
        <property>
                <name>yarn.nodemanager.env-whitelist</name>     <value>JAVA_HOME,HADOOP_COMMON_HOME,HADOOP_HDFS_HOME,HADOOP_CONF_DIR,CLASSPATH_PREPEND_DISTCACHE,HADOOP_YARN_HOME,HADOOP_MAPRED_HOME</value>
        </property>
         <!--关闭内存检查 -->
        <property>
            <name>yarn.nodemanager.vmem-check-enabled</name>
           <value>false</value>
       </property>

修改mapred-site.xml

mapred-site.xml位于/usr/local/hadoop/etc/hadoop：

mapreduce.framework.name取值local、classic、mapreduce或yarn其中之一；

如果不是yarn，则不会使用yarn集群来实现资源的分配

        <!-- 指定mr运行在yarn上 -->
        <property>
            <name>mapreduce.framework.name</name>
            <value>yarn</value>
        </property>

配置hdfs-site.xml

hdfs-site.xml位于/usr/local/hadoop/etc/hadoop：

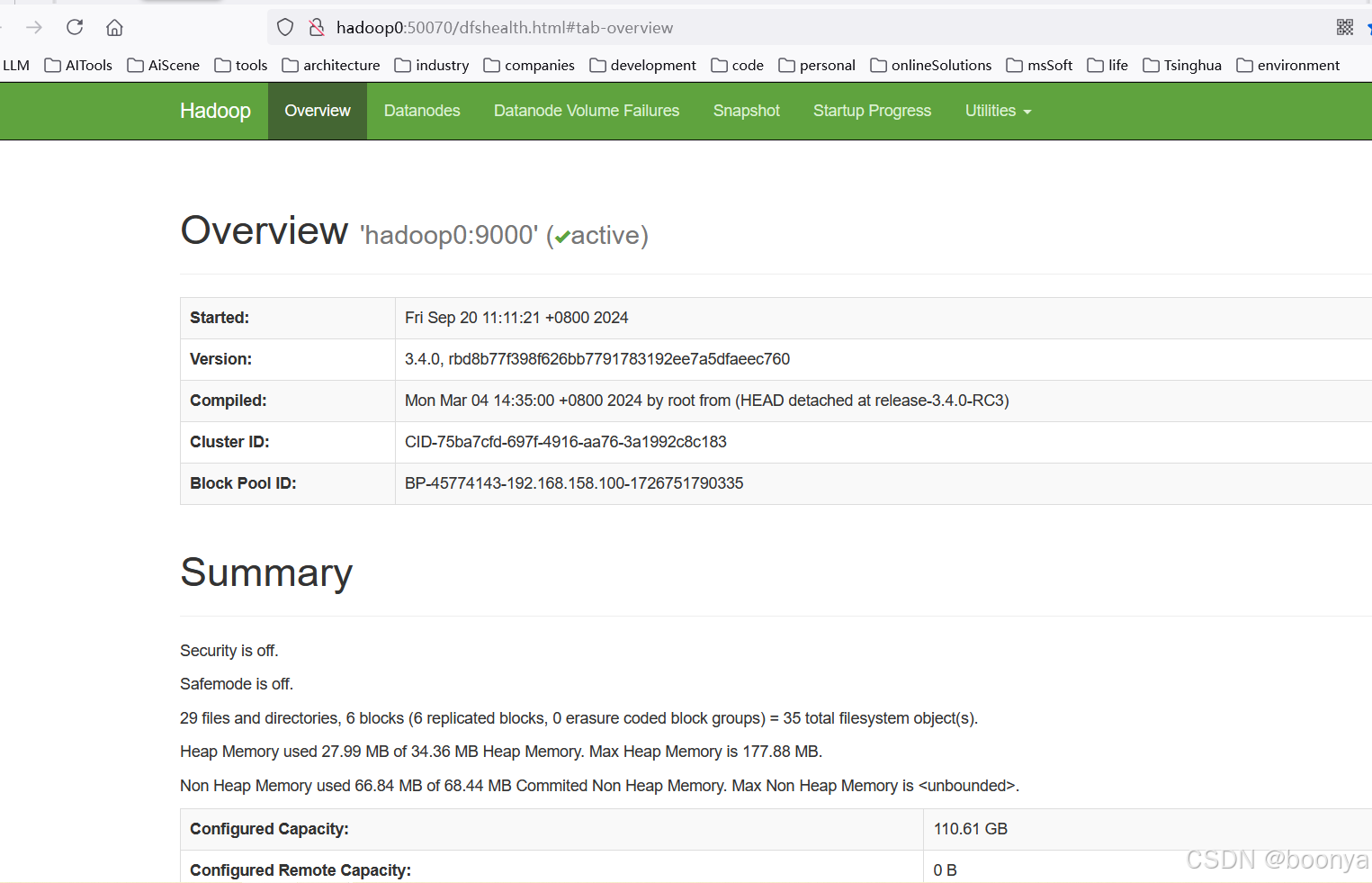

 <!-- HDFS web地址 -->
        <property>
            <name>dfs.namenode.http-address</name>
            <value>hadoop0:50070</value>
        </property>

        <!-- 指定HDFS副本的数量 -->
        <property>
            <name>dfs.replication</name>
            <value>3</value>
        </property>

       <!-- 是否启用HDFS权限 -->
        <property>
            <name>dfs.permissions.enabled</name>
            <value>false</value>
        </property>

       <!-- 块大小，默认128MB -->
        <property>
            <name>dfs.blocksize</name>
            <value>134217728</value>
        </property>

修改workers文件

workers位于/usr/local/hadoop/etc/hadoop，添加工作节点，第一个为master：

hadoop0
hadoop1
hadoop2

 注意：默认值localhost要去掉。 以上6个文件的修改都很重要，不能遗漏。

验证Hadoop

Hadoop格式化操作

验证hadoop之前要执行格式化。

在hadoop0上执行格式化：

cd /usr/local/hadoop

hadoop namenode -format

 格式化日志输出如下：

STARTUP_MSG:   build = git@github.com:apache/hadoop.git -r bd8b77f398f626bb7791783192ee7a5dfaeec760; compiled by 'root' on 2024-03-04T06:35Z
STARTUP_MSG:   java = 1.8.0_421
************************************************************/
2024-09-19 21:16:25,694 INFO namenode.NameNode: registered UNIX signal handlers for [TERM, HUP, INT]
2024-09-19 21:16:26,036 INFO namenode.NameNode: createNameNode [-format]
2024-09-19 21:16:28,664 INFO namenode.NameNode: Formatting using clusterid: CID-75ba7cfd-697f-4916-aa76-3a1992c8c183
2024-09-19 21:16:28,848 INFO namenode.FSEditLog: Edit logging is async:true
2024-09-19 21:16:28,975 INFO namenode.FSNamesystem: KeyProvider: null
2024-09-19 21:16:28,984 INFO namenode.FSNamesystem: fsLock is fair: true
2024-09-19 21:16:28,985 INFO namenode.FSNamesystem: Detailed lock hold time metrics enabled: false
2024-09-19 21:16:29,033 INFO namenode.FSNamesystem: fsOwner                = root (auth:SIMPLE)
2024-09-19 21:16:29,034 INFO namenode.FSNamesystem: supergroup             = supergroup
2024-09-19 21:16:29,034 INFO namenode.FSNamesystem: isPermissionEnabled    = false
2024-09-19 21:16:29,035 INFO namenode.FSNamesystem: isStoragePolicyEnabled = true
2024-09-19 21:16:29,035 INFO namenode.FSNamesystem: HA Enabled: false
2024-09-19 21:16:29,238 INFO common.Util: dfs.datanode.fileio.profiling.sampling.percentage set to 0. Disabling file IO profiling
2024-09-19 21:16:29,647 INFO blockmanagement.DatanodeManager: Slow peers collection thread shutdown
2024-09-19 21:16:29,719 INFO blockmanagement.DatanodeManager: dfs.block.invalidate.limit : configured=1000, counted=60, effected=1000
2024-09-19 21:16:29,724 INFO blockmanagement.DatanodeManager: dfs.namenode.datanode.registration.ip-hostname-check=true
2024-09-19 21:16:29,737 INFO blockmanagement.BlockManager: dfs.namenode.startup.delay.block.deletion.sec is set to 000:00:00:00.000
2024-09-19 21:16:29,738 INFO blockmanagement.BlockManager: The block deletion will start around 2024 Sep 19 21:16:29
2024-09-19 21:16:29,745 INFO util.GSet: Computing capacity for map BlocksMap
2024-09-19 21:16:29,747 INFO util.GSet: VM type       = 64-bit
2024-09-19 21:16:29,764 INFO util.GSet: 2.0% max memory 177.9 MB = 3.6 MB
2024-09-19 21:16:29,765 INFO util.GSet: capacity      = 2^19 = 524288 entries
2024-09-19 21:16:29,806 INFO blockmanagement.BlockManager: Storage policy satisfier is disabled
2024-09-19 21:16:29,809 INFO blockmanagement.BlockManager: dfs.block.access.token.enable = false
2024-09-19 21:16:29,832 INFO blockmanagement.BlockManagerSafeMode: Using 1000 as SafeModeMonitor Interval
2024-09-19 21:16:29,834 INFO blockmanagement.BlockManagerSafeMode: dfs.namenode.safemode.threshold-pct = 0.999
2024-09-19 21:16:29,835 INFO blockmanagement.BlockManagerSafeMode: dfs.namenode.safemode.min.datanodes = 0
2024-09-19 21:16:29,836 INFO blockmanagement.BlockManagerSafeMode: dfs.namenode.safemode.extension = 30000
2024-09-19 21:16:29,837 INFO blockmanagement.BlockManager: defaultReplication         = 3
2024-09-19 21:16:29,838 INFO blockmanagement.BlockManager: maxReplication             = 512
2024-09-19 21:16:29,839 INFO blockmanagement.BlockManager: minReplication             = 1
2024-09-19 21:16:29,839 INFO blockmanagement.BlockManager: maxReplicationStreams      = 2
2024-09-19 21:16:29,840 INFO blockmanagement.BlockManager: redundancyRecheckInterval  = 3000ms
2024-09-19 21:16:29,840 INFO blockmanagement.BlockManager: encryptDataTransfer        = false
2024-09-19 21:16:29,840 INFO blockmanagement.BlockManager: maxNumBlocksToLog          = 1000
2024-09-19 21:16:29,981 INFO namenode.FSDirectory: GLOBAL serial map: bits=29 maxEntries=536870911
2024-09-19 21:16:29,982 INFO namenode.FSDirectory: USER serial map: bits=24 maxEntries=16777215
2024-09-19 21:16:29,983 INFO namenode.FSDirectory: GROUP serial map: bits=24 maxEntries=16777215
2024-09-19 21:16:29,983 INFO namenode.FSDirectory: XATTR serial map: bits=24 maxEntries=16777215
2024-09-19 21:16:30,044 INFO util.GSet: Computing capacity for map INodeMap
2024-09-19 21:16:30,046 INFO util.GSet: VM type       = 64-bit
2024-09-19 21:16:30,055 INFO util.GSet: 1.0% max memory 177.9 MB = 1.8 MB
2024-09-19 21:16:30,055 INFO util.GSet: capacity      = 2^18 = 262144 entries
2024-09-19 21:16:30,058 INFO namenode.FSDirectory: ACLs enabled? true
2024-09-19 21:16:30,059 INFO namenode.FSDirectory: POSIX ACL inheritance enabled? true
2024-09-19 21:16:30,060 INFO namenode.FSDirectory: XAttrs enabled? true
2024-09-19 21:16:30,062 INFO namenode.NameNode: Caching file names occurring more than 10 times
2024-09-19 21:16:30,090 INFO snapshot.SnapshotManager: Loaded config captureOpenFiles: false, skipCaptureAccessTimeOnlyChange: false, snapshotDiffAllowSnapRootDescendant: true, maxSnapshotFSLimit: 65536, maxSnapshotLimit: 65536
2024-09-19 21:16:30,097 INFO snapshot.SnapshotManager: dfs.namenode.snapshot.deletion.ordered = false
2024-09-19 21:16:30,110 INFO snapshot.SnapshotManager: SkipList is disabled
2024-09-19 21:16:30,141 INFO util.GSet: Computing capacity for map cachedBlocks
2024-09-19 21:16:30,143 INFO util.GSet: VM type       = 64-bit
2024-09-19 21:16:30,145 INFO util.GSet: 0.25% max memory 177.9 MB = 455.4 KB
2024-09-19 21:16:30,147 INFO util.GSet: capacity      = 2^16 = 65536 entries
2024-09-19 21:16:30,211 INFO metrics.TopMetrics: NNTop conf: dfs.namenode.top.window.num.buckets = 10
2024-09-19 21:16:30,212 INFO metrics.TopMetrics: NNTop conf: dfs.namenode.top.num.users = 10
2024-09-19 21:16:30,213 INFO metrics.TopMetrics: NNTop conf: dfs.namenode.top.windows.minutes = 1,5,25
2024-09-19 21:16:30,231 INFO namenode.FSNamesystem: Retry cache on namenode is enabled
2024-09-19 21:16:30,232 INFO namenode.FSNamesystem: Retry cache will use 0.03 of total heap and retry cache entry expiry time is 600000 millis
2024-09-19 21:16:30,249 INFO util.GSet: Computing capacity for map NameNodeRetryCache
2024-09-19 21:16:30,250 INFO util.GSet: VM type       = 64-bit
2024-09-19 21:16:30,251 INFO util.GSet: 0.029999999329447746% max memory 177.9 MB = 54.6 KB
2024-09-19 21:16:30,253 INFO util.GSet: capacity      = 2^13 = 8192 entries
2024-09-19 21:16:30,350 INFO namenode.FSImage: Allocated new BlockPoolId: BP-45774143-192.168.158.100-1726751790335
2024-09-19 21:16:30,392 INFO common.Storage: Storage directory /usr/local/hadoop/tmp/dfs/name has been successfully formatted.
2024-09-19 21:16:30,530 INFO namenode.FSImageFormatProtobuf: Saving image file /usr/local/hadoop/tmp/dfs/name/current/fsimage.ckpt_0000000000000000000 using no compression
2024-09-19 21:16:30,844 INFO namenode.FSImageFormatProtobuf: Image file /usr/local/hadoop/tmp/dfs/name/current/fsimage.ckpt_0000000000000000000 of size 399 bytes saved in 0 seconds .
2024-09-19 21:16:30,926 INFO namenode.NNStorageRetentionManager: Going to retain 1 images with txid >= 0
2024-09-19 21:16:30,951 INFO blockmanagement.DatanodeManager: Slow peers collection thread shutdown
2024-09-19 21:16:30,961 INFO namenode.FSNamesystem: Stopping services started for active state
2024-09-19 21:16:30,963 INFO namenode.FSNamesystem: Stopping services started for standby state
2024-09-19 21:16:31,002 INFO namenode.FSImage: FSImageSaver clean checkpoint: txid=0 when meet shutdown.
2024-09-19 21:16:31,003 INFO namenode.NameNode: SHUTDOWN_MSG:
/************************************************************
SHUTDOWN_MSG: Shutting down NameNode at hadoop0/192.168.158.100
************************************************************/

 Hadoop启停操作

通过master节点操作启动和停止：

cd /usr/local/hadoop/sbin

# 启动
./start-all.sh

# 停止
./stop-all.sh

 在sbin下才有可执行sh文件。

下面是启动命令输出：

下面是停止命令输出：

 Hadoop查看进程

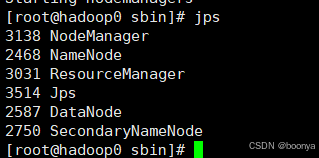

使用jps命令分别在三个节点去查看：

master hadoop0:

hadoop1:

hadoop2:

以上显示均符合预期。

Hadoop浏览文件

使用如下命令：

hadoop fs -ls /

此时由于没有文件存在，所以没有显示，但是hdfs已支持我们上传和下载文件。

Hadoop浏览器访问

 浏览器输入：http://hadoop0:50070/

我们设置过hdfs-site.xml中设置了web站点访问地址：hadoop0:50070，此时我们可用这个地址在浏览器中去访问。

 有3个存活节点：

这3个存活节点信息如下：

至此，Hadoop集群搭建成功。

如何横向扩展？

通过对Hadoop集群的安装，我们知道如果要增加节点，那么只需要将jdk和Hadoop的目录进行远程复制到新机器，设置好环境变量，让环境变量生效，添加新增节点的域名hadoop3,haoop4,....hadoopX这样实现机器集群的扩容。

后面具体实操遇到了再进行详细补充。

HBase集群安装

当您需要对大数据进行随机、实时的读/写访问时，请使用Apache HBase®。这个项目的目标是托管非常大的表——数十亿行X数百万列——在商品硬件集群之上。Apache HBase®是一个开源的、分布式的、版本化的、非关系型数据库，其模型来自于Google的Bigtable: A distributed Storage System for Structured Data(由Chang等人编写)。正如Bigtable利用了Google File System提供的分布式数据存储一样，Apache HBase®在Hadoop和HDFS之上提供了类似Bigtable的功能。

HBase安装的前提是Hadoop已安装启动。我们还是在hadoop0上安装HBase然后通过远程拷贝的方式复制给hadoop1和hadoop2。操作步骤比Hadoop简单，关键步骤仍然是需要的，如：安装包下载解压、配置环境变量、配置HBase参数等等。

HBase下载解压

官网下载地址：Apache HBase – Apache HBase Downloads

 本文以2.6.0为例，命令行处理下载和解压：

cd /usr/local
wget https://dlcdn.apache.org/hbase/2.6.0/hbase-2.6.0-bin.tar.gz
tar -zxvf hbase-2.6.0-bin.tar.gz
mvn hbase-2.6.0 hbase

 配置环境变量

编辑/etc/profile，在原来配置的基础上添加HBASE_HOME的配置：

# HBase
export HBASE_HOME=/usr/local/hbase

export PATH=$JAVA_HOME/bin:$JRE_HOME/bin:$HADOOP_HOME/bin:$HBASE_HOME/bin:$PATH

 更新环境配置

source /etc/profile

执行以上命令会立即生效。

 配置HBase参数

配置hbase-env.sh

hbase-env.sh位于/usr/local/hbase/conf目录

export JAVA_HOME=/usr/local/jdk/

export HBASE_MANAGES_ZK=true

 修改后将该文件拷贝到/usr/local/hbase/bin目录下。

配置hbase-site.xml

hbase-site.xml位于/usr/local/hbase/conf目录

   <!-- ******核心配置，必须配置 端口跟hdfs的defaultFS端口一致******** -->
    <property>
        <name>hbase.rootdir</name>
        <value>hdfs://hadoop0:9000/hbase</value>
    </property>

   <!-- HBase的运行模式，false是单机模式，true是分布式模式，若为false则hbase和zk回运行在一个jvm中 -->
    <property>
        <name>hbase.cluster.distributed</name>
        <value>true</value>
    </property>

   <!-- zookeeper节点，只能为奇数个 -->
    <property>
         <name>hbase.zookeeper.quorum</name>
         <value>hadoop0,hadoop1,hadoop2</value>
    </property>

    <!-- 指定Zookeeper数据存储目录 -->
    <property>
       <name>hbase.zookeeper.property.dataDir</name>
       <value>/usr/local/hbase/zookeeper</value>
    </property>

   <!-- HBase的Web端口,默认是16010 -->
   <property>
       <name>hbase.master.info.port</name>
       <value>16010</value>
    </property>

 修改后将该文件拷贝到/usr/local/hbase/bin目录下。

配置regionservers

regionservers位于/usr/local/hbase/conf目录，将内容改为如下节点：

hadoop0
hadoop1
hadoop2

 注意：默认值localhost要去掉。

远程复制配置文件

将hbase目录分别复制给hadoop1和hadoop2。

# 复制hbase目录
scp -r /usr/local/hbase hadoop1:/usr/local
scp -r /usr/local/hbase hadoop2:/usr/local

# 复制环境变量配置文件
scp /etc/profile hadoop1://etc/
scp /etc/profile hadoop2://etc/

 执行完上述命令之后需要让hadoop1和hadoop2环境变量生效：

source /etc/profile

执行以上命令会立即生效。

验证HBase

前提是需要先启动Hadoop集群。

HBase启动和停止

在master节点hadoop0上启动HBase。进入到HBASE_HOME/bin目录：启动./start-hbase.sh

相应的有停止命令./stop-hbase.sh。

启动Shell命令行

通过hbase shell命令进入shell命令行：

hbase shell

 查看所有表，输入list命令查看：

hbase> list

如果输入list之后发生了错误，需要关闭hdfs的安全模式

 关闭hdfs安全模式命令：

# 关闭hdfs 安全模式
hdfs dfsadmin -safemode leave

注意：关闭安全模式之后需要重启HBase集群。

要退出shell命令行，则输入exit退出命令行。

浏览器web访问

浏览器输入：http://hadoop0:16010/

可以看到集群三台服务器的信息。

自动创建/hbase目录

HBase安装完成之后会自动在hdfs中创建/hbase目录

 查看服务进程

使用jps可以看到hadoop0有3个H开头的进程，而其他两个节点只有2个H开头的服务进程。

hadoop0

hadoop1

hadoop2

从以上几个方面已作验证集群安装是否成功。

Hive集群安装

Apache Hive是一个分布式的、容错的数据仓库系统，支持大规模的分析。Hive Metastore(HMS)提供了一个元数据的中央存储库，可以很容易地对其进行分析，从而做出明智的、数据驱动的决策，因此它是许多数据湖架构的关键组件。Hive建立在Apache Hadoop之上，通过hdfs支持S3、adls、gs等存储。Hive允许用户使用SQL读取、写入和管理pb级的数据。

 Hive安装的前提是Hadoop已安装启动。Hive的安装相对简单得多，只需要将安装包下载解压配置环境变量即可。Hive的集群只需要在hadoop0上安装。

Hive下载和解压

官网下载： Apache Download Mirrors

我们以Hive4.0.0为例：

下载链接：
Index of /hive/hive-4.0.0

 命令行操作：

cd /usr/local
wget https://dlcdn.apache.org/hive/hive-4.0.0/apache-hive-4.0.0-bin.tar.gz
tar -zxvf apache-hive-4.0.0-bin.tar.gz
mv apache-hive-4.0.0-bin hive

Hive配置环境变量

编辑/etc/profile

# Hive
export HIVE_HOME=/usr/local/hive

export PATH=$JAVA_HOME/bin:$JRE_HOME/bin:$HADOOP_HOME/bin:$HBASE_HOME/bin:$HIVE_HOME/bin:$PATH

 更新环境配置

source /etc/profile

执行以上命令会立即生效。

进入beeline命令行

直接输入hive命令，进入beeline命令行：

MySQL安装

Hive默认使用Derby数据库作为存储引擎，存储Hive的元数据信息，但Derby引擎的缺点是一次只能打开一个会话，不能多用户并发访问。所以需要安装MySQL，并将Hive的存储引擎改为MySQL。MySQL采用在线安装，需要配置域名服务器。

下载mysql8安装包

cd /usr/local

wget https://dev.mysql.com/get/mysql80-community-release-el9-3.noarch.rpm

安装rpm包

rpm -ivh mysql80-community-release-el9-3.noarch.rpm

mysql源是否安装成功

yum repolist enabled | grep "mysql.*-community.*"

安装mysql

 dnf install mysql-community-server -y  --nogpgcheck

启动并设置开机启动

执行如下命令：

systemctl enable --now mysqld.service	# 开机自启并立即启动mysql
systemctl status mysqld.service			# 查看mysql状态

修改root本地登录密码

1）查看mysql密码

grep 'temporary password' /var/log/mysqld.log

 2）连接mysql，密码为上图中的红色框出来的部分

mysql -uroot -p

输入查询到的默认密码即可登录进去，修改密码：

# 密码要设置复杂一点否则通不过安全校验

ALTER USER 'root'@'localhost' IDENTIFIED BY 'Boonya@2024';

开启远程访问：

 update user set host='%' where user='root';

创建MySQL hive用户

语法： CREATE USER 'username' @'host' IDENTIFIED BY 'password'

CREATE USER 'hive' @'%' IDENTIFIED BY 'Boonya@2024';
create user 'boonya' @'%' identified by 'Boonya@2024';
create user 'test' @'%' identified by 'Boonya@2024';

参考：CentOS Stream 9中安装MySQL的详细步骤 - 小白典 - 博客园

Hive配置Mysql

/usr/local/hive/conf目录下有两个配置文件模版，需要复制出来配置:

cd /usr/local/hive/conf
cp hive-env.sh.template hive-env.sh
cp hive-default.xml.template hive-site.xml

hive-config.sh配置

该文件位于/usr/local/hive/bin，编辑文件hive-config.sh

vi  /usr/local/hive/bin/hive-config.sh

追加环境变量到最后：

export JAVA_HOME=/usr/local/jdk
export HADOOP_HOME=/usr/local/hadoop
export HIVE_HOME=/usr/local/hive

复制Mysql连接驱动

下载对应的Mysql驱动：https://mvnrepository.com/artifact/mysql/mysql-connector-java

然后放入/usr/local/hive/lib目录下：

cp mysql-connector-java-8.0.16.redhat-00001.jar /usr/local/hive/lib/

创建hive临时目录

mkdir /usr/local/hive/tmp

配置hive-site.xml数据连接

找到ConnectionURL、ConnectionDriverName、ConnectionUserName、ConnectionPassword修改为Mysql jdbc连接地址、账号、密码登信息。

  <property>
    <name>javax.jdo.option.ConnectionURL</name>
    <value>jdbc:mysql://hadoop0:3306/hive?createDatabaseIfNotExist=true</value>
  </property>

  <!-- 驱动名称：Mysql8使用com.mysql.cj.jdbc.Driver，之前版本用com.mysql.jdbc.Driver -->
  <property>
    <name>javax.jdo.option.ConnectionDriverName</name>
    <value>com.mysql.cj.jdbc.Driver</value>
    <description>Driver class name for a JDBC metastore</description>
  </property>

   <property>
    <name>javax.jdo.option.ConnectionUserName</name>
    <value>hive</value>
    <description>Username to use against metastore database</description>
  </property>

   <property>
    <name>javax.jdo.option.ConnectionPassword</name>
    <value>Boonya@2024</value>
    <description>password to use against metastore database</description>
  </property>

  <!-- -------Hive必要的连接配置,解决jdbc无法连接问题------------------ -->
 <!-- 指定存储元数据要连接的地址 -->
 <property>
    <name>hive.metastore.uris</name>
    <value>thrift://hadoop0:9083</value>
    <description>URI for client to connect to metastore server</description>
 </property>
 <!-- 指定hiveserver2连接的host -->
 <property>
    <name>hive.server2.thrift.bind.host</name>
    <value>hadoop0</value>
 </property>
 <!-- 指定hiveserver2连接的端口号 -->
 <property>
    <name>hive.server2.thrift.port</name>
    <value>10000</value>
 </property>
 <!-- hiveserver2的高可用参数，如果不开会导致了开启tez session导致hiveserver2无法启动 -->
 <property>
    <name>hive.server2.active.passive.ha.enable</name>
    <value>true</value>
 </property>
 <!--解决Error initializing notification event poll问题-->
 <property>
    <name>hive.metastore.event.db.notification.api.auth</name>
    <value>false</value>
 </property>

 配置hive-site.xml目录信息

找到${system:Java.io.tmpdir}批量替换为/usr/local/hive/tmp 共有4处。

找到${system:user:name}批量替换为root共有3处。

注：早期的hive没有这两个配置。

初始化Hive表

初始化Hive数据库

 schematool -dbType mysql -initSchema

注：早期Hive版本不需要执行schematool初始化操作。

Hive组件启动和验证访问

需要开启两个窗口分别启动metastore和hiveserver2:

# 端口：8093（Hive Metastore是Hive的元数据存储服务，需要确保Metastore服务已经启动，并且在Beeline的配置文件中正确配置了Metastore的地址。）
hive --service metastore

# 端口：10000（HiveServer2是Hive的查询服务，需要确保HiveServer2服务已经启动，并且在Beeline的配置文件中正确配置了HiveServer2的地址。）
hive --service hiveserver2

进入Hive验证:

hive

hive> show databases;

 如果没有报错表示集群搭建完成。不过应该会有问题比如连不上hive，请参考hive疑难杂症处理。

验证过程输出：

[root@hadoop0 ~]# hive
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/usr/local/hive/lib/log4j-slf4j-impl-2.18.0.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/usr/local/hadoop/share/hadoop/common/lib/slf4j-reload4j-1.7.36.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.apache.logging.slf4j.Log4jLoggerFactory]
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/usr/local/hive/lib/log4j-slf4j-impl-2.18.0.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/usr/local/hadoop/share/hadoop/common/lib/slf4j-reload4j-1.7.36.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.apache.logging.slf4j.Log4jLoggerFactory]
Beeline version 4.0.0 by Apache Hive
beeline> show databases;
No current connection
beeline> show tables;
No current connection
beeline> !connect jdbc:hive2://hadoop0:10000
Connecting to jdbc:hive2://hadoop0:10000
Enter username for jdbc:hive2://hadoop0:10000: hive
Enter password for jdbc:hive2://hadoop0:10000: ***********
Connected to: Apache Hive (version 4.0.0)
Driver: Hive JDBC (version 4.0.0)
Transaction isolation: TRANSACTION_REPEATABLE_READ
0: jdbc:hive2://hadoop0:10000> show tables;
INFO  : Compiling command(queryId=root_20241030223228_238fdf76-8a00-4593-b1ba-77b5a296a644): show tables
INFO  : Semantic Analysis Completed (retrial = false)
INFO  : Created Hive schema: Schema(fieldSchemas:[FieldSchema(name:tab_name, type:string, comment:from deserializer)], properties:null)
INFO  : Completed compiling command(queryId=root_20241030223228_238fdf76-8a00-4593-b1ba-77b5a296a644); Time taken: 12.536 seconds
INFO  : Concurrency mode is disabled, not creating a lock manager
INFO  : Executing command(queryId=root_20241030223228_238fdf76-8a00-4593-b1ba-77b5a296a644): show tables
INFO  : Starting task [Stage-0:DDL] in serial mode
INFO  : Completed executing command(queryId=root_20241030223228_238fdf76-8a00-4593-b1ba-77b5a296a644); Time taken: 3.105 seconds
+-----------+
| tab_name  |
+-----------+
+-----------+
No rows selected (20.096 seconds)
0: jdbc:hive2://hadoop0:10000> show databases;
INFO  : Compiling command(queryId=root_20241030223255_c3ed7a41-5f16-40cc-a390-2cf5edb1283a): show databases
INFO  : Semantic Analysis Completed (retrial = false)
INFO  : Created Hive schema: Schema(fieldSchemas:[FieldSchema(name:database_name, type:string, comment:from deserializer)], properties:null)
INFO  : Completed compiling command(queryId=root_20241030223255_c3ed7a41-5f16-40cc-a390-2cf5edb1283a); Time taken: 0.28 seconds
INFO  : Concurrency mode is disabled, not creating a lock manager
INFO  : Executing command(queryId=root_20241030223255_c3ed7a41-5f16-40cc-a390-2cf5edb1283a): show databases
INFO  : Starting task [Stage-0:DDL] in serial mode
INFO  : Completed executing command(queryId=root_20241030223255_c3ed7a41-5f16-40cc-a390-2cf5edb1283a); Time taken: 0.972 seconds
+----------------+
| database_name  |
+----------------+
| default        |
+----------------+
1 row selected (2.003 seconds)
0: jdbc:hive2://hadoop0:10000> create database test;
INFO  : Compiling command(queryId=root_20241030223729_629d6d72-e6f5-4725-9e8b-4d5b71054337): create database test
INFO  : Semantic Analysis Completed (retrial = false)
INFO  : Created Hive schema: Schema(fieldSchemas:null, properties:null)
INFO  : Completed compiling command(queryId=root_20241030223729_629d6d72-e6f5-4725-9e8b-4d5b71054337); Time taken: 0.308 seconds
INFO  : Concurrency mode is disabled, not creating a lock manager
INFO  : Executing command(queryId=root_20241030223729_629d6d72-e6f5-4725-9e8b-4d5b71054337): create database test
INFO  : Starting task [Stage-0:DDL] in serial mode
INFO  : Completed executing command(queryId=root_20241030223729_629d6d72-e6f5-4725-9e8b-4d5b71054337); Time taken: 4.287 seconds
No rows affected (5.252 seconds)
0: jdbc:hive2://hadoop0:10000> show databases;
INFO  : Compiling command(queryId=root_20241030223738_75a94fc5-951c-4100-beff-10bb4f54db25): show databases
INFO  : Semantic Analysis Completed (retrial = false)
INFO  : Created Hive schema: Schema(fieldSchemas:[FieldSchema(name:database_name, type:string, comment:from deserializer)], properties:null)
INFO  : Completed compiling command(queryId=root_20241030223738_75a94fc5-951c-4100-beff-10bb4f54db25); Time taken: 0.656 seconds
INFO  : Concurrency mode is disabled, not creating a lock manager
INFO  : Executing command(queryId=root_20241030223738_75a94fc5-951c-4100-beff-10bb4f54db25): show databases
INFO  : Starting task [Stage-0:DDL] in serial mode
INFO  : Completed executing command(queryId=root_20241030223738_75a94fc5-951c-4100-beff-10bb4f54db25); Time taken: 0.164 seconds
+----------------+
| database_name  |
+----------------+
| default        |
| test           |
+----------------+
2 rows selected (1.087 seconds)
0: jdbc:hive2://hadoop0:10000> use test;
INFO  : Compiling command(queryId=root_20241030223806_c9639ade-6800-4cc4-b000-e17f67e2152b): use test
INFO  : Semantic Analysis Completed (retrial = false)
INFO  : Created Hive schema: Schema(fieldSchemas:null, properties:null)
INFO  : Completed compiling command(queryId=root_20241030223806_c9639ade-6800-4cc4-b000-e17f67e2152b); Time taken: 0.105 seconds
INFO  : Concurrency mode is disabled, not creating a lock manager
INFO  : Executing command(queryId=root_20241030223806_c9639ade-6800-4cc4-b000-e17f67e2152b): use test
INFO  : Starting task [Stage-0:DDL] in serial mode
INFO  : Completed executing command(queryId=root_20241030223806_c9639ade-6800-4cc4-b000-e17f67e2152b); Time taken: 0.06 seconds
No rows affected (0.277 seconds)
0: jdbc:hive2://hadoop0:10000> create table sqoop_students (
. . . . . . . . . . . . . . .> id int primary key DISABLE NOVALIDATE RELY,
. . . . . . . . . . . . . . .> name varchar(20),
. . . . . . . . . . . . . . .> sex varchar(20),
. . . . . . . . . . . . . . .> age int,
. . . . . . . . . . . . . . .> department varchar(20)
. . . . . . . . . . . . . . .> );
INFO  : Compiling command(queryId=root_20241030224500_382d7aa3-0716-40c3-a892-8501ac854863): create table sqoop_students (
id int primary key DISABLE NOVALIDATE RELY,
name varchar(20),
sex varchar(20),
age int,
department varchar(20)
)
INFO  : Semantic Analysis Completed (retrial = false)
INFO  : Created Hive schema: Schema(fieldSchemas:null, properties:null)
INFO  : Completed compiling command(queryId=root_20241030224500_382d7aa3-0716-40c3-a892-8501ac854863); Time taken: 0.674 seconds
INFO  : Concurrency mode is disabled, not creating a lock manager
INFO  : Executing command(queryId=root_20241030224500_382d7aa3-0716-40c3-a892-8501ac854863): create table sqoop_students (
id int primary key DISABLE NOVALIDATE RELY,
name varchar(20),
sex varchar(20),
age int,
department varchar(20)
)
INFO  : Starting task [Stage-0:DDL] in serial mode
INFO  : Completed executing command(queryId=root_20241030224500_382d7aa3-0716-40c3-a892-8501ac854863); Time taken: 2.751 seconds
No rows affected (4.499 seconds)
0: jdbc:hive2://hadoop0:10000> show tables;
INFO  : Compiling command(queryId=root_20241030224512_83456b37-d200-497e-b717-f4420134e449): show tables
INFO  : Semantic Analysis Completed (retrial = false)
INFO  : Created Hive schema: Schema(fieldSchemas:[FieldSchema(name:tab_name, type:string, comment:from deserializer)], properties:null)
INFO  : Completed compiling command(queryId=root_20241030224512_83456b37-d200-497e-b717-f4420134e449); Time taken: 0.31 seconds
INFO  : Concurrency mode is disabled, not creating a lock manager
INFO  : Executing command(queryId=root_20241030224512_83456b37-d200-497e-b717-f4420134e449): show tables
INFO  : Starting task [Stage-0:DDL] in serial mode
INFO  : Completed executing command(queryId=root_20241030224512_83456b37-d200-497e-b717-f4420134e449); Time taken: 0.458 seconds
+-----------------+
|    tab_name     |
+-----------------+
| sqoop_students  |
+-----------------+
1 row selected (1.374 seconds)
0: jdbc:hive2://hadoop0:10000>

注意：建表语句要符合Hive的DDL规范。

Hive疑难杂症问题

No current connection

由于笔者在搭建环境过程中忽略了上一步hive的metastore和hiveserver2的启动所以一直连不上数据库。通过处理有3种方式可以连：

#1.第一种：采用beeline命令
beeline -u jdbc:hive2://hadoop0:10000 --verbose=true

#2.第二种，输入hive，通过连接处理

!connect jdbc:hive2://hadoop0:10000

#3.第三种：采用beeline用户登录
beeline -u jdbc:hive2://hadoop0:10000 -n hive -pBoonya@2024

上面的hadoop0和相应的端口就是我们要启动的hiveserver2，在hive-site.xml中已有相关处理的配置。参考：（最新版本）hive4.0.0 + hadoop3.3.4 集群安装（无坑版）-大数据学习系列（一）-优快云博客

Spark集群安装

Apache Spark是用于大规模数据处理的统一分析引擎。它提供了Java、Scala、Python和R语言的高级api，以及一个支持通用执行图的优化引擎。它还支持一组丰富的高级工具，包括用于SQL和结构化数据处理的Spark SQL，用于pandas工作负载的Spark pandas API，用于机器学习的MLlib，用于图形处理的GraphX，以及用于增量计算和流处理的结构化流。

Apache Spark™ - Unified Engine for large-scale data analytics

 安装Spark的前提是Hadoop服务已安装并启动。Spark集群安装只需要处理hadoop0节点，其余节点拷贝相关文件即可。由于 spark依赖scala，所以需要先安装scala。

scala安装

下载和解压

官网地址：https://www.scala-lang.org/

下载LTS版本：Release 3.3.3 · scala/scala3 · GitHub

这里以3.3.3为例：

cd /usr/local

wget https://github.com/scala/scala3/releases/download/3.3.3/scala3-3.3.3.tar.gz

tar -zxvf scala3-3.3.3.tar.gz

mv scala3-3.3.3 scala

 设置环境变量

#scala
export SCALA_HOME=/usr/local/scala

export PATH=$JAVA_HOME/bin:$JRE_HOME/bin:$HADOOP_HOME/bin:$HBASE_HOME/bin:$HIVE_HOME/bin:$SCALA_HOME/bin:$PATH

更新环境配置

source /etc/profile

spark安装

官网地址: Apache Spark™ - Unified Engine for large-scale data analytics

下载和解压

下载地址：https://dlcdn.apache.org/spark/spark-3.5.2/spark-3.5.2-bin-hadoop3.tgz

 通过命令行操作：

cd /usr/local

wget https://dlcdn.apache.org/spark/spark-3.5.2/spark-3.5.2-bin-hadoop3.tgz

tar -zxvf spark-3.5.2-bin-hadoop3.tgz

mv spark-3.5.2-bin-hadoop3  spark

  设置环境变量

# Spark
export SPARK_HOME=/usr/local/spark

export PATH=$JAVA_HOME/bin:$JRE_HOME/bin:$HADOOP_HOME/bin:$HBASE_HOME/bin:$HIVE_HOME/bin:$SCALA_HOME/bin:$SPARK_HOME/bin:$PATH

更新环境配置

source /etc/profile

配置Spark

需要进入到/usr/local/spark/conf目录，生成slaves、spark-env.sh、spark-defaults.conf等文件。需要分别处理slaves.template 、spark-env.sh.template、spark-defaults.conf.template文件。

注意：在最新版本里面slaves.template已改为workers.template

cd /usr/local/spark/conf

cp workers.template salves

cp spark-env.sh.template  spark-env.sh

cp spark-defaults.conf.template spark-defaults.conf

配置salves

在该文件中追加从节点域名:

hadoop1
hadoop2

 配置spark-env.sh

在spark-env.sh中追加如下内容：

export JAVA_HOME=/usr/local/jdk
export SCALA_HOME=/usr/local/scala
export HADOOP_HOME=/usr/local/hadoop
export HADOOP_CONF_DIR=/usr/local/hadoop/etc/hadoop
export SPARK_MASTER_HOST=hadoop0
export SPARK_PID_DIR=/usr/local/spark/data/pid
export SPARK_LOCAL_DIRS=/usr/local/spark/data/spark_shuffle
export SPARK_EXECUTOR_MEMORY=500M
export SPARK_WORKER_MEMORY=4G

配置spark-defaults.conf

在spark-defaults.conf中追加如下内容：

spark.master              spark://hadoop0:7077
spark.eventLog.enabled    true
spark.eventLog.dir        hdfs://hadoop0:9000/eventLog
spark.serializer          org.apache.spark.serializer.KryoSerializer
spark.driver.memory       1g

注意这里需要手动创建/eventLog目录到hdfs:

hadoop fs -mkdir /eventLog

 配置/root/.bashrc

编辑/root/.bashrc，加入JAVA_HOME配置：

复制Spark文件给从节点

仍然使用scp命令复制文件给hadoop1和hadoop2。

scp -r /usr/local/scala hadoop1:/usr/local
scp -r /usr/local/scala hadoop2:/usr/local
scp -r /usr/local/spark hadoop1:/usr/local
scp -r /usr/local/spark hadoop2:/usr/local
scp /root/.bashrc hadoop1:/root/
scp /root/.bashrc hadoop2:/root/
scp /etc/profile hadoop1:/etc/
scp /etc/profile hadoop2:/etc/

 更新环境配置

source /etc/profile

验证Spark

要验证Spark之前先启动Hadoop，这里Spark作为Hadoop的组件。

启动Spark

进入/usr/local/spark/sbin目录：

cd /usr/local/spark/sbin

./start-all.sh

或者直接一条命令执行：

/usr/local/spark/sbin/start-all.sh

启动日志如下：

 此时在hadoop0上创建了Master进程，在hadoop1和hadoop2上创建了Worker进程。

hadoop0

hadoop1

hadoop2

运行示例程序

引导执行程序/usr/local/spark/bin/run-example，我们试着来运行一个π运算结果：

/usr/local/spark/bin/run-example SparkPi

 控制台输出日志：

[root@hadoop0 ~]# /usr/local/spark/bin/run-example SparkPi
24/09/20 15:24:43 WARN NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
24/09/20 15:24:44 INFO SparkContext: Running Spark version 3.5.2
24/09/20 15:24:44 INFO SparkContext: OS info Linux, 5.14.0-505.el9.x86_64, amd64
24/09/20 15:24:44 INFO SparkContext: Java version 1.8.0_421
24/09/20 15:24:44 INFO ResourceUtils: ==============================================================
24/09/20 15:24:44 INFO ResourceUtils: No custom resources configured for spark.driver.
24/09/20 15:24:44 INFO ResourceUtils: ==============================================================
24/09/20 15:24:44 INFO SparkContext: Submitted application: Spark Pi
24/09/20 15:24:44 INFO ResourceProfile: Default ResourceProfile created, executor resources: Map(memory -> name: memory, amount: 500, script: , vendor: , offHeap -> name: offHeap, amount: 0, script: , vendor: ), task resources: Map(cpus -> name: cpus, amount: 1.0)
24/09/20 15:24:44 INFO ResourceProfile: Limiting resource is cpu
24/09/20 15:24:44 INFO ResourceProfileManager: Added ResourceProfile id: 0
24/09/20 15:24:44 INFO SecurityManager: Changing view acls to: root
24/09/20 15:24:44 INFO SecurityManager: Changing modify acls to: root
24/09/20 15:24:44 INFO SecurityManager: Changing view acls groups to:
24/09/20 15:24:44 INFO SecurityManager: Changing modify acls groups to:
24/09/20 15:24:44 INFO SecurityManager: SecurityManager: authentication disabled; ui acls disabled; users with view permissions: root; groups with view permissions: EMPTY; users with modify permissions: root; groups with modify permissions: EMPTY
24/09/20 15:24:44 INFO Utils: Successfully started service 'sparkDriver' on port 39635.
24/09/20 15:24:44 INFO SparkEnv: Registering MapOutputTracker
24/09/20 15:24:45 INFO SparkEnv: Registering BlockManagerMaster
24/09/20 15:24:45 INFO BlockManagerMasterEndpoint: Using org.apache.spark.storage.DefaultTopologyMapper for getting topology information
24/09/20 15:24:45 INFO BlockManagerMasterEndpoint: BlockManagerMasterEndpoint up
24/09/20 15:24:45 INFO SparkEnv: Registering BlockManagerMasterHeartbeat
24/09/20 15:24:45 INFO DiskBlockManager: Created local directory at /usr/local/spark/data/spark_shuffle/blockmgr-cb2c39b8-d13d-496d-b41c-3fa90ffcc888
24/09/20 15:24:45 INFO MemoryStore: MemoryStore started with capacity 413.9 MiB
24/09/20 15:24:45 INFO SparkEnv: Registering OutputCommitCoordinator
24/09/20 15:24:45 INFO JettyUtils: Start Jetty 0.0.0.0:4040 for SparkUI
24/09/20 15:24:45 INFO Utils: Successfully started service 'SparkUI' on port 4040.
24/09/20 15:24:45 INFO SparkContext: Added JAR file:///usr/local/spark/examples/jars/spark-examples_2.12-3.5.2.jar at spark://hadoop0:39635/jars/spark-examples_2.12-3.5.2.jar with timestamp 1726817084030
24/09/20 15:24:45 INFO SparkContext: Added JAR file:///usr/local/spark/examples/jars/scopt_2.12-3.7.1.jar at spark://hadoop0:39635/jars/scopt_2.12-3.7.1.jar with timestamp 1726817084030
24/09/20 15:24:45 WARN SparkContext: The JAR file:/usr/local/spark/examples/jars/spark-examples_2.12-3.5.2.jar at spark://hadoop0:39635/jars/spark-examples_2.12-3.5.2.jar has been added already. Overwriting of added jar is not supported in the current version.
24/09/20 15:24:46 INFO StandaloneAppClient$ClientEndpoint: Connecting to master spark://hadoop0:7077...
24/09/20 15:24:46 INFO TransportClientFactory: Successfully created connection to hadoop0/192.168.158.100:7077 after 108 ms (0 ms spent in bootstraps)
24/09/20 15:24:47 INFO StandaloneSchedulerBackend: Connected to Spark cluster with app ID app-20240920152447-0000
24/09/20 15:24:47 INFO Utils: Successfully started service 'org.apache.spark.network.netty.NettyBlockTransferService' on port 41663.
24/09/20 15:24:47 INFO NettyBlockTransferService: Server created on hadoop0:41663
24/09/20 15:24:47 INFO BlockManager: Using org.apache.spark.storage.RandomBlockReplicationPolicy for block replication policy
24/09/20 15:24:47 INFO BlockManagerMaster: Registering BlockManager BlockManagerId(driver, hadoop0, 41663, None)
24/09/20 15:24:47 INFO BlockManagerMasterEndpoint: Registering block manager hadoop0:41663 with 413.9 MiB RAM, BlockManagerId(driver, hadoop0, 41663, None)
24/09/20 15:24:47 INFO BlockManagerMaster: Registered BlockManager BlockManagerId(driver, hadoop0, 41663, None)
24/09/20 15:24:47 INFO BlockManager: Initialized BlockManager: BlockManagerId(driver, hadoop0, 41663, None)
24/09/20 15:24:47 INFO StandaloneAppClient$ClientEndpoint: Executor added: app-20240920152447-0000/0 on worker-20240920151607-192.168.158.101-33765 (192.168.158.101:33765) with 1 core(s)
24/09/20 15:24:47 INFO StandaloneSchedulerBackend: Granted executor ID app-20240920152447-0000/0 on hostPort 192.168.158.101:33765 with 1 core(s), 500.0 MiB RAM
24/09/20 15:24:47 INFO StandaloneAppClient$ClientEndpoint: Executor added: app-20240920152447-0000/1 on worker-20240920151607-192.168.158.102-37905 (192.168.158.102:37905) with 1 core(s)
24/09/20 15:24:47 INFO StandaloneSchedulerBackend: Granted executor ID app-20240920152447-0000/1 on hostPort 192.168.158.102:37905 with 1 core(s), 500.0 MiB RAM
24/09/20 15:24:48 INFO StandaloneAppClient$ClientEndpoint: Executor updated: app-20240920152447-0000/0 is now RUNNING
24/09/20 15:24:48 INFO StandaloneAppClient$ClientEndpoint: Executor updated: app-20240920152447-0000/1 is now RUNNING
24/09/20 15:24:49 INFO SingleEventLogFileWriter: Logging events to hdfs://hadoop0:9000/eventLog/app-20240920152447-0000.inprogress
24/09/20 15:24:53 INFO StandaloneSchedulerBackend: SchedulerBackend is ready for scheduling beginning after reached minRegisteredResourcesRatio: 0.0
24/09/20 15:24:54 INFO StandaloneSchedulerBackend$StandaloneDriverEndpoint: Registered executor NettyRpcEndpointRef(spark-client://Executor) (192.168.158.102:40686) with ID 1,  ResourceProfileId 0
24/09/20 15:24:54 INFO StandaloneSchedulerBackend$StandaloneDriverEndpoint: Registered executor NettyRpcEndpointRef(spark-client://Executor) (192.168.158.101:52264) with ID 0,  ResourceProfileId 0
24/09/20 15:24:55 INFO BlockManagerMasterEndpoint: Registering block manager 192.168.158.102:35887 with 110.0 MiB RAM, BlockManagerId(1, 192.168.158.102, 35887, None)
24/09/20 15:24:55 INFO BlockManagerMasterEndpoint: Registering block manager 192.168.158.101:34089 with 110.0 MiB RAM, BlockManagerId(0, 192.168.158.101, 34089, None)
24/09/20 15:24:55 INFO SparkContext: Starting job: reduce at SparkPi.scala:38
24/09/20 15:24:55 INFO DAGScheduler: Got job 0 (reduce at SparkPi.scala:38) with 2 output partitions
24/09/20 15:24:55 INFO DAGScheduler: Final stage: ResultStage 0 (reduce at SparkPi.scala:38)
24/09/20 15:24:55 INFO DAGScheduler: Parents of final stage: List()
24/09/20 15:24:55 INFO DAGScheduler: Missing parents: List()
24/09/20 15:24:55 INFO DAGScheduler: Submitting ResultStage 0 (MapPartitionsRDD[1] at map at SparkPi.scala:34), which has no missing parents
24/09/20 15:24:55 INFO MemoryStore: Block broadcast_0 stored as values in memory (estimated size 4.0 KiB, free 413.9 MiB)
24/09/20 15:24:56 INFO MemoryStore: Block broadcast_0_piece0 stored as bytes in memory (estimated size 2.3 KiB, free 413.9 MiB)
24/09/20 15:24:56 INFO BlockManagerInfo: Added broadcast_0_piece0 in memory on hadoop0:41663 (size: 2.3 KiB, free: 413.9 MiB)
24/09/20 15:24:56 INFO SparkContext: Created broadcast 0 from broadcast at DAGScheduler.scala:1585
24/09/20 15:24:57 INFO DAGScheduler: Submitting 2 missing tasks from ResultStage 0 (MapPartitionsRDD[1] at map at SparkPi.scala:34) (first 15 tasks are for partitions Vector(0, 1))
24/09/20 15:24:57 INFO TaskSchedulerImpl: Adding task set 0.0 with 2 tasks resource profile 0
24/09/20 15:24:57 INFO TaskSetManager: Starting task 0.0 in stage 0.0 (TID 0) (192.168.158.102, executor 1, partition 0, PROCESS_LOCAL, 9167 bytes)
24/09/20 15:24:57 INFO TaskSetManager: Starting task 1.0 in stage 0.0 (TID 1) (192.168.158.101, executor 0, partition 1, PROCESS_LOCAL, 9167 bytes)
24/09/20 15:24:58 INFO BlockManagerInfo: Added broadcast_0_piece0 in memory on 192.168.158.102:35887 (size: 2.3 KiB, free: 110.0 MiB)
24/09/20 15:24:58 INFO BlockManagerInfo: Added broadcast_0_piece0 in memory on 192.168.158.101:34089 (size: 2.3 KiB, free: 110.0 MiB)
24/09/20 15:24:59 INFO TaskSetManager: Finished task 0.0 in stage 0.0 (TID 0) in 2352 ms on 192.168.158.102 (executor 1) (1/2)
24/09/20 15:24:59 INFO TaskSetManager: Finished task 1.0 in stage 0.0 (TID 1) in 2547 ms on 192.168.158.101 (executor 0) (2/2)
24/09/20 15:24:59 INFO DAGScheduler: ResultStage 0 (reduce at SparkPi.scala:38) finished in 4.146 s
24/09/20 15:24:59 INFO TaskSchedulerImpl: Removed TaskSet 0.0, whose tasks have all completed, from pool
24/09/20 15:24:59 INFO DAGScheduler: Job 0 is finished. Cancelling potential speculative or zombie tasks for this job
24/09/20 15:24:59 INFO TaskSchedulerImpl: Killing all running tasks in stage 0: Stage finished
24/09/20 15:24:59 INFO DAGScheduler: Job 0 finished: reduce at SparkPi.scala:38, took 4.337072 s
Pi is roughly 3.1383756918784593
24/09/20 15:24:59 INFO SparkContext: SparkContext is stopping with exitCode 0.
24/09/20 15:24:59 INFO SparkUI: Stopped Spark web UI at http://hadoop0:4040
24/09/20 15:24:59 INFO StandaloneSchedulerBackend: Shutting down all executors
24/09/20 15:24:59 INFO StandaloneSchedulerBackend$StandaloneDriverEndpoint: Asking each executor to shut down
24/09/20 15:25:01 INFO MapOutputTrackerMasterEndpoint: MapOutputTrackerMasterEndpoint stopped!
24/09/20 15:25:01 INFO MemoryStore: MemoryStore cleared
24/09/20 15:25:01 INFO BlockManager: BlockManager stopped
24/09/20 15:25:01 INFO BlockManagerMaster: BlockManagerMaster stopped
24/09/20 15:25:01 INFO OutputCommitCoordinator$OutputCommitCoordinatorEndpoint: OutputCommitCoordinator stopped!
24/09/20 15:25:02 INFO SparkContext: Successfully stopped SparkContext
24/09/20 15:25:02 INFO ShutdownHookManager: Shutdown hook called
24/09/20 15:25:02 INFO ShutdownHookManager: Deleting directory /usr/local/spark/data/spark_shuffle/spark-35d0c193-af28-46ae-a5a9-52f7b54e5012
24/09/20 15:25:02 INFO ShutdownHookManager: Deleting directory /tmp/spark-381e4650-7f49-4aef-b949-a5996b06a4ea
[root@hadoop0 ~]#

 Spark shell命令

通过spark-shell开启

spark-shell

 我们会启动一个Scala命令行窗口：

查看Spark允许状态

通过hadoop0:4040查看任务调度情况

通过hadoop0:8080查看Spark节点信息

集群快捷启动命令

启动Hadoop集群

 /usr/local/hadoop/sbin/start-all.sh

 启动HBase集群

/usr/local/hbase/bin/start-hbase.sh

启动Spark集群

 /usr/local/spark/sbin/start-all.sh

大数据项目

bigdata项目

该项目从《大数据Hadoop3.x分布式处理实战》一书中得到学习动力，也推荐大家好好去看一看这本书。谈到大数据就绕不开Hadoop，它的生态环境相当丰富，这也给我们学习带来了一定难度。所以持续学习大数据就要不断深挖，不断在未知领域去探索，这样才能有更多的收获，从而在职场上拥有一项核心竞争力！未来我将持续在该项目中加入大数据的一些处理经验，让更多的人少走弯路。

GitHub - boonya-bigdata/bigdata: Based Hadoop ecosystem components in bigdata fields.Based Hadoop ecosystem components in bigdata fields. - boonya-bigdata/bigdatahttps://github.com/boonya-bigdata/bigdata该项目目前有Hadoop和Spark两个核心模块，由于Spark不依赖于Hadoop而独自可实现数据内存任务流式处理，所以目前暂定这部分为两个核心模块。

在bigdata-hadoop中 bigdata-hadoop-3.x模块目前是《大数据Hadoop3.x分布式处理实战》一书中提供的源码。

bigdata的定位就是深入学习和掌握大数据处理方法，让大数据不再神秘而高不可攀。


获取配置资源

获得全套大数据集群环境实例配置文件，欢迎评论留言。

获得配置集群实例

欢迎评论留言，一起交流！
