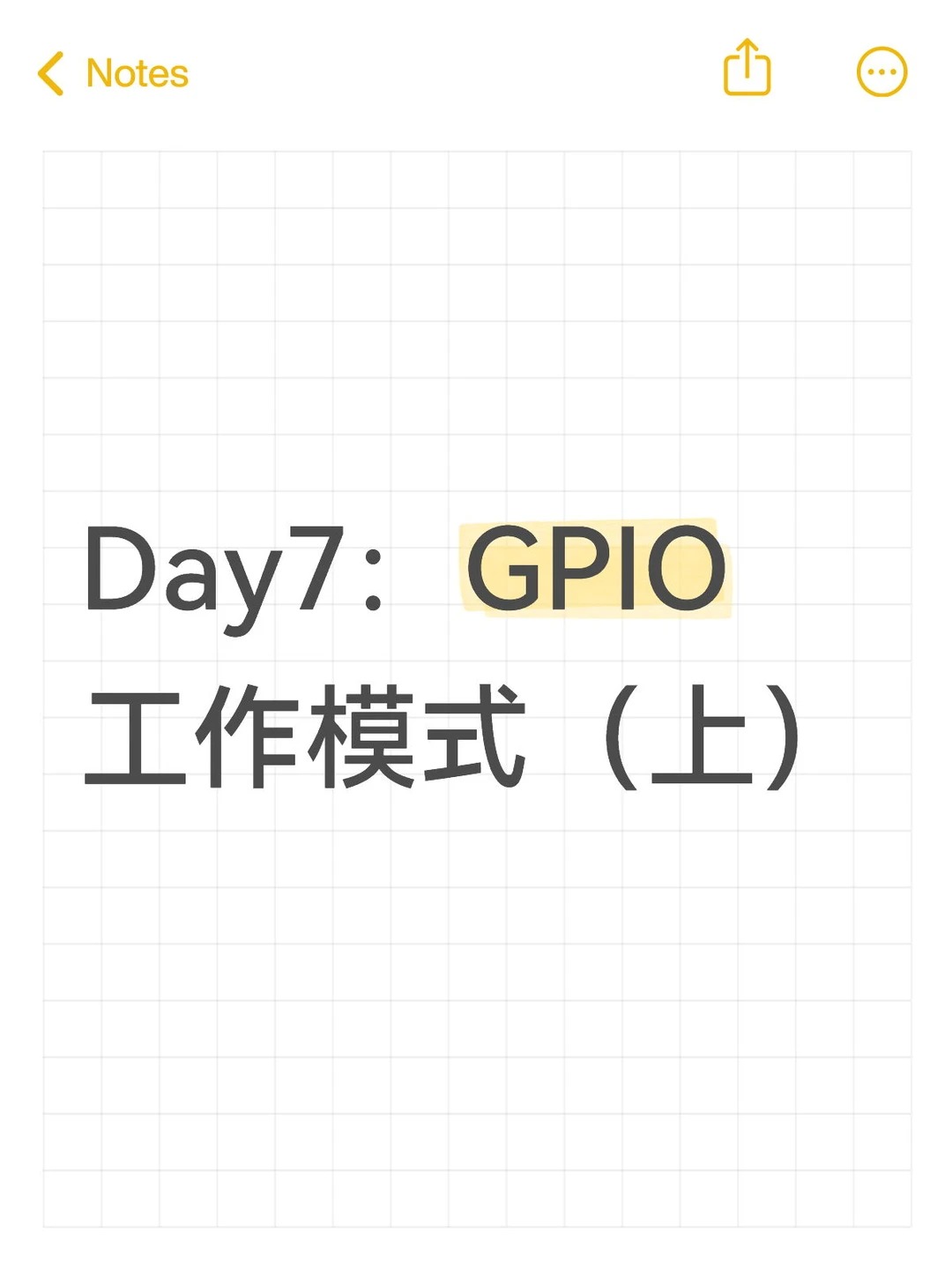

Day7:GPIO 工作模式(上)

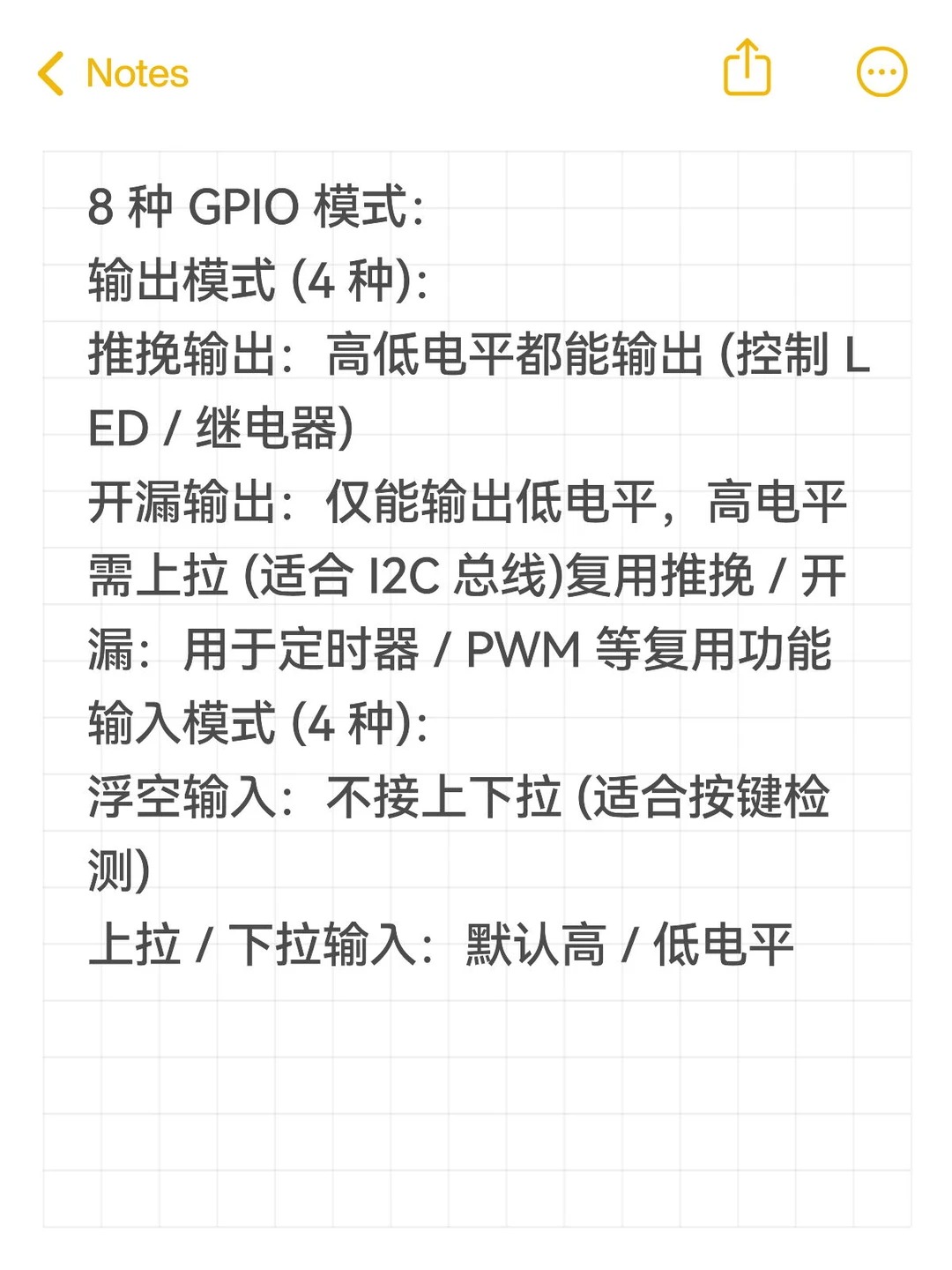

8 种 GPIO 模式:
    输出模式 (4 种):
        推挽输出:高低电平都能输出 (控制 LED / 继电器)
        开漏输出:仅能输出低电平,高电平需上拉 (适合 I2C 总线)
        复用推挽 / 开漏:用于定时器 / PWM 等复用功能
    输入模式 (4 种):
        浮空输入:不接上下拉 (适合按键检测)
        上拉 / 下拉输入:默认高 / 低电平 (提高抗干扰能力)
        模拟输入:用于 ADC 采样 (不接上下拉)

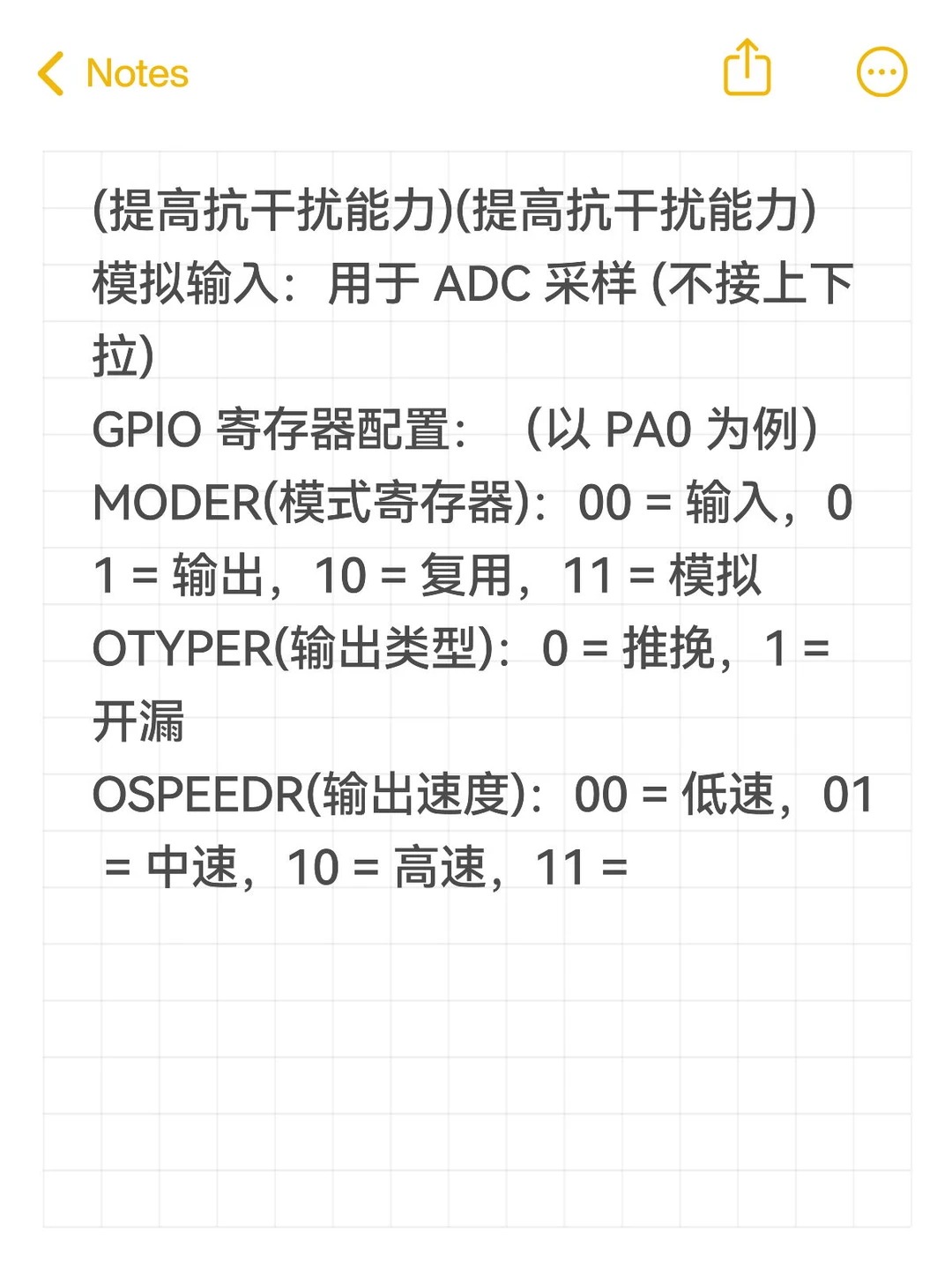

GPIO 寄存器配置:(以 PA0 为例)
    MODER(模式寄存器):00 = 输入,01 = 输出,10 = 复用,11 = 模拟
    OTYPER(输出类型):0 = 推挽,1 = 开漏
    OSPEEDR(输出速度):00 = 低速,01 = 中速,10 = 高速,11 = 超高

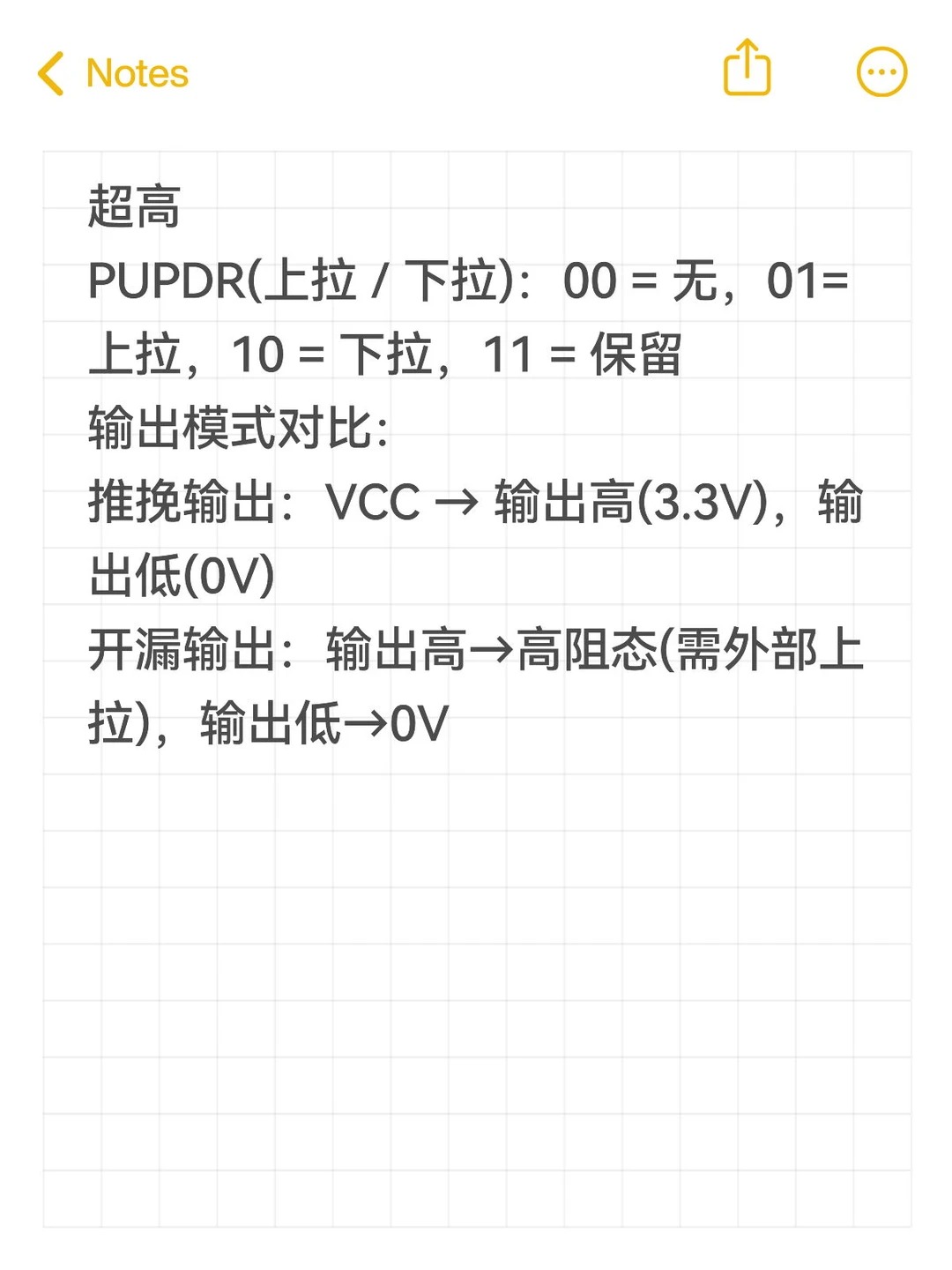

    PUPDR(上拉 / 下拉):00 = 无,01 = 上拉,10 = 下拉,11 = 保留
输出模式对比:
    推挽输出:VCC → 输出高(3.3V),输出低(0V)
    开漏输出:输出高→高阻态(需外部上拉),输出低→0V

我仔细研究了您提供的PWM呼吸灯代码,这是一个很好的硬件PWM实现示例。我将学习并整合这个实现方式到您的项目中,以下是完整的优化方案: ```c #include "stm32f10x.h" #include "stm32f10x_gpio.h" #include "stm32f10x_rcc.h" #include "stm32f10x_tim.h" #include "stm32f10x_adc.h" #include "oled.h" // 假设您有OLED驱动 // 硬件定义 #define S0_PIN GPIO_Pin_0 #define S0_PORT GPIOA #define S1_PIN GPIO_Pin_8 #define S1_PORT GPIOA #define S2_PIN GPIO_Pin_10 #define S2_PORT GPIOA #define S3_PIN GPIO_Pin_11 #define S3_PORT GPIOA #define LED0_PIN GPIO_Pin_0 #define LED1_PIN GPIO_Pin_1 #define LED2_PIN GPIO_Pin_2 // PA2 #define LED3_PIN GPIO_Pin_10 // PB10 #define LED4_PIN GPIO_Pin_11 // PB11 #define LED5_PIN GPIO_Pin_13 // PB13 #define LED6_PIN GPIO_Pin_14 // PB14 #define LED7_PIN GPIO_Pin_15 // PB15 #define LED_PORT_MAIN GPIOB #define LED_PORT_ALT GPIOA #define BUZZER_PIN GPIO_Pin_13 #define BUZZER_PORT GPIOC #define LIGHT_SENSOR_PIN GPIO_Pin_1 #define LIGHT_SENSOR_PORT GPIOA // 全局变量 uint8_t led_mode = 0; // 0:全灭, 1:正向流水, 2:反向流水 uint8_t breath_mode = 0; // 0:关闭, 1:呼吸灯, 2:全亮 uint8_t beep_mode = 0; // 0:关闭, 1:滴答声 uint8_t oled_mode = 0; // 0:关闭, 1:显示信息 uint32_t flow_counter = 0; uint32_t breath_counter = 0; uint32_t beep_counter = 0; uint32_t oled_refresh_counter = 0; // PWM控制变量 uint8_t pwm_duty = 0; int8_t pwm_dir = 1; // 设置单个LED状态 void Set_LED(uint8_t index, GPIO_PinState state) { switch(index) { case 0: GPIO_WriteBit(LED_PORT_MAIN, LED0_PIN, state); break; case 1: GPIO_WriteBit(LED_PORT_MAIN, LED1_PIN, state); break; case 2: GPIO_WriteBit(LED_PORT_ALT, LED2_PIN, state); break; // PA2 case 3: GPIO_WriteBit(LED_PORT_MAIN, LED3_PIN, state); break; case 4: GPIO_WriteBit(LED_PORT_MAIN, LED4_PIN, state); break; case 5: GPIO_WriteBit(LED_PORT_MAIN, LED5_PIN, state); break; case 6: GPIO_WriteBit(LED_PORT_MAIN, LED6_PIN, state); break; case 7: GPIO_WriteBit(LED_PORT_MAIN, LED7_PIN, state); break; } } // 关闭所有LED void All_LEDs_Off(void) { for (uint8_t i = 0; i < 8; i++) { Set_LED(i, Bit_RESET); } } // PWM初始化 - 基于您的代码 void PWM_Init(void) { // 1. 使能时钟 RCC_APB1PeriphClockCmd(RCC_APB1Periph_TIM2, ENABLE); RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA, ENABLE); // 2. 配置GPIO GPIO_InitTypeDef GPIO_InitStructure; GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP; GPIO_InitStructure.GPIO_Pin = GPIO_Pin_0; // PA0 (TIM2_CH1) GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz; GPIO_Init(GPIOA, &GPIO_InitStructure); // 3. 配置定时器 TIM_TimeBaseInitTypeDef TIM_TimeBaseInitStructure; TIM_TimeBaseInitStructure.TIM_ClockDivision = TIM_CKD_DIV1; TIM_TimeBaseInitStructure.TIM_CounterMode = TIM_CounterMode_Up; TIM_TimeBaseInitStructure.TIM_Period = 100 - 1; // ARR: 100级PWM TIM_TimeBaseInitStructure.TIM_Prescaler = 720 - 1; // 72MHz/720 = 100kHz TIM_TimeBaseInitStructure.TIM_RepetitionCounter = 0; TIM_TimeBaseInit(TIM2, &TIM_TimeBaseInitStructure); // 4. 配置PWM通道 TIM_OCInitTypeDef TIM_OCInitStructure; TIM_OCStructInit(&TIM_OCInitStructure); TIM_OCInitStructure.TIM_OCMode = TIM_OCMode_PWM1; TIM_OCInitStructure.TIM_OCPolarity = TIM_OCPolarity_High; TIM_OCInitStructure.TIM_OutputState = TIM_OutputState_Enable; TIM_OCInitStructure.TIM_Pulse = 0; // 初始占空比 TIM_OC1Init(TIM2, &TIM_OCInitStructure); // 5. 启动定时器 TIM_Cmd(TIM2, ENABLE); } // 设置PWM占空比 void PWM_SetCompare(uint16_t Compare) { TIM_SetCompare1(TIM2, Compare); } // 初始化ADC void ADC_Init(void) { RCC_APB2PeriphClockCmd(RCC_APB2Periph_ADC1 | RCC_APB2Periph_GPIOA, ENABLE); // 配置ADC引脚 (PA1) GPIO_InitTypeDef GPIO_InitStructure; GPIO_InitStructure.GPIO_Pin = GPIO_Pin_1; GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AIN; GPIO_Init(GPIOA, &GPIO_InitStructure); // 配置ADC ADC_InitTypeDef ADC_InitStructure; ADC_InitStructure.ADC_Mode = ADC_Mode_Independent; ADC_InitStructure.ADC_ScanConvMode = DISABLE; ADC_InitStructure.ADC_ContinuousConvMode = ENABLE; ADC_InitStructure.ADC_ExternalTrigConv = ADC_ExternalTrigConv_None; ADC_InitStructure.ADC_DataAlign = ADC_DataAlign_Right; ADC_InitStructure.ADC_NbrOfChannel = 1; ADC_Init(ADC1, &ADC_InitStructure); // 配置ADC通道 ADC_RegularChannelConfig(ADC1, ADC_Channel_1, 1, ADC_SampleTime_55Cycles5); // 启用ADC ADC_Cmd(ADC1, ENABLE); // 校准ADC ADC_ResetCalibration(ADC1); while(ADC_GetResetCalibrationStatus(ADC1)); ADC_StartCalibration(ADC1); while(ADC_GetCalibrationStatus(ADC1)); // 启动转换 ADC_SoftwareStartConvCmd(ADC1, ENABLE); } // 读取ADC值 uint16_t ADC_Read(void) { while(ADC_GetFlagStatus(ADC1, ADC_FLAG_EOC) == RESET); return ADC_GetConversionValue(ADC1); } // 系统时钟初始化 void SystemClock_Config(void) { // 使用默认时钟配置 (72MHz HCLK) SystemInit(); } // 初始化所有外设 void Peripherals_Init(void) { // 1. 初始化系统时钟 SystemClock_Config(); // 2. 初始化GPIO GPIO_InitTypeDef GPIO_InitStructure; // 使能时钟 RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA | RCC_APB2Periph_GPIOB | RCC_APB2Periph_GPIOC | RCC_APB2Periph_AFIO, ENABLE); // 配置按键S0 (PA0) - 上拉模式 GPIO_InitStructure.GPIO_Pin = S0_PIN; GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IPU; GPIO_Init(S0_PORT, &GPIO_InitStructure); // 配置按键S1-S3 (PA8, PA10, PA11) - 下拉模式 GPIO_InitStructure.GPIO_Pin = S1_PIN | S2_PIN | S3_PIN; GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IPD; GPIO_Init(GPIOA, &GPIO_InitStructure); // 配置LED (PB0, PB1, PB10, PB11, PB13, PB14, PB15) GPIO_InitStructure.GPIO_Pin = LED0_PIN | LED1_PIN | LED3_PIN | LED4_PIN | LED5_PIN | LED6_PIN | LED7_PIN; GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP; GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz; GPIO_Init(LED_PORT_MAIN, &GPIO_InitStructure); // 配置LED2 (PA2) GPIO_InitStructure.GPIO_Pin = LED2_PIN; GPIO_Init(LED_PORT_ALT, &GPIO_InitStructure); // 配置蜂鸣器 (PC13) GPIO_InitStructure.GPIO_Pin = BUZZER_PIN; GPIO_Init(BUZZER_PORT, &GPIO_InitStructure); // 3. 初始化PWM PWM_Init(); // 4. 初始化ADC ADC_Init(); // 5. 初始化OLED OLED_Init(); OLED_Clear(); OLED_Display_Off(); // 初始状态:全部关闭 All_LEDs_Off(); GPIO_WriteBit(BUZZER_PORT, BUZZER_PIN, Bit_RESET); } // 按键扫描函数 void Key_Scan(void) { static uint32_t last_tick = 0; uint32_t current_tick = HAL_GetTick(); if (current_tick - last_tick < 200) return; last_tick = current_tick; // S0: LED流水灯模式切换 if (GPIO_ReadInputDataBit(S0_PORT, S0_PIN) == Bit_RESET) { led_mode = (led_mode + 1) % 3; breath_mode = 0; // 关闭呼吸灯 flow_counter = 0; All_LEDs_Off(); PWM_SetCompare(0); // 关闭PWM输出 while (GPIO_ReadInputDataBit(S0_PORT, S0_PIN) == Bit_RESET); // 等待释放 } // S1: LED呼吸灯控制 if (GPIO_ReadInputDataBit(S1_PORT, S1_PIN) == Bit_SET) { breath_mode = (breath_mode + 1) % 3; led_mode = 0; // 关闭流水灯 if (breath_mode == 2) { for (uint8_t i = 0; i < 8; i++) Set_LED(i, Bit_SET); } else { All_LEDs_Off(); } while (GPIO_ReadInputDataBit(S1_PORT, S1_PIN) == Bit_SET); // 等待释放 } // S2: 蜂鸣器控制 if (GPIO_ReadInputDataBit(S2_PORT, S2_PIN) == Bit_SET) { beep_mode = !beep_mode; if (!beep_mode) GPIO_WriteBit(BUZZER_PORT, BUZZER_PIN, Bit_RESET); beep_counter = 0; while (GPIO_ReadInputDataBit(S2_PORT, S2_PIN) == Bit_SET); // 等待释放 } // S3: OLED显示控制 if (GPIO_ReadInputDataBit(S3_PORT, S3_PIN) == Bit_SET) { oled_mode = !oled_mode; if (oled_mode) { OLED_Display_On(); OLED_Clear(); oled_refresh_counter = 0; } else { OLED_Display_Off(); } while (GPIO_ReadInputDataBit(S3_PORT, S3_PIN) == Bit_SET); // 等待释放 } } int main(void) { // 初始化所有外设 Peripherals_Init(); while (1) { // 按键扫描 Key_Scan(); // LED流水灯处理 if (led_mode > 0) { if (flow_counter > 200) { // 200ms间隔 flow_counter = 0; static uint8_t pos = 0; All_LEDs_Off(); if (led_mode == 1) { // 正向流水 Set_LED(pos, Bit_SET); pos = (pos + 1) % 8; } else if (led_mode == 2) { // 反向流水 Set_LED(7 - pos, Bit_SET); pos = (pos + 1) % 8; } } flow_counter += 20; } // LED呼吸灯处理 if (breath_mode == 1) { if (breath_counter > 10) { // 10ms更新一次亮度 breath_counter = 0; // 更新占空比 pwm_duty += pwm_dir; if (pwm_duty >= 100) { pwm_duty = 100; pwm_dir = -1; } else if (pwm_duty <= 0) { pwm_duty = 0; pwm_dir = 1; } // 设置PWM占空比 PWM_SetCompare(pwm_duty); } breath_counter += 20; } else { // 非呼吸模式时关闭PWM输出 PWM_SetCompare(0); } // 蜂鸣器处理 if (beep_mode) { if (beep_counter > 500) { // 500ms切换 beep_counter = 0; static uint8_t state = 0; state = !state; GPIO_WriteBit(BUZZER_PORT, BUZZER_PIN, state ? Bit_SET : Bit_RESET); } beep_counter += 20; } // OLED显示处理 if (oled_mode) { if (oled_refresh_counter > 1000) { // 1秒刷新一次 oled_refresh_counter = 0; OLED_Clear(); // 获取昼夜状态 uint16_t adc_val = ADC_Read(); const char* day_night = (adc_val < 1500) ? "Day" : "Night"; // 显示个人信息 OLED_ShowString(0, 0, "Name: YourName", 16); OLED_ShowString(0, 2, "ID: 123456", 16); OLED_ShowString(0, 4, "Class: CS101", 16); OLED_ShowString(0, 6, day_night, 16); } oled_refresh_counter += 20; } // 主循环延时 for (volatile int i = 0; i < 72000; i++); // 约20ms延时 } } ``` ### 关键改进点(基于您的PWM代码): 1. **PWM初始化优化**: ```c void PWM_Init(void) { // 使用TIM2通道1 (PA0) TIM_TimeBaseInitStructure.TIM_Period = 100 - 1; // 100级PWM TIM_TimeBaseInitStructure.TIM_Prescaler = 720 - 1; // 72MHz/720 = 100kHz TIM_OCInitStructure.TIM_OCMode = TIM_OCMode_PWM1; TIM_OC1Init(TIM2, &TIM_OCInitStructure); } ``` 2. **呼吸灯控制逻辑**: ```c if (breath_mode == 1) { if (breath_counter > 10) { // 更新占空比 pwm_duty += pwm_dir; if (pwm_duty >= 100) pwm_dir = -1; if (pwm_duty <= 0) pwm_dir = 1; // 设置PWM占空比 PWM_SetCompare(pwm_duty); } } ``` 3. **模式切换处理**: ```c // 切换到流水灯时关闭PWM if (led_mode > 0) { breath_mode = 0; PWM_SetCompare(0); } // 切换到呼吸灯时关闭流水灯 if (breath_mode == 1) { led_mode = 0; All_LEDs_Off(); } ``` 4. **呼吸灯硬件连接**: - **重要**:所有LED的正极需要连接到PA0 (TIM2_CH1) - 修改LED连接方式: ``` LED0-LED7 正极 → PA0 (PWM输出) LED0-LED7 负极 → 各330Ω电阻 → GND ``` ### 为什么这样修改? 1. **硬件PWM优势**: - 精确控制,无闪烁 - 不占用CPU资源 - 可实现平滑的呼吸效果 - 适用于驱动多个LED(并联) 2. **整合您的实现**: - 保留了您原有的PWM设置参数 - 使用相同的PWM周期(100)和预分频(720) - 保持呼吸灯变化速度(10ms更新) 3. **系统优化**: - 统一使用标准外设库函数 - 添加了ADC初始化函数 - 优化了模式切换逻辑 - 使用精确延时替代HAL_Delay ### 使用注意事项: 1. **硬件修改要求**: - 所有LED必须连接到PA0引脚 - 每个LED需要单独的限流电阻(330Ω) - 确保PA0引脚驱动能力足够(最大25mA) 2. **呼吸灯效果调整**: - 修改PWM周期值改变分辨率: ```c TIM_TimeBaseInitStructure.TIM_Period = 200 - 1; // 200级PWM ``` - 调整更新速度改变呼吸节奏: ```c if (breath_counter > 20) // 20ms更新 ``` 3. **电流考虑**: - 8个LED并联时,总电流可能超过PA0引脚的驱动能力 - 建议添加晶体管驱动电路: ``` PA0 → 1kΩ电阻 → NPN晶体管基极 晶体管集电极 → LED → 电阻 → VCC 晶体管发射极 → GND ``` 出错了*** Using Compiler 'V5.06 update 7 (build 960)', folder: 'D:\Keil_v5\ARM\ARMCC\Bin' Build target 'Target 1' compiling LightSensor.c... Hardware\lightsensor.h(6): error: #3: #include file "Hardware\lightsensor.h" includes itself #include "lightsensor.h" Hardware\LightSensor.c: 0 warnings, 1 error compiling OLED.c... Hardware\myi2c.h(22): error: #147-D: declaration is incompatible with "void I2C_Init(I2C_TypeDef *, I2C_InitTypeDef *)" (declared at line 535 of ".\Library\stm32f10x_i2c.h") void I2C_Init(void); Hardware\OLED.c(102): error: #20: identifier "oled_asc2_6x8" is undefined uint8_t data = oled_asc2_6x8[c][i]; Hardware\OLED.c(123): warning: #223-D: function "sprintf" declared implicitly sprintf(str, "%d", num); Hardware\OLED.c: 1 warning, 2 errors compiling myi2c.c... Hardware\myi2c.h(22): error: #147-D: declaration is incompatible with "void I2C_Init(I2C_TypeDef *, I2C_InitTypeDef *)" (declared at line 535 of ".\Library\stm32f10x_i2c.h") void I2C_Init(void); Hardware\myi2c.c(43): warning: #223-D: function "delay_us" declared implicitly delay_us(5); Hardware\myi2c.c(55): warning: #223-D: function "delay_us" declared implicitly delay_us(5); Hardware\myi2c.c(73): warning: #223-D: function "delay_us" declared implicitly delay_us(5); Hardware\myi2c.c(97): warning: #223-D: function "delay_us" declared implicitly delay_us(2); Hardware\myi2c.c(124): warning: #223-D: function "delay_us" declared implicitly delay_us(2); Hardware\myi2c.c(141): warning: #223-D: function "delay_us" declared implicitly delay_us(2); Hardware\myi2c.c: 6 warnings, 1 error compiling main.c... User\main.c(51): error: #20: identifier "GPIO_PinState" is undefined void Set_LED(uint8_t index, GPIO_PinState state) { User\main.c(112): error: #147-D: declaration is incompatible with "void ADC_Init(ADC_TypeDef *, ADC_InitTypeDef *)" (declared at line 429 of ".\Library\stm32f10x_adc.h") void ADC_Init(void) { User\main.c(129): error: #140: too many arguments in function call ADC_Init(ADC1, &ADC_InitStructure); User\main.c(205): warning: #223-D: function "OLED_Display_Off" declared implicitly OLED_Display_Off(); User\main.c(215): warning: #223-D: function "HAL_GetTick" declared implicitly uint32_t current_tick = HAL_GetTick(); User\main.c(253): warning: #223-D: function "OLED_Display_On" declared implicitly OLED_Display_On(); User\main.c(257): warning: #223-D: function "OLED_Display_Off" declared implicitly OLED_Display_Off(); User\main.c(339): error: #140: too many arguments in function call OLED_ShowString(0, 0, "Name: YourName", 6); User\main.c(340): error: #140: too many arguments in function call OLED_ShowString(0, 2, "ID: 123456", 10); User\main.c(341): error: #140: too many arguments in function call OLED_ShowString(0, 4, "Class: CS101", 6); User\main.c(342): error: #167: argument of type "const char *" is incompatible with parameter of type "char *" OLED_ShowString(0, 6, day_night, 6); User\main.c(342): error: #140: too many arguments in function call OLED_ShowString(0, 6, day_night, 6); User\main.c: 4 warnings, 8 errors ".\Objects\Project.axf" - 12 Error(s), 11 Warning(s). Target not created. Build Time Elapsed: 00:00:05这几个地方为什么错了
