1 Introduction

SAP script is essentially a tool for the presentation of business data, Also it is used to format and generate business document types like purchase requisitions, requests for quotations, sales orders, delivery notes, invoices, etc. Means it is used of preformatted forms to print preformatted text.

2 Create script forms

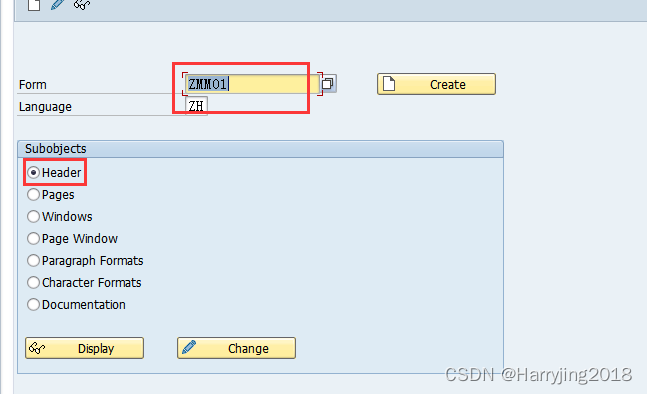

2.1 T-code

SE71

2.2 Method

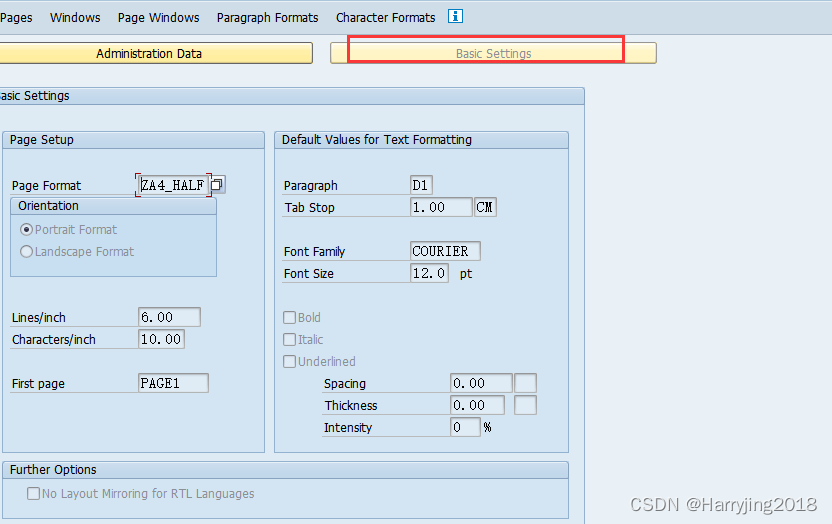

2.21 header

在这里插入图片描述

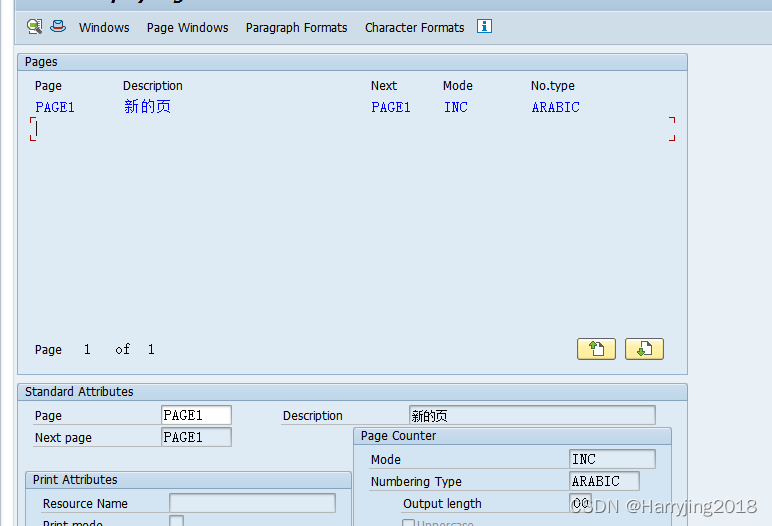

2.22 Page

在这里插入图片描述

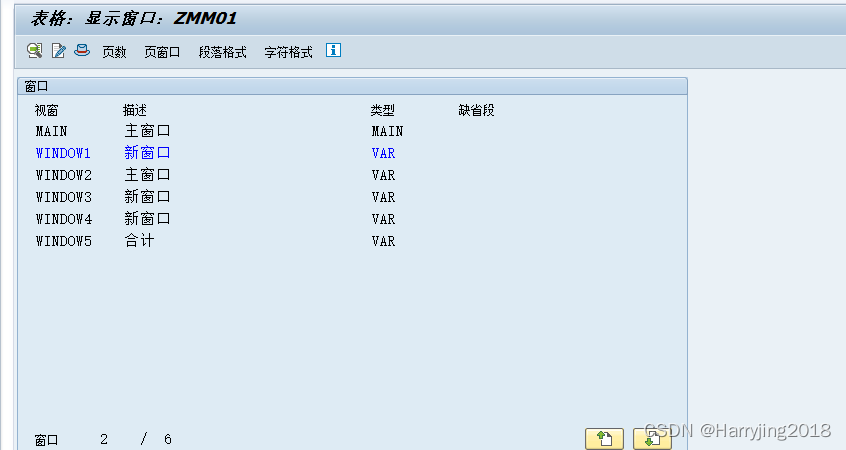

2.23 window

在这里插入图片描述

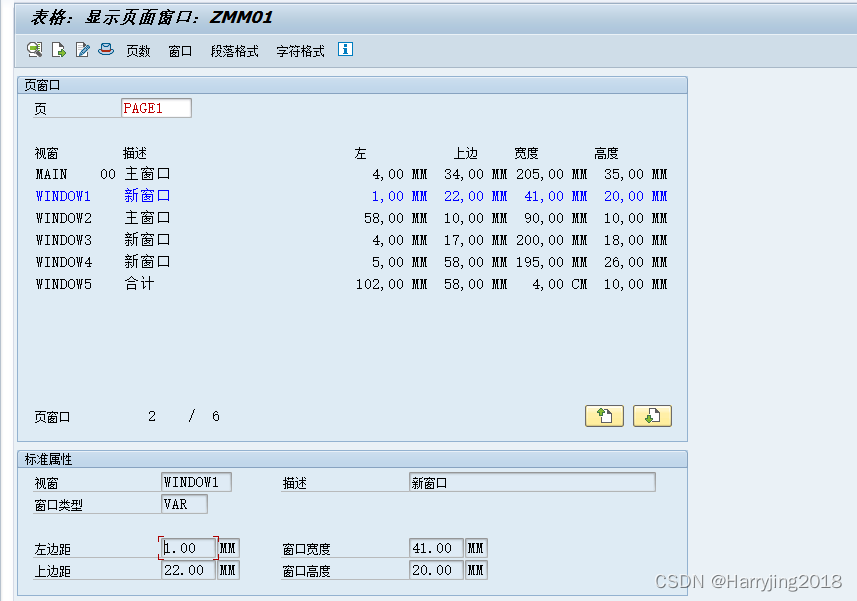

2.23 page window

在这里插入图片描述

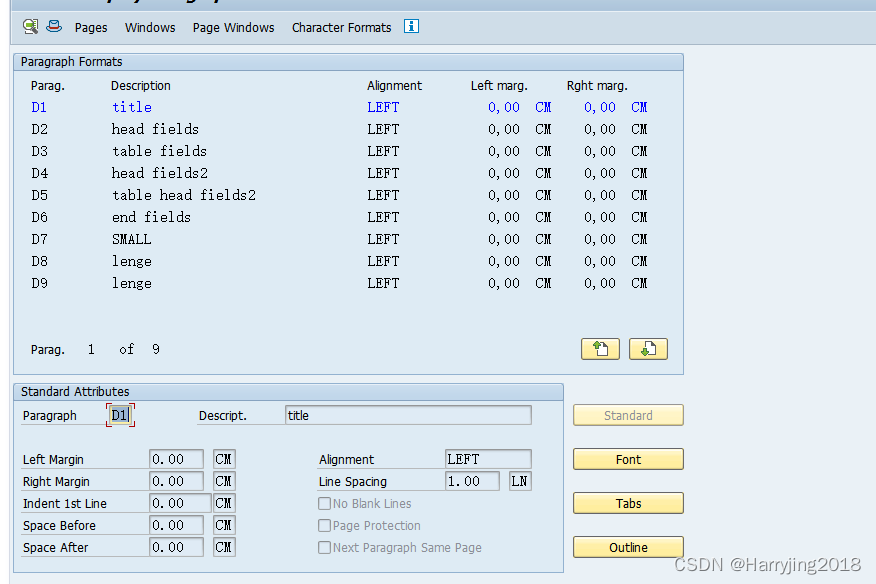

2.24 Paragraph formats

在这里插入图片描述

3 Call script forms

CALL FUNCTION 'OPEN_FORM'
 EXPORTING
*   APPLICATION                       = 'TX'
*   ARCHIVE_INDEX                     =
*   ARCHIVE_PARAMS                    =
*   DEVICE                            = 'PRINTER'
*   DIALOG                            = 'X'
   FORM                              = 'ZMM01'
*   LANGUAGE                          = SY-LANGU
   OPTIONS                           =  I_ITCPO
*   MAIL_SENDER                       =
*   MAIL_RECIPIENT                    =
*   MAIL_APPL_OBJECT                  =
*   RAW_DATA_INTERFACE                = '*'
*   SPONUMIV                          =
* IMPORTING
*   LANGUAGE                          =
*   NEW_ARCHIVE_PARAMS                =
*   RESULT                            =
 EXCEPTIONS
   CANCELED                          = 1
   DEVICE                            = 2
   FORM                              = 3
   OPTIONS                           = 4
   UNCLOSED                          = 5
   MAIL_OPTIONS                      = 6
   ARCHIVE_ERROR                     = 7
   INVALID_FAX_NUMBER                = 8
   MORE_PARAMS_NEEDED_IN_BATCH       = 9
   SPOOL_ERROR                       = 10
   CODEPAGE                          = 11
  OTHERS                            = 12
          .
IF SY-SUBRC <> 0.
* MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
*         WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
ENDIF.
CALL FUNCTION 'WRITE_FORM'
 EXPORTING
   ELEMENT                        = 'HEAD'
*   FUNCTION                       = 'SET'
*   TYPE                           = 'BODY'
   WINDOW                         = 'WINDOW3'
* IMPORTING
*   PENDING_LINES                  =
 EXCEPTIONS
   ELEMENT                        = 1
   FUNCTION                       = 2
   TYPE                           = 3
   UNOPENED                       = 4
   UNSTARTED                      = 5
   WINDOW                         = 6
   BAD_PAGEFORMAT_FOR_PRINT       = 7
   SPOOL_ERROR                    = 8
   CODEPAGE                       = 9
   OTHERS                         = 10
          .
IF SY-SUBRC <> 0.
* MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
*         WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
ENDIF.

loop at itab.

CALL FUNCTION 'WRITE_FORM'
 EXPORTING
   ELEMENT                        = 'ITEM'
   FUNCTION                       = 'SET'
   TYPE                           = 'BODY'
   WINDOW                         = 'MAIN'
* IMPORTING
*   PENDING_LINES                  =
 EXCEPTIONS
   ELEMENT                        = 1
   FUNCTION                       = 2
   TYPE                           = 3
   UNOPENED                       = 4
   UNSTARTED                      = 5
   WINDOW                         = 6
   BAD_PAGEFORMAT_FOR_PRINT       = 7
   SPOOL_ERROR                    = 8
   CODEPAGE                       = 9
   OTHERS                         = 10
          .
IF SY-SUBRC <> 0.
* MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
*         WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
ENDIF.
SUM_MENGE = SUM_MENGE + ITAB-ERFMG.
endloop.
CALL FUNCTION 'CLOSE_FORM'
* IMPORTING
*   RESULT                         =
*   RDI_RESULT                     =
* TABLES
*   OTFDATA                        =
* EXCEPTIONS
*   UNOPENED                       = 1
*   BAD_PAGEFORMAT_FOR_PRINT       = 2
*   SEND_ERROR                     = 3
*   SPOOL_ERROR                    = 4
*   CODEPAGE                       = 5
*   OTHERS                         = 6
          .
IF SY-SUBRC <> 0.
* MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
*         WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
ENDIF.
