1、介绍
最佳实践
启动 minikube&kuboard 客户端
注意，只是启动 Docker 中 minikube 容器是不够的
minikube start # 简单版本，下面是指定资源大小
minikube start \
--memory=4096 \
--cpus=2 \
--disk-size=30g \
--driver=docker
kubectl get pods -l k8s.kuboard.cn/name=kuboard -n kube-system
minikube service kuboard -n kube-system

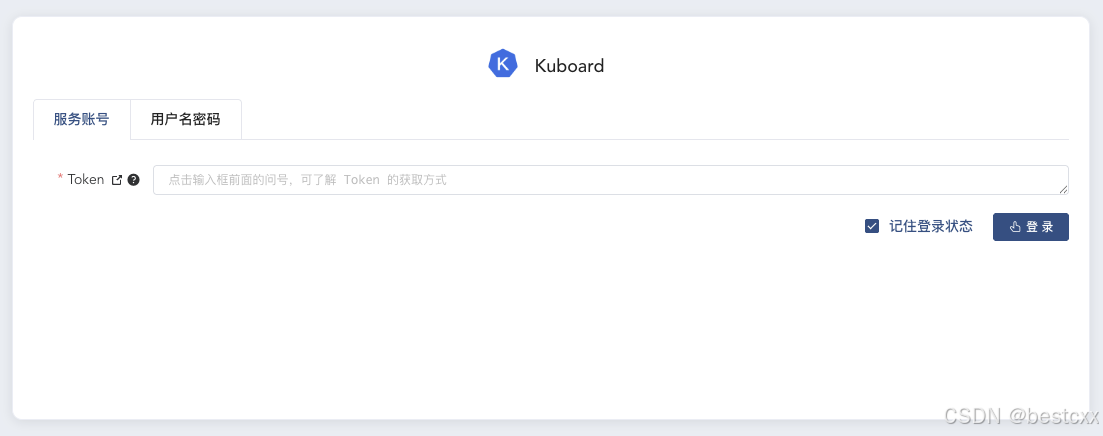

获取登录认证 token
- 创建持久化的服务账户 token
kubectl apply -f - <<EOF
apiVersion: v1
kind: Secret
metadata:
name: kuboard-user-token
namespace: kube-system
annotations:
kubernetes.io/service-account.name: kuboard-user
type: kubernetes.io/service-account-token
EOF
# 获取配置的持久化 token
echo $(kubectl -n kube-system get secret $(kubectl -n kube-system get secret | grep ^kuboard-user | awk '{print $1}') -o go-template='{{.data.token}}' | base64 -d)
# 废弃
kubectl -n kube-system create token kuboard-user --duration=8760h
docker 运行 minikube 集群节点（kube-apiserver ）无法被直接访问的问题
对于本系列，系统环境是 mac(OS 14.3.1) ，此版本的OS 系统暂不支持以 Virtual Box 方式运行 minikube 。
使用 docker 部署 minikube 会有一个问题，就是minikube 的内部地址没有办法直接被宿主机访问。
对于docker 运行 minikube ，在k8s 中部署的服务，可以通过 NodePort 方式暴露服务，然后通过隧道端口被宿主机直接访问。
但是对于集群节点，这种方式行不通，即无法为表示集群节点的 kube-apiserver 提供一个可以直接被宿主机访问的端口映射。
Kuboard 需要访问到 k8s 集群的kube-apiserver
Kuboard 通过代理地址和 k8s 集群进行交互，如果 k8s 服务不可访达，那么交互就无从谈起。
2.pre、在 k8s 中安装（Docker 安装 minikube）
2.pre.1、安装
方法1：使用官方 YAML 文件
可能有网络问题
kubectl apply -f https://kuboard.cn/install-script/kuboard.yaml
方法2：使用可靠的镜像源手动安装
kubectl apply -f - <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
name: kuboard
namespace: kube-system
labels:
k8s.kuboard.cn/name: kuboard
k8s.kuboard.cn/layer: monitor
spec:
replicas: 1
selector:
matchLabels:
k8s.kuboard.cn/name: kuboard
k8s.kuboard.cn/layer: monitor
template:
metadata:
labels:
k8s.kuboard.cn/name: kuboard
k8s.kuboard.cn/layer: monitor
spec:
containers:
- name: kuboard
image: eipwork/kuboard:latest
imagePullPolicy: Always
ports:
- containerPort: 80
resources:
limits:
cpu: 500m
memory: 512Mi
requests:
cpu: 100m
memory: 128Mi
tolerations:
- key: node-role.kubernetes.io/master
operator: Exists
effect: NoSchedule
---
apiVersion: v1
kind: Service
metadata:
name: kuboard
namespace: kube-system
spec:
type: NodePort
ports:
- name: http
port: 80
targetPort: 80
nodePort: 32567
selector:
k8s.kuboard.cn/name: kuboard
k8s.kuboard.cn/layer: monitor
EOF
方法3：使用 Helm（如果你有 Helm）
helm repo add kuboard https://kuboard.cn/helm-chart
helm install kuboard kuboard/kuboard --namespace kube-system
2.pre.2、删除
删除当前安装的 kuboard：
kubectl delete deployment kuboard -n kube-system
2、安装 Kuboard(在 Docker 中安装)
2.1、k8s 集群节点可以被外部直接访问的情况
比如使用 Virtual Box 安装minikube 的模式，或者 docket dasktop 自带 k8s 的模式。
直接使用 docker 安装 Kuboard 即可。
这里使用 本机 Docker 安装独立的 Kuboard V3 版本
2.1.1、下载镜像
docker pull swr.cn-east-2.myhuaweicloud.com/kuboard/kuboard:v3
2.1.2、运行 deployment.yml
这里具体采取的配置为 8081 为宿主机访问Kuboard的端口，30081 为Kuboard访问 k8s 集群的代理端口
192.168.58.2 为
docker volume create kuboard-data
docker run -d \
--restart=unless-stopped \
--name=kuboard \
-p 80:80/tcp \
-p 10081:10081/tcp \
-e KUBOARD_ENDPOINT="https://192.168.58.2:8443" \
-e KUBOARD_AGENT_SERVER_TCP_PORT=30081 \
-v kuboard-data:/data/kuboard \
swr.cn-east-2.myhuaweicloud.com/kuboard/kuboard:v3
2.1.3、访问 Kuboard
http://127.0.0.1:8081/
默认登陆名和密码是
admin/Kuboard123
2.2、k8s 集群节点无法被外部直接访问的情况
比如本系列中，使用 docker 部署 minikube ，此时k8s 集群节点无法被外部直接访问，我们直接在 K8s 内部署 Kuboard，利用k8s 集群内可以自由通信的特性，再把 Kuboard 以NodePort 的形式暴露出来。
2.2.1.、细节
- 确认 node 节点ip
192.168.49.2
➜ ~ kubectl get nodes -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
minikube Ready control-plane 25m v1.31.0 192.168.49.2 <none> Ubuntu 22.04.4 LTS 5.15.49-linuxkit docker://27.2.0
- 确认 storageclass，比如下面查询到叫 standard
standard
➜ ~ kubectl get storageclass
NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE
standard (default) k8s.io/minikube-hostpath Delete Immediate false 21m
- 下载 kuboard-v3.yaml，对其中的内容进行修改
第一把 KUBOARD_ENDPOINT: ‘http://your-node-ip-address:30080’ 中 your-node-ip-address 修改为 kubectl get nodes -o wide 查询获得的ip （我这里是 192.168.49.2 ）
第二是把 storageClassName: please-provide-a-valid-StorageClass-name-here 中please-provide-a-valid-StorageClass-name-here修改为 kubectl get storageclass 查询得到的name （我这里是 standard）
第三，对 PVC 部分修改为下面内容-增加了一行 storageClassName: standard
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: kuboard-data-pvc
namespace: kuboard
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 10Gi # 根据需要调整大小
storageClassName: standard # 确保与您的 PV 的存储类匹配
2.2.2、 修改完后的文档
---
apiVersion: v1
kind: Namespace
metadata:
name: kuboard
---
apiVersion: v1
kind: ConfigMap
metadata:
name: kuboard-v3-config
namespace: kuboard
data:
# 关于如下参数的解释，请参考文档 https://kuboard.cn/install/v3/install-built-in.html
# [common]
KUBOARD_ENDPOINT: 'http://192.168.49.2:30080'
KUBOARD_AGENT_SERVER_UDP_PORT: '30081'
KUBOARD_AGENT_SERVER_TCP_PORT: '30081'
KUBOARD_SERVER_LOGRUS_LEVEL: info # error / debug / trace
# KUBOARD_AGENT_KEY 是 Agent 与 Kuboard 通信时的密钥，请修改为一个任意的包含字母、数字的32位字符串，此密钥变更后，需要删除 Kuboard Agent 重新导入。
KUBOARD_AGENT_KEY: 32b7d6572c6255211b4eec9009e4a816
# 关于如下参数的解释，请参考文档 https://kuboard.cn/install/v3/install-gitlab.html
# [gitlab login]
# KUBOARD_LOGIN_TYPE: "gitlab"
# KUBOARD_ROOT_USER: "your-user-name-in-gitlab"
# GITLAB_BASE_URL: "http://gitlab.mycompany.com"
# GITLAB_APPLICATION_ID: "7c10882aa46810a0402d17c66103894ac5e43d6130b81c17f7f2d8ae182040b5"
# GITLAB_CLIENT_SECRET: "77c149bd3a4b6870bffa1a1afaf37cba28a1817f4cf518699065f5a8fe958889"
# 关于如下参数的解释，请参考文档 https://kuboard.cn/install/v3/install-github.html
# [github login]
# KUBOARD_LOGIN_TYPE: "github"
# KUBOARD_ROOT_USER: "your-user-name-in-github"
# GITHUB_CLIENT_ID: "17577d45e4de7dad88e0"
# GITHUB_CLIENT_SECRET: "ff738553a8c7e9ad39569c8d02c1d85ec19115a7"
# 关于如下参数的解释，请参考文档 https://kuboard.cn/install/v3/install-ldap.html
# [ldap login]
# KUBOARD_LOGIN_TYPE: "ldap"
# KUBOARD_ROOT_USER: "your-user-name-in-ldap"
# LDAP_HOST: "ldap-ip-address:389"
# LDAP_BIND_DN: "cn=admin,dc=example,dc=org"
# LDAP_BIND_PASSWORD: "admin"
# LDAP_BASE_DN: "dc=example,dc=org"
# LDAP_FILTER: "(objectClass=posixAccount)"
# LDAP_ID_ATTRIBUTE: "uid"
# LDAP_USER_NAME_ATTRIBUTE: "uid"
# LDAP_EMAIL_ATTRIBUTE: "mail"
# LDAP_DISPLAY_NAME_ATTRIBUTE: "cn"
# LDAP_GROUP_SEARCH_BASE_DN: "dc=example,dc=org"
# LDAP_GROUP_SEARCH_FILTER: "(objectClass=posixGroup)"
# LDAP_USER_MACHER_USER_ATTRIBUTE: "gidNumber"
# LDAP_USER_MACHER_GROUP_ATTRIBUTE: "gidNumber"
# LDAP_GROUP_NAME_ATTRIBUTE: "cn"
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: kuboard-etcd
namespace: kuboard
labels:
app: kuboard-etcd
spec:
serviceName: kuboard-etcd
replicas: 3
selector:
matchLabels:
app: kuboard-etcd
template:
metadata:
name: kuboard-etcd
labels:
app: kuboard-etcd
spec:
containers:
- name: kuboard-etcd
image: swr.cn-east-2.myhuaweicloud.com/kuboard/etcd:v3.4.14
ports:
- containerPort: 2379
name: client
- containerPort: 2380
name: peer
env:
- name: KUBOARD_ETCD_ENDPOINTS
value: >-
kuboard-etcd-0.kuboard-etcd:2379,kuboard-etcd-1.kuboard-etcd:2379,kuboard-etcd-2.kuboard-etcd:2379
volumeMounts:
- name: data
mountPath: /data
command:
- /bin/sh
- -c
- |
PEERS="kuboard-etcd-0=http://kuboard-etcd-0.kuboard-etcd:2380,kuboard-etcd-1=http://kuboard-etcd-1.kuboard-etcd:2380,kuboard-etcd-2=http://kuboard-etcd-2.kuboard-etcd:2380"
exec etcd --name ${HOSTNAME} \
--listen-peer-urls http://0.0.0.0:2380 \
--listen-client-urls http://0.0.0.0:2379 \
--advertise-client-urls http://${HOSTNAME}.kuboard-etcd:2379 \
--initial-advertise-peer-urls http://${HOSTNAME}:2380 \
--initial-cluster-token kuboard-etcd-cluster-1 \
--initial-cluster ${PEERS} \
--initial-cluster-state new \
--data-dir /data/kuboard.etcd
volumeClaimTemplates:
- metadata:
name: data
spec:
# 请填写一个有效的 StorageClass name
storageClassName: standard
accessModes: [ "ReadWriteMany" ]
resources:
requests:
storage: 5Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: kuboard-data-pvc
namespace: kuboard
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 10Gi # 根据需要调整大小
storageClassName: standard # 确保与您的 PV 的存储类匹配
---
apiVersion: v1
kind: Service
metadata:
name: kuboard-etcd
namespace: kuboard
spec:
type: ClusterIP
ports:
- port: 2379
name: client
- port: 2380
name: peer
selector:
app: kuboard-etcd
---
apiVersion: apps/v1
kind: Deployment
metadata:
annotations:
deployment.kubernetes.io/revision: '9'
k8s.kuboard.cn/ingress: 'false'
k8s.kuboard.cn/service: NodePort
k8s.kuboard.cn/workload: kuboard-v3
labels:
k8s.kuboard.cn/name: kuboard-v3
name: kuboard-v3
namespace: kuboard
spec:
replicas: 1
selector:
matchLabels:
k8s.kuboard.cn/name: kuboard-v3
template:
metadata:
labels:
k8s.kuboard.cn/name: kuboard-v3
spec:
containers:
- env:
- name: KUBOARD_ETCD_ENDPOINTS
value: >-
kuboard-etcd-0.kuboard-etcd:2379,kuboard-etcd-1.kuboard-etcd:2379,kuboard-etcd-2.kuboard-etcd:2379
envFrom:
- configMapRef:
name: kuboard-v3-config
image: 'swr.cn-east-2.myhuaweicloud.com/kuboard/kuboard:v3'
imagePullPolicy: Always
name: kuboard
volumeMounts:
- mountPath: "/data"
name: kuboard-data
volumes:
- name: kuboard-data
persistentVolumeClaim:
claimName: kuboard-data-pvc
---
apiVersion: v1
kind: Service
metadata:
annotations:
k8s.kuboard.cn/workload: kuboard-v3
labels:
k8s.kuboard.cn/name: kuboard-v3
name: kuboard-v3
namespace: kuboard
spec:
ports:
- name: webui
nodePort: 30080
port: 80
protocol: TCP
targetPort: 80
- name: agentservertcp
nodePort: 30081
port: 10081
protocol: TCP
targetPort: 10081
- name: agentserverudp
nodePort: 30081
port: 10081
protocol: UDP
targetPort: 10081
selector:
k8s.kuboard.cn/name: kuboard-v3
sessionAffinity: None
type: NodePort
2.2.3、 执行 yaml,部署 Kuboard 的Pod和NodePort
kubectl apply -f kuboard-v3.yaml
➜ kubectl apply -f kuboard-v3.yaml
正常会打印
namespace/kuboard created
configmap/kuboard-v3-config created
statefulset.apps/kuboard-etcd created
persistentvolumeclaim/kuboard-data-pvc created
service/kuboard-etcd created
deployment.apps/kuboard-v3 created
service/kuboard-v3 created
2.2.4、确定Pod运行状态
➜ ~ kubectl get pods -n kuboard
可能会遇到报错
NAME
kuboard-etcd-0 0/1 ImagePullBackOff 0 2m49s
kuboard-v3-69bd874899-pjj2m 0/1 ErrImagePull 0 2m35s
此时，把对应的Pod删除.会有自动充实机制
kubectl delete pod kuboard-etcd-0 -n kuboard
kubectl delete pod kuboard-v3-69bd874899-pjj2m -n kuboard
启动成功会展示
➜ ~ kubectl get pods -n kuboard
NAME READY STATUS RESTARTS AGE
kuboard-etcd-0 1/1 Running 2 (24s ago) 91s
kuboard-etcd-1 1/1 Running 2 (21s ago) 85s
kuboard-etcd-2 1/1 Running 2 (19s ago) 82s
kuboard-v3-69bd874899-zx5cj 1/1 Running 0 30s
2.2.5、访问 Kuboard
因为是在 docker 运行 minikube,访问 Kuboard 的NodePort 服务，需要构造一个隧道端口
参考 从宿主机访问 k8s(minikube) 发布的 redis 服务
特殊之处在于，Kuboard 需要在特定的命名空间中
- 查看命名空间
# 查看命名空间
➜ ~ kubectl get svc -n kuboard
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kuboard-etcd ClusterIP 10.97.148.215 <none> 2379/TCP,2380/TCP 30m
kuboard-v3 NodePort 10.104.126.78 <none> 80:30080/TCP,10081:30081/TCP,10081:30081/UDP 30m
- 为 kuboard-v3 提供隧道服务
minikube service kuboard-v3 -n kuboard
# 为 提供隧道服务
➜ ~ minikube service kuboard-v3 -n kuboard
W1024 01:11:56.611451 15452 main.go:291] Unable to resolve the current Docker CLI context "default": context "default": context not found: open /Users/wujie/.docker/contexts/meta/37a8eec1ce19687d132fe29051dca629d164e2c4958ba141d5f4133a33f0688f/meta.json: no such file or directory
|-----------|------------|----------------------|---------------------------|
| NAMESPACE | NAME | TARGET PORT | URL |
|-----------|------------|----------------------|---------------------------|
| kuboard | kuboard-v3 | webui/80 | http://192.168.49.2:30080 |
| | | agentservertcp/10081 | http://192.168.49.2:30081 |
| | | agentserverudp/10081 | http://192.168.49.2:30081 |
|-----------|------------|----------------------|---------------------------|
🏃 为服务 kuboard-v3 启动隧道。
|-----------|------------|-------------|------------------------|
| NAMESPACE | NAME | TARGET PORT | URL |
|-----------|------------|-------------|------------------------|
| kuboard | kuboard-v3 | | http://127.0.0.1:57428 |
| | | | http://127.0.0.1:57429 |
| | | | http://127.0.0.1:57430 |
|-----------|------------|-------------|------------------------|
[kuboard kuboard-v3 http://127.0.0.1:57428
http://127.0.0.1:57429
http://127.0.0.1:57430]
❗ 因为你正在使用 darwin 上的 Docker 驱动程序，所以需要打开终端才能运行它。
访问 http://127.0.0.1:57428
http://127.0.0.1:57429
http://127.0.0.1:57430 任意一个
默认用户名和密码是
admin/Kuboard123
3、Kuboard 添加集群
这里就以 Docker 运行 minikube,然后在 k8s 中部署 Kuboard 为例了
选择第一种方式，获取 token
ApiServer 地址 写 kubectl get nodes -o wide 获取的地址(我这里是 192.168.49.2)，端口固定为 8443，需要以 https:// 开头
即 https://192.168.49.2:8443
4、Kuboard 查看k8s 集群内容
需要先选择访问集群的身份
5、体验自动/手动伸缩功能
扫一扫
1080
到【灌水乐园】发言
