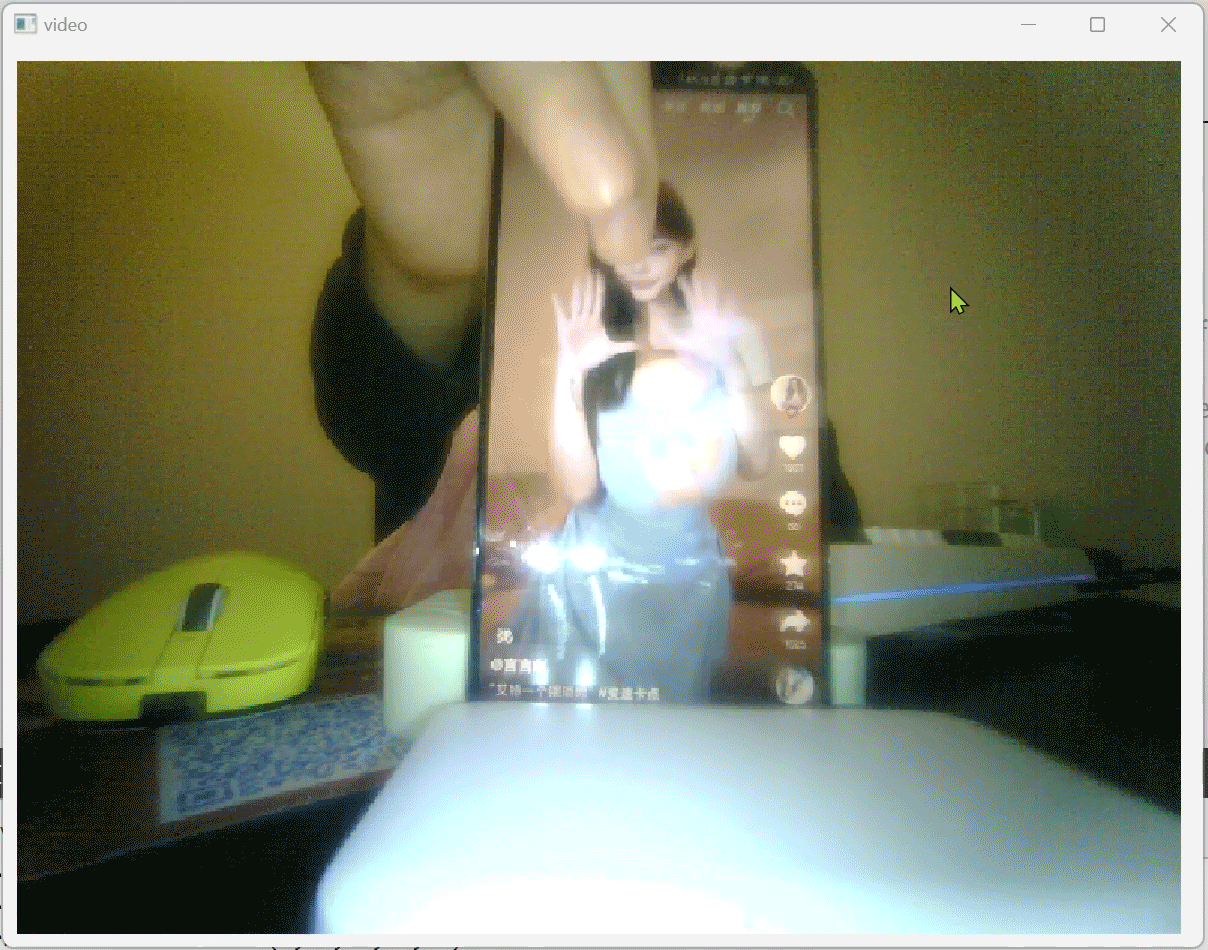

imx6ull平台下ov2640+udp+QT简易监控制作(无音频)

bei9527

已于 2024-12-08 19:53:03 修改

阅读量454

点赞数 6

文章标签： udp qt 网络协议

于 2024-11-26 17:56:23 首次发布

本文链接：https://blog.youkuaiyun.com/bei9527/article/details/144061861

版权

ov2640驱动

驱动编译

作者使用的linux内核版本是4.1.15+，内含ov2640的驱动，只需要在NXP出厂配置外开启对应的选项。
在这里插入图片描述
在<linux内核源码路径>/arch/arm/configs/**defconfig下添加

DTS修改

删除这一行，避免产生多余的video设备
在这里插入图片描述

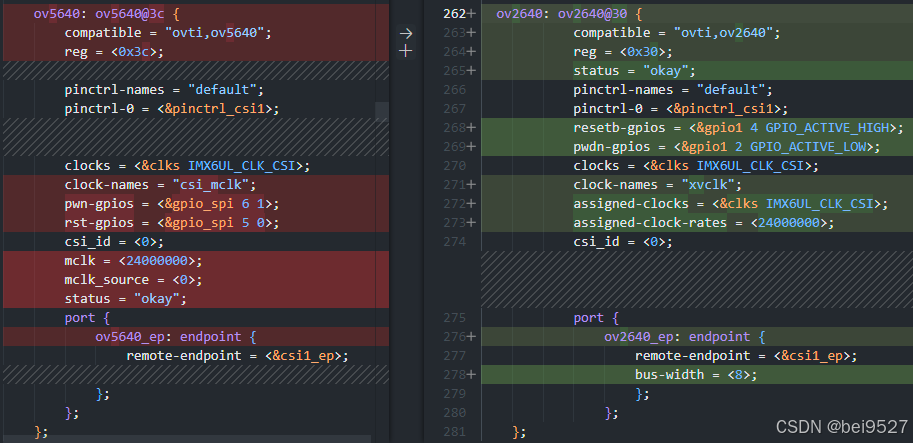

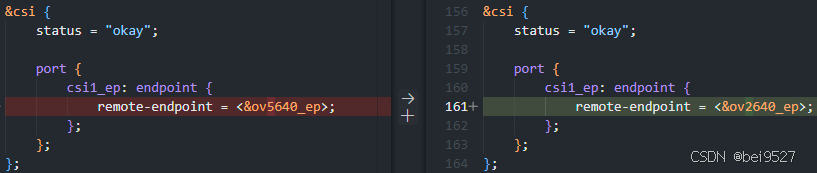

对照原有的ov5640修改为ov2640

参考Linux ov2640移植可以得到从设备地址及多余video设备删除相关内容

应用开发

整体结构上开发板作为服务端，使用监听端口。PC上的QT端作为客户端，主动发送消息，获取数据。

注意：

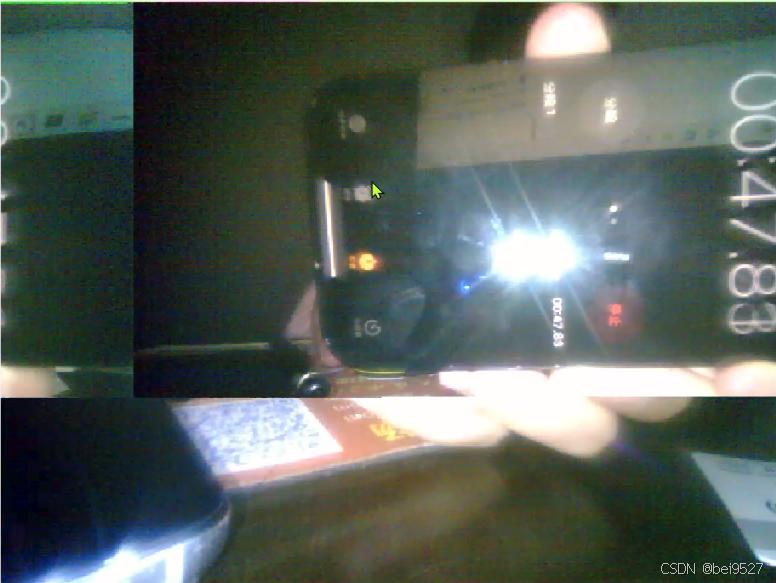

帧过大会导致单个数据包无法发送，需要分包，即添加帧头等信息
对于占用多个字节的数据需要使用htonl等接口，完成大小端顺序的转化，否则反序列化可能出问题
可变参数的宏展开和参数列表展开

开发板应用

#include <arpa/inet.h>
#include <cstdarg>
#include <ctime>
#include <errno.h>
#include <fcntl.h>
#include <ifaddrs.h>
#include <linux/v4l2-controls.h>
#include <linux/videodev2.h>
#include <netinet/in.h>
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <string>
#include <sys/epoll.h>
#include <sys/ioctl.h>
#include <sys/mman.h>
#include <sys/socket.h>
#include <unistd.h>

#define FRAMEBUFFER_COUNT 4
#define UDP_PORT 12345    // 替换为实际的端口号
#define MAX_EVENTS 1
#define MAX_PAYLOAD_SIZE 1500    // 选择一个合适的大小，确保不会超过MTU
#define HEAD_SIZE 5

struct cam_buf_info
{
    void*  start;
    size_t length;
};

// 宏实现打印添加时间戳
#if 0
#define LOG_PRINT(format, ...)                                                                         \
    do                                                                                                 \
    {                                                                                                  \
        std::time_t raw_time;                                                                          \
        std::time(&raw_time);                                                                          \
        struct tm* time_info = localtime(&raw_time);                                                   \
        char       buffer[80];                                                                         \
        std::strftime(buffer, sizeof(buffer), "%Y-%m-%d %H:%M:%S", time_info);                         \
        printf("[%s] " format "\n", buffer, ##__VA_ARGS__);                                            \
    } while(0);
#else
// 可变参数列表实现打印添加时间戳
void LOG_PRINT(const char* format, ...)
{
    std::time_t raw_time;
    std::time(&raw_time);
    struct tm* time_info = localtime(&raw_time);
    char       buffer[80];
    std::strftime(buffer, sizeof(buffer), "%Y-%m-%d %H:%M:%S", time_info);
    printf("[%s] ", buffer);

    va_list args;
    va_start(args, format);
    vprintf(format, args);
    va_end(args);
    printf("\n");
    fflush(stdout);
}
#endif

class udpSocket
{
public:
    udpSocket(int port)
    : m_port(port){};
    ~udpSocket();
    int init();

    int getFd() { return m_udp_socket; }

private:
    int m_udp_socket;
    int m_port;
};

class Video
{
public:
    Video(std::string dev_name)
    : m_dev_name(dev_name){};
    ~Video();
    int  init();
    void print_supported_formats();
    int  capture_and_send(udpSocket& udp_socket);

private:
    void send_real(void* data, int32_t length, int udp_socket, sockaddr_in* client_addr);
    void save_yuv_image(const char* filename, void* data, size_t length);

private:
    int          m_v4l2_fd;    // 摄像头设备文件描述符
    std::string  m_dev_name;
    cam_buf_info m_buf_infos[FRAMEBUFFER_COUNT];
};

Video::~Video()
{
    if(m_v4l2_fd >= 0)
    {
        close(m_v4l2_fd);
    }
}

int Video::init()
{
    /* 打开摄像头 */
    m_v4l2_fd = open(m_dev_name.c_str(), O_RDWR);
    if(m_v4l2_fd < 0)
    {
        perror("open error");
        return -1;
    }

    /* 设置摄像头格式为YUYV */
    v4l2_format fmt = {0};
    fmt.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    fmt.fmt.pix.width = 640;     // 替换为实际的宽度
    fmt.fmt.pix.height = 480;    // 替换为实际的高度
    fmt.fmt.pix.pixelformat = V4L2_PIX_FMT_YUYV;

    if(ioctl(m_v4l2_fd, VIDIOC_S_FMT, &fmt) < 0)
    {
        perror("ioctl error: VIDIOC_S_FMT");
        return -1;
    }

    v4l2_streamparm streamparm;
    memset(&streamparm, 0, sizeof(streamparm));
    streamparm.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;

    /* 申请帧缓冲 */
    v4l2_requestbuffers reqbuf = {0};
    reqbuf.count = FRAMEBUFFER_COUNT;    // 帧缓冲的数量
    reqbuf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    reqbuf.memory = V4L2_MEMORY_MMAP;
    if(ioctl(m_v4l2_fd, VIDIOC_REQBUFS, &reqbuf) < 0)
    {
        perror("ioctl error: VIDIOC_REQBUFS");
        return -1;
    }

    /* 建立内存映射 */
    v4l2_buffer buf = {0};
    buf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    buf.memory = V4L2_MEMORY_MMAP;
    for(buf.index = 0; buf.index < FRAMEBUFFER_COUNT; buf.index++)
    {
        if(ioctl(m_v4l2_fd, VIDIOC_QUERYBUF, &buf) < 0)
        {
            perror("ioctl error: VIDIOC_QUERYBUF");
            return -1;
        }

        m_buf_infos[buf.index].length = buf.length;
        m_buf_infos[buf.index].start = mmap(NULL, buf.length, PROT_READ | PROT_WRITE, MAP_SHARED, m_v4l2_fd, buf.m.offset);
        if(m_buf_infos[buf.index].start == MAP_FAILED)
        {
            perror("mmap error");
            return -1;
        }
    }

    /* 入队 */
    for(buf.index = 0; buf.index < FRAMEBUFFER_COUNT; buf.index++)
    {
        if(ioctl(m_v4l2_fd, VIDIOC_QBUF, &buf) < 0)
        {
            perror("ioctl error: VIDIOC_QBUF");
            return -1;
        }
    }

    /* 启动视频采集 */
    int type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    if(ioctl(m_v4l2_fd, VIDIOC_STREAMON, &type) < 0)
    {
        perror("ioctl error: VIDIOC_STREAMON");
        return -1;
    }

    return 0;
}

int Video::capture_and_send(udpSocket& socketObj)
{
    int epoll_fd = epoll_create1(0);
    if(epoll_fd == -1)
    {
        perror("epoll_create1 error");
        return -1;
    }

    int         udp_socket = socketObj.getFd();
    epoll_event ev, events[MAX_EVENTS];
    ev.events = EPOLLIN;
    ev.data.fd = udp_socket;
    if(epoll_ctl(epoll_fd, EPOLL_CTL_ADD, udp_socket, &ev) == -1)
    {
        perror("epoll_ctl error");
        return -1;
    }

    v4l2_buffer frame_buf = {0};
    frame_buf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    frame_buf.memory = V4L2_MEMORY_MMAP;

    uint32_t frame_number = 0;

    char        buffer[100];
    sockaddr_in client_addr;
    socklen_t   addr_len = sizeof(client_addr);

    while(1)
    {
        int nfds = epoll_wait(epoll_fd, events, MAX_EVENTS, -1);
        if(nfds == -1)
        {
            if(errno == EINTR) continue;
            perror("epoll_wait error");
            return -1;
        }

        for(int n = 0; n < nfds; ++n)
        {
            if(events[n].data.fd == udp_socket)
            {
                int recv_len = recvfrom(udp_socket, buffer, 99, 0, (sockaddr*)&client_addr, &addr_len);
                if(recv_len < 0)
                {
                    perror("recvfrom fail");
                    continue;
                }

                /* 从摄像头读取数据 */
                if(ioctl(m_v4l2_fd, VIDIOC_DQBUF, &frame_buf) < 0)
                {
                    perror("ioctl error: VIDIOC_DQBUF");
                    return -1;
                }

                /* 每隔10帧保存一张raw图片 */
                if(frame_number % 10 == 0)
                {
                    char filename[256];
                    snprintf(filename, sizeof(filename), "frame_%u.raw", frame_number);
                    save_yuv_image(filename, m_buf_infos[frame_buf.index].start, m_buf_infos[frame_buf.index].length);
                }

                LOG_PRINT("%s", "send once");

                /* 发送数据 */
                send_real(m_buf_infos[frame_buf.index].start, m_buf_infos[frame_buf.index].length, udp_socket, &client_addr);

                frame_number++;

                if(ioctl(m_v4l2_fd, VIDIOC_QBUF, &frame_buf) < 0)
                {
                    perror("ioctl error: VIDIOC_QBUF");
                    return -1;
                }
            }
        }
    }

    return 0;
}

void Video::print_supported_formats()
{
    v4l2_fmtdesc fmtdesc;
    memset(&fmtdesc, 0, sizeof(fmtdesc));
    fmtdesc.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;

    printf("Supported formats:\n");
    while(ioctl(m_v4l2_fd, VIDIOC_ENUM_FMT, &fmtdesc) == 0)
    {
        printf("  %d: %s\n", fmtdesc.index + 1, fmtdesc.description);
        fmtdesc.index++;
    }
}

void Video::save_yuv_image(const char* filename, void* data, size_t length)
{
#if SAVE_PICTURE
    int fd = open(filename, O_CREAT | O_RDWR, 0777);
    if(fd < 0)
    {
        perror("fopen error");
        return;
    }

    write(fd, data, length);
    close(fd);
#endif
}

void Video::send_real(void* data, int32_t length, int udp_socket, sockaddr_in* client_addr)
{
    char    frame_head[HEAD_SIZE + 1] = {"Video"};
    int32_t frame_size = htonl(length);
    int32_t total_size = length + HEAD_SIZE + sizeof(frame_size);

    char* buf = (char*)malloc(total_size);
    if(buf == NULL)
    {
        perror("malloc error");
        return;
    }

    /* 添加帧头信息 */
    memcpy(buf, frame_head, HEAD_SIZE);
    memcpy(buf + HEAD_SIZE, &frame_size, sizeof(frame_size));
    memcpy(buf + sizeof(frame_size) + HEAD_SIZE, data, length);

    /* 发送数据 */
    uint32_t offset = 0;
    while(offset < total_size)
    {
        int chunk_size = (total_size - offset > MAX_PAYLOAD_SIZE) ? MAX_PAYLOAD_SIZE : total_size - offset;
        int ret = sendto(udp_socket, buf + offset, chunk_size, 0, (sockaddr*)client_addr, sizeof(*client_addr));
        if(ret < 0)
        {
            perror("sendto error");
            break;
        }
        offset += chunk_size;
    }

    free(buf);
}

udpSocket::~udpSocket()
{
    if(m_udp_socket >= 0)
    {
        close(m_udp_socket);
    }
}

int udpSocket::init()
{
    m_udp_socket = socket(AF_INET, SOCK_DGRAM, 0);
    if(m_udp_socket < 0)
    {
        perror("socket error");
        return -1;
    }

    sockaddr_in server_addr;
    memset(&server_addr, 0, sizeof(server_addr));
    server_addr.sin_family = AF_INET;
    server_addr.sin_port = htons(m_port);
    server_addr.sin_addr.s_addr = INADDR_ANY;

    if(bind(m_udp_socket, (sockaddr*)&server_addr, sizeof(server_addr)) < 0)
    {
        perror("bind error");
        close(m_udp_socket);
        return -1;
    }
    return m_udp_socket;
}

int main(int argc, char* argv[])
{
    Video myVideo("/dev/video0");
    if(myVideo.init() < 0)
    {
        return EXIT_FAILURE;
    }
    myVideo.print_supported_formats();    // 添加这一行以打印支持的格式

    udpSocket myUdpSocket(UDP_PORT);
    if(myUdpSocket.init() < 0)
    {
        return EXIT_FAILURE;
    }

    myVideo.capture_and_send(myUdpSocket);
    return EXIT_SUCCESS;
}

PC端QT应用

// videoplayer.cpp，即一般工程中默认的mainwindow.cpp
#include "videoplayer.h"
#include <QBuffer>
#include <QPainter>
#include <QtEndian>
#include <WinSock2.h>

const int VideoPlayer::head_size = 5;
static char Head_value[]={"Video"};

VideoWidget::VideoWidget(QWidget *parent)
    : QWidget(parent)
{}

void VideoWidget::setFrame(const QImage &frame)
{
    currentFrame = frame;
    update();
}

void VideoWidget::paintEvent(QPaintEvent *)
{
    QPainter painter(this);
    if (!currentFrame.isNull()) {
        painter.drawImage(0, 0, currentFrame.scaled(size(), Qt::KeepAspectRatio));
    }
}

VideoPlayer::VideoPlayer(QWidget *parent)
    : QMainWindow(parent)
    , udpSocket(new QUdpSocket(this))
    , videoWidget(new VideoWidget(this))
    , layout(new QVBoxLayout)
    , centralWidget(new QWidget(this))
    , frameSize(0)
{
	// 应该发送请求数据的命令并在服务段做判断，这里简化，发送空信息
    udpSocket->writeDatagram("", QHostAddress("10.168.1.123"), 12345);
    connect(udpSocket, &QUdpSocket::readyRead, this, &VideoPlayer::processPendingDatagrams);

    layout->addWidget(videoWidget);
    centralWidget->setLayout(layout);
    setCentralWidget(centralWidget);
    resize(800, 600);
}

VideoPlayer::~VideoPlayer()
{
    buffer.resize(1600);
}

void VideoPlayer::processPendingDatagrams()
{
    while (udpSocket->hasPendingDatagrams()) {
        udpSocket->writeDatagram("", QHostAddress("10.168.1.123"), 12345);
        std::vector<char> datagram(udpSocket->pendingDatagramSize());
        udpSocket->readDatagram(datagram.data(), datagram.size());

        buffer.insert(buffer.end(),
                      std::make_move_iterator(datagram.begin()),
                      std::make_move_iterator(datagram.end()));

        if (buffer.size() < head_size + 4) {
            continue;
        }

        std::vector<char> head{buffer.begin(), buffer.begin() + head_size};
        if (!std::equal(head.begin(), head.begin() + head_size, Head_value)) {
            buffer.clear();
            frameSize = 0;
            qDebug() << "error head" << head << "!!!";
            continue;
        }

        if(frameSize == 0)
        {
            memcpy(&frameSize, &buffer[head_size], 4);
            frameSize = qFromBigEndian(frameSize);
            qDebug() << "frameSize:" << frameSize;
            // frameSize = 614400;
        }

        if (buffer.size() < frameSize + head_size + 4) {
            continue;
        }

        std::vector<char>::iterator frameDataBegin = buffer.begin() + head_size + 4;
        std::vector<char> frameData(frameDataBegin, frameDataBegin + frameSize);
        // buffer.erase(buffer.begin(), frameDataBegin + frameSize);
        buffer.clear();
        frameSize = 0;

        // 假设接收到的数据是YUYV格式，需要转换为QImage
        int width = 640;  // 替换为实际的宽度
        int height = 480; // 替换为实际的高度
        QImage frame(width, height, QImage::Format_RGB888);

        // 将YUYV数据转换为RGB数据
        for (int y = 0; y < height; ++y) {
            for (int x = 0; x < width; x += 2) {
                int index = (y * width + x) * 2;
                if (index + 3 >= frameData.size()) {
                    qWarning("Index out of range");
                    continue;
                }

                int Y1 = static_cast<unsigned char>(frameData[index]);
                int U = static_cast<unsigned char>(frameData[index + 1]);
                int Y2 = static_cast<unsigned char>(frameData[index + 2]);
                int V = static_cast<unsigned char>(frameData[index + 3]);

                int C1 = Y1 - 16;
                int C2 = Y2 - 16;
                int D = U - 128;
                int E = V - 128;

                int R1 = qBound(0, (298 * C1 + 409 * E + 128) >> 8, 255);
                int G1 = qBound(0, (298 * C1 - 100 * D - 208 * E + 128) >> 8, 255);
                int B1 = qBound(0, (298 * C1 + 516 * D + 128) >> 8, 255);

                int R2 = qBound(0, (298 * C2 + 409 * E + 128) >> 8, 255);
                int G2 = qBound(0, (298 * C2 - 100 * D - 208 * E + 128) >> 8, 255);
                int B2 = qBound(0, (298 * C2 + 516 * D + 128) >> 8, 255);

                frame.setPixel(x, y, qRgb(R1, G1, B1));
                frame.setPixel(x + 1, y, qRgb(R2, G2, B2));
            }
        }

        // 创建 QTransform 对象并设置旋转角度
        QTransform transform;
        transform.rotate(180); // 旋转90度

        // 使用 QTransform 旋转图像
        frame = frame.transformed(transform);

        videoWidget->setFrame(frame);
    }
}
