本文介绍了一种将物理数据模型（PDM）中的表格和列导出到Excel的方法，通过VBA脚本实现，详细展示了如何创建Excel应用程序，添加工作表，设置列宽，自动换行以及如何遍历模型中的所有表格和列，将其属性写入Excel中。

'******************************************************************************

'* File:     pdm2excel.txt

'* Title:    pdm export to excel

'* Purpose:  To export the tables and columns to Excel

'* Model:    Physical Data Model 16.5 , Microsoft Office 2007

'* Objects:  Table, Column, View

'******************************************************************************

Option Explicit
const xlSolid = 1
Const xlAutomatic = -4105
Const xlThemeColorAccent2 = 6
   Dim rowsNum

   rowsNum = 0

'-----------------------------------------------------------------------------

' Main function

'-----------------------------------------------------------------------------

' Get the current active model

Dim Model

Set Model = ActiveModel

If (Model Is Nothing) Or (Not Model.IsKindOf(PdPDM.cls_Model)) Then

  MsgBox "The current model is not an PDM model."

Else

 ' Get the tables collection

 '创建EXCEL APP

 dim beginrow

 DIM EXCEL, SHEET

 set EXCEL = CREATEOBJECT("Excel.Application")

 EXCEL.workbooks.add(-4167)'添加工作表

 EXCEL.workbooks(1).sheets(1).name ="test"

 set sheet = EXCEL.workbooks(1).sheets("test")



 ShowProperties Model, SHEET

 EXCEL.visible = true

 '设置列宽和自动换行

 sheet.Columns(1).ColumnWidth = 20

 sheet.Columns(2).ColumnWidth = 40
 sheet.Columns(3).ColumnWidth = 20

 sheet.Columns(4).ColumnWidth = 20

 sheet.Columns(5).ColumnWidth = 20

 sheet.Columns(6).ColumnWidth = 15

 sheet.Columns(1).WrapText =true

 sheet.Columns(2).WrapText =true

 sheet.Columns(4).WrapText =true

 End If

'-----------------------------------------------------------------------------

' Show properties of tables

'-----------------------------------------------------------------------------

Sub ShowProperties(mdl, sheet)

   ' Show tables of the current model/package

   rowsNum=0

   beginrow = rowsNum+1

   ' For each table

   output "begin"

   Dim tab

   For Each tab In mdl.tables

      ShowTable tab,sheet

   Next

   if mdl.tables.count > 0 then

        sheet.Range("A" & beginrow + 1 & ":A" & rowsNum).Rows.Group

   end if

   output "end"

End Sub

'-----------------------------------------------------------------------------

' Show table properties

'-----------------------------------------------------------------------------

Sub ShowTable(tab, sheet)

   If IsObject(tab) Then

     Dim rangFlag

     rowsNum = rowsNum + 1

      ' Show properties

      Output "================================"

      sheet.cells(rowsNum, 1) = "实体名"

      sheet.cells(rowsNum, 2) =tab.comment



      sheet.cells(rowsNum, 3) = tab.code



      rowsNum = rowsNum + 1

      sheet.cells(rowsNum, 1) = "属性名"

      sheet.cells(rowsNum, 2) = "说明"



      sheet.cells(rowsNum, 3) = "字段类型"
      sheet.cells(rowsNum, 4) = "主键"

      '设置边框
      with sheet.Range(sheet.cells(rowsNum-1, 1),sheet.cells(rowsNum, 4))
         .Borders.LineStyle = "1"
         .Font.Bold = True
      end with

      with sheet.Range(sheet.cells(rowsNum-1, 1),sheet.cells(rowsNum, 4)).Interior
        .Pattern = xlSolid
        .PatternColorIndex = xlAutomatic
        .ThemeColor = xlThemeColorAccent2
        .TintAndShade = 0.399975585192419
        .PatternTintAndShade = 0
      end with



Dim col ' running column

Dim colsNum

colsNum = 0

      for each col in tab.columns

        rowsNum = rowsNum + 1

        colsNum = colsNum + 1

      sheet.cells(rowsNum, 1) = col.name

      sheet.cells(rowsNum, 2) = col.comment


      sheet.cells(rowsNum, 3) = col.datatype
      if col.primary then
         sheet.cells(rowsNum, 4) = "■"
      end if



      next

      sheet.Range(sheet.cells(rowsNum-colsNum+1,1),sheet.cells(rowsNum,4)).Borders.LineStyle = "2"



      rowsNum = rowsNum + 1



      Output "FullDescription: "       + tab.Name

   End If

End Sub

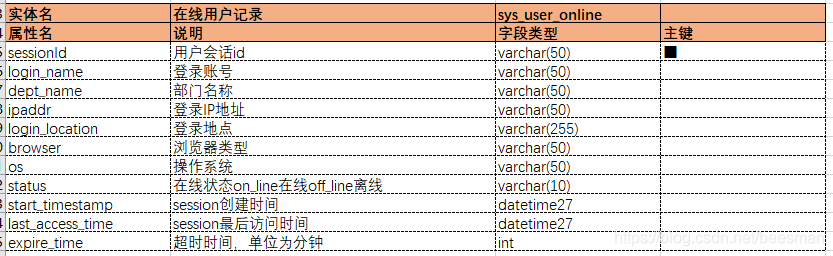

生成结果EXCEL： excel
