DDPG是deep deterministic policy gradient深度确定性策略梯度算法的缩写。

环境

控制目标是通过力输入控制一个质量块的位置。

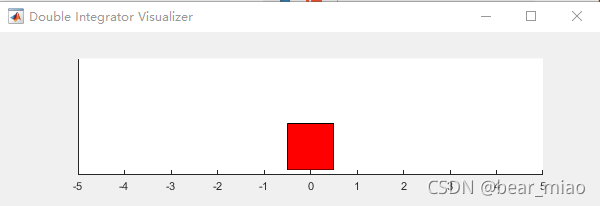

env = rlPredefinedEnv("DoubleIntegrator-Continuous")

质量块做一维运动，边界为[-4m,+4m]；

可观测量为质量块的位置和速度；

迭代终止条件：质量块移动距离超过5m或 $|x|<0.01$ ；

每一个时间步长的奖励 $r_t$ 由下式定义：

$r(t)=-(x(t)'Qx(t)+u(t)'Ru(t))$

其中：

$x$ 是质量块的状态向量；

$u$ 是施加的力；

$Q$ 是控制性能的权重； $Q=\begin{bmatrix} 10 & 0\\ 0 & 1 \end{bmatrix}$

$R$ 是控制效果； $R=0.01$

以上信息也可通过查看env属性看到。

env =
  DoubleIntegratorContinuousAction with properties:

             Gain: 1
               Ts: 0.1000
      MaxDistance: 5
    GoalThreshold: 0.0100
                Q: [2x2 double]
                R: 0.0100
         MaxForce: Inf
            State: [2x1 double]

观测器信息：

obsInfo = getObservationInfo(env)
numObservations = obsInfo.Dimension(1)

obsInfo =
rlNumericSpec with properties:

LowerLimit: -Inf
UpperLimit: Inf
Name: "states"
Description: "x, dx"
Dimension: [2 1]
DataType: "double"
numObservations =
2

可见对x和dx的观测范围为 $-\infty$ 到 $+\infty$ 。第一行表示位置，第二行表示速度。

动作空间信息：

actInfo = getActionInfo(env)
numActions = numel(actInfo)

actInfo =
rlNumericSpec with properties:

LowerLimit: -Inf
UpperLimit: Inf
Name: "force"
Description: [0×0 string]
Dimension: [1 1]
DataType: "double"
numActions =
1

随机数种子重置

rng(0)

生成DDPG Agent

Critic网络

statePath = imageInputLayer([numObservations 1 1],'Normalization','none','Name','state');
actionPath = imageInputLayer([numActions 1 1],'Normalization','none','Name','action');
commonPath = [concatenationLayer(1,2,'Name','concat')
             quadraticLayer('Name','quadratic')
             fullyConnectedLayer(1,'Name','StateValue','BiasLearnRateFactor',0,'Bias',0)];

criticNetwork = layerGraph(statePath);
criticNetwork = addLayers(criticNetwork,actionPath);
criticNetwork = addLayers(criticNetwork,commonPath);

criticNetwork = connectLayers(criticNetwork,'state','concat/in1');
criticNetwork = connectLayers(criticNetwork,'action','concat/in2');

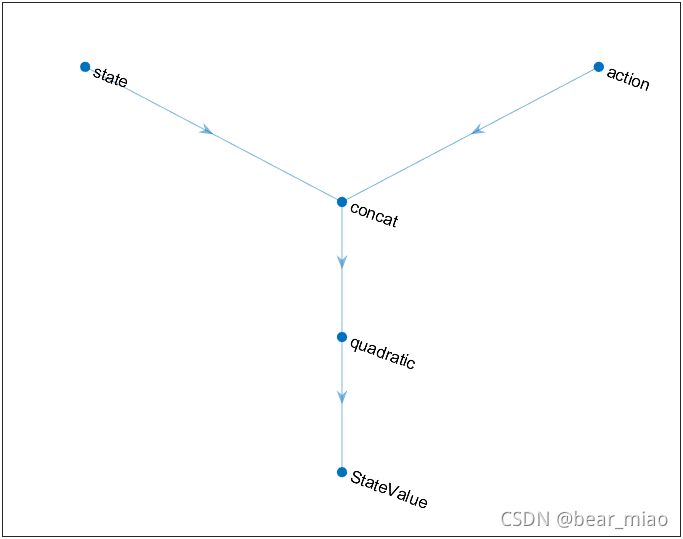

如下图所示

plot(criticNetwork)

criticOpts = rlRepresentationOptions('LearnRate',5e-3,'GradientThreshold',1);

critic = rlQValueRepresentation(criticNetwork,obsInfo,actInfo,'Observation',{'state'},'Action',{'action'},criticOpts);

Actor网络

actorNetwork = [
    imageInputLayer([numObservations 1 1],'Normalization','none','Name','state')
    fullyConnectedLayer(numActions,'Name','action','BiasLearnRateFactor',0,'Bias',0)];

actorOpts = rlRepresentationOptions('LearnRate',1e-04,'GradientThreshold',1);

actor = rlDeterministicActorRepresentation(actorNetwork,obsInfo,actInfo,'Observation',{'state'},'Action',{'action'},actorOpts);

Agent

Agent参数配置

agentOpts = rlDDPGAgentOptions(...
    'SampleTime',env.Ts,...
    'TargetSmoothFactor',1e-3,...
    'ExperienceBufferLength',1e6,...
    'DiscountFactor',0.99,...
    'MiniBatchSize',32);
agentOpts.NoiseOptions.StandardDeviation = 0.3;
agentOpts.NoiseOptions.StandardDeviationDecayRate = 1e-6;

Agent组装生成【说明：这一行为标准写法】

agent = rlDDPGAgent(actor,critic,agentOpts);

训练Agent

train参数配置

trainOpts = rlTrainingOptions(...
    'MaxEpisodes', 5000, ...
    'MaxStepsPerEpisode', 200, ...
    'Verbose', false, ...
    'Plots','training-progress',...
    'StopTrainingCriteria','AverageReward',...
    'StopTrainingValue',-66);

开始训练

trainingStats = train(agent,env,trainOpts)

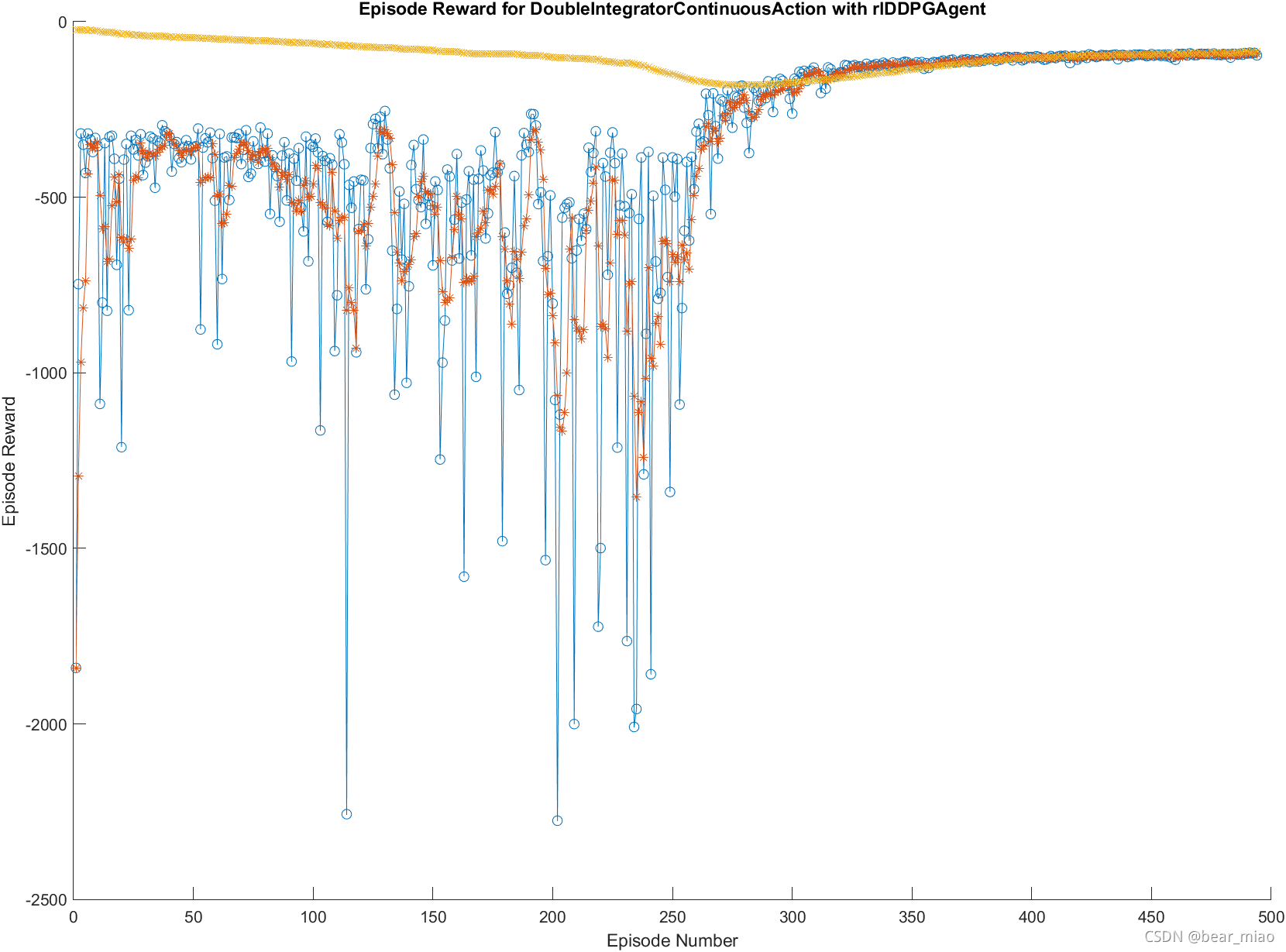

训练过程如下图所示

官方帮助文档中训练到第3430步才达到终止条件'StopTrainingValue',-66。本文训练了3个小时才到500步左右，不过基本趋势已经接近最终结果，震荡期已过。
