HSB矩形调色板绘制方法

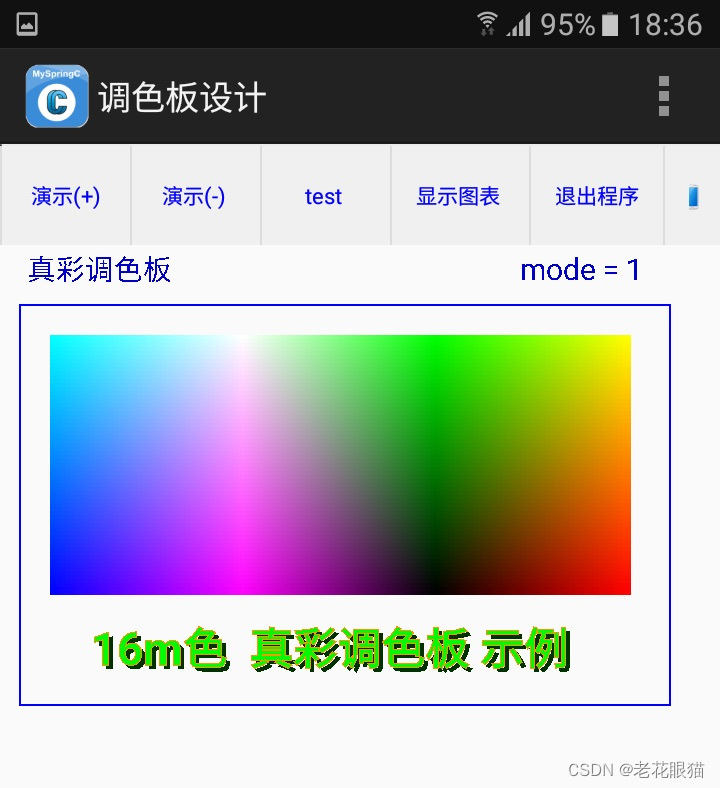

绘画应用软件都有一个漂亮的调色板，用于画笔取色，如Photoshop, AutoCad, 3DS，Painter等。矩形的16m色全色谱真彩的调色板比较容易绘制，今介绍几个矩形的HSB调色板样例的绘制方法，很专业，很漂亮。我感觉这漂亮的东西应该分享给大家，对于要编制绘图绘画程序的同行们，以及喜欢色彩的朋友们总会有些帮助。希望大家喜欢。后续我在编写完善的此类圆形和矩形调色板的设计和计算方法。

下面是样例源码，有详细的注释，语法语句都很简单，没什么深奥的理论和公式。

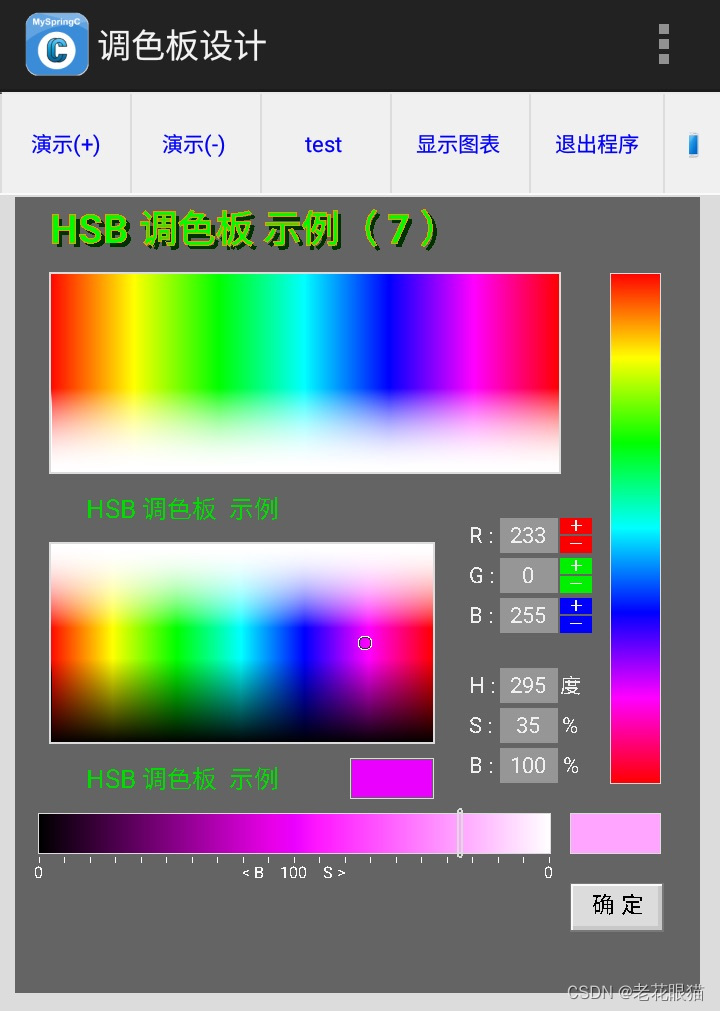

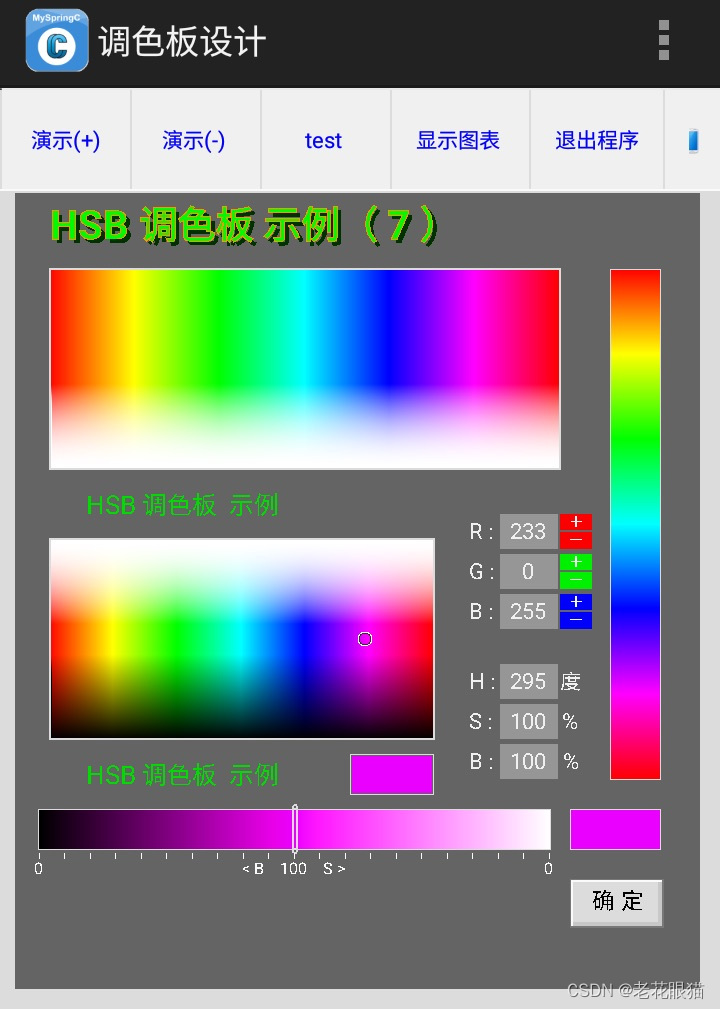

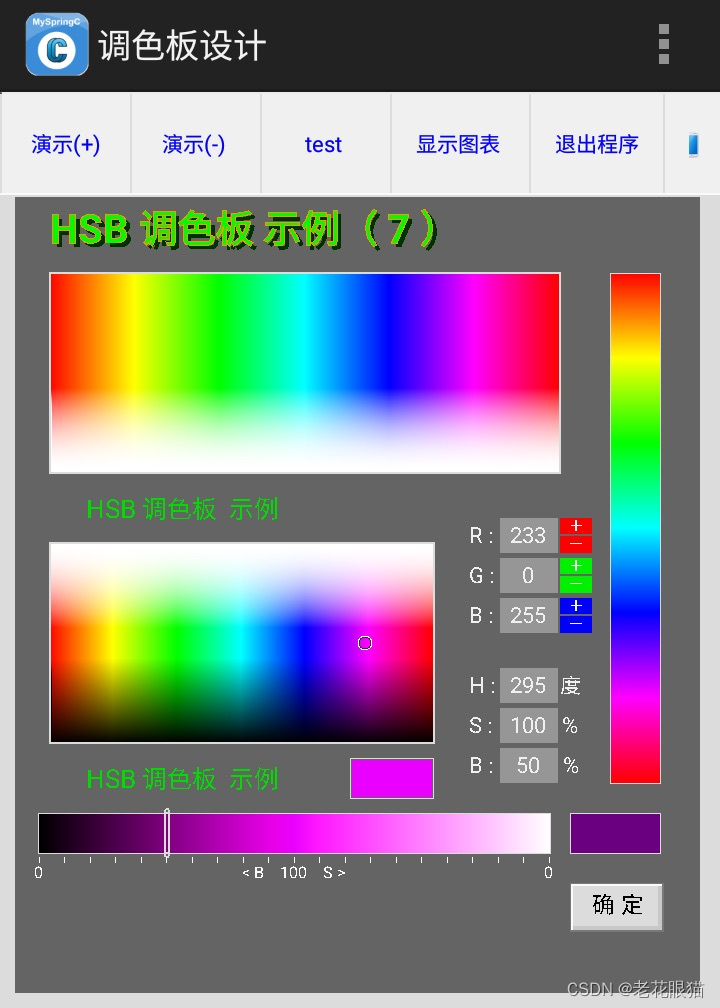

colorpad7 (){ //HSB调色板样例（7）
//本例有三种Hue 取色调色板式样
cs.ClearDraw (0,src);
cs.SetFillMode (1);//0不填色，1填色
cs.SetColor (255,220,220,220);
cs.DrawRect (0,2,720,900);
cs.SetColor (255,100,100,100);
cs.DrawRect (15,4,700,800); //大框线

//绘制调色板（ HSV ）
cs.SetStrokeWidth(2); //线宽
//red-yellow-green-cyan-blue-purple-magenta-red
for (i=0;i<=255;i++){ //调色板：选色条
cs.SetColor (255,255,i,0); //red-yellow
cs.DrawLine (i/3+50,80,i/3+50,280);
cs.DrawLine (i/4+50,350,i/4+50,550);
cs.SetColor (255,255-i,255,0); //yellow-green
cs.DrawLine (i/3+135,80,i/3+135,280);
cs.DrawLine (i/4+114,350,i/4+114,550);
cs.SetColor (255,0,255,i); //green-blue
cs.DrawLine (i/3+220,80,i/3+220,280);
cs.DrawLine (i/4+178,350,i/4+178,550);
cs.SetColor (255,0, 255-i,255); //blue-purple
cs.DrawLine (i/3+305,80,i/3+305,280);
cs.DrawLine (i/4+242,350,i/4+242,550);
cs.SetColor (255,i,0,255); //purple
cs.DrawLine (i/3+390,80,i/3+390,280);
cs.DrawLine (i/4+306,350,i/4+306,550);
cs.SetColor (255,255,0,255-i); //magenta-red
cs.DrawLine (i/3+475,80,i/3+475,280);
cs.DrawLine (i/4+370,350,i/4+370,550); }

//上（1）调色板高光
cs.SetFillMode (0) ;
cs.SetStrokeWidth(2); //线宽
for (i= 0; i<=120 ; i++ ){ //上调色板高光
ca=255-i*3 ;
if (ca<0) ca=0 ;
cs.SetColor(ca, 255, 255, 255 );
cs.DrawRect (51,280, 560,280-i ) ; }

//下（2）调色板高光和暗部 HSB set brightness
cs.SetFillMode (0) ;
cs.SetStrokeWidth(2); //线宽
for (i= 0; i<=100 ; i++ ){ //高光
ca=255-i*3 ;
if (ca<0) ca=0 ;
cs.SetColor(ca,255,255,255 );
cs.DrawRect (50,350, 434,350+i ) ; }

cs.SetStrokeWidth(1); //线宽
for (i= 0; i<=100 ; i++ ){ //暗部
ca=255-i*3 ;
if (ca<0) ca=0 ;
cs.SetColor(ca, 0, 0, 0 );
cs.DrawRect (51,550, 434,550-i ) ; }

//选色条和 ”确定” 按钮
cs.SetTextStyle (0) ;
cs.SetTextSize (24);
cs.SetFillMode (1) ;
cs.SetColor (255,120,120,120);
cs.DrawRect (570,690,664,739); //按钮
cs.SetColor (255,250,250,250);
cs.DrawRect (571,691,662,737); //按钮
cs.SetColor (255,200,200,200);
cs.DrawRect (573,693,662,737); //按钮
cs.SetColor (255,220,220,220);
cs.DrawRect (573,693,658,733); //按钮
cs.SetColor (255,0,0,0);
cs.DrawText ("确定 ", 592, 720);

cs.SetStrokeWidth(1);
cs.SetFillMode (1) ;
for (i=0;i<=255;i++){ // 竖式选色条
cs.SetColor (255,255,i,0); //red-y
cs.DrawLine (610,i/3+80,660,i/3+80);
cs.SetColor (255,255-i,255,0); //y-green
cs.DrawLine (610,i/3+165,660,i/3+165);
cs.SetColor (255,0,255, i); //green-cyan
cs.DrawLine (610,i/3+250,660,i/3+250);
cs.SetColor (255,0,255-i,255);
cs.DrawLine (610,i/3+335,660,i/3+335);
cs.SetColor (255,i,0,255); //purple
cs.DrawLine (610,i/3+420,660,i/3+420);
cs.SetColor (255,255,0,255-i); //magenta-red
cs.DrawLine (610,i/3+505,660,i/3+505);
// cs.Update (); //显示绘出过程
} //竖式选色条

//**** 计算HSV ********
//cs.DrawCircle (dx, 450,7); //取色
//mouse 调色板取色 xpos=275 ; 计算 Hue 值
//getpixel ( hdc , xpos, ypos )
//H色板取色，可取得 RGB 值，cr, cg, cb R,G,B
//取色点 xpos=306=240°
//例：调色板宽度x1=50, x2=434, H=(434-50)=384
//六段画调色板 255/4=64, 64*6=384 = 色板宽度
//此方法：H 板取值，RGB, SB联动变化
// 1. (255,255,i,0); //red-yellow
// 2. (255,255-i,255,0); //yellow-green
// 3. (255,0, 255, i); //green-blue
// 4. (255,0, 255-i,255); //blue-purple
// 5. (255, i, 0, 255); //purple
// 6. (255,255,0,255-i); //magenta-red
//依此6段设色，每段60度，可定RGB色
//115, 64=60°，178, 128=120°，242, 192=180°
//306, 256=240°, 434, 384=360°
//H色板 mouse 取色 xpos 值，依此值计算
dx=365 ; //mouse xpos > select color 365
//防越界，图片框内不会越界
if (dx>434) dx=434 ;
if (dx<50) dx=50 ;
px=1.066 ; //px=384/360=1.0666 (每度)
H=(int)((dx-50)/px) ;

//显示 mouse 选色，计算得RGB值
cs.SetFillMode (1) ; //画鼠标已选色
if (H<=60) { //1. red
cr=255; cb=0;
cg=(int)(H*255/60) ; }
if (H>60&&H<=120) { //2. yellow
cg=255; cb=0;
cr=(int)(255-(H-60)*255/60) ; }
if (H>120&&H<=180) { //3. green
cr=0; cg=255;
cb=(int)((H-120)*255/60) ; }
if (H>180&&H<=240) { //4. cyan
cg=(int)(255-(H-180)*255/60 ) ;
cr=0 ; cb=255 ; }
if (H>240&&H<=300) { //5. blue
cr=(int)((H-240)*255/60 ) ;
cg=0 ; cb=255 ; }
if (H>300&&H<=360) { //6. magenta
cr=255; cg=0;
cb=(int)(255-(H-300)*255/60 ) ; }

//依选色值计算，显示2个选取色
cs.SetColor (255,cr, cg, cb ); //依选色显示
cs.DrawRect (352,567,432,604); //H选色show
cs.DrawRect (570,620,660,660); //已选色
//H色板画鼠标icon
cs.SetFillMode (0) ; //H选色鼠标icon***
cs.SetStrokeWidth(1);
cs.SetColor (255,50,50,50);
cs.DrawCircle (dx,450,6); //xpos=280
cs.SetColor (255,250,250,250);
cs.DrawCircle (dx,450,7); //xpos=280

//取色后，S和V 的初始值是100。即选色条的中心位
S=100 ; V=100 ; //初始值
//px=195 ; //H色板取色后游标初始值100
//此色是选色条getpixel (hdc,xpos,ypos)取色的结果
//选色条颜色依所取色来绘出，六类基色1－6
//依据取色条的游标的xpos值计算 SV值
//中心点=(x2-x1)/2=295,
//例 cs.DrawRect (353,620,357,660); //游标
//例游标 xpos=(357+353)/2=355 px=355；
//依H值的rgb绘制SV选色条：draw S，V bar
cs.SetStrokeWidth(2);
R=cr ; G=cg ; B=cb ;
for (i=0; i<=255; i++){ //调色板：选色条
R=R+i ; G=G+i ; B=B+i ;
if (R>255) R=255 ;
if (G>255) G=255 ;
if (B>255) B=255 ;
cs.SetColor (255, R, G, B ) ;
cs.DrawLine (295+i, 620,295+i ,660);
R=R-i ; G=G-i ; B=B-i ;
if (R<0) R=0 ;
if (G<0) G=0 ;
if (B<0) B=0 ;
cs.SetColor (255, R, G, B ) ;
cs.DrawLine (295-i ,620,295-i, 660 ); }

//拖动游标改变取色，此例暂未设置游标 xpos 取色
//计算S，V 值，联动SV值显示和已选色更新（新的）
//本例暂未设置，Windows编程，标尺设置很简单
//画标尺，本示例仅示意一下
//用于拖动游标, 中间值=295 , px=40 < 295 < 550
// (550-40)/100=2.55
//本例下面示例代码可测试px变动，同步改变选色
//变动px值，可测试S,V值的变化和取色变化
px=460 ; //游标 xpos 取色中间值295示例
if (px>=295){
V=100 ;
S=(int)(200-(px-40)/2.55) ; }
if (px<295) {
S=100 ;
V=(int)((px-40)/2.55) ; }
//画游标
cs.SetColor (255,220,220,220);
cs.DrawRect (px-2,620,px+2,660); //游标
cs.DrawCircle (px, 618, 2);
cs.DrawCircle (px, 662, 2);

//标尺拖动，px变动，S,V值变化，同步改变选色
//原H板取色得 cr,cg,cb, 现以SV变动值取得新的颜色

if (S<100){
kn=(int)((100-S)*2.55) ;
r1=cr+kn; g1=cg+kn; b1=cb+kn;
if (r1>255) r1=255;
if (g1>255) g1=255;
if (b1>255) b1=255;
cs.SetFillMode (1) ;
cs.SetColor (255,r1, g1, b1 );
cs.DrawRect (570,620,660,660); }//已选色
if (V<100){
kn=(int)((100-V)*2.55) ;
r1=cr-kn; g1=cg-kn; b1=cb-kn;
if (r1<0) r1=0;
if (g1<0) g1=0;
if (b1<0) b1=0;
cs.SetFillMode (1) ;
cs.SetColor (255,r1, g1, b1 );
cs.DrawRect (570,620,660,660); }//已选色

//画标尺标线
cs.SetStrokeWidth(1);
for (i=0; i<=20; i++){
dx=i*10*51/20 ;
cs.SetColor (255, 250, 250, 250 ) ;
cs.DrawLine (dx+39,664,dx+39,670); }
cs.SetFillMode (1) ;
cs.SetTextSize (16);
cs.DrawText ("0 ", 34,685);
cs.DrawText ("0 ", 544,685);
cs.DrawText ("< B 100 S > ", 242, 685);

//显示RGB，HSB值
cs.SetFillMode (1) ;
cs.SetColor (255,150,150,150); //标值
cs.DrawRect (500,325,558,360); //框线
cs.DrawRect (500,365,558,400); //框线
cs.DrawRect (500,405,558,440); //框线
cs.DrawRect (500,475,558,510); //框线
cs.DrawRect (500,515,558,550); //框线
cs.DrawRect (500,555,558,590); //框线
cs.SetFillMode (1) ;
cs.SetTextSize (22);
cs.SetColor (255,240,240,240);
cs.DrawText ("R : ", 469,350);
cs.DrawText ("G : ", 469,390);
cs.DrawText ("B : ", 469,430);
ss1=intToString (cr);
ss2=intToString (cg);
ss3=intToString (cb);
tab=0 ;
if (cr<10) tab=12;
if (cr>9&&cr<100) tab=6 ;
cs.DrawText (ss1, 510+tab,350);
tab=0 ;
if (cg<10) tab=12;
if (cg>9&&cg<100) tab=6 ;
cs.DrawText (ss2, 510+tab,390);
tab=0 ;
if (cb<10) tab=12;
if (cb>9&&cb<100) tab=6 ;
cs.DrawText (ss3, 510+tab,430);

cs.DrawText ("H : 度", 469,500);
cs.DrawText ("S : % ", 469,540);
cs.DrawText ("B : % ", 469,580);
ss1=intToString (H);
ss2=intToString (S);
ss3=intToString (V);
tab=0 ;
if (H<10) tab=12;
if (H>9&&H<100) tab=6 ;
cs.DrawText (ss1, 510+tab,500);
tab=0 ;
if (S<10) tab=12;
if (S>9&&S<100) tab=6 ;
cs.DrawText (ss2, 510+tab,540);
tab=0 ;
if (V<10) tab=12;
if (V>9&&V<100) tab=6 ;
cs.DrawText (ss3, 510+tab,580);

//另外RGB选色可加调整小按钮＋－选色
//也可使用scollbar来设置，调节RGB色，联动显示
cs.SetColor (255,250,0,0); //调色按钮red
cs.DrawRect (560,325,592,341);
cs.DrawRect (560,343,592,360);
cs.SetColor (255,0,240,0); //调色按钮green
cs.DrawRect (560,365,592,381);
cs.DrawRect (560,383,592,400);
cs.SetColor (255,0,0,250); //调色按钮blue
cs.DrawRect (560,405,592,421);
cs.DrawRect (560,423,592,440);

cs.SetColor (255,250,250,250); //调色按钮
cs.DrawText ("+ ",570,340);
cs.DrawText ("-- ",570,357);
cs.DrawText ("+ ",570,380);
cs.DrawText ("-- ",570,397);
cs.DrawText ("+ ",570,420);
cs.DrawText ("-- ",570,437);

//题标，框线
cs.SetFillMode (0);//0不填色，1填色
cs.SetColor (255,220,220,220);
cs.SetStrokeWidth(2); //线宽
cs.DrawRect (50,80,560,280); //调色板框线
cs.DrawRect (50,350,434,550);
cs.SetStrokeWidth(1); //线宽
cs.DrawRect (38,620,550,660); //选色条框线
cs.DrawRect (350,565,433,605); //H选色show
cs.DrawRect (570,620,660,660); //已选色
cs.DrawRect (610,80,660,590); //竖色条框线
cs.SetFillMode (1) ;
cs.SetColor (255,0,220,0);
cs.SetTextSize (26);
cs.DrawText (" HSB 调色板示例",80,325);
cs.DrawText (" HSB 调色板示例",80,595);

//print 题标
cs.SetTextSize (40);
cs.SetTextStyle (1) ;
cs.SetFillMode (1) ;
ss=" HSB 调色板示例（ 7 ）" ;
cs.SetColor (255,0,50,0);
cs.DrawText (ss,44,54);
cs.SetColor (255,0,250,0);
cs.DrawText (ss,40,50);
cs.SetFillMode (0) ;
cs.SetColor (255,250,150,0);
cs.DrawText (ss,40,50);
cs.Update ();
}//colorpad7 ()

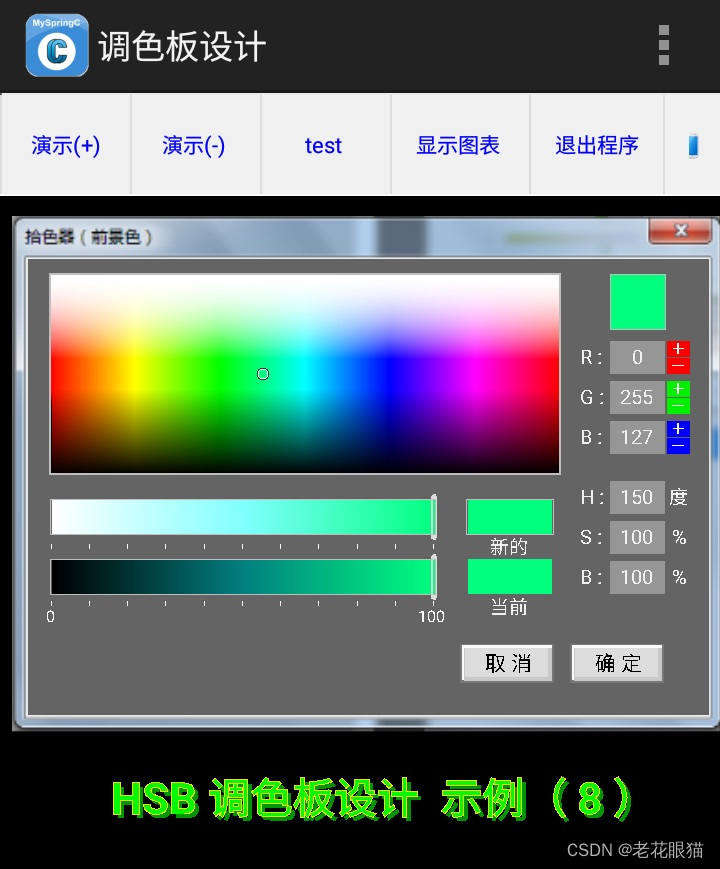

colorpad8 (){ //HSV 调色板设计示例（8）
//加一个调色板设计样例
//本例以windows窗体图片来示例。其实在Windows中用绘画语句也能画出窗体，我喜欢自己设计绘制各种图形图样，绘制按钮，滚动条等，甚至开个无框窗体，自己在Form上绘制个人风格的自制窗体，加个图片框设置应用功能。
cs.ClearDraw (0,src);
fname="/storage/emulated/0/form.jpg";
cs.DrawBitmap(fname,0,6); //加底图

cs.SetFillMode (1);//0不填色，1填色
cs.SetColor (255,0,0,0);
cs.DrawRect (0,2,720,22);
cs.DrawRect (0,2,12,570);
cs.DrawRect (0,570,720,700);
cs.SetColor (255,100,100,100);
cs.DrawRect (28,65,709,521); //大框线

//绘制调色板（ HSV ）
cs.SetStrokeWidth(1); //线宽
//red-yellow-green-cyan-blue-purple-magenta-red
for (i=0;i<=255;i++){ //调色板：选色条
cs.SetColor (255,255,i,0); //red-yellow
cs.DrawLine (i/3+50,80,i/3+50,280);
cs.SetColor (255,255-i,255,0); //yellow-green
cs.DrawLine (i/3+135,80,i/3+135,280);
cs.SetColor (255,0,255,i); //green-blue
cs.DrawLine (i/3+220,80,i/3+220,280);
cs.SetColor (255,0,255-i,255); //blue-purple
cs.DrawLine (i/3+305,80,i/3+305,280);
cs.SetColor (255,i, 0,255); //purple-magenta
cs.DrawLine (i/3+390,80,i/3+390,280);
cs.SetColor (255,255,0,255-i); //magenta-red
cs.DrawLine (i/3+475,80,i/3+475,280); }

//画上高光和下暗部 HSB set brightness
cs.SetFillMode (0) ;
cs.SetStrokeWidth(2); //线宽
for (i= 0; i<=100 ; i++ ){ //高光
ca=255-i*3 ;
if (ca<0) ca=0 ;
cs.SetColor(ca,255,255,255 );
cs.DrawRect (50,80, 560,80+i ) ; }

cs.SetStrokeWidth(1); //线宽
for (i= 0; i<=100 ; i++ ){ //暗部
ca=255-i*3 ;
if (ca<0) ca=0 ;
cs.SetColor(ca, 0, 0, 0 );
cs.DrawRect (51,280, 560,280-i ) ; }

//选色条显示：当前，新的
cs.SetTextSize (22);
cs.SetFillMode (1) ;
cs.SetColor (255,250,0,0);
cs.DrawRect (468,305,552,340); //选色
cs.SetColor (255,150,0,250);
cs.DrawRect (468,365,552,400); //选色

//**** 计算HSV ********
//调色板尺寸： (50,80,560,280);
//cs.DrawCircle (270,450,7); //取色
//mouse 调色板取色 xpos=270 ; 计算 Hue 值
//getpixel ( hdc , xpos, ypos )
//可取得 RGB 值，cr, cg, cb
//取色点 xpos=270
//例：调色板宽度x1=50, x2=560,
// H=(560-50)=510
//六段画调色板 255/3=85, 85*6=510 = 色板宽度
// 1. (255,255,i,0); //red-yellow 0 - 59
// 2. (255,255-i,255,0); //yellow-green 60 -119
// 3. (255,0,255,i); //green-blue 120-179
// 4. (255,0,255-i,255); //blue-purple 180-239
// 5. (255, i , 0,255); //purple-magenta 240-299
// 6. (255,255,0,255-i); //magenta-red 300-360
//依此6段设色，每段60度，可定RGB色
// 135, 85=60, 220, 170=120°, 305, 255=180° ,
// 390, 340=240 , 475, 425=300°, 560, 510=360°
//标xpos=dx, H=(dx-50)/1.416
dx=263 ; //H取色 mousemove(xpos) test
if (dx>560) dx=560 ; //防越界，框内不会越界
if (dx<50) dx=50 ;

cs.SetFillMode (0) ; //画选色鼠标icon
cs.SetStrokeWidth(1);
cs.SetColor (255,250,250,250);
cs.DrawCircle (dx,180,5);
cs.SetColor (255,50,50,50);
cs.DrawCircle (dx,180,6);
//依mouse 选色 > 计算H 值
px=1.416 ; //px=510/360=1.4166(每度)
H=(int)((dx-50)/px) ;
if (H>360) H=H-360 ; //选色框内取色，值不会超

//H色板显示mouse 选色，计算RGB (r,g,b)
cs.SetFillMode (1) ; //画鼠标已选色
if (H<=60) { //1. red
cr=255; cb=0;
cg=(int)(H*255/60) ; }
if (H>60&&H<=120) { //2. yellow
cg=255; cb=0;
cr=(int)(255-(H-60)*255/60) ; }
if (H>120&&H<=180) { //3. green
cr=0; cg=255;
cb=(int)((H-120)*255/60) ; }
if (H>180&&H<=240) { //4. cyan
cg=(int)(255-(H-180)*255/60 ) ;
cr=0 ; cb=255 ; }
if (H>240&&H<=300) { //5. blue
cr=(int)((H-240)*255/60 ) ;
cg=0 ; cb=255 ; }
if (H>300&&H<=360) { //6. magenta
cr=255; cg=0;
cb=(int)(255-(H-300)*255/60 ) ; }

//依选色值计算，显示取色
cs.SetColor (255,cr, cg, cb ); //依选色显示
cs.DrawRect (610,80,665,135); //已选色show
//选色显示：当前，新的
cs.SetTextSize (22);
cs.SetFillMode (1) ;
cs.SetColor (255, cr, cg, cb );
cs.DrawRect (468,305,552,340); //新的选色
cs.SetColor (255, cr, cg, cb );
cs.DrawRect (468,365,552,400); //当前色

//依H绘制选色条：draw SV select color bar
R=cr ; G=cg ; B=cb ;
cs.SetStrokeWidth(2);
for (i=0;i<=255 ;i++){ //调色板：选色条
R=R+i ; G=G+i ; B=B+i ;
if (R>255) R=255 ;
if (G>255) G=255 ;
if (B>255) B=255 ;
cs.SetColor (255, R, G, B ) ;
cs.DrawLine (435-i*1.5, 305,435-i*1.5,340);
R=R-i ; G=G-i ; B=B-i ;
if (R<0) R=0 ;
if (G<0) G=0 ;
if (B<0) B=0 ;
cs.SetColor (255, R, G, B ) ;
cs.DrawLine (435-i*1.5, 365,435-i*1.5, 400 ); }

//画标尺标线，仅展示一下，可不画出
cs.SetStrokeWidth(1);
cs.SetTextStyle (0) ;
for (i=0; i<=10; i++){
dx=i*25.5*1.5 ;
cs.SetColor (255, 250, 250, 250 ) ;
cs.DrawLine (dx+51,350,dx+51,355);
cs.DrawLine (dx+51,407,dx+51,412); }
cs.SetFillMode (1) ;
cs.SetTextSize (16);
cs.DrawText ("0 ", 46,428);
cs.DrawText ("100 ", 418,428);

//取色后，S和B 的初始值是100。即选色条右位
S=100 ; V=100 ; //初始值
//此色是选色条getpixel (hdc,xpos,ypos)取色的结果
//选色条颜色依所取色来绘出，六类基色1－6
//依据取色条的游标的xpos值计算 SV,
// cs.DrawRect (50,305, 435,340); //选色条框线
// cs.DrawRect (50,365, 435,400); //选色条框线
// SV 色条 x1=50,x2=435
// S.xpos<435, V=100, V.xpos<435, S=100
//拖动游标改变取色，此例暂未设置游标 xpos 取色
//计算S，V 值，联动SV值显示和已选色更新（新的）
//本例暂未设置，Windows编程，标尺设置很简单
//可参阅上例（7）拖动游标变动代码
//画游标尺，本示例仅示意一下
// if (S>=435){ V=100 ;
// S=(int)(100-(435-xpos)/385*100) ; }
// if (V<435){ S=100 ;
// V=(int)(100-(435-xpos)/385*100) ; }
//本例暂未设置，Windows编程，标尺设置很简单
//本示例仅示意：画游标
cs.SetFillMode (0);//0不填色，1填色
cs.SetColor (255,250,20,250);
x1=434 ; x2=434 ; //S, V值100=434
cs.SetStrokeWidth(2);
cs.SetColor (255,220,220,220);
cs.DrawRect (x1-2,303,x1+2,343); //游标尺1
cs.DrawCircle (x1,303,2);
cs.DrawCircle (x1,343,2);
cs.DrawRect (x2-2,363,x2+2,403); //游标尺2
cs.DrawCircle (x2,363,2);
cs.DrawCircle (x2,403,2);

cs.SetTextStyle (0) ;
cs.SetFillMode (1);//0不填色，1填色
cs.SetColor (255,150,150,150);
cs.DrawRect (610,147,665,180); //标值
cs.DrawRect (610,187,665,220);
cs.DrawRect (610,227,665,260);
cs.DrawRect (610,287,665,320);
cs.DrawRect (610,327,665,360);
cs.DrawRect (610,367,665,400);
cs.SetTextSize (20);
cs.SetColor (255,240,240,240);
cs.DrawText ("R : ", 580,170);
cs.DrawText ("G : ", 580,210);
cs.DrawText ("B : ", 580,250);
ss1=intToString (cr);
ss2=intToString (cg);
ss3=intToString (cb);
tab=0 ; //put text center
if (cr<10) tab=12;
if (cr>9&&cr<100) tab=6 ;
cs.DrawText (ss1, 620+tab,170);
tab=0 ;
if (cg<10) tab=12;
if (cg>9&&cg<100) tab=6 ;
cs.DrawText (ss2, 620+tab,210);
tab=0 ;
if (cb<10) tab=12;
if (cb>9&&cb<100) tab=6 ;
cs.DrawText (ss3, 620+tab,250);

cs.DrawText ("H : 度", 580,310);
cs.DrawText ("S : % ", 580,350);
cs.DrawText ("B : % ", 580,390);
ss1=intToString (H);
ss2=intToString (S);
ss3=intToString (V);
tab=0 ;
if (H<10) tab=12;
if (H>9&&H<100) tab=6 ;
cs.DrawText (ss1, 620+tab,310);
tab=0 ;
if (S<10) tab=12;
if (S>9&&S<100) tab=6 ;
cs.DrawText (ss2, 620+tab,350);
tab=0 ;
if (V<10) tab=12;
if (V>9&&V<100) tab=6 ;
cs.DrawText (ss3, 620+tab,390);
cs.DrawText ("新的 ", 490,360);
cs.DrawText ("当前 ", 490,420);

//画按钮
cs.SetColor (255,120,120,120);
cs.DrawRect (570,450,664,489); //按钮
cs.DrawRect (460,450,554,489); //按钮
cs.SetColor (255,250,250,250);
cs.DrawRect (572,451,662,486); //按钮
cs.DrawRect (462,451,552,486); //按钮
cs.SetColor (255,200,200,200);
cs.DrawRect (574,454,662,487); //按钮
cs.DrawRect (464,454,552,487); //按钮
cs.SetColor (255,220,220,220);
cs.DrawRect (575,454,658,483); //按钮
cs.DrawRect (465,454,548,483); //按钮
cs.SetColor (255,0,0,0);
cs.SetTextSize (22);
cs.DrawText ("确定 ", 595, 477);
cs.DrawText ("取消 ", 485, 477);

//另外RGB选色可加调整小按钮＋－选色
//也可使用scrollbar来设置，调节RGB色，
// S 选色条和 B 选色条联动显示选色
cs.SetColor (255,250,0,0); //调色按钮red
cs.DrawRect (667,147,690,163);
cs.DrawRect (667,164,690,180);
cs.SetColor (255,0,240,0); //调色按钮green
cs.DrawRect (667,187,690,203);
cs.DrawRect (667,204,690,220);
cs.SetColor (255,0,0,250); //调色按钮blue
cs.DrawRect (667,227,690,243);
cs.DrawRect (667,244,690,260);

cs.SetColor (255,250,250,250); //调色按钮
cs.DrawText ("+ ",672,162);
cs.DrawText ("-- ",672,178);
cs.DrawText ("+ ",672,202);
cs.DrawText ("-- ",672,218);
cs.DrawText ("+ ",672,242);
cs.DrawText ("-- ",672,258);

//题标，框线
cs.SetFillMode (0);//0不填色，1填色
cs.SetStrokeWidth(2); //线宽
cs.SetColor (255,190,190,190);
cs.DrawRect (50,80,560,280); //调色板框线
cs.SetStrokeWidth(1); //线宽
cs.DrawRect (610,80,665,135); //选色rgb框线
cs.DrawRect (50,305, 435,340); //选色条框线
cs.DrawRect (50,365, 435,400); //选色条框线
cs.DrawRect (466,305,553,340); //已选色

//print 题标
cs.SetTextSize (44);
cs.SetTextStyle (1) ;
cs.SetFillMode (1) ;
ss=" HSB 调色板设计示例（ 8 ）" ;
cs.SetColor (255,0,150,0);
cs.DrawText (ss,104,624);
cs.SetColor (255,0,250,0);
cs.DrawText (ss,100,620);
cs.SetFillMode (0) ;
cs.SetColor (255,250,220,0);
cs.DrawText (ss,100,620);
cs.Update ();
}//colorpad8 ()

//附原制作的矩形调色板源码
colorpad1 (){
cs.ClearDraw (0,src);
cs.SetFillMode (1);//0不填色，1填色
cs.SetTextSize (30); //*** (1) ****
cs.SetColor (255,0,0,200);
cs.DrawText (" 真彩调色板 ",20,35);
n=(int)(sn);
ss=intToString (n);
ss="mode = "+ss ;
cs.DrawText (ss,520,35);
cs.SetFillMode (0);//0不填色，1填色
cs.SetStrokeWidth(2); //线
cs.SetColor (255,0,0,250);
cs.DrawRect (20,60,670,460);
cs.Update ();
//**** 16m 全色真彩调色板
//以8为段变色，缩短显示时间。
//此为模拟演示，调色板取色用要逐点绘制
//机器速度快可以逐点绘制
//绘出图寬256＊3 ，图高256
//绘出图片框定标：sx = 3 * 256 , sy = 256
// canvas.Scale (0, 0)-(768, 255);
// r1 = 0; g1 = 255; b1 = 255;
// for (sx=0;sx<256;sx++){ //blue *******
// r1 = sx;
// for (sy=0;sy<256;sy++){
// g1 = 255 - sy;
// cs.SetColor (255,r1,g1,b1);
// cs.DrawRect (sx+50,sy+90,sx+50,sy+90);
// cs.Update (); //显示绘出过程
// } }
// r1= 255; g1= 255; b1= 255; //green
// for (sx=256;sx<512;sx++){ // green ********
// r1=512- sx +255; b1=512 - sx;
// for (sy=0;sy<256;sy++){
// g1= 255 - sy;
// cs.SetColor (255,r1,g1,b1);
// cs.DrawRect (sx+50,sy+90,sx+50,sy+90);
// cs.Update (); //显示绘出过程
// } }
// r1= 0; g1= 255; b1= 0; //red
// for (sx=512;sx<769;sx++){ // red ********
// r1=513- sx +255;
// for (sy=0;sy<256;sy++){
// g1= 255 - sy;
// cs.SetColor (255,r1,g1,b1);
// cs.DrawRect (sx+50,sy+90,sx+50,sy+90);
// cs.Update (); //显示绘出过程
// } }
//此DrawRect (), 其实是DrawPoint (), 然前者的绘制速度较快。

//**** 下面代码以4为段变色，缩短显示时间。
cs.SetFillMode (1);//0不填色，1填色
r1= 0; g1= 255; b1= 255; //blue
for (i=0;i<64;i++){ // blue ********
r1=i*4; sx=i*3; //太宽，缩一点
for (j=0;j<64;j++){
g1=255-j*4; sy=j*4;
cs.SetColor (255,r1,g1,b1);
cs.DrawRect (sx+50,sy+90,sx+58,sy+98);
// cs.Update (); //显示绘出过程
} }
r1= 255; g1= 255; b1= 255; //green
for (i=64;i<128;i++){ // green ********
r1=511- i*4 +255; b1=511- i*4; sx=i*3;
for (j=0;j<64;j++){
g1= 255 - j*4; sy=j*4 ;
cs.SetColor (255,r1,g1,b1);
cs.DrawRect (sx+50,sy+90,sx+58,sy+98);
// cs.Update (); //显示绘出过程
} }
r1 = 0; g1 = 255; b1 = 0; //red
for (i=128;i<192;i++){ // red ********
r1= i*4-511+255; sx=i*3 ;
for (j=0;j<64;j++){
g1=255 -j*4; sy=j*4 ;
cs.SetColor (255,r1,g1,b1);
cs.DrawRect (sx+50,sy+90,sx+58,sy+98);
// cs.Update (); //显示绘出过程
} }

cs.SetTextSize (46);
cs.SetTextStyle (1) ;
cs.SetFillMode (1) ;
cs.SetStrokeWidth(1); //线
ss=" 16m色真彩调色板示例" ;
cs.SetColor (255,0,50,0);
cs.DrawText (ss,84,424);
cs.SetColor (255,0,250,0);
cs.DrawText (ss,80,420);
cs.SetFillMode (0) ;
cs.SetColor (255,250,150,0);
cs.DrawText (ss,80,420);

cs.Update ();
}//colorpad1 ()

//**** End ********
