题目：

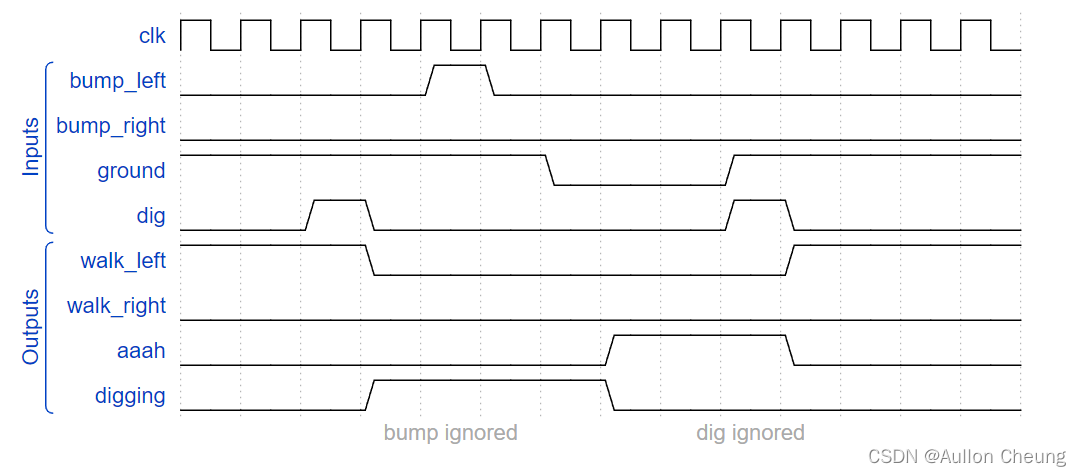

In addition to walking and falling, Lemmings can sometimes be told to do useful things, like dig (it starts digging when dig=1). A Lemming can dig if it is currently walking on ground (ground=1 and not falling), and will continue digging until it reaches the other side (ground=0). At that point, since there is no ground, it will fall (aaah!), then continue walking in its original direction once it hits ground again. As with falling, being bumped while digging has no effect, and being told to dig when falling or when there is no ground is ignored.

(In other words, a walking Lemming can fall, dig, or switch directions. If more than one of these conditions are satisfied, fall has higher precedence than dig, which has higher precedence than switching directions.)

Extend your finite state machine to model this behaviour.

状态图：

题目解释：

LEFT状态和DIG状态时，主要注意ground优先级高于dig高于bump；dig触发立马进入DIG_L或DIG_R状态；挖掘过程DIG_L，DIG_R以及掉落过程G_L，G_R只有ground触发有用。

代码：

module top_module(
    input clk,
    input areset,    // Freshly brainwashed Lemmings walk left.
    input bump_left,
    input bump_right,
    input ground,
    input dig,
    output walk_left,
    output walk_right,
    output aaah,
    output digging );
    reg [2:0] state,state_next;
    parameter LEFT=0,RIGHT=1,DIG_L=2,DIG_R=3,G_L=4,G_R=5;
    reg [3:0] out;
    always @(posedge clk or posedge areset)
    begin
        if(areset)
            state <= LEFT;
        else
            state <= state_next;
    end

    always @(*)
        begin
            case(state)
                LEFT:  state_next= ground?(dig?DIG_L:(bump_left?RIGHT:LEFT)):G_L;
                RIGHT: state_next= ground?(dig?DIG_R:(bump_right?LEFT:RIGHT)):G_R;
                DIG_L: state_next= ground?DIG_L:G_L;
                DIG_R: state_next= ground?DIG_R:G_R;
                G_L:   state_next= ground?LEFT:G_L;
                G_R:   state_next= ground?RIGHT:G_R;
            endcase
        end
    always @(posedge clk or posedge areset) begin
        if(areset == 1'b1) begin
            out <= 4'b1000;
        end
        else begin
            case(state_next)
                LEFT   :out <= 4'b1000;
                RIGHT  :out <= 4'b0100;
                G_R    :out <= 4'b0010;
                G_L    :out <= 4'b0010;
                DIG_R  :out <= 4'b0001;
                DIG_L  :out <= 4'b0001;
                default:out <= 4'b1000;
            endcase
        end
    end
    assign {walk_left,walk_right,aaah,digging}=out;

endmodule
