HomeFragment.kt

package com.example.takeout.ui.fragment

import android.app.Fragment
import android.graphics.Color
import android.os.Bundle
import android.util.Log
import android.util.TypedValue
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import androidx.recyclerview.widget.LinearLayoutManager
import androidx.recyclerview.widget.RecyclerView
import com.example.takeout.R
import com.example.takeout.presenter.HomeFragmentPresenster
import com.example.takeout.ui.adapter.HomeRvAdapter
import com.heima.takeout.model.beans.Seller
import kotlinx.android.synthetic.main.fragment_home.*
import org.jetbrains.anko.find

class HomeFragment : Fragment() {
    lateinit var homeRvAdapter: HomeRvAdapter//延迟初始化
    lateinit var rvHome: RecyclerView
    lateinit var homeFragmentPresenster : HomeFragmentPresenster

    override fun onCreateView(
        inflater: LayoutInflater,
        container: ViewGroup?,
        savedInstanceState: Bundle?
    ): View? {
        val view = View.inflate(activity, R.layout.fragment_home, null)
        rvHome = view.find<RecyclerView>(R.id.rv_home)
        //上下布局
        rvHome.layoutManager = LinearLayoutManager(activity)
        homeRvAdapter = HomeRvAdapter(activity)
        rvHome.adapter = homeRvAdapter
        homeFragmentPresenster= HomeFragmentPresenster(this)

        distance = 120.dp2px()
        return view
    }

    fun Int.dp2px(): Int {
        return TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP,
            toFloat(), resources.displayMetrics).toInt()

    }

    override fun onActivityCreated(savedInstanceState: Bundle?) {
        super.onActivityCreated(savedInstanceState)
        initData()
    }

    val datas: ArrayList<String> = ArrayList<String>()
    var sum: Int = 0
    var distance: Int = 0
    var alpha = 55
    private fun initData() {
        for (i in 0 until 100) {
            datas.add("我是商家：" + i)
        }
        homeFragmentPresenster.getHomeInfo()
        homeRvAdapter.setData(datas)
        //有数据可以滚动才可以监听滚动事件,设置标题的透明效果
        rvHome.setOnScrollListener(object : RecyclerView.OnScrollListener() {

            override fun onScrollStateChanged(recyclerView: RecyclerView, newState: Int) {
                if (recyclerView != null) {
                    super.onScrollStateChanged(recyclerView, newState)
                }
            }

            override fun onScrolled(recyclerView: RecyclerView, dx: Int, dy: Int) {
                if (recyclerView != null) {
                    super.onScrolled(recyclerView, dx, dy)
                }
                sum += dy
                if (sum > distance) {
                    alpha = 255
                } else {
                    alpha = sum * 200 / distance
                    alpha += 55
                }
                Log.e("home", "alpha:$alpha")
                ll_title_container.setBackgroundColor(Color.argb(alpha, 0x31, 0x90, 0xe8))
            }
        })
    }

    //所有的数据
//    val allList:ArrayList<Seller> = ArrayList()
//    fun onHomeSuccess(nearbySellers: List<Seller>, otherSellers: List<Seller>) {
//        allList.clear()
//        allList.addAll(nearbySellers)
//        allList.addAll(otherSellers)
//        homeRvAdapter.setData(allList)
//    }
    fun onHomeSuccess(){}

    fun onHomeFailed() {

    }

}

HomeFragmentPresenster.kt使用Retrofit请求网络的逻辑

package com.example.takeout.presenter

import android.util.Log
import com.example.takeout.model.net.MyCarBean
import com.example.takeout.model.net.TakeoutService
import com.example.takeout.ui.fragment.HomeFragment
import com.google.gson.Gson
import com.google.gson.reflect.TypeToken
import com.heima.takeout.model.beans.Seller
import org.json.JSONObject
import retrofit2.Call
import retrofit2.Callback
import retrofit2.Response
import retrofit2.Retrofit
import retrofit2.converter.gson.GsonConverterFactory


class HomeFragmentPresenster(val homeFragment: HomeFragment) {
    val takeoutService: TakeoutService

    init {
        val retrofit = Retrofit.Builder()
//            .baseUrl("https://mrobot.pcauto.com.cn/v2/cms/")
//            .baseUrl("https://baobab.kaiyanapp.com/")
            .baseUrl("http://127.0.0.1:8090/")
            .addConverterFactory(GsonConverterFactory.create())
            .build()

        takeoutService = retrofit.create(TakeoutService::class.java)
    }

    /**
     * 使用异步获取数据
     */
    fun getHomeInfo() {
        //TOTO:要异步访问
        val homeCall = takeoutService.getHomeInfo();
        takeoutService.getHomeInfo().enqueue(object: Callback<MyCarBean> {
            override fun onResponse(call: Call<MyCarBean>?, response: Response<MyCarBean>?) {
                //成功
                var myCarBean: MyCarBean? = response!!.body()
                var myCarBeanLists: List<MyCarBean.CarInfo> = myCarBean!!.data

                for (ca in myCarBeanLists){
                    Log.d("HomeFragmentPresenster", ca.title)
                }
            }
            override fun onFailure(call: Call<MyCarBean>?, t: Throwable?) {
                //失败
                Log.d("HomeFragmentPresenster", "onFailure=====" + t.toString())
            }
        })
        /*
        homeCall.enqueue(object : Callback<ResponseInfo> {
            override fun onResponse(call: Call<ResponseInfo>?, response: Response<ResponseInfo>?) {
                if (response == null) {
                    Log.d("HomeFragmentPresenster", "服务器没有成功返回=====")
                } else {
                    if (response.isSuccessful()) {
                        val responseInfo = response.body()
                        if (responseInfo.code.equals("0")) {
                            val json = responseInfo.data
//                            parserJson(json)
                        } else if (responseInfo.code.equals("-1")) {
                            //返回值和接口文档约定

                        }
                    } else {
                        Log.d("HomeFragmentPresenster", "服务器代码错误=====")
                    }
                }
            }


            override fun onFailure(call: Call<ResponseInfo>?, t: Throwable?) {
                Log.d("HomeFragmentPresenster", "onFailure=====")
            }
        })

         */

        //有数据，成功页面
        homeFragment.onHomeSuccess()

        //无数据，异常页面
        homeFragment.onHomeFailed()
    }

    /**
     * 解析数据
     */
    private fun parserJson(json: String?) {
        //解析数据
        val gson = Gson()
        var jsonObject = JSONObject(json)
        //附近的商家
        var nearby = jsonObject.getString("nearbySellerList")
        val nearbySellers: List<Seller> =
            gson.fromJson(nearby, object : TypeToken<List<Seller>>() {}.type)
        //其他的商家
        val other = jsonObject.getString("otherSellerList")
        val otherSellers: List<Seller> =
            gson.fromJson(other, object : TypeToken<List<Seller>>() {}.type)
        //TODO:刷新UI

        //有数据，成功页面
        if (nearbySellers.isNotEmpty() || otherSellers.isNotEmpty()) {
//            homeFragment.onHomeSuccess(nearbySellers, otherSellers)
            homeFragment.onHomeSuccess()
        } else {
            //无数据，异常页面
            homeFragment.onHomeFailed()
        }

    }
}

TakeoutService.kt

package com.example.takeout.model.net

import retrofit2.Call
import retrofit2.http.GET

interface TakeoutService {

//ex.    @GET("users/{user}/repos")
//ex.    fun listRepos(@Path("user") user: String): Call<List<Repo>>

    @GET("takeout?index=0")
    fun getHomeInfo(): Call<MyCarBean>

}

ResponseInfo.kt

package com.example.takeout.model.net

class MyCarBean(var data:List<CarInfo>) {
    class CarInfo(
        var articleType: String,
        var count: String,
        var downs: String,
        var firstImg: String,
        var id: String,
        var image: String,
        var mtime: String,
        var pubDate: String,
        var title: String,
        var ups: String,
        var url: String
    )
}

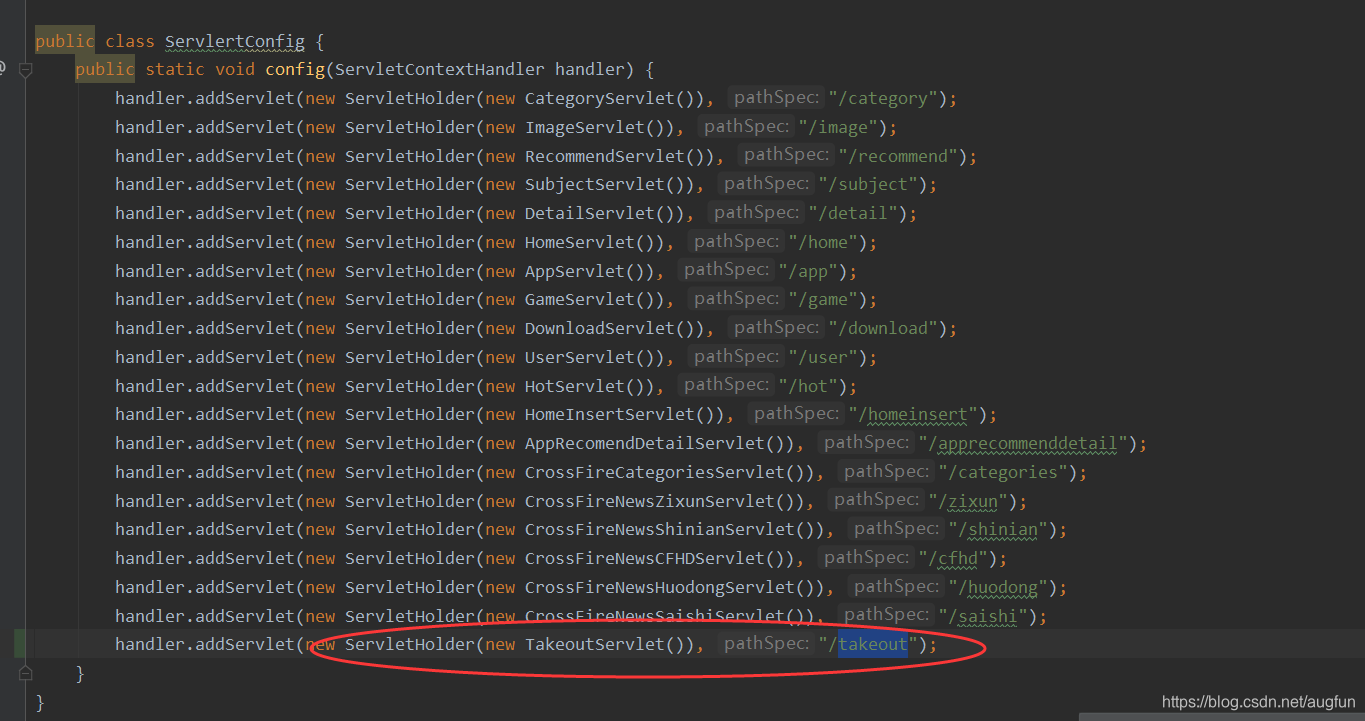

服务端代码的配置

TakeoutServlet.java

package cn.ldw.servlet;

import android.os.Environment;

import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.io.OutputStream;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public class TakeoutServlet extends BaseServlet {

    private static final long serialVersionUID = 1L;

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        resp.setStatus(HttpServletResponse.SC_OK);
        String path0 = Environment.getExternalStorageDirectory().getAbsolutePath() + "/" + "Apaches/takeout/takeInfors";

        String path = null;
        int index =  Integer.valueOf(req.getParameter("index"));
        if(index == 0){
            path = path0;
        }

        File file = new File(path);
        long length = file.length();
        resp.setContentLength((int) length);
        OutputStream out = resp.getOutputStream();
        FileInputStream stream = new FileInputStream(file);
        int count = -1;
        byte[] buffer = new byte[1024];
        while ((count = stream.read(buffer)) != -1) {
            out.write(buffer, 0, count);
            out.flush();
        }
        stream.close();
        out.close();
    }
}

请求的方式，打开应用以后可以在浏览器上直接输入下面的链接就可以看到所有的数据

http://127.0.0.1:8090/takeout?index=0

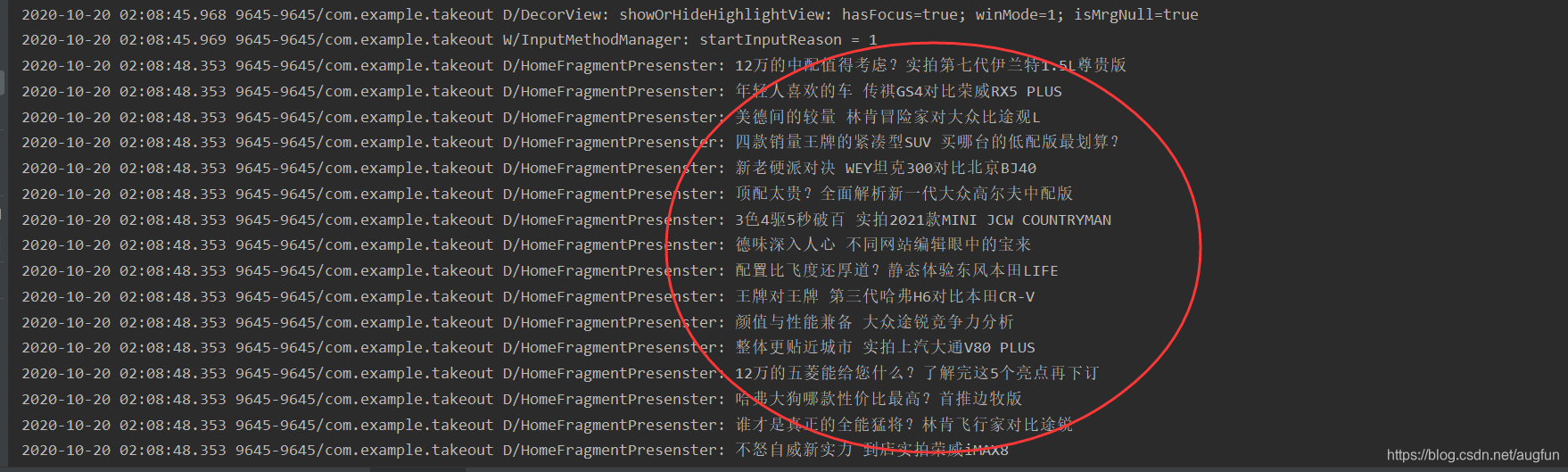

打印的数据如下

其中takeInfors数据如下：

{
	"total": 200,
	"pageNo": 1,
	"pageSize": 20,
	"data": [
		{
			"pcauto_author_Id": "lijiaming1",
			"count": 1,
			"editorInChargeId": "lijiaming1",
			"categoryFirst": "导购",
			"pcauto_series_name": "伊兰特",
			"id": "22606371",
			"pcauto_series_id": "2463",
			"title": "12万的中配值得考虑？实拍第七代伊兰特1.5L尊贵版",
			"pcauto_content_category2": "到店实拍",
			"pcauto_content_category1": "导购",
			"categorySec": "到店实拍",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-20",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "黎嘉铭",
			"pcauto_publish_time": 1603123862000,
			"pcauto_author_name": "lijiaming1",
			"mtime": 1603123862000,
			"image": "https://img0.pcauto.com.cn/pcauto/2010/19/g_22606371_1603074048374_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2260/22606371.html",
			"tag_2": "原创 黎嘉铭",
			"firstImg": "http://img0.pcauto.com.cn/pcauto/2010/19/22606371_001.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 2463,
				"serialName": "伊兰特"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "panxianyang",
			"count": 0,
			"editorInChargeId": "panxianyang",
			"categoryFirst": "导购",
			"pcauto_series_name": "传祺GS4",
			"id": "22611313",
			"pcauto_series_id": "11980",
			"title": "年轻人喜欢的车 传祺GS4对比荣威RX5 PLUS",
			"pcauto_content_category2": "对比导购",
			"pcauto_content_category1": "导购",
			"categorySec": "对比导购",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-20",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "潘现阳",
			"pcauto_publish_time": 1603123839000,
			"pcauto_author_name": "panxianyang",
			"mtime": 1603123839000,
			"image": "https://img0.pcauto.com.cn/pcauto/2010/19/g_22611313_1603111413126_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2261/22611313.html",
			"tag_2": "原创 潘现阳",
			"firstImg": "",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 11980,
				"serialName": "传祺GS4"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "lijiaming1",
			"count": 0,
			"editorInChargeId": "lijiaming1",
			"categoryFirst": "导购",
			"pcauto_series_name": "冒险家",
			"id": "8084667",
			"pcauto_series_id": "25099",
			"title": "美德间的较量 林肯冒险家对大众比途观L",
			"pcauto_content_category2": "对比导购",
			"pcauto_content_category1": "导购",
			"categorySec": "对比导购",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-20",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "黎嘉铭",
			"pcauto_publish_time": 1603123830000,
			"pcauto_author_name": "lijiaming1",
			"mtime": 1603123830000,
			"image": "https://img0.pcauto.com.cn/pcauto/2010/16/g_8084667_1602839413882_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/808/8084667.html",
			"tag_2": "原创 黎嘉铭",
			"firstImg": "http://img0.pcauto.com.cn/pcauto/1604/26/8084667_1.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 25099,
				"serialName": "冒险家"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "liaoweikai",
			"count": 49,
			"editorInChargeId": "liaoweikai",
			"categoryFirst": "导购",
			"pcauto_series_name": "威兰达",
			"id": "22567013",
			"pcauto_series_id": "25490",
			"title": "四款销量王牌的紧凑型SUV 买哪台的低配版最划算？",
			"pcauto_content_category2": "海选导购",
			"pcauto_content_category1": "导购",
			"categorySec": "海选导购",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-17",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "廖炜凯",
			"pcauto_publish_time": 1602894275000,
			"pcauto_author_name": "liaoweikai",
			"mtime": 1602894275000,
			"image": "https://img0.pcauto.com.cn/pcauto/2010/17/g_22567013_1602889566722_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2256/22567013.html",
			"tag_2": "原创 廖炜凯",
			"firstImg": "http://img0.pcauto.com.cn/pcauto/2010/17/22567013_000.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 25490,
				"serialName": "威兰达"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "limingkai",
			"count": 153,
			"editorInChargeId": "limingkai",
			"categoryFirst": "导购",
			"pcauto_series_name": "坦克300",
			"id": "22561681",
			"pcauto_series_id": "26541",
			"title": "新老硬派对决 WEY坦克300对比北京BJ40",
			"pcauto_content_category2": "对比导购",
			"pcauto_content_category1": "导购",
			"categorySec": "对比导购",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-16",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "李明凯",
			"pcauto_publish_time": 1602845947000,
			"pcauto_author_name": "limingkai",
			"mtime": 1602845947000,
			"image": "http://img0.pcauto.com.cn/pcauto/2010/15/g_22561681_1602731873777_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2256/22561681.html",
			"tag_2": "原创 李明凯",
			"firstImg": "http://img.pcauto.com.cn/images/upload/upc/tx/auto5/2010/16/c0/235470294_1602781260797_800x600.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 26541,
				"serialName": "坦克300"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "xiongruifeng",
			"count": 30,
			"editorInChargeId": "xiongruifeng",
			"categoryFirst": "导购",
			"pcauto_series_name": "高尔夫",
			"id": "22531371",
			"pcauto_series_id": "4437",
			"title": "顶配太贵？全面解析新一代大众高尔夫中配版",
			"pcauto_content_category2": "实拍解析",
			"pcauto_content_category1": "导购",
			"categorySec": "实拍解析",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-16",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "熊睿锋",
			"pcauto_publish_time": 1602828588000,
			"pcauto_author_name": "xiongruifeng",
			"mtime": 1602828588000,
			"image": "http://img0.pcauto.com.cn/pcauto/2010/16/g_22531371_1602827893295_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2253/22531371.html",
			"tag_2": "原创 熊睿锋",
			"firstImg": "http://img0.pcauto.com.cn/pcauto/2010/15/22531371_1.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 4437,
				"serialName": "高尔夫"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "zhengpengzhan",
			"count": 0,
			"editorInChargeId": "zhengpengzhan",
			"categoryFirst": "",
			"pcauto_series_name": "MINI JCW COUNTRYMAN",
			"id": "22351935",
			"pcauto_series_id": "12684",
			"title": "3色4驱5秒破百 实拍2021款MINI JCW COUNTRYMAN",
			"categorySec": "",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-16",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "郑鹏展",
			"pcauto_author_name": "zhengpengzhan",
			"pcauto_publish_time": 1602778271000,
			"mtime": 1602778271000,
			"image": "http://img0.pcauto.com.cn/pcauto/2010/04/g_22351935_1601794028775_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2235/22351935.html",
			"tag_2": "原创 郑鹏展",
			"firstImg": "http://img.pcauto.com.cn/images/upload/upc/tx/auto5/2010/04/c1/233833602_1601793917852_800x600.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 12684,
				"serialName": "MINI JCW COUNTRYMAN"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "zhangyan6",
			"count": 30,
			"editorInChargeId": "zhangyan6",
			"categoryFirst": "导购",
			"pcauto_series_name": "宝来",
			"id": "22566155",
			"pcauto_series_id": "3286",
			"title": "德味深入人心 不同网站编辑眼中的宝来",
			"pcauto_content_category2": "单车导购",
			"pcauto_content_category1": "导购",
			"categorySec": "单车导购",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-16",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "张岩",
			"pcauto_publish_time": 1602777613000,
			"pcauto_author_name": "zhangyan6",
			"mtime": 1602777613000,
			"image": "http://img0.pcauto.com.cn/pcauto/2010/15/g_22566155_1602773174933_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2256/22566155.html",
			"tag_2": "原创 张岩",
			"firstImg": "http://img.pcauto.com.cn/images/upload/upc/tx/auto5/2010/15/c24/235459479_1602773327582_800x600.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 3286,
				"serialName": "宝来"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "lizhe",
			"count": 60,
			"editorInChargeId": "lizhe",
			"categoryFirst": "导购",
			"pcauto_series_name": "LIFE",
			"id": "22566512",
			"pcauto_series_id": "26573",
			"title": "配置比飞度还厚道？静态体验东风本田LIFE",
			"pcauto_content_category2": "实拍解析",
			"pcauto_content_category1": "导购",
			"categorySec": "实拍解析",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-15",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "李喆",
			"pcauto_publish_time": 1602777435000,
			"pcauto_author_name": "lizhe",
			"mtime": 1602777435000,
			"image": "https://img0.pcauto.com.cn/pcauto/2010/15/g_22566512_1602776106674_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2256/22566512.html",
			"tag_2": "原创 李喆",
			"firstImg": "http://img.pcauto.com.cn/images/upload/upc/tx/auto5/2010/15/c24/235465623_1602776978772_800x600.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 26573,
				"serialName": "LIFE"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "panhonghan",
			"count": 80,
			"editorInChargeId": "panhonghan",
			"categoryFirst": "导购",
			"pcauto_series_name": "哈弗H6",
			"id": "21806972",
			"pcauto_series_id": "4580",
			"title": "王牌对王牌 第三代哈弗H6对比本田CR-V",
			"pcauto_content_category2": "对比导购",
			"pcauto_content_category1": "导购",
			"categorySec": "对比导购",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-15",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "潘洪瀚",
			"pcauto_publish_time": 1602691936000,
			"pcauto_author_name": "panhonghan",
			"mtime": 1602691936000,
			"image": "https://img0.pcauto.com.cn/pcauto/2008/24/g_21806972_1598248995008_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2180/21806972.html",
			"tag_2": "原创 潘洪瀚",
			"firstImg": "http://img0.pcauto.com.cn/pcauto/2008/24/21806972_1.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 4580,
				"serialName": "哈弗H6"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "maxin1",
			"count": 1,
			"editorInChargeId": "maxin1",
			"categoryFirst": "新车",
			"pcauto_series_name": "途锐",
			"id": "22353334",
			"pcauto_series_id": "2383",
			"title": "颜值与性能兼备 大众途锐竞争力分析",
			"pcauto_content_category2": "新车解析",
			"pcauto_content_category1": "新车",
			"categorySec": "新车解析",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-15",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "马鑫-编辑",
			"pcauto_publish_time": 1602691936000,
			"pcauto_author_name": "maxin1",
			"mtime": 1602691936000,
			"image": "https://img0.pcauto.com.cn/pcauto/2009/30/g_22353334_1601436341295_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2235/22353334.html",
			"tag_2": "原创 马鑫",
			"firstImg": "http://img0.pcauto.com.cn/pcauto/2009/30/22353334_image007_thumb.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 2383,
				"serialName": "途锐"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "wangyue2",
			"count": 8,
			"editorInChargeId": "wangyue2",
			"categoryFirst": "导购",
			"pcauto_series_name": "上汽大通MAXUS V80",
			"id": "22531432",
			"pcauto_series_id": "7590",
			"title": "整体更贴近城市 实拍上汽大通V80 PLUS",
			"pcauto_content_category2": "实拍解析",
			"pcauto_content_category1": "导购",
			"categorySec": "实拍解析",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-14",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "王岳1",
			"pcauto_publish_time": 1602619528000,
			"pcauto_author_name": "wangyue2",
			"mtime": 1602619528000,
			"image": "http://img0.pcauto.com.cn/pcauto/2010/14/g_22531432_1602617751007_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2253/22531432.html",
			"tag_2": "原创 王岳",
			"firstImg": "http://img.pcauto.com.cn/images/upload/upc/tx/auto5/2010/14/c0/235190258_1602617914272_800x600.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 7590,
				"serialName": "上汽大通MAXUS V80"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "lijiaming1",
			"count": 28,
			"editorInChargeId": "lijiaming1",
			"categoryFirst": "导购",
			"pcauto_series_name": "五菱凯捷",
			"id": "22504173",
			"pcauto_series_id": "26411",
			"title": "12万的五菱能给您什么？了解完这5个亮点再下订",
			"pcauto_content_category2": "到店实拍",
			"pcauto_content_category1": "导购",
			"categorySec": "到店实拍",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-14",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "黎嘉铭",
			"pcauto_publish_time": 1602605433000,
			"pcauto_author_name": "lijiaming1",
			"mtime": 1602605433000,
			"image": "https://img0.pcauto.com.cn/pcauto/2010/12/g_22504173_1602515241486_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2250/22504173.html",
			"tag_2": "原创 黎嘉铭",
			"firstImg": "http://img.pcauto.com.cn/images/upload/upc/tx/auto5/2009/23/c10/232113290_1600841538753_800x600.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 26411,
				"serialName": "五菱凯捷"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "hezhanpeng",
			"count": 47,
			"editorInChargeId": "hezhanpeng",
			"categoryFirst": "导购",
			"pcauto_series_name": "哈弗大狗",
			"id": "22529791",
			"pcauto_series_id": "26431",
			"title": "哈弗大狗哪款性价比最高？首推边牧版",
			"pcauto_content_category2": "单车导购",
			"pcauto_content_category1": "导购",
			"categorySec": "单车导购",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-13",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "何展鹏",
			"pcauto_publish_time": 1602587344000,
			"pcauto_author_name": "hezhanpeng",
			"mtime": 1602587344000,
			"image": "https://img0.pcauto.com.cn/pcauto/2010/13/g_22529791_1602585162981_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2252/22529791.html",
			"tag_2": "原创 何展鹏",
			"firstImg": "http://img0.pcauto.com.cn/pcauto/2010/13/22529791_1-3.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 26431,
				"serialName": "哈弗大狗"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "panyumin",
			"count": 117,
			"editorInChargeId": "panyumin",
			"categoryFirst": "导购",
			"pcauto_series_name": "飞行家",
			"id": "22471811",
			"pcauto_series_id": "26461",
			"title": "谁才是真正的全能猛将？林肯飞行家对比途锐",
			"pcauto_content_category2": "对比导购",
			"pcauto_content_category1": "导购",
			"categorySec": "对比导购",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-13",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "潘宇民",
			"pcauto_publish_time": 1602551706000,
			"pcauto_author_name": "panyumin",
			"mtime": 1602551706000,
			"image": "http://img0.pcauto.com.cn/pcauto/2010/12/g_22471811_1602497693823_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2247/22471811.html",
			"tag_2": "",
			"firstImg": "http://img0.pcauto.com.cn/pcauto/2010/12/22471811_21_thumb.png",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 26461,
				"serialName": "飞行家"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "sukancheng",
			"count": 38,
			"editorInChargeId": "sukancheng",
			"categoryFirst": "导购",
			"pcauto_series_name": "荣威iMAX8",
			"id": "22496691",
			"pcauto_series_id": "26445",
			"title": "不怒自威新实力 到店实拍荣威iMAX8",
			"pcauto_content_category2": "到店实拍",
			"pcauto_content_category1": "导购",
			"categorySec": "到店实拍",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-13",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "苏侃成",
			"pcauto_publish_time": 1602519032000,
			"pcauto_author_name": "sukancheng",
			"mtime": 1602519032000,
			"image": "https://img0.pcauto.com.cn/pcauto/2010/12/g_22496691_1602499839154_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2249/22496691.html",
			"tag_2": "原创 苏侃成",
			"firstImg": "http://img0.pcauto.com.cn/pcauto/2010/12/22496691_1.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 26445,
				"serialName": "荣威iMAX8"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "huangzengjian",
			"count": 96,
			"editorInChargeId": "huangzengjian",
			"categoryFirst": "导购",
			"pcauto_series_name": "宋PLUS",
			"id": "22470312",
			"pcauto_series_id": "26405",
			"title": "新秀能否撼动老将？ 宋PLUS对比长安CS75 PLUS",
			"pcauto_content_category2": "对比导购",
			"pcauto_content_category1": "导购",
			"categorySec": "对比导购",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-12",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "黄增鉴",
			"pcauto_publish_time": 1602496186000,
			"pcauto_author_name": "huangzengjian",
			"mtime": 1602496186000,
			"image": "https://img0.pcauto.com.cn/pcauto/2010/12/g_22470312_1602466102347_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2247/22470312.html",
			"tag_2": "原创 黄增鉴",
			"firstImg": "http://img0.pcauto.com.cn/pcauto/2010/10/22470312_0.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 26405,
				"serialName": "宋PLUS"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "yanggaoyu",
			"count": 23,
			"editorInChargeId": "yanggaoyu",
			"categoryFirst": "导购",
			"pcauto_series_name": "奥迪Q5L",
			"id": "22471651",
			"pcauto_series_id": "23054",
			"title": "优惠达7万元 等等党快来抄底奥迪Q5L",
			"pcauto_content_category2": "到店实拍",
			"pcauto_content_category1": "导购",
			"categorySec": "到店实拍",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-11",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "杨高宇",
			"pcauto_publish_time": 1602424809000,
			"pcauto_author_name": "yanggaoyu",
			"mtime": 1602424809000,
			"image": "https://img0.pcauto.com.cn/pcauto/2010/10/g_22471651_1602318485638_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2247/22471651.html",
			"tag_2": "原创 杨高宇",
			"firstImg": "http://img0.pcauto.com.cn/pcauto/2010/10/22471651_204729121_1587723231141.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 23054,
				"serialName": "奥迪Q5L"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "zhaoxinjie",
			"count": 24,
			"editorInChargeId": "zhaoxinjie",
			"categoryFirst": "导购",
			"pcauto_series_name": "探界者",
			"id": "22413731",
			"pcauto_series_id": "21013",
			"title": "推荐550T RS智能拓界版 新款探界者购车手册",
			"pcauto_content_category2": "单车导购",
			"pcauto_content_category1": "导购",
			"categorySec": "单车导购",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-11",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "赵信杰",
			"pcauto_publish_time": 1602380248000,
			"pcauto_author_name": "zhaoxinjie",
			"mtime": 1602380248000,
			"image": "https://img0.pcauto.com.cn/pcauto/2010/10/g_22413731_1602293382399_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2241/22413731.html",
			"tag_2": "原创 赵信杰",
			"firstImg": "http://img0.pcauto.com.cn/pcauto/2010/08/22413731_11.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 21013,
				"serialName": "探界者"
			},
			"articleType": "n"
		},
		{
			"pcauto_author_Id": "xuzhihang",
			"count": 8,
			"editorInChargeId": "xuzhihang",
			"categoryFirst": "导购",
			"pcauto_series_name": "宝马5系",
			"id": "22473811",
			"pcauto_series_id": "441",
			"title": "低配两款就够了 新宝马5系购车手册",
			"pcauto_content_category2": "单车导购",
			"pcauto_content_category1": "导购",
			"categorySec": "单车导购",
			"pcauto_content_type": "文章",
			"pubDate": "2020-10-11",
			"pcauto_content_source": "原创",
			"channelName": "导购",
			"editorInChargeName": "",
			"pcauto_publish_time": 1602360643000,
			"pcauto_author_name": "xuzhihang",
			"mtime": 1602360643000,
			"image": "https://img0.pcauto.com.cn/pcauto/2010/11/g_22473811_1602348695661_240x160.jpg",
			"url": "http://www.pcauto.com.cn/teach/2247/22473811.html",
			"tag_2": "原创 徐志杭",
			"firstImg": "http://img0.pcauto.com.cn/pcauto/2010/11/22473811_5.jpg",
			"downs": 0,
			"ups": 0,
			"serial": {
				"serialId": 441,
				"serialName": "宝马5系"
			},
			"articleType": "n"
		}
	]
}



RLException: [xx.launch] is neither a launch file in package [x] nor is [x] a launch file name的解决方法
琉璃轻纱的博客
04-24 2万+
在ROS学习中，进行工作区下编译的时候，突然报错，这种错误的出现，是因为坏境变量没有被添加！！！
【解决问题】RLException: [xx.launch] is neither a launch file in package [x] nor is [x] a launch file name
热门推荐
君琴 的博客
05-30 8万+
本博客运行环境为Ubuntu 18.04. 今天在ROS工作区下编译时遇到如下错误： RLException: [racecar.launch] is neither a launch file in package [racecar_gazebo] nor is [racecar_gazebo] a launch file name The traceback for the exception was written to the log file 报错才想起没有添加环境变量，一段时间没做相关应用都有点
RLException: XXX is neither a launch file in package XXX nor is XXX a launch file name问题解决
weixin_33721344的博客
03-16 1万+
在运行roslaunch时出现了类似下面的错误： RLException: XXX is neither a launch file in package XXX nor is XXX a launch file name 这是因为setup.bash文件没有进一步说明包的来源，解决方法是 source catkin_ws/devel/setup.bash 　　 转载于:htt...
ROS “is neither a launch file in package”报错
zhelijun的博客
03-28 1万+
运行 catkin_make source devel/setup.bash
ROS(八)：RLException: [xx.launch] is neither a launch file in package [x] nor is [x] a launch filename
qq_71939010的博客
08-02 5624
对应中出现的问题。
转载解决【解决问题】RLException: [xx.launch] is neither a launch file in package [x] nor is [x] a launch file
qq_58284479的博客
11-23 3574
本文链接：https://blog.csdn.net/weixin_44436677/article/details/106442240
错误: 找不到或无法加载主类 com.liznsalt.javatask.takeout.TakeoutApplication
04-11
嗯，用户遇到了Java的错误，找不到或者无法加载主类com.liznsalt.javatask.takeout.TakeoutApplication。这个问题可能有几个原因。首先，我需要回忆一下Java类路径相关的问题。当运行Java程序时，JVM需要找到包含...
Class not found: "com.liznsalt.javatask.takeout.system.controller.ConsumerReplyControllerTest"
04-10
嗯，用户遇到了Java测试环境中类未找到的问题，具体是com.liznsalt.javatask.takeout.system.controller.ConsumerReplyControllerTest这个测试类无法加载。首先，我需要考虑可能的原因。类名是否正确？包结构是否...
org.apache.ibatis.binding.BindingException: Invalid bound statement (not found): com.takeout.user.service.UserInfoService.login
04-05
在你提供的异常信息中，出现了"Invalid bound statement (not found): com.takeout.user.service.UserInfoService.login"这个错误信息。 这个错误通常是由于MyBatis无法找到对应的SQL语句映射引起的。具体来说，...
takeout.zip
09-30
8. **数据导出**：如果"takeout"关联到数据导出，那么项目可能涉及到数据处理、API接口设计，或者构建工具帮助用户从某个服务导出数据。 为了深入了解"takeout.zip"的内容，你需要解压文件并查看其内部结构，包括...
google-takeout-to-sqlite：将数据从Google Takeout保存到SQLite数据库
02-03
将数据从google-takeout保存到SQLite数据库。 如何安装 $ pip install google-takeout-to-sqlite 从请求您的Google数据-等待电子邮件并下载zip文件。 此工具仅支持部分可用选项。 随着时间的推移会添加更多。 我的...
RLException: [**] is neither a launch file in package [**] nor is [**] a launch file name,.......
qq_51184221的博客
03-29 1万+
launch文件报错
RLException: [XXX] is neither a launch file in package [XXX] nor is [XXX] a launch file name报错信息解决方法
otter1010的博客
05-29 3万+
在运行roslaunch时出现了类似下面的错误： RLException: [mav_hovering_example.launch] is neither a launch file in package [rotors_gazebo] nor is [rotors_gazebo] a launch file name 这是因为setup.bash文件没有进一步说明包的来源，解决方法是： ...
问题:RLException: [amcl_demo2.launch] is neither a launch file in package [amcl_run] nor is [amcl_run]
愿我会揸火箭 带你到天空去 在太空中两人住
04-01 2199
修改.txt文件路径 找到相应txt文件 工作目录跳转到所在文件夹 并使用pwd指令 显示出当前文件路径 复制该路径.到cpp文件中,配置好.txt文件的路径. 然后catkin_make 然后source devel/setup.bash 出现报错一ERROR: cannot launch node of type [map_server/map_server]: map_server 二Could not connect to any X display. 问题:ERRO
ROS学习之error解决记录
小博的博客
05-05 2万+
ROS的版本：Ubuntu20.04对应Noetic版本；Ubuntu18.04对应Melodic对应；Ubuntu16.04对应Kinetic对应
成功解决ROS报错RLException: [turtlebot3_fake.launch] is neither a launch file in package [turtlebot3_fake]
weixin_44991673的博客
02-08 2万+
成功解决ROS报错RLException: [turtlebot3_fake.launch] is neither a launch file in package [turtlebot3_fake] nor is [turtlebot3_fake] a launch file name 解决方案 错误原因为环境变量设置有问题 运行下方代码后再执行roslaunch source ~/catkin_ws/devel/setup.bash roslaunch turtlebot3_fake turtle
布线问题 分支限界算法-下载即用.zip
01-01
下载方式：https://pan.quark.cn/s/a4b39357ea24 布线问题（分支限界算法）是计算机科学和电子工程领域中一个广为人知的议题，它主要探讨如何在印刷电路板上定位两个节点间最短的连接路径。 在这一议题中，电路板被构建为一个包含 n×m 个方格的矩阵，每个方格能够被界定为可通行或不可通行，其核心任务是定位从初始点到最终点的最短路径。 分支限界算法是处理布线问题的一种常用策略。 该算法与回溯法有相似之处，但存在差异，分支限界法仅需获取满足约束条件的一个最优路径，并按照广度优先或最小成本优先的原则来探索解空间树。 树 T 被构建为子集树或排列树，在探索过程中，每个节点仅被赋予一次成为扩展节点的机会，且会一次性生成其全部子节点。 针对布线问题的解决，队列式分支限界法可以被采用。 从起始位置 a 出发，将其设定为首个扩展节点，并将与该扩展节点相邻且可通行的方格加入至活跃节点队列中，将这些方格标记为 1，即从起始方格 a 到这些方格的距离为 1。 随后，从活跃节点队列中提取队首节点作为下一个扩展节点，并将与当前扩展节点相邻且未标记的方格标记为 2，随后将这些方格存入活跃节点队列。 这一过程将持续进行，直至算法探测到目标方格 b 或活跃节点队列为空。 在实现上述算法时，必须定义一个类 Position 来表征电路板上方格的位置，其成员 row 和 col 分别指示方格所在的行和列。 在方格位置上，布线能够沿右、下、左、上四个方向展开。 这四个方向的移动分别被记为 0、1、2、3。 下述表格中，offset[i].row 和 offset[i].col（i=0,1,2,3）分别提供了沿这四个方向前进 1 步相对于当前方格的相对位移。 在 Java 编程语言中，可以使用二维数组...
EP1C3T144C8 FPGA开发板设计
最新发布
01-01
先看效果： https://pan.quark.cn/s/03f8ba0ff118 ### FPGA开发板设计相关知识要点#### 1. FPGA基本概念- **定义**: 现场可编程门阵列（Field Programmable Gate Array, FPGA）属于半定制型集成电路，允许在完成制造后通过编程来设定其内部逻辑及连接配置，从而达成特定的功能实现。- **特性**: - 运行速度快 - 功耗相对较低 - 适用于复杂系统构建 - 可在现场进行重新编程- **应用范畴**: - 通信领域 - 自动控制系统 - 信息处理技术 - 数据加密方案 - 视频处理技术 - 车载电子系统 - 医疗器械设备等#### 2. EP1C3T144C8芯片介绍- **生产商**: Altera Corporation（现归属于Intel公司）- **系列归属**: Cyclone系列- **技术工艺**: 1.5V核心供电电压，采用0.13微米制造工艺- **资源参数**: - 包含2910个逻辑单元（LEs） - 提供高达59904位的嵌入式存储器 - 支持单个PLL（Phase Locked Loop，锁相环） - 最多可支持104个用户I/O接口- **优点**: - 价格经济 - 集成度高 - 片上资源丰富 - 灵活性强#### 3. 硬件电路设计原理##### 3.1 硬件电路整体构造- **构成部分**: - 下载电路: 负责将设计好的程序传送至FPGA中。 - 下载接口: 实现个人计算机与FPGA之间的数据交换。 - FPGA核心部件: EP1C3T144C8芯片。 - 电源电路: 提供必要的电源支持。 - 扩展接口: 用于连接各类传感器或扩展模块。###...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
