Top 15 open-source (Public free) brokers of MQTT

Top 15 open-source (Public free) brokers of MQTT

by Chandana PasupuletiNov 20, 2020MQTT

To know about 15 open-source (Public free) brokers of MQTT let’s first understand what MQTT is? MQTT ( Message Queuing Telemetry Transport ) is a machine-to-machine protocol designed to facilitate lightweight publish/subscribe message transportation. Its created by Dr Andy Stanford-Clark of IBM and Arlen Nipper of Arcom in 1999. It was available under a royalty-free license as protocol version 3.1 since 2010.

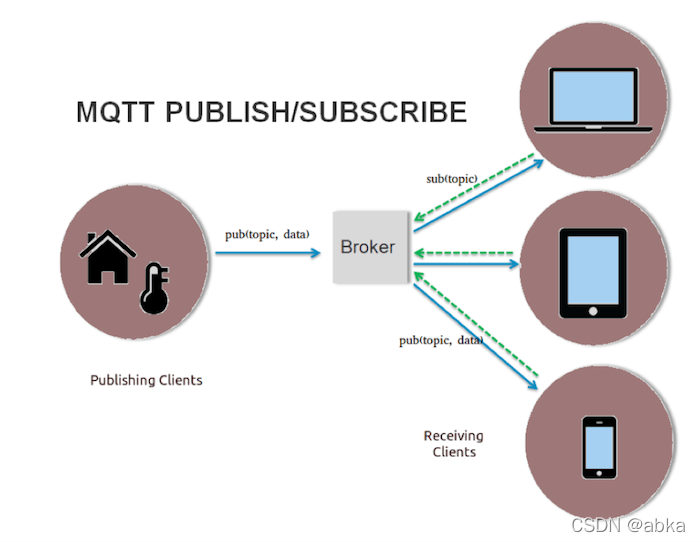

In other words, MQTT is a publish/subscribe protocol that allows edge-of-network devices to publish to a broker. Clients connect to this broker, which then mediates communication between the two devices. In short, Each device can subscribe, or register, to particular topics. When another client publishes a message on a subscribed topic, the broker forwards the message to any client that has subscribed.

What is an MQTT broker?

• An MQTT broker is a server that receives all messages from the clients and then routes the messages to the appropriate destination clients.
• An MQTT client is any device (from a microcontroller up to a full-fledged server) that runs an MQTT library and connects to an MQTT broker over a network.

Open-source brokers of MQTT

1) Mosquitto

• Certainly, Written in C programming language.
• Supports MQTT protocol version 3.1 and 3.1.1.
• Available for Windows, FreeBSD, Mac OS, and also GNU/Linux distributions.
• Also provides simple command-line MQTT clients called mosquitto_pub and mosquitto_sub.

2) Mosquitto pulse

• Created by Roger Light in 2010
• The development has been sponsored by Cedalo AG since 2018
• Available at GitHub under a dual license ( Eclipse Public License 1.0 and the Eclipse Distribution License 1.0)

3) Mosca

• It’s one of the Free and open-source brokers of MQTT certainly, written in JavaScript
• Can be used standalone or embedded in another Node.js application
• Supports MQTT protocol version 3.1 and 3.1.1
• Also Supports web sockets
• Available for all platforms on which you can run Node.js: MS Windows, Mac OS, and also GNU/Linux distributions

4) Mosca pulse

• Available at GitHub under MIT license
• Started by Matteo Collina in 2013
• Current stable version 2.8.3 from 12 July 2018

5) EMQ (emqttd)

• It’s one of the Free and open-source brokers of MQTT written in Erlang/OTP
• Supports MQTT protocol version 3.1, 3.1.1 and 5.0
• Also Supports web sockets, MQTT-SN, CoAP, STOMP, and SockJS
• Available for Windows, FreeBSD, Mac OS, and also GNU/Linux distributions

6) EMQ (emqttd) Pulse

• Available at GitHub under Apache License 2.0
• Started by Feng Lee in 2012
• Current stable version 2.3.11 from 27 July 2018
• EMQ Enterprise also provides commercial support and services for the open-source EMQ project

7) VerneMQ

• Free and open-source MQTT broker written in Erlang/OTP
• Supports MQTT protocol version 3.1, 3.1.1 and 5.0
• Also Supports web sockets
• Available for GNU/Linux distributions and Mac OS
• Not working on Windows due to the LevelDB code
• Link

8) VerneMQ Pulse

• Available at GitHub under Apache License 2.0
• Started in 2016
• Current stable version 1.5.0 from 21 August 2018
• Octavo Labs AG (successor of Erlio GmbH) provides commercial support and services

9) Apache ActiveMQ

• Free and open-source message broker certainly, written in JAVA
• Supports a large number of transport protocols: MQTT, OpenWire, STOMP, AMQP & others
• It Supports MQTT protocol version 3.1
• Also Supports web sockets
• Available for GNU/Linux distributions, UNIX compatible systems, and also Windows

10) Apache ActiveMQ Pulse

• A project of the Apache Software Foundation
• Available under Apache License 2.0
• Started in 2004 by LogicBlaze, donated to the Apache Software Foundation in 2007
• Current stable version 5.15.6 from 10 September 2018

11) RabbitMQ

• Free and open-source message broker written in Erlang
• Supports a large number of transport protocols: MQTT, STOMP, AMQP, HTTP
• It also Supports MQTT protocol version 3.1 via a plugin
• Also Supports WebSockets
• Available for GNU/Linux distributions, BSD & UNIX compatible systems, Mac OS, and also MS-Windows

12) RabbitMQ Pulse

• Available at GitHub under Mozilla Public License 1.1
• Started as a joint venture between LShift and CohesiveFT in 2007, acquired SpringSource, a division of VMware in 2010, part of Pivotal Software since 2013
• Current stable version 3.7.8 from 21 September 2018

13) HiveMQ

• MQTT broker implement in the Java programming language
• Supports MQTT protocol version 3.1 and 3.1.1
• Supports web sockets
• Lead developer Dominik Obermaier
• Open-source plugins available at GitHub under Apache-2.0

14) MQTTnet

• MQTTnet is a high-performance .NET library for MQTT based communication.
• Available in GitHub under MIT
• Certainly, written in C#

15) Wave

• Available in GitHub under GNU Affero General Public License v3.0
• Certainly, written in Erlang
• The latest release from June 2016

---

10 Free Public MQTT Brokers(Private & Public)

Posted by Maulin Tolia | Jan 30, 2019

I have listed a few free public and private MQTT brokers that you can use for testing or prototyping.

Private MQTT Broker: In a private broker, only devices that you set can publish and subscribe to the topics on the broker. You should use this for production & prototyping.

Public MQTT Broker: In a public broker, any device can publish and subscribe to topics on the broker. There is no privacy. Public brokers should never be used in production. If you simply want to learn or play around with MQTT then use this.

If you want to install your own broker on your computer or virtual machine see this:
Installing Mosquitto Broker ob Ubuntu/Windows/Debian

The information in the tables were last updated on April 7th 2020.

Public MQTT Brokers

Name	Broker Address	TCP Port	TLS Port	WebSocket Port	Message Retention	Persistent Session
Eclipse	mqtt.eclipse.org	1883	N/A	80, 443	YES	YES
Mosquitto	test.mosquitto.org	1883	8883, 8884	80	YES	YES
HiveMQ	broker.hivemq.com	1883	N/A	8000	YES	YES
Flespi	mqtt.flespi.io	1883	8883	80, 443	YES	YES
Dioty	mqtt.dioty.co	1883	8883	8080, 8880	YES	YES
Fluux	mqtt.fluux.io	1883	8883	N/A	N/A	N/A
EMQX	broker.emqx.io	1883	8883	8083	YES	YES

Private MQTT Brokers

Name	TCP Port	TLS Port	WebSocket Port	Message Retention	Persistent Session	QoS Levels	Free Limits
Azure	NO	8883	443	NO	Limited	0, 1	8000 messages/day
AWS	NO	8883	443	NO	Limited	0, 1	250,000/month
CloudMQTT	Custom Port	Custom Port	Custom Port	NOT SURE	YES	0, 1, 2	5 Connections & 10 Kbit/s
