FSShell-EC-du

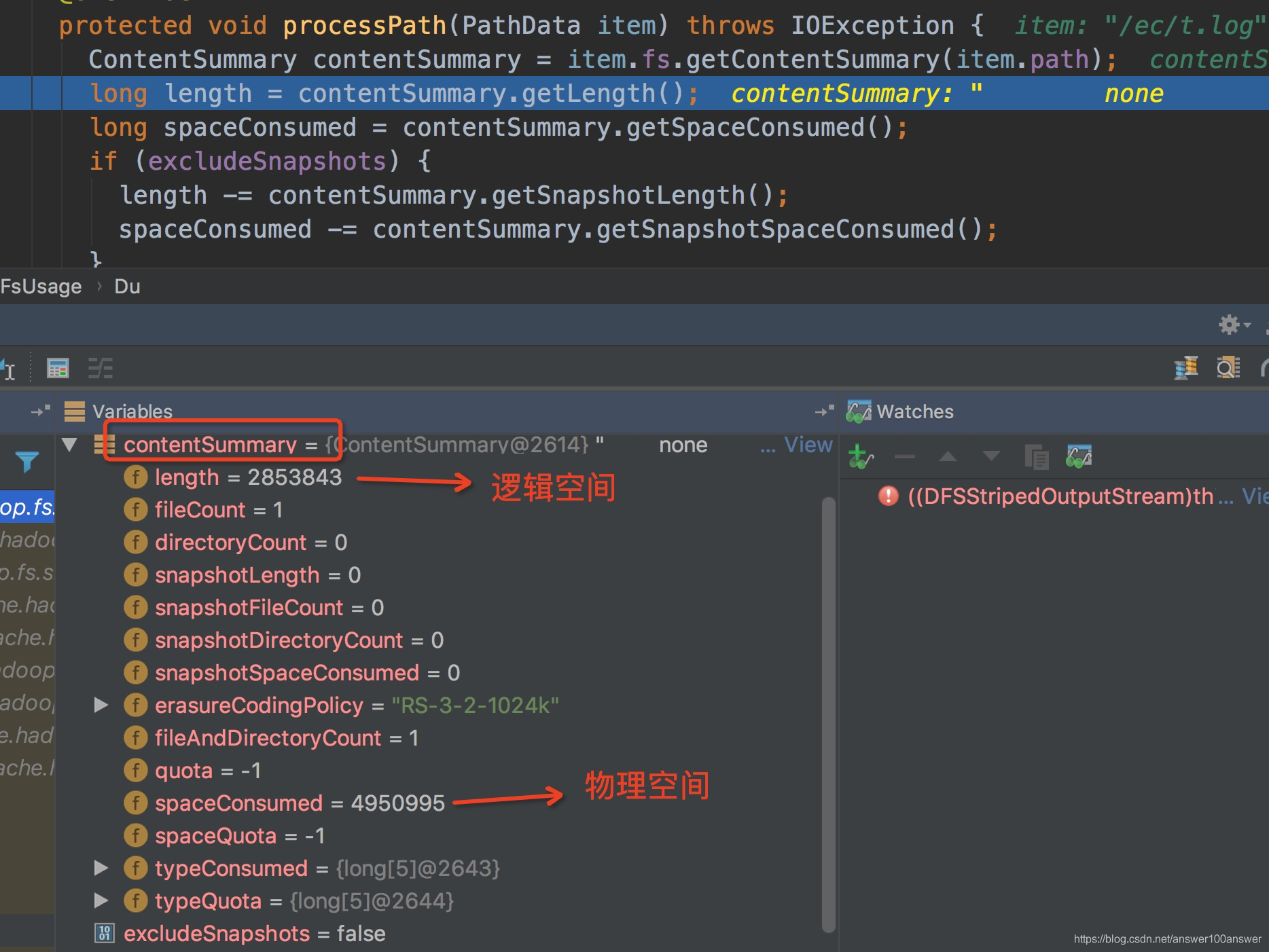

client端du的调用：
public static class Du extends FsUsage

public ContentSummary getContentSummary(Path f) throws IOException {
    FileStatus status = getFileStatus(f);
    if (status.isFile()) {
      // f is a file
      long length = status.getLen();
      return new ContentSummary.Builder().length(length).
          fileCount(1).directoryCount(0).spaceConsumed(length).build();
    }
    // f is a directory
    long[] summary = {0, 0, 1};
    for(FileStatus s : listStatus(f)) {
      long length = s.getLen();
      ContentSummary c = s.isDirectory() ? getContentSummary(s.getPath()) :
          new ContentSummary.Builder().length(length).
          fileCount(1).directoryCount(0).spaceConsumed(length).build();
      summary[0] += c.getLength();
      summary[1] += c.getFileCount();
      summary[2] += c.getDirectoryCount();
    }
    return new ContentSummary.Builder().length(summary[0]).
        fileCount(summary[1]).directoryCount(summary[2]).
        spaceConsumed(summary[0]).build();
  }

getContentSummary 如果是目录，则循环调用直到是文件。
调用DFSClient的方法RPC调用：

  ContentSummary getContentSummary(String src) throws IOException {
    checkOpen();
    try (TraceScope ignored = newPathTraceScope("getContentSummary", src)) {
      return namenode.getContentSummary(src);
    } catch (RemoteException re) {
      throw re.unwrapRemoteException(AccessControlException.class,
          FileNotFoundException.class,
          UnresolvedPathException.class);
    }
  }

**断点调试NameNode的时候，一定要在命令行模式搞。客户端就不要再搞Shell调试了。**经验，否则出不来。

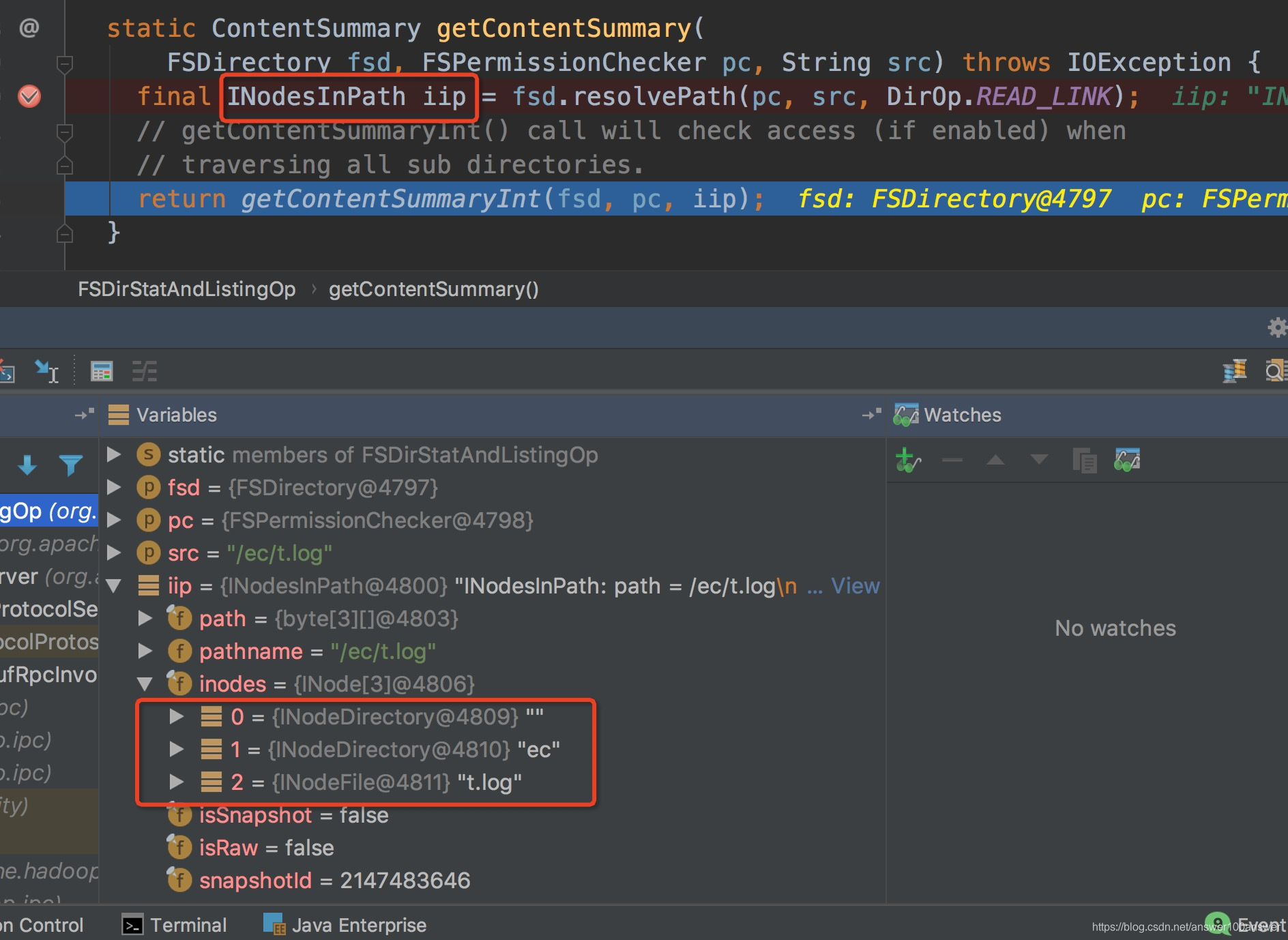

iip：

INodesInPath: path = /ec/t.log
  inodes = [, ec, t.log], length=3
  isSnapshot        = false
  snapshotId        = 2147483646

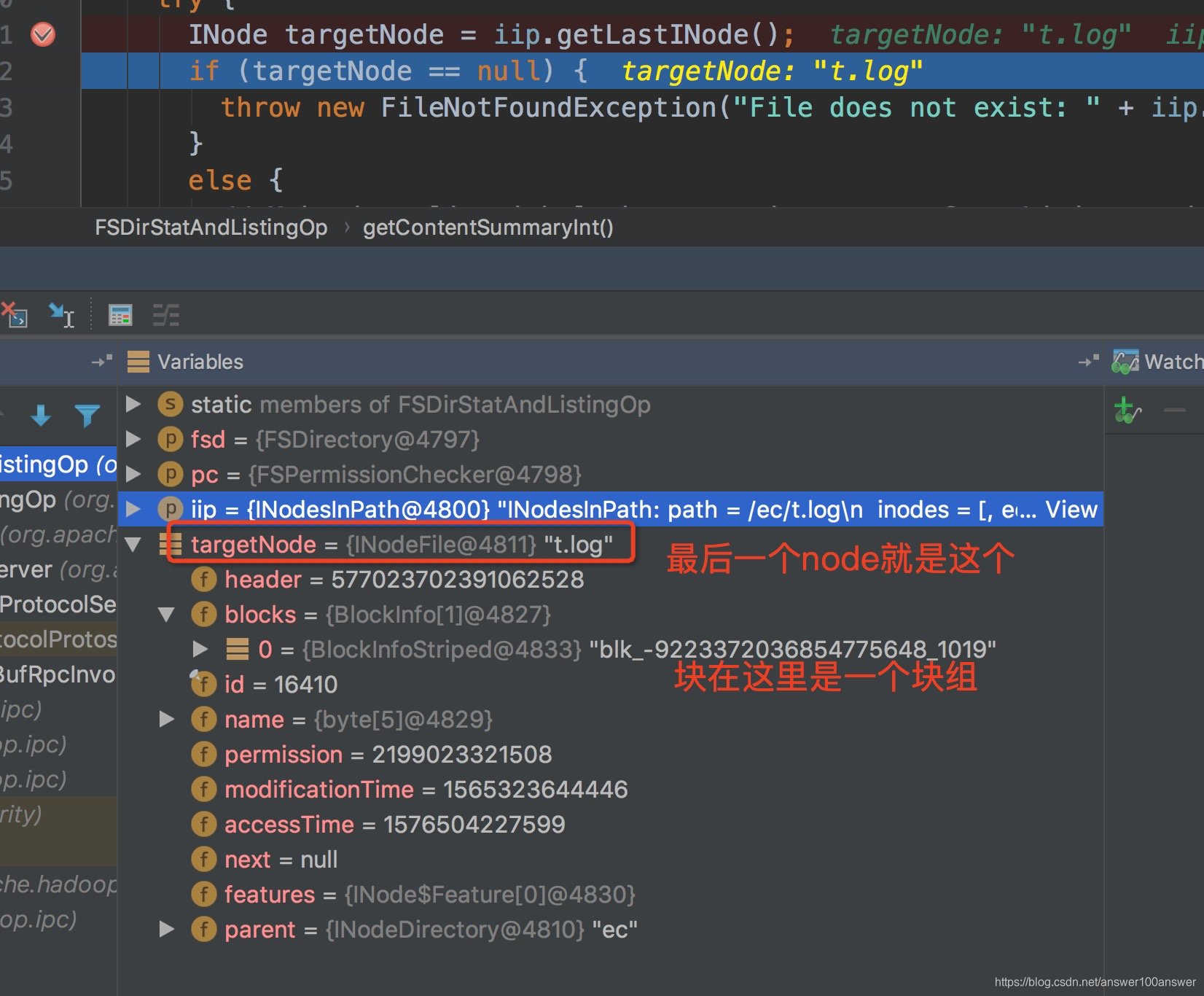

关键方法：

ContentSummary cs = targetNode.computeAndConvertContentSummary(
            iip.getPathSnapshotId(), cscc);

跳转到Inode中：

 public final ContentSummary computeAndConvertContentSummary(int snapshotId,
      ContentSummaryComputationContext summary) throws AccessControlException {
    computeContentSummary(snapshotId, summary);
    final ContentCounts counts = summary.getCounts();
    final ContentCounts snapshotCounts = summary.getSnapshotCounts();
    final QuotaCounts q = getQuotaCounts();
    return new ContentSummary.Builder().
        length(counts.getLength()).
        fileCount(counts.getFileCount() + counts.getSymlinkCount()).
        directoryCount(counts.getDirectoryCount()).
        quota(q.getNameSpace()).
        spaceConsumed(counts.getStoragespace()).
        spaceQuota(q.getStorageSpace()).
        typeConsumed(counts.getTypeSpaces()).
        typeQuota(q.getTypeSpaces().asArray()).
        snapshotLength(snapshotCounts.getLength()).
        snapshotFileCount(snapshotCounts.getFileCount()).
        snapshotDirectoryCount(snapshotCounts.getDirectoryCount()).
        snapshotSpaceConsumed(snapshotCounts.getStoragespace()).
        erasureCodingPolicy(summary.getErasureCodingPolicyName(this)).
        build();
  }
  //
  public abstract ContentSummaryComputationContext computeContentSummary(
      int snapshotId, ContentSummaryComputationContext summary)
      throws AccessControlException;

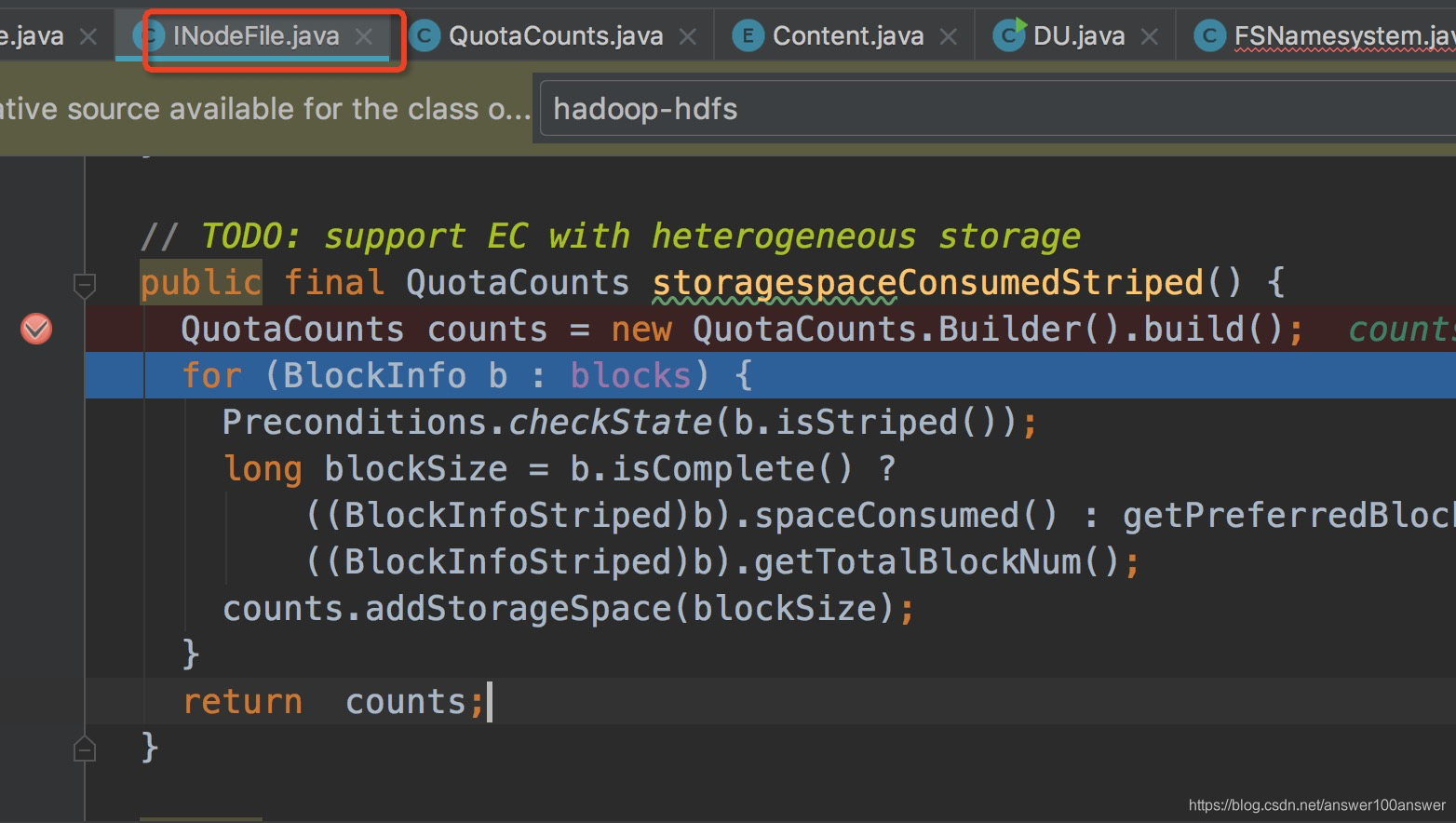

计算EC文件的物理存储：

// TODO: support EC with heterogeneous storage
  public final QuotaCounts storagespaceConsumedStriped() {
    QuotaCounts counts = new QuotaCounts.Builder().build();
    for (BlockInfo b : blocks) {
      Preconditions.checkState(b.isStriped());
      long blockSize = b.isComplete() ?
          ((BlockInfoStriped)b).spaceConsumed() : getPreferredBlockSize() *
          ((BlockInfoStriped)b).getTotalBlockNum();
      counts.addStorageSpace(blockSize);
    }
    return  counts;
  }

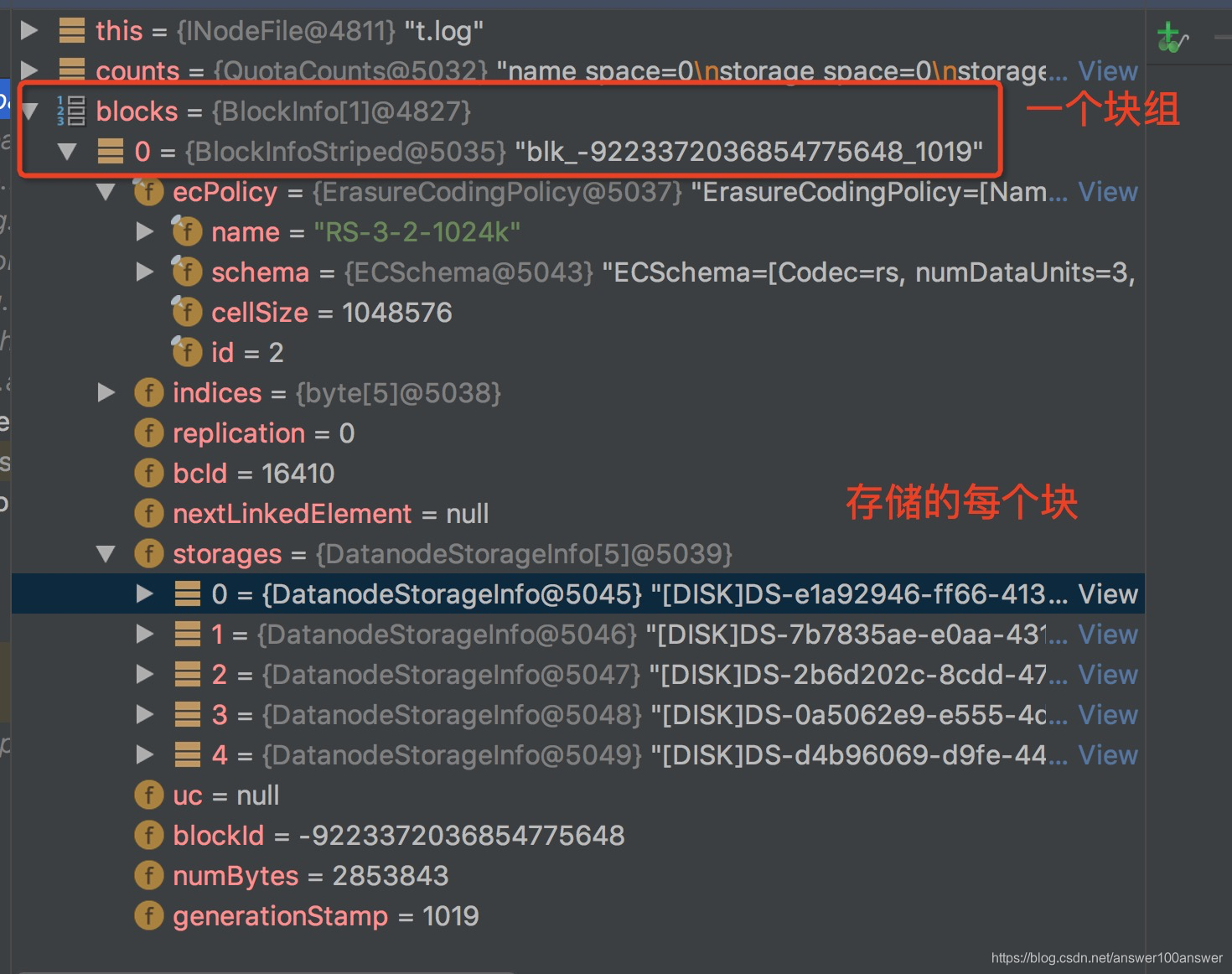

numBytes是逻辑空间。
对于每个块都调用 ((BlockInfoStriped)b).spaceConsumed() 方法来计算实际存储。

  public long spaceConsumed() {
    // In case striped blocks, total usage by this striped blocks should
    // be the total of data blocks and parity blocks because
    // `getNumBytes` is the total of actual data block size.
    return StripedBlockUtil.spaceConsumedByStripedBlock(getNumBytes(),
        ecPolicy.getNumDataUnits(), ecPolicy.getNumParityUnits(),
        ecPolicy.getCellSize());
    }

    return numDataBlkBytes + numParityBlkBytes;

数据空间+校验空间
数据空间就是我们说的逻辑空间，直接就知道。
校验空间。

逻辑空间：

    long numParityBlkBytes = getInternalBlockLength(numDataBlkBytes, cellSize,
        dataBlkNum, parityIndex) * parityBlkNum;

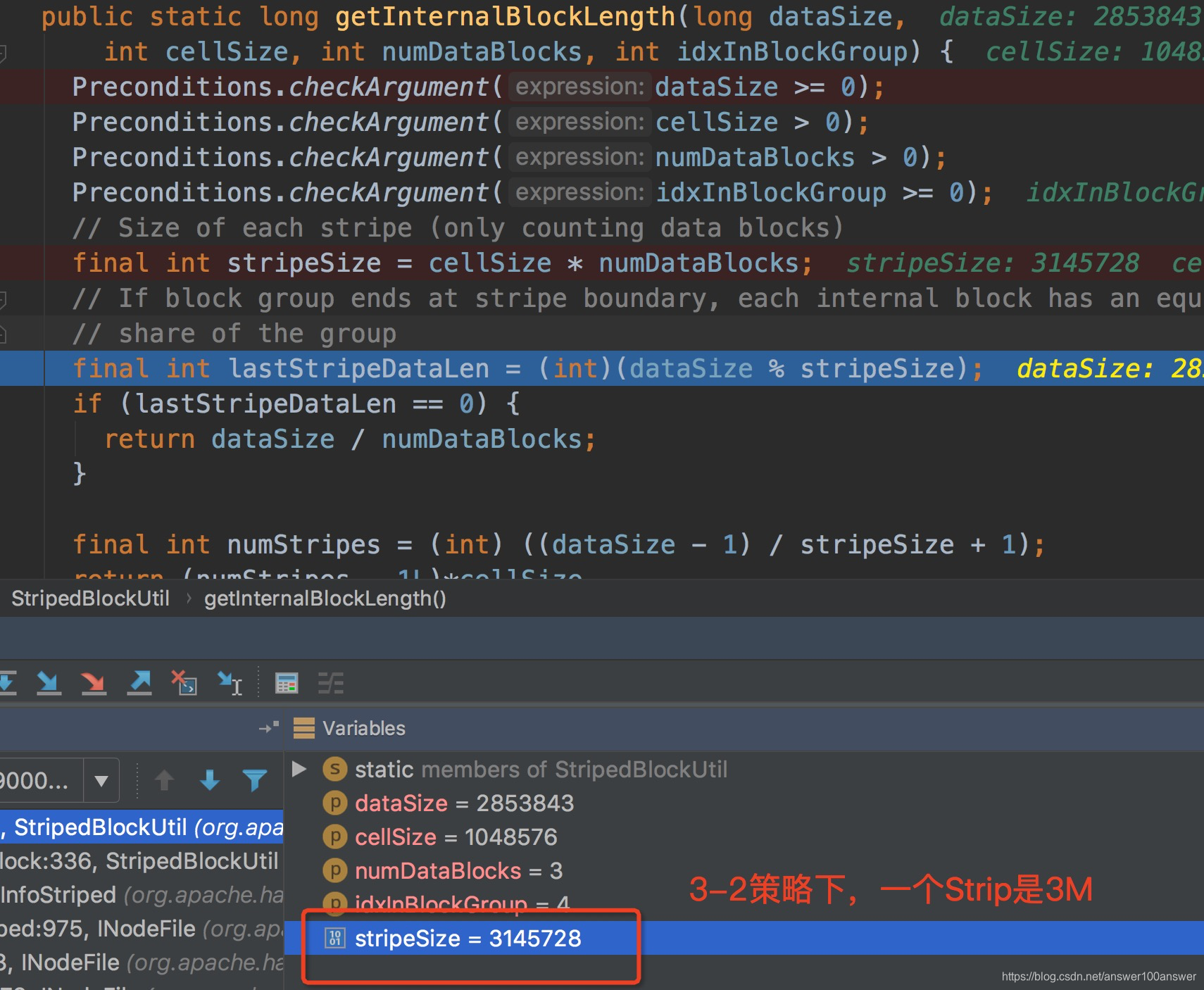

StripedBlockUtil:

public static long getInternalBlockLength(long dataSize,
      int cellSize, int numDataBlocks, int idxInBlockGroup) {
    Preconditions.checkArgument(dataSize >= 0);
    Preconditions.checkArgument(cellSize > 0);
    Preconditions.checkArgument(numDataBlocks > 0);
    Preconditions.checkArgument(idxInBlockGroup >= 0);
    // Size of each stripe (only counting data blocks)
    final int stripeSize = cellSize * numDataBlocks;
    // If block group ends at stripe boundary, each internal block has an equal
    // share of the group
    final int lastStripeDataLen = (int)(dataSize % stripeSize);
    if (lastStripeDataLen == 0) {
      return dataSize / numDataBlocks;
    }

    final int numStripes = (int) ((dataSize - 1) / stripeSize + 1);
    return (numStripes - 1L)*cellSize
        + lastCellSize(lastStripeDataLen, cellSize,
        numDataBlocks, idxInBlockGroup);
  }

计算有几个条带非常巧妙：(分组算法)

final int numStripes = (int) ((dataSize - 1) / stripeSize + 1);

    return (numStripes - 1L)*cellSize
        + lastCellSize(lastStripeDataLen, cellSize,
        numDataBlocks, idxInBlockGroup);

lastStripeDataLen: 最后一个条带的大小。
numDataBlocks：3-2策略下就是3。
idxInBlockGroup：numDataBlocks+1=4

  private static int lastCellSize(int size, int cellSize, int numDataBlocks,
      int i) {
    if (i < numDataBlocks) {  //前边已经传了比numDataBlocks+1个，所以不可能小
      // parity block size (i.e. i >= numDataBlocks) is the same as
      // the first data block size (i.e. i = 0).
      size -= i*cellSize;
      if (size < 0) {
        size = 0;
      }
    }
    return size > cellSize? cellSize: size;  //直接走的这个逻辑
  }

总结

1. 要知道总的逻辑大小，如300M的文件。
2. 要知道划分了多少个块组。如3-2策略下，128M一个块，一个块组就能放128*3=384M的逻辑空间。

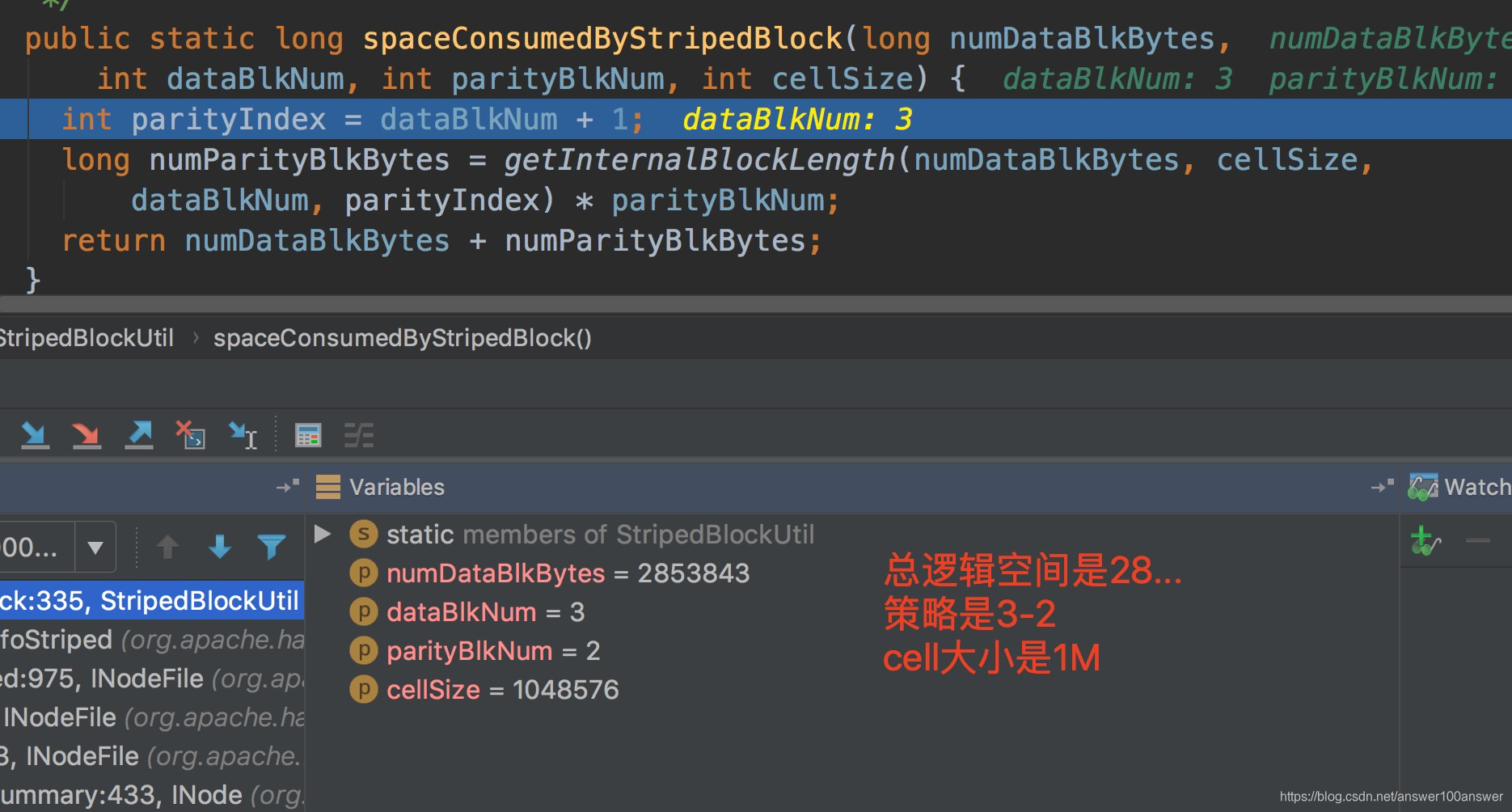

  public static long spaceConsumedByStripedBlock(long numDataBlkBytes,
      int dataBlkNum, int parityBlkNum, int cellSize) {
    int parityIndex = dataBlkNum + 1;
    long numParityBlkBytes = getInternalBlockLength(numDataBlkBytes, cellSize,
        dataBlkNum, parityIndex) * parityBlkNum;
    return numDataBlkBytes + numParityBlkBytes;
  }

这个值为什么始终 dataBlkNum + 1; ？
