potreeConverter之数据处理

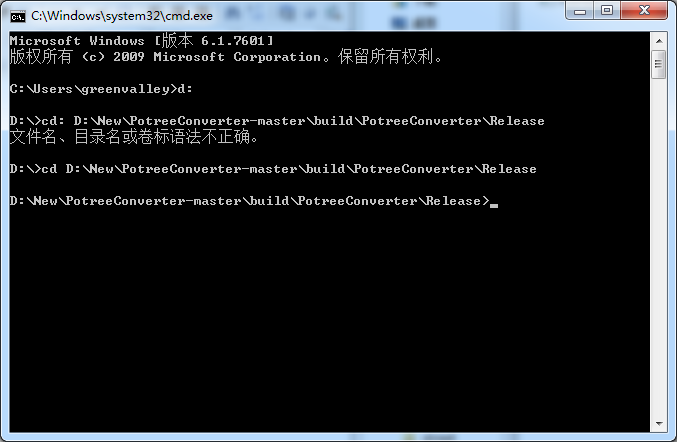

一、打开控制台，进入编译好的文件夹；

potreeConverter的处理命令如下：

-h [ --help ] prints usage

-p [ --generate-page ] arg Generates a ready to use web page with the given name.

-o [ --outdir ] arg output directory

-s [ --spacing ] arg Distance between points at root level. Distance halves each level.

-d [ --spacing-by-diagonal-fraction ] arg Maximum number of points on the diagonal in the first level (sets spacing). spacing = diagonal / value

-l [ --levels ] arg Number of levels that will be generated. 0: only root, 1: root and its children, ...

-f [ --input-format ] arg Input format. xyz: cartesian coordinates as floats, rgb: colors as numbers, i: intensity as number --color-range arg --intensity-range arg

--output-format arg Output format can be BINARY, LAS or LAZ. Default is BINARY

-a [ --output-attributes ] arg can be any combination of RGB, INTENSITY, CLASSIFICATION and NORMAL. Default is RGB.

--scale arg Scale of the X, Y, Z coordinate in LAS and LAZ files.

--aabb arg Bounding cube as "minX minY minZ maxX maxY maxZ". If not provided it is automatically computed

--incremental Add new points to existing conversion

--overwrite Replace existing conversion at target directory

--source arg Source file. Can be LAS, LAZ, PTX or PLY

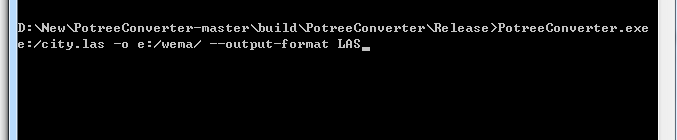

 具体的处理方法：

方法一 ：# convert data.las and generate web page

. ./PotreeConverter.exe C:/data.las -o C:/potree_converted -p pageName

方法二：# generate compressed LAZ files instead of the default BIN format

. ./PotreeConverter.exe C:/data.las -o C:/potree_converted --output-format LAZ

方法三：# convert all files inside the data directory

./PotreeConverter.exe C:/data -o C:/potree_converted

方法四：# first, convert with custom bounding box and then append new_data.las afterwards.

# points in new_data MUST fit into bounding box!

./PotreeConverter.exe C:/data -o C:/potree_converted -aabb "-0.748 -2.780 2.547 3.899 1.867 7.195"

./PotreeConverter.exe C:/new_data.las -o C:/potree_converted --incremental

方法五：# tell the converter that coordinates are in a UTM zone 10N projection. Also, create output in LAZ format

./PotreeConverter.exe C:/data -o C:/potree_converted -p pageName --projection "+proj=utm +zone=10 +ellps=GRS80 +datum=NAD83 +units=m +no_defs" --overwrite --output-format LAZ

方法六：# using a swiss projection. Use http://spatialreference.org/ to find projections in proj4 format

./PotreeConverter.exe C:/data -o C:/potree_converted -p pageName --projection "+proj=somerc +lat_0=46.95240555555556 +lon_0=7.439583333333333 +k_0=1 +x_0=600000 +y_0=200000 +ellps=bessel +towgs84=674.4,15.1,405.3,0,0,0,0 +units=m +no_defs" --overwrite

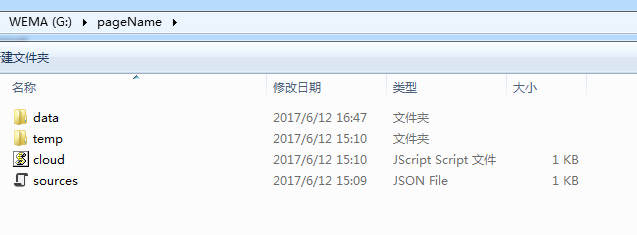

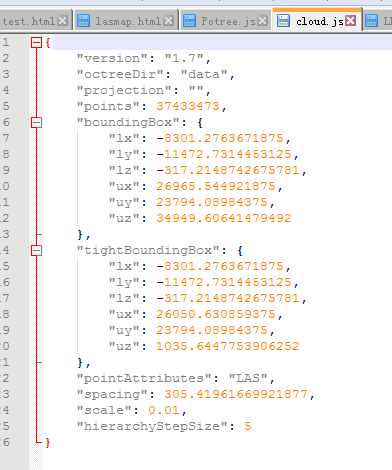

处理结果如下：
