Spring MVC 执行流程源码解析

执行流程

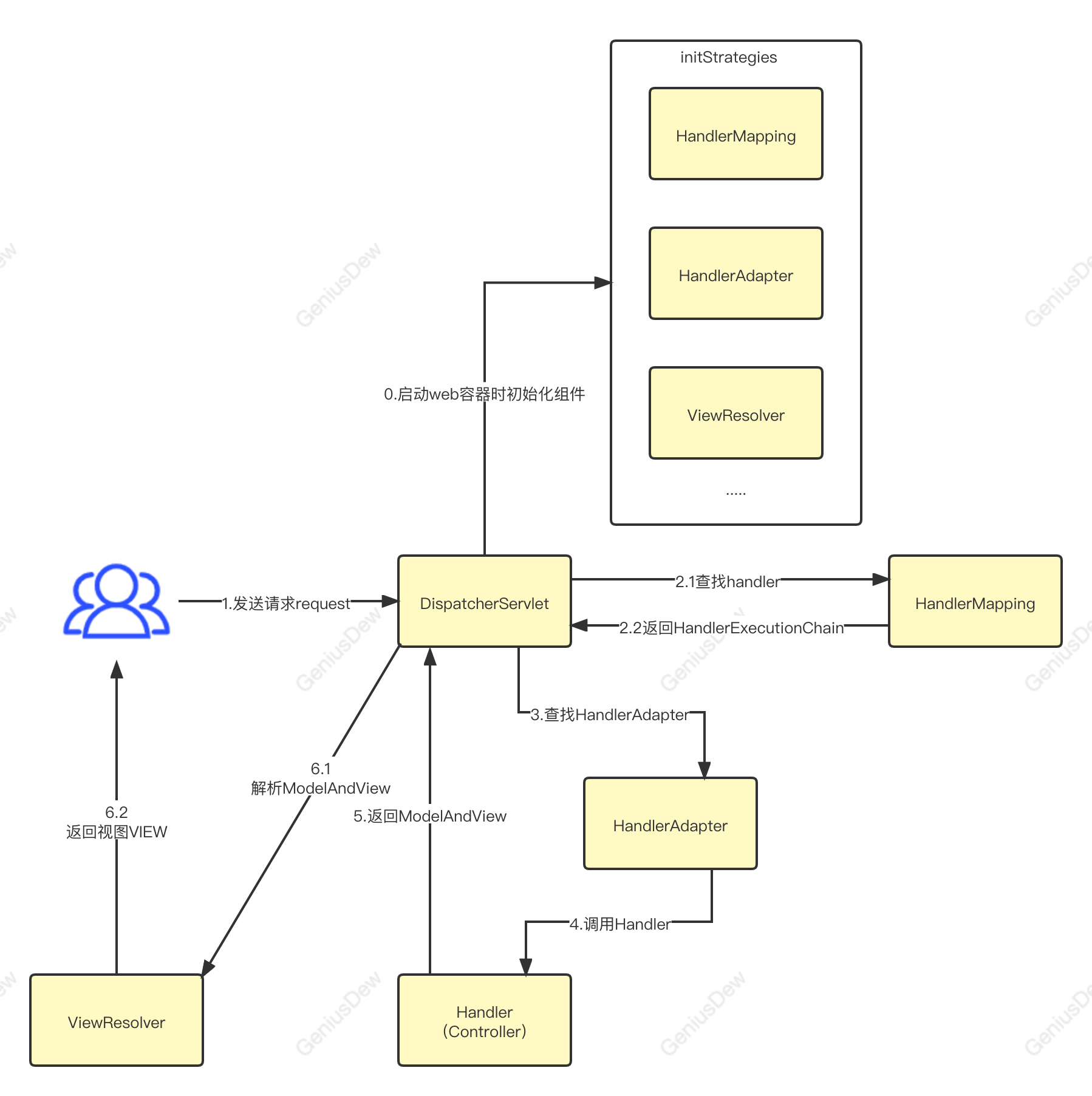

总流程图

1.客户端发送请求request到DispatcherServlet

2.DispatcherServlet根据请求url去HandlerMapping查找处理器handler，HandlerMapping会返回处理器执行链HandlerExecutionChain（其中包括拦截器和处理器）

3.DispatcherServlet通过handler去获取支持的处理器适配器HandlerAdapter

4.DispatcherServlet通过HandlerAdapter去执行处理器handler的方法

5.处理器handler执行方法后会返回ModelAndView

6.DispatcherServlet处理结果集，视图解析返回view，并填充model数据到view中渲染视图

前置流程

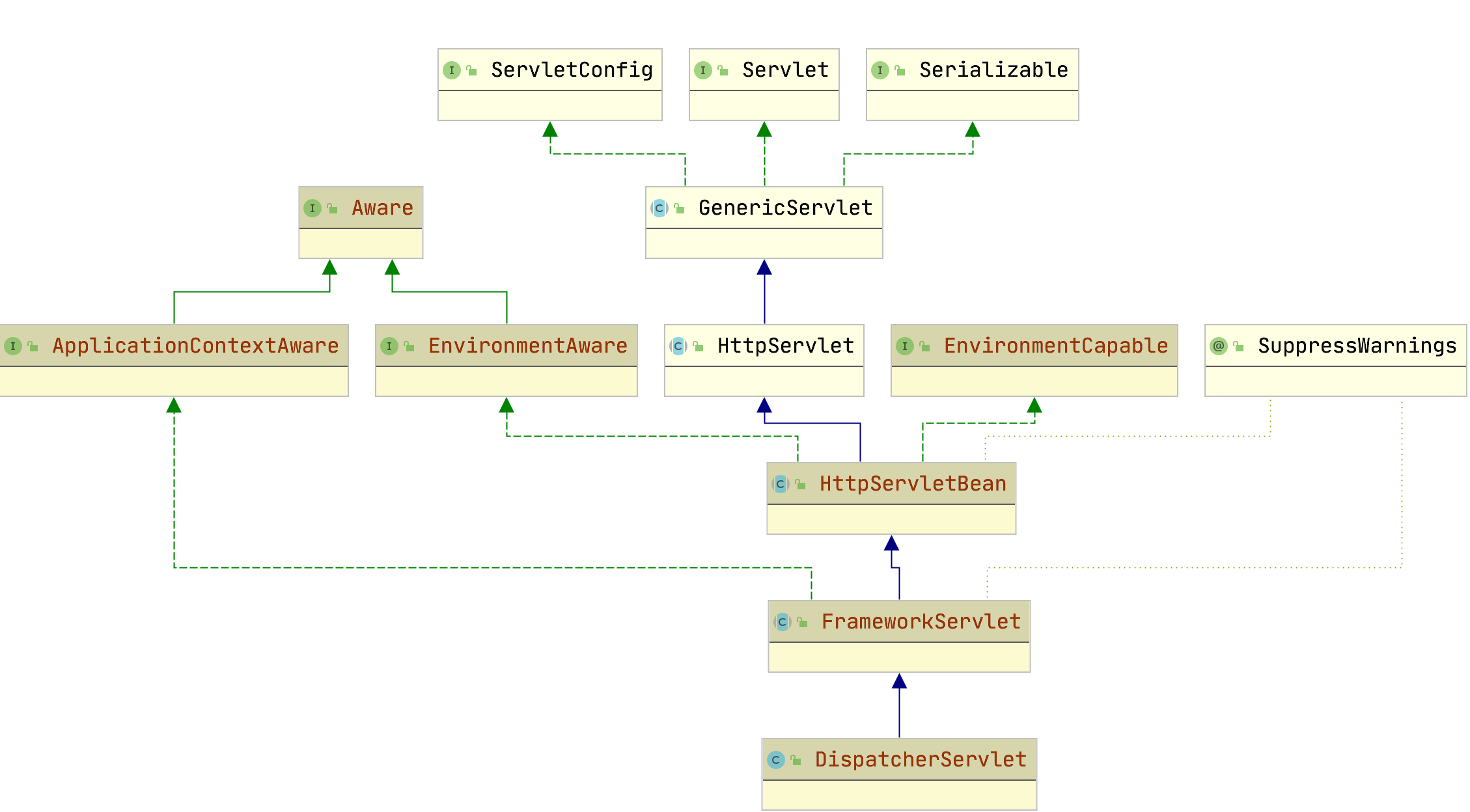

DispatcherServlet是Servlet，继承关系如下：

Servlet中的service方法用于应答浏览器请求，每次请求都会调用该方法。由于DispatcherServlet中没有service方法，所以会调用父类FrameworkServlet#service方法，就从该方法入手：

    @Override
    protected void service(HttpServletRequest request, HttpServletResponse response)
          throws ServletException, IOException {
       ...
          //调用父类HttpServlet#service
          super.service(request, response);
       }
    }

	//HttpServlet#service
    protected void service(HttpServletRequest req, HttpServletResponse resp)
        throws ServletException, IOException{
        String method = req.getMethod();

        if (method.equals(METHOD_GET)) {
            //以处理get请求为例，调用doGet
                doGet(req, resp);
            ...
    //回到FrameworkServlet#doGet方法
	@Override
	protected final void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {
		processRequest(request, response);
	}

	//FrameworkServlet#processRequest
	protected final void processRequest(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
		...
            //调用到子类DispatcherServlet#doService，由此进入核心流程代码
			doService(request, response);
		...

核心流程

    //DispatcherServlet
	@Override
    protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception {
       ...
          doDispatch(request, response);
       ...
    }

	//流程核心代码
	protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
		...
        //处理器执行链
		HandlerExecutionChain mappedHandler = null;
		...
				// 根据请求request去HandlerMapping查找处理器handler，返回处理器执行链HandlerExecutionChain
				mappedHandler = getHandler(processedRequest);
				...

				// 查找处理器适配器HandlerAdapter
				HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());
				...

				// 通过适配器去调用处理器方法，返回ModelAndView
				mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
				...
            //处理结果集，视图解析返回view，并填充model数据到view中渲染视图
			processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
		...
	}


	@Nullable
	protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
		if (this.handlerMappings != null) {
			for (HandlerMapping mapping : this.handlerMappings) {
                //根据请求去HandlerMapping中查找处理器Handler
				HandlerExecutionChain handler = mapping.getHandler(request);
				...
	}


	protected HandlerAdapter getHandlerAdapter(Object handler) throws ServletException {
		if (this.handlerAdapters != null) {
			for (HandlerAdapter adapter : this.handlerAdapters) {
                //判断HandlerAdapter是否支持调用handler，如果支持就返回
				if (adapter.supports(handler)) {
					return adapter;
				...
	}


	private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
			@Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
			@Nullable Exception exception) throws Exception {
		...
			render(mv, request, response);
			...
    }


	protected void render(ModelAndView mv, HttpServletRequest request, HttpServletResponse response) throws Exception {
		...
		String viewName = mv.getViewName();
		if (viewName != null) {
			// 解析视图名，返回视图对象view
			view = resolveViewName(viewName, mv.getModelInternal(), locale, request);
			...
            //将model数据填充到view中
			view.render(mv.getModelInternal(), request, response);
		...
	}


标准控制器，SimpleControllerHandlerAdapter#handle，返回ModelAndView。这种控制器需要实现Controller，重写handleRequest方法

    @Override
    @Nullable
    public ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler)
          throws Exception {
	   //调用处理器方法，返回ModelAndView
       return ((Controller) handler).handleRequest(request, response);
    }

视图对象，AbstractView#render

@Override
public void render(@Nullable Map<String, ?> model, HttpServletRequest request,
      HttpServletResponse response) throws Exception {
   ...
   renderMergedOutputModel(mergedModel, getRequestToExpose(request), response);
}

InternalResourceView#renderMergedOutputModel

    @Override
    protected void renderMergedOutputModel(
          Map<String, Object> model, HttpServletRequest request, HttpServletResponse response) throws Exception {
       ...

       // Servlet的API，Servlet转发器
       RequestDispatcher rd = getRequestDispatcher(request, dispatcherPath);
       ...
       if (useInclude(request, response)) {
          ...
          rd.include(request, response);
       }
       else {
          ...
          //跳到页面
          rd.forward(request, response);
       }
    }

处理器实现方式

实现Controller

上述示例中的处理器实现方式，处理器适配器是SimpleControllerHandlerAdapter。

注解实现

目前最常用的是注解的实现方式@Controller，此时的处理器适配器而是RequestMappingHandlerAdapter，用于处理基于@requestMapping对应方法。

当调用到mv = ha.handle时，并没有RequestMappingHandlerAdapter对应的实现，而是调用AbstractHandlerMethodAdapter#handle方法

    @Override
    @Nullable
    public final ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
       return handleInternal(request, response, (HandlerMethod) handler);
    }

handleInternal是抽象方法，由RequestMappingHandlerAdapter实现

    @Override
    protected ModelAndView handleInternal(HttpServletRequest request,
          HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
       ...
           	 //调用handle方法，返回ModelAndView
             mav = invokeHandlerMethod(request, response, handlerMethod);
       ...

	@Nullable
	protected ModelAndView invokeHandlerMethod(HttpServletRequest request,
			HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
		...
			invocableMethod.invokeAndHandle(webRequest, mavContainer);
			...
	}

	//ServletInvocableHandlerMethod#invokeAndHandle
	public void invokeAndHandle(ServletWebRequest webRequest, ModelAndViewContainer mavContainer,
			Object... providedArgs) throws Exception {
		//调用处理器方法，returnValue是处理器返回值
		Object returnValue = invokeForRequest(webRequest, mavContainer, providedArgs);
		...
	}

	@Nullable
	public Object invokeForRequest(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,
			Object... providedArgs) throws Exception {
		...
		return doInvoke(args);
	}

	@Nullable
	protected Object doInvoke(Object... args) throws Exception {
		...
            //getBridgedMethod返回method实例，通过反射调用方法；
            //getBean返回对应的controller
			return getBridgedMethod().invoke(getBean(), args);
	}

后续处理流程相同。

实现HttpRequestHandler

实现HttpRequestHandler，重写handleRequest，但是没有返回值void。处理器适配器是HttpRequestHandlerAdapter。

    @Override
    @Nullable
    public ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler)
          throws Exception {
       ((HttpRequestHandler) handler).handleRequest(request, response);
       return null;
    }

拦截器处理

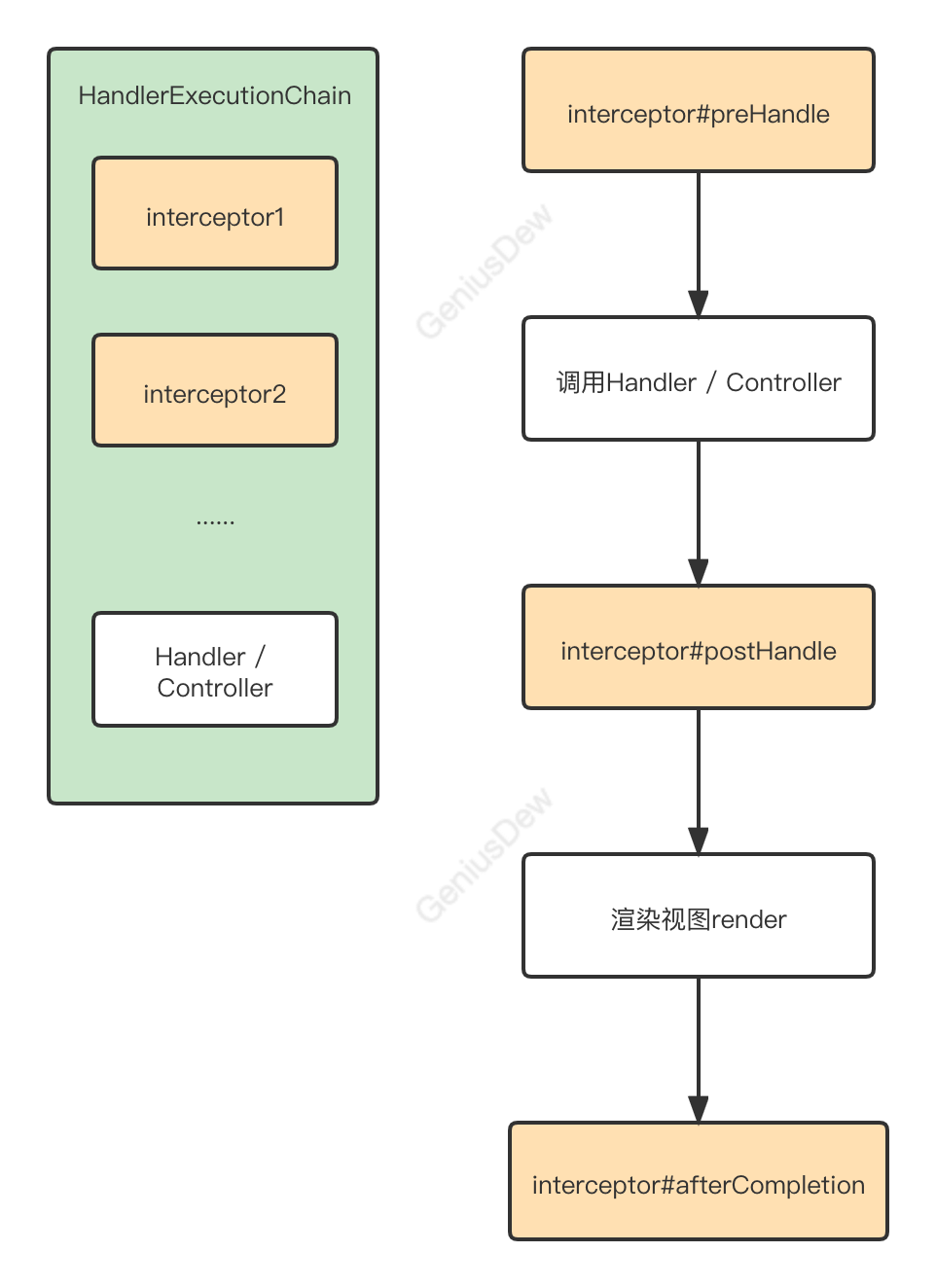

拦截器调用流程

源码

    protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
       ...
             // 调用HandlerExecutionChain中的拦截器preHandle
             if (!mappedHandler.applyPreHandle(processedRequest, response)) {
                return;
             }

             // 通过适配器去调用处理器方法，返回ModelAndView
             mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
             ...

             // 调用HandlerExecutionChain中的拦截器postHandle
			 mappedHandler.applyPostHandle(processedRequest, response, mv);
      			...
    //调用HandlerExecutionChain中的拦截器afterCompletion
		triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
    ...


    // HandlerExecutionChain#applyPreHandle
	boolean applyPreHandle(HttpServletRequest request, HttpServletResponse response) throws Exception {
        // 获取所有的拦截器interceptors，遍历调用preHandle
		HandlerInterceptor[] interceptors = getInterceptors();
		if (!ObjectUtils.isEmpty(interceptors)) {
			for (int i = 0; i < interceptors.length; i++) {
				HandlerInterceptor interceptor = interceptors[i];
                // preHandle返回true表示放行；返回false不放行
				if (!interceptor.preHandle(request, response, this.handler)) {
					triggerAfterCompletion(request, response, null);
					return false;
				}
				this.interceptorIndex = i;
			}
		}
		return true;
	}

    // HandlerExecutionChain#applyPostHandle
	void applyPostHandle(HttpServletRequest request, HttpServletResponse response, @Nullable ModelAndView mv)
			throws Exception {
		// 获取所有的拦截器interceptors，遍历调用postHandle
		HandlerInterceptor[] interceptors = getInterceptors();
		if (!ObjectUtils.isEmpty(interceptors)) {
			for (int i = interceptors.length - 1; i >= 0; i--) {
				HandlerInterceptor interceptor = interceptors[i];
				interceptor.postHandle(request, response, this.handler, mv);
			}
		}
	}

参数解析

注解实现方式其中调用方法的过程

    @Nullable
    public Object invokeForRequest(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,
          Object... providedArgs) throws Exception {
	   //获取方法参数，以此为入口进入，不同参数方式的实现不同
       Object[] args = getMethodArgumentValues(request, mavContainer, providedArgs);
       ...
