  //使用Mybatis执行查询sql代码示例
	SqlSessionFactory sqlSessionFactory =
      new SqlSessionFactoryBuilder().build(
          Resources.getResourceAsReader("mybatis-config.xml"));

	SqlSession sqlSession = sqlSessionFactory.openSession();

  User user = (User)sqlSession.selectOne("UserMapper.selectById", 1);
  sqlSession.close();

一、构建SqlSessionFactory

从全局配置文件中得到sqlSessionFactory

  SqlSessionFactory sqlSessionFactory =
      new SqlSessionFactoryBuilder().build(
          Resources.getResourceAsReader("mybatis-config.xml"));

通过SqlSessionFactoryBuilder().build构建SqlSessionFactory对象（建造者模式）。

	public SqlSessionFactory build(InputStream inputStream, String environment, Properties properties) {
    try {
      XMLConfigBuilder parser = new XMLConfigBuilder(inputStream, environment, properties);
      return build(parser.parse());
    } ...

  public SqlSessionFactory build(Configuration config) {
    return new DefaultSqlSessionFactory(config);
  }

XMLConfigBuilder#parse：解析全局配置文件，解析完成后会生成一个Configration对象，其中包含所有配置信息；
SqlSessionFactoryBuilder#build：通过Configuration对象创建SqlSessionFactory实现类—>DefaultSqlSessionFactory，其中包含Configration对象。

解析全局配置文件

全局配置文件通过XMLConfigBuilder解析
mapper映射文件通过XMLMapperBuilder解析
select|delete|insert|update节点通过XMLStatementBuilder解析

XMLConfigBuilder

解析配置文件，最终将XML配置文件中的配置项都设置到Configuration配置类中。

	public Configuration parse() {
    ...
    //解析全局配置文件的节点，从最外层configuration开始
    parseConfiguration(parser.evalNode("/configuration"));
    return configuration;
  }

	//真正解析文件方法，解析每个节点到Configuration对象
  private void parseConfiguration(XNode root) {
    try {
      //解析properties节点到Configuration#variables
      propertiesElement(root.evalNode("properties"));
      //解析settings节点
      Properties settings = settingsAsProperties(root.evalNode("settings"));
      //VFS虚拟文件系统解析道Configuration#vfsImpl
      loadCustomVfs(settings);
      //解析定MyBatis所用日志的具体实现到Configuration#logImpl
      loadCustomLogImpl(settings);
      //解析别名到Configuration#typeAliasRegistry.typeAliases
      typeAliasesElement(root.evalNode("typeAliases"));
      //解析插件到Configuration#interceptorChain.interceptors
      pluginElement(root.evalNode("plugins"));
			...

      //解析环境到Configuration#environment
      environmentsElement(root.evalNode("environments"));
      //解析数据库厂商到Configuration#databaseId
      databaseIdProviderElement(root.evalNode("databaseIdProvider"));
      //解析类型处理器节点到Configuration#typeHandlerRegistry.typeHandlerMap
      typeHandlerElement(root.evalNode("typeHandlers"));
      //解析mapper到Configuration#mapperRegistry.knownMappers
      mapperElement(root.evalNode("mappers"));
    } ...

解析mapper配置文件

mapper设置方式：

批量解析mapper接口，指定mapper接口所在包
解析xml文件，指定classpath
解析xml文件，指定url
解析mapper接口，指定接口路径

XMLConfigBuilder#mapperElement，解析mappers节点，包括上述四种方式。

  private void mapperElement(XNode parent) throws Exception {
    if (parent != null) {
      //循环获取mappers节点下的每个mapper节点
      for (XNode child : parent.getChildren()) {
        if ("package".equals(child.getName())) {
          String mapperPackage = child.getStringAttribute("name");
          //批量添加所有package包
          configuration.addMappers(mapperPackage);
        }...

以package方式为例，沿着addMappers方法进入，会先找到所有的接口，根据接口获取到mapper映射文件。

MapperRegistry#addMappers

  public void addMappers(String packageName, Class<?> superType) {
    ...
    //找到package中所有的类class，addMapper
    for (Class<?> mapperClass : mapperSet) {
      addMapper(mapperClass);
    }
  }

  public <T> void addMapper(Class<T> type) {
    //判断type是不是接口
    if (type.isInterface()) {
      ...
      try {
        //把Mapper接口保存到knownMappers中
        knownMappers.put(type, new MapperProxyFactory<>(type));
        //mapper注解构造器
        MapperAnnotationBuilder parser = new MapperAnnotationBuilder(config, type);
        //进行解析mapper映射文件
        parser.parse();
        ...

MapperAnnotationBuilder#parse

  public void parse() {
    String resource = type.toString();
    // 是否已经解析mapper接口对应的xml
    if (!configuration.isResourceLoaded(resource)) {
      //获取xml文件
      loadXmlResource();
      ...
  }

  //获取mapper.xml文件交给XMLMapperBuilder解析
  private void loadXmlResource() {
    ...
      //根据mapper接口全类名拼接.xml，获取xml文件
      String xmlResource = type.getName().replace('.', '/') + ".xml";
      ...
        XMLMapperBuilder xmlParser = new XMLMapperBuilder(inputStream, assistant.getConfiguration(), xmlResource, configuration.getSqlFragments(), type.getName());
        //通过XMLMapperBuilder来解析mapper.xml配置文件
        xmlParser.parse();
      ...

XMLMapperBuilder

无论哪一种mapper设置方式，最终都会调用到XMLMapperBuilder#parse方法。

  //解析<mapper></mapper>里面所有东西放到configuration
	public void parse() {
    //判断当前的Mapper是否被加载过
    if (!configuration.isResourceLoaded(resource)) {
      //通过configurationElement去解析xml中的节点
      configurationElement(parser.evalNode("/mapper"));
			...
  }


  private void configurationElement(XNode context) {
    try {
      ...
      //解析二级缓存到Configuration#caches
      cacheElement(context.evalNode("cache"));
      ...
      //解析select|insert|update|delete节点
      buildStatementFromContext(context.evalNodes("select|insert|update|delete"));
    } ...


  private void cacheElement(XNode context) {
    ...
      //把缓存节点加入到Configuration中
      builderAssistant.useNewCache(typeClass, evictionClass, flushInterval, size, readWrite, blocking, props);
    }
  }


  private void buildStatementFromContext(List<XNode> list, String requiredDatabaseId) {
    //循环select|delete|insert|update节点
    for (XNode context : list) {
      //创建一个xmlStatement的构建器对象
      final XMLStatementBuilder statementParser = new XMLStatementBuilder(configuration, builderAssistant, context, requiredDatabaseId);
      try {
        statementParser.parseStatementNode();
      }...

*解析二级缓存

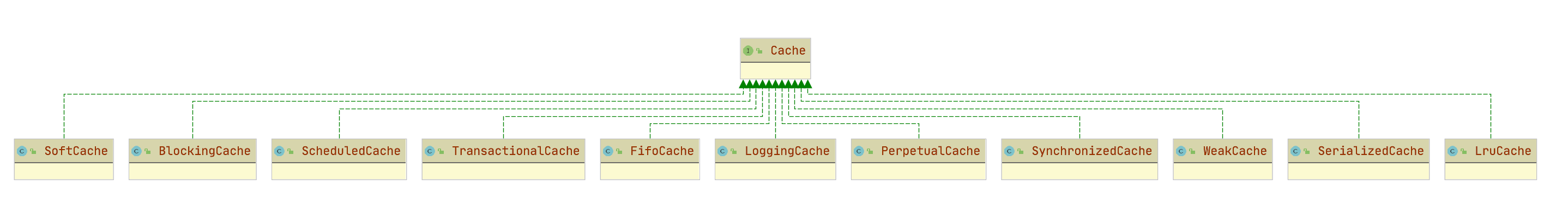

装饰器+责任链模式实现二级缓存：

二级缓存是层层包装，由内到外依次是：PerpetualCache > LruCache > SerializedCache > LoggingCache > SynchronizedCache；
调用时由外到内依次调用Cache的getObject方法。

MapperBuilderAssistant#useNewCache，构造器模式

  public Cache useNewCache(Class<? extends Cache> typeClass,
      Class<? extends Cache> evictionClass,
      Long flushInterval,
      Integer size,
      boolean readWrite,
      boolean blocking,
      Properties props) {
    Cache cache = new CacheBuilder(currentNamespace)
        .implementation(valueOrDefault(typeClass, PerpetualCache.class))
        .addDecorator(valueOrDefault(evictionClass, LruCache.class))//添加装饰器
        .clearInterval(flushInterval)
        .size(size)
        .readWrite(readWrite)
        .blocking(blocking)
        .properties(props)
        .build();
    configuration.addCache(cache);
    currentCache = cache;
    return cache;
  }

CacheBuilder

  public Cache build() {
    setDefaultImplementations();
    Cache cache = newBaseCacheInstance(implementation, id);
    setCacheProperties(cache);
    if (PerpetualCache.class.equals(cache.getClass())) {
      //循环装饰器
      for (Class<? extends Cache> decorator : decorators) {
        cache = newCacheDecoratorInstance(decorator, cache);
        setCacheProperties(cache);
      }
      cache = setStandardDecorators(cache);
    ...


  private Cache setStandardDecorators(Cache cache) {
    ...
      if (readWrite) {
        //将LRU装饰到SerializedCache
        cache = new SerializedCache(cache);
      }
      //继续装饰
      //将SerializedCache装饰到LoggingCache的委托delegate中
      cache = new LoggingCache(cache);
      //将LoggingCache装饰到SynchronizedCache的委托delegate中
      cache = new SynchronizedCache(cache);
      ...

SerializedCache，将LRU装饰到SerializedCache的委托delegate中。LoggingCache、SynchronizedCache同理。

public class SerializedCache implements Cache {

  private final Cache delegate;

  public SerializedCache(Cache delegate) {
    this.delegate = delegate;
  }

解析select|delete|insert|update

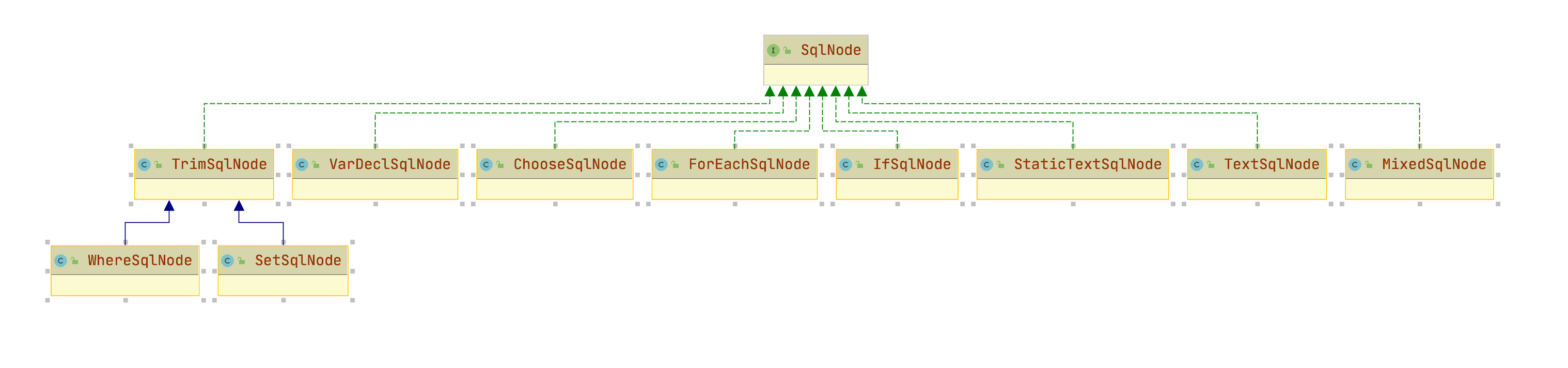

将一个mapper中的sql语句由外到内的每个节点解析成SqlNode，比如、。不会完全解析sql，因为这个时候参数都没确定。参数是调用具体方法时传入的。

XMLStatementBuilder

  public void parseStatementNode() {

    String id = context.getStringAttribute("id");
    ...
    //获得节点名称：select|insert|update|delete
    String nodeName = context.getNode().getNodeName();
    //获得SqlCommandType枚举
    SqlCommandType sqlCommandType = SqlCommandType.valueOf(nodeName.toUpperCase(Locale.ENGLISH));
    //判断是不是select语句
    boolean isSelect = sqlCommandType == SqlCommandType.SELECT;
    //获取flushCache属性
    //查询：默认flushCache=false   增删改：默认flushCache=true
    boolean flushCache = context.getBooleanAttribute("flushCache", !isSelect);
    //获取useCache属性
   	//默认值为isSelect：查询：默认useCache=true   增删改：默认useCache=false
    boolean useCache = context.getBooleanAttribute("useCache", isSelect);

    ...

    //通过XMLLanguageDriver解析sql脚本对象
    //每个节点都会解析成一个SqlNode，比如<where>、<if>。不会完全解析sql，因为这个时候参数都没确定
    SqlSource sqlSource = langDriver.createSqlSource(configuration, context, parameterTypeClass);
    ...

    //为insert|delete|update|select节点构建成mappedStatment对象
    //一个sql对应一个mappedStatment
    //把mappedStatment对象加入到配置类configuration中
    builderAssistant.addMappedStatement(id, sqlSource, statementType, sqlCommandType,
        fetchSize, timeout, parameterMap, parameterTypeClass, resultMap, resultTypeClass,
        resultSetTypeEnum, flushCache, useCache, resultOrdered,
        keyGenerator, keyProperty, keyColumn, databaseId, langDriver, resultSets);
  }

二、获取SqlSession

SqlSession sqlSession = sqlSessionFactory.openSession();

通过sqlSessionFactory.openSession来获取SqlSession对象（工厂模式）。

  //DefaultSqlSessionFactory
	@Override
  public SqlSession openSession() {
    return openSessionFromDataSource(configuration.getDefaultExecutorType(), null, false);
  }


  private SqlSession openSessionFromDataSource(ExecutorType execType, TransactionIsolationLevel level, boolean autoCommit) {
    ...
      //创建一个sql执行器对象
      final Executor executor = configuration.newExecutor(tx, execType);
      //创建DefaultSqlSession对象并返回
      return new DefaultSqlSession(configuration, executor, autoCommit);
    } ...

SqlSession是一个门面，真正执行CRUD都是由执行器Executor来执行。

创建Executor对象

Executor分类：

CacheExecutor：需要开启二级缓存。查询前先会查询缓存中是否存在结果：
1. 如果缓存存在结果，就使用缓存中的结果
2. 如果缓存不存在结果，用普通的Executor进行查询，再将查询出来的结果存入缓存
SimpleExecutor：每执行sql就开启一个Statement对象，用完立刻关闭
ReuseExecutor：可重复使用Statement对象
BatchExecutor：批量处理sql
BaseExecutor：一级缓存。SimpleExecutor、ReuseExecutor、BatchExecutor共同父类。

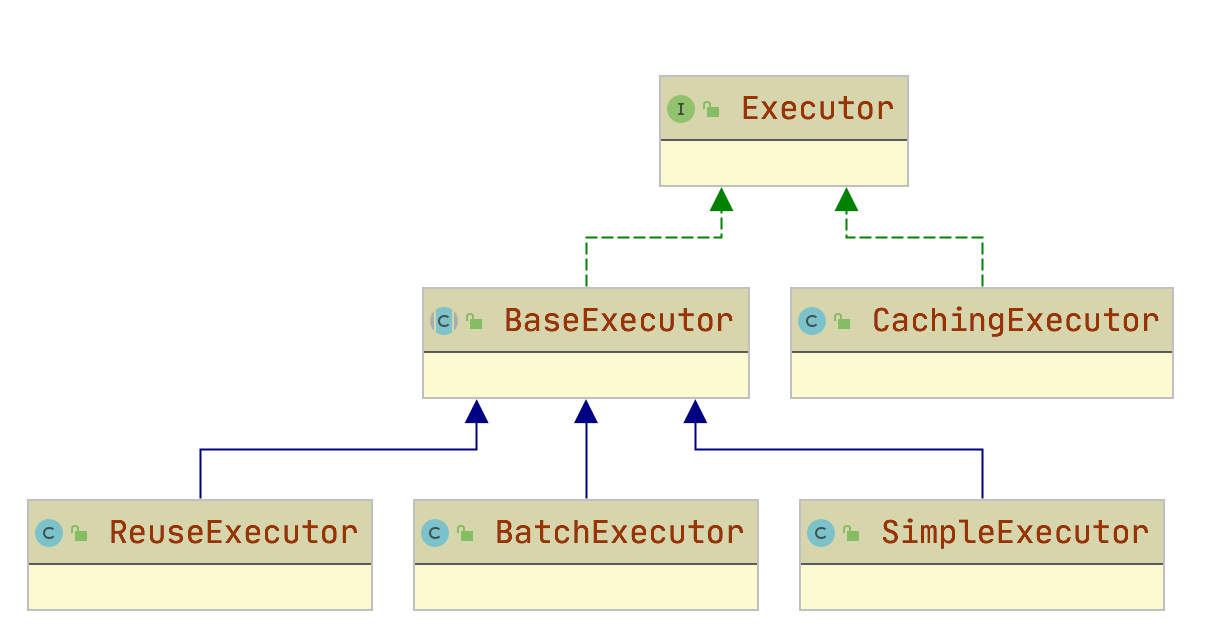

Executor结构图：

Configuration#newExecutor，装饰器模式

  public Executor newExecutor(Transaction transaction, ExecutorType executorType) {
    ...
    //判断执行器的类型
    if (ExecutorType.BATCH == executorType) {
      executor = new BatchExecutor(this, transaction);
    } else if (ExecutorType.REUSE == executorType) {
      executor = new ReuseExecutor(this, transaction);
    } else {
      executor = new SimpleExecutor(this, transaction);
    }
    //判断是否开启二级缓存，默认为true
    //如果开启就返回cacheExecutor；负责返回的就是普通的Executor
    if (cacheEnabled) {
      //把普通执行器包装成CachingExecutor，装饰器模式
      executor = new CachingExecutor(executor);
    }
    //插件，为executor做增强
    executor = (Executor) interceptorChain.pluginAll(executor);
    //如果做了增强，那么返回的executor就是一个代理类$Proxy
    return executor;
  }

*插件执行过程

插件就是为Mybatis四大核心对象（Executor、ParameterHandler 、ResultSetHandler、StatementHandler）做增强，采用责任链+代理模式。

在解析全局配置文件时会将插件plugin放到InterceptorChain中，创建executor时就会为executor执行插件方法做增强。

  public Object pluginAll(Object target) {
    //循环所有插件plugin
    for (Interceptor interceptor : interceptors) {
      //执行插件方法
      target = interceptor.plugin(target);
    }
    return target;
  }

	//Interceptor#plugin
  default Object plugin(Object target) {
    return Plugin.wrap(target, this);
  }

  public static Object wrap(Object target, Interceptor interceptor) {
    // 获取@Signature的type属性
    Map<Class<?>, Set<Method>> signatureMap = getSignatureMap(interceptor);
    // 获取当前代理类型
    Class<?> type = target.getClass();
    // 根据代理类型和@signature的type属性进行匹配，配对成功则进行代理
    Class<?>[] interfaces = getAllInterfaces(type, signatureMap);
    if (interfaces.length > 0) {
      //创建动态代理
      return Proxy.newProxyInstance(
          type.getClassLoader(),
          interfaces,
          new Plugin(target, interceptor, signatureMap));
    }
    return target;
  }

当我们调用executor中的方法，就会来到动态代理的实现Plugin，调用invoke方法，会判断当前执行方法是否和需要拦截方法匹配，如果匹配就会执行自定义拦截器（插件）中的intercept方法，执行增强逻辑。

如果有多个插件，就会采用责任链的方式依次调用。

  @Override
  public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
    try {
      Set<Method> methods = signatureMap.get(method.getDeclaringClass());
      //判断方法是否匹配
      if (methods != null && methods.contains(method)) {
        //执行intercept
        //将目标类、方法、参数封装成Invocation
        return interceptor.intercept(new Invocation(target, method, args));
      }
      return method.invoke(target, args);
    } ...

创建DeaultSqlSessoin对象

SqlSession中包含Configration对象，所以通过SqlSession能拿到全局配置；

SqlSession中包含Executor对象，所以通过SqlSession能执行CRUD方法。

  public DefaultSqlSession(Configuration configuration, Executor executor, boolean autoCommit) {
    this.configuration = configuration;
    this.executor = executor;
    this.dirty = false;
    this.autoCommit = autoCommit;
  }

三、执行SQL

User user = (User)sqlSession.selectOne("UserMapper.selectById", 1);

通过sqlSession可以执行CRUD方法，第一个参数：namespace+id。

  //DefaultSqlSession
	@Override
  public <T> T selectOne(String statement, Object parameter) {
    //selectOne底层也是调用selectList方法，取出返回结果中第一个元素即可，如果返回多个结果抛异常
    List<T> list = this.selectList(statement, parameter);
    if (list.size() == 1) {
      return list.get(0);
    ...

  @Override
  public <E> List<E> selectList(String statement, Object parameter, RowBounds rowBounds) {
    try {
      //通过statement去全局配置类中获取MappedStatement
      //一个sql节点就会封装成一个MappedStatement
      MappedStatement ms = configuration.getMappedStatement(statement);
      //通过执行器executor去执行sql
      //默认情况下是executor为cacheExetory对象，因为默认开启了二级缓存
      return executor.query(ms, wrapCollection(parameter), rowBounds, Executor.NO_RESULT_HANDLER);
    }...

sqlSession只是个门面，具体执行CRUD的还是executor。

二级缓存

CachingExecutor#query，先去二级缓存中获取

  @Override
  public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {
    //解析动态sql，调用每一个sqlNode的apply方法
    BoundSql boundSql = ms.getBoundSql(parameterObject);
    //创建缓存key：sqlId，sql语句，参数，伪分页
    CacheKey key = createCacheKey(ms, parameterObject, rowBounds, boundSql);
    return query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
  }


  @Override
  public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql)
      throws SQLException {
    //判断mapper中是否开启了二级缓存<cache></cache>
    Cache cache = ms.getCache();
    if (cache != null) {
      //判断是否需要刷新缓存
      flushCacheIfRequired(ms);
      if (ms.isUseCache() && resultHandler == null) {
        ensureNoOutParams(ms, boundSql);
        //先去二级缓存中获取
        @SuppressWarnings("unchecked")
        List<E> list = (List<E>) tcm.getObject(cache, key);
        //二级缓存中没有获取到
        if (list == null) {
          //通过查询数据库去查询
          list = delegate.query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
          //加入到二级缓存中
          tcm.putObject(cache, key, list);
        }
        return list;
      }
    }
    //没有二级缓存,直接查询
    return delegate.query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
  }

*解析动态sql

sql解析成sqlNode后，通过责任链的方式去调用每一个Node的apply，将所有解析的sql追加到一个sql变量中去。

DynamicSqlSource#getBoundSql

  @Override
  public BoundSql getBoundSql(Object parameterObject) {
    DynamicContext context = new DynamicContext(configuration, parameterObject);
    //通过责任链的方式处理每一个node，拼接出完整的sql语句，此时sql中包括#{}
    rootSqlNode.apply(context);
    ...
    //将#{}替换成？，并拿到#{}中的参数名解析成parameterMapping
    SqlSource sqlSource = sqlSourceParser.parse(context.getSql(), parameterType, context.getBindings());
    ...

MixedSqlNode#apply

  @Override
  public boolean apply(DynamicContext context) {
    //循环调用每一个node的apply方法
    contents.forEach(node -> node.apply(context));
    return true;
  }

*缓存执行过程

  //TransactionalCacheManager#getObject
	public Object getObject(Cache cache, CacheKey key) {
    return getTransactionalCache(cache).getObject(key);
  }

	//TransactionalCache#getObject
  @Override
  public Object getObject(Object key) {
    Object object = delegate.getObject(key);
    ...
  }

	//SynchronizedCache#getObject
	//主要实现线程安全
  @Override
  public synchronized Object getObject(Object key) {
    return delegate.getObject(key);
  }

	//LoggingCache#getObject
	//主要用来记录命中日志
  @Override
  public Object getObject(Object key) {
    requests++;
    final Object value = delegate.getObject(key);
    ...
  }

	//SerializedCache#getObject
	//主要用来序列化
  @Override
  public Object getObject(Object key) {
    Object object = delegate.getObject(key);
    //获取时进行反序列化
    return object == null ? null : deserialize((byte[]) object);
  }

	//LruCache#getObject
	//实现最近最少使用防溢出机制
  @Override
  public Object getObject(Object key) {
    keyMap.get(key);
    return delegate.getObject(key);
  }

	//PerpetualCache#getObject
  @Override
  public Object getObject(Object key) {
    return cache.get(key);
  }

一级缓存

BaseExecutor#query

  @Override
  public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
    ...
    try {
      //从一级缓存localCache中获取查询结果
      queryStack++;
      list = resultHandler == null ? (List<E>) localCache.getObject(key) : null;
      //获取到则进行处理
      if (list != null) {
        handleLocallyCachedOutputParameters(ms, key, parameter, boundSql);
      } else {
        // 获得不到，则从数据库中查询
        list = queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);
      ...


  private <E> List<E> queryFromDatabase(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
    ...
      //真正查询方法
      list = doQuery(ms, parameter, rowBounds, resultHandler, boundSql);
    ...

数据库查询

SimpleExecutor#doQuery

  @Override
  public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
    Statement stmt = null;
    try {
      //获取configuration对象
      Configuration configuration = ms.getConfiguration();
      //创建StatementHandler对象
      StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
      stmt = prepareStatement(handler, ms.getStatementLog());
      //执行查询，返回查询结果
      return handler.query(stmt, resultHandler);
    } finally {
      closeStatement(stmt);
    }
  }


  private Statement prepareStatement(StatementHandler handler, Log statementLog) throws SQLException {
    Statement stmt;
    //获取connection对象
    Connection connection = getConnection(statementLog);
    //获取Statement对象
    stmt = handler.prepare(connection, transaction.getTimeout());
    //处理参数
    handler.parameterize(stmt);
    return stmt;
  }

PreparedStatementHandler#query

  @Override
  public <E> List<E> query(Statement statement, ResultHandler resultHandler) throws SQLException {
    PreparedStatement ps = (PreparedStatement) statement;
    ps.execute();
    //处理结果集
    return resultSetHandler.handleResultSets(ps);
  }

创建StatementHandler对象

StatementHandler分类：

SimpleStatementHandler
PreparedStatementHandler：默认
CallableStatementHandler

Configuration#newStatementHandler

  public StatementHandler newStatementHandler(Executor executor, MappedStatement mappedStatement, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {
    StatementHandler statementHandler = new RoutingStatementHandler(executor, mappedStatement, parameterObject, rowBounds, resultHandler, boundSql);
    //插件增强
    statementHandler = (StatementHandler) interceptorChain.pluginAll(statementHandler);
    return statementHandler;
  }

RoutingStatementHandler#RoutingStatementHandler

  public RoutingStatementHandler(Executor executor, MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {

    switch (ms.getStatementType()) {
      ...
      //默认为PREPARED
      case PREPARED:
        delegate = new PreparedStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
        break;
      ...

  }

PreparedStatementHandler

  public PreparedStatementHandler(Executor executor, MappedStatement mappedStatement, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {
    super(executor, mappedStatement, parameter, rowBounds, resultHandler, boundSql);
  }

BaseStatementHandler

会先创建ParameterHandler、ResultSetHandler两个对象

  protected BaseStatementHandler(Executor executor, MappedStatement mappedStatement, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {
    ...
		//先创建ParameterHandler、ResultSetHandler两个对象
    //创建之后分别进行插件增强
    this.parameterHandler = configuration.newParameterHandler(mappedStatement, parameterObject, boundSql);
    this.resultSetHandler = configuration.newResultSetHandler(executor, mappedStatement, rowBounds, parameterHandler, resultHandler, boundSql);
  }

Mybatis四大核心对象创建、增强顺序：Executor > ParameterHandler > ResultSetHandler > StatementHandler。

四、Mybatis执行数据库流程

先获取SqlSession，作为门面，其中包含Executor执行器；
Executor会判断是否开启二级缓存，如果开启最后Executor会包装成CacheExecutor；
当执行查询操作时，会先从二级缓存CacheExecutor中查询，再去一级缓存BaseExecutor中查询（SimpleExecutor、ReuseExecutor、BatchExecutor没有实现query方法），最后执行SimpleExecutor、ReuseExecutor、BatchExecutor的从数据库中查询；
执行数据库查询时会先创建StatementHandler，创建之前会先创建ParameterHandler、ResultSetHandler两个对象，分别用于处理参数与结果集。然后获取connection对象、statement对象，以便操作数据库。
