华为路由器MGRE与RIP协议配置案例,-优快云博客

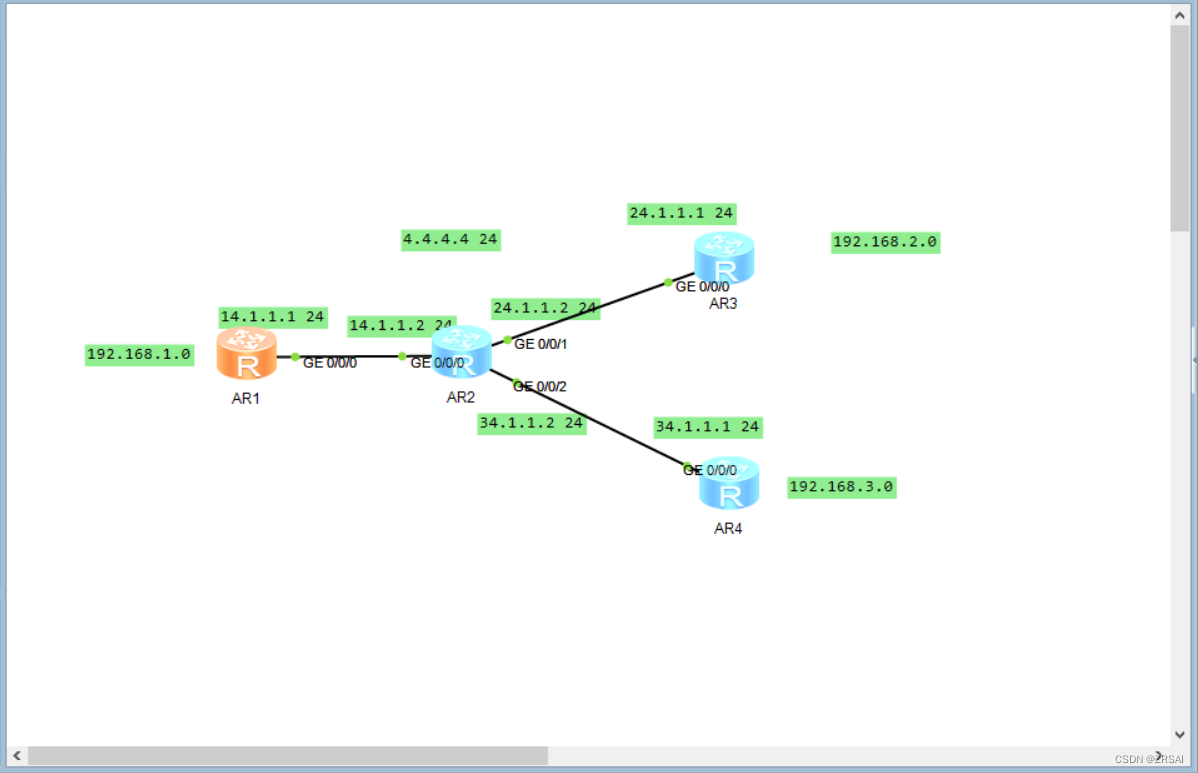

R1

<Huawei>sys
[Huawei]sysname r1
[r1]interface GigabitEthernet 0/0/0
[r1-GigabitEthernet0/0/0]ip address 14.1.1.1 24
[r1-GigabitEthernet0/0/0]int lo0
[r1-LoopBack0]ip add 192.168.1.1 24
[r1]ip route-static 0.0.0.0 0 14.1.1.2

MGRE配置

[r1]interface Tunnel 0/0/0
[r1-Tunnel0/0/0]ip address 192.168.4.1 24
[r1-Tunnel0/0/0]tunnel-protocol gre p2mp
[r1-Tunnel0/0/0]source 14.1.1.1
[r1-Tunnel0/0/0]nhrp entry multicast dynamic
[r1-Tunnel0/0/0]nhrp network-id 100

rip

[r1]rip 1
[r1-rip-1]version 2
[r1-rip-1]network 192.168.1.0
[r1-rip-1]network 192.168.4.0

关闭水平分割

[r1]int Tunnel 0/0/0
[r1-Tunnel0/0/0]undo rip split-horizon

R2

<Huawei>sys
[Huawei]sysname r2
[r2]interface g0/0/0
[r2-GigabitEthernet0/0/0]ip add 14.1.1.2 24
[r2-GigabitEthernet0/0/0]int g0/0/1
[r2-GigabitEthernet0/0/1]ip add 24.1.1.2 24
[r2-GigabitEthernet0/0/1]int g0/0/2
[r2-GigabitEthernet0/0/2]ip add 34.1.1.2 24
[r2-GigabitEthernet0/0/2]int lo0
[r2-LoopBack0]ip add 4.4.4.4 24

R3

<Huawei>sys
[Huawei]sysname r3
[r3]int g0/0/0
[r3-GigabitEthernet0/0/0]ip add 24.1.1.1 24
[r3-GigabitEthernet0/0/0]int lo0
[r3-LoopBack0]ip add 192.168.2.1 24
[r3]ip route-static 0.0.0.0 0 24.1.1.2

MGRE配置

[r3]interface Tunnel 0/0/0
[r3-Tunnel0/0/0]ip add 192.168.4.2 24
[r3-Tunnel0/0/0]tunnel-protocol gre p2mp
[r3-Tunnel0/0/0]source GigabitEthernet 0/0/0
[r3-Tunnel0/0/0]nhrp entry 192.168.4.1 14.1.1.1 register
[r3-Tunnel0/0/0]nhrp network-id 100

RIP

[r3]rip 1
[r3-rip-1]version 2
[r3-rip-1]network 192.168.2.0
[r3-rip-1]network 192.168.4.0

R4

<Huawei>sys
[Huawei]sysname r4
[r4]int g0/0/0
[r4-GigabitEthernet0/0/0]ip add 34.1.1.1 24
[r4-GigabitEthernet0/0/0]int lo0
[r4-LoopBack0]ip add 192.168.3.1 24
[r4]ip route-static 0.0.0.0 0 34.1.1.2

MGRE配置

[r4]interface Tunnel 0/0/0
[r4-Tunnel0/0/0]ip add 192.168.4.3 24
[r4-Tunnel0/0/0]tunnel-protocol gre p2mp
[r4-Tunnel0/0/0]source GigabitEthernet 0/0/0
[r4-Tunnel0/0/0]nhrp entry 192.168.4.1 14.1.1.1 register
[r4-Tunnel0/0/0]nhrp network-id 100
