HCIP——MGRE综合实验

原创已于 2023-01-10 17:23:16 修改 · 143 阅读

0 ·

CC 4.0 BY-SA版权

文章标签：

#网络

于 2023-01-06 13:16:18 首次发布

HCIP作业专栏收录该内容

15 篇文章

订阅专栏

文章详细描述了在华为路由器上进行网络配置的过程，包括接口IP地址设定，RIP版本2路由协议的启用，GRE隧道的建立，NHRP网络标识的配置以及使用PAP和CHAP进行PPP认证的设置。

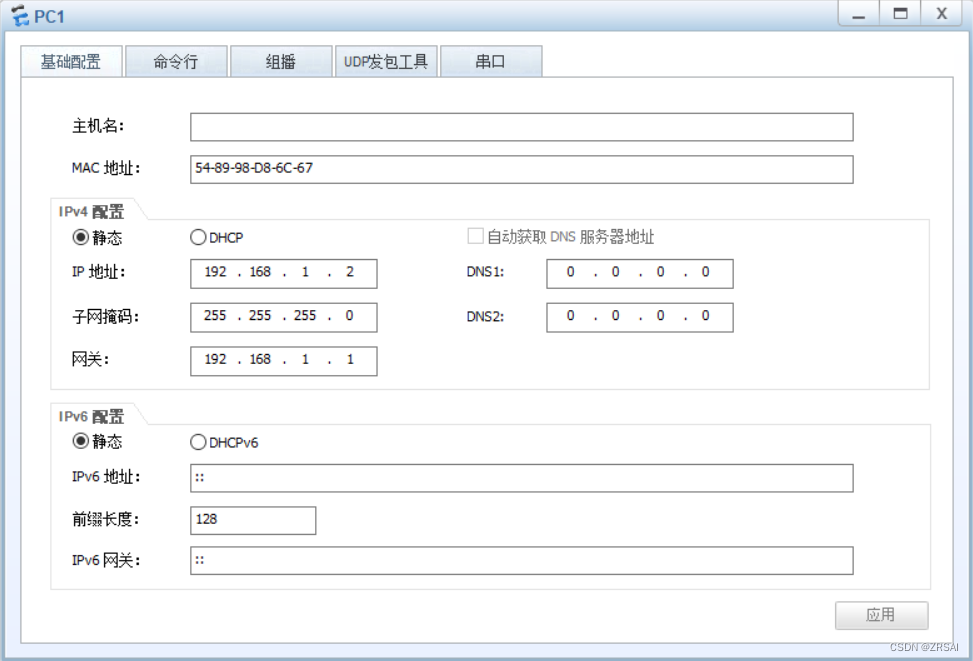

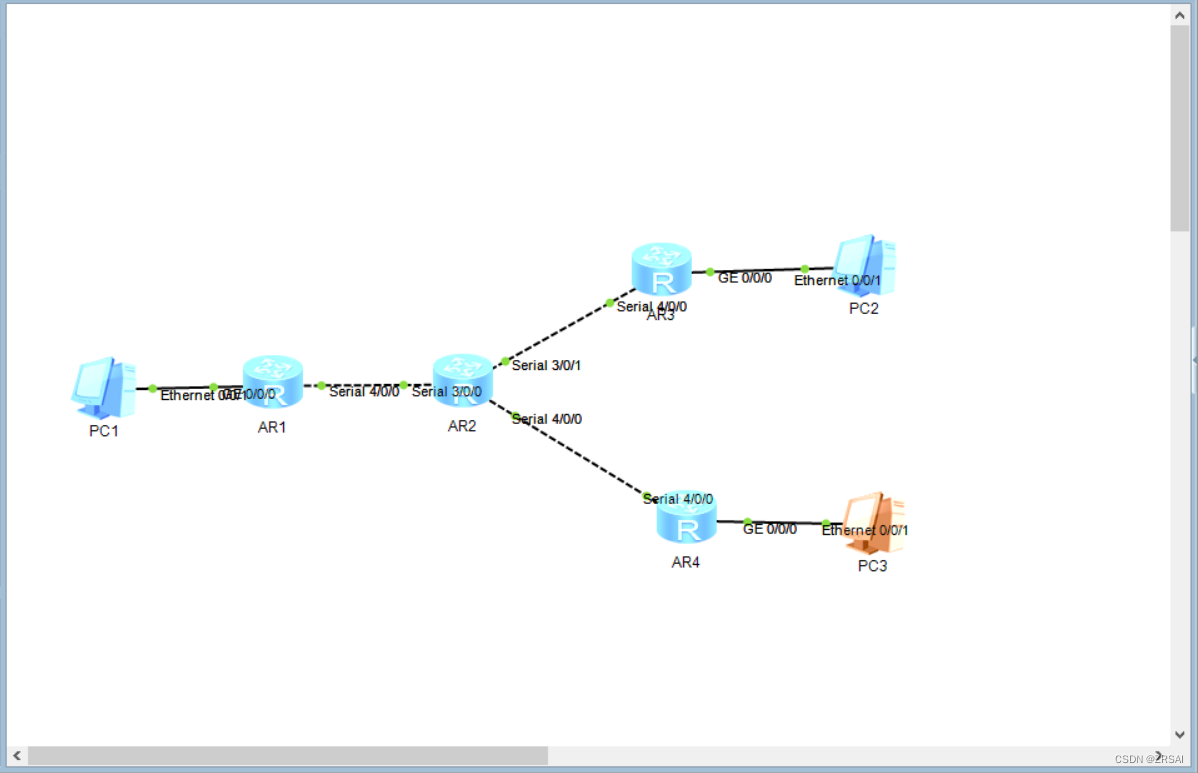

R1

<Huawei>sys
[Huawei]sysname r1
[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]ip address 192.168.1.1 24
[r1-GigabitEthernet0/0/0]q
[r1]int Serial 4/0/0
[r1-Serial4/0/0]ip address 12.1.1.1 24
[r1-Serial4/0/0]link-protocol hdlc

[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]ip add 192.168.1.1 24

[r1]interface Tunnel 0/0/0
[r1-Tunnel0/0/0]ip add 192.168.4.1 24
[r1-Tunnel0/0/0]tunnel-protocol gre p2mp
[r1-Tunnel0/0/0]source 12.1.1.1
[r1-Tunnel0/0/0]nhrp entry multicast dynamic
[r1-Tunnel0/0/0]nhrp network-id 100

[r1]rip 1
[r1-rip-1]ver 2
[r1-rip-1]network 192.168.1.0
[r1-rip-1]network 192.168.4.0

[r1-rip-1]int t0/0/0
[r1-Tunnel0/0/0]undo rip split-horizon

R2

<Huawei>system-view
[Huawei]sysname r2
[r2]interface Serial 3/0/0
[r2-Serial3/0/0]link-protocol hdlc
[r2-Serial3/0/0]ip address 12.1.1.2 24

[r2]int LoopBack 0
[r2-LoopBack0]ip address 2.2.2.2 24
[r2]interface Serial 3/0/1
[r2-Serial3/0/1]ip address 23.1.1.2 24

[r2]aaa
[r2-aaa]local-user a password cipher 123456
[r2-aaa]local-user a service-type ppp
[r2-aaa]int s3/0/1
[r2-Serial3/0/1]ppp authentication-mode pap

[r2]interface Serial 4/0/0
[r2-Serial4/0/0]ip add 24.1.1.2 24
[r2-Serial4/0/0]ppp authentication-mode chap
[r2-Serial4/0/0]q
[r2]aaa
[r2-aaa]local-user b password cipher 654321
[r2-aaa]local-user b service-type ppp

[r2]int s3/0/1
[r2-Serial3/0/1]shutdown
[r2-Serial3/0/1]undo shutdown

[r2-Serial3/0/1]int s4/0/0
[r2-Serial4/0/0]shutdown
[r2-Serial4/0/0]undo shutdown

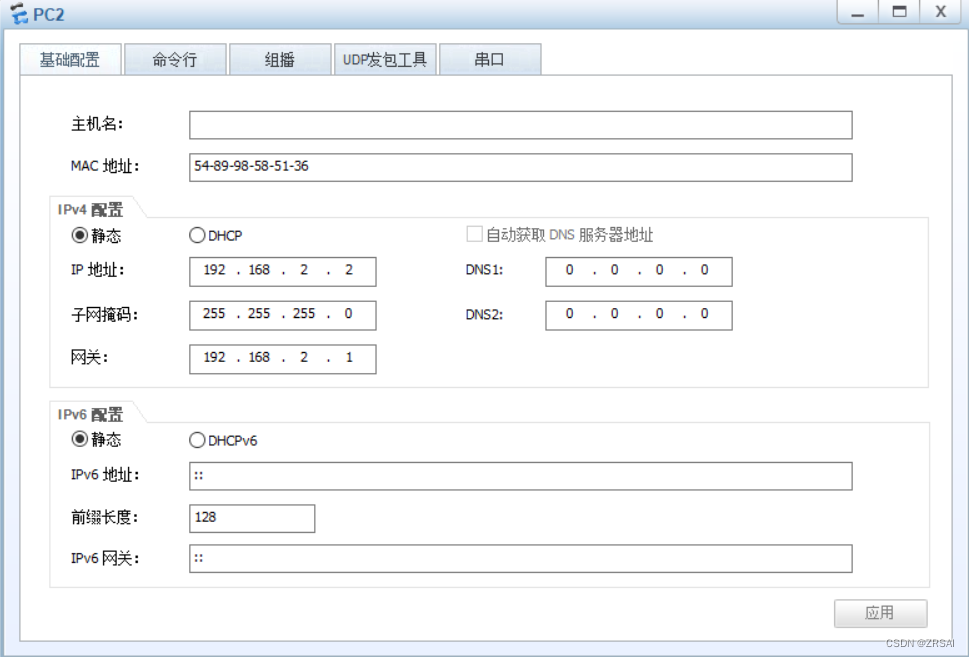

R3

<Huawei>sys
[Huawei]sysname r3
[r3]int s4/0/0
[r3-Serial4/0/0]ip add 23.1.1.1 24
[r3-Serial4/0/0]ppp pap local-user a password cipher 123456

[r3]int g0/0/0
[r3-GigabitEthernet0/0/0]ip add 192.168.2.1 24

[r3]int Tunnel 0/0/0
[r3-Tunnel0/0/0]ip add 192.168.4.3 24
[r3-Tunnel0/0/0]tunnel-protocol gre p2mp
[r3-Tunnel0/0/0]source Serial 4/0/0
[r3-Tunnel0/0/0]nhrp entry 192.168.4.1 12.1.1.1 register
[r3-Tunnel0/0/0]nhrp network-id 100

[r3]rip 1
[r3-rip-1]ver 2
[r3-rip-1]network 192.168.2.0
[r3-rip-1]network 192.168.4.0

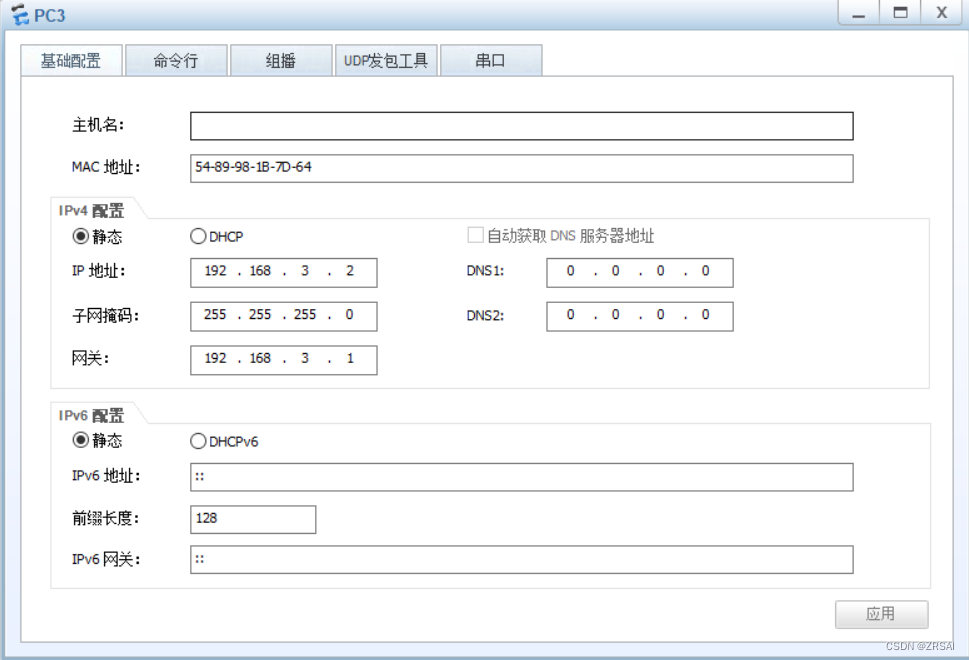

R4

<Huawei>sys
[Huawei]sysna
[Huawei]sysname r4
[r4]int s4/0/0
[r4-Serial4/0/0]ip add 24.1.1.1 24
[r4-Serial4/0/0]ppp chap user b
[r4-Serial4/0/0]ppp chap password cipher 654321

[r4]int g0/0/0
[r4-GigabitEthernet0/0/0]ip add 192.168.3.1 24

[r4]int Tunnel 0/0/0
[r4-Tunnel0/0/0]ip add 192.168.4.4 24
[r4-Tunnel0/0/0]tunnel-protocol gre p2mp
[r4-Tunnel0/0/0]source Serial 4/0/0
[r4-Tunnel0/0/0]nhrp entry 192.168.4.1 12.1.1.1 register
[r4-Tunnel0/0/0]nhrp network-id 100

[r4]rip 1
[r4-rip-1]ver 2
[r4-rip-1]network 192.168.3.0
[r4-rip-1]network 192.168.4.0
