大数据（0d）埋点日志分析

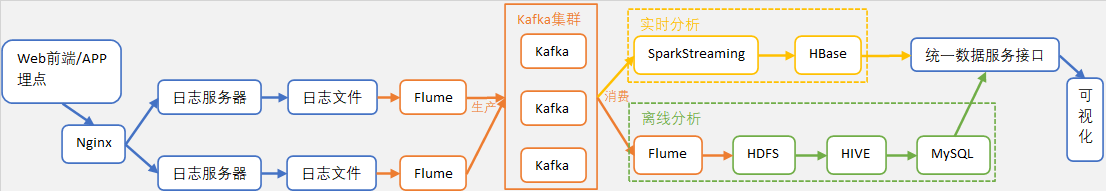

架构

• 埋点（event tracking）：用于网站分析的数据采集方法
• Nginx（engine x）：高性能的HTTP和反向代理web服务器

埋点数据设计

数据类别	记录内容	内容示例	示例指标	字段
页面	页面ID、上页ID 页面类型	商品A页、文章B页 首页、搜索页、商品页	pv、uv、页面跳转路径、页面跳转率	page
事件	操作类型 操作对象	输入、滑动、点击 搜索栏、商品列表、商品		actions
曝光	曝光对象 曝光位置	商品、直播 页眉、页脚	商品曝光量、直播点击率	displays
启动	启动方式	点击APP图标、外源跳入	启动方式统计	start
错误	错误信息			error
…

{
	"timestamp": 1585744376001,
	"start": true,
	"basic_information": {
		"mobile_id": "手机ID",
		"os": "操作系统",
		"version": "APP版本号",
		"uid": "账户ID",
		"first_use": "是否首次使用"
	},
	"page": {
		"page_id": "页面ID",
		"last_page_id": "上个页面ID",
		"page_type": "商品页"
	},
	"actions": [{
		"action_id": "动作id",
		"item_id": "目标ID",
		"timestamp": 1585744376605
	}],
	"displays": [{
		"item_id": "曝光对象ID",
		"position": "曝光位置"
	}],
	"error": {
		"code": "错误码",
		"info": "错误信息"
	},
}

常见结构	示例内容
设备基础信息	设备ID 手机型号 操作系统 操作系统版本 屏幕高度和宽度…
埋点基础信息	埋点类型：PC浏览器、手机APP、小程序 软件版本 …
环境基础信息	时间戳 IP地址 网络类型 地区 是否首次触发事件 用户标识 …

技术

• Flume=>Kafka=>Flume
• SparkStreaming消费Kafka
• Spark写HBase

分析指标

指标类别	示例
离线指标	DAU、MAU、WAU、每日/周/月 pv、页面跳转率…
实时指标	每小时/分钟的 pv/uv …

---

离线计算demo

Python造数据写到Kafka

from time import sleep, localtime, time, strftime
from numpy.random import choice, randn
from kafka import KafkaProducer
from json import dumps

HOUR_SLEEP_PROBABILITY = {
    1: 21600, 2: 18000, 3: 14400, 4: 10800, 5: 9600, 6: 7200,
    7: 3600, 8: 3600, 9: 1800, 10: 1800, 11: 900, 12: 120,
    13: 7200, 14: 7200, 15: 7200, 16: 7200, 17: 4800, 18: 2400,
    19: 900, 20: 180, 21: 30, 22: 60, 23: 480, 0: 2400,
}
# 页面，单页最大概率=2/(n+1)
PAGES = [f'p{s}' for s in ''.join(str(i) * i for i in range(1, 9))]
# Kafka
BOOTSTRAP_SERVERS = ['localhost:9092']
TOPIC = 'EC'
KEY = b'PV'

def hour_sleep():
    """根据目前时间进行程序休眠"""
    hour = localtime().tm_hour
    sleep(HOUR_SLEEP_PROBABILITY[hour])

def get_user(frequency=100):
    return 'u%d' % int(abs(randn() * frequency))

def generate():
    while True:
        yield {
            'user_id': get_user(),
            'page_id': choice(PAGES),
            'timestamp': int(time() * 1000),
            'hms': strftime('%Y-%m-%d %H:%M:%S'),
        }
        hour_sleep()

def produce():
    # 创建生产者
    producer = KafkaProducer(
        bootstrap_servers=BOOTSTRAP_SERVERS,
        value_serializer=lambda x: dumps(x).encode())
    # 生产数据
    for dt in generate():
        producer.send(
            topic=TOPIC,
            value=dt,
            key=KEY,
            headers=[('timestamp', str(dt['timestamp']).encode())],
            partition=0)

if __name__ == '__main__':
    produce()

检验数据写到Kafka情况

kafka-console-consumer.sh \
--bootstrap-server localhost:9092 \
--topic EC \
--from-beginning

HDFS创建文件夹

# Kafka --Flume--> HDFS
hadoop fs -mkdir /user/hive/warehouse/kafka
# 库
hadoop fs -mkdir /user/hive/warehouse/ec.db
hadoop fs -mkdir /user/hive/warehouse/ec.db/ods
hadoop fs -mkdir /user/hive/warehouse/ec.db/dwd
hadoop fs -mkdir /user/hive/warehouse/ec.db/dim
hadoop fs -mkdir /user/hive/warehouse/ec.db/dws
hadoop fs -mkdir /user/hive/warehouse/ec.db/ads

Kafka数据传输到HDFS

vim kafka2hdfs.conf

# 定义agent、channel、source、sink名称，并关联
a2.sources = r2
a2.channels = c2
a2.sinks = k2
a2.sources.r2.channels = c2
a2.sinks.k2.channel = c2

# source
a2.sources.r2.type = org.apache.flume.source.kafka.KafkaSource
# kafka服务地址
a2.sources.r2.kafka.bootstrap.servers = hadoop105:9092
# 主题
a2.sources.r2.kafka.topics = EC
# 消费者组
a2.sources.r2.kafka.consumer.group.id = g3
# 消费者组第一个消费topic的数据的时候从哪里开始消费
a2.sources.r2.kafka.consumer.auto.offset.reset = earliest
# source从Kafka拉消息的批次大小
a2.sources.r2.batchSize = 50

# channel
a2.channels = c2
# channel类型：内存（断电可能会丢失数据）
a2.channels.c2.type = memory

# sink
a2.sinks.k2.type = hdfs
# 指定数据存储目录
a2.sinks.k2.hdfs.path = /user/hive/warehouse/kafka/%Y-%m-%d
# 指定滚动生成文件的时间间隔
a2.sinks.k2.hdfs.rollInterval = 3600
# 指定滚动生成文件的大小（133169152=127*1024*1024<128M）
a2.sinks.k2.hdfs.rollSize = 133169152
# 写入多少个event之后滚动生成新文件，通常选0，表示禁用
a2.sinks.k2.hdfs.rollCount = 0
# 文件写入格式：SequenceFile-序列化文件、DataStream-文本文件、CompressedStream-压缩文件
a2.sinks.k2.hdfs.fileType = CompressedStream
# 压缩方式
a2.sinks.k2.hdfs.codeC = gzip

执行Flume

flume-ng agent -n a2 -c $FLUME_HOME/conf/ -f kafka2hdfs.conf -Dflume.root.logger=INFO,console

HIVE建表

-- 建库
CREATE DATABASE `ec` COMMENT '电商'
LOCATION 'hdfs://hadoop105:8020/user/hive/warehouse/ec.db';
USE `ec`;

-- ODS层
DROP TABLE IF EXISTS `ods_pv`;
CREATE EXTERNAL TABLE `ods_pv`(
    `user_id`      STRING  COMMENT '用户ID',
    `page_id`      STRING  COMMENT '页面ID',
    `timestamp`    BIGINT  COMMENT '毫秒数',
    `hms`          TIMESTAMP  COMMENT '年月日时分秒',
    `user`         STRING  COMMENT '用户',
    `page`         STRING  COMMENT '页面'
) COMMENT '页面浏览'
PARTITIONED BY (`ymd` STRING)
ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.JsonSerDe';

-- DWD层
DROP TABLE IF EXISTS `dwd_pv`;
CREATE EXTERNAL TABLE `dwd_pv`(
    `user_id`  STRING  COMMENT '用户ID',
    `page_id`  STRING  COMMENT '页面ID'
) COMMENT '页面浏览'
PARTITIONED BY (`ymd` STRING)
STORED AS ORC
TBLPROPERTIES('orc.compress'='snappy');

-- DWS层
DROP TABLE IF EXISTS `dws_pv`;
CREATE EXTERNAL TABLE `dws_pv`(
    `user_id`  STRING  COMMENT '用户ID',
    `page_id`  STRING  COMMENT '页面ID',
    `cnt`      BIGINT  COMMENT '计数'
) COMMENT '页面浏览'
PARTITIONED BY (`ymd` STRING)
STORED AS ORC
TBLPROPERTIES('orc.compress'='snappy');

-- DWT层
DROP TABLE IF EXISTS `dwt_pv`;
CREATE EXTERNAL TABLE `dwt_pv`(
  `page_id`  STRING  COMMENT '页面ID',
  `pv_1d`    BIGINT  COMMENT 'page view',
  `pv_3d`    BIGINT  COMMENT '近3天PV',
  `pv_7d`    BIGINT  COMMENT '近7天PV',
  `uv_1d`    BIGINT  COMMENT 'unique visitor',
  `uv_3d`    BIGINT  COMMENT '近3天UV',
  `uv_7d`    BIGINT  COMMENT '近7天UV'
) COMMENT '页面浏览'
PARTITIONED BY (`ymd` STRING)
STORED AS ORC
TBLPROPERTIES('orc.compress'='snappy');

ODS=>DWD=>DWS（首次）

-- 数据装载
LOAD DATA INPATH '/user/hive/warehouse/kafka/2022-03-10' INTO TABLE ec.ods_pv
PARTITION(ymd='2022-03-10');

-- 设置动态分区
SET hive.exec.dynamic.partition=true;
SET hive.exec.dynamic.partition.mode=nonstrict;

-- ODS=>DWD
INSERT OVERWRITE TABLE dwd_pv PARTITION(ymd)
SELECT
    user_id,
    page_id,
    ymd
FROM ods_pv
WHERE hms IS NOT NULL;

-- DWD=>DWS
INSERT OVERWRITE TABLE dws_pv PARTITION(ymd)
SELECT
    user_id,
    page_id,
    COUNT(1) AS cnt,
    ymd
FROM dwd_pv
GROUP BY user_id,page_id,ymd;

ODS=>DWD=>DWS=>DWT（每日）

-- LOAD
LOAD DATA INPATH '/user/hive/warehouse/kafka/{ymd}' INTO TABLE ec.ods_pv PARTITION(ymd='{ymd}');

-- ODS=>DWD
INSERT OVERWRITE TABLE dwd_pv PARTITION(ymd='{ymd}')
SELECT user_id,page_id FROM ods_pv
WHERE ymd='{ymd}' AND hms IS NOT NULL;

-- DWD=>DWS
INSERT OVERWRITE TABLE dws_pv PARTITION(ymd='{ymd}')
SELECT
    user_id,
    page_id,
    COUNT(1) AS cnt
FROM dwd_pv
WHERE ymd='{ymd}'
GROUP BY user_id,page_id;

-- DWS=>DWT
INSERT OVERWRITE TABLE dwt_pv PARTITION(ymd='{ymd}')
-- 各页面流量(page view)
(
    SELECT
        page_id,
        SUM(if(ymd='{ymd}',cnt,0))                                 AS pv_1d,  -- 最近1天PV
        SUM(if(ymd>=DATE_ADD('{ymd}',-2),cnt,0))                   AS pv_3d,  -- 最近3天PV
        SUM(cnt)                                                   AS pv_7d,  -- 最近7天PV
        COUNT(DISTINCT(if(ymd='{ymd}',user_id,NULL)))              AS uv_1d,  -- 最近1天UV
        COUNT(DISTINCT if(ymd>=DATE_ADD('{ymd}',-2),user_id,NULL)) AS uv_3d,  -- 最近3天UV
        COUNT(DISTINCT user_id)                                    AS uv_7d   -- 最近7天UV
    FROM dws_pv
    WHERE ymd>=DATE_ADD('{ymd}',-6) AND ymd<='{ymd}'
    GROUP BY page_id
)UNION ALL(
-- 总流量(total view)
    SELECT
        '总' AS page_id,
        SUM(if(ymd='{ymd}',cnt,0))                                 AS pv_1d,  -- 最近1天PV
        SUM(if(ymd>=DATE_ADD('{ymd}',-2),cnt,0))                   AS pv_3d,  -- 最近3天PV
        SUM(cnt)                                                   AS pv_7d,  -- 最近7天PV
        COUNT(DISTINCT(if(ymd='{ymd}',user_id,NULL)))              AS uv_1d,  -- 最近1天UV
        COUNT(DISTINCT if(ymd>=DATE_ADD('{ymd}',-2),user_id,NULL)) AS uv_3d,  -- 最近3天UV
        COUNT(DISTINCT user_id)                                    AS uv_7d   -- 最近7天UV
    FROM dws_pv
    WHERE ymd>=DATE_ADD('{ymd}',-6) AND ymd<='{ymd}'
)

Python2脚本

# coding:utf-8
from sys import argv
from datetime import date, timedelta
from subprocess import check_output


class HIVE:
    def __init__(self, **kwargs):
        # 从命令行获取参数：https://blog.youkuaiyun.com/Yellow_python/article/details/122088401
        self.parameters = kwargs
        for a in argv[1:]:
            k, v = a.split('=', 1)
            self.parameters[k.strip()] = v.strip()

    @property
    def yesterday(self):
        yesterday = date.today() - timedelta(days=1)
        return yesterday.strftime('%Y-%m-%d')

    @property
    def ymd(self):
        """获取日期，格式YYYY-MM-DD，默认昨天"""
        return self.parameters.get('ymd', self.yesterday)

    def e(self, sql):
        sql = sql.format(ymd=self.ymd).replace("'", '"')
        db = self.parameters['database']  # 库名
        cmd = "hive --database '{}' -e '{}'".format(db, sql)
        print(cmd)
        return check_output(cmd, shell=True).strip()


h = HIVE(database='ec')
h.e('''
此处放入每日SQL
''')

其它补充

-- 各页面UV和PV时间序列分析
SELECT
    page_id,
    SUM(cnt) AS pv,
    COUNT(1) AS uv,
    ymd
FROM dws_pv
GROUP BY page_id,ymd
ORDER BY page_id,ymd;

-- 总UV和PV时间序列分析
SELECT
    SUM(cnt) AS pv,
    COUNT(DISTINCT user_id) AS uv,
    ymd
FROM dws_pv
GROUP BY ymd
ORDER BY ymd;
