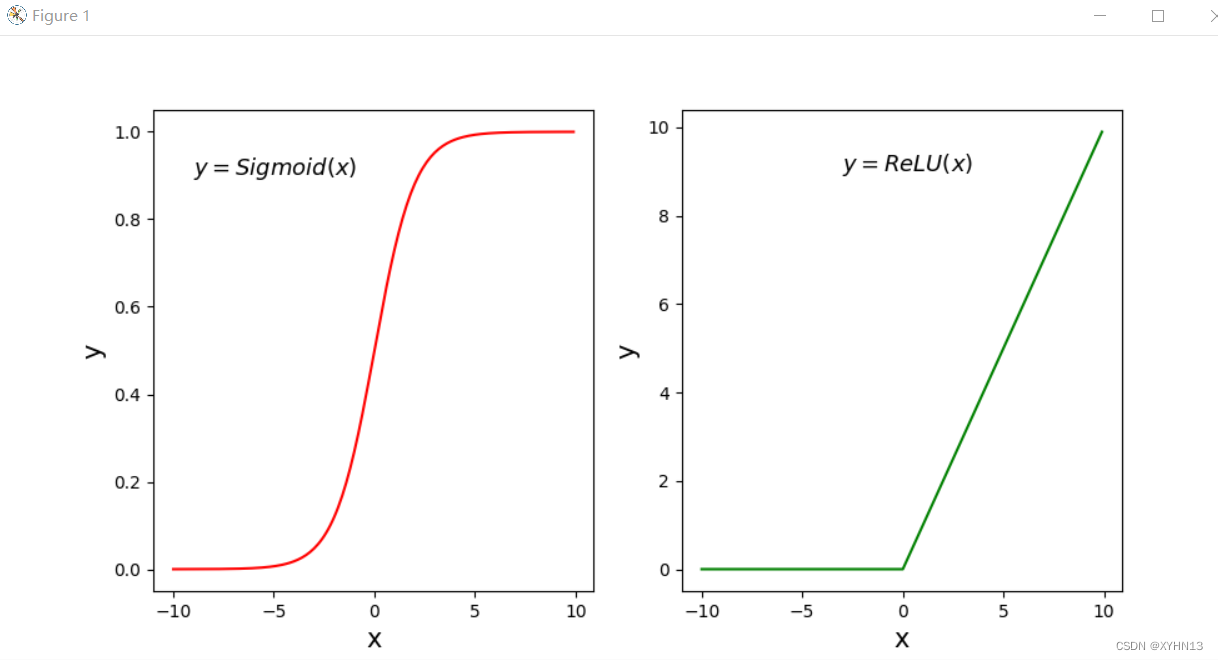

ReLU激活函数
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.patches as patches
plt.figure(figsize=(10, 5))
x = np.arange(-10, 10, 0.1)
s = 1.0 / (1 + np.exp(0. - x))
y = np.clip(x, a_min=0., a_max=None)
f = plt.subplot(121)
plt.plot(x, s, color='r')
currentAxis=plt.gca()
plt.text(-9.0, 0.9, r'$y=Sigmoid(x)$', fontsize=13)
currentAxis.xaxis.set_label_text('x', fontsize=15)
currentAxis.yaxis.set_label_text('y', fontsize=15)

f = plt.subplot(122)
plt.plot(x, y, color='g')
plt.text(-3.0, 9, r'$y=ReLU(x)$', fontsize=13)
currentAxis=plt.gca()
currentAxis.xaxis.set_label_text('x', fontsize=15)
currentAxis.yaxis.set_label_text('y', fontsize=15)

plt.show()

 批归一化方法

示例一： 当输入数据形状是[N,K][N, K][N,K]时，一般对应全连接层的输出

import numpy as np
import paddle
from paddle.nn import BatchNorm1D
data = np.array([[1,2,3], [4,5,6], [7,8,9]]).astype('float32')
bn = BatchNorm1D(num_features=3)
x = paddle.to_tensor(data)
y = bn(x)
print('output of BatchNorm1D Layer: \n {}'.format(y.numpy()))
a = np.array([1,4,7])
a_mean = a.mean()
a_std = a.std()
b = (a - a_mean) / a_std
print('std {}, mean {}, \n output {}'.format(a_mean, a_std, b))

示例二： 当输入数据形状是[N,C,H,W][N, C, H, W][N,C,H,W]时， 一般对应卷积层的输出

import numpy as np
import paddle
from paddle.nn import BatchNorm2D
np.random.seed(100)
data = np.random.rand(2,3,3,3).astype('float32')
bn = BatchNorm2D(num_features=3)
x = paddle.to_tensor(data)
y = bn(x)
print('input of BatchNorm2D Layer: \n {}'.format(x.numpy()))
print('output of BatchNorm2D Layer: \n {}'.format(y.numpy()))
a = data[:, 0, :, :]
a_mean = a.mean()
a_std = a.std()
b = (a - a_mean) / a_std
print('channel 0 of input data: \n {}'.format(a))
print('std {}, mean {}, \n output: \n {}'.format(a_mean, a_std, b))

丢弃法



import paddle
import numpy as np
np.random.seed(100)

data1 = np.random.rand(2, 3, 3, 3).astype('float32')
data2 = np.arange(1, 13).reshape([-1, 3]).astype('float32')
x1 = paddle.to_tensor(data1)
drop11 = paddle.nn.Dropout(p=0.5, mode='downscale_in_infer')
droped_train11 = drop11(x1)
drop11.eval()
droped_eval11 = drop11(x1)
drop12 = paddle.nn.Dropout(p=0.5, mode='upscale_in_train')
droped_train12 = drop12(x1)
drop12.eval()
droped_eval12 = drop12(x1)
x2 = paddle.to_tensor(data2)
drop21 = paddle.nn.Dropout(p=0.5, mode='downscale_in_infer')
droped_train21 = drop21(x2)
drop21.eval()
droped_eval21 = drop21(x2)
drop22 = paddle.nn.Dropout(p=0.5, mode='upscale_in_train')
droped_train22 = drop22(x2)

drop22.eval()
droped_eval22 = drop22(x2)

print('x1 {}, \n droped_train11 \n {}, \n droped_eval11 \n {}'.format(data1, droped_train11.numpy(),
                                                                      droped_eval11.numpy()))
print('x1 {}, \n droped_train12 \n {}, \n droped_eval12 \n {}'.format(data1, droped_train12.numpy(),
                                                                      droped_eval12.numpy()))
print('x2 {}, \n droped_train21 \n {}, \n droped_eval21 \n {}'.format(data2, droped_train21.numpy(),
                                                                      droped_eval21.numpy()))
print('x2 {}, \n droped_train22 \n {}, \n droped_eval22 \n {}'.format(data2, droped_train22.numpy(),
                                                                      droped_eval22.numpy()))
