一些知识的补充：

/*
2018-12-14 14:32:42
单项选择设置背景色 ListCtrl
*/
通过重写ListCtrl加入部分属性

详细代码参照ListCtrlex
核心思想：
通过记录设置的几行使用什么颜色（没有设置颜色则使用缺省参数）
通过数据结构map来组织
设置一次颜色相当于在map中插入一条数据
擦除颜色相当于在map中删除一条数据
最后整理好的数据结构在 OnPaint中进行处理

Tip:删除完数据后记得需要Invalid 刷新一下控件

扩展 LLPoint结构可以用CPoint数组来代替
//列表中的行的线
CPoint pts[2];
pts[0] = { rcItem.left, rcItem.top };
pts[1] = { rcItem.right, rcItem.top };
pRT->DrawLines(pts, 2);

/*
2018-12-17 14:47:26
记录在ListCtrl中提供的一个特殊的坐标值
*/
CPoint m_ptOrigin;
一个原点坐标
在列表没有滚动条的时候 m_ptOrigin = {0,0}
当滚动条进行滑动的时候这个时候原点坐标也会改变
详细计算过程见 SListCtrl::UpdateScrollBar()

在重新实现了左键按下的消息事件的时候 m_nSelectItem 这个值将为-1
也就是选中哪一行这个需要自己实现。实现过程和选中哪一列类似

需求：设置多个行选项的背景色,加上框线列表单元格可编辑

设计思想：

背景色思路：
确定背景的绘制在OnPaint中通过确认几行需要绘制通过一些数据结构的处理很容易在OnPaint中进行实现

编辑功能思路：
通过控件SListCtrl中可以很轻松的得到宽高行列这些参数然后可以知道点击的每个单元格的Rect
在单元格需要编辑的地方双击通过new SEdit 来进行编辑框的输入最后将输入的值写入ListCtrl控件
当Edit失去焦点的时候就是写入值的时候并销毁SEdit

代码设计如下

SListCtrlEx.h

#pragma once
/*
2018-12-14 14:30:30
拓展ListCtrl控件 增加背景色 和 编辑功能
*/
#include <map>
namespace SOUI
{
#define COLORRED		RGBA(255, 0, 0, 155)
	class ListCtrlExEdit;
	class SListCtrlEx : public SListCtrl
	{
		SOUI_CLASS_NAME(SListCtrlEx,L"listctrlex")

	public:
		SListCtrlEx();
		~SListCtrlEx();

	public:
		void SetRowBackGndColor(int iRow, COLORREF clr = COLORRED);	//设置某行的背景色
		void EraseRowBackGndColor(int iRow);	//去掉某行设置的颜色 iRow从0开始
		void OnSetEditText();

	protected:
		void OnLButtonDown(UINT nFlags, CPoint point);
		void OnLButtonDblClk(UINT nFlags, CPoint point);
		void OnPaint(IRenderTarget * pRT);
		void DrawItem(IRenderTarget *pRT, CRect rcItem, int nItem);


		SOUI_MSG_MAP_BEGIN()
			MSG_WM_PAINT_EX(OnPaint)
			MSG_WM_LBUTTONDBLCLK(OnLButtonDblClk)
			MSG_WM_LBUTTONDOWN(OnLButtonDown)
			SOUI_MSG_MAP_END()

	private:
		std::map<int, COLORREF> m_maplistexRow;
		ListCtrlExEdit *m_edit;
		int m_iRow;
		int m_iCol;

	};

	class ListCtrlExEdit : public SEdit
	{
	public:
		SOUI_CLASS_NAME(ListCtrlExEdit, L"listctrlexedit")

		ListCtrlExEdit(SListCtrlEx* pOwner) :m_ListCtrlEx(pOwner) {}

		void OnKillFocus(SWND wndFocus)
		{
			__super::OnKillFocus(wndFocus);
			m_ListCtrlEx->OnSetEditText();
		}

		SOUI_MSG_MAP_BEGIN()
			MSG_WM_KILLFOCUS_EX(OnKillFocus)
		SOUI_MSG_MAP_END()

		virtual void OnFinalRelease()
		{
			delete this;
		}
	private:
		SListCtrlEx * m_ListCtrlEx;
	};

}

SListCtrlEx.cpp

#include "stdafx.h"
#include "SListCtrlEx.h"

namespace SOUI
{
	SListCtrlEx::SListCtrlEx():m_iRow(0),m_iCol(0), m_edit(nullptr)
	{
		m_maplistexRow.swap(std::map<int, COLORREF>());
	}

	SListCtrlEx::~SListCtrlEx()
	{
		if (m_maplistexRow.size() > 0)
		{
			m_maplistexRow.swap(std::map<int, COLORREF>());
		}

		if (m_edit != nullptr)
		{
			m_edit->Release();
			m_edit = nullptr;
		}
	}

	void SListCtrlEx::SetRowBackGndColor(int iRow, COLORREF clr)
	{
		if (iRow > GetItemCount())
		{
			return;
		}
		bool bflag = false;
		for (auto value : m_maplistexRow)
		{
			if (value.first == iRow && value.second == clr)
			{
				bflag = true;
				break;
			}
		}

		if (!bflag)
		{
			m_maplistexRow.insert(std::pair<int, COLORREF>(iRow, clr));
		}
	}

	void SListCtrlEx::EraseRowBackGndColor(int iRow)
	{
		auto pValue = m_maplistexRow.find(iRow);
		if (pValue != m_maplistexRow.end())
		{
			m_maplistexRow.erase(pValue);
		}
		Invalidate();
	}

	void SListCtrlEx::OnLButtonDown(UINT nFlags, CPoint point)
	{
		if (m_edit != nullptr)
		{
			m_edit->KillFocus();
		}
	}

	void SListCtrlEx::OnLButtonDblClk(UINT nFlags, CPoint point)
	{
		//计算鼠标点击的位置 在 列表中的是哪一行哪一列   行高：m_nItemHeight
		m_iRow = 0;
		m_iCol = 0;
		CRect rclist = GetListRect();
		CPoint pt{ 0,0 };
		pt.x = point.x - rclist.left + m_ptOrigin.x;
		pt.y = point.y - rclist.top + m_ptOrigin.y;
		int WidthHead = 0;
		int WidthBack = 0;

		//判断第几行 在重写了左键按下事件后 就无法使用基类中给出的选中第几行的那个变量了
		for (int i = 0; i < GetItemCount(); ++i)
		{
			WidthBack = WidthHead + m_nItemHeight;
			if (pt.y > WidthHead && pt.y < WidthBack)
			{
				m_iRow = i;
				break;
			}
			WidthHead = WidthBack;
		}

		WidthHead = 0;
		WidthBack = 0;
		//获取第几列
		for (int i = 0; i < GetColumnCount(); ++i)
		{
			//获取列的宽度  然后计算坐标 与 得到的坐标进行比较 判断区域
			WidthBack = WidthHead + m_pHeader->GetItemWidth(i);
			if (pt.x > WidthHead && pt.x < WidthBack)
			{
				m_iCol = i;
				break;
			}
			WidthHead = WidthBack;
		}

		//SMessageBox(NULL, SStringT().Format(L"%d,%d", m_iRow,m_iCol), L"", NULL);
		//return;

		//得到了行列 就可以得到区域
		CRect ItemRect = GetItemRect(m_iRow, m_iCol);

		wchar_t szEditAttr[] = L"<listctrlexedit transparent=\"1\" align=\"left\" mouseRelay=\"1\" colorBkgnd=\"#FFFFFF\" colorText=\"#000000\" />";
		pugi::xml_document xmlDoc;
		xmlDoc.load_buffer(szEditAttr, sizeof(szEditAttr));
		if (m_edit == nullptr)
		{
			m_edit = new ListCtrlExEdit(this);
		}

		InsertChild(m_edit);
		m_edit->InitFromXml(xmlDoc.first_child());
		ItemRect.left += 4;
		m_edit->Move(ItemRect);	//将窗口移动到指定位置
		SStringT strText = GetSubItemText(m_iRow, m_iCol);
		m_edit->SetWindowTextW(strText);
		m_edit->SetFocus();
	}

	void SListCtrlEx::OnPaint(IRenderTarget * pRT)
	{
		SPainter painter;
		BeforePaint(pRT, painter);
		CRect rcList = GetListRect();
		int nTopItem = GetTopIndex();
		pRT->PushClipRect(&rcList);
		CRect rcItem(rcList);
		pRT->DrawRectangle(rcList);

		rcItem.bottom = rcItem.top;
		int ilistitem = GetItemCount();
		rcItem.OffsetRect(0, -(m_ptOrigin.y%m_nItemHeight));
		for (int nItem = nTopItem; nItem <= (nTopItem + GetCountPerPage(TRUE)) && nItem < GetItemCount(); nItem++)
		{
			rcItem.bottom = rcItem.top + m_nItemHeight;

			DrawItem(pRT, rcItem, nItem);

			//列表中的行的线
			CPoint pts[2];
			pts[0] = { rcItem.left,  rcItem.top };
			pts[1] = { rcItem.right, rcItem.top };
			pRT->DrawLines(pts, 2);

			for (auto value : m_maplistexRow)
			{
				if (nItem == value.first)
				{
					pRT->FillSolidRect(rcItem, value.second);	//设置变色的行
					break;
				}
			}

			rcItem.top = rcItem.bottom;
		}

		pRT->PopClip();
		AfterPaint(pRT, painter);
	}

	void SListCtrlEx::DrawItem(IRenderTarget * pRT, CRect rcItem, int nItem)
	{
		BOOL bTextColorChanged = FALSE;
		int nBgImg = 0;
		COLORREF crOldText = RGBA(0xFF, 0xFF, 0xFF, 0xFF);
		COLORREF crItemBg = m_crItemBg;
		COLORREF crText = m_crText;
		DXLVITEM lvItem = m_arrItems[nItem];
		CRect rcIcon, rcText;

		if (nItem % 2)
		{
			if (CR_INVALID != m_crItemBg2)
			{
				crItemBg = m_crItemBg2;
			}
		}

		if (lvItem.checked)
		{
			if (m_pItemSkin != NULL)
			{
				nBgImg = 2;
			}
			else if (CR_INVALID != m_crItemSelBg)
			{
				crItemBg = m_crItemSelBg;
			}

			if (CR_INVALID != m_crSelText)
			{
				crText = m_crSelText;
			}
		}
		else if (m_bHotTrack && nItem == m_nHoverItem)
		{
			if (m_pItemSkin != NULL)
			{
				nBgImg = 1;
			}
			else if (CR_INVALID != m_crItemHotBg)
			{
				crItemBg = m_crItemHotBg;
			}

			if (CR_INVALID != m_crSelText)
			{
				crText = m_crSelText;
			}
		}

		//绘制背景
		if (CR_INVALID != crItemBg)//先画背景
		{
			pRT->FillSolidRect(rcItem, crItemBg);
		}

		if (m_pItemSkin != NULL)//有skin，则覆盖背景
		{
			m_pItemSkin->Draw(pRT, rcItem, nBgImg);
		}


		//  左边加上空白
		rcItem.left += 4;

		if (CR_INVALID != crText)
		{
			bTextColorChanged = TRUE;
			crOldText = pRT->SetTextColor(crText);
		}

		CRect rcCol(rcItem);
		rcCol.right = rcCol.left;
		rcCol.OffsetRect(-m_ptOrigin.x, 0);

		for (int nCol = 0; nCol < GetColumnCount(); nCol++)
		{
			CRect rcVisiblePart;

			SHDITEM hdi;
			hdi.mask = SHDI_WIDTH | SHDI_ORDER;
			m_pHeader->GetItem(nCol, &hdi);
			rcCol.left = rcCol.right;
			rcCol.right = rcCol.left + hdi.cx.toPixelSize(GetScale());

			rcVisiblePart.IntersectRect(rcItem, rcCol);

			if (rcVisiblePart.IsRectEmpty())
			{
				continue;
			}

			// 绘制 checkbox
			if (nCol == 0 && m_bCheckBox && m_pCheckSkin)
			{
				CSize sizeSkin = m_pCheckSkin->GetSkinSize();
				int nOffsetX = 3;
				int nOffsetY = (m_nItemHeight - sizeSkin.cy) / 2;
				CRect rcCheck;
				rcCheck.SetRect(0, 0, sizeSkin.cx, sizeSkin.cy);
				rcCheck.OffsetRect(rcCol.left + nOffsetX, rcCol.top + nOffsetY);
				m_pCheckSkin->Draw(pRT, rcCheck, lvItem.checked ? 4 : 0);

				rcCol.left = sizeSkin.cx + 6 + rcCol.left;
			}

			DXLVSUBITEM& subItem = lvItem.arSubItems->GetAt(hdi.iOrder);

			if (subItem.nImage != -1 && m_pIconSkin)
			{
				int nOffsetX = m_ptIcon.x;
				int nOffsetY = m_ptIcon.y;
				CSize sizeSkin = m_pIconSkin->GetSkinSize();
				rcIcon.SetRect(0, 0, sizeSkin.cx, sizeSkin.cy);

				if (m_ptIcon.x == -1)
				{
					nOffsetX = m_nItemHeight / 6;
				}

				if (m_ptIcon.y == -1)
				{
					nOffsetY = (m_nItemHeight - sizeSkin.cy) / 2;
				}

				rcIcon.OffsetRect(rcCol.left + nOffsetX, rcCol.top + nOffsetY);
				m_pIconSkin->Draw(pRT, rcIcon, subItem.nImage);
			}

			UINT align = DT_SINGLELINE;
			rcText = rcCol;

			if (m_ptText.x == -1)
			{
				rcText.left = rcIcon.Width() > 0 ? rcIcon.right + m_nItemHeight / 6 : rcCol.left;
			}
			else
			{
				rcText.left = rcCol.left + m_ptText.x;
			}

			if (m_ptText.y == -1)
			{
				align |= DT_VCENTER;
			}
			else
			{
				rcText.top = rcCol.top + m_ptText.y;
			}

			pRT->DrawText(subItem.strText, subItem.cchTextMax, rcText, align);

			//划线 列的线段
			CPoint pt[2];
			pt[0] = { rcText.left,rcText.top };
			pt[1] = { rcText.left,rcText.bottom };
			pRT->DrawLines(pt, 2);
		}

		if (bTextColorChanged)
		{
			pRT->SetTextColor(crOldText);
		}
		CPoint pt[2];
		pt[0] = { rcText.left,rcText.top };
		pt[1] = { rcText.left,rcText.bottom };
		pRT->DrawLines(pt, 2);
	}

	void SListCtrlEx::OnSetEditText()
	{
		if (m_edit != nullptr)
		{
			SStringT strEdit = m_edit->GetWindowTextW();
			SetSubItemText(m_iRow, m_iCol, strEdit);
			m_edit->Release();
			RemoveChild(m_edit);
			m_edit = nullptr;
		}
	}
}

测试代码：

BOOL TestDlg::OnInitDialog(HWND wnd, LPARAM lInitParam)
{
	SListCtrlEx *plist = FindChildByName2<SListCtrlEx>(L"list_testlist");
	SASSERT(plist);

	int pos = 0;
	for (int i = 0; i < 10; ++i)
	{
		pos = plist->InsertItem(i, L"");
		plist->SetSubItemText(pos, 0, L"Test");
		plist->SetSubItemText(pos, 1, L"Test");
		plist->SetSubItemText(pos, 2, L"Test");
		plist->SetSubItemText(pos, 3, L"Test");
		plist->SetSubItemText(pos, 4, L"Test");
		plist->SetSubItemText(pos, 5, L"Test");
		plist->SetSubItemText(pos, 6, L"Test");
	}

	plist->SetRowBackGndColor(1);

	plist->SetRowBackGndColor(3);

	plist->SetRowBackGndColor(5);

	plist->SetRowBackGndColor(7);

	plist->SetRowBackGndColor(9);

	return 0;
}

XML ：

<listctrlex pos="16,40" size="562, 200" hotTrack="1" itemHeight="30" headerHeight="30" name="list_testlist" margin="1,1" colorBorder="#000000">
				<!-- colorBkgnd="#F8E4EA" -->
				<header align="left" itemSwapEnable="1" fixWidth="1">
					<items>
						<item width="150">name</item>
						<item width="150">age</item>
						<item width="150">score</item>
						<item width="150">age</item>
						<item width="150">score</item>
						<item width="150">age</item>
						<item width="150">score</item>
						<item width="100" />
					</items>
				</header>
			</listctrlex>

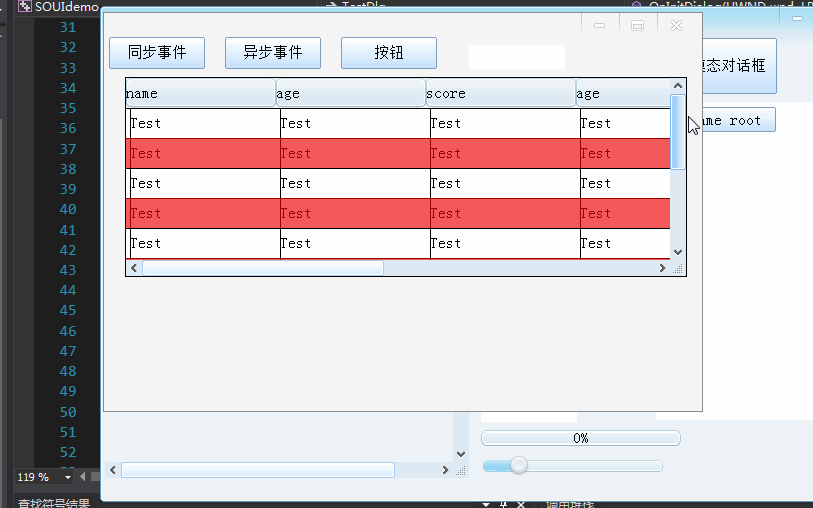

最后实现的效果：
