项目 4 —— 基于DHCPv6的PC自动获取地址

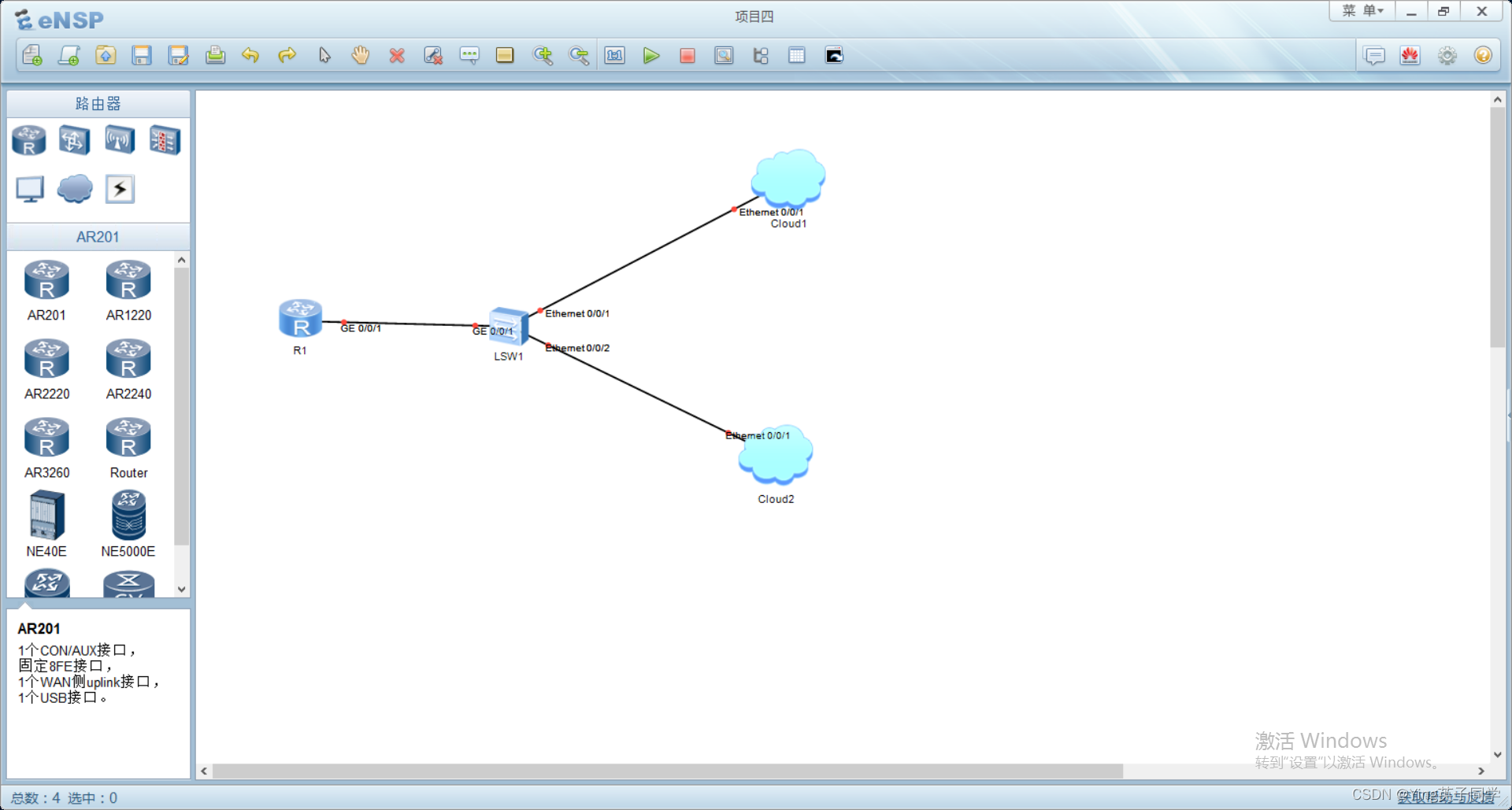

实训拓扑图如下

具体相关配置如下

交换机

LSW1

#
sysname Huawei
#
ipv6
#
vlan batch 10 20
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
dhcp enable
#
diffserv domain default
#
drop-profile default
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password simple admin
 local-user admin service-type http
#
interface Vlanif1
#
interface MEth0/0/1
#
interface Ethernet0/0/1
 port link-type access
 port default vlan 10
#
interface Ethernet0/0/2
 port link-type access
 port default vlan 20
#
interface Ethernet0/0/3
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface Ethernet0/0/8
#
interface Ethernet0/0/9
#
interface Ethernet0/0/10
#
interface Ethernet0/0/11
#
interface Ethernet0/0/12
#
interface Ethernet0/0/13
#
interface Ethernet0/0/14
#
interface Ethernet0/0/15
#
interface Ethernet0/0/16
#
interface Ethernet0/0/17
#
interface Ethernet0/0/18
#
interface Ethernet0/0/19
#
interface Ethernet0/0/20
#
interface Ethernet0/0/21
#
interface Ethernet0/0/22
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 10 20
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return

路由器

AR1

#
sysname Huawei
#
ipv6
#
vlan batch 10 20
#
dhcp enable
#
dhcpv6 pool 10
 address prefix 2010::/64
 excluded-address 2010::1
 dns-server 2400:3200::1
#
dhcpv6 pool 20
 address prefix 2020::/64
 excluded-address 2020::1
 dns-server 2400:DA00::6666
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher OOCM4m($F4ajUn1vMEIBNUw#
 local-user admin service-type http
#
firewall zone Local
 priority 16
#
interface Vlanif10
 ipv6 enable
 ipv6 address 2010::27/64
 undo ipv6 nd ra halt
 ipv6 nd autoconfig managed-address-flag
 dhcpv6 server 10
#
interface Vlanif20
 ipv6 enable
 ipv6 address 2020::27/64
 undo ipv6 nd ra halt
 ipv6 nd autoconfig managed-address-flag
 dhcpv6 server 20
#
interface Ethernet0/0/0
#
interface Ethernet0/0/1
#
interface Serial0/0/0
 link-protocol ppp
#
interface Serial0/0/1
 link-protocol ppp
#
interface Serial0/0/2
 link-protocol ppp
#
interface Serial0/0/3
 link-protocol ppp
#
interface GigabitEthernet0/0/0
#
interface GigabitEthernet0/0/1
 portswitch
 port link-type trunk
 port trunk allow-pass vlan 10 20
#
interface GigabitEthernet0/0/2
#
interface GigabitEthernet0/0/3
#
wlan
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
user-interface vty 16 20
#
return

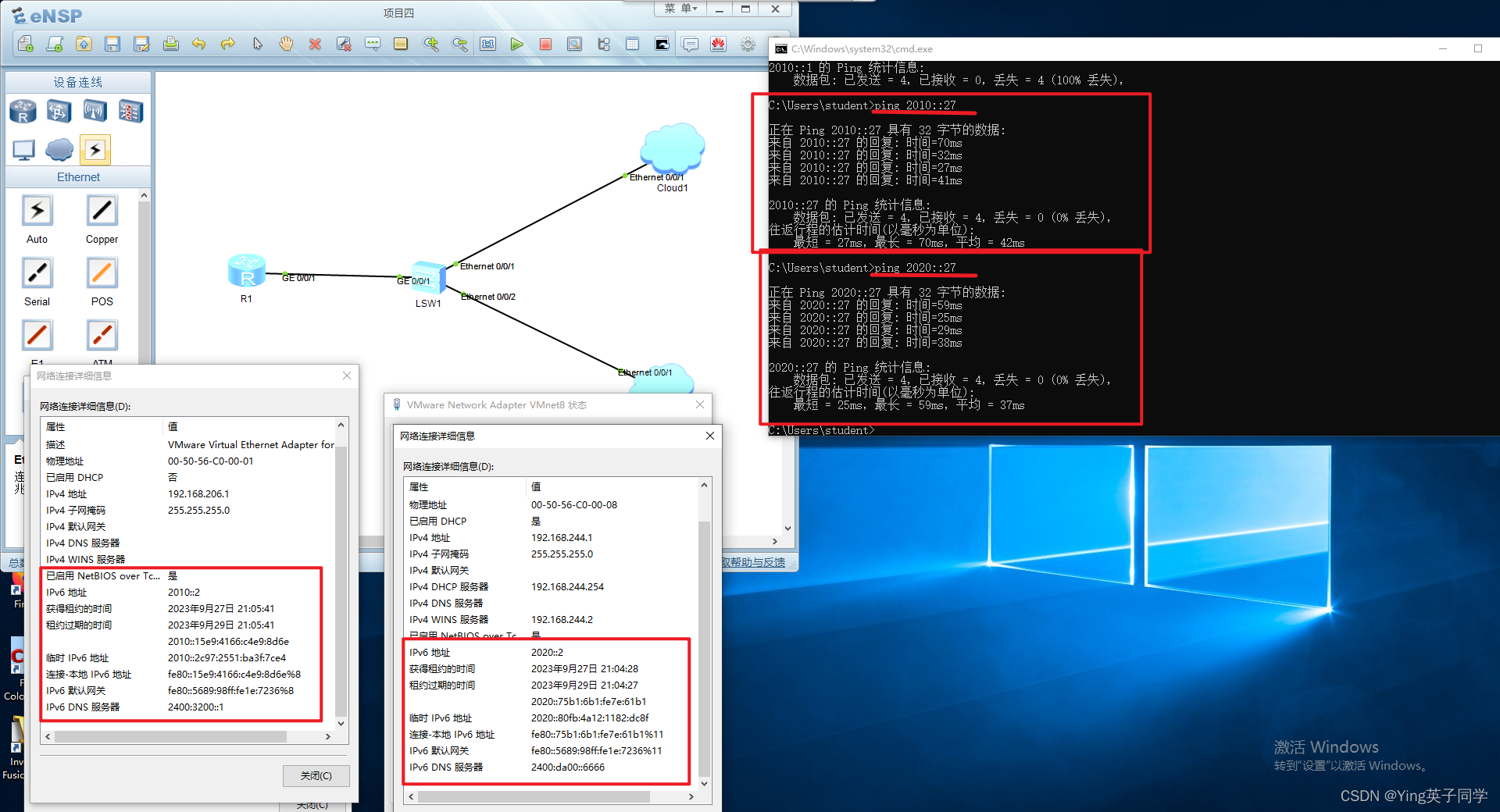

项目验证如下：
